E DATA PROJECTOR XJ-S31/XJ-S36 XJ-S41/XJ-S46 User’s Guide Be sure to read the precautions in the separate User’s Guide (Basic Operation). For details about setting up the projector and lamp replacement, see the User’s Guide (Basic Operation). Be sure to keep all user documentation handy for future reference.

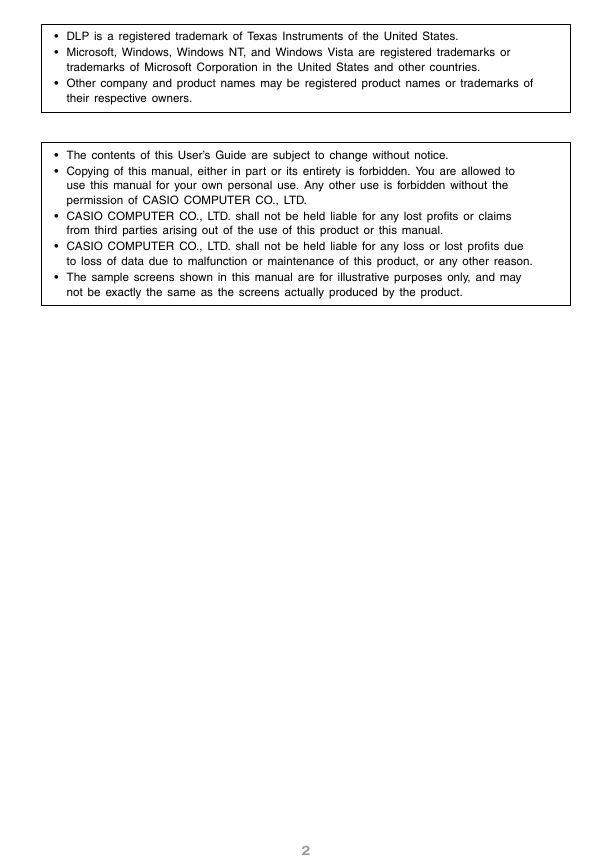

DLP is a registered trademark of Texas Instruments of the United States. Microsoft, Windows, Windows NT, and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Other company and product names may be registered product names or trademarks of their respective owners. The contents of this User’s Guide are subject to change without notice. Copying of this manual, either in part or its entirety is forbidden. You are allowed to use this manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD. CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising out of the use of this product or this manual. CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data due to malfunction or maintenance of this product, or any other reason. The sample screens shown in this manual are for illustrative purposes only, and may not be exactly the same as the screens actually produced by the product. 2

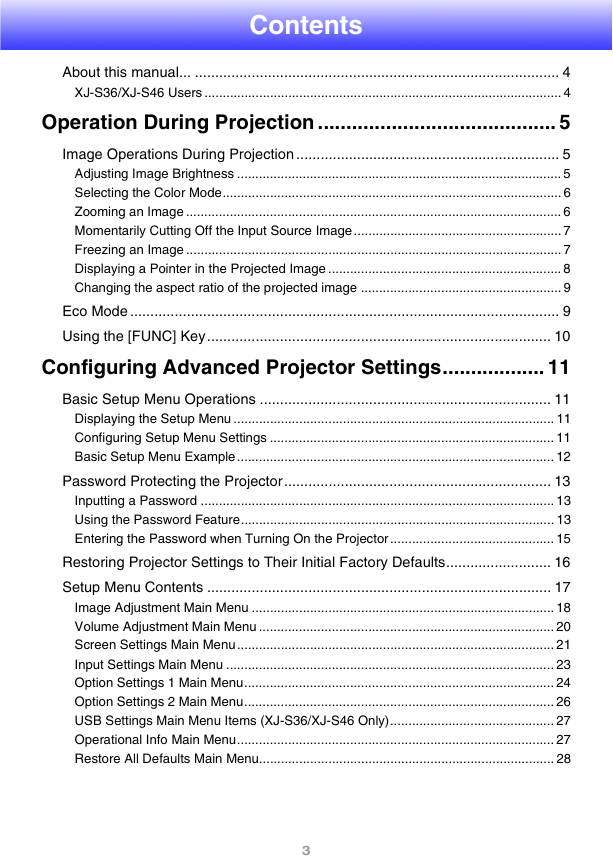

Contents About this manual... .......................................................................................... 4 XJ-S36/XJ-S46 Users .................................................................................................. 4 Operation During Projection .......................................... 5 Image Operations During Projection ................................................................. 5 Adjusting Image Brightness ......................................................................................... 5 Selecting the Color Mode............................................................................................. 6 Zooming an Image ....................................................................................................... 6 Momentarily Cutting Off the Input Source Image ......................................................... 7 Freezing an Image ....................................................................................................... 7 Displaying a Pointer in the Projected Image ................................................................ 8 Changing the aspect ratio of the projected image ....................................................... 9 Eco Mode .......................................................................................................... 9 Using the [FUNC] Key..................................................................................... 10 Configuring Advanced Projector Settings.................. 11 Basic Setup Menu Operations ........................................................................ 11 Displaying the Setup Menu ........................................................................................ 11 Configuring Setup Menu Settings .............................................................................. 11 Basic Setup Menu Example....................................................................................... 12 Password Protecting the Projector.................................................................. 13 Inputting a Password ................................................................................................. 13 Using the Password Feature...................................................................................... 13 Entering the Password when Turning On the Projector ............................................. 15 Restoring Projector Settings to Their Initial Factory Defaults.......................... 16 Setup Menu Contents ..................................................................................... 17 Image Adjustment Main Menu ................................................................................... 18 Volume Adjustment Main Menu ................................................................................. 20 Screen Settings Main Menu....................................................................................... 21 Input Settings Main Menu .......................................................................................... 23 Option Settings 1 Main Menu..................................................................................... 24 Option Settings 2 Main Menu..................................................................................... 26 USB Settings Main Menu Items (XJ-S36/XJ-S46 Only)............................................. 27 Operational Info Main Menu....................................................................................... 27 Restore All Defaults Main Menu................................................................................. 28 3

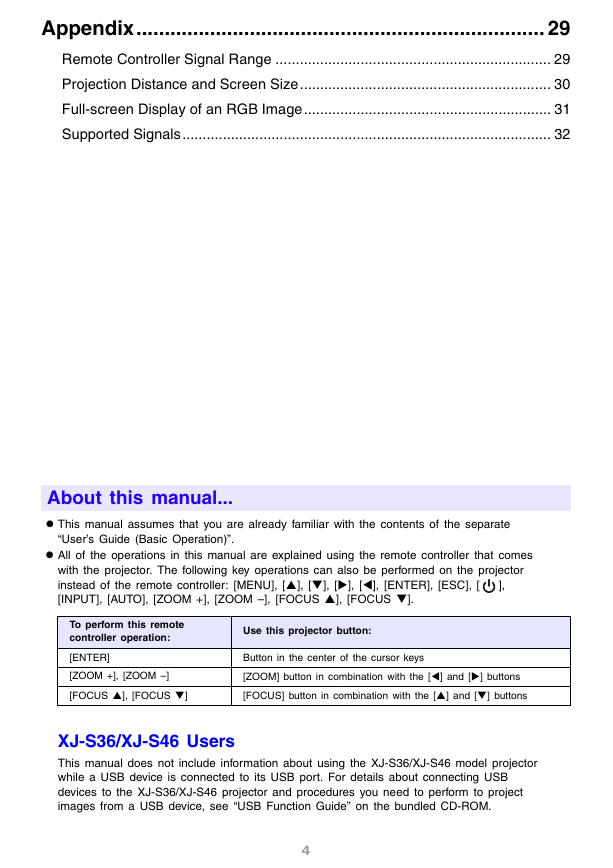

Appendix........................................................................ 29 Remote Controller Signal Range .................................................................... 29 Projection Distance and Screen Size.............................................................. 30 Full-screen Display of an RGB Image............................................................. 31 Supported Signals........................................................................................... 32 About this manual... This manual assumes that you are already familiar with the contents of the separate “User’s Guide (Basic Operation)”. All of the operations in this manual are explained using the remote controller that comes with the projector. The following key operations can also be performed on the projector instead of the remote controller: [MENU], [], [], [], [], [ENTER], [ESC], [ [INPUT], [AUTO], [ZOOM +], [ZOOM –], [FOCUS ], [FOCUS ]. ], To perform this remote controller operation: [ENTER] [ZOOM +], [ZOOM –] Use this projector button: Button in the center of the cursor keys [ZOOM] button in combination with the [] and [] buttons [FOCUS ], [FOCUS ] [FOCUS] button in combination with the [] and [] buttons XJ-S36/XJ-S46 Users This manual does not include information about using the XJ-S36/XJ-S46 model projector while a USB device is connected to its USB port. For details about connecting USB devices to the XJ-S36/XJ-S46 projector and procedures you need to perform to project images from a USB device, see “USB Function Guide” on the bundled CD-ROM. 4

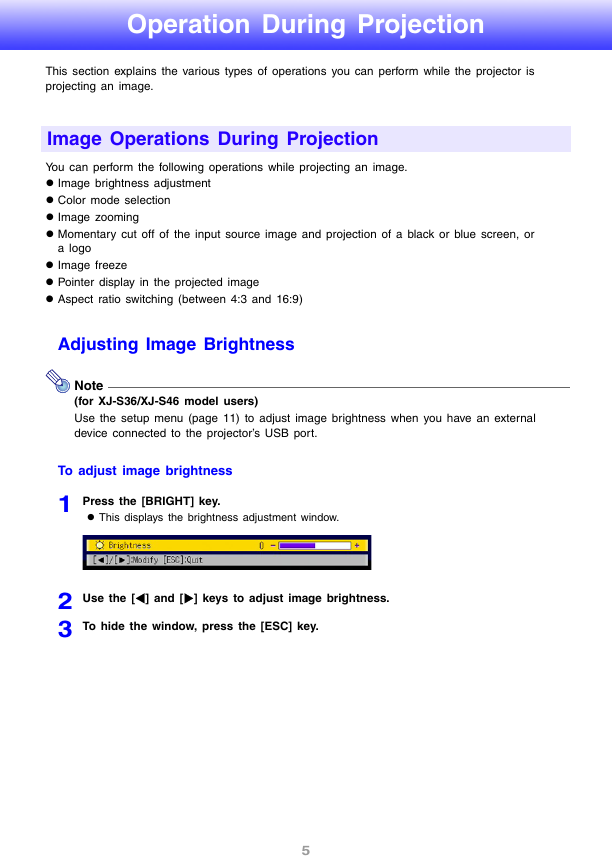

Operation During Projection This section explains the various types of operations you can perform while the projector is projecting an image. Image Operations During Projection You can perform the following operations while projecting an image. Image brightness adjustment Color mode selection Image zooming Momentary cut off of the input source image and projection of a black or blue screen, or a logo Image freeze Pointer display in the projected image Aspect ratio switching (between 4:3 and 16:9) Adjusting Image Brightness Note (for XJ-S36/XJ-S46 model users) Use the setup menu (page 11) to adjust image brightness when you have an external device connected to the projector’s USB port. To adjust image brightness 1 Press the [BRIGHT] key. This displays the brightness adjustment window. 2 Use the [] and [] keys to adjust image brightness. 3 To hide the window, press the [ESC] key. 5

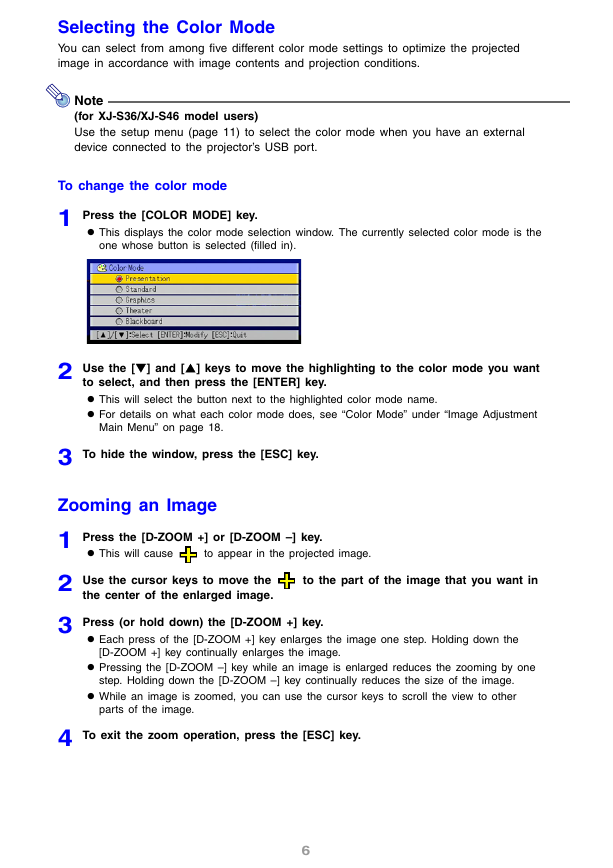

Selecting the Color Mode You can select from among five different color mode settings to optimize the projected image in accordance with image contents and projection conditions. Note (for XJ-S36/XJ-S46 model users) Use the setup menu (page 11) to select the color mode when you have an external device connected to the projector’s USB port. To change the color mode 1 Press the [COLOR MODE] key. This displays the color mode selection window. The currently selected color mode is the one whose button is selected (filled in). 2 Use the [] and [] keys to move the highlighting to the color mode you want to select, and then press the [ENTER] key. This will select the button next to the highlighted color mode name. For details on what each color mode does, see “Color Mode” under “Image Adjustment Main Menu” on page 18. 3 To hide the window, press the [ESC] key. Zooming an Image 1 Press the [D-ZOOM +] or [D-ZOOM –] key. This will cause to appear in the projected image. 2 Use the cursor keys to move the the center of the enlarged image. to the part of the image that you want in 3 Press (or hold down) the [D-ZOOM +] key. Each press of the [D-ZOOM +] key enlarges the image one step. Holding down the [D-ZOOM +] key continually enlarges the image. Pressing the [D-ZOOM –] key while an image is enlarged reduces the zooming by one step. Holding down the [D-ZOOM –] key continually reduces the size of the image. While an image is zoomed, you can use the cursor keys to scroll the view to other parts of the image. 4 To exit the zoom operation, press the [ESC] key. 6

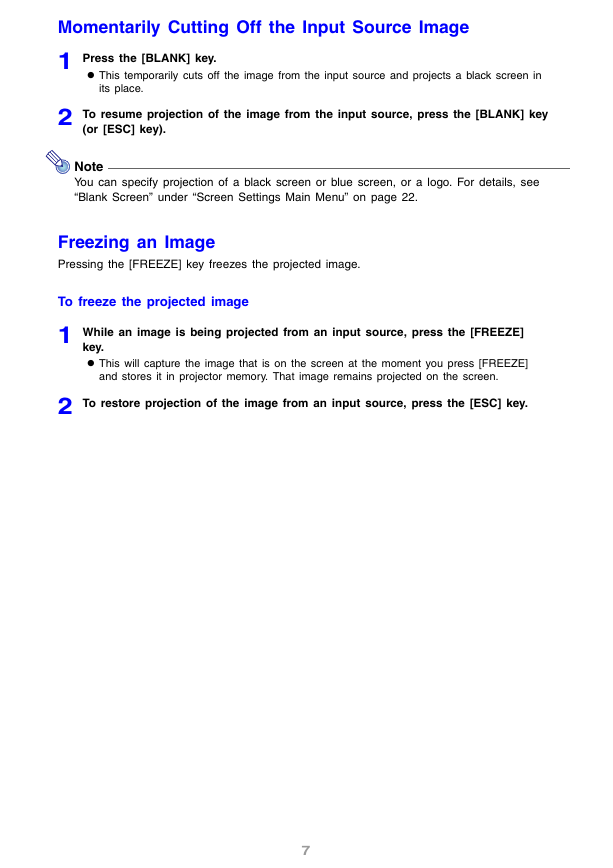

Momentarily Cutting Off the Input Source Image 1 Press the [BLANK] key. This temporarily cuts off the image from the input source and projects a black screen in its place. 2 To resume projection of the image from the input source, press the [BLANK] key (or [ESC] key). Note You can specify projection of a black screen or blue screen, or a logo. For details, see “Blank Screen” under “Screen Settings Main Menu” on page 22. Freezing an Image Pressing the [FREEZE] key freezes the projected image. To freeze the projected image 1 While an image is being projected from an input source, press the [FREEZE] key. This will capture the image that is on the screen at the moment you press [FREEZE] and stores it in projector memory. That image remains projected on the screen. 2 To restore projection of the image from an input source, press the [ESC] key. 7

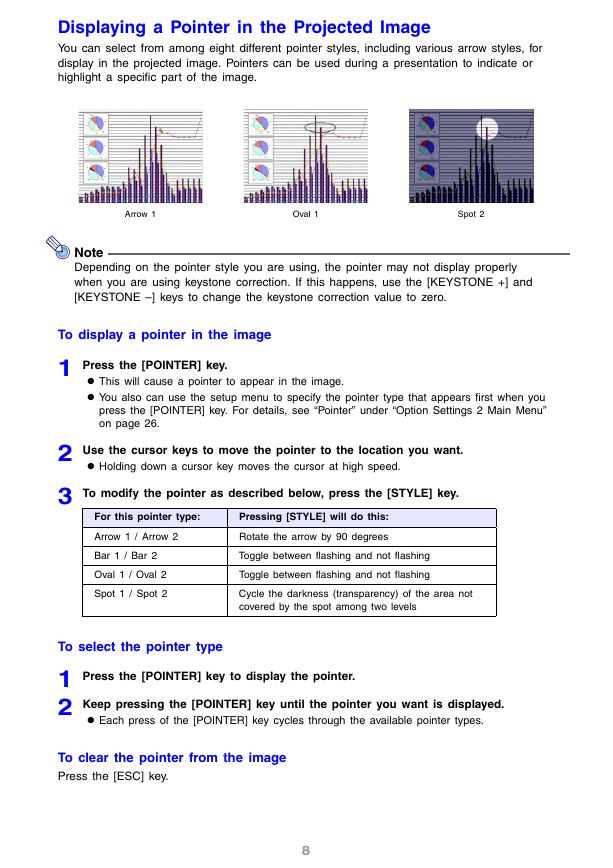

Displaying a Pointer in the Projected Image You can select from among eight different pointer styles, including various arrow styles, for display in the projected image. Pointers can be used during a presentation to indicate or highlight a specific part of the image. Arrow 1 Oval 1 Spot 2 Note Depending on the pointer style you are using, the pointer may not display properly when you are using keystone correction. If this happens, use the [KEYSTONE +] and [KEYSTONE –] keys to change the keystone correction value to zero. To display a pointer in the image 1 Press the [POINTER] key. This will cause a pointer to appear in the image. You also can use the setup menu to specify the pointer type that appears first when you press the [POINTER] key. For details, see “Pointer” under “Option Settings 2 Main Menu” on page 26. 2 Use the cursor keys to move the pointer to the location you want. Holding down a cursor key moves the cursor at high speed. 3 To modify the pointer as described below, press the [STYLE] key. For this pointer type: Pressing [STYLE] will do this: Arrow 1 / Arrow 2 Rotate the arrow by 90 degrees Bar 1 / Bar 2 Oval 1 / Oval 2 Spot 1 / Spot 2 Toggle between flashing and not flashing Toggle between flashing and not flashing Cycle the darkness (transparency) of the area not covered by the spot among two levels To select the pointer type 1 Press the [POINTER] key to display the pointer. 2 Keep pressing the [POINTER] key until the pointer you want is displayed. Each press of the [POINTER] key cycles through the available pointer types. To clear the pointer from the image Press the [ESC] key. 8
