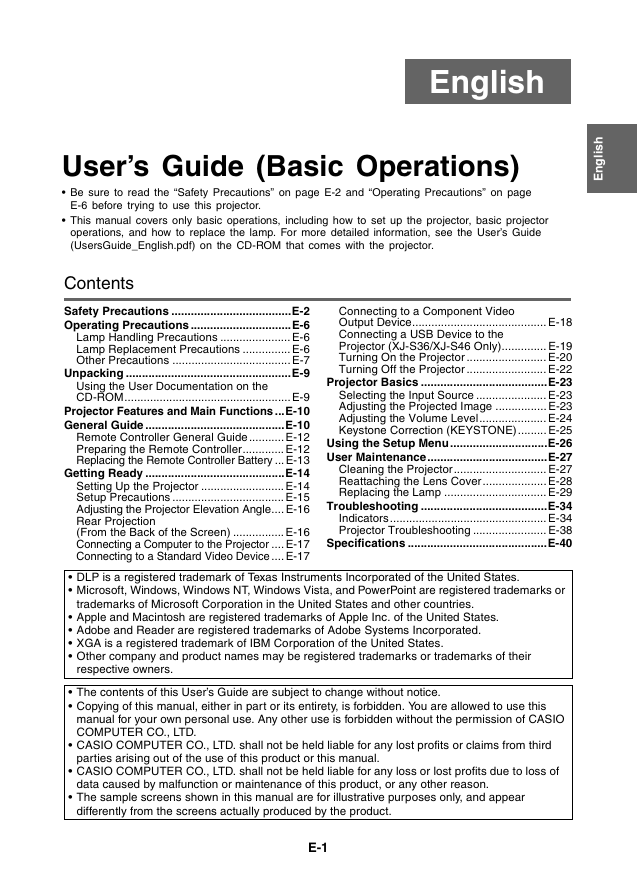

English User’s Guide (Basic Operations) Be sure to read the “Safety Precautions” on page E-2 and “Operating Precautions” on page E-6 before trying to use this projector. This manual covers only basic operations, including how to set up the projector, basic projector operations, and how to replace the lamp. For more detailed information, see the User’s Guide (UsersGuide_English.pdf) on the CD-ROM that comes with the projector. h s i l g n E Contents Safety Precautions .....................................E-2 Operating Precautions ...............................E-6 Lamp Handling Precautions ...................... E-6 Lamp Replacement Precautions ............... E-6 Other Precautions ..................................... E-7 Unpacking ...................................................E-9 Using the User Documentation on the CD-ROM....................................................E-9 Projector Features and Main Functions ...E-10 General Guide ...........................................E-10 Remote Controller General Guide........... E-12 Preparing the Remote Controller............. E-12 Replacing the Remote Controller Battery ... E-13 Getting Ready ...........................................E-14 Setting Up the Projector .......................... E-14 Setup Precautions ................................... E-15 Adjusting the Projector Elevation Angle.... E-16 Rear Projection (From the Back of the Screen) ................ E-16 Connecting a Computer to the Projector .... E-17 Connecting to a Standard Video Device .... E-17 Connecting to a Component Video Output Device.......................................... E-18 Connecting a USB Device to the Projector (XJ-S36/XJ-S46 Only).............. E-19 Turning On the Projector ......................... E-20 Turning Off the Projector ......................... E-22 Projector Basics .......................................E-23 Selecting the Input Source ...................... E-23 Adjusting the Projected Image ................ E-23 Adjusting the Volume Level..................... E-24 Keystone Correction (KEYSTONE)......... E-25 Using the Setup Menu..............................E-26 User Maintenance.....................................E-27 Cleaning the Projector............................. E-27 Reattaching the Lens Cover.................... E-28 Replacing the Lamp ................................ E-29 Troubleshooting .......................................E-34 Indicators................................................. E-34 Projector Troubleshooting ....................... E-38 Specifications ...........................................E-40 • DLP is a registered trademark of Texas Instruments Incorporated of the United States. Microsoft, Windows, Windows NT, Windows Vista, and PowerPoint are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. Apple and Macintosh are registered trademarks of Apple Inc. of the United States. Adobe and Reader are registered trademarks of Adobe Systems Incorporated. XGA is a registered trademark of IBM Corporation of the United States. Other company and product names may be registered trademarks or trademarks of their respective owners. The contents of this User’s Guide are subject to change without notice. Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD. CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising out of the use of this product or this manual. CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data caused by malfunction or maintenance of this product, or any other reason. The sample screens shown in this manual are for illustrative purposes only, and appear differently from the screens actually produced by the product. E-1

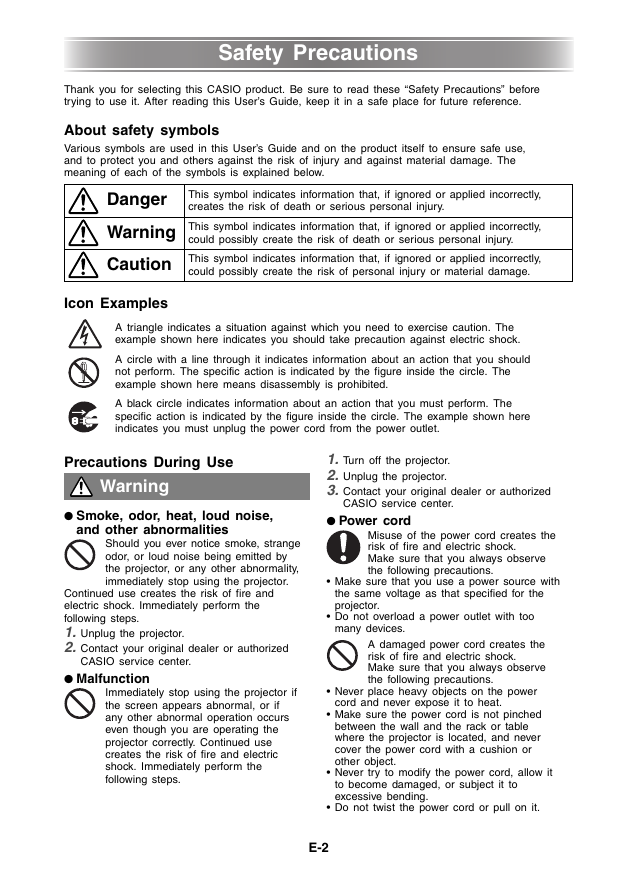

Safety Precautions Thank you for selecting this CASIO product. Be sure to read these “Safety Precautions” before trying to use it. After reading this User’s Guide, keep it in a safe place for future reference. About safety symbols Various symbols are used in this User’s Guide and on the product itself to ensure safe use, and to protect you and others against the risk of injury and against material damage. The meaning of each of the symbols is explained below. Danger This symbol indicates information that, if ignored or applied incorrectly, creates the risk of death or serious personal injury. Warning This symbol indicates information that, if ignored or applied incorrectly, could possibly create the risk of death or serious personal injury. Caution This symbol indicates information that, if ignored or applied incorrectly, could possibly create the risk of personal injury or material damage. Icon Examples A triangle indicates a situation against which you need to exercise caution. The example shown here indicates you should take precaution against electric shock. A circle with a line through it indicates information about an action that you should not perform. The specific action is indicated by the figure inside the circle. The example shown here means disassembly is prohibited. A black circle indicates information about an action that you must perform. The specific action is indicated by the figure inside the circle. The example shown here indicates you must unplug the power cord from the power outlet. Precautions During Use Warning ● Smoke, odor, heat, loud noise, and other abnormalities Should you ever notice smoke, strange odor, or loud noise being emitted by the projector, or any other abnormality, immediately stop using the projector. Continued use creates the risk of fire and electric shock. Immediately perform the following steps. 1. Unplug the projector. 2. Contact your original dealer or authorized CASIO service center. ● Malfunction Immediately stop using the projector if the screen appears abnormal, or if any other abnormal operation occurs even though you are operating the projector correctly. Continued use creates the risk of fire and electric shock. Immediately perform the following steps. 1. Turn off the projector. 2. Unplug the projector. 3. Contact your original dealer or authorized CASIO service center. ● Power cord Misuse of the power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions. Make sure that you use a power source with the same voltage as that specified for the projector. Do not overload a power outlet with too many devices. A damaged power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions. Never place heavy objects on the power cord and never expose it to heat. Make sure the power cord is not pinched between the wall and the rack or table where the projector is located, and never cover the power cord with a cushion or other object. Never try to modify the power cord, allow it to become damaged, or subject it to excessive bending. Do not twist the power cord or pull on it. E-2

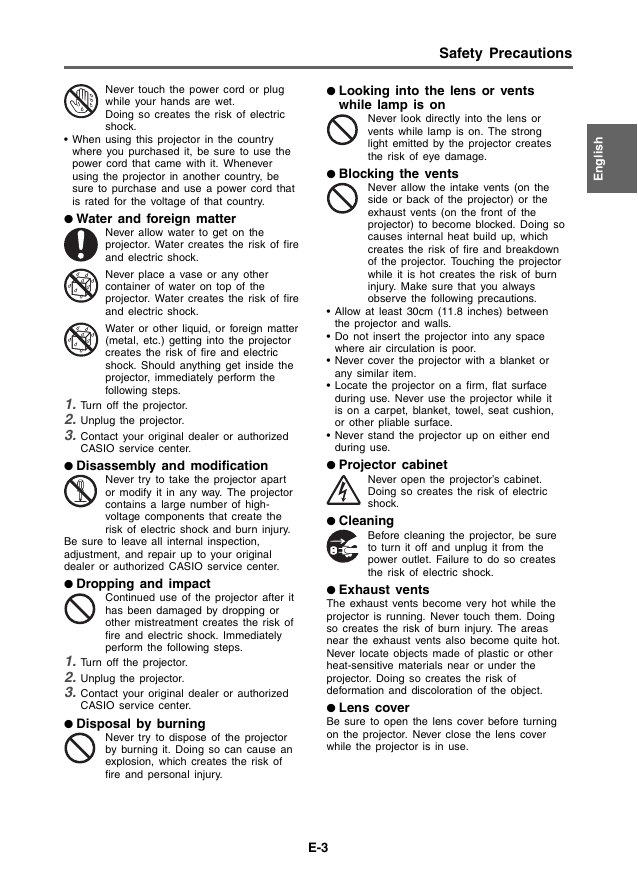

Never touch the power cord or plug while your hands are wet. Doing so creates the risk of electric shock. When using this projector in the country where you purchased it, be sure to use the power cord that came with it. Whenever using the projector in another country, be sure to purchase and use a power cord that is rated for the voltage of that country. ● Water and foreign matter Never allow water to get on the projector. Water creates the risk of fire and electric shock. Never place a vase or any other container of water on top of the projector. Water creates the risk of fire and electric shock. Water or other liquid, or foreign matter (metal, etc.) getting into the projector creates the risk of fire and electric shock. Should anything get inside the projector, immediately perform the following steps. 1. Turn off the projector. 2. Unplug the projector. 3. Contact your original dealer or authorized CASIO service center. ● Disassembly and modification Never try to take the projector apart or modify it in any way. The projector contains a large number of high- voltage components that create the risk of electric shock and burn injury. Be sure to leave all internal inspection, adjustment, and repair up to your original dealer or authorized CASIO service center. ● Dropping and impact Continued use of the projector after it has been damaged by dropping or other mistreatment creates the risk of fire and electric shock. Immediately perform the following steps. 1. Turn off the projector. 2. Unplug the projector. 3. Contact your original dealer or authorized CASIO service center. ● Disposal by burning Never try to dispose of the projector by burning it. Doing so can cause an explosion, which creates the risk of fire and personal injury. Safety Precautions ● Looking into the lens or vents while lamp is on Never look directly into the lens or vents while lamp is on. The strong light emitted by the projector creates the risk of eye damage. ● Blocking the vents h s i l g n E Never allow the intake vents (on the side or back of the projector) or the exhaust vents (on the front of the projector) to become blocked. Doing so causes internal heat build up, which creates the risk of fire and breakdown of the projector. Touching the projector while it is hot creates the risk of burn injury. Make sure that you always observe the following precautions. Allow at least 30cm (11.8 inches) between the projector and walls. Do not insert the projector into any space where air circulation is poor. Never cover the projector with a blanket or any similar item. Locate the projector on a firm, flat surface during use. Never use the projector while it is on a carpet, blanket, towel, seat cushion, or other pliable surface. Never stand the projector up on either end during use. ● Projector cabinet Never open the projector’s cabinet. Doing so creates the risk of electric shock. ● Cleaning Before cleaning the projector, be sure to turn it off and unplug it from the power outlet. Failure to do so creates the risk of electric shock. ● Exhaust vents The exhaust vents become very hot while the projector is running. Never touch them. Doing so creates the risk of burn injury. The areas near the exhaust vents also become quite hot. Never locate objects made of plastic or other heat-sensitive materials near or under the projector. Doing so creates the risk of deformation and discoloration of the object. ● Lens cover Be sure to open the lens cover before turning on the projector. Never close the lens cover while the projector is in use. E-3

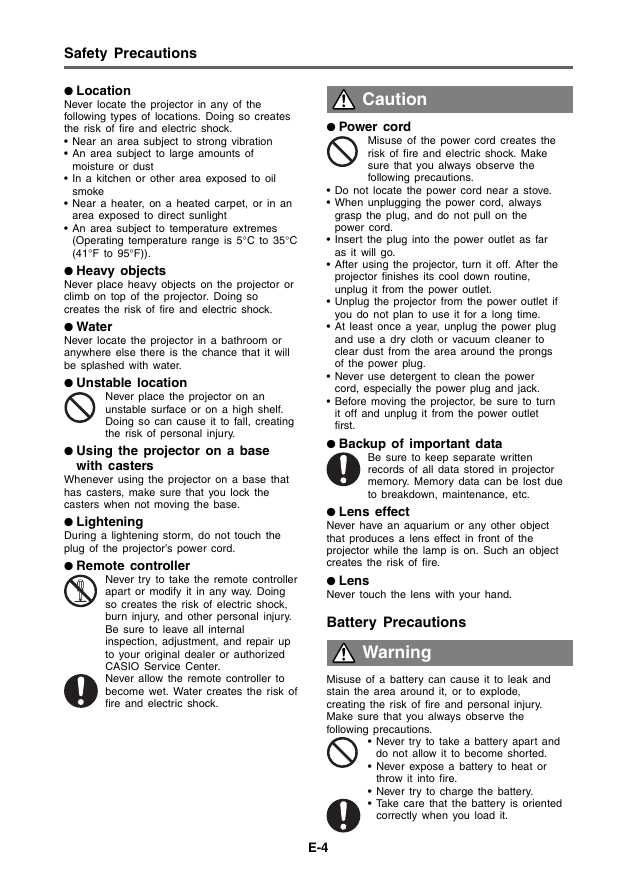

Safety Precautions ● Location Never locate the projector in any of the following types of locations. Doing so creates the risk of fire and electric shock. Near an area subject to strong vibration An area subject to large amounts of In a kitchen or other area exposed to oil moisture or dust smoke Near a heater, on a heated carpet, or in an area exposed to direct sunlight An area subject to temperature extremes (Operating temperature range is 5°C to 35°C (41°F to 95°F)). ● Heavy objects Never place heavy objects on the projector or climb on top of the projector. Doing so creates the risk of fire and electric shock. ● Water Never locate the projector in a bathroom or anywhere else there is the chance that it will be splashed with water. ● Unstable location Never place the projector on an unstable surface or on a high shelf. Doing so can cause it to fall, creating the risk of personal injury. ● Using the projector on a base with casters Whenever using the projector on a base that has casters, make sure that you lock the casters when not moving the base. ● Lightening During a lightening storm, do not touch the plug of the projector’s power cord. ● Remote controller Never try to take the remote controller apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury. Be sure to leave all internal inspection, adjustment, and repair up to your original dealer or authorized CASIO Service Center. Never allow the remote controller to become wet. Water creates the risk of fire and electric shock. Caution ● Power cord Misuse of the power cord creates the risk of fire and electric shock. Make sure that you always observe the following precautions. Do not locate the power cord near a stove. When unplugging the power cord, always grasp the plug, and do not pull on the power cord. Insert the plug into the power outlet as far as it will go. After using the projector, turn it off. After the projector finishes its cool down routine, unplug it from the power outlet. Unplug the projector from the power outlet if you do not plan to use it for a long time. At least once a year, unplug the power plug and use a dry cloth or vacuum cleaner to clear dust from the area around the prongs of the power plug. Never use detergent to clean the power cord, especially the power plug and jack. Before moving the projector, be sure to turn it off and unplug it from the power outlet first. ● Backup of important data Be sure to keep separate written records of all data stored in projector memory. Memory data can be lost due to breakdown, maintenance, etc. ● Lens effect Never have an aquarium or any other object that produces a lens effect in front of the projector while the lamp is on. Such an object creates the risk of fire. ● Lens Never touch the lens with your hand. Battery Precautions Warning Misuse of a battery can cause it to leak and stain the area around it, or to explode, creating the risk of fire and personal injury. Make sure that you always observe the following precautions. Never try to take a battery apart and do not allow it to become shorted. Never expose a battery to heat or throw it into fire. Never try to charge the battery. Take care that the battery is oriented correctly when you load it. E-4

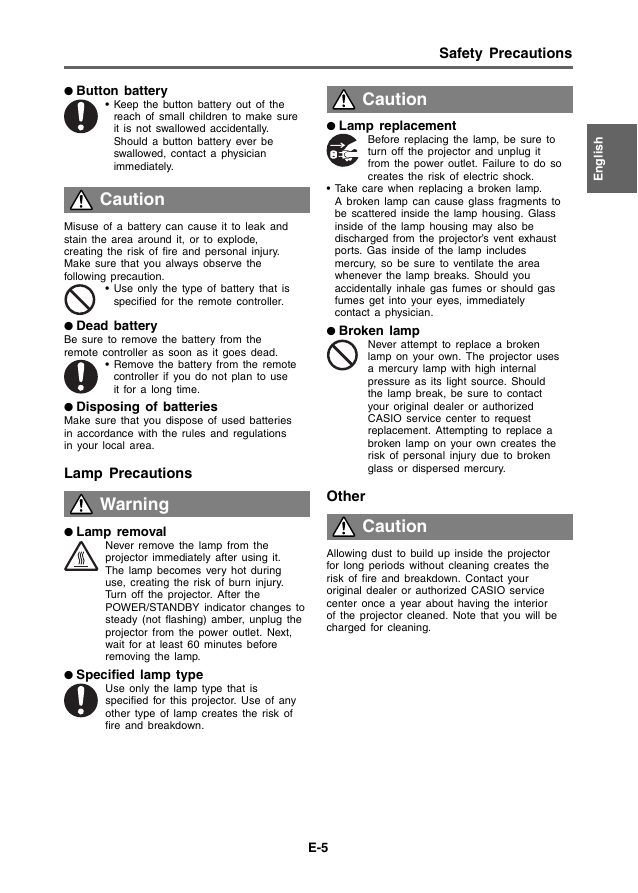

● Button battery Keep the button battery out of the reach of small children to make sure it is not swallowed accidentally. Should a button battery ever be swallowed, contact a physician immediately. Caution Misuse of a battery can cause it to leak and stain the area around it, or to explode, creating the risk of fire and personal injury. Make sure that you always observe the following precaution. Use only the type of battery that is specified for the remote controller. ● Dead battery Be sure to remove the battery from the remote controller as soon as it goes dead. Remove the battery from the remote controller if you do not plan to use it for a long time. ● Disposing of batteries Make sure that you dispose of used batteries in accordance with the rules and regulations in your local area. Lamp Precautions Warning ● Lamp removal Never remove the lamp from the projector immediately after using it. The lamp becomes very hot during use, creating the risk of burn injury. Turn off the projector. After the POWER/STANDBY indicator changes to steady (not flashing) amber, unplug the projector from the power outlet. Next, wait for at least 60 minutes before removing the lamp. ● Specified lamp type Use only the lamp type that is specified for this projector. Use of any other type of lamp creates the risk of fire and breakdown. Safety Precautions Caution ● Lamp replacement Before replacing the lamp, be sure to turn off the projector and unplug it from the power outlet. Failure to do so creates the risk of electric shock. Take care when replacing a broken lamp. A broken lamp can cause glass fragments to be scattered inside the lamp housing. Glass inside of the lamp housing may also be discharged from the projector’s vent exhaust ports. Gas inside of the lamp includes mercury, so be sure to ventilate the area whenever the lamp breaks. Should you accidentally inhale gas fumes or should gas fumes get into your eyes, immediately contact a physician. h s i l g n E ● Broken lamp Never attempt to replace a broken lamp on your own. The projector uses a mercury lamp with high internal pressure as its light source. Should the lamp break, be sure to contact your original dealer or authorized CASIO service center to request replacement. Attempting to replace a broken lamp on your own creates the risk of personal injury due to broken glass or dispersed mercury. Other Caution Allowing dust to build up inside the projector for long periods without cleaning creates the risk of fire and breakdown. Contact your original dealer or authorized CASIO service center once a year about having the interior of the projector cleaned. Note that you will be charged for cleaning. E-5

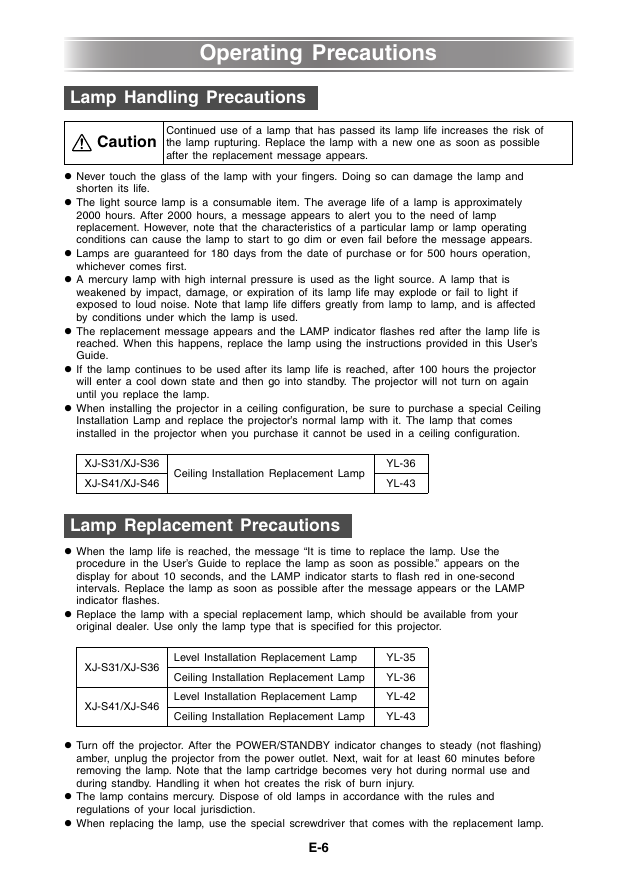

Operating Precautions Lamp Handling Precautions Caution Continued use of a lamp that has passed its lamp life increases the risk of the lamp rupturing. Replace the lamp with a new one as soon as possible after the replacement message appears. Never touch the glass of the lamp with your fingers. Doing so can damage the lamp and shorten its life. The light source lamp is a consumable item. The average life of a lamp is approximately 2000 hours. After 2000 hours, a message appears to alert you to the need of lamp replacement. However, note that the characteristics of a particular lamp or lamp operating conditions can cause the lamp to start to go dim or even fail before the message appears. Lamps are guaranteed for 180 days from the date of purchase or for 500 hours operation, whichever comes first. A mercury lamp with high internal pressure is used as the light source. A lamp that is weakened by impact, damage, or expiration of its lamp life may explode or fail to light if exposed to loud noise. Note that lamp life differs greatly from lamp to lamp, and is affected by conditions under which the lamp is used. The replacement message appears and the LAMP indicator flashes red after the lamp life is reached. When this happens, replace the lamp using the instructions provided in this User’s Guide. If the lamp continues to be used after its lamp life is reached, after 100 hours the projector will enter a cool down state and then go into standby. The projector will not turn on again until you replace the lamp. When installing the projector in a ceiling configuration, be sure to purchase a special Ceiling Installation Lamp and replace the projector’s normal lamp with it. The lamp that comes installed in the projector when you purchase it cannot be used in a ceiling configuration. XJ-S31/XJ-S36 XJ-S41/XJ-S46 Ceiling Installation Replacement Lamp YL-36 YL-43 Lamp Replacement Precautions When the lamp life is reached, the message “It is time to replace the lamp. Use the procedure in the User’s Guide to replace the lamp as soon as possible.” appears on the display for about 10 seconds, and the LAMP indicator starts to flash red in one-second intervals. Replace the lamp as soon as possible after the message appears or the LAMP indicator flashes. Replace the lamp with a special replacement lamp, which should be available from your original dealer. Use only the lamp type that is specified for this projector. XJ-S31/XJ-S36 XJ-S41/XJ-S46 Level Installation Replacement Lamp Ceiling Installation Replacement Lamp Level Installation Replacement Lamp Ceiling Installation Replacement Lamp YL-35 YL-36 YL-42 YL-43 Turn off the projector. After the POWER/STANDBY indicator changes to steady (not flashing) amber, unplug the projector from the power outlet. Next, wait for at least 60 minutes before removing the lamp. Note that the lamp cartridge becomes very hot during normal use and during standby. Handling it when hot creates the risk of burn injury. The lamp contains mercury. Dispose of old lamps in accordance with the rules and regulations of your local jurisdiction. When replacing the lamp, use the special screwdriver that comes with the replacement lamp. E-6

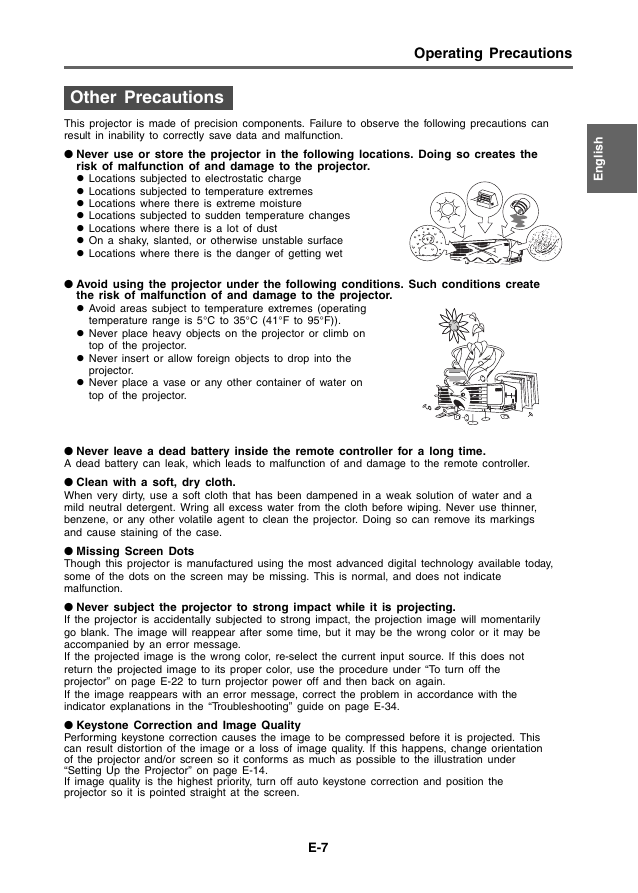

Operating Precautions Other Precautions This projector is made of precision components. Failure to observe the following precautions can result in inability to correctly save data and malfunction. ● Never use or store the projector in the following locations. Doing so creates the risk of malfunction of and damage to the projector. Locations subjected to electrostatic charge Locations subjected to temperature extremes Locations where there is extreme moisture Locations subjected to sudden temperature changes Locations where there is a lot of dust On a shaky, slanted, or otherwise unstable surface Locations where there is the danger of getting wet h s i l g n E ● Avoid using the projector under the following conditions. Such conditions create the risk of malfunction of and damage to the projector. Avoid areas subject to temperature extremes (operating temperature range is 5°C to 35°C (41°F to 95°F)). Never place heavy objects on the projector or climb on Never insert or allow foreign objects to drop into the Never place a vase or any other container of water on top of the projector. projector. top of the projector. ● Never leave a dead battery inside the remote controller for a long time. A dead battery can leak, which leads to malfunction of and damage to the remote controller. ● Clean with a soft, dry cloth. When very dirty, use a soft cloth that has been dampened in a weak solution of water and a mild neutral detergent. Wring all excess water from the cloth before wiping. Never use thinner, benzene, or any other volatile agent to clean the projector. Doing so can remove its markings and cause staining of the case. ● Missing Screen Dots Though this projector is manufactured using the most advanced digital technology available today, some of the dots on the screen may be missing. This is normal, and does not indicate malfunction. ● Never subject the projector to strong impact while it is projecting. If the projector is accidentally subjected to strong impact, the projection image will momentarily go blank. The image will reappear after some time, but it may be the wrong color or it may be accompanied by an error message. If the projected image is the wrong color, re-select the current input source. If this does not return the projected image to its proper color, use the procedure under “To turn off the projector” on page E-22 to turn projector power off and then back on again. If the image reappears with an error message, correct the problem in accordance with the indicator explanations in the “Troubleshooting” guide on page E-34. ● Keystone Correction and Image Quality Performing keystone correction causes the image to be compressed before it is projected. This can result distortion of the image or a loss of image quality. If this happens, change orientation of the projector and/or screen so it conforms as much as possible to the illustration under “Setting Up the Projector” on page E-14. If image quality is the highest priority, turn off auto keystone correction and position the projector so it is pointed straight at the screen. E-7

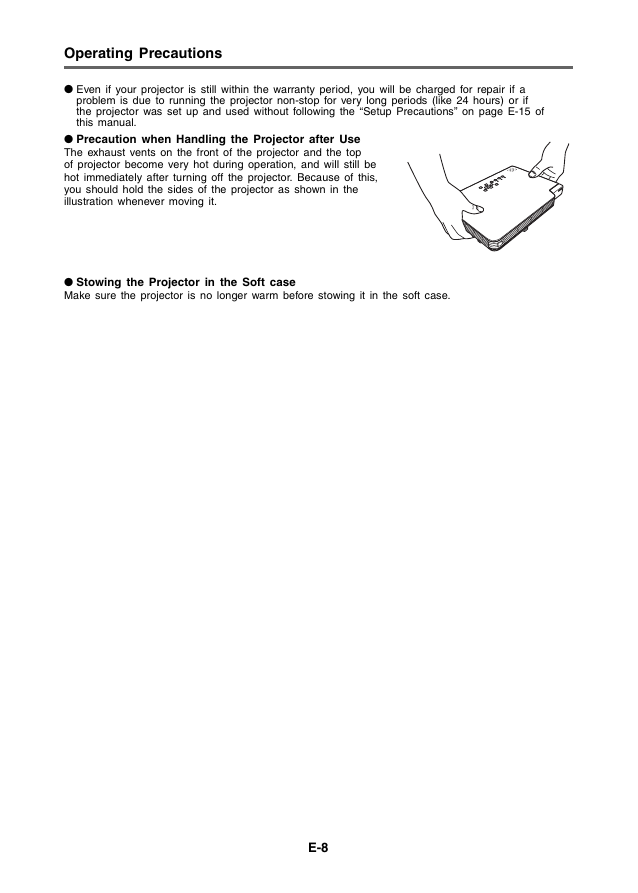

Operating Precautions ● Even if your projector is still within the warranty period, you will be charged for repair if a problem is due to running the projector non-stop for very long periods (like 24 hours) or if the projector was set up and used without following the “Setup Precautions” on page E-15 of this manual. ● Precaution when Handling the Projector after Use The exhaust vents on the front of the projector and the top of projector become very hot during operation, and will still be hot immediately after turning off the projector. Because of this, you should hold the sides of the projector as shown in the illustration whenever moving it. ● Stowing the Projector in the Soft case Make sure the projector is no longer warm before stowing it in the soft case. E-8
