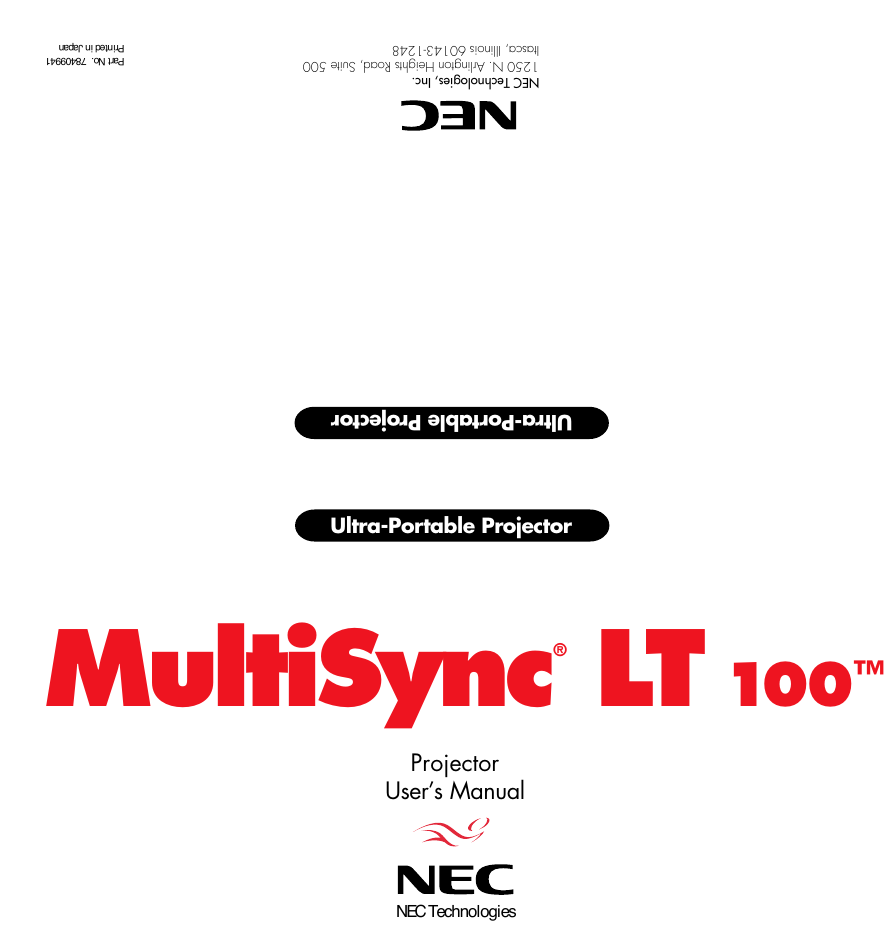

NEC投影机-LT100说明书.pdf
Printed in Japan
Part No. 78409941
Itasca, Illinois 60143-1248
1250 N. Arlington Heights Road,Suite 500
NEC Technologies, Inc.
Ultra-Portable Projector
Ultra-Portable Projector
MultiSync® LT 100™
Projector
User’s Manual
NEC Technologies

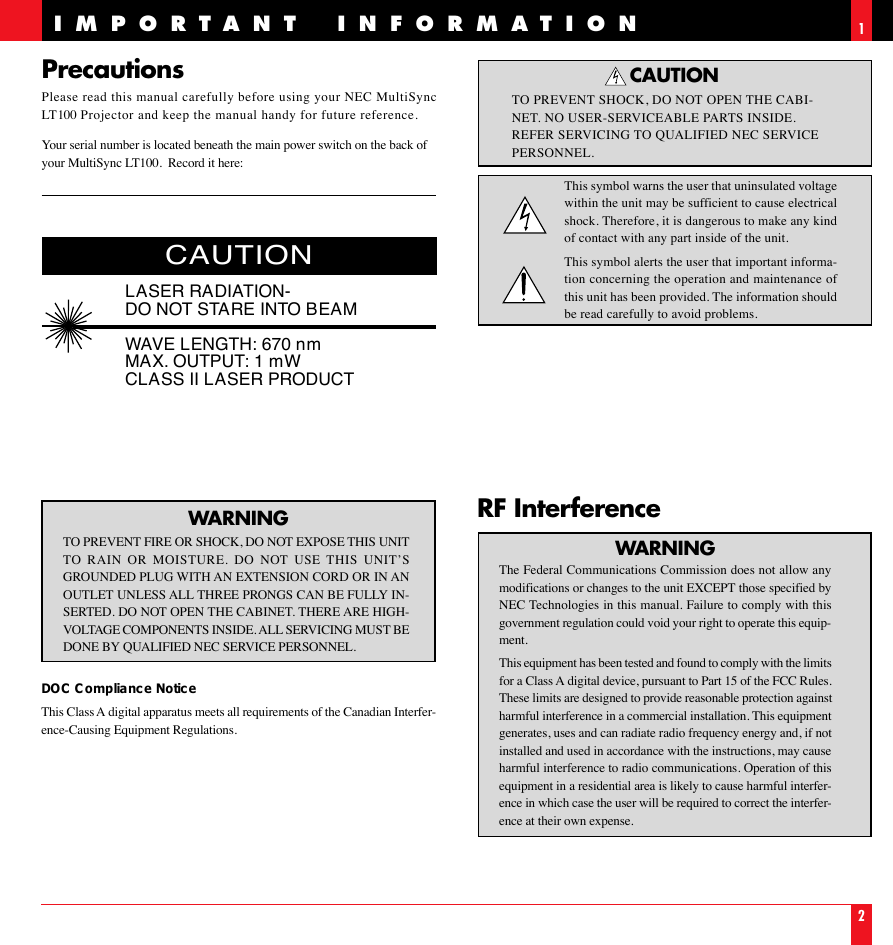

I N F O R M A T I O N
I M P O R T A N T
Precautions
Please read this manual carefully before using your NEC MultiSync
LT100 Projector and keep the manual handy for future reference.
Your serial number is located beneath the main power switch on the back of
your MultiSync LT100. Record it here:
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH: 670 nm
MAX. OUTPUT: 1 mW
CLASS II LASER PRODUCT
WARNING
TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S
GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN
OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY IN-
SERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-
VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE
DONE BY QUALIFIED NEC SERVICE PERSONNEL.
DOC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian Interfer-
ence-Causing Equipment Regulations.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABI-
NET. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED NEC SERVICE
PERSONNEL.
This symbol warns the user that uninsulated voltage
within the unit may be sufficient to cause electrical
shock. Therefore, it is dangerous to make any kind
of contact with any part inside of the unit.
This symbol alerts the user that important informa-
tion concerning the operation and maintenance of
this unit has been provided. The information should
be read carefully to avoid problems.
RF Interference
WARNING
The Federal Communications Commission does not allow any
modifications or changes to the unit EXCEPT those specified by
NEC Technologies in this manual. Failure to comply with this
government regulation could void your right to operate this equip-
ment.
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a commercial installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interfer-
ence in which case the user will be required to correct the interfer-
ence at their own expense.
1
2
3

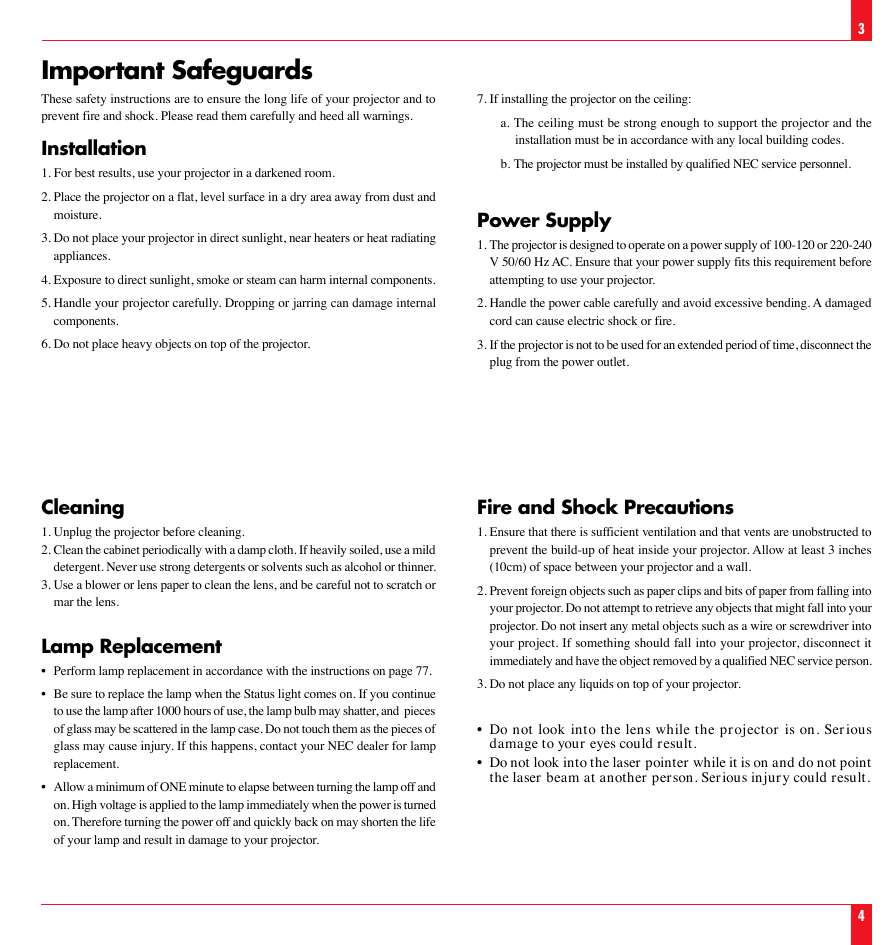

Important Safeguards
These safety instructions are to ensure the long life of your projector and to
prevent fire and shock. Please read them carefully and heed all warnings.
Installation
1. For best results, use your projector in a darkened room.
2. Place the projector on a flat, level surface in a dry area away from dust and
moisture.
3. Do not place your projector in direct sunlight, near heaters or heat radiating
appliances.
4. Exposure to direct sunlight, smoke or steam can harm internal components.
7. If installing the projector on the ceiling:
a. The ceiling must be strong enough to support the projector and the
installation must be in accordance with any local building codes.
b. The projector must be installed by qualified NEC service personnel.
Power Supply
1. The projector is designed to operate on a power supply of 100-120 or 220-240
V 50/60 Hz AC. Ensure that your power supply fits this requirement before
attempting to use your projector.
5. Handle your projector carefully. Dropping or jarring can damage internal
2. Handle the power cable carefully and avoid excessive bending. A damaged
components.
cord can cause electric shock or fire.
6. Do not place heavy objects on top of the projector.
3. If the projector is not to be used for an extended period of time, disconnect the
plug from the power outlet.
Cleaning
1. Unplug the projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild
detergent. Never use strong detergents or solvents such as alcohol or thinner.
3. Use a blower or lens paper to clean the lens, and be careful not to scratch or
mar the lens.
Lamp Replacement
• Perform lamp replacement in accordance with the instructions on page 77.
• Be sure to replace the lamp when the Status light comes on. If you continue
to use the lamp after 1000 hours of use, the lamp bulb may shatter, and pieces
of glass may be scattered in the lamp case. Do not touch them as the pieces of
glass may cause injury. If this happens, contact your NEC dealer for lamp
replacement.
• Allow a minimum of ONE minute to elapse between turning the lamp off and
on. High voltage is applied to the lamp immediately when the power is turned
on. Therefore turning the power off and quickly back on may shorten the life
of your lamp and result in damage to your projector.
Fire and Shock Precautions
1. Ensure that there is sufficient ventilation and that vents are unobstructed to
prevent the build-up of heat inside your projector. Allow at least 3 inches
(10cm) of space between your projector and a wall.
2. Prevent foreign objects such as paper clips and bits of paper from falling into
your projector. Do not attempt to retrieve any objects that might fall into your
projector. Do not insert any metal objects such as a wire or screwdriver into
your project. If something should fall into your projector, disconnect it
immediately and have the object removed by a qualified NEC service person.
3. Do not place any liquids on top of your projector.
• Do not look into the lens while the projector is on. Serious
damage to your eyes could result.
• Do not look into the laser pointer while it is on and do not point
the laser beam at another person. Serious injury could result.
4

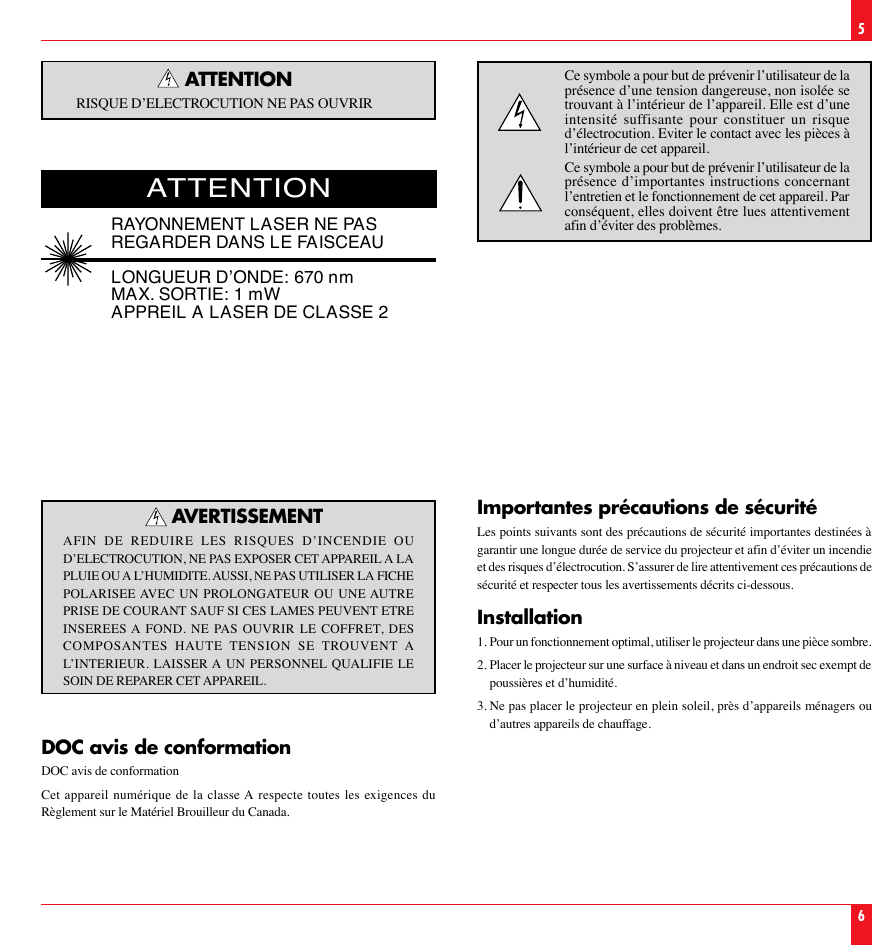

ATTENTION
RISQUE D’ELECTROCUTION NE PAS OUVRIR
ATTENTION
RAYONNEMENT LASER NE PAS
REGARDER DANS LE FAISCEAU
LONGUEUR D’ONDE: 670 nm
MAX. SORTIE: 1 mW
APPREIL A LASER DE CLASSE 2
5
Ce symbole a pour but de prévenir l’utilisateur de la
présence d’une tension dangereuse, non isolée se
trouvant à l’intérieur de l’appareil. Elle est d’une
intensité suffisante pour constituer un risque
d’électrocution. Eviter le contact avec les pièces à
l’intérieur de cet appareil.
Ce symbole a pour but de prévenir l’utilisateur de la
présence d’importantes instructions concernant
l’entretien et le fonctionnement de cet appareil. Par
conséquent, elles doivent être lues attentivement
afin d’éviter des problèmes.
AVERTISSEMENT
AFIN DE REDUIRE LES RISQUES D’INCENDIE OU
D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL A LA
PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE
POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE
PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE
INSEREES A FOND. NE PAS OUVRIR LE COFFRET, DES
COMPOSANTES HAUTE TENSION SE TROUVENT A
L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE
SOIN DE REPARER CET APPAREIL.
DOC avis de conformation
DOC avis de conformation
Cet appareil numérique de la classe A respecte toutes les exigences du
Règlement sur le Matériel Brouilleur du Canada.
Importantes précautions de sécurité
Les points suivants sont des précautions de sécurité importantes destinées à
garantir une longue durée de service du projecteur et afin d’éviter un incendie
et des risques d’électrocution. S’assurer de lire attentivement ces précautions de
sécurité et respecter tous les avertissements décrits ci-dessous.
Installation
1. Pour un fonctionnement optimal, utiliser le projecteur dans une pièce sombre.
2. Placer le projecteur sur une surface à niveau et dans un endroit sec exempt de
poussières et d’humidité.
3. Ne pas placer le projecteur en plein soleil, près d’appareils ménagers ou
d’autres appareils de chauffage.
6
4. La fumée, la vapeur et l’exposition aux rayons directs du soleil risquent de
3. Si le projecteur n’est pas utilisé pendant une période prolongée, retirer la fiche
détériorer sérieusement les composantes internes.
de la prise secteur.
7
5. Eviter des manipulations brusques lors du déplacement du projecteur, car un
choc violent pourrait endommager les composantes internes.
6. Ne pas deposer d’objets lourds sur le dessus du projecteur.
7. Lors de l’installation du projecteur au plafond, respecter les instructions
suivantes.
a. Le plafond doit être suffisamment solide pour supporter le poids du
projecteur et il doit être installé selon les codes de construction locaux.
b. Le projecteur doit être installé par un personnel qualifié.
Alimentation
1. Le projecteur est conçu pour fonctionner à 100-120 ou 220-240VCA 50/
60Hz. S’assurer que la tension d’alimentation locale satisfait cette exigence
avant d’utiliser le projecteur.
2. Manipuler le câble d’alimentation avec précaution et éviter de le plier
excessivement. Un cordon endommagé risque de provoquer une
électrocution ou un incendie.
Remplacement de la lampe
• Effectuer le remplacement de la lampe suivant les instructions de la page 81.
• Assurez-vous de bien remplacer la lampe lorsque le voyant d’usure
s’allume. Si vous continuez d’utiliser la lampe après 1000 heures
d’utilisation, l’ampoule peut se briser et des brisures de verre peuvent être
éparpillées dans le compartiment de la lampe. Ne les touchez pas car elles
peuvent vous blesser. Dans ce cas, contactez votre revendeur NEC afin de
procéder au remplacement de la lampe.
• Attendez minimum UNE minute après avoir éteint la lampe avant de la
rallumer. Une haute tension est immédiatement appliquée à la lampe quand
celle-ci est mise sous tension. Par conséquent, éteindre, puis tout de suite
rallumer peut abréger la vie de votre lampe et endommager votre projecteur.
Précautions pour éviter un incendie ou
une électrocution
1. Une ventilation appropriée doit être assurée afin d’éviter une accumulation
de chaleur à l’intérieur du projecteur. S’assurer que les trous de ventilation ne
sont pas obstrués. Laisser un espace d’au moins 10 cm (quatre pouces) entre
le projecteur et les murs.
Nettoyage
1. Débrancher le projecteur de la prise d’alimentation avant le nettoyage.
2. Nettoyer régulièrement le coffret avec un chiffon doux. S’il y a des taches
tenaces, utiliser une solution d’un détergent doux. Ne jamais utiliser de
détergents puissants ou des solvants, tel que l’alcool ou un diluant pour
nettoyer le projecteur.
3. Utiliser un appareil diffuseur chauffant ou du papier de nettoyage de lentille
disponible dans le commerce pour nettoyer la lentille.
Ne pas frapper ou rayer la surface de la lentille, car des défauts risquent de se
produire sur la surface de la lentille.
2. Eviter que des objets étrangers, des agrafes, des clous et du papier, par
exemple, pénètrent à l’intérieur du projecteur. Ne pas essayer de récupérer
ces objets soi-même ou ne pas insérer des objets métalliques, des fils et des
tourne-vis, par exemple à l’intérieur du projecteur. Si un objet tombe à
l’intérieur du projecteur, le débrancher immédiatement et contacter un
dépanneur qualifié pour retirer l’objet.
3. Ne pas placer des liquides sur le dessus du projecteur.
• Ne regardez pas à l’intérieur de l’objectif lorsque le projecteur
est en marche. Vous risquez de vous blesser gravement aux
yeux.
• Ne regardez pas à l’intérieur de la flèche laser lorsque celle-ci
est en marche et ne dirigez pas le rayon laser sur une autre
personne. Vous risquez de provoquer ue blessure grave.
8

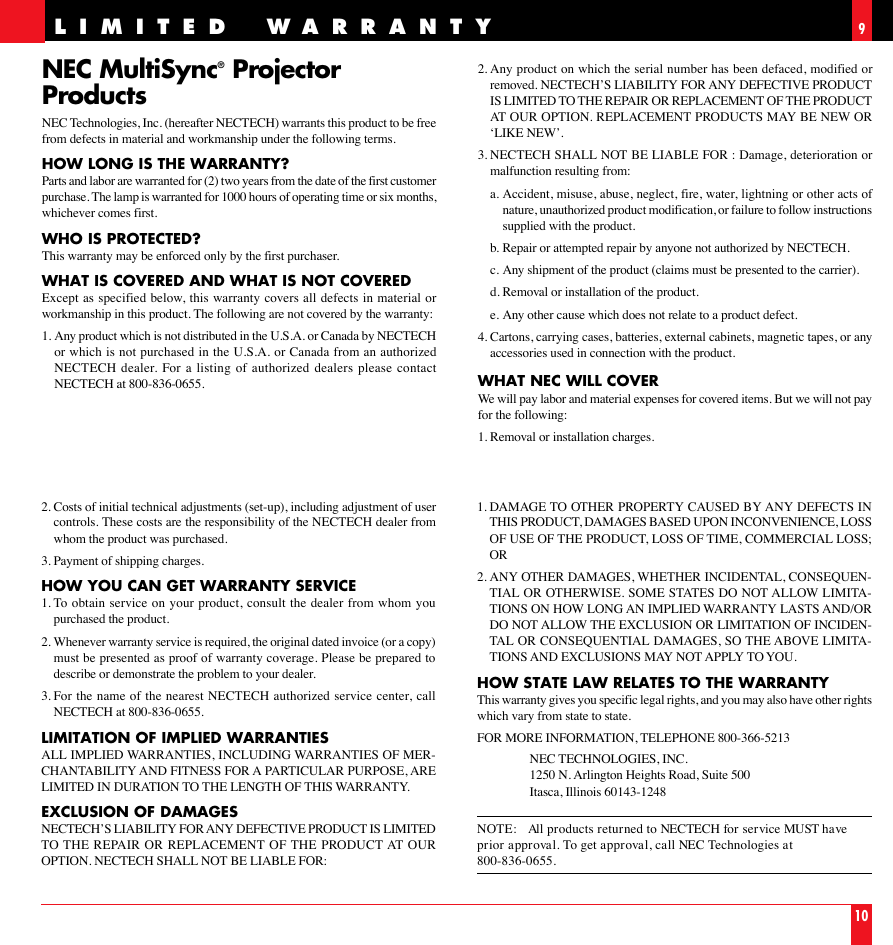

L I M I T E D W A R R A N T Y
NEC MultiSync® Projector
Products
NEC Technologies, Inc. (hereafter NECTECH) warrants this product to be free
from defects in material and workmanship under the following terms.
HOW LONG IS THE WARRANTY?
Parts and labor are warranted for (2) two years from the date of the first customer
purchase. The lamp is warranted for 1000 hours of operating time or six months,
whichever comes first.
WHO IS PROTECTED?
This warranty may be enforced only by the first purchaser.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as specified below, this warranty covers all defects in material or
workmanship in this product. The following are not covered by the warranty:
1. Any product which is not distributed in the U.S.A. or Canada by NECTECH
or which is not purchased in the U.S.A. or Canada from an authorized
NECTECH dealer. For a listing of authorized dealers please contact
NECTECH at 800-836-0655.
9
2. Any product on which the serial number has been defaced, modified or
removed. NECTECH’S LIABILITY FOR ANY DEFECTIVE PRODUCT
IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT
AT OUR OPTION. REPLACEMENT PRODUCTS MAY BE NEW OR
‘LIKE NEW’.
3. NECTECH SHALL NOT BE LIABLE FOR : Damage, deterioration or
malfunction resulting from:
a. Accident, misuse, abuse, neglect, fire, water, lightning or other acts of
nature, unauthorized product modification, or failure to follow instructions
supplied with the product.
b. Repair or attempted repair by anyone not authorized by NECTECH.
c. Any shipment of the product (claims must be presented to the carrier).
d. Removal or installation of the product.
e. Any other cause which does not relate to a product defect.
4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any
accessories used in connection with the product.
WHAT NEC WILL COVER
We will pay labor and material expenses for covered items. But we will not pay
for the following:
1. Removal or installation charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user
controls. These costs are the responsibility of the NECTECH dealer from
whom the product was purchased.
3. Payment of shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on your product, consult the dealer from whom you
purchased the product.
2. Whenever warranty service is required, the original dated invoice (or a copy)
must be presented as proof of warranty coverage. Please be prepared to
describe or demonstrate the problem to your dealer.
3. For the name of the nearest NECTECH authorized service center, call
NECTECH at 800-836-0655.
LIMITATION OF IMPLIED WARRANTIES
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.
EXCLUSION OF DAMAGES
NECTECH’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED
TO THE REPAIR OR REPLACEMENT OF THE PRODUCT AT OUR
OPTION. NECTECH SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN
THIS PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS
OF USE OF THE PRODUCT, LOSS OF TIME, COMMERCIAL LOSS;
OR
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUEN-
TIAL OR OTHERWISE. SOME STATES DO NOT ALLOW LIMITA-
TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITA-
TIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
HOW STATE LAW RELATES TO THE WARRANTY
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
FOR MORE INFORMATION, TELEPHONE 800-366-5213
NEC TECHNOLOGIES, INC.
1250 N. Arlington Heights Road, Suite 500
Itasca, Illinois 60143-1248
NOTE: All products returned to NECTECH for service MUST have
prior approval. To get approval, call NEC Technologies at
800-836-0655.
10
T A B L E O F C O N T E N T S
11
1. Introduction
Introduction To The MultiSync LT100 Projector ............................................................ 13
How Do You Get Started? ............................................................................................... 15
What’s In The Box? ........................................................................................................ 15
Getting To Know Your MultiSync LT100 Projector ........................................................ 17
Front Features .......................................................................................................... 17
Rear Features ........................................................................................................... 18
Top Features ............................................................................................................ 19
Terminal Panel Features ........................................................................................... 21
Remote Control Features ......................................................................................... 25
2. Installation
Setting Up Your MultiSync LT100 Projector ................................................................... 29
Selecting A Location ................................................................................................ 30
Projection Distance .................................................................................................. 31
Using A Tabletop Or Cart ........................................................................................ 35
Transporting And Storing The Projector .................................................................. 37
Ceiling Installation ................................................................................................... 39
Wiring Diagram ........................................................................................................ 41–42
Connecting Your PC Or Macintosh Computer ................................................................ 43
Connecting Your DVD Player ......................................................................................... 49
Connecting Your Document Camera ............................................................................... 49
Connecting Your VCR Or Laser Disc Player ................................................................... 50
Connecting An External Monitor .................................................................................... 50
Connecting Your Remote Mouse Receiver ...................................................................... 51
3. Operation
General Controls ............................................................................................................. 55
Using The Menus ............................................................................................................ 57
Menu Descriptions & Functions ..................................................................................... 59
Source Menu (Source Icons) .................................................................................... 59
Image Adjust Menu(Sound And Picture Control Icons) ........................................... 61
Power Menu(Projector Control Icons) .................................................................... 65
Settings Menu(Maintenance Icons) .......................................................................... 67
Using the Viewer Function ....................................................................................... 69
4. Maintenance
Replacing The Lamp ....................................................................................................... 77
Remote Control Battery Installation ................................................................................ 79
Operating Range ............................................................................................................. 80
5. Troubleshooting
Status Light Messages ..................................................................................................... 85
Common Problems & Solutions ...................................................................................... 87
6. Specifications
Optical ............................................................................................................................ 89
Electrical ......................................................................................................................... 90
Mechanical ..................................................................................................................... 90
D-Sub Pin Assignments .................................................................................................. 93
Timing Chart ................................................................................................................... 95
PC Control Command Reference .................................................................................... 97
Cable Connection .......................................................................................................... 101
12
1
I N T R O D U C T I O N
13
This section introduces you to your new MultiSync LT100 (XGA)
Projector, provides a list of materials that comes with your projector
and describes the features and controls.
Congratulations On Your Purchase Of The
MultiSync LT100 Projector
The MultiSync LT100 is one of the very best projectors available today.
The MultiSync LT100 enables you to project precise images up to 300
inches across (measured diagonally) from your PC or Macintosh com-
puter (desktop or notebook), VCR, DVD player, document camera, or
even a laser disc player.
You can use the projector on a tabletop or cart, you can permanently
mount it on a ceiling*1, or you can use MultiSync LT100 Projector to
project images from behind the screen. The remote control can be used
wirelessly or with a cable, and you can even use the remote control with
the built-in remote mouse receiver to operate the mouse on your PC or
Mac.
Features you'll enjoy:
• Simple set up and operation.
• A high-performance 280 watt metal halide lamp that delivers a high
bright image, allowing you to make presentations with the lights on.
• A wireless remote control that operates the projector from any
angle.
• A laser pointer that' s built into the remote control.
• The manual zoom control enables you to adjust the image to be
between 24 and 300 inches (measured diagonally).
• White balance control allows you to adjust the brightness and
contrast for each RGB color.
• You can choose between video modes depending on your source:
"normal" for a typical picture, "natural" for true color reproduction,
and "camera" for use with a document camera or low APL picture.
• The optional LT Viewer kit allows you to start your presentation
even when a PC is not available at the site.
• The "image capture" enables you to use the entire picture as a
background image or to create slides (optional LT Viewer required).
• An image can be projected from in front or behind a screen, and the
• Accepts component video source such as DVD player with the Y/
projector can even be installed on the ceiling.
Cb/Cr output.
• NEC Technologies' exclusive AccuBlend™ intelligent pixel blend-
ing technology - an extremely accurate image compression technol-
ogy - offers a crisp image with SXGA (128021024) resolution*2 .
• Supports most IBM VGA, SVGA, XGA, SXGA(with
AccuBlend™)*2 , Macintosh, or any other RGB signals within a
horizontal frequency range of 15.754 to 85 kHz and a vertical
frequency range of 50 to 85 Hz. This includes NTSC, PAL,
SECAM and NTSC4.43 standard video signals.
Note: Composite video standards are as follows:
NTSC:
PAL:
SECAM:
NTSC4.43:
U.S. TV standard for video in U.S. and Canada.
TV standard used in western Europe.
TV standard used in France and Eastern Europe.
TV standard used in Middle East countries.
• The remote control can be used with or without a cable, and you can
even use the remote to operate your PC or Macintosh mouse
wirelessly from across the room with the built-in remote mouse
receiver.
• You can control your MultiSync LT100 Projector with a PC.
• The contemporary cabinet design is compact, easy to carry, and
complements any office, board room or auditorium.
*1 Installing the MultiSync LT100 LCD Projector on the ceiling must
be done by authorized NEC technicians. Consult your NEC dealer
for more information.
*2 An SXGA image (128021024) is converted into a 10242768
crisp image with NEC technology's AccuBlend.
INTRODUCTION
14
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
