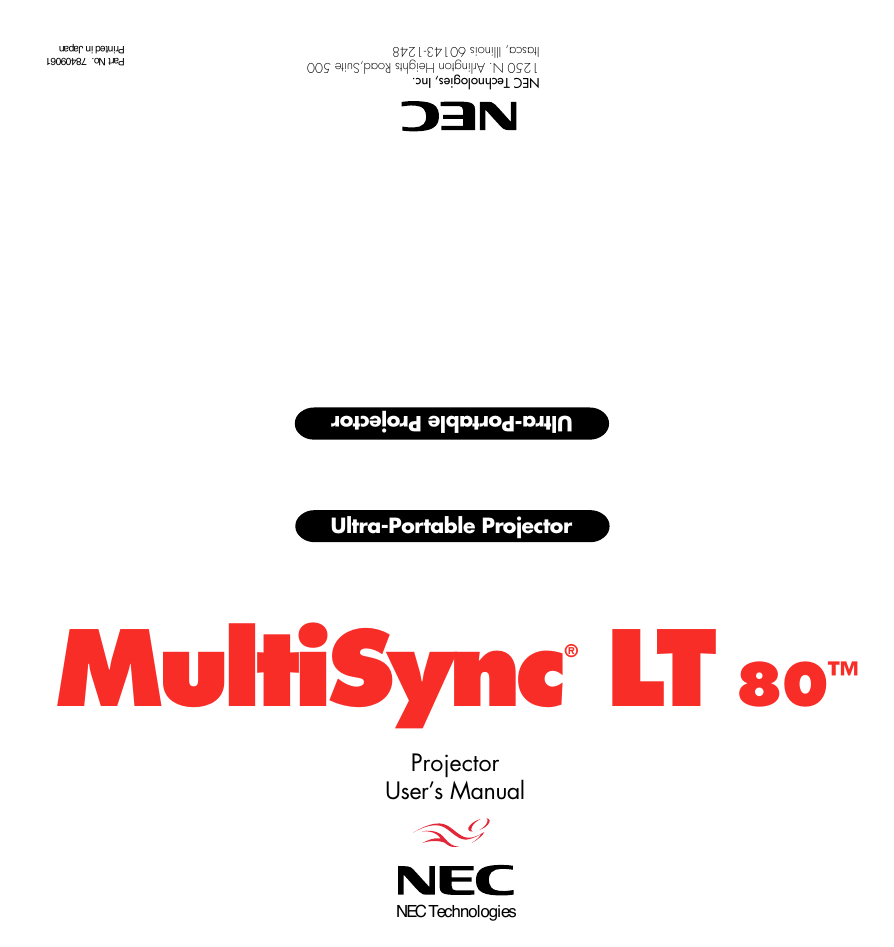

Printed in Japan Part No. 78409061 Itasca, Illinois 60143-1248 1250 N. Arlington Heights Road,Suite 500 NEC Technologies, Inc. Ultra-Portable Projector Ultra-Portable Projector MultiSync® LT 80™ Projector User’s Manual NEC Technologies

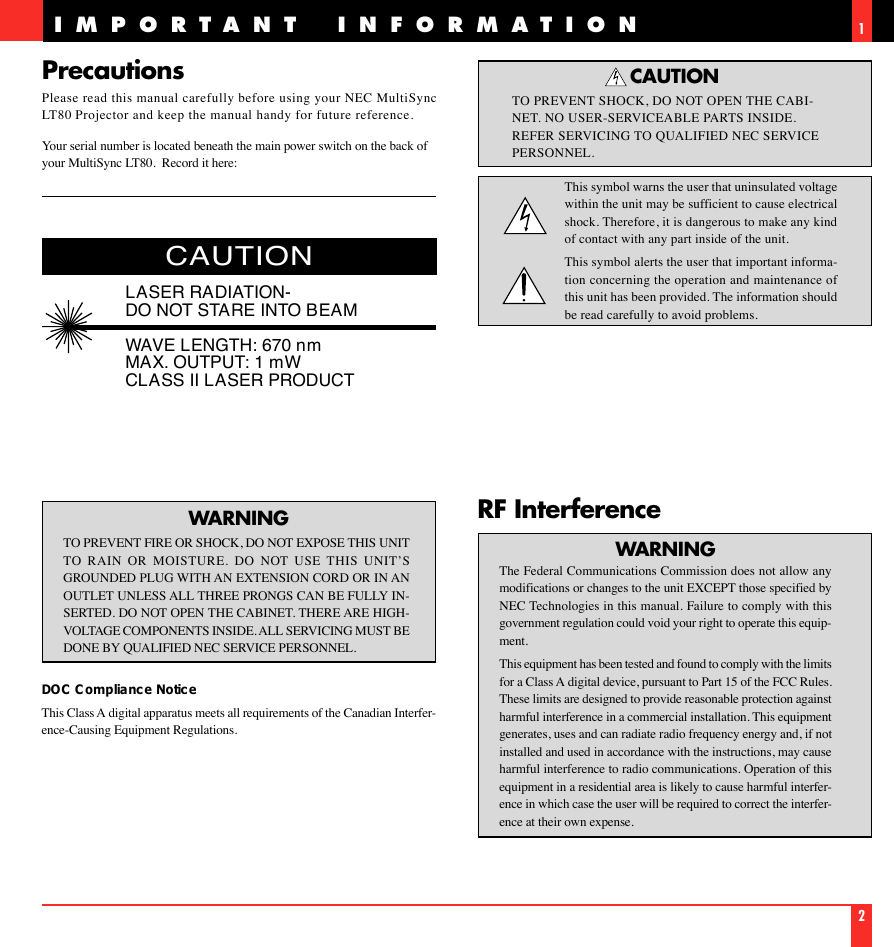

I N F O R M A T I O N I M P O R T A N T Precautions Please read this manual carefully before using your NEC MultiSync LT80 Projector and keep the manual handy for future reference. Your serial number is located beneath the main power switch on the back of your MultiSync LT80. Record it here: CAUTION LASER RADIATION- DO NOT STARE INTO BEAM WAVE LENGTH: 670 nm MAX. OUTPUT: 1 mW CLASS II LASER PRODUCT WARNING TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY IN- SERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH- VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED NEC SERVICE PERSONNEL. DOC Compliance Notice This Class A digital apparatus meets all requirements of the Canadian Interfer- ence-Causing Equipment Regulations. CAUTION TO PREVENT SHOCK, DO NOT OPEN THE CABI- NET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL. This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit. This symbol alerts the user that important informa- tion concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems. RF Interference WARNING The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Technologies in this manual. Failure to comply with this government regulation could void your right to operate this equip- ment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interfer- ence in which case the user will be required to correct the interfer- ence at their own expense. 1 2

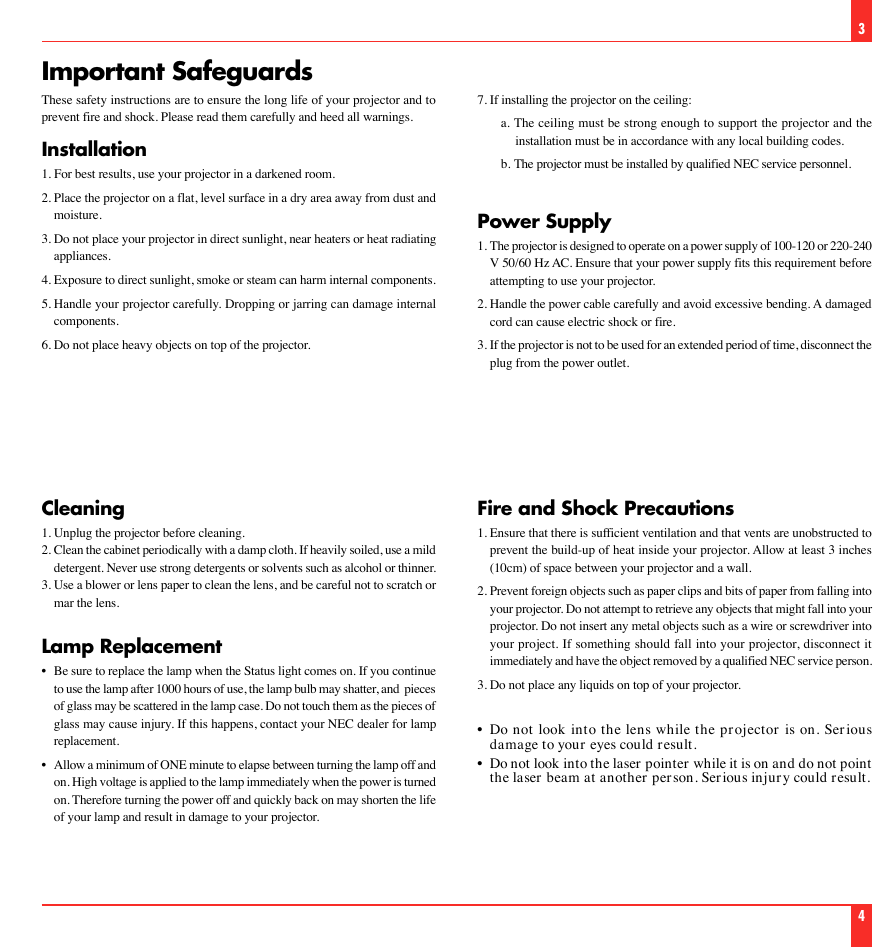

3 Important Safeguards These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings. Installation 1. For best results, use your projector in a darkened room. 2. Place the projector on a flat, level surface in a dry area away from dust and moisture. 3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances. 4. Exposure to direct sunlight, smoke or steam can harm internal components. 7. If installing the projector on the ceiling: a. The ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. b. The projector must be installed by qualified NEC service personnel. Power Supply 1. The projector is designed to operate on a power supply of 100-120 or 220-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector. 5. Handle your projector carefully. Dropping or jarring can damage internal 2. Handle the power cable carefully and avoid excessive bending. A damaged components. cord can cause electric shock or fire. 6. Do not place heavy objects on top of the projector. 3. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet. Cleaning 1. Unplug the projector before cleaning. 2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner. 3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens. Lamp Replacement • Be sure to replace the lamp when the Status light comes on. If you continue to use the lamp after 1000 hours of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement. • Allow a minimum of ONE minute to elapse between turning the lamp off and on. High voltage is applied to the lamp immediately when the power is turned on. Therefore turning the power off and quickly back on may shorten the life of your lamp and result in damage to your projector. Fire and Shock Precautions 1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 3 inches (10cm) of space between your projector and a wall. 2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your project. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified NEC service person. 3. Do not place any liquids on top of your projector. • Do not look into the lens while the projector is on. Serious damage to your eyes could result. • Do not look into the laser pointer while it is on and do not point the laser beam at another person. Serious injury could result. 4

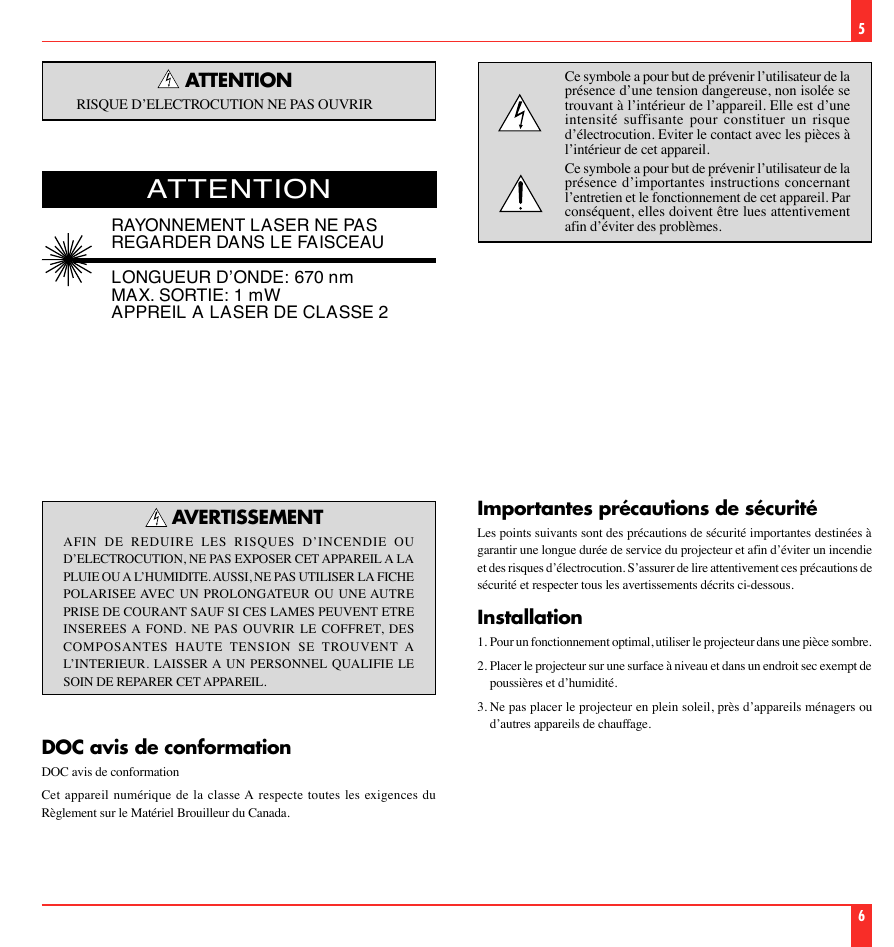

ATTENTION RISQUE D’ELECTROCUTION NE PAS OUVRIR ATTENTION RAYONNEMENT LASER NE PAS REGARDER DANS LE FAISCEAU LONGUEUR D’ONDE: 670 nm MAX. SORTIE: 1 mW APPREIL A LASER DE CLASSE 2 5 Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil. Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes. AVERTISSEMENT AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET, DES COMPOSANTES HAUTE TENSION SE TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE REPARER CET APPAREIL. DOC avis de conformation DOC avis de conformation Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le Matériel Brouilleur du Canada. Importantes précautions de sécurité Les points suivants sont des précautions de sécurité importantes destinées à garantir une longue durée de service du projecteur et afin d’éviter un incendie et des risques d’électrocution. S’assurer de lire attentivement ces précautions de sécurité et respecter tous les avertissements décrits ci-dessous. Installation 1. Pour un fonctionnement optimal, utiliser le projecteur dans une pièce sombre. 2. Placer le projecteur sur une surface à niveau et dans un endroit sec exempt de poussières et d’humidité. 3. Ne pas placer le projecteur en plein soleil, près d’appareils ménagers ou d’autres appareils de chauffage. 6

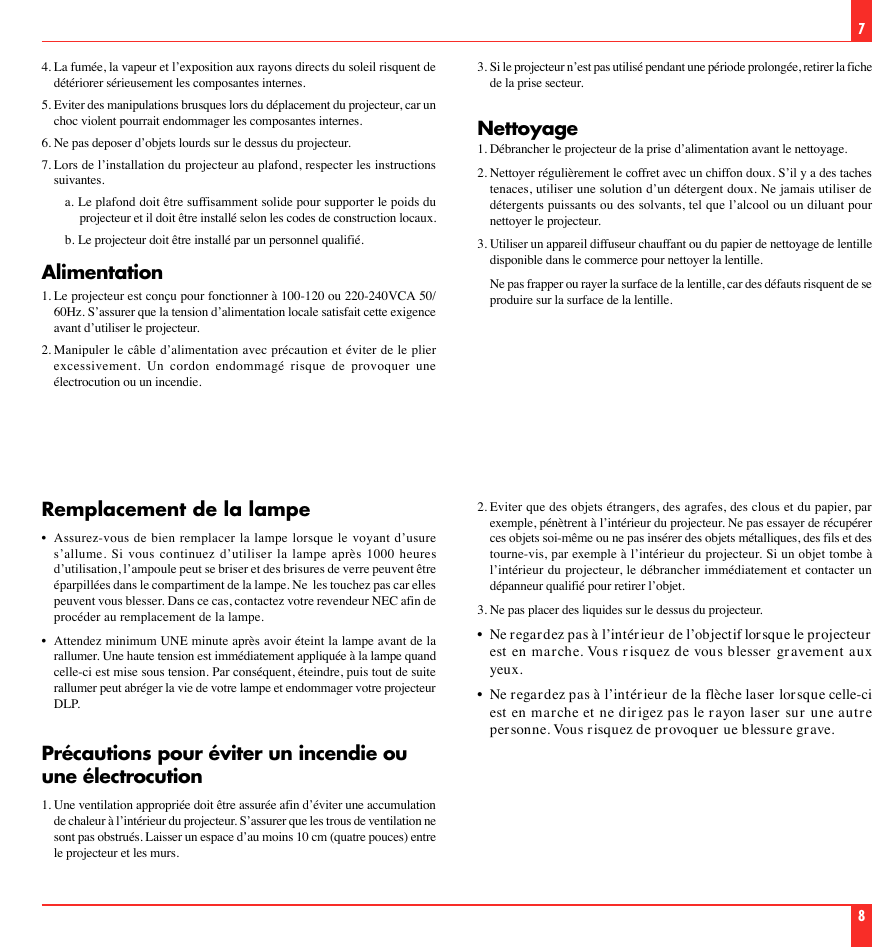

4. La fumée, la vapeur et l’exposition aux rayons directs du soleil risquent de 3. Si le projecteur n’est pas utilisé pendant une période prolongée, retirer la fiche détériorer sérieusement les composantes internes. de la prise secteur. 7 5. Eviter des manipulations brusques lors du déplacement du projecteur, car un choc violent pourrait endommager les composantes internes. 6. Ne pas deposer d’objets lourds sur le dessus du projecteur. 7. Lors de l’installation du projecteur au plafond, respecter les instructions suivantes. a. Le plafond doit être suffisamment solide pour supporter le poids du projecteur et il doit être installé selon les codes de construction locaux. b. Le projecteur doit être installé par un personnel qualifié. Alimentation 1. Le projecteur est conçu pour fonctionner à 100-120 ou 220-240VCA 50/ 60Hz. S’assurer que la tension d’alimentation locale satisfait cette exigence avant d’utiliser le projecteur. 2. Manipuler le câble d’alimentation avec précaution et éviter de le plier excessivement. Un cordon endommagé risque de provoquer une électrocution ou un incendie. Remplacement de la lampe • Assurez-vous de bien remplacer la lampe lorsque le voyant d’usure s’allume. Si vous continuez d’utiliser la lampe après 1000 heures d’utilisation, l’ampoule peut se briser et des brisures de verre peuvent être éparpillées dans le compartiment de la lampe. Ne les touchez pas car elles peuvent vous blesser. Dans ce cas, contactez votre revendeur NEC afin de procéder au remplacement de la lampe. • Attendez minimum UNE minute après avoir éteint la lampe avant de la rallumer. Une haute tension est immédiatement appliquée à la lampe quand celle-ci est mise sous tension. Par conséquent, éteindre, puis tout de suite rallumer peut abréger la vie de votre lampe et endommager votre projecteur DLP. Précautions pour éviter un incendie ou une électrocution 1. Une ventilation appropriée doit être assurée afin d’éviter une accumulation de chaleur à l’intérieur du projecteur. S’assurer que les trous de ventilation ne sont pas obstrués. Laisser un espace d’au moins 10 cm (quatre pouces) entre le projecteur et les murs. Nettoyage 1. Débrancher le projecteur de la prise d’alimentation avant le nettoyage. 2. Nettoyer régulièrement le coffret avec un chiffon doux. S’il y a des taches tenaces, utiliser une solution d’un détergent doux. Ne jamais utiliser de détergents puissants ou des solvants, tel que l’alcool ou un diluant pour nettoyer le projecteur. 3. Utiliser un appareil diffuseur chauffant ou du papier de nettoyage de lentille disponible dans le commerce pour nettoyer la lentille. Ne pas frapper ou rayer la surface de la lentille, car des défauts risquent de se produire sur la surface de la lentille. 2. Eviter que des objets étrangers, des agrafes, des clous et du papier, par exemple, pénètrent à l’intérieur du projecteur. Ne pas essayer de récupérer ces objets soi-même ou ne pas insérer des objets métalliques, des fils et des tourne-vis, par exemple à l’intérieur du projecteur. Si un objet tombe à l’intérieur du projecteur, le débrancher immédiatement et contacter un dépanneur qualifié pour retirer l’objet. 3. Ne pas placer des liquides sur le dessus du projecteur. • Ne regardez pas à l’intérieur de l’objectif lorsque le projecteur est en marche. Vous risquez de vous blesser gravement aux yeux. • Ne regardez pas à l’intérieur de la flèche laser lorsque celle-ci est en marche et ne dirigez pas le rayon laser sur une autre personne. Vous risquez de provoquer ue blessure grave. 8

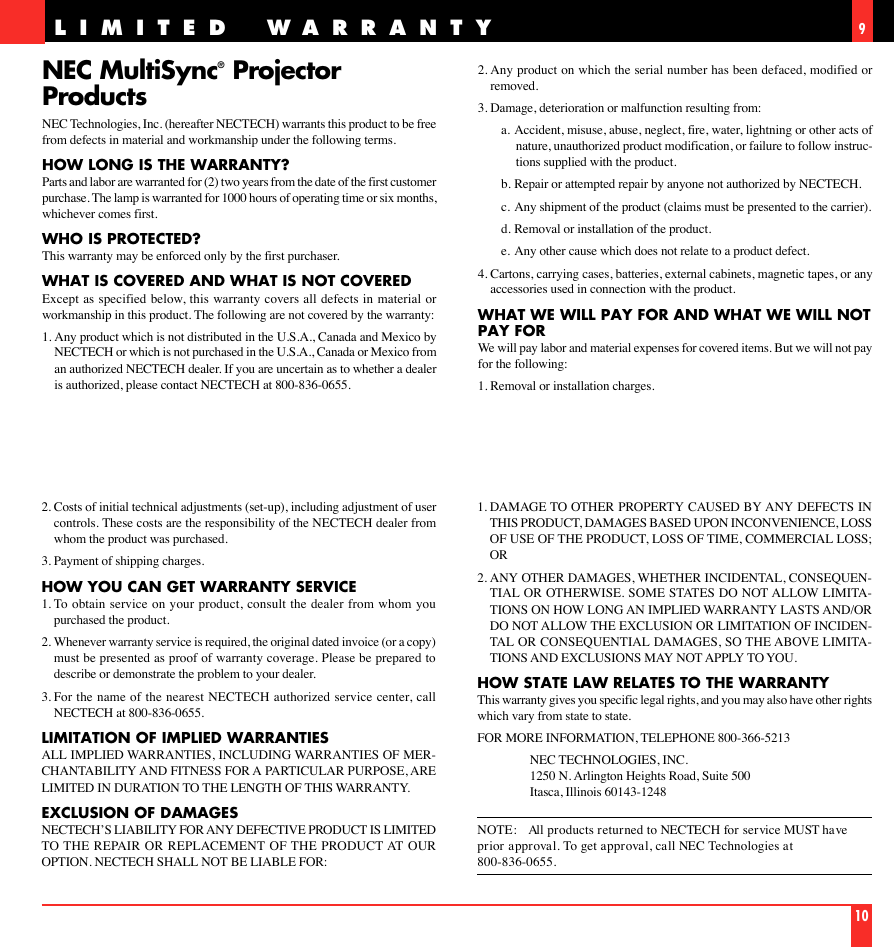

2. Any product on which the serial number has been defaced, modified or 9 L I M I T E D W A R R A N T Y NEC MultiSync® Projector Products removed. 3. Damage, deterioration or malfunction resulting from: NEC Technologies, Inc. (hereafter NECTECH) warrants this product to be free from defects in material and workmanship under the following terms. HOW LONG IS THE WARRANTY? Parts and labor are warranted for (2) two years from the date of the first customer purchase. The lamp is warranted for 1000 hours of operating time or six months, whichever comes first. WHO IS PROTECTED? This warranty may be enforced only by the first purchaser. WHAT IS COVERED AND WHAT IS NOT COVERED Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty: 1. Any product which is not distributed in the U.S.A., Canada and Mexico by NECTECH or which is not purchased in the U.S.A., Canada or Mexico from an authorized NECTECH dealer. If you are uncertain as to whether a dealer is authorized, please contact NECTECH at 800-836-0655. a. Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature, unauthorized product modification, or failure to follow instruc- tions supplied with the product. b. Repair or attempted repair by anyone not authorized by NECTECH. c. Any shipment of the product (claims must be presented to the carrier). d. Removal or installation of the product. e. Any other cause which does not relate to a product defect. 4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product. WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR We will pay labor and material expenses for covered items. But we will not pay for the following: 1. Removal or installation charges. 2. Costs of initial technical adjustments (set-up), including adjustment of user controls. These costs are the responsibility of the NECTECH dealer from whom the product was purchased. 3. Payment of shipping charges. HOW YOU CAN GET WARRANTY SERVICE 1. To obtain service on your product, consult the dealer from whom you purchased the product. 2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please be prepared to describe or demonstrate the problem to your dealer. 3. For the name of the nearest NECTECH authorized service center, call NECTECH at 800-836-0655. LIMITATION OF IMPLIED WARRANTIES ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MER- CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY. EXCLUSION OF DAMAGES NECTECH’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT AT OUR OPTION. NECTECH SHALL NOT BE LIABLE FOR: 1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THIS PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, COMMERCIAL LOSS; OR 2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUEN- TIAL OR OTHERWISE. SOME STATES DO NOT ALLOW LIMITA- TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDEN- TAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITA- TIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. HOW STATE LAW RELATES TO THE WARRANTY This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. FOR MORE INFORMATION, TELEPHONE 800-366-5213 NEC TECHNOLOGIES, INC. 1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248 NOTE: All products returned to NECTECH for service MUST have prior approval. To get approval, call NEC Technologies at 800-836-0655. 10

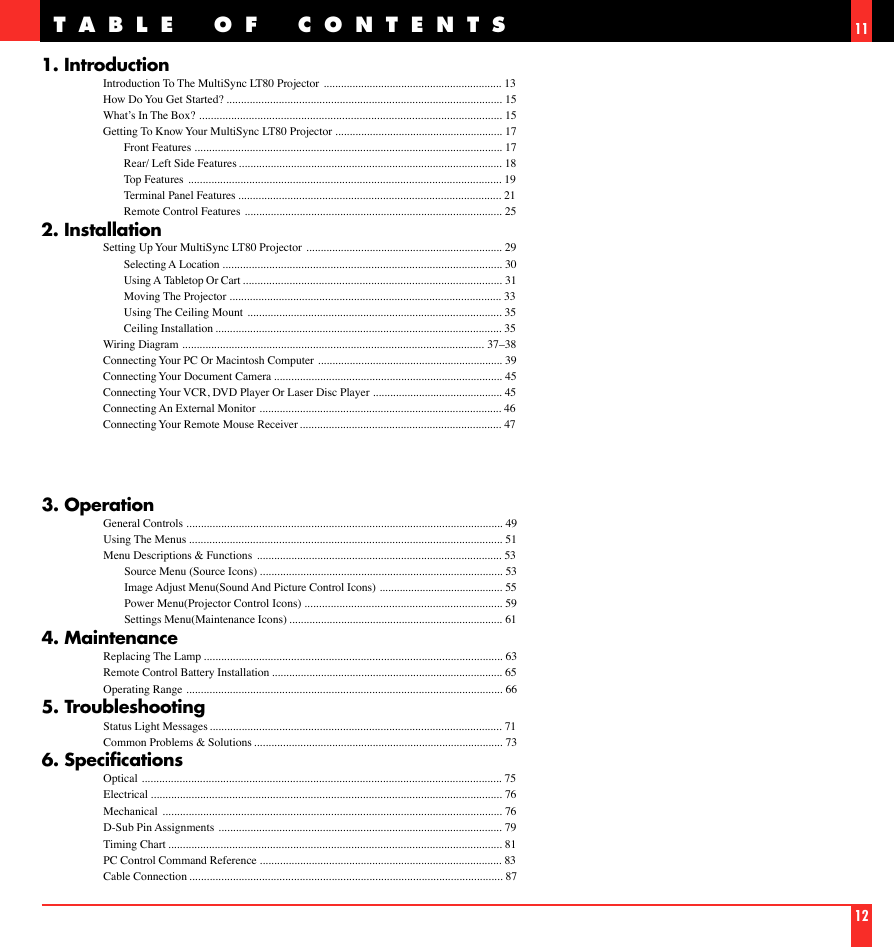

T A B L E O F C O N T E N T S 11 1. Introduction Introduction To The MultiSync LT80 Projector .............................................................. 13 How Do You Get Started? ............................................................................................... 15 What’s In The Box? ........................................................................................................ 15 Getting To Know Your MultiSync LT80 Projector .......................................................... 17 Front Features .......................................................................................................... 17 Rear/ Left Side Features ........................................................................................... 18 Top Features ............................................................................................................ 19 Terminal Panel Features ........................................................................................... 21 Remote Control Features ......................................................................................... 25 2. Installation Setting Up Your MultiSync LT80 Projector .................................................................... 29 Selecting A Location ................................................................................................ 30 Using A Tabletop Or Cart ......................................................................................... 31 Moving The Projector .............................................................................................. 33 Using The Ceiling Mount ........................................................................................ 35 Ceiling Installation ................................................................................................... 35 Wiring Diagram ........................................................................................................ 37–38 Connecting Your PC Or Macintosh Computer ................................................................ 39 Connecting Your Document Camera ............................................................................... 45 Connecting Your VCR, DVD Player Or Laser Disc Player ............................................. 45 Connecting An External Monitor .................................................................................... 46 Connecting Your Remote Mouse Receiver ...................................................................... 47 3. Operation General Controls ............................................................................................................. 49 Using The Menus ............................................................................................................ 51 Menu Descriptions & Functions ..................................................................................... 53 Source Menu (Source Icons) .................................................................................... 53 Image Adjust Menu(Sound And Picture Control Icons) ........................................... 55 Power Menu(Projector Control Icons) .................................................................... 59 Settings Menu(Maintenance Icons) .......................................................................... 61 4. Maintenance Replacing The Lamp ....................................................................................................... 63 Remote Control Battery Installation ................................................................................ 65 Operating Range ............................................................................................................. 66 5. Troubleshooting Status Light Messages ..................................................................................................... 71 Common Problems & Solutions ...................................................................................... 73 6. Specifications Optical ............................................................................................................................ 75 Electrical ......................................................................................................................... 76 Mechanical ..................................................................................................................... 76 D-Sub Pin Assignments .................................................................................................. 79 Timing Chart ................................................................................................................... 81 PC Control Command Reference .................................................................................... 83 Cable Connection ............................................................................................................ 87 12

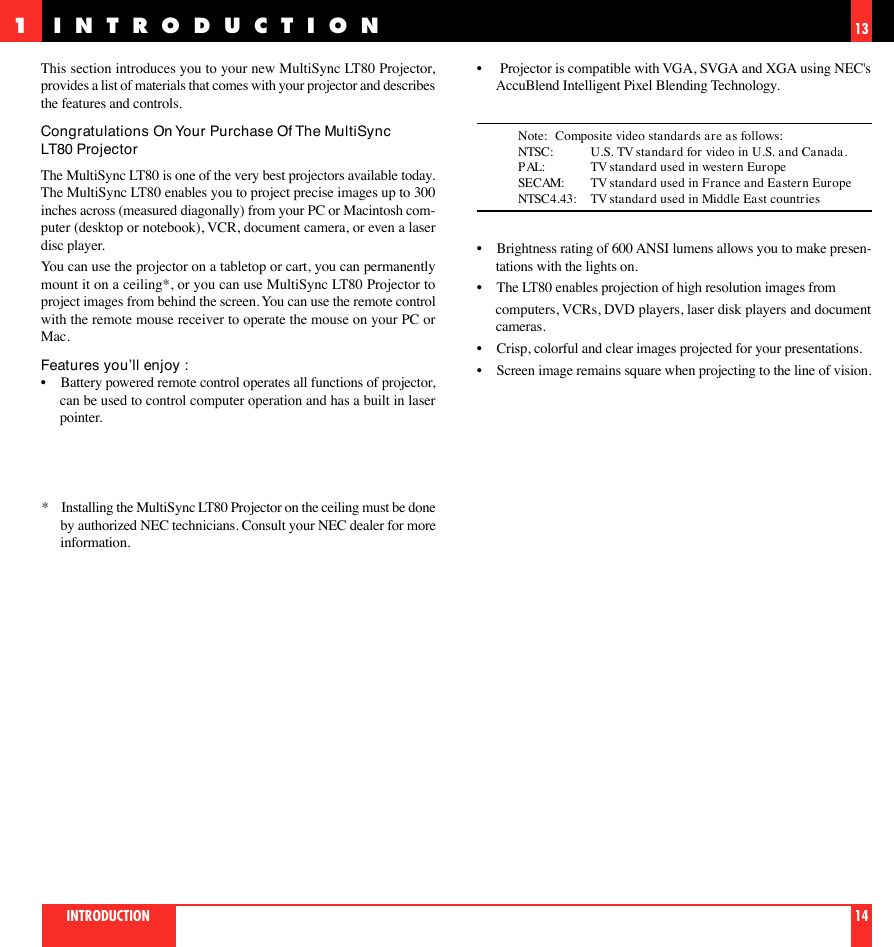

1 I N T R O D U C T I O N 13 • Projector is compatible with VGA, SVGA and XGA using NEC's AccuBlend Intelligent Pixel Blending Technology. Note: Composite video standards are as follows: NTSC: PAL: SECAM: NTSC4.43: TV standard used in Middle East countries U.S. TV standard for video in U.S. and Canada. TV standard used in western Europe TV standard used in France and Eastern Europe • Brightness rating of 600 ANSI lumens allows you to make presen- tations with the lights on. • The LT80 enables projection of high resolution images from computers, VCRs, DVD players, laser disk players and document cameras. • Crisp, colorful and clear images projected for your presentations. • Screen image remains square when projecting to the line of vision. This section introduces you to your new MultiSync LT80 Projector, provides a list of materials that comes with your projector and describes the features and controls. Congratulations On Your Purchase Of The MultiSync LT80 Projector The MultiSync LT80 is one of the very best projectors available today. The MultiSync LT80 enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh com- puter (desktop or notebook), VCR, document camera, or even a laser disc player. You can use the projector on a tabletop or cart, you can permanently mount it on a ceiling*, or you can use MultiSync LT80 Projector to project images from behind the screen. You can use the remote control with the remote mouse receiver to operate the mouse on your PC or Mac. Features you’ll enjoy : • Battery powered remote control operates all functions of projector, can be used to control computer operation and has a built in laser pointer. * Installing the MultiSync LT80 Projector on the ceiling must be done by authorized NEC technicians. Consult your NEC dealer for more information. INTRODUCTION 14
