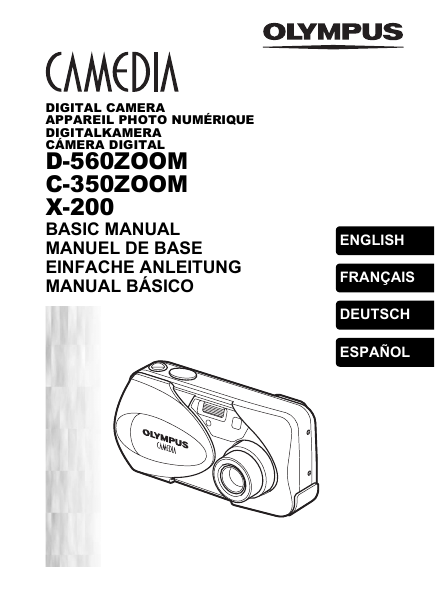

DIGITAL CAMERA APPAREIL PHOTO NUMÉRIQUE DIGITALKAMERA CÁMERA DIGITAL D-560ZOOM C-350ZOOM X-200 BASIC MANUAL MANUEL DE BASE EINFACHE ANLEITUNG MANUAL BÁSICO ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

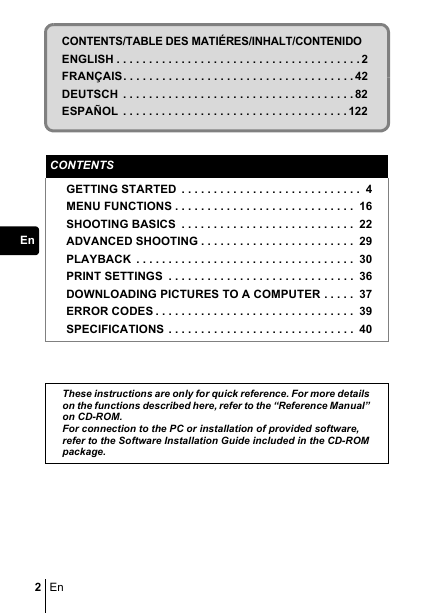

CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 CONTENTS En GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 ADVANCED SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 29 PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 DOWNLOADING PICTURES TO A COMPUTER . . . . . 37 ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 These instructions are only for quick reference. For more details on the functions described here, refer to the “Reference Manual” on CD-ROM. For connection to the PC or installation of provided software, refer to the Software Installation Guide included in the CD-ROM package. 2 En

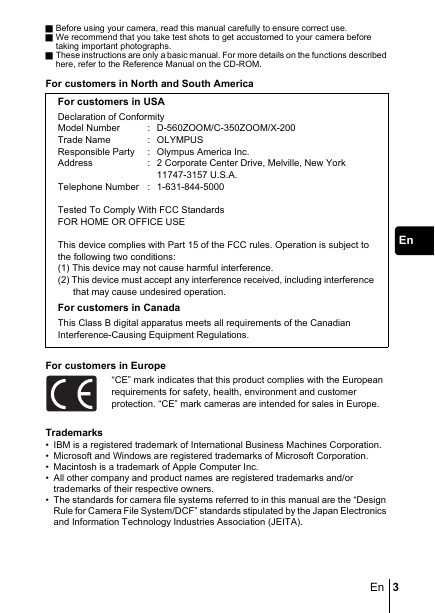

Before using your camera, read this manual carefully to ensure correct use. We recommend that you take test shots to get accustomed to your camera before taking important photographs. These instructions are only a basic manual. For more details on the functions described here, refer to the Reference Manual on the CD-ROM. For customers in North and South America For customers in USA Declaration of Conformity Model Number Trade Name Responsible Party Address : D-560ZOOM/C-350ZOOM/X-200 : OLYMPUS : Olympus America Inc. : 2 Corporate Center Drive, Melville, New York Telephone Number : 1-631-844-5000 11747-3157 U.S.A. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. En For customers in Europe “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe. Trademarks • IBM is a registered trademark of International Business Machines Corporation. • Microsoft and Windows are registered trademarks of Microsoft Corporation. • Macintosh is a trademark of Apple Computer Inc. • All other company and product names are registered trademarks and/or trademarks of their respective owners. • The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). En 3

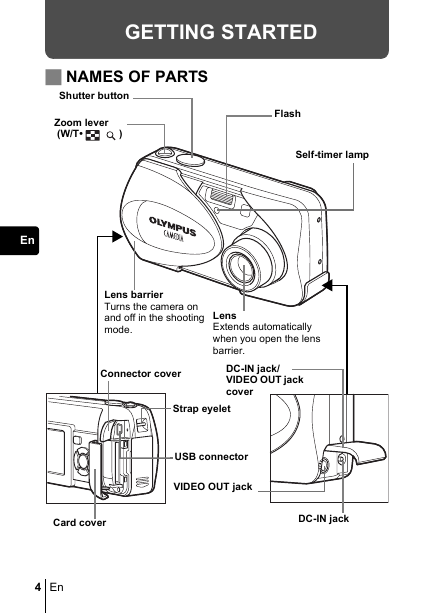

GETTING STARTED NAMES OF PARTS Shutter button Zoom lever (W/T• ) Flash Self-timer lamp En Lens barrier Turns the camera on and off in the shooting mode. Connector cover Lens Extends automatically when you open the lens barrier. DC-IN jack/ VIDEO OUT jack cover Strap eyelet USB connector VIDEO OUT jack Card cover DC-IN jack 4 En

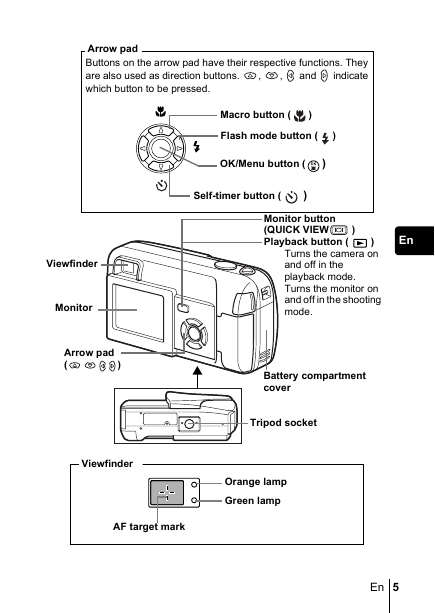

Arrow pad Buttons on the arrow pad have their respective functions. They are also used as direction buttons. indicate which button to be pressed. and , , Macro button ( ) Flash mode button ( ) OK/Menu button ( ) Self-timer button ( ) En Monitor button (QUICK VIEW Playback button ( ) ) Turns the camera on and off in the playback mode. Turns the monitor on and off in the shooting mode. Battery compartment cover Tripod socket Viewfinder Monitor Arrow pad ( ) Viewfinder AF target mark Orange lamp Green lamp En 5

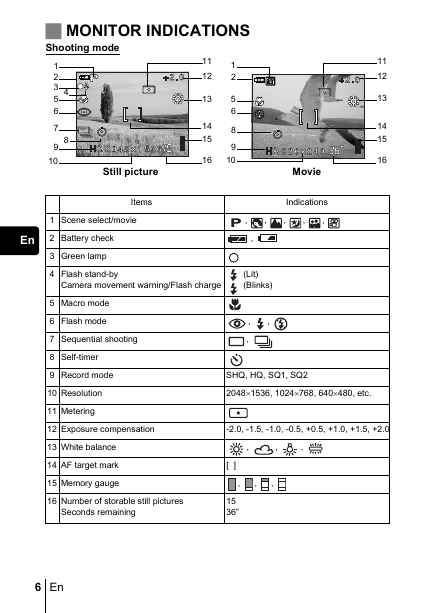

MONITOR INDICATIONS Shooting mode 1 2 3 4 5 6 8 7 9 10 Still picture Items 11 12 13 14 15 16 1 2 5 6 8 9 10 11 12 13 14 15 16 Movie Indications 1 Scene select/movie , , , , , En 2 Battery check 3 Green lamp 4 Flash stand-by Camera movement warning/Flash charge 5 Macro mode 6 Flash mode 7 Sequential shooting 8 Self-timer 9 Record mode 10 Resolution 11 Metering , (Lit) (Blinks) , , , SHQ, HQ, SQ1, SQ2 2048×1536, 1024×768, 640×480, etc. 12 Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0 13 White balance 14 AF target mark 15 Memory gauge , , , [ ] , , , 16 Number of storable still pictures Seconds remaining 15 36” 6 En

Playback mode Screens when the information display is set to ON are shown below. 1 2 Still picture Items 1 Print reservation, Number of prints 2 Battery check 3 Protect 4 Record mode 5 Resolution 2 3 4 5 6 7 8 9 Movie Indications × 10 , 10 3 4 5 7 8 9 En SHQ, HQ, SQ1, SQ2 2048 × 1536, 1024 × 768, 640 × 480, etc 6 Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0 7 White balance 8 Date and time 9 File number (still picture) Playing time/Total recording time (movie) 10 Movie WB AUTO, , , , '03.04.01 12:30 FILE: 100-0016 0"/15" En 7

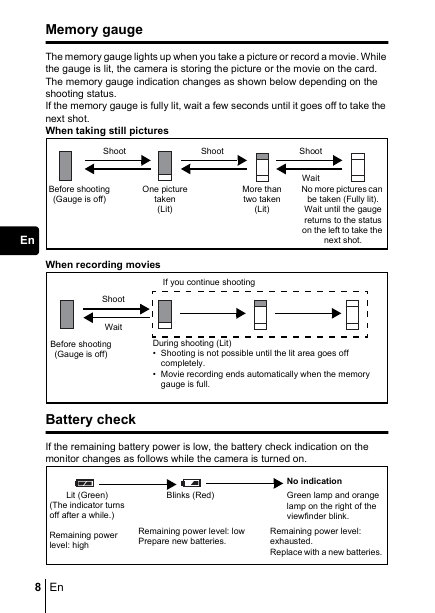

Memory gauge The memory gauge lights up when you take a picture or record a movie. While the gauge is lit, the camera is storing the picture or the movie on the card. The memory gauge indication changes as shown below depending on the shooting status. If the memory gauge is fully lit, wait a few seconds until it goes off to take the next shot. When taking still pictures Shoot Shoot Shoot Before shooting (Gauge is off) One picture taken (Lit) More than two taken (Lit) En When recording movies If you continue shooting Wait No more pictures can be taken (Fully lit). Wait until the gauge returns to the status on the left to take the next shot. Shoot Wait Before shooting (Gauge is off) Battery check During shooting (Lit) • Shooting is not possible until the lit area goes off • Movie recording ends automatically when the memory completely. gauge is full. If the remaining battery power is low, the battery check indication on the monitor changes as follows while the camera is turned on. Lit (Green) (The indicator turns off after a while.) Remaining power level: high Blinks (Red) Remaining power level: low Prepare new batteries. No indication Green lamp and orange lamp on the right of the viewfinder blink. Remaining power level: exhausted. Replace with a new batteries. 8 En
