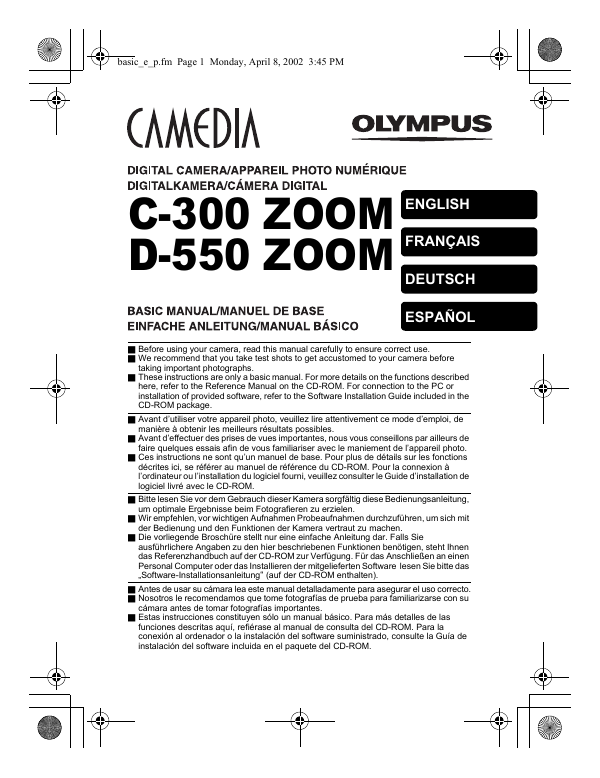

basic_e_p.fm Page 1 Monday, April 8, 2002 3:45 PM C-300 ZOOM D-550 ZOOM ENGLISH FRANÇAIS DEUTSCH ESPAÑOL Before using your camera, read this manual carefully to ensure correct use. We recommend that you take test shots to get accustomed to your camera before taking important photographs. These instructions are only a basic manual. For more details on the functions described here, refer to the Reference Manual on the CD-ROM. For connection to the PC or installation of provided software, refer to the Software Installation Guide included in the CD-ROM package. Avant d’utiliser votre appareil photo, veuillez lire attentivement ce mode d’emploi, de manière à obtenir les meilleurs résultats possibles. Avant d’effectuer des prises de vues importantes, nous vous conseillons par ailleurs de faire quelques essais afin de vous familiariser avec le maniement de l’appareil photo. Ces instructions ne sont qu’un manuel de base. Pour plus de détails sur les fonctions décrites ici, se référer au manuel de référence du CD-ROM. Pour la connexion à l’ordinateur ou l’installation du logiciel fourni, veuillez consulter le Guide d’installation de logiciel livré avec le CD-ROM. Bitte lesen Sie vor dem Gebrauch dieser Kamera sorgfältig diese Bedienungsanleitung, um optimale Ergebnisse beim Fotografieren zu erzielen. Wir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen, um sich mit der Bedienung und den Funktionen der Kamera vertraut zu machen. Die vorliegende Broschüre stellt nur eine einfache Anleitung dar. Falls Sie ausführlichere Angaben zu den hier beschriebenen Funktionen benötigen, steht Ihnen das Referenzhandbuch auf der CD-ROM zur Verfügung. Für das Anschließen an einen Personal Computer oder das Installieren der mitgelieferten Software lesen Sie bitte das „Software-Installationsanleitung“ (auf der CD-ROM enthalten). Antes de usar su cámara lea este manual detalladamente para asegurar el uso correcto. Nosotros le recomendamos que tome fotografías de prueba para familiarizarse con su cámara antes de tomar fotografías importantes. Estas instrucciones constituyen sólo un manual básico. Para más detalles de las funciones descritas aquí, refiérase al manual de consulta del CD-ROM. Para la conexión al ordenador o la instalación del software suministrado, consulte la Guía de instalación del software incluida en el paquete del CD-ROM.

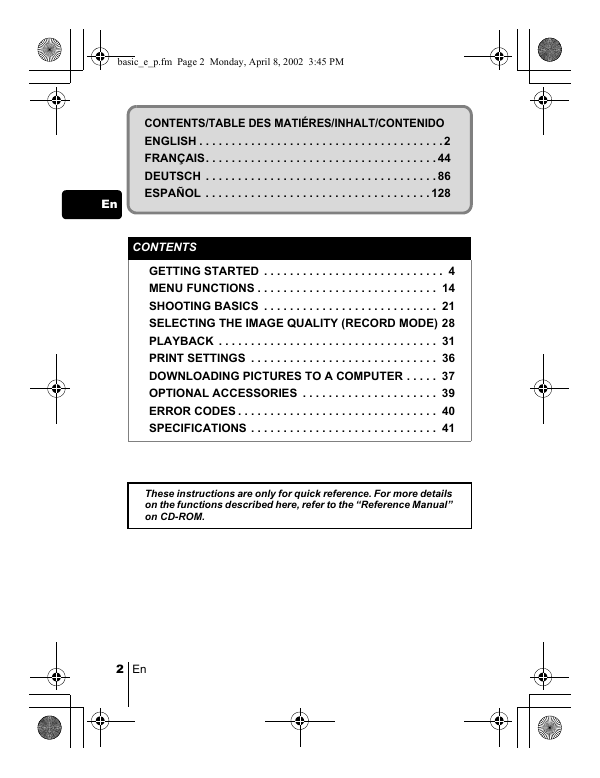

basic_e_p.fm Page 2 Monday, April 8, 2002 3:45 PM CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 En CONTENTS GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 SELECTING THE IMAGE QUALITY (RECORD MODE) 28 PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 DOWNLOADING PICTURES TO A COMPUTER . . . . . 37 OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 39 ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 These instructions are only for quick reference. For more details on the functions described here, refer to the “Reference Manual” on CD-ROM. 2 En

basic_e_p.fm Page 3 Monday, April 8, 2002 3:45 PM For customers in Europe “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe. For customers in North and South America For customers in USA Declaration of Conformity Model Number Trade Name Responsible Party Address : C-300 ZOOM/D-550 ZOOM : OLYMPUS : Olympus America Inc. : 2 Corporate Center Drive, Melville, New York 11747-3157 U.S.A. Telephone Number : 1-631-844-5000 En Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Trademarks • IBM is a registered trademark of International Business Machines Corporation. • Microsoft and Windows are registered trademarks of Microsoft Corporation. • Macintosh is a trademark of Apple Computer Inc. • All other company and product names are registered trademarks and/or trademarks of their respective owners. • The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). En 3

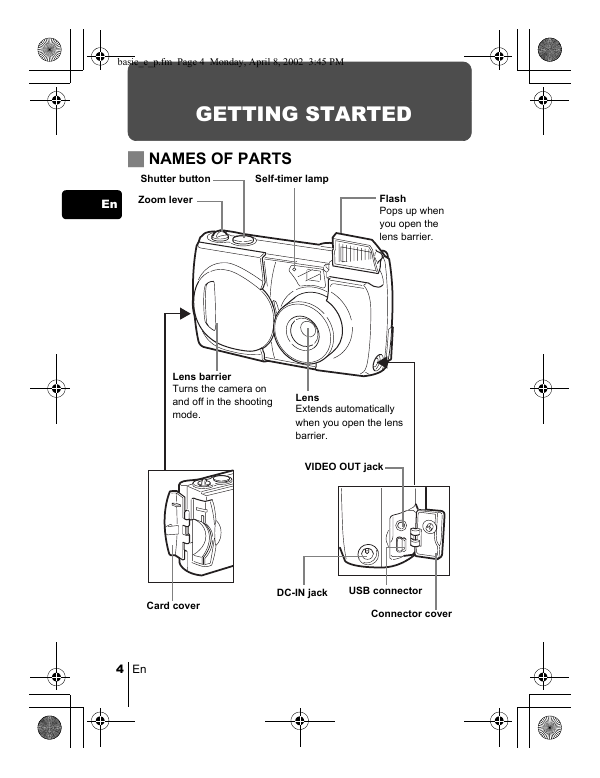

basic_e_p.fm Page 4 Monday, April 8, 2002 3:45 PM GETTING STARTED NAMES OF PARTS Shutter button Zoom lever En Self-timer lamp Flash Pops up when you open the lens barrier. Lens barrier Turns the camera on and off in the shooting mode. Lens Extends automatically when you open the lens barrier. VIDEO OUT jack Card cover DC-IN jack USB connector Connector cover 4 En

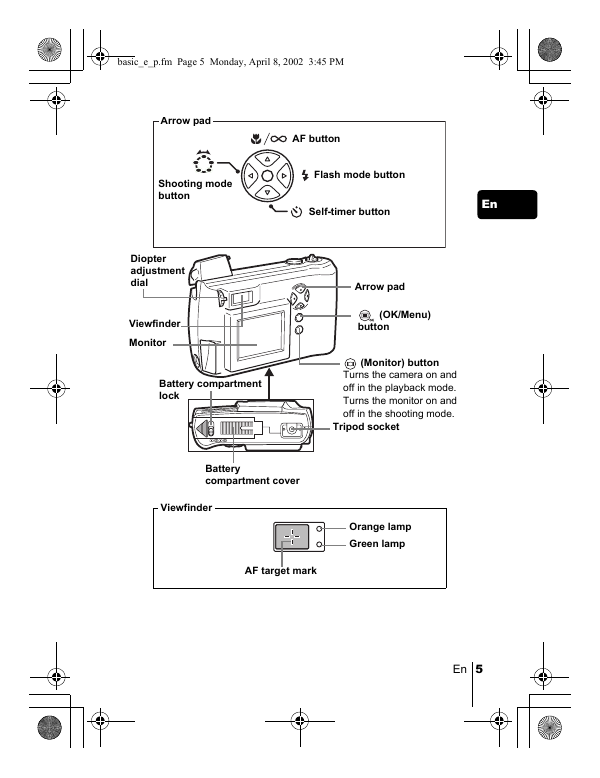

basic_e_p.fm Page 5 Monday, April 8, 2002 3:45 PM Arrow pad Shooting mode button AF button Flash mode button Self-timer button En Diopter adjustment dial Viewfinder Monitor Battery compartment lock Battery compartment cover Viewfinder Arrow pad (OK/Menu) button (Monitor) button Turns the camera on and off in the playback mode. Turns the monitor on and off in the shooting mode. Tripod socket Orange lamp Green lamp AF target mark En 5

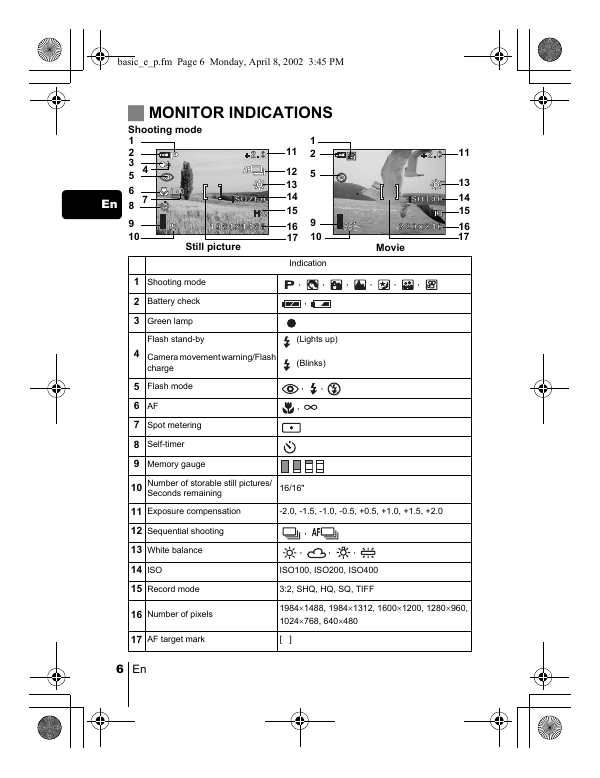

basic_e_p.fm Page 6 Monday, April 8, 2002 3:45 PM MONITOR INDICATIONS Shooting mode 1 2 3 5 6 8 9 10 11 12 13 14 15 16 17 9 10 1 2 5 Still picture 4 7 En 11 13 14 15 16 17 36" 36" Movie 1 Shooting mode 2 Battery check 3 Green lamp Flash stand-by 4 Camera movement warning/Flash charge 5 Flash mode 6 AF 7 Spot metering 8 Self-timer 9 Memory gauge 10 Number of storable still pictures/ Seconds remaining 11 Exposure compensation 12 Sequential shooting 13 White balance 14 ISO 15 Record mode 16 Number of pixels 17 AF target mark 6 En Indication , , , , , , , (Lights up) (Blinks) , , , 16/16" -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0 , , , , ISO100, ISO200, ISO400 3:2, SHQ, HQ, SQ, TIFF 1984×1488, 1984×1312, 1600×1200, 1280×960, 1024×768, 640×480 [ ]

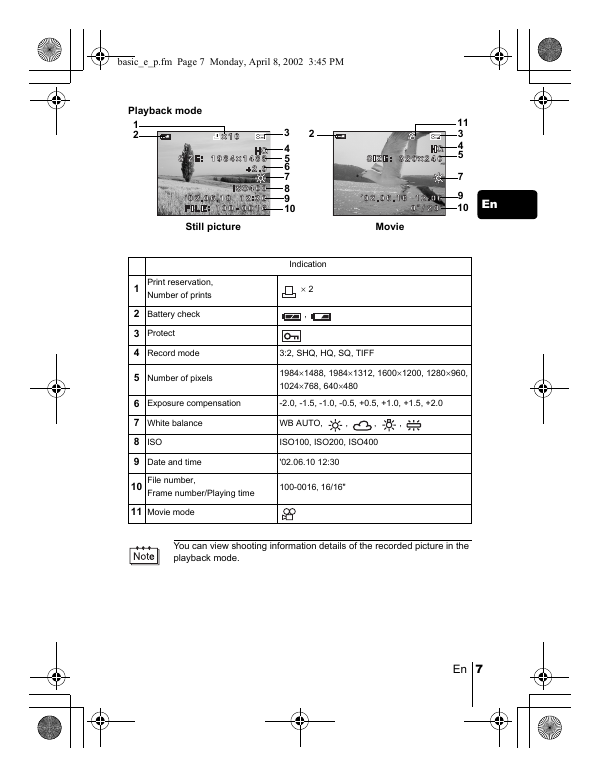

basic_e_p.fm Page 7 Monday, April 8, 2002 3:45 PM Playback mode 1 2 2 3 4 5 6 7 8 9 10 11 3 4 5 7 9 10 En Still picture Movie 1 Print reservation, Number of prints 2 Battery check 3 Protect 4 Record mode 5 Number of pixels 6 Exposure compensation 7 White balance 8 ISO 9 Date and time 10 File number, Frame number/Playing time 11 Movie mode Indication × 2 , 3:2, SHQ, HQ, SQ, TIFF 1984×1488, 1984×1312, 1600×1200, 1280×960, 1024×768, 640×480 -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0 WB AUTO, , , , ISO100, ISO200, ISO400 '02.06.10 12:30 100-0016, 16/16" You can view shooting information details of the recorded picture in the playback mode. En 7

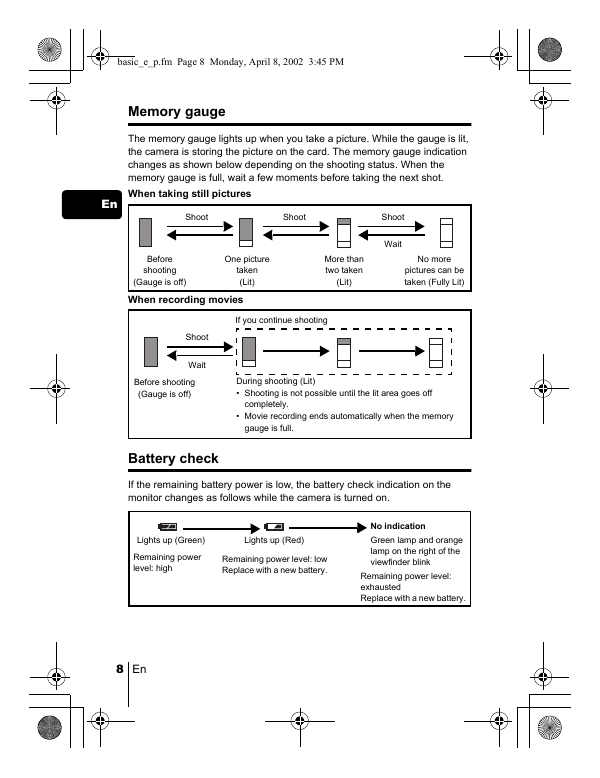

basic_e_p.fm Page 8 Monday, April 8, 2002 3:45 PM Memory gauge The memory gauge lights up when you take a picture. While the gauge is lit, the camera is storing the picture on the card. The memory gauge indication changes as shown below depending on the shooting status. When the memory gauge is full, wait a few moments before taking the next shot. When taking still pictures Shoot Shoot Before shooting (Gauge is off) When recording movies One picture taken (Lit) Shoot Wait More than two taken (Lit) No more pictures can be taken (Fully Lit) En If you continue shooting Shoot Wait Before shooting (Gauge is off) Battery check During shooting (Lit) • Shooting is not possible until the lit area goes off • Movie recording ends automatically when the memory completely. gauge is full. If the remaining battery power is low, the battery check indication on the monitor changes as follows while the camera is turned on. Lights up (Green) Remaining power level: high Lights up (Red) Remaining power level: low Replace with a new battery. No indication Green lamp and orange lamp on the right of the viewfinder blink Remaining power level: exhausted Replace with a new battery. 8 En
