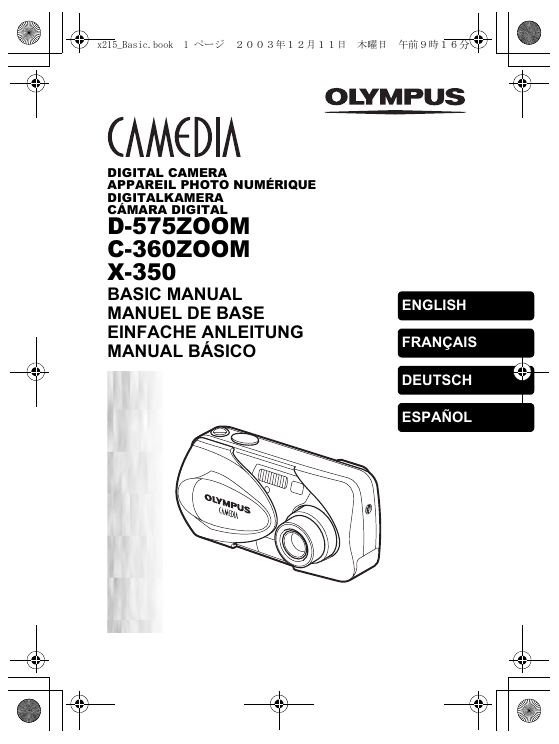

x215_Basic.book 1 ページ２００３年１２月１１日　木曜日　午前９時１６分 DIGITAL CAMERA APPAREIL PHOTO NUMÉRIQUE DIGITALKAMERA CÁMARA DIGITAL D-575ZOOM C-360ZOOM X-350 BASIC MANUAL MANUEL DE BASE EINFACHE ANLEITUNG MANUAL BÁSICO ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

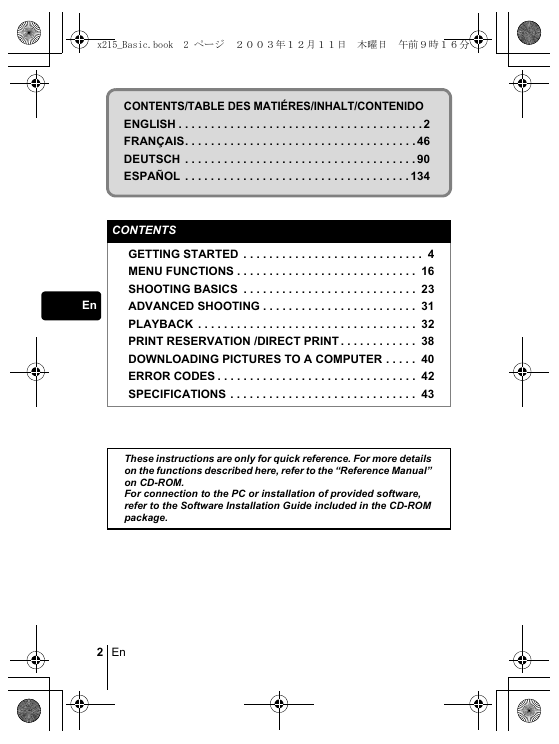

x215_Basic.book 2 ページ２００３年１２月１１日　木曜日　午前９時１６分 CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 CONTENTS En GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ADVANCED SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 31 PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 PRINT RESERVATION /DIRECT PRINT . . . . . . . . . . . . 38 DOWNLOADING PICTURES TO A COMPUTER . . . . . 40 ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 These instructions are only for quick reference. For more details on the functions described here, refer to the “Reference Manual” on CD-ROM. For connection to the PC or installation of provided software, refer to the Software Installation Guide included in the CD-ROM package. 2 En

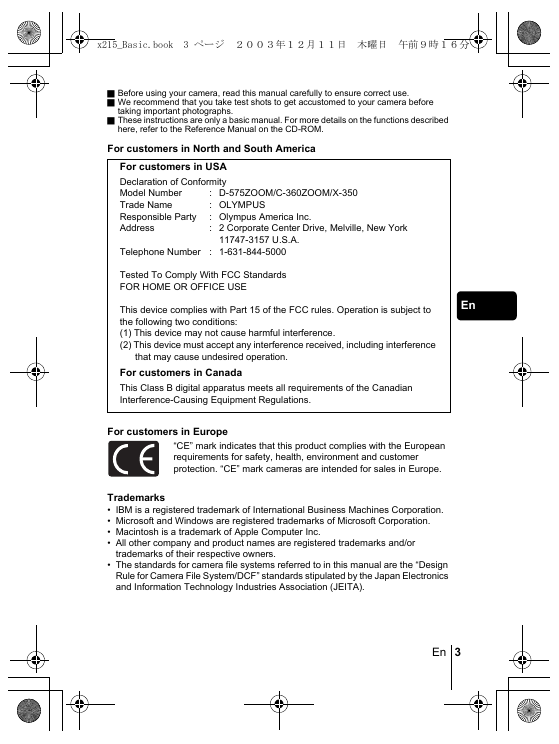

x215_Basic.book 3 ページ２００３年１２月１１日　木曜日　午前９時１６分 Before using your camera, read this manual carefully to ensure correct use. We recommend that you take test shots to get accustomed to your camera before taking important photographs. These instructions are only a basic manual. For more details on the functions described here, refer to the Reference Manual on the CD-ROM. For customers in North and South America For customers in USA Declaration of Conformity Model Number Trade Name Responsible Party Address : D-575ZOOM/C-360ZOOM/X-350 : OLYMPUS : Olympus America Inc. : 2 Corporate Center Drive, Melville, New York Telephone Number : 1-631-844-5000 11747-3157 U.S.A. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. En For customers in Europe “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe. Trademarks IBM is a registered trademark of International Business Machines Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is a trademark of Apple Computer Inc. All other company and product names are registered trademarks and/or trademarks of their respective owners. The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). En 3

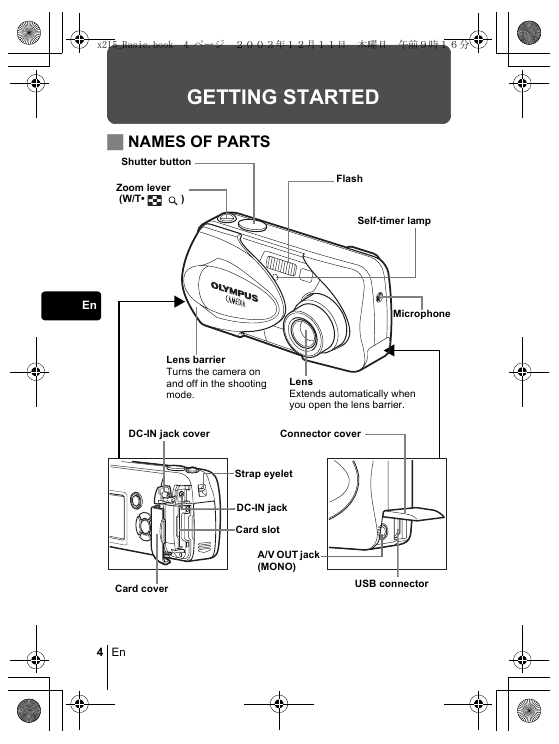

x215_Basic.book 4 ページ２００３年１２月１１日　木曜日　午前９時１６分 GETTING STARTED NAMES OF PARTS Shutter button Zoom lever (W/T ) Flash Self-timer lamp En Microphone Lens barrier Turns the camera on and off in the shooting mode. Lens Extends automatically when you open the lens barrier. DC-IN jack cover Connector cover Strap eyelet DC-IN jack Card slot A/V OUT jack (MONO) Card cover USB connector 4 En

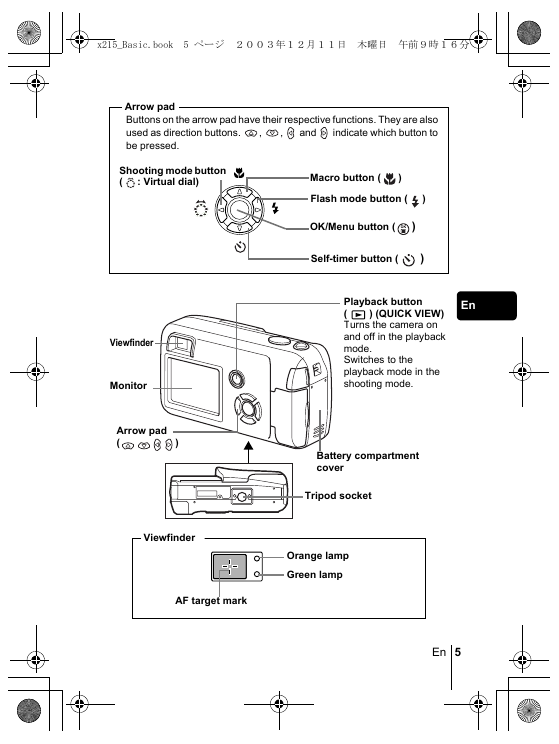

x215_Basic.book 5 ページ２００３年１２月１１日　木曜日　午前９時１６分 Arrow pad Buttons on the arrow pad have their respective functions. They are also used as direction buttons. indicate which button to be pressed. and , , Shooting mode button ( : Virtual dial) Viewfinder Monitor Arrow pad ( ) Macro button ( ) Flash mode button ( ) OK/Menu button ( ) Self-timer button ( ) En Playback button ( ) (QUICK VIEW) Turns the camera on and off in the playback mode. Switches to the playback mode in the shooting mode. Battery compartment cover Tripod socket Viewfinder AF target mark Orange lamp Green lamp En 5

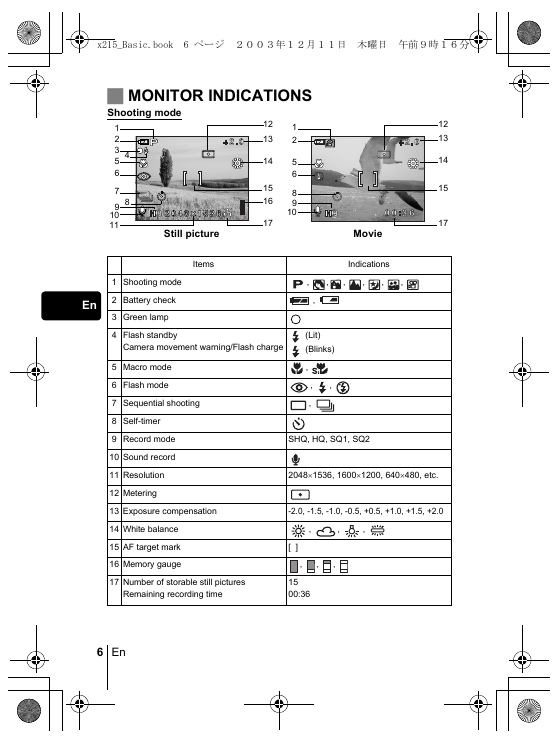

x215_Basic.book 6 ページ２００３年１２月１１日　木曜日　午前９時１６分 MONITOR INDICATIONS Shooting mode 1 2 3 4 5 6 8 7 9 10 11 12 13 14 15 16 17 Still picture Items 12 13 14 15 17 1 2 5 6 8 9 10 Movie Indications , , , , , , , (Lit) (Blinks) , , , , SHQ, HQ, SQ1, SQ2 2048×1536, 1600×1200, 640×480, etc. 1 Shooting mode 2 Battery check 3 Green lamp En 4 Flash standby Camera movement warning/Flash charge 5 Macro mode 6 Flash mode 7 Sequential shooting 8 Self-timer 9 Record mode 10 Sound record 11 Resolution 12 Metering 13 Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0 14 White balance 15 AF target mark 16 Memory gauge 17 Number of storable still pictures Remaining recording time , , , [ ] , , , 15 00:36 6 En

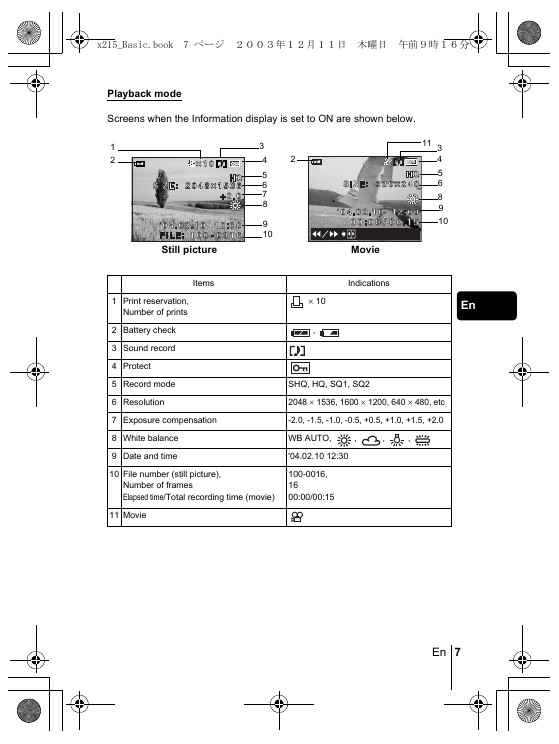

x215_Basic.book 7 ページ２００３年１２月１１日　木曜日　午前９時１６分 Playback mode Screens when the Information display is set to ON are shown below. 1 2 Still picture Items 1 Print reservation, Number of prints 2 Battery check 3 Sound record 4 Protect 5 Record mode 6 Resolution 2 3 4 5 6 7 8 9 10 Movie Indications × 10 , 11 3 4 5 6 8 9 10 En SHQ, HQ, SQ1, SQ2 2048 × 1536, 1600 × 1200, 640 × 480, etc 7 Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0 8 White balance 9 Date and time 10 File number (still picture), Number of frames Elapsed time/Total recording time (movie) 11 Movie WB AUTO, , , , '04.02.10 12:30 100-0016, 16 00:00/00:15 En 7

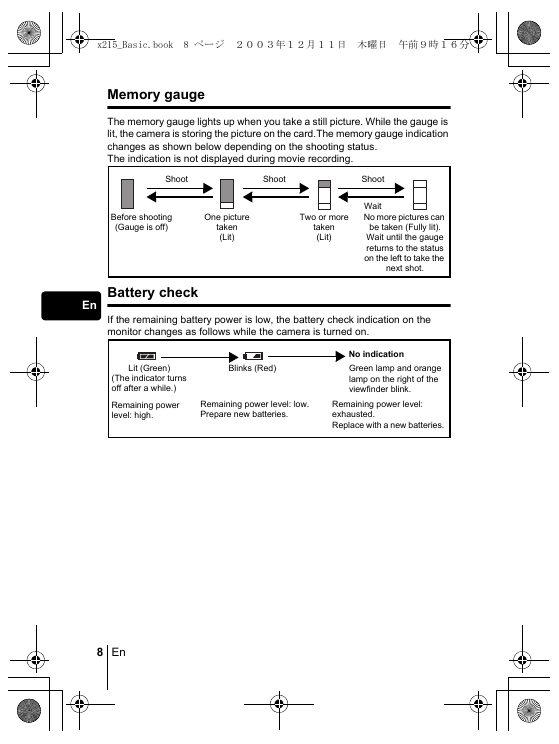

x215_Basic.book 8 ページ２００３年１２月１１日　木曜日　午前９時１６分 Memory gauge The memory gauge lights up when you take a still picture. While the gauge is lit, the camera is storing the picture on the card.The memory gauge indication changes as shown below depending on the shooting status. The indication is not displayed during movie recording. Shoot Shoot Shoot Before shooting (Gauge is off) One picture taken (Lit) Two or more taken (Lit) Wait No more pictures can be taken (Fully lit). Wait until the gauge returns to the status on the left to take the next shot. En Battery check If the remaining battery power is low, the battery check indication on the monitor changes as follows while the camera is turned on. Lit (Green) (The indicator turns off after a while.) Remaining power level: high. Blinks (Red) Remaining power level: low. Prepare new batteries. No indication Green lamp and orange lamp on the right of the viewfinder blink. Remaining power level: exhausted. Replace with a new batteries. 8 En
