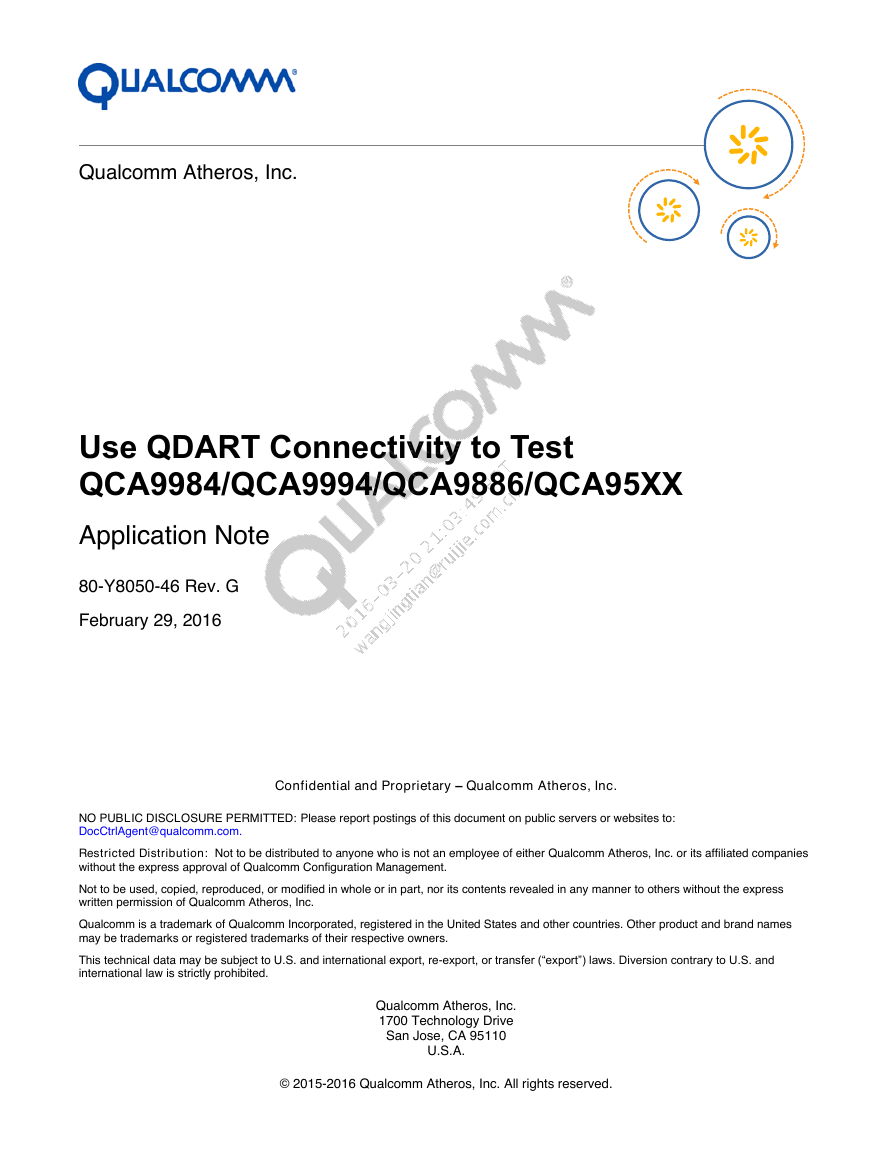

Qualcomm Atheros, Inc. Use QDART Connectivity to Test QCA9984/QCA9994/QCA9886/QCA95XX Application Note 80-Y8050-46 Rev. G February 29, 2016 Confidential and Proprietary – Qualcomm Atheros, Inc. NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or websites to: DocCtrlAgent@qualcomm.com. Restricted Distribution: Not to be distributed to anyone who is not an employee of either Qualcomm Atheros, Inc. or its affiliated companies without the express approval of Qualcomm Configuration Management. Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the express written permission of Qualcomm Atheros, Inc. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Qualcomm Atheros, Inc. 1700 Technology Drive San Jose, CA 95110 U.S.A. © 2015-2016 Qualcomm Atheros, Inc. All rights reserved.

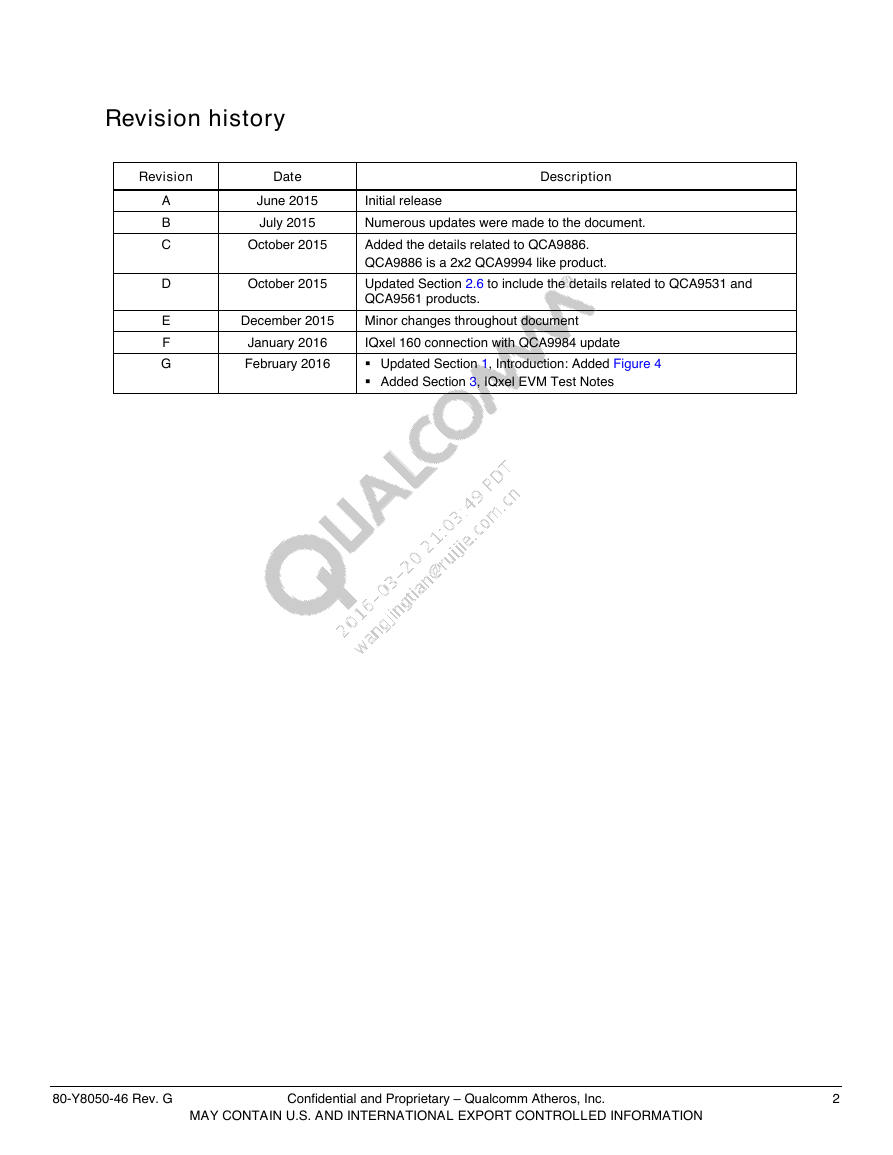

Revision history Revision Date Description A B C D E F G June 2015 Initial release July 2015 Numerous updates were made to the document. October 2015 Added the details related to QCA9886. QCA9886 is a 2x2 QCA9994 like product. October 2015 Updated Section 2.6 to include the details related to QCA9531 and QCA9561 products. December 2015 Minor changes throughout document January 2016 IQxel 160 connection with QCA9984 update February 2016  Updated Section 1, Introduction: Added Figure 4  Added Section 3, IQxel EVM Test Notes 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

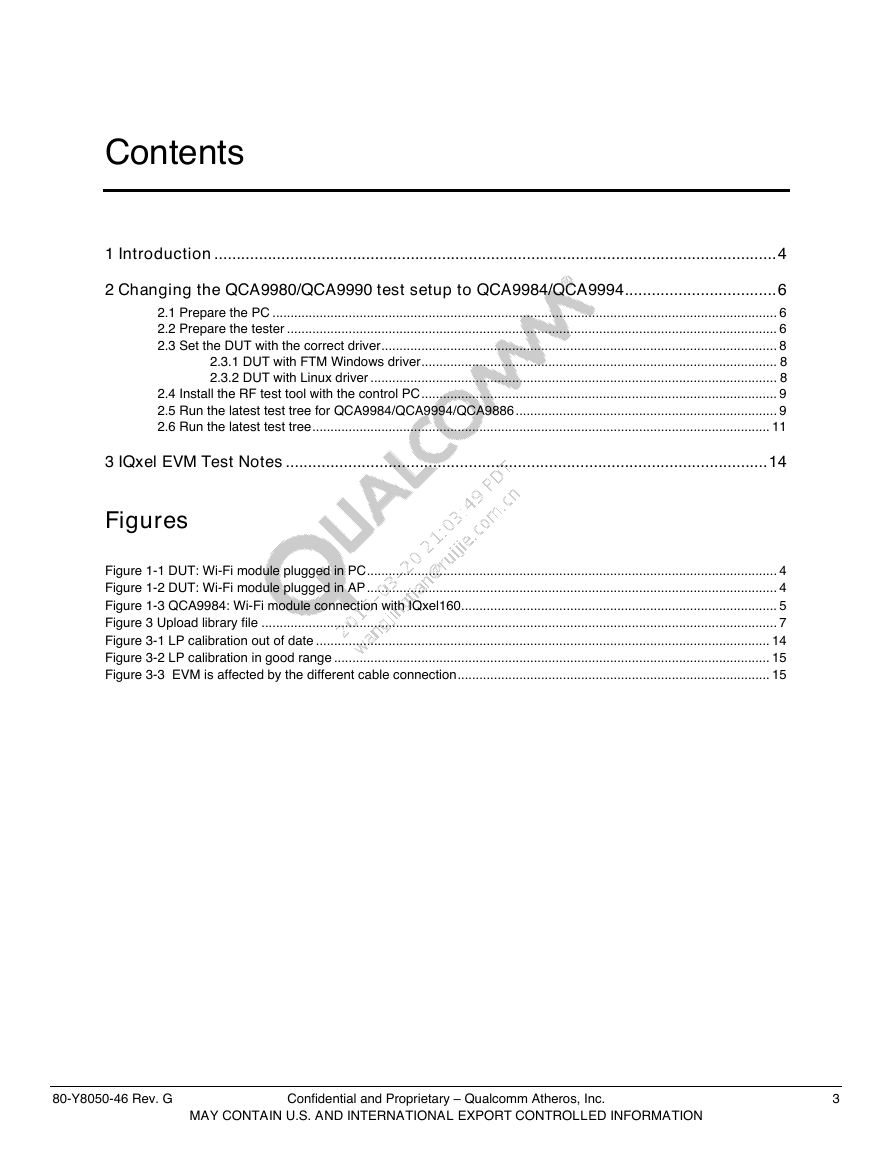

Contents 1 Introduction .............................................................................................................................. 4 2 Changing the QCA9980/QCA9990 test setup to QCA9984/QCA9994 .................................. 6 2.1 Prepare the PC ........................................................................................................................................... 6 2.2 Prepare the tester ....................................................................................................................................... 6 2.3 Set the DUT with the correct driver ............................................................................................................. 8 2.3.1 DUT with FTM Windows driver .................................................................................................. 8 2.3.2 DUT with Linux driver ................................................................................................................ 8 2.4 Install the RF test tool with the control PC .................................................................................................. 9 2.5 Run the latest test tree for QCA9984/QCA9994/QCA9886 ........................................................................ 9 2.6 Run the latest test tree .............................................................................................................................. 11 3 IQxel EVM Test Notes ............................................................................................................ 14 Figures Figure 1-1 DUT: Wi-Fi module plugged in PC ................................................................................................................. 4 Figure 1-2 DUT: Wi-Fi module plugged in AP ................................................................................................................. 4 Figure 1-3 QCA9984: Wi-Fi module connection with IQxel160 ....................................................................................... 5 Figure 3 Upload library file .............................................................................................................................................. 7 Figure 3-1 LP calibration out of date ............................................................................................................................. 14 Figure 3-2 LP calibration in good range ........................................................................................................................ 15 Figure 3-3 EVM is affected by the different cable connection ...................................................................................... 15 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

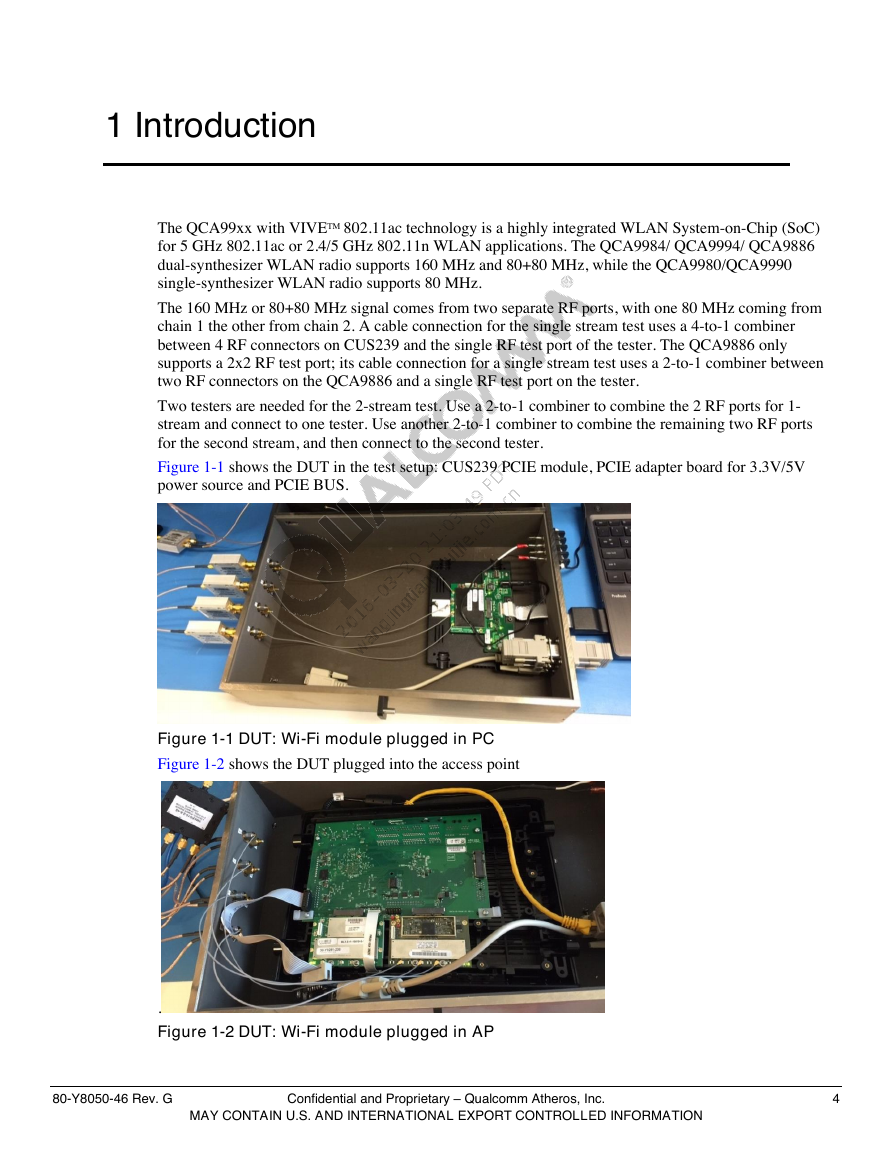

1 Introduction The QCA99xx with VIVETM 802.11ac technology is a highly integrated WLAN System-on-Chip (SoC) for 5 GHz 802.11ac or 2.4/5 GHz 802.11n WLAN applications. The QCA9984/ QCA9994/ QCA9886 dual-synthesizer WLAN radio supports 160 MHz and 80+80 MHz, while the QCA9980/QCA9990 single-synthesizer WLAN radio supports 80 MHz. The 160 MHz or 80+80 MHz signal comes from two separate RF ports, with one 80 MHz coming from chain 1 the other from chain 2. A cable connection for the single stream test uses a 4-to-1 combiner between 4 RF connectors on CUS239 and the single RF test port of the tester. The QCA9886 only supports a 2x2 RF test port; its cable connection for a single stream test uses a 2-to-1 combiner between two RF connectors on the QCA9886 and a single RF test port on the tester. Two testers are needed for the 2-stream test. Use a 2-to-1 combiner to combine the 2 RF ports for 1- stream and connect to one tester. Use another 2-to-1 combiner to combine the remaining two RF ports for the second stream, and then connect to the second tester. Figure 1-1 shows the DUT in the test setup: CUS239 PCIE module, PCIE adapter board for 3.3V/5V power source and PCIE BUS. Figure 1-1 DUT: Wi-Fi module plugged in PC Figure 1-2 shows the DUT plugged into the access point . Figure 1-2 DUT: Wi-Fi module plugged in AP 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 4 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

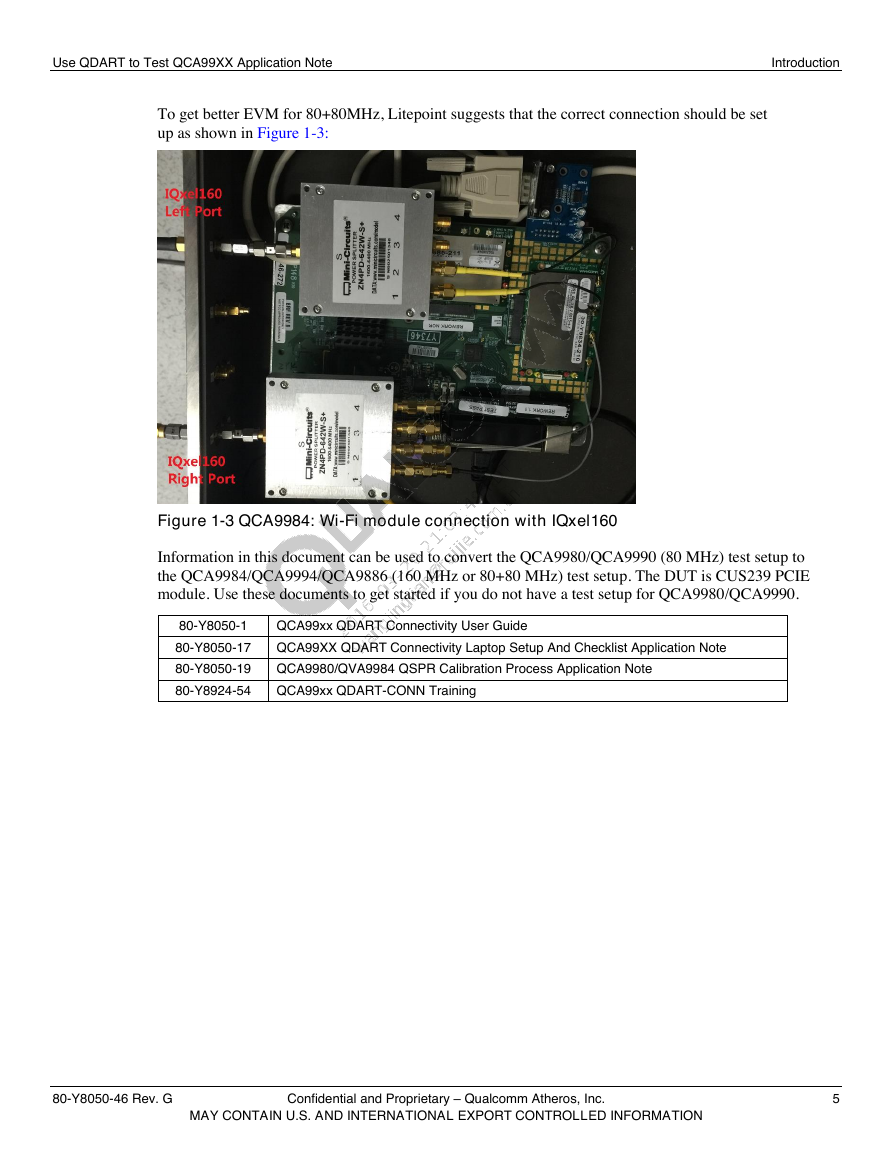

Use QDART to Test QCA99XX Application Note Introduction To get better EVM for 80+80MHz, Litepoint suggests that the correct connection should be set up as shown in Figure 1-3: Figure 1-3 QCA9984: Wi-Fi module connection with IQxel160 Information in this document can be used to convert the QCA9980/QCA9990 (80 MHz) test setup to the QCA9984/QCA9994/QCA9886 (160 MHz or 80+80 MHz) test setup. The DUT is CUS239 PCIE module. Use these documents to get started if you do not have a test setup for QCA9980/QCA9990. 80-Y8050-1 QCA99xx QDART Connectivity User Guide 80-Y8050-17 QCA99XX QDART Connectivity Laptop Setup And Checklist Application Note 80-Y8050-19 QCA9980/QVA9984 QSPR Calibration Process Application Note 80-Y8924-54 QCA99xx QDART-CONN Training 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 5 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

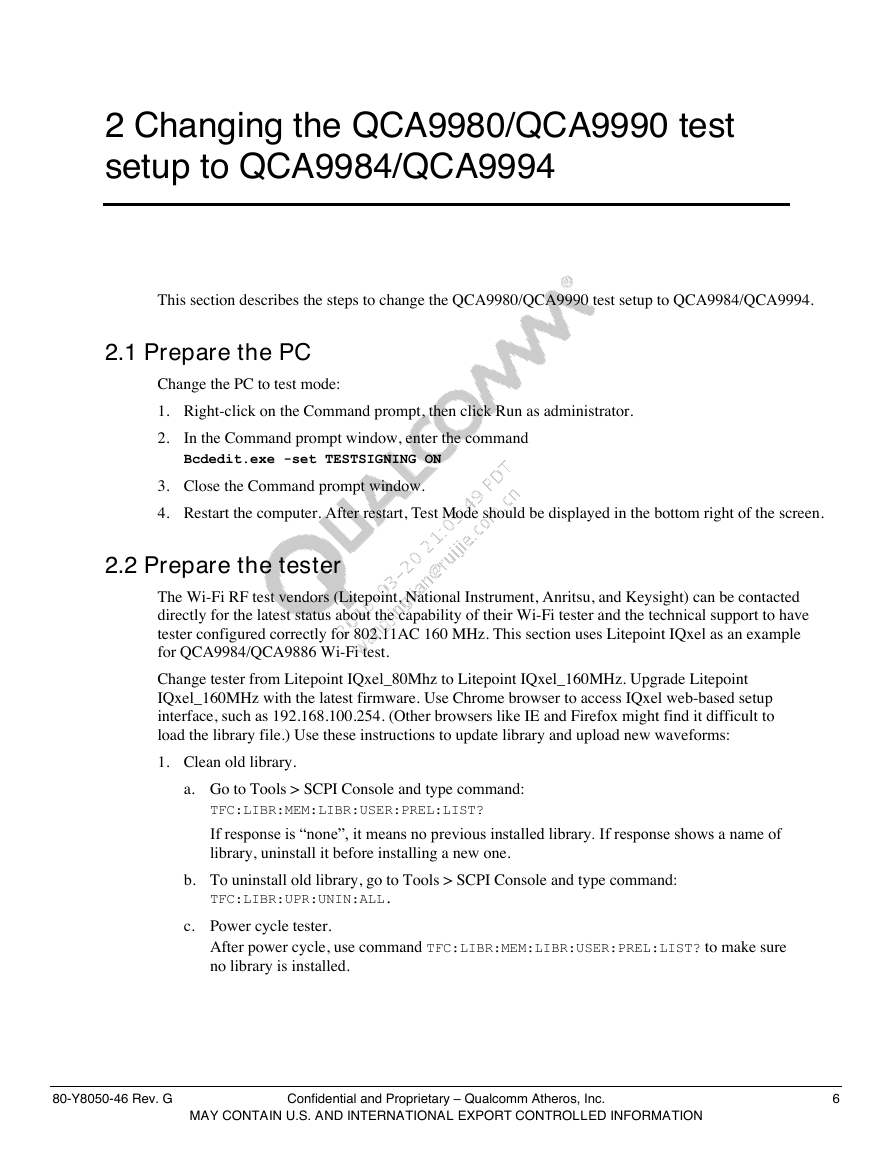

2 Changing the QCA9980/QCA9990 test setup to QCA9984/QCA9994 This section describes the steps to change the QCA9980/QCA9990 test setup to QCA9984/QCA9994. 2.1 Prepare the PC Change the PC to test mode: 1. Right-click on the Command prompt, then click Run as administrator. 2. In the Command prompt window, enter the command Bcdedit.exe -set TESTSIGNING ON 3. Close the Command prompt window. 4. Restart the computer. After restart, Test Mode should be displayed in the bottom right of the screen. 2.2 Prepare the tester The Wi-Fi RF test vendors (Litepoint, National Instrument, Anritsu, and Keysight) can be contacted directly for the latest status about the capability of their Wi-Fi tester and the technical support to have tester configured correctly for 802.11AC 160 MHz. This section uses Litepoint IQxel as an example for QCA9984/QCA9886 Wi-Fi test. Change tester from Litepoint IQxel_80Mhz to Litepoint IQxel_160MHz. Upgrade Litepoint IQxel_160MHz with the latest firmware. Use Chrome browser to access IQxel web-based setup interface, such as 192.168.100.254. (Other browsers like IE and Firefox might find it difficult to load the library file.) Use these instructions to update library and upload new waveforms: 1. Clean old library. a. Go to Tools > SCPI Console and type command: TFC:LIBR:MEM:LIBR:USER:PREL:LIST? If response is “none”, it means no previous installed library. If response shows a name of library, uninstall it before installing a new one. b. To uninstall old library, go to Tools > SCPI Console and type command: TFC:LIBR:UPR:UNIN:ALL. c. Power cycle tester. After power cycle, use command TFC:LIBR:MEM:LIBR:USER:PREL:LIST? to make sure no library is installed. 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 6 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

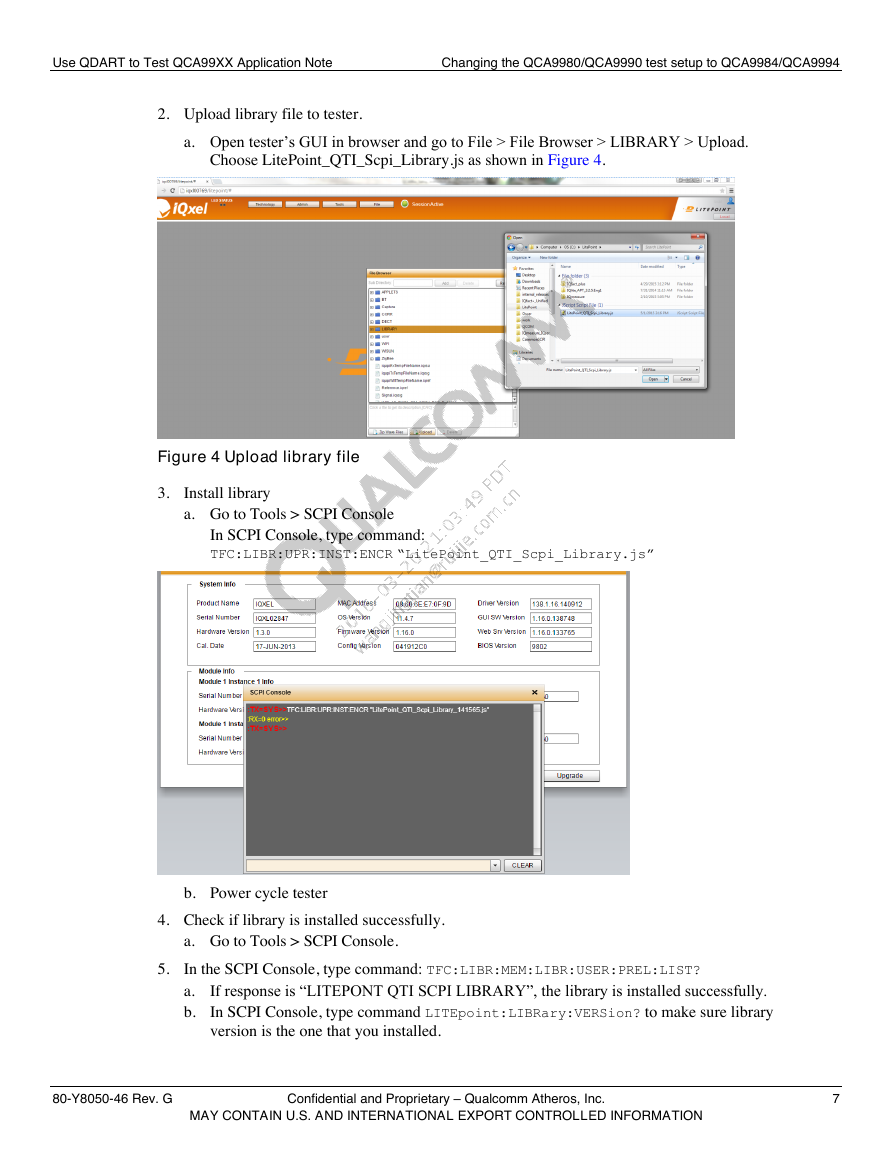

Use QDART to Test QCA99XX Application Note Changing the QCA9980/QCA9990 test setup to QCA9984/QCA9994 2. Upload library file to tester. a. Open tester’s GUI in browser and go to File > File Browser > LIBRARY > Upload. Choose LitePoint_QTI_Scpi_Library.js as shown in Figure 4. Figure 4 Upload library file 3. Install library a. Go to Tools > SCPI Console In SCPI Console, type command: TFC:LIBR:UPR:INST:ENCR “LitePoint_QTI_Scpi_Library.js” b. Power cycle tester 4. Check if library is installed successfully. a. Go to Tools > SCPI Console. 5. In the SCPI Console, type command: TFC:LIBR:MEM:LIBR:USER:PREL:LIST? a. If response is “LITEPONT QTI SCPI LIBRARY”, the library is installed successfully. b. In SCPI Console, type command LITEpoint:LIBRary:VERSion? to make sure library version is the one that you installed. 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 7 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

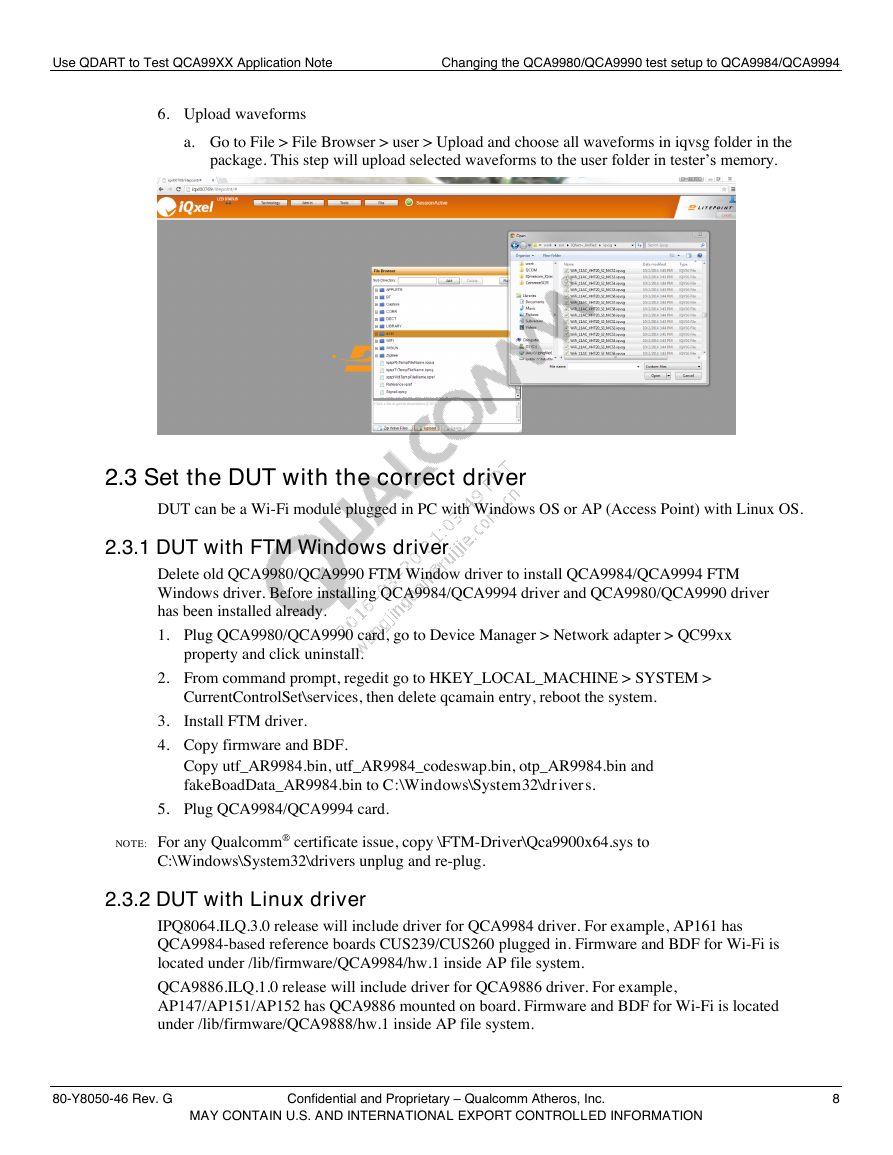

Use QDART to Test QCA99XX Application Note Changing the QCA9980/QCA9990 test setup to QCA9984/QCA9994 6. Upload waveforms a. Go to File > File Browser > user > Upload and choose all waveforms in iqvsg folder in the package. This step will upload selected waveforms to the user folder in tester’s memory. 2.3 Set the DUT with the correct driver DUT can be a Wi-Fi module plugged in PC with Windows OS or AP (Access Point) with Linux OS. 2.3.1 DUT with FTM Windows driver Delete old QCA9980/QCA9990 FTM Window driver to install QCA9984/QCA9994 FTM Windows driver. Before installing QCA9984/QCA9994 driver and QCA9980/QCA9990 driver has been installed already. 1. Plug QCA9980/QCA9990 card, go to Device Manager > Network adapter > QC99xx property and click uninstall. 2. From command prompt, regedit go to HKEY_LOCAL_MACHINE > SYSTEM > CurrentControlSet\services, then delete qcamain entry, reboot the system. 3. Install FTM driver. 4. Copy firmware and BDF. Copy utf_AR9984.bin, utf_AR9984_codeswap.bin, otp_AR9984.bin and fakeBoadData_AR9984.bin to C:\Windows\System32\drivers. 5. Plug QCA9984/QCA9994 card. NOTE: For any Qualcomm® certificate issue, copy \FTM-Driver\Qca9900x64.sys to C:\Windows\System32\drivers unplug and re-plug. 2.3.2 DUT with Linux driver IPQ8064.ILQ.3.0 release will include driver for QCA9984 driver. For example, AP161 has QCA9984-based reference boards CUS239/CUS260 plugged in. Firmware and BDF for Wi-Fi is located under /lib/firmware/QCA9984/hw.1 inside AP file system. QCA9886.ILQ.1.0 release will include driver for QCA9886 driver. For example, AP147/AP151/AP152 has QCA9886 mounted on board. Firmware and BDF for Wi-Fi is located under /lib/firmware/QCA9888/hw.1 inside AP file system. 80-Y8050-46 Rev. G Confidential and Proprietary – Qualcomm Atheros, Inc. 8 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
