Facsimile Quick Reference Guide Model No. KX-PW110CL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ……………………………………………………………2 Installations and connections …………………………………………………4 Setting the date and time ………………………………………………………7 Setting your facsimile telephone number ……………………………………8 Setting your logo…………………………………………………………………8 Character input and command key table ……………………………………9 Automatic dialing on the main unit……………………………………………10 Automatic dialing on the portable handset …………………………………11 Sending faxes …………………………………………………………………12 Receiving faxes ………………………………………………………………13 Operating the built-in answering device ……………………………………14 Individual e-mail services ……………………………………………………16 Specifications…………………………………………………………Back cover This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. Any details given in this guide are subject to change without notice.

Finding the controls Main unit (control panel) 1 2 3 4 5 6 7 8月 1日 14：00� ﾖｳｹﾝﾛｸｵﾝ 00ｹﾝ� 8 9 10 11 12 13 14 15 16 17 18 19 20 21 1 Liquid crystal display 11 Microphone 2 Volume buttons adjust ringer and 12 Character Input Mode button speaker volume. 13 E-Mail button 3 Redial button 14 Resolution button selects the resolution The last 10 phone numbers dialed are when faxing or copying. stored in memory. 15 Menu button initiates programming. 4 Phonebook/Addressbook button 16 Stop button 5 Select button selects a parameter. 17 Start /Copy button starts faxing or Edit button copying. 6 Tone button switches to tone dialing. 18 Set button stores a parameter. 7 Hold button 19 Erase button Call Memory button starts a search in 20 Play button plays back recorded the Number Display log. messages. (For caller ID display service users.) 21 Auto Answer button & indicator 8 Pause button —light on: answering device activated. 9 Flash button —light off: used as a regular telephone. (For call waiting service users.) 10 Speakerphone button 2

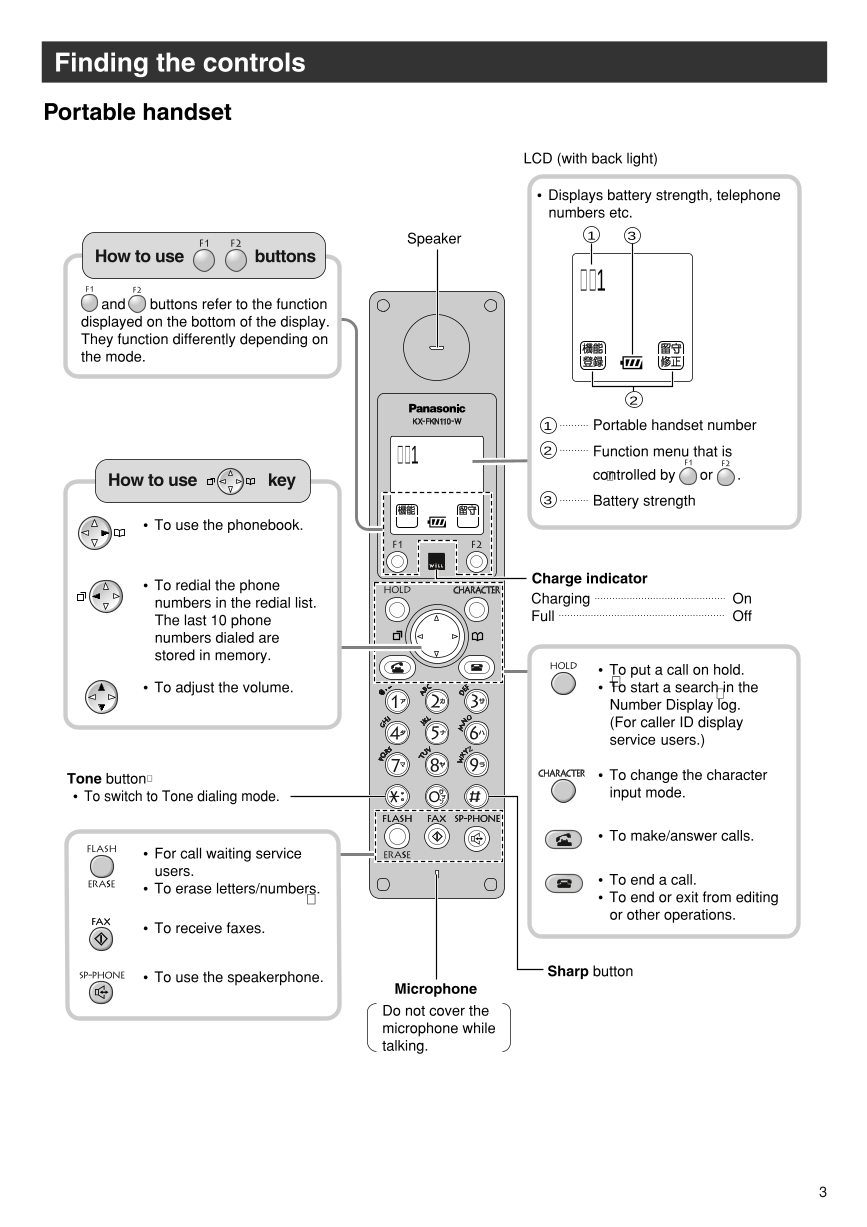

Finding the controls Portable handset LCD (with back light) ● Displays battery strength, telephone numbers etc. Speaker 1 3 How to use buttons ｺｷ1 and buttons refer to the function displayed on the bottom of the display. They function differently depending on the mode. 2 1 Portable handset number ｺｷ1 2 Function menu that is How to use key co�ntrolled by or . 3 Battery strength ● To use the phonebook. ● To redial the phone Charge indicator numbers in the redial list. Charging On The last 10 phone Full Off numbers dialed are stored in memory. ● To put a call on hold. ● To adjust the volume. ● T�o start a search� in the Number Display log. (For caller ID display service users.) Tone button� ● To change the character ● To switch to Tone dialing mode. input mode. ● To make/answer calls. ● For call waiting service users. ● To end a call. ● To erase letters/numbers. � ● To end or exit from editing or other operations. ● To receive faxes. ● To use the speakerphone. Sharp button Microphone Do not cover the microphone while talking. 3

Installations and connections Installing the ink film 1 3 Insert the white core into the slots. Open the control panel. 1 Press here. 2 Open the control Control panel panel until it locks. 3 If the ink film is slack, tighten it by winding the “T” shaped gear. Do not be slacken. 2 Insert the ink film. Find the “T” shaped gear (blue). Ink film 4 Close the control panel until it locks. 1 Insert the blue core into the right slot of the main unit. Right slot Click When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀｺｳｶﾝｼﾃｸﾀﾞｻｲｼU 2 3 ﾋﾝﾊﾞﾝ : K X - F A N 14 1 Install a new ink film. Blue core Replacement ink film: 2 Insert the “T” shaped gear (blue) KX-FAN141 (50 m) ¥1400 into the left slot of the main unit. ・As of August 2003. ・Tax not included. 4

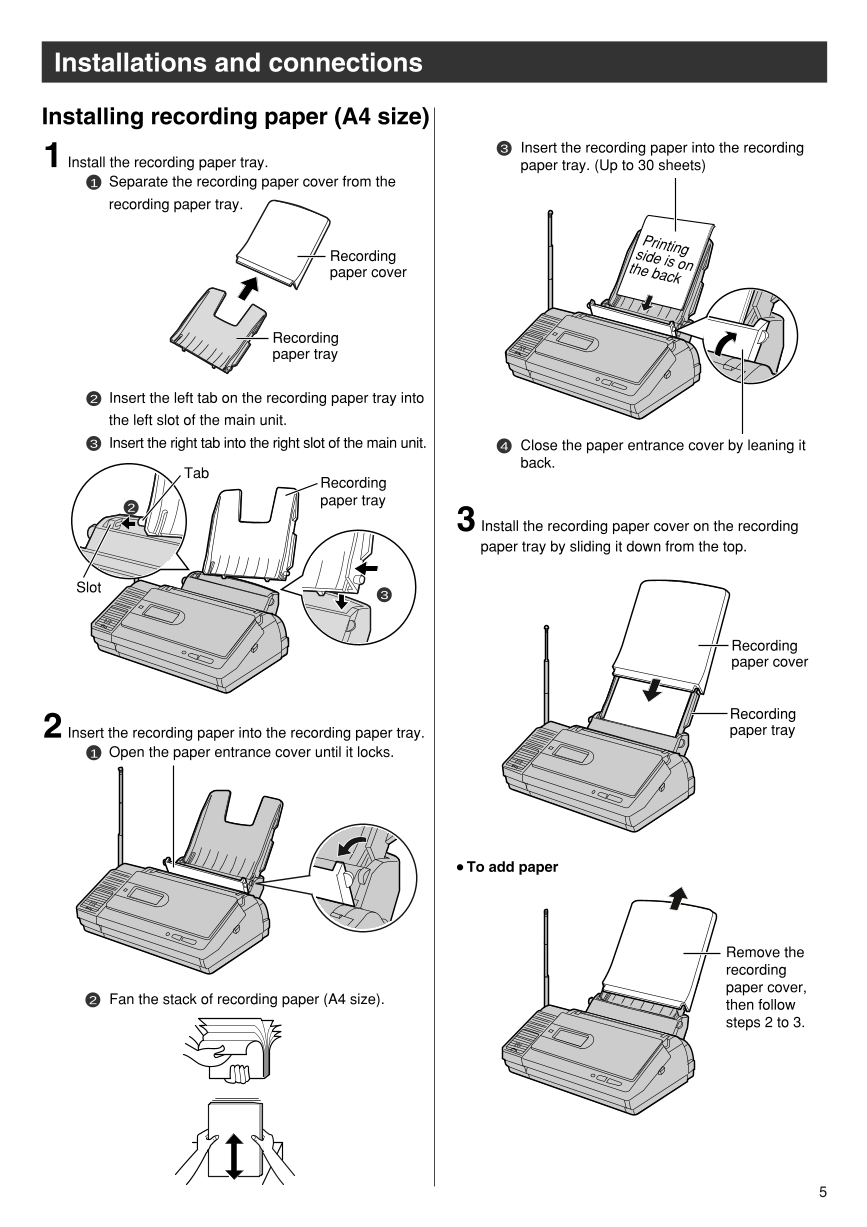

Installations and connections Installing recording paper (A4 size) 1 3 Insert the recording paper into the recording Install the recording paper tray. paper tray. (Up to 30 sheets) 1 Separate the recording paper cover from the recording paper tray. Prin Recording s ti i n d g e t is o paper cover he b n a ck Recording paper tray 2 Insert the left tab on the recording paper tray into the left slot of the main unit. 3 Insert the right tab into the right slot of the main unit. 4 Close the paper entrance cover by leaning it back. Tab Recording 2 paper tray 3 Install the recording paper cover on the recording paper tray by sliding it down from the top. Slot 3 Recording paper cover 2 Recording Insert the recording paper into the recording paper tray. paper tray 1 Open the paper entrance cover until it locks. To add paper Remove the recording paper cover, 2 Fan the stack of recording paper (A4 size). then follow steps 2 to 3. 5

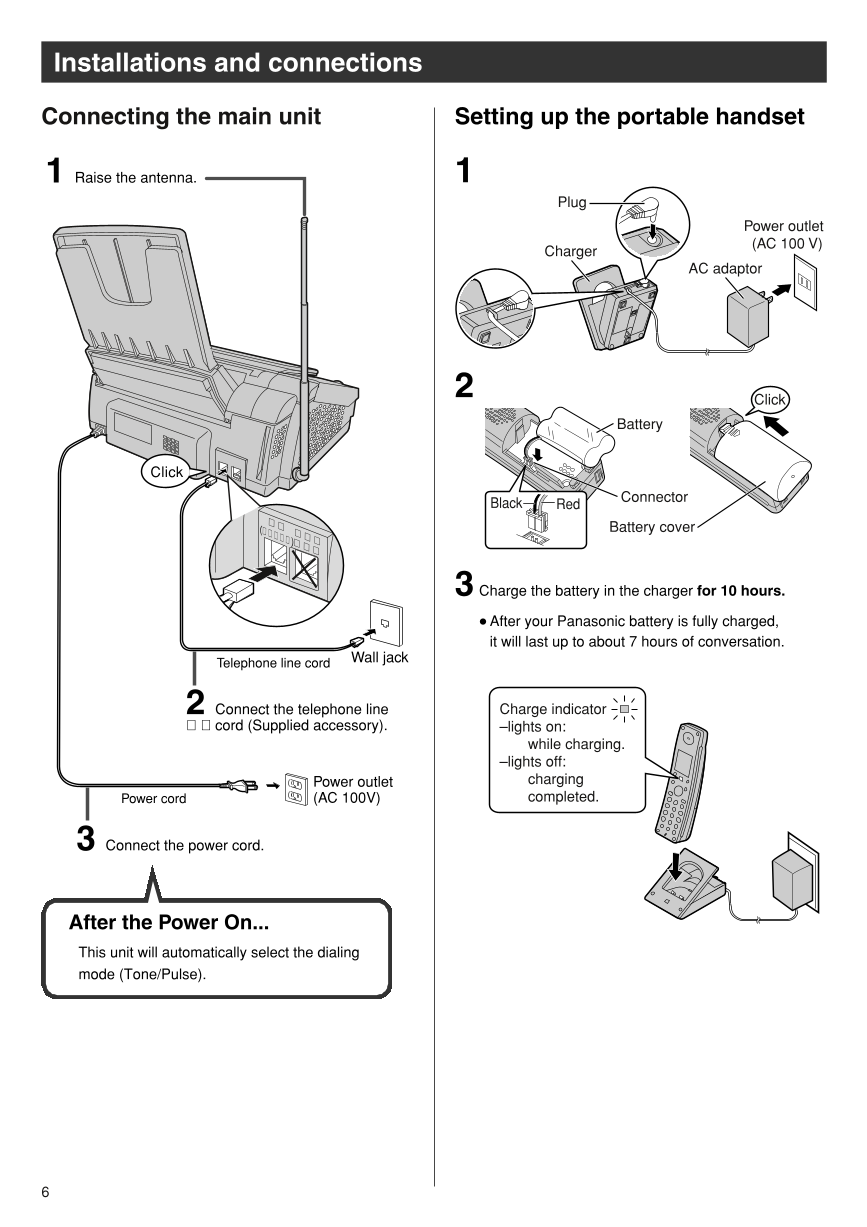

Installations and connections Connecting the main unit Setting up the portable handset 1 Raise the antenna. 1 Plug Power outlet Charger (AC 100 V) AC adaptor 2 Click Battery Click Black Red Connector 回 (電線話停 Battery cover 回線へ)電電話用機 3 Charge the battery in the charger for 10 hours. After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. Telephone line cord Wall jack 2 Connect the telephone line Charge indicator 　　cord (Supplied accessory). –lights on: while charging. –lights off: Power outlet charging Power cord (AC 100V) completed. 3 Connect the power cord. After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). 6

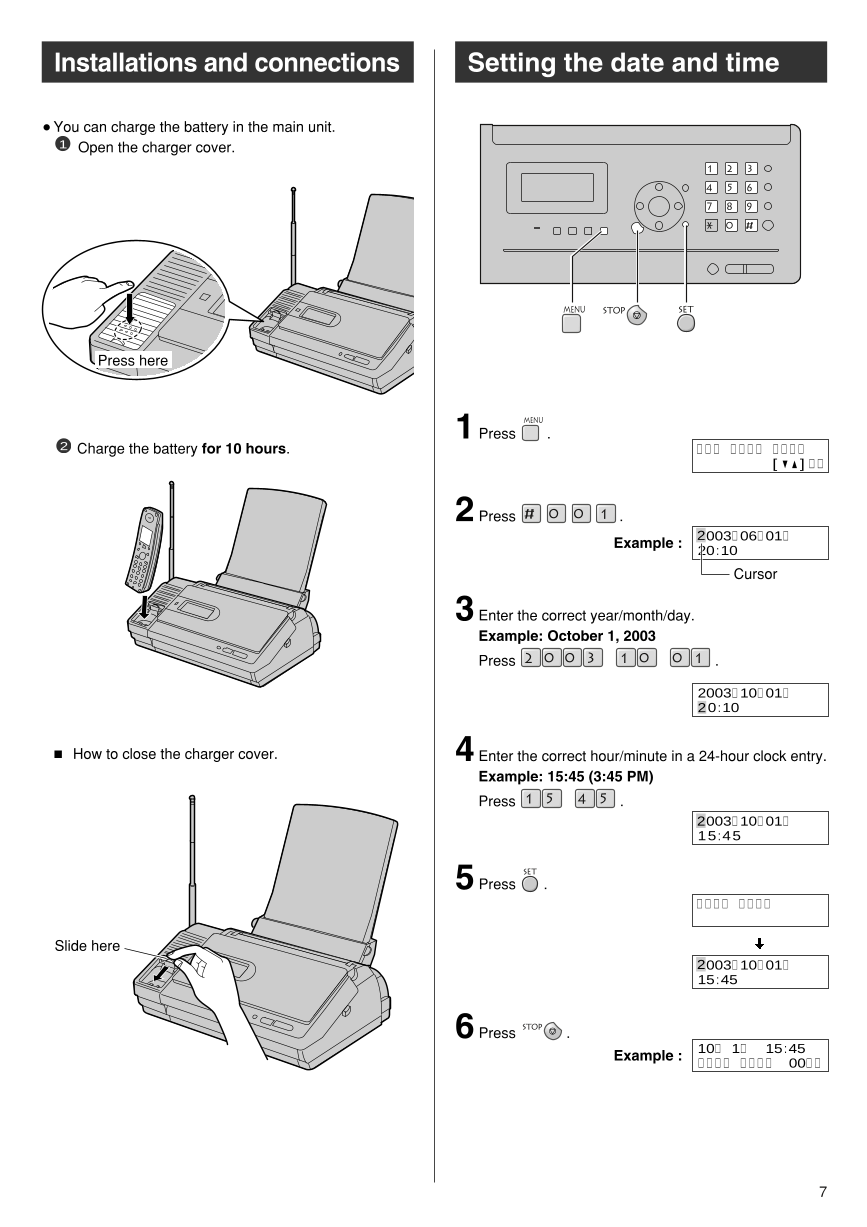

Installations and connections Setting the date and time You can charge the battery in the main unit. 1 Open the charger cover. Press here 1 Press . 2 Charge the battery for 10 hours. ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞｶｲｾｼｼｼｱｱｼ [ ▼▲] ｵｽ 2 Press . Example : 2003年06月01日 20:10 Cursor 3 Enter the correct year/month/day. Example: October 1, 2003 Press . 2003年10月01日 200:10 ■ How to close the charger cover. 4 Enter the correct hour/minute in a 24-hour clock entry. Example: 15:45 (3:45 PM) Press . 2003年10月01日 15:45 5 Press . ﾄｳﾛｸｱｼﾏｼﾀ Slide here 2003年10月01日 15:45 6 Press . Example : 10月01日0015:45 ﾖｳｹﾝ0ﾛｸｵﾝ0000ｹﾝ 7

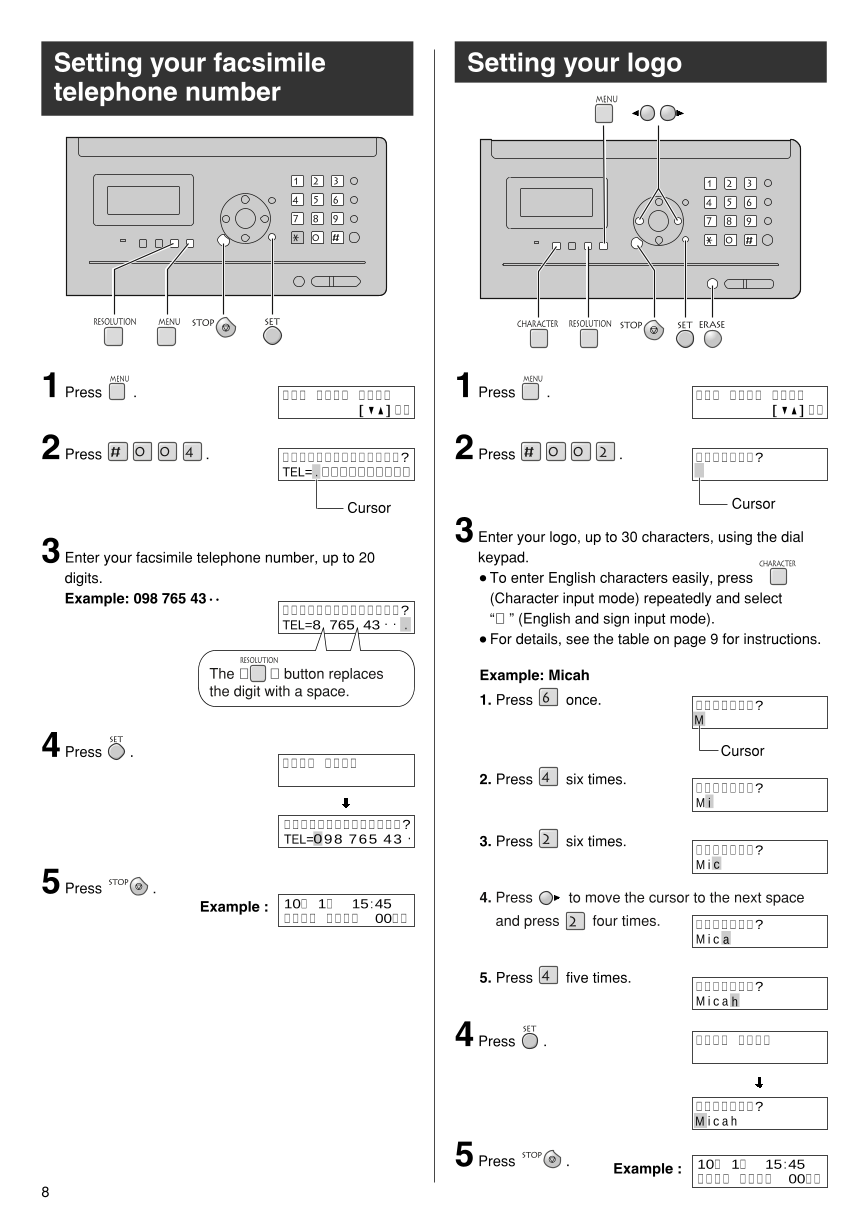

Setting your facsimile Setting your logo telephone number 1 Press . ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ 1 Press . ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞｶｲｾｼｼｼｱｱｼ [ ▼▲] ｵｽｶｲｾｼｼｼｱｱｼ [ ▼▲] ｵｽ 2 Press . ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? 2 Press . ｱﾅﾀﾉﾅﾏｴ? TEL=．. ．．．．．．．．．． Cursor Cursor 3 3 Enter your logo, up to 30 characters, using the dial Enter your facsimile telephone number, up to 20 keypad. digits. To enter English characters easily, press Example: 098 765 43 · · (Character input mode) repeatedly and select ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=80765043 . . . “英” (English and sign input mode). For details, see the table on page 9 for instructions. The 　　button replaces Example: Micah the digit with a space. 1. Press once. ｱﾅﾀﾉﾅﾏｴ? M 4 Press . Cursor ﾄｳﾛｸｱｼﾏｼﾀ 2. Press six times. ｱﾅﾀﾉﾅﾏｴ? M i ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ? TEL=098.765.43 . 3. Press six times. ｱﾅﾀﾉﾅﾏｴ? M i c 5 Press . 10月01日0015:45 4. Press to move the cursor to the next space Example : ﾖｳｹﾝ0ﾛｸｵﾝ0000ｹﾝ and press four times. ｱﾅﾀﾉﾅﾏｴ? M i c a 5. Press five times. ｱﾅﾀﾉﾅﾏｴ? M i c a h 4 Press . ﾄｳﾛｸｱｼﾏｼﾀｱﾅﾀﾉﾅﾏｴ? M i c a h 5 Press . Example : 10月01日0015:45 ﾖｳｹﾝ0ﾛｸｵﾝ0000ｹﾝ 8
