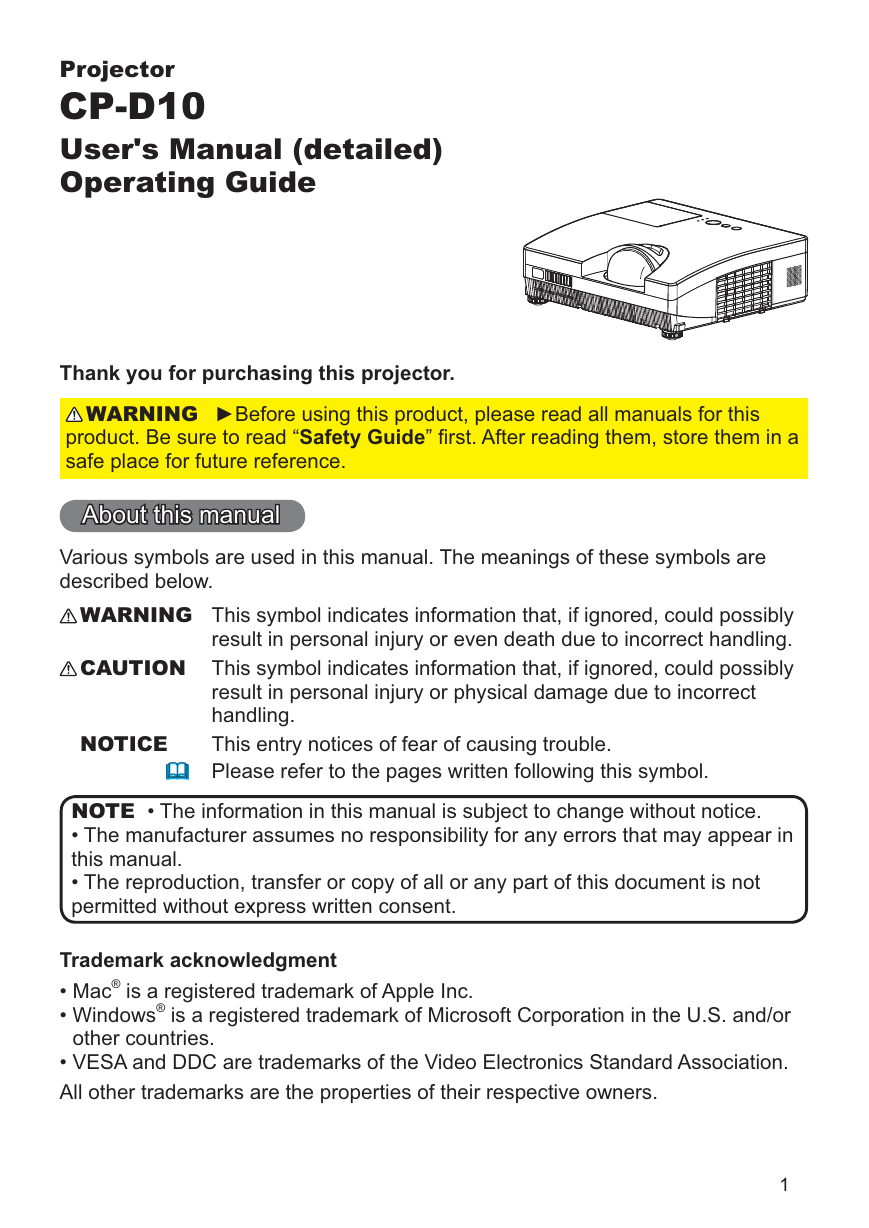

Projector CP-D10 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” ﬁrst. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING CAUTION NOTICE This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. This entry notices of fear of causing trouble. Please refer to the pages written following this symbol. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • Mac® is a registered trademark of Apple Inc. • Windows® is a registered trademark of Microsoft Corporation in the U.S. and/or other countries. • VESA and DDC are trademarks of the Video Electronics Standard Association. All other trademarks are the properties of their respective owners. 1

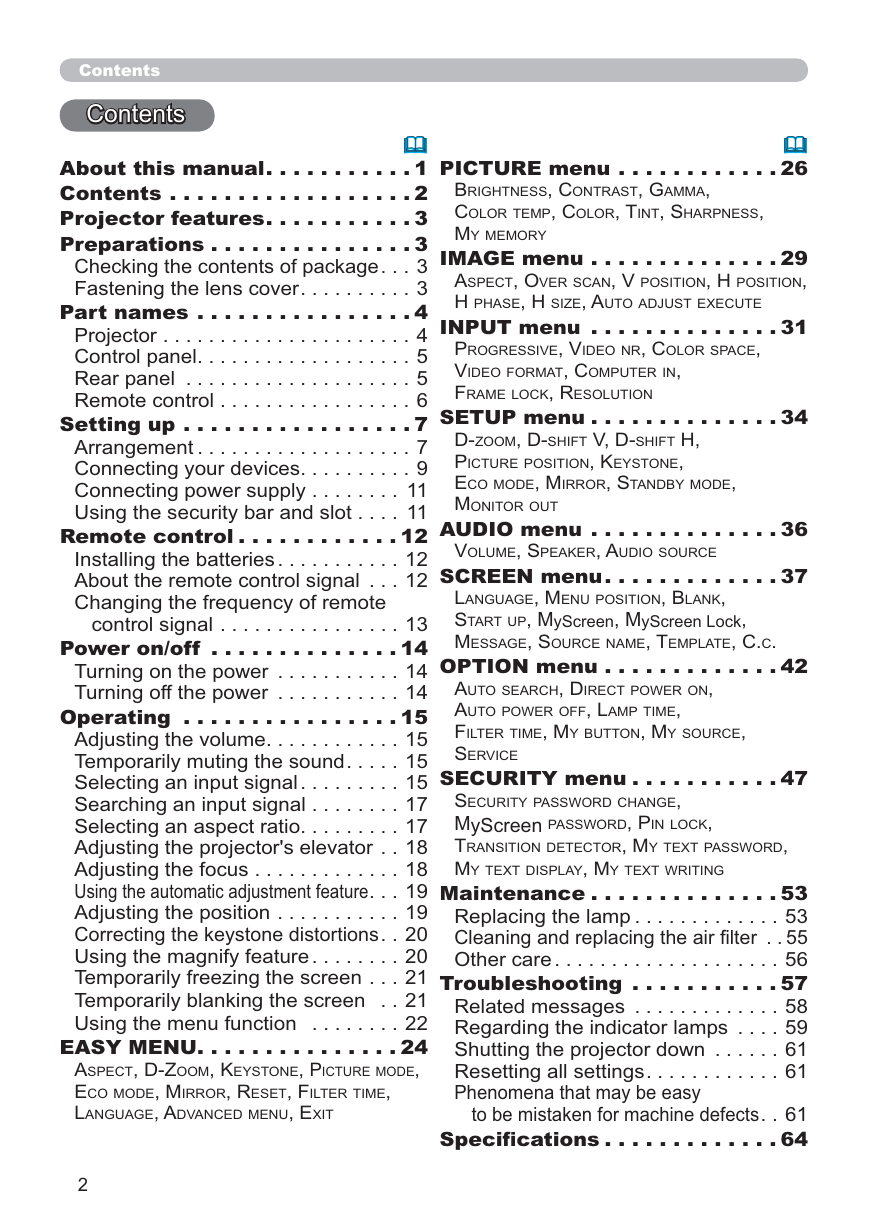

Contents Contents About this manual . . . . . . . . . . . 1 Contents . . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . . 3 Preparations . . . . . . . . . . . . . . . 3 Checking the contents of package . . . 3 Fastening the lens cover . . . . . . . . . . 3 Part names . . . . . . . . . . . . . . . . 4 Projector . . . . . . . . . . . . . . . . . . . . . . 4 Control panel . . . . . . . . . . . . . . . . . . . 5 Rear panel . . . . . . . . . . . . . . . . . . . . 5 Remote control . . . . . . . . . . . . . . . . . 6 Setting up . . . . . . . . . . . . . . . . . 7 Arrangement . . . . . . . . . . . . . . . . . . . 7 Connecting your devices . . . . . . . . . . 9 Connecting power supply . . . . . . . . 11 Using the security bar and slot . . . . 11 Remote control . . . . . . . . . . . . 12 Installing the batteries . . . . . . . . . . . 12 About the remote control signal . . . 12 Changing the frequency of remote control signal . . . . . . . . . . . . . . . . 13 Power on/off . . . . . . . . . . . . . . 14 Turning on the power . . . . . . . . . . . 14 Turning off the power . . . . . . . . . . . 14 Operating . . . . . . . . . . . . . . . . 15 Adjusting the volume . . . . . . . . . . . . 15 Temporarily muting the sound . . . . . 15 Selecting an input signal . . . . . . . . . 15 Searching an input signal . . . . . . . . 17 Selecting an aspect ratio . . . . . . . . . 17 Adjusting the projector's elevator . . 18 Adjusting the focus . . . . . . . . . . . . . 18 Using the automatic adjustment feature . . . 19 Adjusting the position . . . . . . . . . . . 19 Correcting the keystone distortions . . 20 Using the magnify feature . . . . . . . . 20 Temporarily freezing the screen . . . 21 Temporarily blanking the screen . . 21 Using the menu function . . . . . . . . 22 EASY MENU. . . . . . . . . . . . . . . 24 ASPECT, D-ZOOM, KEYSTONE, PICTURE MODE, ECO MODE, MIRROR, RESET, FILTER TIME, LANGUAGE, ADVANCED MENU, EXIT 2 PICTURE menu . . . . . . . . . . . . 26 BRIGHTNESS, CONTRAST, GAMMA, COLOR TEMP, COLOR, TINT, SHARPNESS, MY MEMORY IMAGE menu . . . . . . . . . . . . . . 29 ASPECT, OVER SCAN, V POSITION, H POSITION, H PHASE, H SIZE, AUTO ADJUST EXECUTE INPUT menu . . . . . . . . . . . . . . 31 PROGRESSIVE, VIDEO NR, COLOR SPACE, VIDEO FORMAT, COMPUTER IN, FRAME LOCK, RESOLUTION SETUP menu . . . . . . . . . . . . . . 34 D-ZOOM, D-SHIFT V, D-SHIFT H, PICTURE POSITION, KEYSTONE, ECO MODE, MIRROR, STANDBY MODE, MONITOR OUT AUDIO menu . . . . . . . . . . . . . . 36 VOLUME, SPEAKER, AUDIO SOURCE SCREEN menu . . . . . . . . . . . . . 37 LANGUAGE, MENU POSITION, BLANK, START UP, MyScreen, MyScreen Lock, MESSAGE, SOURCE NAME, TEMPLATE, C.C. OPTION menu . . . . . . . . . . . . . 42 AUTO SEARCH, DIRECT POWER ON, AUTO POWER OFF, LAMP TIME, FILTER TIME, MY BUTTON, MY SOURCE, SERVICE SECURITY menu . . . . . . . . . . . 47 SECURITY PASSWORD CHANGE, MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, MY TEXT PASSWORD, MY TEXT DISPLAY, MY TEXT WRITING Maintenance . . . . . . . . . . . . . . 53 Replacing the lamp . . . . . . . . . . . . . 53 Cleaning and replacing the air ﬁlter . . 55 Other care . . . . . . . . . . . . . . . . . . . . 56 Troubleshooting . . . . . . . . . . . 57 Related messages . . . . . . . . . . . . . 58 Regarding the indicator lamps . . . . 59 Shutting the projector down . . . . . . 61 Resetting all settings . . . . . . . . . . . . 61 Phenomena that may be easy to be mistaken for machine defects . . 61 Speciﬁcations . . . . . . . . . . . . . 64

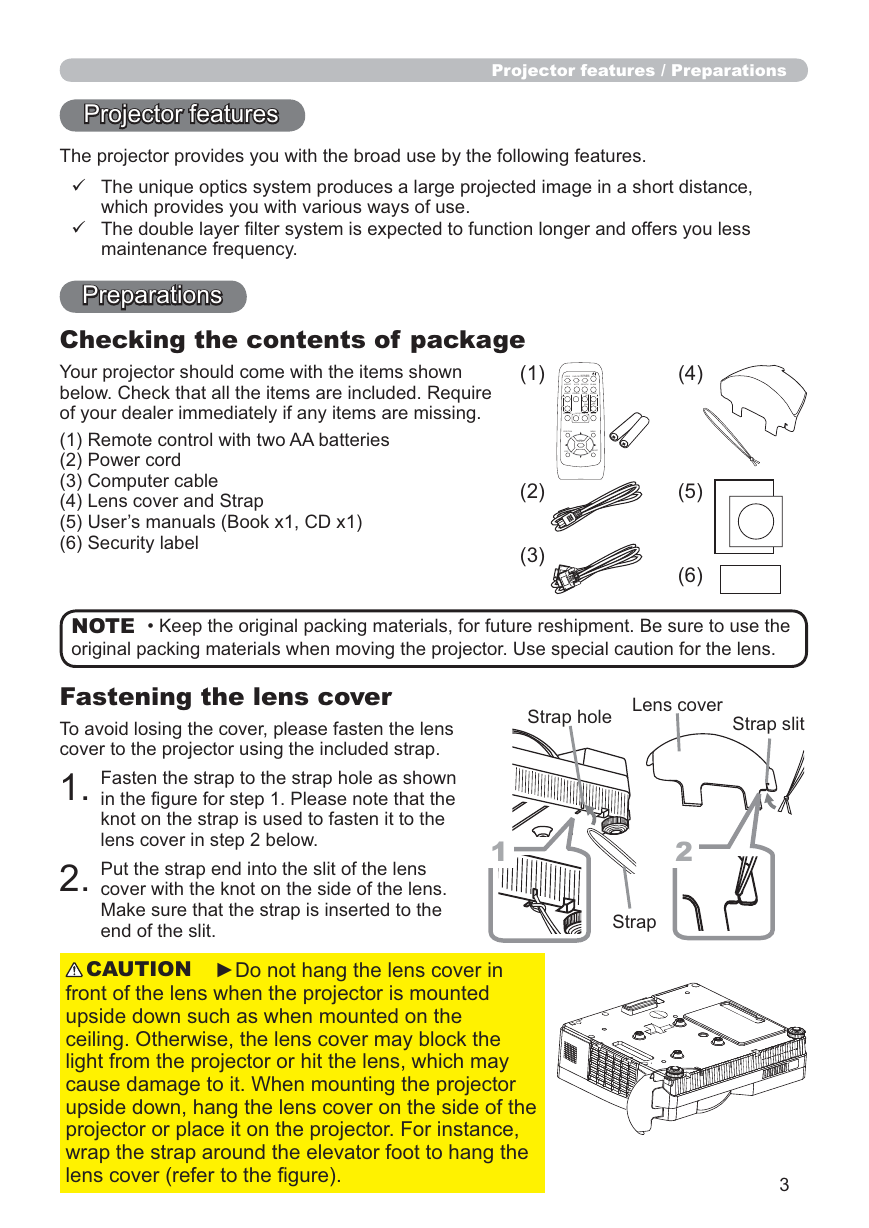

Projector features Projector features / Preparations The projector provides you with the broad use by the following features. The unique optics system produces a large projected image in a short distance, which provides you with various ways of use. The double layer ﬁlter system is expected to function longer and offers you less maintenance frequency. Preparations Checking the contents of package Your projector should come with the items shown below. Check that all the items are included. Require of your dealer immediately if any items are missing. (1) Remote control with two AA batteries (2) Power cord (3) Computer cable (4) Lens cover and Strap (5) User’s manuals (Book x1, CD x1) (6) Security label (1) (2) (3) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP DOWN VOLUME KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET (4) (5) (6) • Keep the original packing materials, for future reshipment. Be sure to use the NOTE original packing materials when moving the projector. Use special caution for the lens. Fastening the lens cover To avoid losing the cover, please fasten the lens cover to the projector using the included strap. 1. Lens cover Strap hole Strap slit Fasten the strap to the strap hole as shown in the ﬁgure for step 1. Please note that the knot on the strap is used to fasten it to the lens cover in step 2 below. Put the strap end into the slit of the lens cover with the knot on the side of the lens. Make sure that the strap is inserted to the end of the slit. 2. 1 2 Strap CAUTION ►Do not hang the lens cover in front of the lens when the projector is mounted upside down such as when mounted on the ceiling. Otherwise, the lens cover may block the light from the projector or hit the lens, which may cause damage to it. When mounting the projector upside down, hang the lens cover on the side of the projector or place it on the projector. For instance, wrap the strap around the elevator foot to hang the lens cover (refer to the ﬁgure). 3

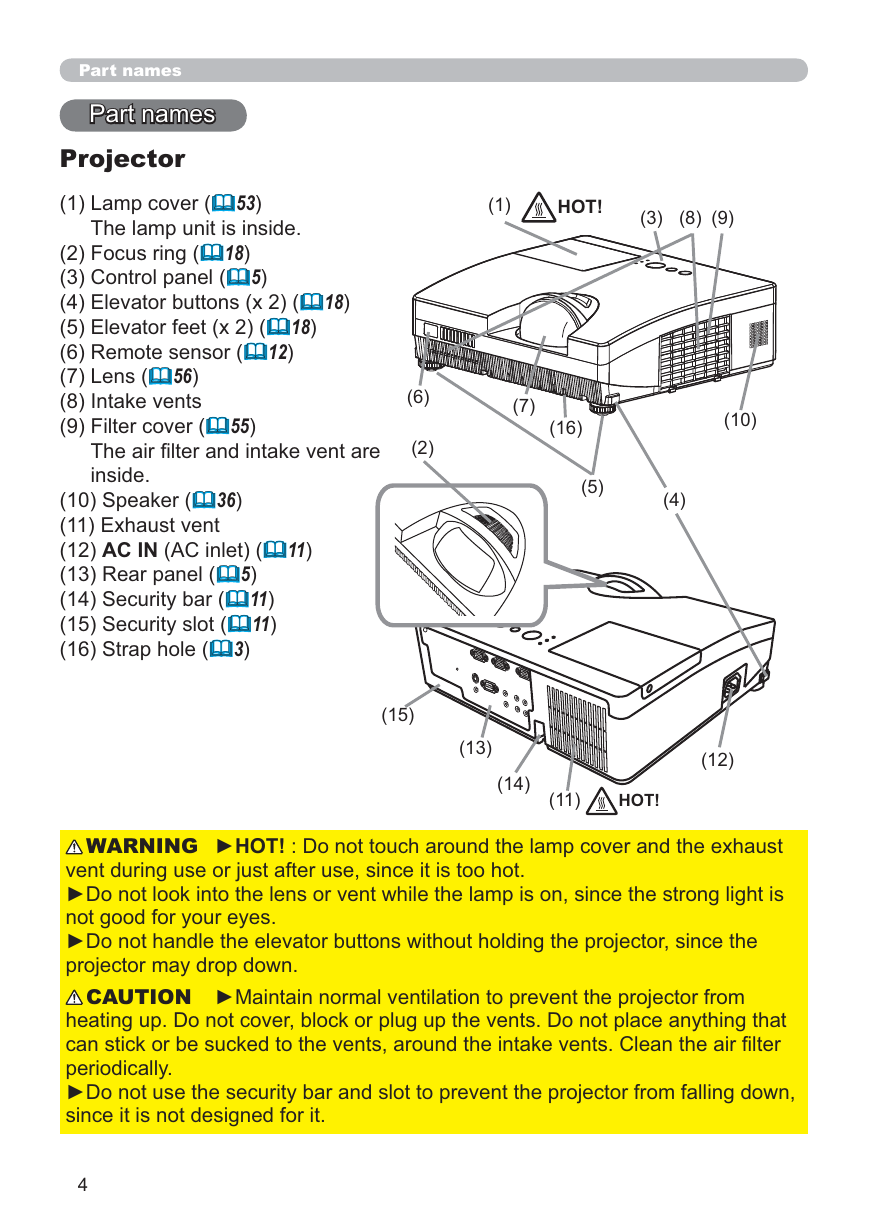

Part names Part names The lamp unit is inside. Projector (1) Lamp cover (53) (2) Focus ring (18) (3) Control panel (5) (4) Elevator buttons (x 2) (18) (5) Elevator feet (x 2) (18) (6) Remote sensor (12) (7) Lens (56) (8) Intake vents (9) Filter cover (55) The air ﬁlter and intake vent are inside. (10) Speaker (36) (11) Exhaust vent (12) AC IN (AC inlet) (11) (13) Rear panel (5) (14) Security bar (11) (15) Security slot (11) (16) Strap hole (3) (1) HOT! (3) (8) (9) (6) (2) (7) (16) (10) (5) (4) (15) (13) (14) (11) HOT! (12) WARNING ►HOT! : Do not touch around the lamp cover and the exhaust vent during use or just after use, since it is too hot. ►Do not look into the lens or vent while the lamp is on, since the strong light is not good for your eyes. ►Do not handle the elevator buttons without holding the projector, since the projector may drop down. CAUTION ►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air ﬁlter periodically. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it. 4

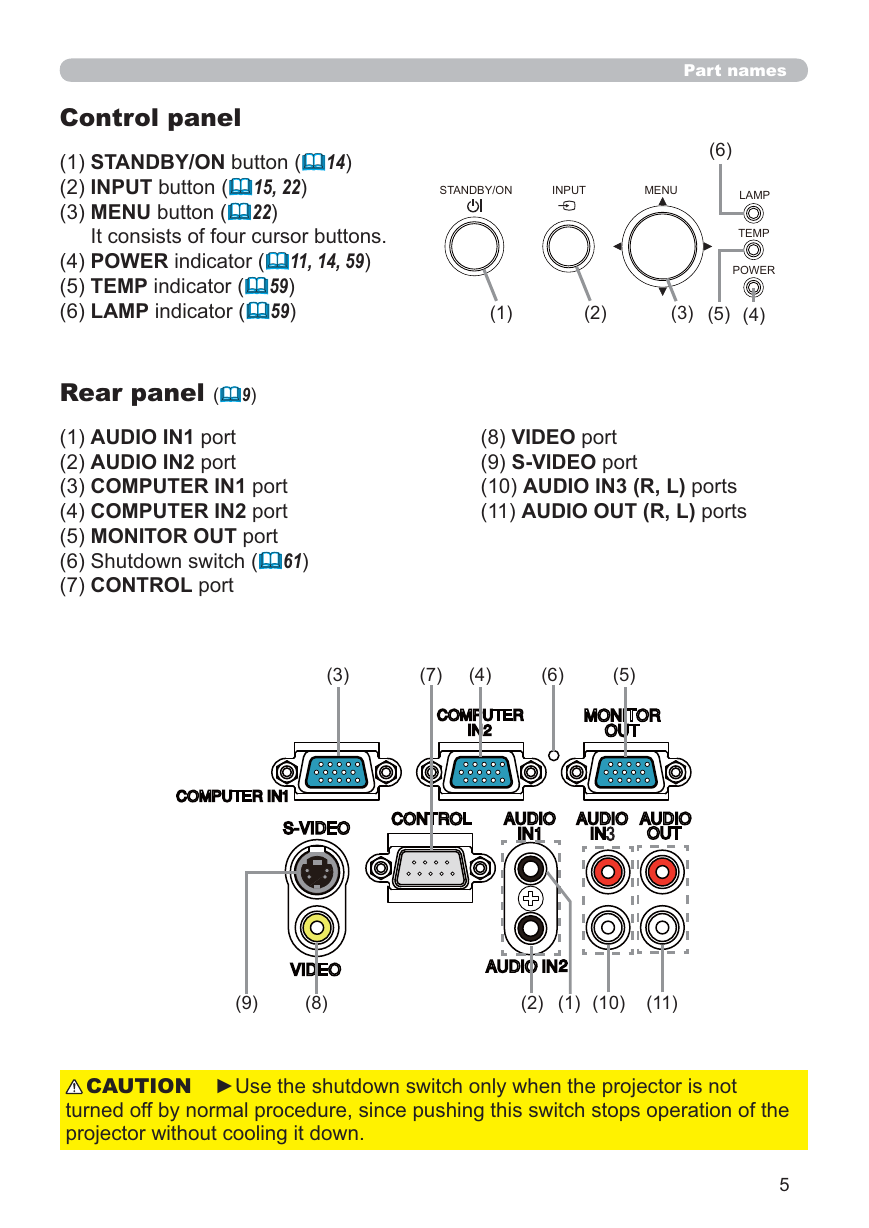

Control panel (1) STANDBY/ON button (14) (2) INPUT button (15, 22) (3) MENU button (22) It consists of four cursor buttons. (4) POWER indicator (11, 14, 59) (5) TEMP indicator (59) (6) LAMP indicator (59) Rear panel (9) (1) AUDIO IN1 port (2) AUDIO IN2 port (3) COMPUTER IN1 port (4) COMPUTER IN2 port (5) MONITOR OUT port (6) Shutdown switch (61) (7) CONTROL port STANDBY/ON INPUT MENU Part names (6) LAMP TEMP POWER (1) (2) (3) (5) (4) (8) VIDEO port (9) S-VIDEO port (10) AUDIO IN3 (R, L) ports (11) AUDIO OUT (R, L) ports (3) (7) (4) (6) (5) (9) (8) (2) (1) (10) (11) CAUTION ►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down. 5

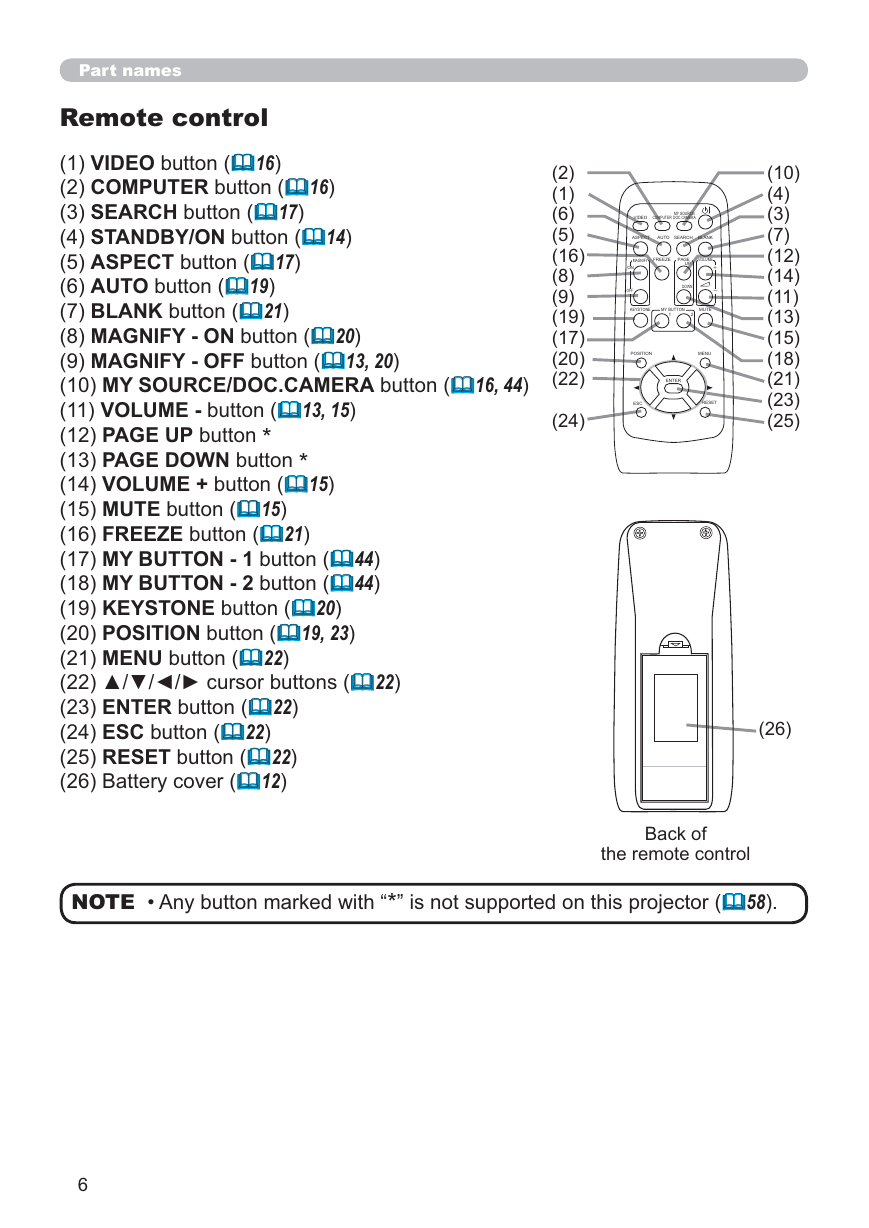

Part names Remote control (1) VIDEO button (16) (2) COMPUTER button (16) (3) SEARCH button (17) (4) STANDBY/ON button (14) (5) ASPECT button (17) (6) AUTO button (19) (7) BLANK button (21) (8) MAGNIFY - ON button (20) (9) MAGNIFY - OFF button (13, 20) (10) MY SOURCE/DOC.CAMERA button (16, 44) (11) VOLUME - button (13, 15) (12) PAGE UP button * (13) PAGE DOWN button * (14) VOLUME + button (15) (15) MUTE button (15) (16) FREEZE button (21) (17) MY BUTTON - 1 button (44) (18) MY BUTTON - 2 button (44) (19) KEYSTONE button (20) (20) POSITION button (19, 23) (21) MENU button (22) (22) ▲/▼/◄/► cursor buttons (22) (23) ENTER button (22) (24) ESC button (22) (25) RESET button (22) (26) Battery cover (12) (2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22) (24) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP DOWN VOLUME KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET (10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25) (26) NOTE • Any button marked with “*” is not supported on this projector (58). Back of the remote control 6

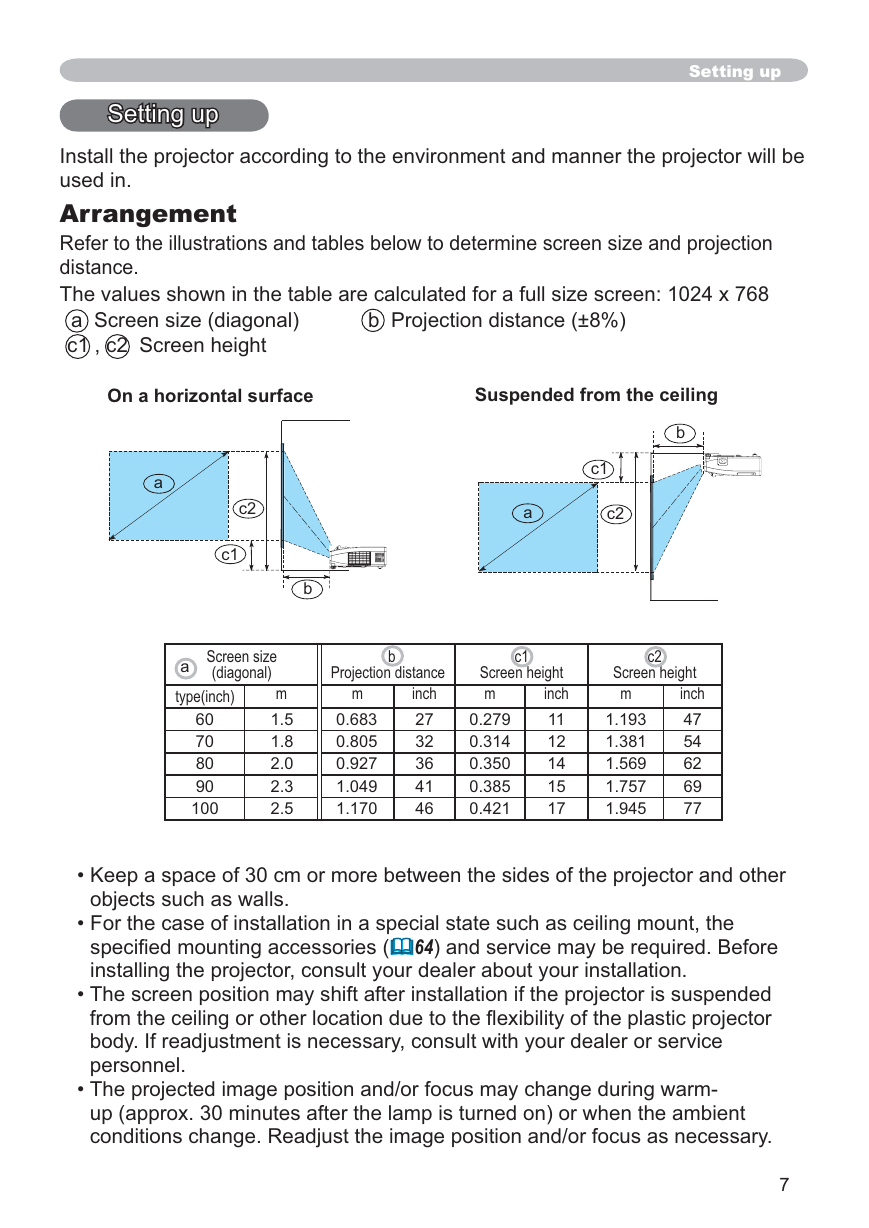

Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024 x 768 a Screen size (diagonal) c1 , c2 Screen height b Projection distance (±8%) On a horizontal surface Suspended from the ceiling b c1 a c2 a c2 c1 b Screen size (diagonal) a type(inch) 60 70 80 90 100 m 1.5 1.8 2.0 2.3 2.5 b Projection distance m 0.683 0.805 0.927 1.049 1.170 inch 27 32 36 41 46 c1 Screen height m inch 11 12 14 15 17 0.279 0.314 0.350 0.385 0.421 c2 Screen height m inch 47 54 62 69 77 1.193 1.381 1.569 1.757 1.945 • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. • For the case of installation in a special state such as ceiling mount, the speciﬁed mounting accessories (64) and service may be required. Before installing the projector, consult your dealer about your installation. • The screen position may shift after installation if the projector is suspended from the ceiling or other location due to the ﬂexibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel. • The projected image position and/or focus may change during warm- up (approx. 30 minutes after the lamp is turned on) or when the ambient conditions change. Readjust the image position and/or focus as necessary. 7

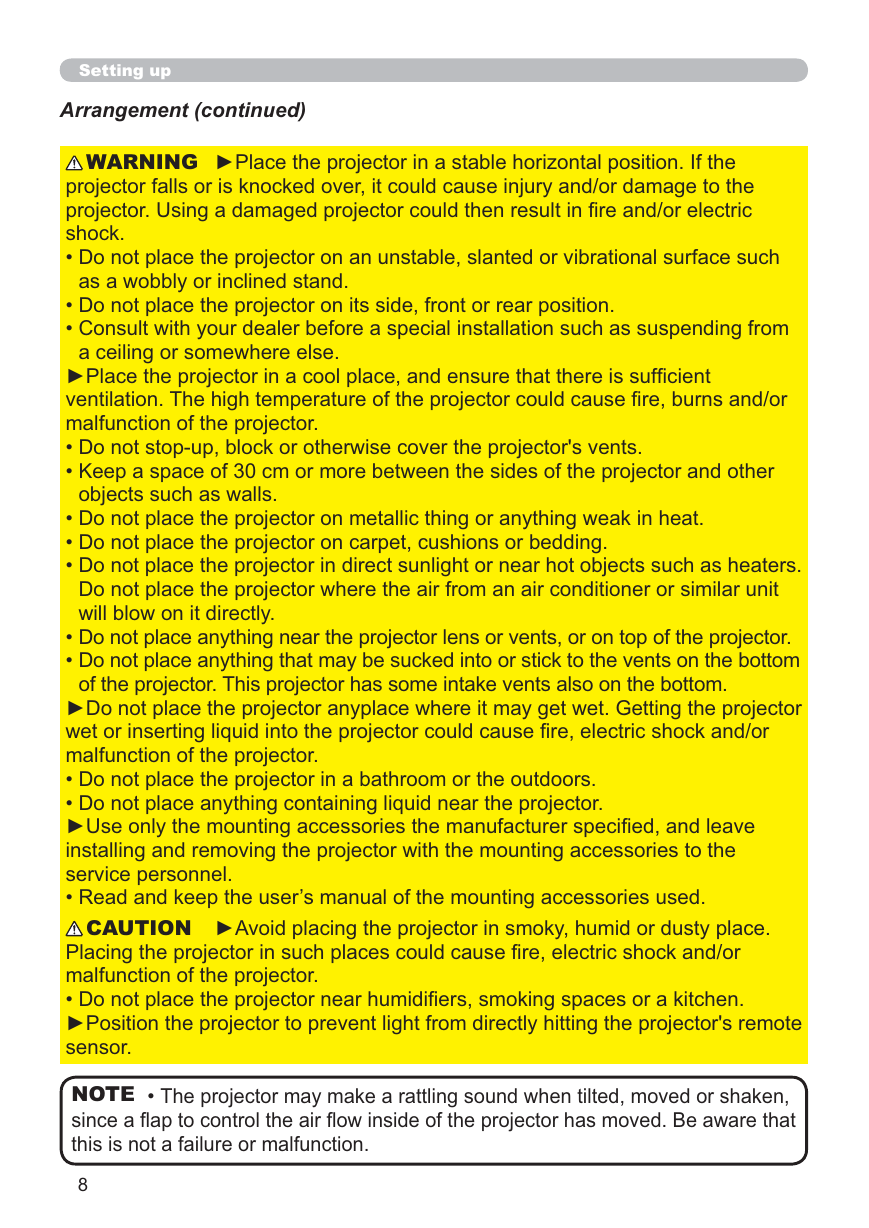

Setting up Arrangement (continued) WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in ﬁre and/or electric shock. • Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand. • Do not place the projector on its side, front or rear position. • Consult with your dealer before a special installation such as suspending from a ceiling or somewhere else. ►Place the projector in a cool place, and ensure that there is sufﬁcient ventilation. The high temperature of the projector could cause ﬁre, burns and/or malfunction of the projector. • Do not stop-up, block or otherwise cover the projector's vents. • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. • Do not place the projector on metallic thing or anything weak in heat. • Do not place the projector on carpet, cushions or bedding. • Do not place the projector in direct sunlight or near hot objects such as heaters. Do not place the projector where the air from an air conditioner or similar unit will blow on it directly. • Do not place anything near the projector lens or vents, or on top of the projector. • Do not place anything that may be sucked into or stick to the vents on the bottom of the projector. This projector has some intake vents also on the bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause ﬁre, electric shock and/or malfunction of the projector. • Do not place the projector in a bathroom or the outdoors. • Do not place anything containing liquid near the projector. ►Use only the mounting accessories the manufacturer speciﬁed, and leave installing and removing the projector with the mounting accessories to the service personnel. • Read and keep the user’s manual of the mounting accessories used. CAUTION ►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause ﬁre, electric shock and/or malfunction of the projector. • Do not place the projector near humidiﬁers, smoking spaces or a kitchen. ►Position the projector to prevent light from directly hitting the projector's remote sensor. NOTE • The projector may make a rattling sound when tilted, moved or shaken, since a ﬂap to control the air ﬂow inside of the projector has moved. Be aware that this is not a failure or malfunction. 8
