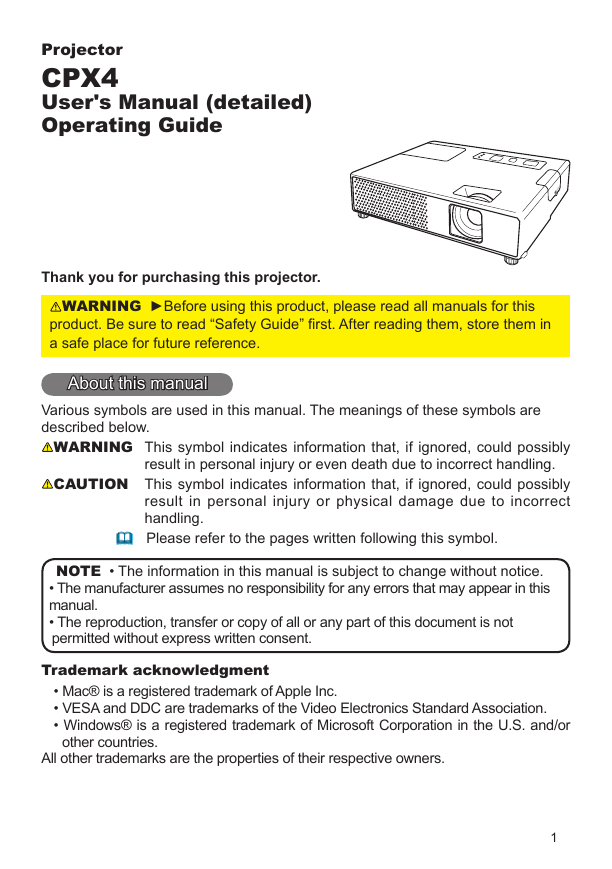

Projector CPX4 User's Manual (detailed) Operating Guide D R A D C S Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.  Please refer to the pages written following this symbol. NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • Mac® is a registered trademark of Apple Inc. • VESA and DDC are trademarks of the Video Electronics Standard Association. • Windows® is a registered trademark of Microsoft Corporation in the U.S. and/or other countries. All other trademarks are the properties of their respective owners. 1

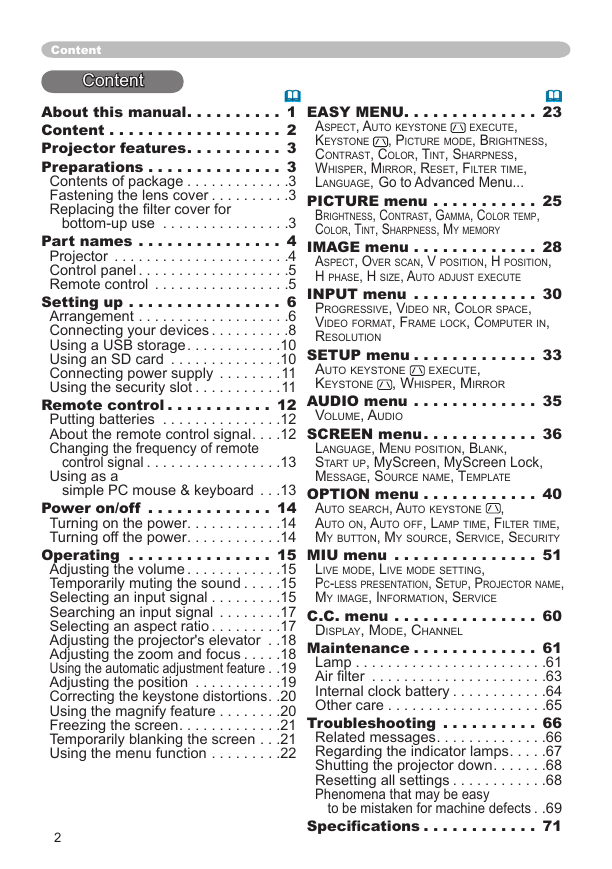

Content Content  About this manual . . . . . . . . . . 1 Content . . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . 3 Preparations . . . . . . . . . . . . . . 3 Contents of package . . . . . . . . . . . . .3 Fastening the lens cover . . . . . . . . . .3 Replacing the filter cover for bottom-up use . . . . . . . . . . . . . . . .3 Part names . . . . . . . . . . . . . . . 4 Projector . . . . . . . . . . . . . . . . . . . . . .4 Control panel . . . . . . . . . . . . . . . . . . .5 Remote control . . . . . . . . . . . . . . . . .5 Setting up . . . . . . . . . . . . . . . . 6 Arrangement . . . . . . . . . . . . . . . . . . .6 Connecting your devices . . . . . . . . . .8 Using a USB storage . . . . . . . . . . . .10 Using an SD card . . . . . . . . . . . . . .10 Connecting power supply . . . . . . . .11 Using the security slot . . . . . . . . . . .11 Remote control . . . . . . . . . . . 12 Putting batteries . . . . . . . . . . . . . . .12 About the remote control signal . . . .12 Changing the frequency of remote control signal . . . . . . . . . . . . . . . . .13 Using as a simple PC mouse & keyboard . . .13 Power on/off . . . . . . . . . . . . . 14 Turning on the power . . . . . . . . . . . .14 Turning off the power . . . . . . . . . . . .14 Operating . . . . . . . . . . . . . . . 15 Adjusting the volume . . . . . . . . . . . .15 Temporarily muting the sound . . . . .15 Selecting an input signal . . . . . . . . .15 Searching an input signal . . . . . . . .17 Selecting an aspect ratio . . . . . . . . .17 Adjusting the projector's elevator . .18 Adjusting the zoom and focus . . . . .18 Using the automatic adjustment feature . .19 Adjusting the position . . . . . . . . . . .19 Correcting the keystone distortions . .20 Using the magnify feature . . . . . . . .20 Freezing the screen . . . . . . . . . . . . .21 Temporarily blanking the screen . . .21 Using the menu function . . . . . . . . .22 2 execute, , , Whisper, Mirror  EASY MENU . . . . . . . . . . . . . . 23 Aspect, Auto keystone execute, Keystone , Picture mode, Brightness, Contrast, Color, Tint, Sharpness, Whisper, Mirror, Reset, Filter time, Language, Go to Advanced Menu... PICTURE menu . . . . . . . . . . . 25 Brightness, Contrast, Gamma, Color temp, Color, Tint, Sharpness, My memory IMAGE menu . . . . . . . . . . . . . 28 Aspect, Over scan, V position, H position, H phase, H size, Auto adjust execute INPUT menu . . . . . . . . . . . . . 30 Progressive, Video nr, Color space, Video format, Frame lock, Computer in, Resolution SETUP menu . . . . . . . . . . . . . 33 Auto keystone Keystone AUDIO menu . . . . . . . . . . . . . 35 Volume, Audio SCREEN menu . . . . . . . . . . . . 36 Language, Menu position, Blank, Start up, MyScreen, MyScreen Lock, Message, Source name, template OPTION menu . . . . . . . . . . . . 40 Auto search, Auto keystone Auto on, Auto off, Lamp time, Filter time, My button, my source, Service, Security MIU menu . . . . . . . . . . . . . . . 51 Live mode, Live mode setting, Pc-less presentation, Setup, projector name, my image, Information, Service C .C . menu . . . . . . . . . . . . . . . 60 display, mode, channel Maintenance . . . . . . . . . . . . . 61 Lamp . . . . . . . . . . . . . . . . . . . . . . . .61 Air filter . . . . . . . . . . . . . . . . . . . . . .63 Internal clock battery . . . . . . . . . . . .64 Other care . . . . . . . . . . . . . . . . . . . .65 Troubleshooting . . . . . . . . . . 66 Related messages . . . . . . . . . . . . . .66 Regarding the indicator lamps . . . . .67 Shutting the projector down . . . . . . .68 Resetting all settings . . . . . . . . . . . .68 Phenomena that may be easy to be mistaken for machine defects . .69 Specifications . . . . . . . . . . . . 71

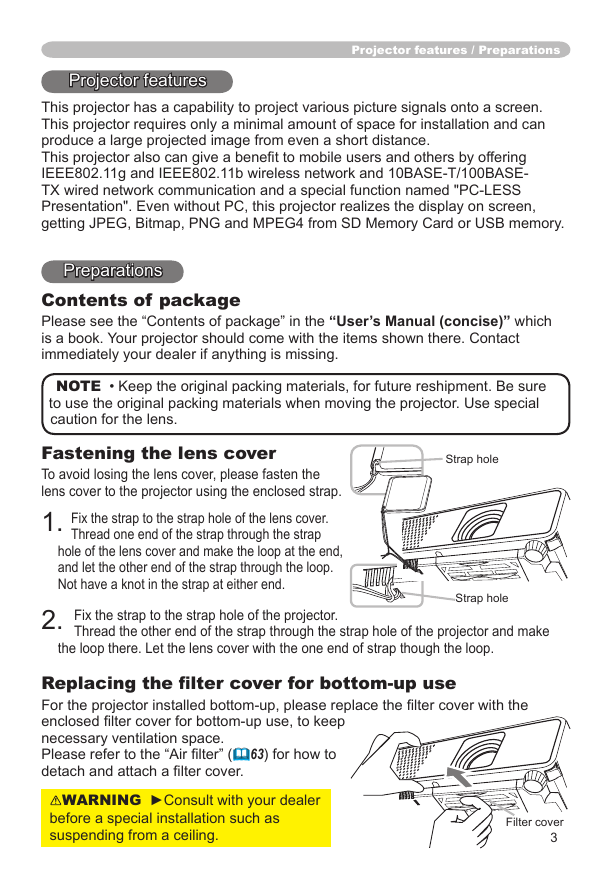

Projector features / Preparations Projector features This projector has a capability to project various picture signals onto a screen. This projector requires only a minimal amount of space for installation and can produce a large projected image from even a short distance. This projector also can give a benefit to mobile users and others by offering IEEE802.11g and IEEE802.11b wireless network and 10BASE-T/100BASE- TX wired network communication and a special function named "PC-LESS Presentation". Even without PC, this projector realizes the display on screen, getting JPEG, Bitmap, PNG and MPEG4 from SD Memory Card or USB memory. Preparations Contents of package Please see the “Contents of package” in the “User’s Manual (concise)” which is a book. Your projector should come with the items shown there. Contact immediately your dealer if anything is missing. NOTE • Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens. Fastening the lens cover To avoid losing the lens cover, please fasten the lens cover to the projector using the enclosed strap. 1. Fix the strap to the strap hole of the lens cover. Thread one end of the strap through the strap hole of the lens cover and make the loop at the end, and let the other end of the strap through the loop. Not have a knot in the strap at either end. Strap hole Strap hole 2. Fix the strap to the strap hole of the projector. Thread the other end of the strap through the strap hole of the projector and make the loop there. Let the lens cover with the one end of strap though the loop. Replacing the filter cover for bottom-up use For the projector installed bottom-up, please replace the filter cover with the enclosed filter cover for bottom-up use, to keep necessary ventilation space. Please refer to the “Air filter” (63) for how to detach and attach a filter cover. WARNING ►Consult with your dealer before a special installation such as suspending from a ceiling. Filter cover 3

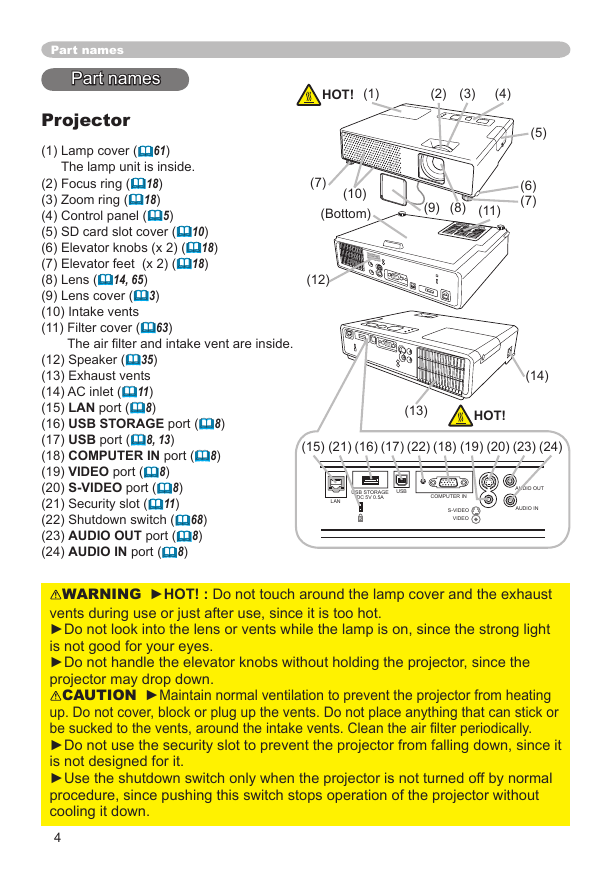

Part names Part names HOT! (1) (2) (3) (4) Projector (1) Lamp cover (61) The lamp unit is inside. (2) Focus ring (18) (3) Zoom ring (18) (4) Control panel (5) (5) SD card slot cover (10) (6) Elevator knobs (x 2) (18) (7) Elevator feet (x 2) (18) (8) Lens (14, 65) (9) Lens cover (3) (10) Intake vents (11) Filter cover (63) The air filter and intake vent are inside. (12) Speaker (35) (13) Exhaust vents (14) AC inlet (11) (15) LAN port (8) (16) USB STORAGE port (8) (17) USB port (8, 13) (18) COMPUTER IN port (8) (19) VIDEO port (8) (20) S-VIDEO port (8) (21) Security slot (11) (22) Shutdown switch (68) (23) AUDIO OUT port (8) (24) AUDIO IN port (8) (5) D R A D C S (6) (7) (9) (8) (11) (7) (10) (Bottom) (12) COMPUTER IN1 COMPUTER IN2 (13) K USB USB STORAGE DC 5V 0.5A HOT! (14) AUDIO OUT AUDIO IN S-VIDEO VIDEO (15) (21) (16) (17) (22) (18) (19) (20) (23) (24) USB STORAGE DC 5V 0.5A USB LAN K COMPUTER IN S-VIDEO VIDEO AUDIO OUT AUDIO IN WARNING ►HOT! : Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not look into the lens or vents while the lamp is on, since the strong light is not good for your eyes. ►Do not handle the elevator knobs without holding the projector, since the projector may drop down. CAUTION ►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air filter periodically. ►Do not use the security slot to prevent the projector from falling down, since it is not designed for it. ►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down. 4

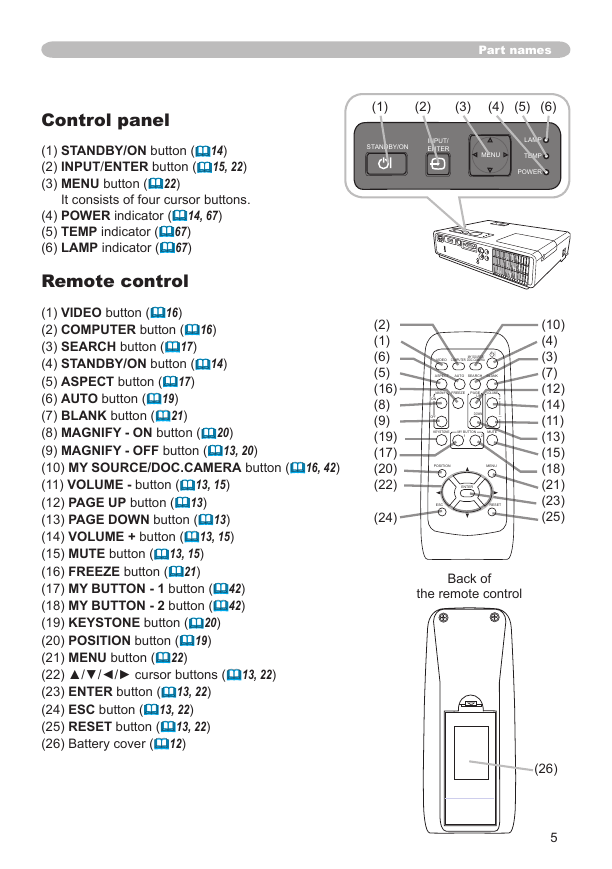

Control panel (1) STANDBY/ON button (14) (2) INPUT/ENTER button (15, 22) (3) MENU button (22) It consists of four cursor buttons. (4) POWER indicator (14, 67) (5) TEMP indicator (67) (6) LAMP indicator (67) Remote control (1) VIDEO button (16) (2) COMPUTER button (16) (3) SEARCH button (17) (4) STANDBY/ON button (14) (5) ASPECT button (17) (6) AUTO button (19) (7) BLANK button (21) (8) MAGNIFY - ON button (20) (9) MAGNIFY - OFF button (13, 20) (10) MY SOURCE/DOC.CAMERA button (16, 42) (11) VOLUME - button (13, 15) (12) PAGE UP button (13) (13) PAGE DOWN button (13) (14) VOLUME + button (13, 15) (15) MUTE button (13, 15) (16) FREEZE button (21) (17) MY BUTTON - 1 button (42) (18) MY BUTTON - 2 button (42) (19) KEYSTONE button (20) (20) POSITION button (19) (21) MENU button (22) (22) ▲/▼/◄/► cursor buttons (13, 22) (23) ENTER button (13, 22) (24) ESC button (13, 22) (25) RESET button (13, 22) (26) Battery cover (12) Part names (1) (2) (3) (4) (5) (6) STANDBY/ON INPUT/ ENTER MENU LAMP TEMP POWER (2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22) (24) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP DOWN VOLUME KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET Back of the remote control (10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25) (26) 5

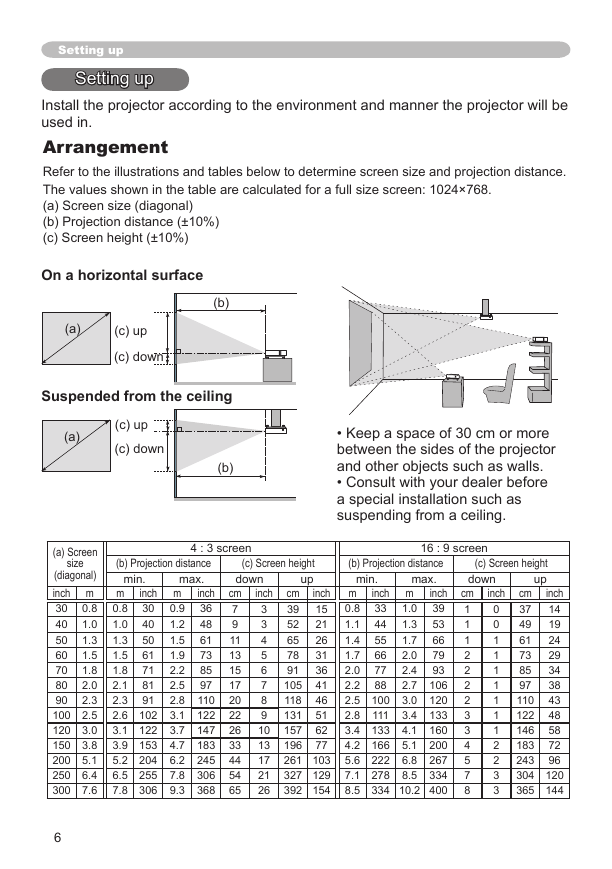

Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024×768. (a) Screen size (diagonal) (b) Projection distance (±10%) (c) Screen height (±10%) On a horizontal surface (b) (a) (c) up (c) down Suspended from the ceiling (a) (c) up (c) down (b) (b) • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. (a) • Consult with your dealer before a special installation such as suspending from a ceiling. (c) down (c) up 4 : 3 screen 16 : 9 screen (c) Screen height down up cm inch 3 7 3 9 11 4 5 13 6 15 7 17 20 8 9 22 10 26 13 33 17 44 54 21 26 65 cm inch 15 39 21 52 65 26 31 78 36 91 41 105 118 46 51 131 62 157 196 77 261 103 327 129 392 154 (a) (b) Projection distance (c) up min. max. m m inch inch (c) down 39 1.0 33 0.8 53 1.3 44 1.1 1.4 55 1.7 66 79 2.0 66 1.7 93 2.4 77 2.0 106 2.7 2.2 88 2.5 100 3.0 120 133 3.4 2.8 111 160 4.1 3.4 133 200 5.1 4.2 166 267 6.8 5.6 222 7.1 278 8.5 334 8.5 334 10.2 400 (c) Screen height up down cm inch 1 0 (b) 0 1 1 1 1 2 1 2 1 2 2 1 1 3 1 3 2 4 2 5 7 3 3 8 cm inch 14 37 19 49 61 24 29 73 34 85 38 97 110 43 48 122 58 146 72 183 243 96 304 120 365 144 (b) Projection distance min. m inch 30 0.8 40 1.0 1.3 50 61 1.5 71 1.8 81 2.1 2.3 91 2.6 102 3.1 122 3.9 153 5.2 204 6.5 255 7.8 306 max. inch m 36 0.9 48 1.2 61 1.5 73 1.9 85 2.2 97 2.5 110 2.8 3.1 122 3.7 147 4.7 183 6.2 245 7.8 306 9.3 368 size (a) Screen (diagonal) inch m 0.8 30 1.0 40 50 1.3 1.5 60 1.8 70 2.0 80 90 2.3 100 2.5 120 3.0 150 3.8 200 5.1 250 6.4 300 7.6 6

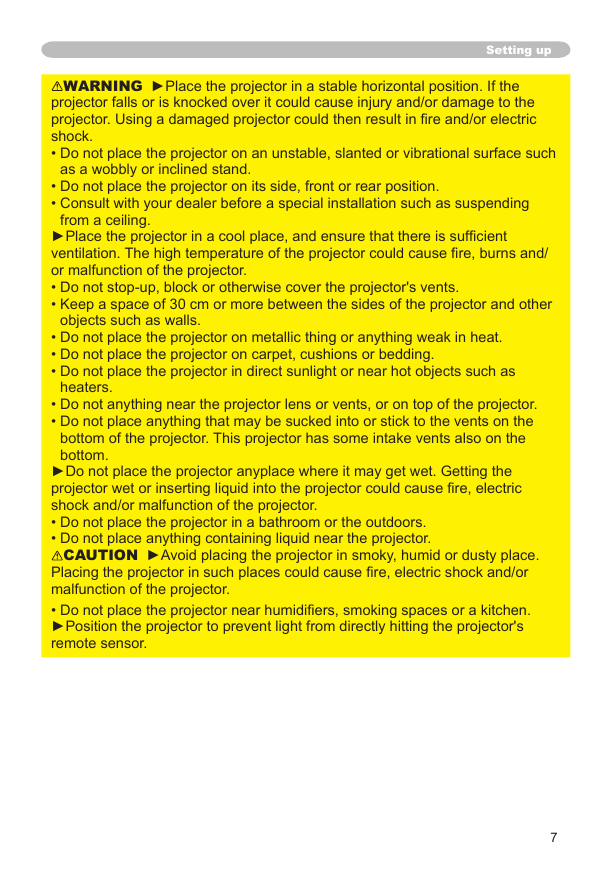

WARNING ►Place the projector in a stable horizontal position. If the Setting up projector falls or is knocked over it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock. • Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand. • Do not place the projector on its side, front or rear position. • Consult with your dealer before a special installation such as suspending from a ceiling. ►Place the projector in a cool place, and ensure that there is sufficient ventilation. The high temperature of the projector could cause fire, burns and/ or malfunction of the projector. • Do not stop-up, block or otherwise cover the projector's vents. • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. • Do not place the projector on metallic thing or anything weak in heat. • Do not place the projector on carpet, cushions or bedding. • Do not place the projector in direct sunlight or near hot objects such as heaters. • Do not anything near the projector lens or vents, or on top of the projector. • Do not place anything that may be sucked into or stick to the vents on the bottom of the projector. This projector has some intake vents also on the bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause fire, electric shock and/or malfunction of the projector. • Do not place the projector in a bathroom or the outdoors. • Do not place anything containing liquid near the projector. CAUTION ►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause fire, electric shock and/or malfunction of the projector. • Do not place the projector near humidifiers, smoking spaces or a kitchen. ►Position the projector to prevent light from directly hitting the projector's remote sensor. 7

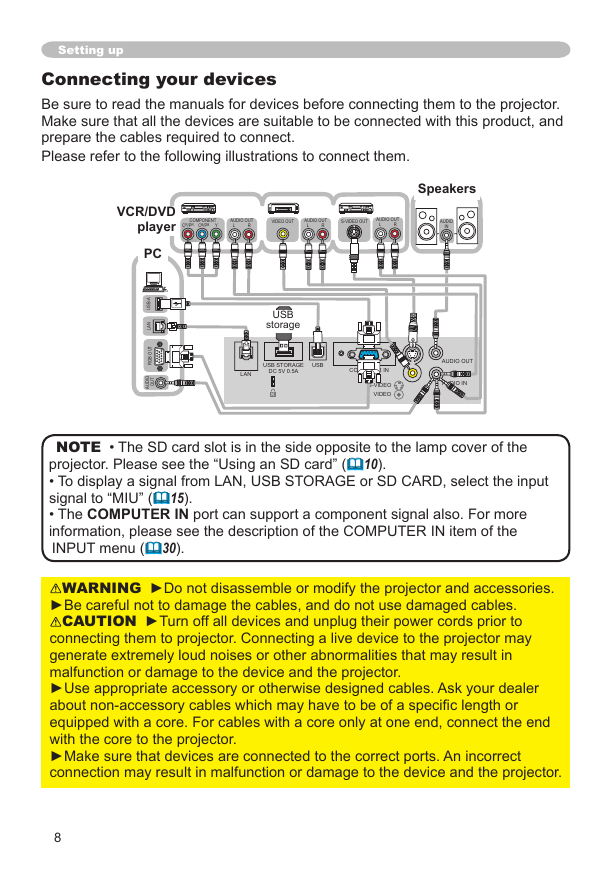

Setting up T U O O D U A I R L Y T N E N O P M O C B P / B C R P / R C R Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them. USB USB STORAGE S-VIDEO VIDEO COMPUTER IN2 COMPUTER IN1 AUDIO OUT DC 5V 0.5A AUDIO IN T U O O D U A I K L VCR/DVD player PC A - B S U N A L T U O B G R I O D U A T U O COMPONENT CR/PR CB/PB Y AUDIO OUT L R VIDEO OUT AUDIO OUT L R S-VIDEO OUT AUDIO OUT L R AUDIO IN Speakers USB storage USB STORAGE DC 5V 0.5A USB LAN K COMPUTER IN S-VIDEO VIDEO AUDIO OUT AUDIO IN NOTE • The SD card slot is in the side opposite to the lamp cover of the projector. Please see the “Using an SD card” (10). • To display a signal from LAN, USB STORAGE or SD CARD, select the input signal to “MIU” (15). • The COMPUTER IN port can support a component signal also. For more information, please see the description of the COMPUTER IN item of the INPUT menu (30). WARNING ►Do not disassemble or modify the projector and accessories. ►Be careful not to damage the cables, and do not use damaged cables. CAUTION ►Turn off all devices and unplug their power cords prior to connecting them to projector. Connecting a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction or damage to the device and the projector. ►Use appropriate accessory or otherwise designed cables. Ask your dealer about non-accessory cables which may have to be of a specific length or equipped with a core. For cables with a core only at one end, connect the end with the core to the projector. ►Make sure that devices are connected to the correct ports. An incorrect connection may result in malfunction or damage to the device and the projector. 8
