Overview
Dear Customer
Packing Contents
About this User Manual
Symbols Used
Table of Contents
1 General Safety Information
Setting Up the Device
Repairs
Power Supply
2 Overview
Top of the Device
Bottom of the Device
3 Initial Operation
Connect power supply / charge battery
Initial Installation

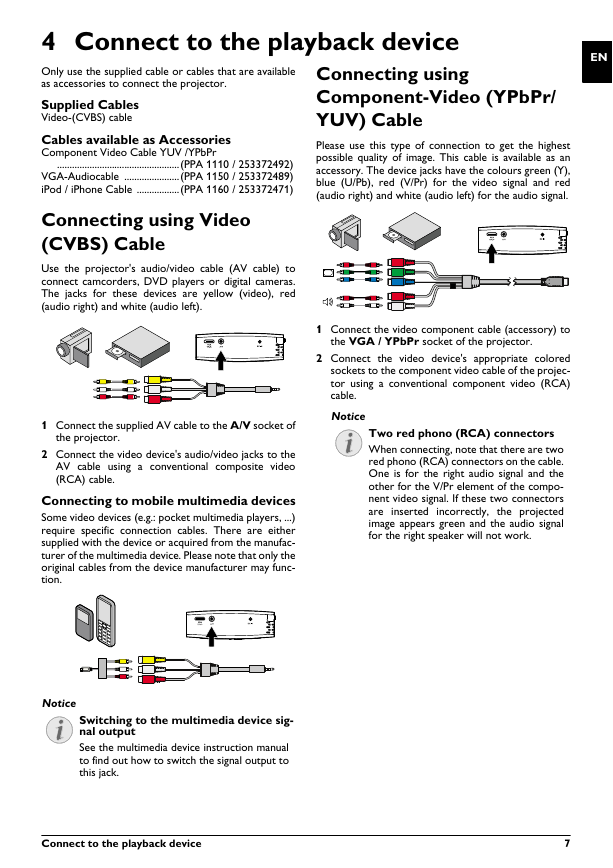

4 Connect to the playback device
Connecting using Video (CVBS) Cable
Connecting using Component-Video (YPbPr/ YUV) Cable

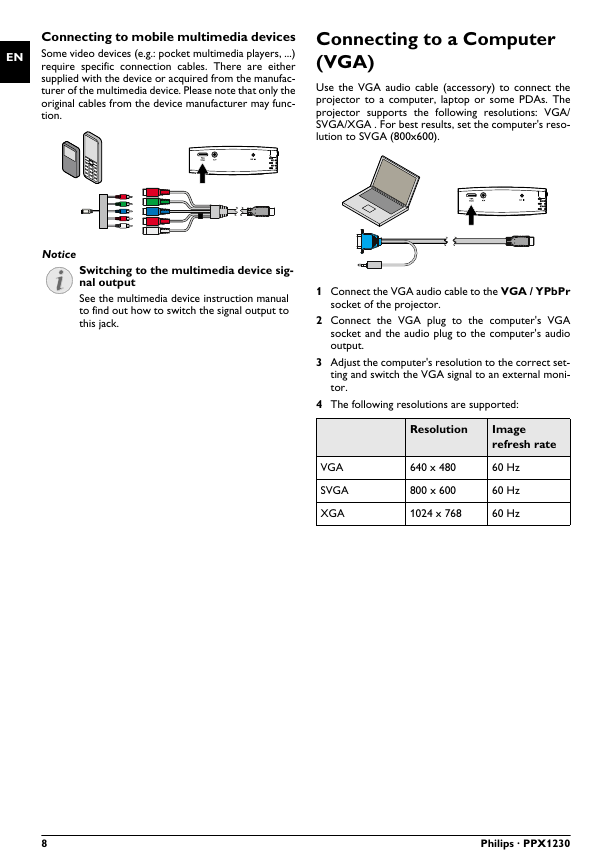

Connecting to a Computer (VGA)
5 Video playback
6 Settings
7 Service
Care Instructions for the Battery
Cleaning
Cleaning the Lens
Troubleshooting
Power Cycling
8 Appendix
Technical Data
Accessories
Register your product and get support at
www.philips.com/welcome
PPX1230
EN
User Manual
Overview
EN

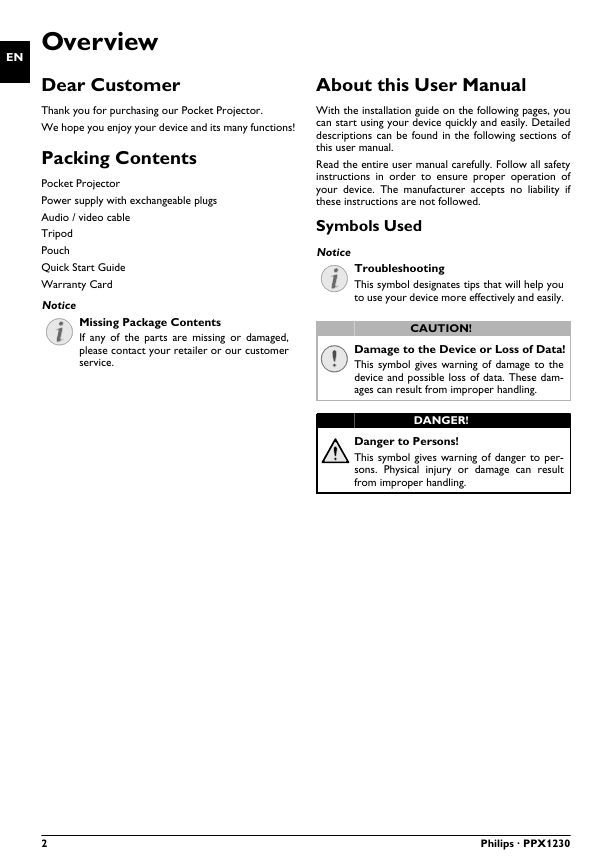

Dear Customer
Thank you for purchasing our Pocket Projector.
We hope you enjoy your device and its many functions!
Power supply with exchangeable plugs
Packing Contents
Pocket Projector
Power supply with exchangeable plugs
Audio / video cable
Tripod
Pouch
Quick Start Guide
Warranty Card
Missing Package Contents
Notice
Spaltenumbruch
Missing Package Contents
If any of the parts are missing or damaged,
please contact your retailer or our customer
service.
About this User Manual
With the installation guide on the following pages, you
can start using your device quickly and easily. Detailed
descriptions can be found in the following sections of
this user manual.
Read the entire user manual carefully. Follow all safety
instructions in order to ensure proper operation of
your device. The manufacturer accepts no liability if
these instructions are not followed.
Symbols Used
Troubleshooting
Notice
Troubleshooting
This symbol designates tips that will help you
to use your device more effectively and easily.
Damage to the Device or Loss of Data!
CAUTION!
Damage to the Device or Loss of Data!
This symbol gives warning of damage to the
device and possible loss of data. These dam-
ages can result from improper handling.
Danger to Persons!
DANGER!
Danger to Persons!
This symbol gives warning of danger to per-
sons. Physical injury or damage can result
from improper handling.
2
Philips · PPX1230
EN

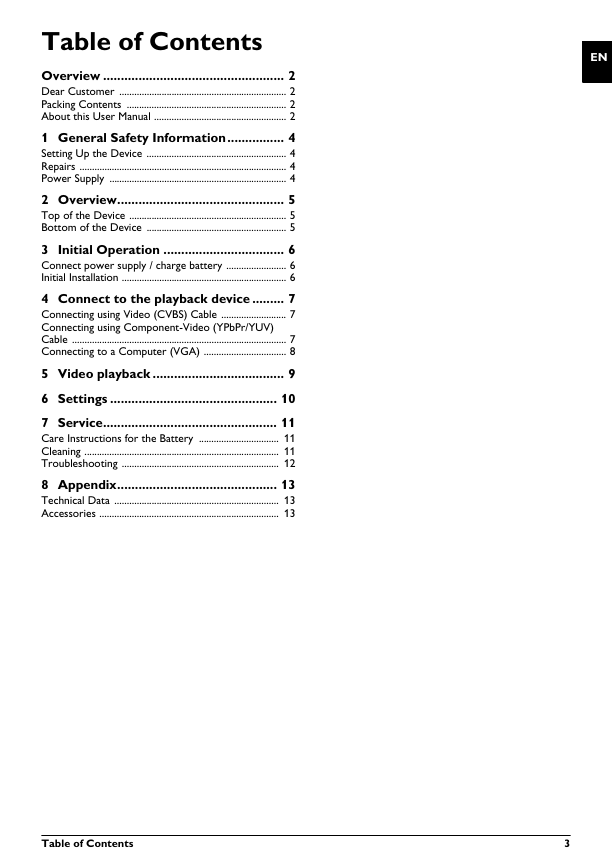

Table of Contents
Overview ................................................... 2
Dear Customer ................................................................... 2
Packing Contents ................................................................ 2
About this User Manual ..................................................... 2
1 General Safety Information................ 4
Setting Up the Device ........................................................ 4
Repairs ................................................................................... 4
Power Supply ....................................................................... 4
2 Overview............................................... 5
Top of the Device ............................................................... 5
Bottom of the Device ........................................................ 5
3 Initial Operation .................................. 6
Connect power supply / charge battery ........................ 6
Initial Installation .................................................................. 6
4 Connect to the playback device ......... 7
Connecting using Video (CVBS) Cable .......................... 7
Connecting using Component-Video (YPbPr/YUV)
Cable ...................................................................................... 7
Connecting to a Computer (VGA) ................................. 8
5 Video playback ..................................... 9
6 Settings ............................................... 10
7 Service................................................. 11
Care Instructions for the Battery ................................ 11
Cleaning .............................................................................. 11
Troubleshooting ............................................................... 12
8 Appendix............................................. 13
Technical Data .................................................................. 13
Accessories ........................................................................ 13
Table of Contents
3
EN

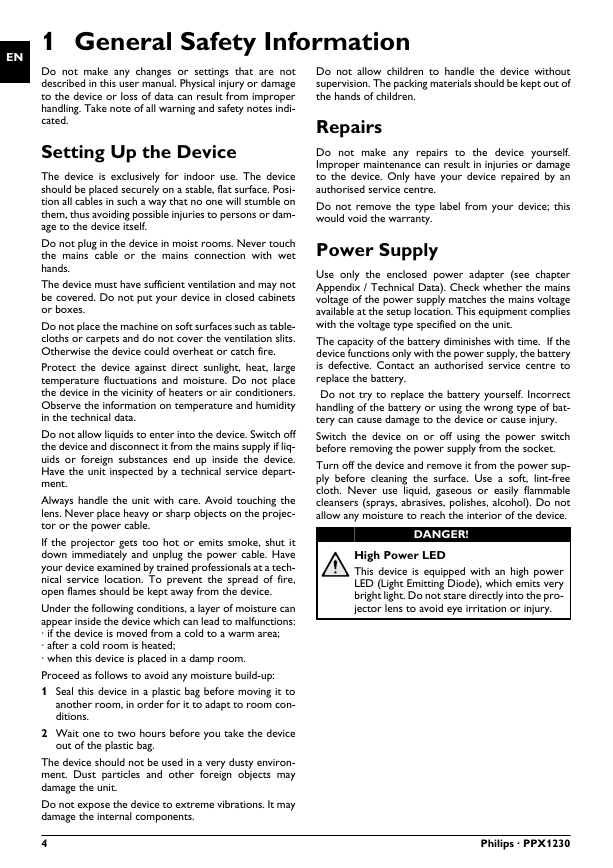

1 General Safety Information
Do not allow children to handle the device without supervision.
Do not allow children to handle the device without
supervision. The packing materials should be kept out of
the hands of children.
Repairs
Repairs
Do not make any repairs to the device yourself.
Improper maintenance can result in injuries or damage
to the device. Only have your device repaired by an
authorised service centre.
Do not remove the type label from your device; this
would void the warranty.
Use only the enclosed power adapter
The capacity of the battery diminishes with time. (Power supply)
Power Supply
Use only the enclosed power adapter (see chapter
Appendix / Technical Data). Check whether the mains
voltage of the power supply matches the mains voltage
available at the setup location. This equipment complies
with the voltage type specified on the unit.
The capacity of the battery diminishes with time. If the
device functions only with the power supply, the battery
is defective. Contact an authorised service centre to
replace the battery.
Do not try to replace the battery yourself. Incorrect
handling of the battery or using the wrong type of bat-
tery can cause damage to the device or cause injury.
Switch the device on or off using the power switch
before removing the power supply from the socket.
Turn off the device and remove it from the power sup-
ply before cleaning the surface. Use a soft, lint-free
cloth. Never use liquid, gaseous or easily flammable
cleansers (sprays, abrasives, polishes, alcohol). Do not
allow any moisture to reach the interior of the device.
Turn off the device before cleaning the surface
On/off switch, general (power supply)
Do not replace the battery yourself
DANGER!
High Power LED
This device is equipped with an high power
LED (Light Emitting Diode), which emits very
bright light. Do not stare directly into the pro-
jector lens to avoid eye irritation or injury.
Introduction 2
Do not make any changes or settings that are not
described in this user manual. Physical injury or damage
to the device or loss of data can result from improper
handling. Take note of all warning and safety notes indi-
cated.
Device only indoor
Protect the device against direct sunlight
Do not plug in the device in moist rooms.
The device must have sufficient ventilation
Do not allow liquids to enter into the device. (switch off)
Do not place your device on soft surfaces such as cloth covers or carpets
Setting Up the Device
The device is exclusively for indoor use. The device
should be placed securely on a stable, flat surface. Posi-
tion all cables in such a way that no one will stumble on
them, thus avoiding possible injuries to persons or dam-
age to the device itself.
Do not plug in the device in moist rooms. Never touch
the mains cable or the mains connection with wet
hands.
The device must have sufficient ventilation and may not
be covered. Do not put your device in closed cabinets
or boxes.
Do not place the machine on soft surfaces such as table-
cloths or carpets and do not cover the ventilation slits.
Otherwise the device could overheat or catch fire.
Protect the device against direct sunlight, heat, large
temperature fluctuations and moisture. Do not place
the device in the vicinity of heaters or air conditioners.
Observe the information on temperature and humidity
in the technical data.
Do not allow liquids to enter into the device. Switch off
the device and disconnect it from the mains supply if liq-
uids or foreign substances end up inside the device.
Have the unit inspected by a technical service depart-
ment.
Always handle the unit with care. Avoid touching the
lens. Never place heavy or sharp objects on the projec-
tor or the power cable.
If the projector gets too hot or emits smoke, shut it
down immediately and unplug the power cable. Have
your device examined by trained professionals at a tech-
nical service location. To prevent the spread of fire,
open flames should be kept away from the device.
Under the following conditions, a layer of moisture can
appear inside the device which can lead to malfunctions:
· if the device is moved from a cold to a warm area;
· after a cold room is heated;
· when this device is placed in a damp room.
Proceed as follows to avoid any moisture build-up:
1 Seal this device in a plastic bag before moving it to
another room, in order for it to adapt to room con-
ditions.
If the device overheats or emits smoke (switch off)
Lens
Moisture build-up
2 Wait one to two hours before you take the device
out of the plastic bag.
The device should not be used in a very dusty environment.
The device should not be used in a very dusty environ-
ment. Dust particles and other foreign objects may
damage the unit.
Do not expose the device to extreme vibrations. It may
damage the internal components.
Do not expose the device to extreme vibrations
4
Philips · PPX1230
EN
Bottom of the Device
‚ Tripod socket
ƒ Fold-out base
PicoPix P3 Bottom

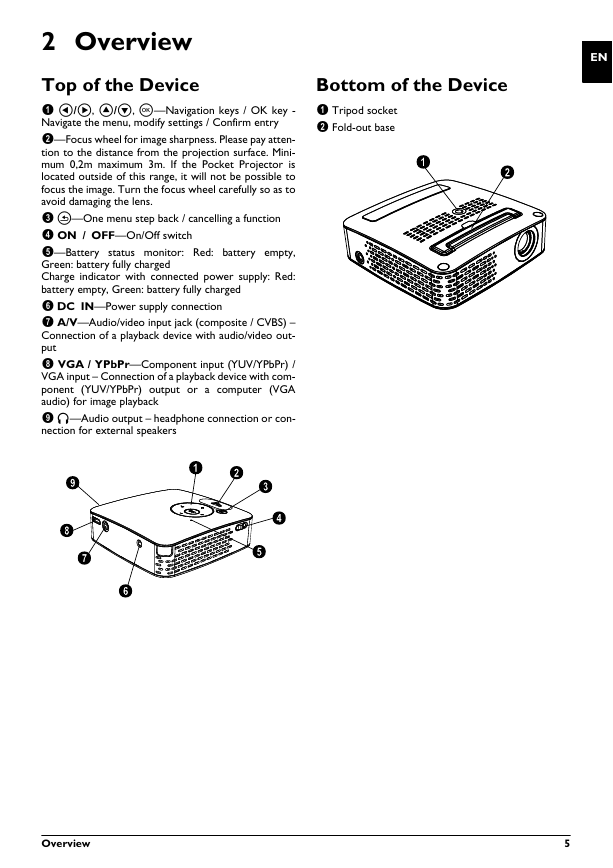

2 Overview
Top of the Device
‚ À/Á, ¡/¢, à—Navigation keys / OK key -
Navigate the menu, modify settings / Confirm entry
ƒ—Focus wheel for image sharpness. Please pay atten-
tion to the distance from the projection surface. Mini-
mum 0,2m maximum 3m. If the Pocket Projector is
located outside of this range, it will not be possible to
focus the image. Turn the focus wheel carefully so as to
avoid damaging the lens.
„ ¿—One menu step back / cancelling a function
… ON / OFF—On/Off switch
†—Battery status monitor: Red: battery empty,
Green: battery fully charged
Charge indicator with connected power supply: Red:
battery empty, Green: battery fully charged
‡ DC IN—Power supply connection
ˆ A/V—Audio/video input jack (composite / CVBS) –
Connection of a playback device with audio/video out-
put
‰ VGA / YPbPr—Component input (YUV/YPbPr) /
VGA input – Connection of a playback device with com-
ponent (YUV/YPbPr) output or a computer (VGA
audio) for image playback
Š Ï—Audio output – headphone connection or con-
nection for external speakers
P2 oben
Overview
5

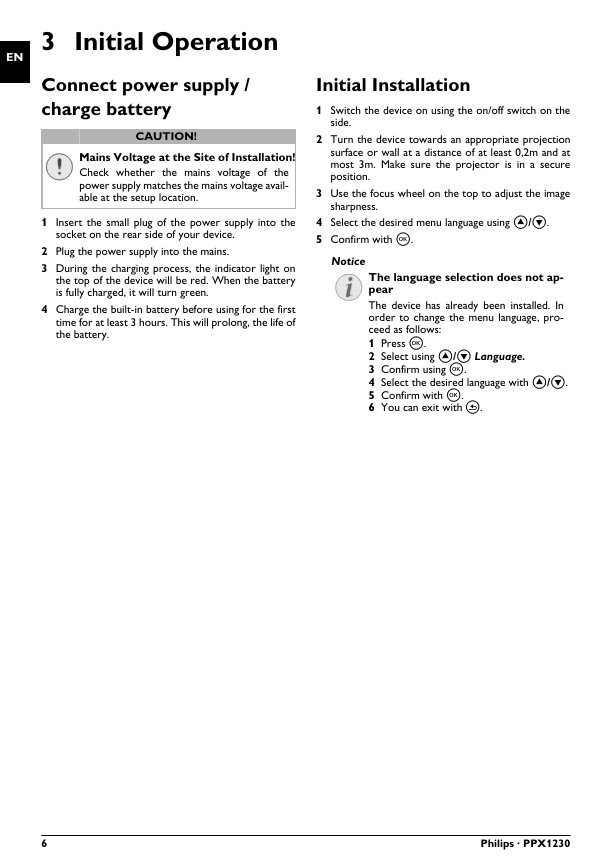

3 Initial Operation
EN
Connect power supply /
charge battery
CAUTION!
Mains Voltage at the Site of Installation!
Check whether the mains voltage of the
power supply matches the mains voltage avail-
able at the setup location.
1 Insert the small plug of the power supply into the
socket on the rear side of your device.
2 Plug the power supply into the mains.
3 During the charging process, the indicator light on
the top of the device will be red. When the battery
is fully charged, it will turn green.
4 Charge the built-in battery before using for the first
time for at least 3 hours. This will prolong, the life of
the battery.
Initial Installation
1 Switch the device on using the on/off switch on the
side.
2 Turn the device towards an appropriate projection
surface or wall at a distance of at least 0,2m and at
most 3m. Make sure the projector is in a secure
position.
3 Use the focus wheel on the top to adjust the image
sharpness.
4 Select the desired menu language using ¡/¢.
5 Confirm with à.
Notice
The language selection does not ap-
pear
The device has already been installed. In
order to change the menu language, pro-
ceed as follows:
1 Press à.
2 Select using ¡/¢ Language.
3 Confirm using à.
4 Select the desired language with ¡/¢.
5 Confirm with à.
6 You can exit with ¿.
6
Philips · PPX1230
EN
Only use the supplied cable or cables that are available
as accessories to connect the projector.
Supplied Cables
Video-(CVBS) cable
Cables available as Accessories
Component Video Cable YUV /YPbPr
4 Connect to the playback device
Connecting using
Component-Video (YPbPr/
YUV) Cable
Please use this type of connection to get the highest
possible quality of image. This cable is available as an
accessory. The device jacks have the colours green (Y),
blue (U/Pb), red (V/Pr) for the video signal and red
(audio right) and white (audio left) for the audio signal.
.................................................(PPA 1110 / 253372492)
VGA-Audiocable ......................(PPA 1150 / 253372489)
iPod / iPhone Cable .................(PPA 1160 / 253372471)
Component DVD Camcorder P2
Connecting using Video
(CVBS) Cable
Use the projector's audio/video cable (AV cable) to
connect camcorders, DVD players or digital cameras.
The jacks for these devices are yellow (video), red
(audio right) and white (audio left).
Composite DVD Camcorder P2
1 Connect the video component cable (accessory) to
the VGA / YPbPr socket of the projector.
2 Connect the video device's appropriate colored
sockets to the component video cable of the projec-
tor using a conventional component video (RCA)
cable.
Notice
Two red phono (RCA) connectors
When connecting, note that there are two
red phono (RCA) connectors on the cable.
One is for the right audio signal and the
other for the V/Pr element of the compo-
nent video signal. If these two connectors
are inserted incorrectly, the projected
image appears green and the audio signal
for the right speaker will not work.
1 Connect the supplied AV cable to the A/V socket of
the projector.
2 Connect the video device's audio/video jacks to the
AV cable using a conventional composite video
(RCA) cable.
Connecting to mobile multimedia devices
Connecting to mobile multimedia devices
Some video devices (e.g.: pocket multimedia players, ...)
require specific connection cables. There are either
supplied with the device or acquired from the manufac-
turer of the multimedia device. Please note that only the
original cables from the device manufacturer may func-
tion.
Composite Mobile Device P2
Signal output, multimedia devices
Notice
Switching to the multimedia device sig-
nal output
See the multimedia device instruction manual
to find out how to switch the signal output to
this jack.
Connect to the playback device
7
EN
Connecting to mobile multimedia devices
Connecting to mobile multimedia devices
Some video devices (e.g.: pocket multimedia players, ...)
require specific connection cables. There are either
supplied with the device or acquired from the manufac-
turer of the multimedia device. Please note that only the
original cables from the device manufacturer may func-
tion.
Component Mobile Device P2
Connecting to a Computer
(VGA)
Use the VGA audio cable (accessory) to connect the
projector to a computer, laptop or some PDAs. The
projector supports the following resolutions: VGA/
SVGA/XGA . For best results, set the computer's reso-
lution to SVGA (800x600).
Laptop VGA P2
Signal output, multimedia devices
Notice
Switching to the multimedia device sig-
nal output
See the multimedia device instruction manual
to find out how to switch the signal output to
this jack.
1 Connect the VGA audio cable to the VGA / YPbPr
socket of the projector.
2 Connect the VGA plug to the computer's VGA
socket and the audio plug to the computer's audio
output.
3 Adjust the computer's resolution to the correct set-
ting and switch the VGA signal to an external moni-
tor.
4 The following resolutions are supported:
Resolution
refresh rate
VGA
SVGA
XGA
640 x 480
800 x 600
1024 x 768
60 Hz
60 Hz
60 Hz
8
Philips · PPX1230
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
