P3PC-1692-01ENZ0 fi-4860C2 Image Scanner Operator's Guide

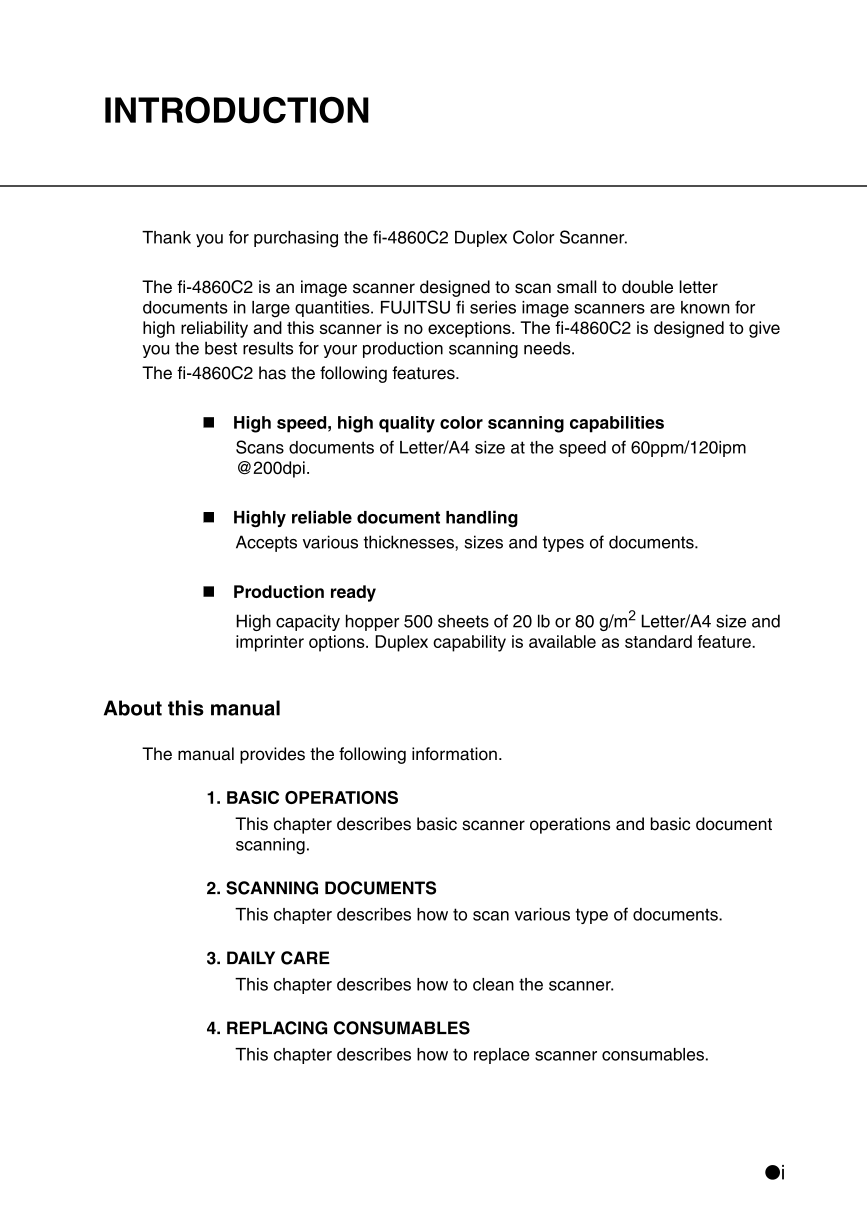

Thank you for purchasing the fi-4860C2 Duplex Color Scanner. The fi-4860C2 is an image scanner designed to scan small to double letter documents in large quantities. FUJITSU fi series image scanners are known for high reliability and this scanner is no exceptions. The fi-4860C2 is designed to give you the best results for your production scanning needs. The fi-4860C2 has the following features. High speed, high quality color scanning capabilities Scans documents of Letter/A4 size at the speed of 60ppm/120ipm @200dpi. Highly reliable document handling Accepts various thicknesses, sizes and types of documents. Production ready High capacity hopper 500 sheets of 20 lb or 80 g/m2 Letter/A4 size and imprinter options. Duplex capability is available as standard feature. About this manual The manual provides the following information. 1. BASIC OPERATIONS This chapter describes basic scanner operations and basic document scanning. 2. SCANNING DOCUMENTS This chapter describes how to scan various type of documents. 3. DAILY CARE This chapter describes how to clean the scanner. 4. REPLACING CONSUMABLES This chapter describes how to replace scanner consumables.INTRODUCTION●i

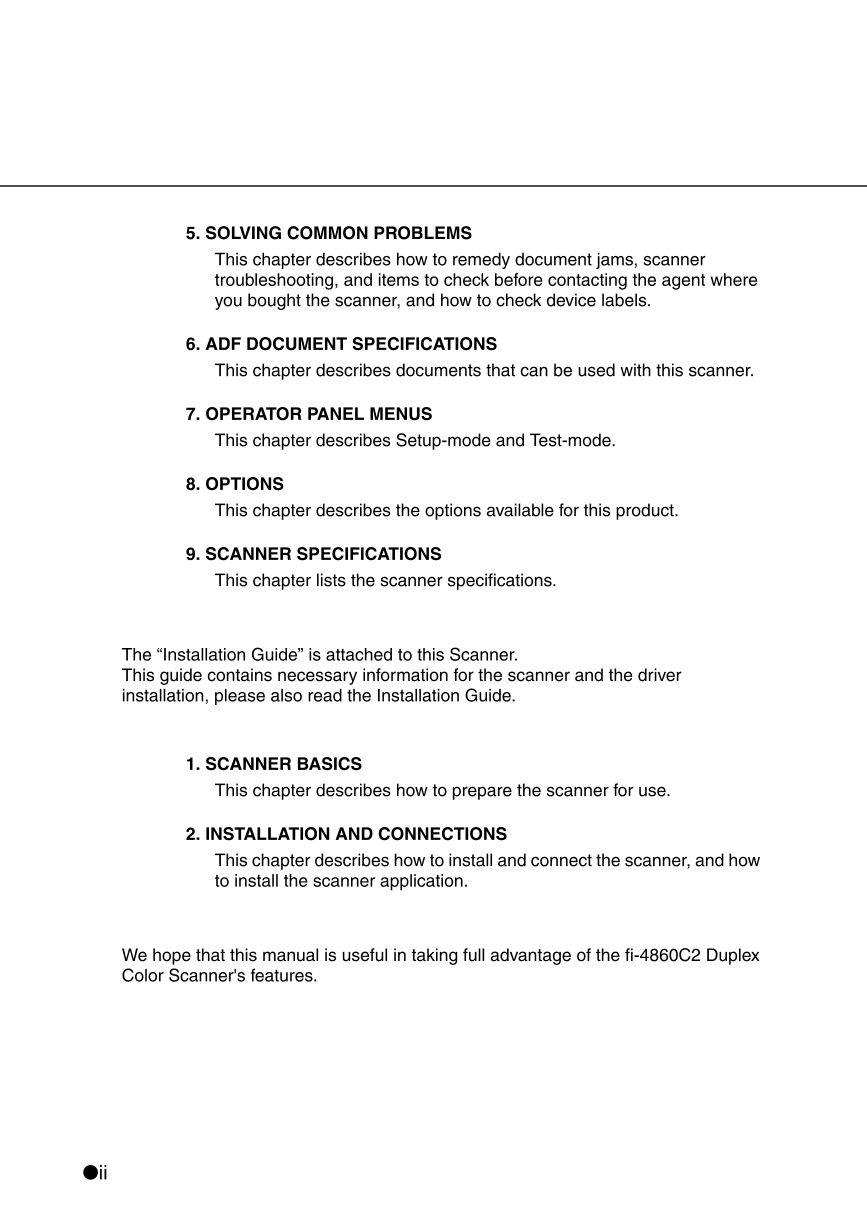

5. SOLVING COMMON PROBLEMS This chapter describes how to remedy document jams, scanner troubleshooting, and items to check before contacting the agent where you bought the scanner, and how to check device labels. 6. ADF DOCUMENT SPECIFICATIONS This chapter describes documents that can be used with this scanner. 7. OPERATOR PANEL MENUS This chapter describes Setup-mode and Test-mode. 8. OPTIONS This chapter describes the options available for this product. 9. SCANNER SPECIFICATIONS This chapter lists the scanner specifications. The “Installation Guide” is attached to this Scanner. This guide contains necessary information for the scanner and the driver installation, please also read the Installation Guide. 1. SCANNER BASICS This chapter describes how to prepare the scanner for use. 2. INSTALLATION AND CONNECTIONS This chapter describes how to install and connect the scanner, and how to install the scanner application. We hope that this manual is useful in taking full advantage of the fi-4860C2 Duplex Color Scanner's features.●ii

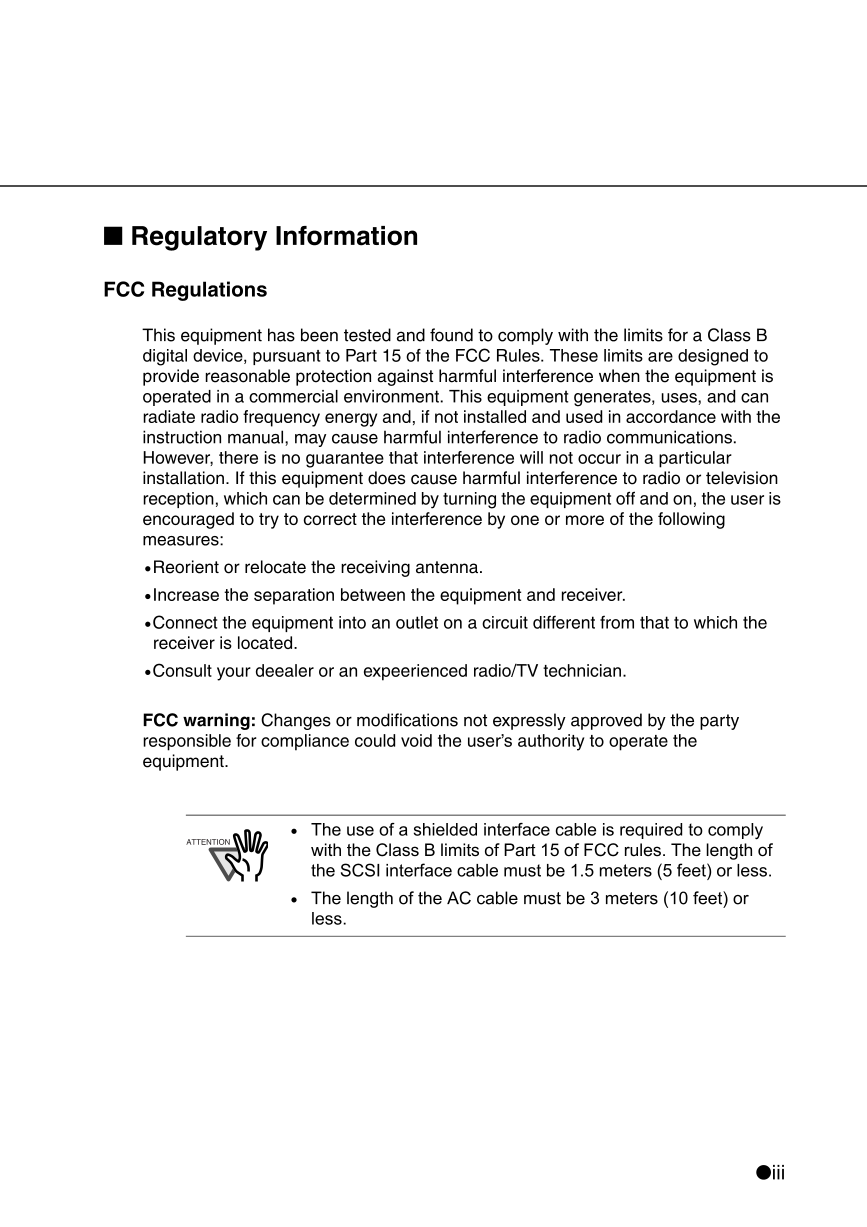

■ Regulatory Information FCC Regulations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is located. •Consult your deealer or an expeerienced radio/TV technician. FCC warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • The use of a shielded interface cable is required to comply ATTENTION with the Class B limits of Part 15 of FCC rules. The length of the SCSI interface cable must be 1.5 meters (5 feet) or less. • The length of the AC cable must be 3 meters (10 feet) or less.●iii

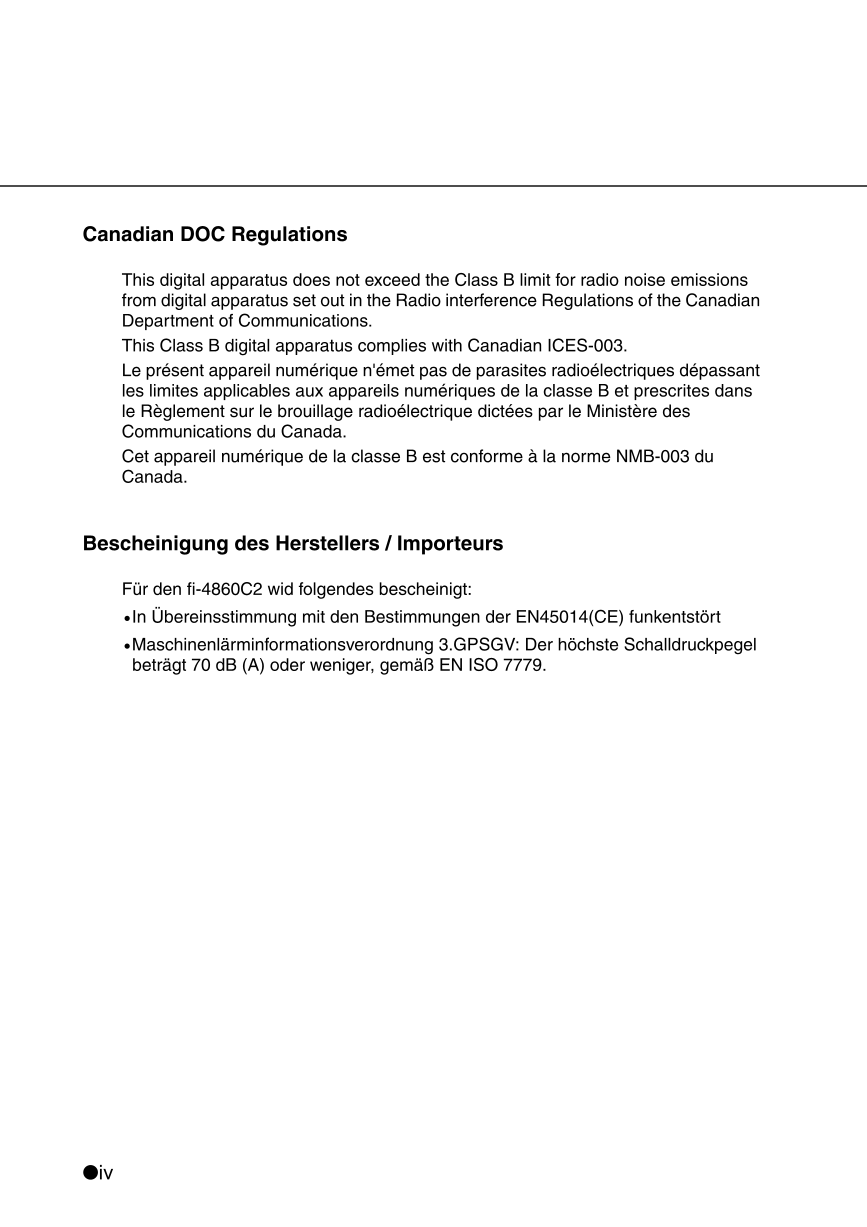

Canadian DOC Regulations This digital apparatus does not exceed the Class B limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Le présent appareil numérique n'émet pas de parasites radioélectriques dépassant les limites applicables aux appareils numériques de la classe B et prescrites dans le Règlement sur le brouillage radioélectrique dictées par le Ministère des Communications du Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Bescheinigung des Herstellers / Importeurs Für den fi-4860C2 wid folgendes bescheinigt: •In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört •Maschinenlärminformationsverordnung 3.GPSGV: Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger, gemäß EN ISO 7779.●iv

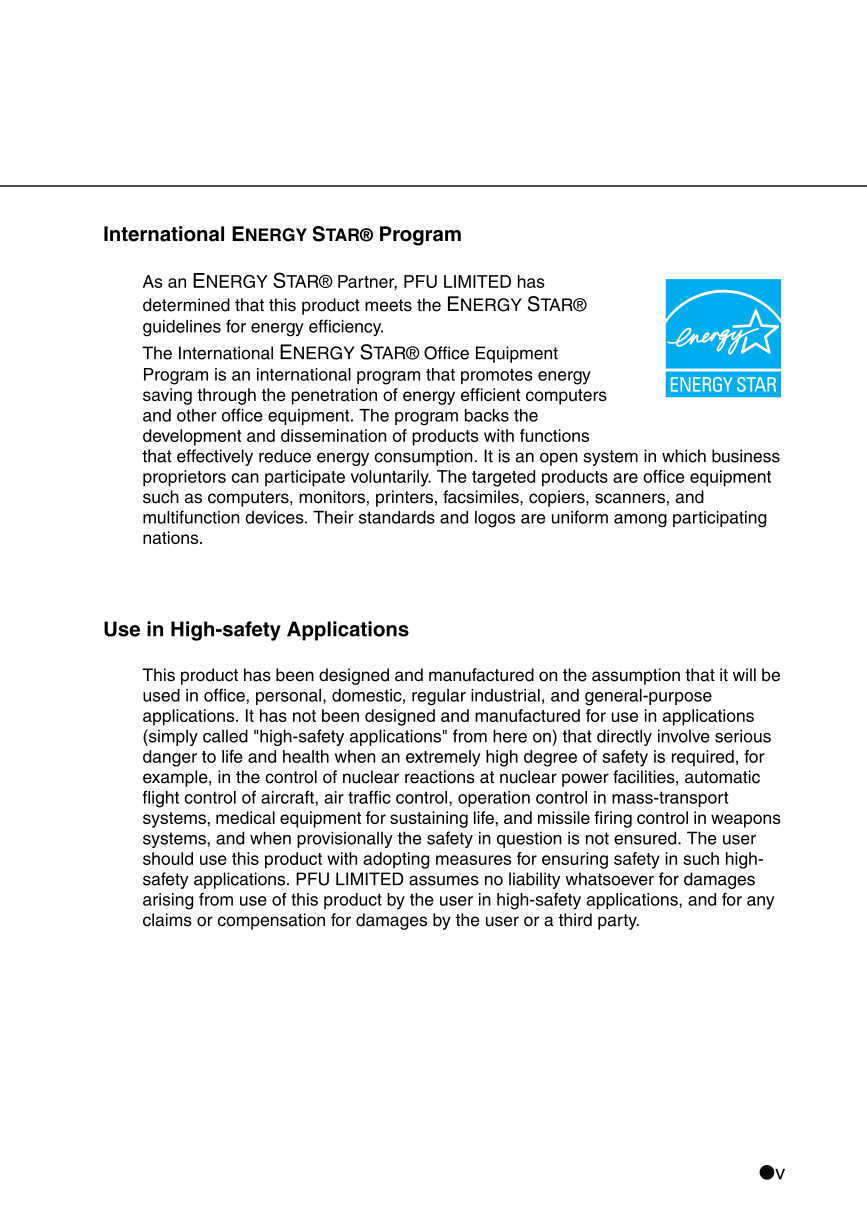

International ENERGY STAR® Program As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are uniform among participating nations. Use in High-safety Applications This product has been designed and manufactured on the assumption that it will be used in office, personal, domestic, regular industrial, and general-purpose applications. It has not been designed and manufactured for use in applications (simply called "high-safety applications" from here on) that directly involve serious danger to life and health when an extremely high degree of safety is required, for example, in the control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic control, operation control in mass-transport systems, medical equipment for sustaining life, and missile firing control in weapons systems, and when provisionally the safety in question is not ensured. The user should use this product with adopting measures for ensuring safety in such high- safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of this product by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party.●v

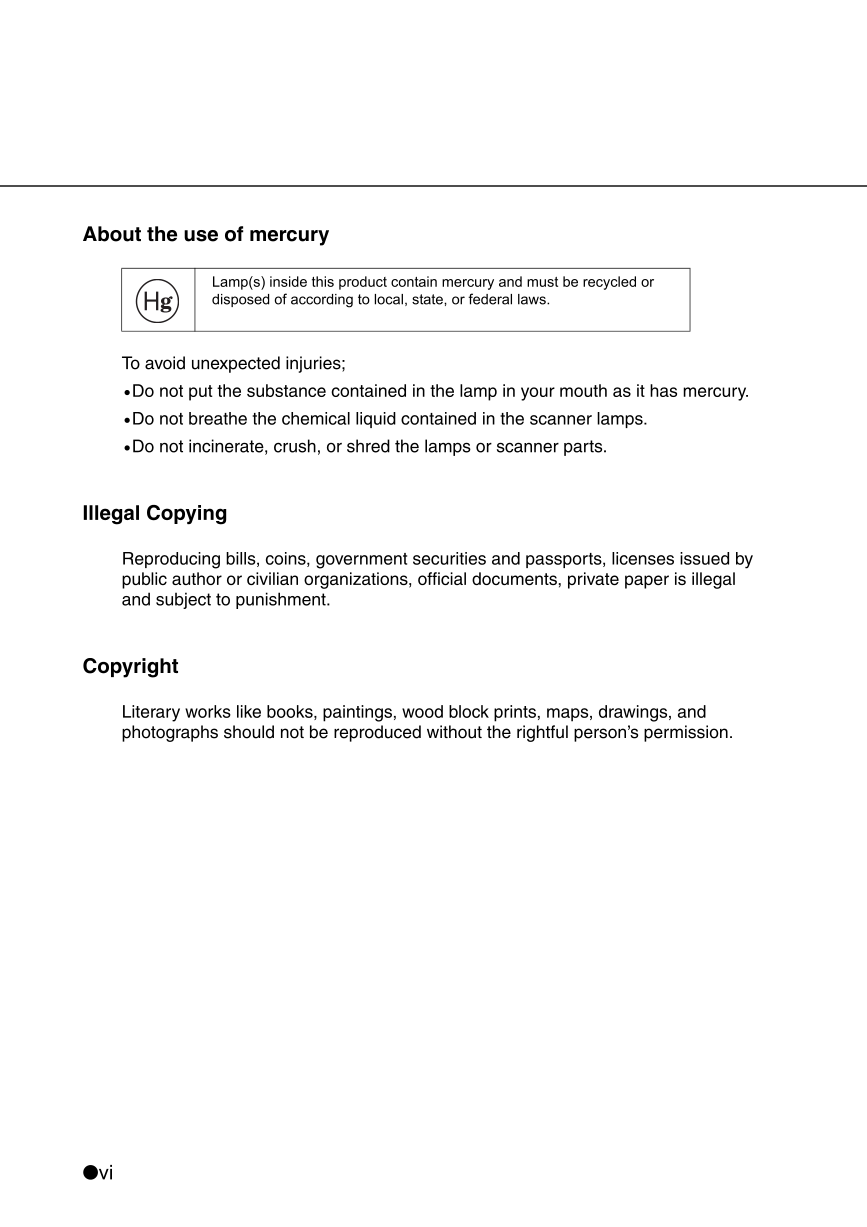

About the use of mercury Lamp(s) inside this product contain mercury and must be recycled or Hg disposed of according to local, state, or federal laws. To avoid unexpected injuries; •Do not put the substance contained in the lamp in your mouth as it has mercury. •Do not breathe the chemical liquid contained in the scanner lamps. •Do not incinerate, crush, or shred the lamps or scanner parts. Illegal Copying Reproducing bills, coins, government securities and passports, licenses issued by public author or civilian organizations, official documents, private paper is illegal and subject to punishment. Copyright Literary works like books, paintings, wood block prints, maps, drawings, and photographs should not be reproduced without the rightful person’s permission. ●vi
