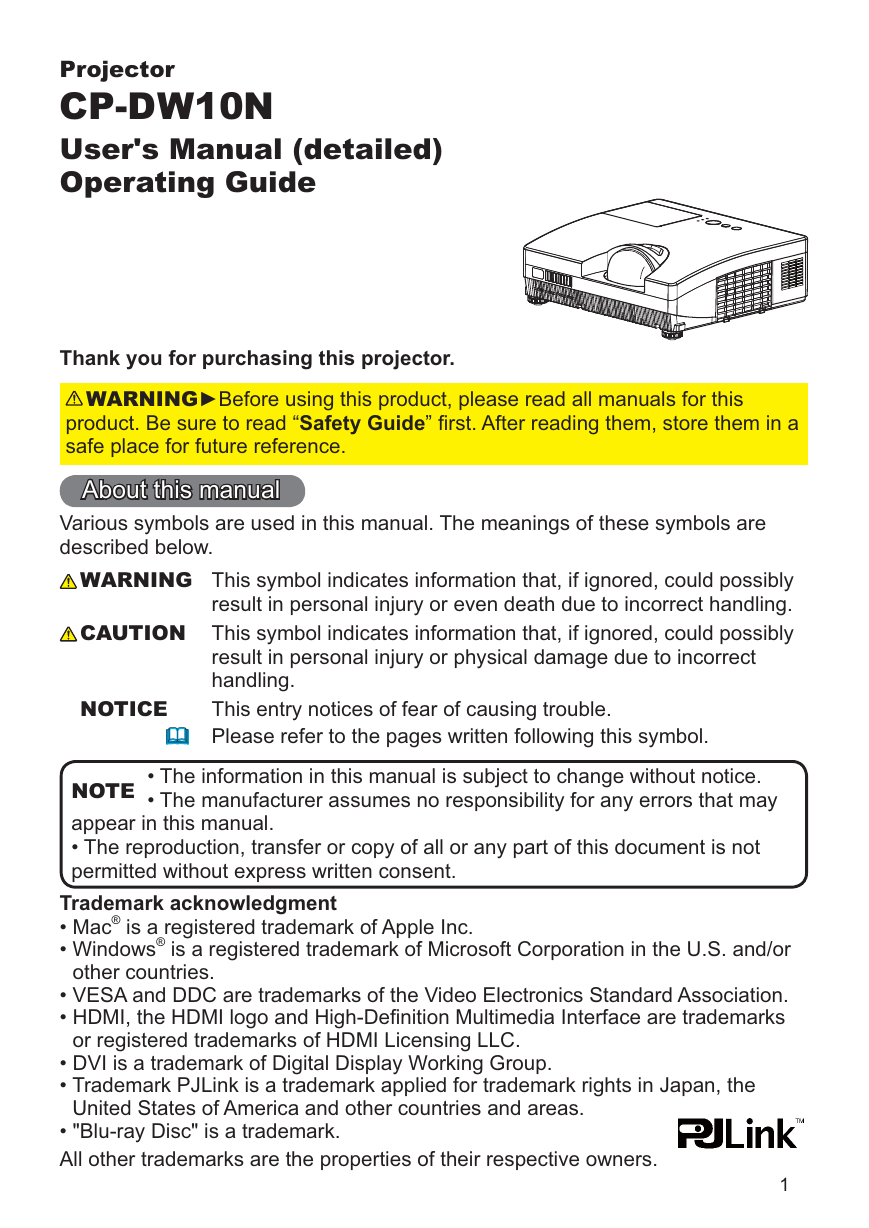

Projector CP-DW10N User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” ﬁrst. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING CAUTION NOTICE This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling. This entry notices of fear of causing trouble. Please refer to the pages written following this symbol. • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may NOTE appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • Mac® is a registered trademark of Apple Inc. • Windows® is a registered trademark of Microsoft Corporation in the U.S. and/or other countries. • VESA and DDC are trademarks of the Video Electronics Standard Association. • HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • DVI is a trademark of Digital Display Working Group. • Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas. • "Blu-ray Disc" is a trademark. All other trademarks are the properties of their respective owners. 1

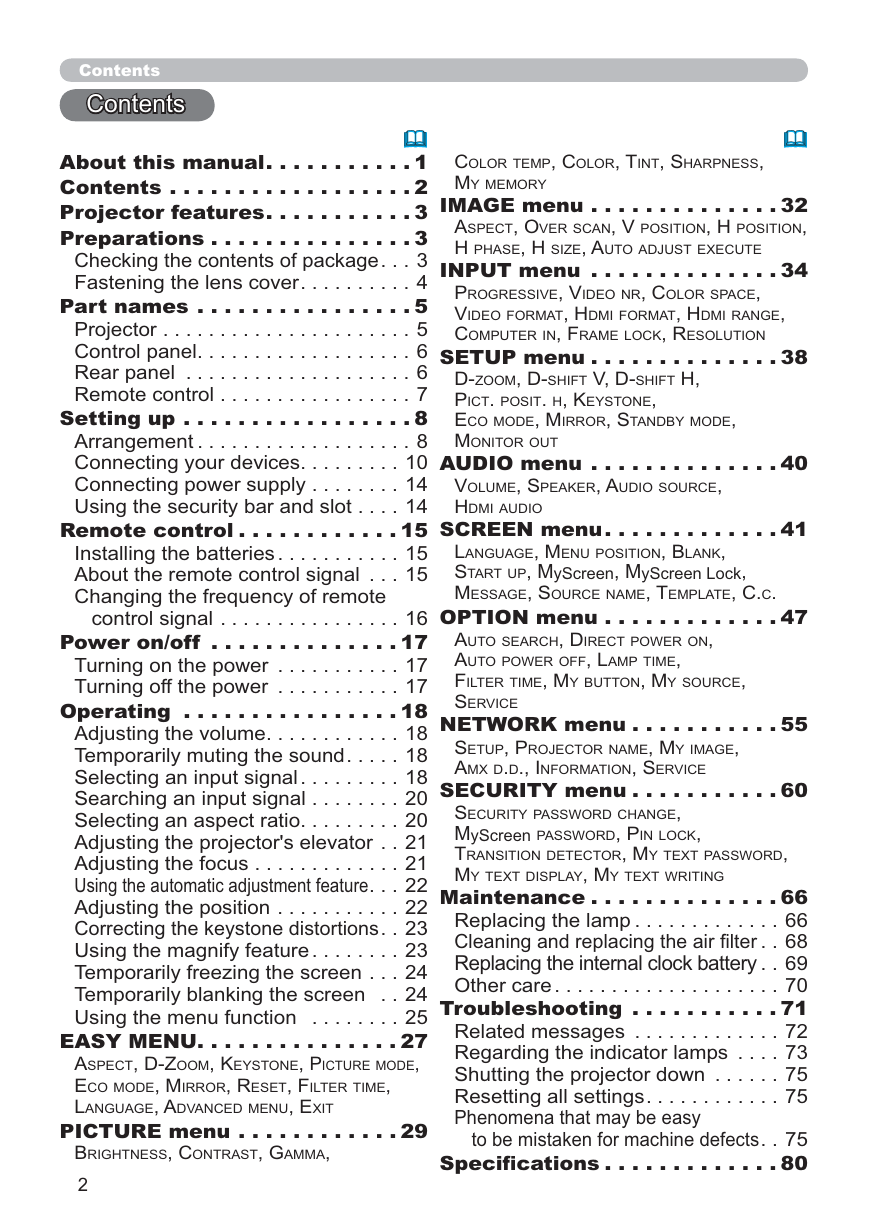

Contents Contents About this manual . . . . . . . . . . . 1 Contents . . . . . . . . . . . . . . . . . . 2 Projector features . . . . . . . . . . . 3 Preparations . . . . . . . . . . . . . . . 3 Checking the contents of package . . . 3 Fastening the lens cover . . . . . . . . . . 4 Part names . . . . . . . . . . . . . . . . 5 Projector . . . . . . . . . . . . . . . . . . . . . . 5 Control panel . . . . . . . . . . . . . . . . . . . 6 Rear panel . . . . . . . . . . . . . . . . . . . . 6 Remote control . . . . . . . . . . . . . . . . . 7 Setting up . . . . . . . . . . . . . . . . . 8 Arrangement . . . . . . . . . . . . . . . . . . . 8 Connecting your devices . . . . . . . . . 10 Connecting power supply . . . . . . . . 14 Using the security bar and slot . . . . 14 Remote control . . . . . . . . . . . . 15 Installing the batteries . . . . . . . . . . . 15 About the remote control signal . . . 15 Changing the frequency of remote control signal . . . . . . . . . . . . . . . . 16 Power on/off . . . . . . . . . . . . . . 17 Turning on the power . . . . . . . . . . . 17 Turning off the power . . . . . . . . . . . 17 Operating . . . . . . . . . . . . . . . . 18 Adjusting the volume . . . . . . . . . . . . 18 Temporarily muting the sound . . . . . 18 Selecting an input signal . . . . . . . . . 18 Searching an input signal . . . . . . . . 20 Selecting an aspect ratio . . . . . . . . . 20 Adjusting the projector's elevator . . 21 Adjusting the focus . . . . . . . . . . . . . 21 Using the automatic adjustment feature . . . 22 Adjusting the position . . . . . . . . . . . 22 Correcting the keystone distortions . . 23 Using the magnify feature . . . . . . . . 23 Temporarily freezing the screen . . . 24 Temporarily blanking the screen . . 24 Using the menu function . . . . . . . . 25 EASY MENU. . . . . . . . . . . . . . . 27 ASPECT, D-ZOOM, KEYSTONE, PICTURE MODE, ECO MODE, MIRROR, RESET, FILTER TIME, LANGUAGE, ADVANCED MENU, EXIT PICTURE menu . . . . . . . . . . . . 29 BRIGHTNESS, CONTRAST, GAMMA, 2 COLOR TEMP, COLOR, TINT, SHARPNESS, MY MEMORY IMAGE menu . . . . . . . . . . . . . . 32 ASPECT, OVER SCAN, V POSITION, H POSITION, H PHASE, H SIZE, AUTO ADJUST EXECUTE INPUT menu . . . . . . . . . . . . . . 34 PROGRESSIVE, VIDEO NR, COLOR SPACE, VIDEO FORMAT, HDMI FORMAT, HDMI RANGE, COMPUTER IN, FRAME LOCK, RESOLUTION SETUP menu . . . . . . . . . . . . . . 38 D-ZOOM, D-SHIFT V, D-SHIFT H, PICT. POSIT. H, KEYSTONE, ECO MODE, MIRROR, STANDBY MODE, MONITOR OUT AUDIO menu . . . . . . . . . . . . . . 40 VOLUME, SPEAKER, AUDIO SOURCE, HDMI AUDIO SCREEN menu . . . . . . . . . . . . . 41 LANGUAGE, MENU POSITION, BLANK, START UP, MyScreen, MyScreen Lock, MESSAGE, SOURCE NAME, TEMPLATE, C.C. OPTION menu . . . . . . . . . . . . . 47 AUTO SEARCH, DIRECT POWER ON, AUTO POWER OFF, LAMP TIME, FILTER TIME, MY BUTTON, MY SOURCE, SERVICE NETWORK menu . . . . . . . . . . . 55 SETUP, PROJECTOR NAME, MY IMAGE, AMX D.D., INFORMATION, SERVICE SECURITY menu . . . . . . . . . . . 60 SECURITY PASSWORD CHANGE, MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, MY TEXT PASSWORD, MY TEXT DISPLAY, MY TEXT WRITING Maintenance . . . . . . . . . . . . . . 66 Replacing the lamp . . . . . . . . . . . . . 66 Cleaning and replacing the air ﬁlter . . 68 Replacing the internal clock battery . . 69 Other care . . . . . . . . . . . . . . . . . . . . 70 Troubleshooting . . . . . . . . . . . 71 Related messages . . . . . . . . . . . . . 72 Regarding the indicator lamps . . . . 73 Shutting the projector down . . . . . . 75 Resetting all settings . . . . . . . . . . . . 75 Phenomena that may be easy to be mistaken for machine defects . . 75 Speciﬁcations . . . . . . . . . . . . . 80

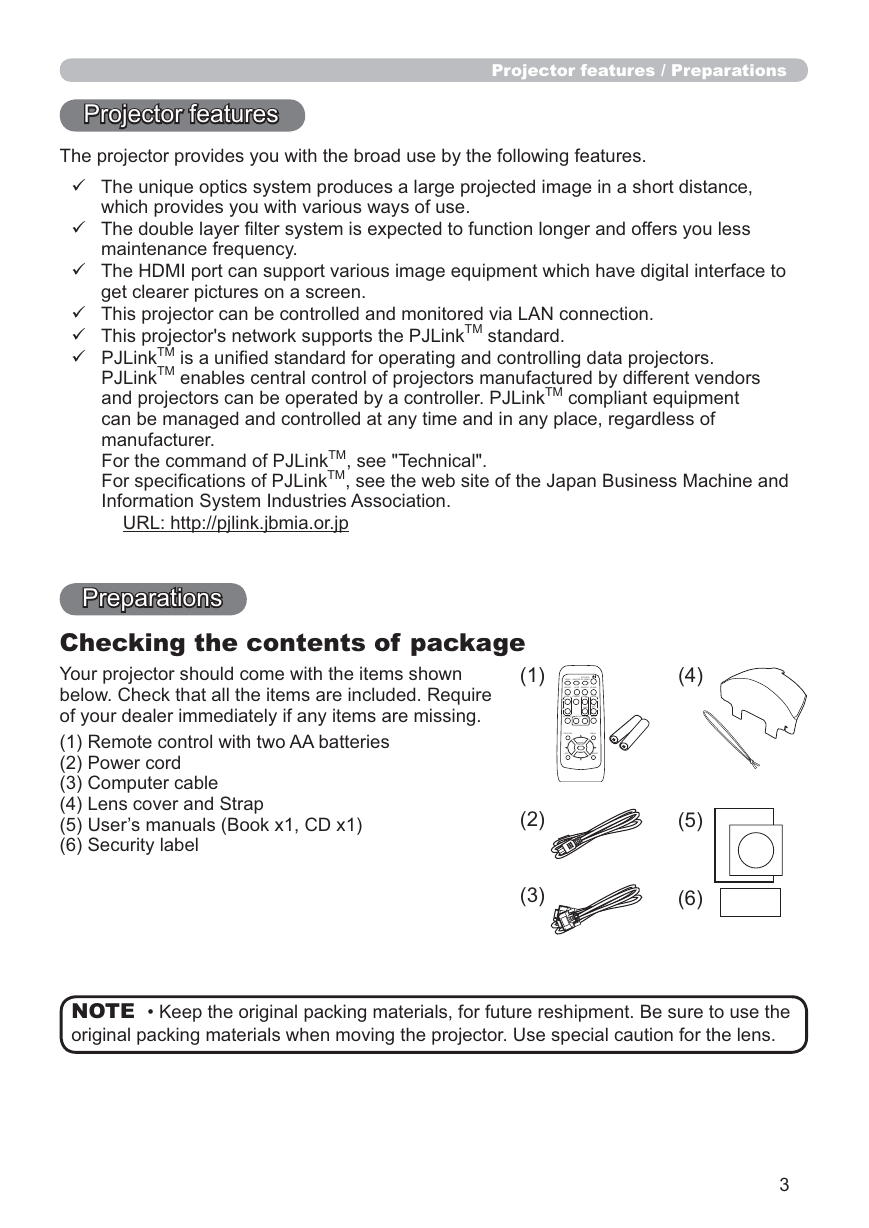

Projector features Projector features / Preparations The projector provides you with the broad use by the following features. The unique optics system produces a large projected image in a short distance, which provides you with various ways of use. The double layer ﬁlter system is expected to function longer and offers you less The HDMI port can support various image equipment which have digital interface to maintenance frequency. get clearer pictures on a screen. This projector can be controlled and monitored via LAN connection. This projector's network supports the PJLinkTM standard. PJLinkTM is a uniﬁed standard for operating and controlling data projectors. PJLinkTM enables central control of projectors manufactured by different vendors and projectors can be operated by a controller. PJLinkTM compliant equipment can be managed and controlled at any time and in any place, regardless of manufacturer. For the command of PJLinkTM, see "Technical". For speciﬁcations of PJLinkTM, see the web site of the Japan Business Machine and Information System Industries Association. URL: http://pjlink.jbmia.or.jp Preparations Checking the contents of package Your projector should come with the items shown below. Check that all the items are included. Require of your dealer immediately if any items are missing. (1) Remote control with two AA batteries (2) Power cord (3) Computer cable (4) Lens cover and Strap (5) User’s manuals (Book x1, CD x1) (6) Security label (1) (2) (3) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP DOWN VOLUME KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET (4) (5) (6) NOTE original packing materials when moving the projector. Use special caution for the lens. • Keep the original packing materials, for future reshipment. Be sure to use the 3

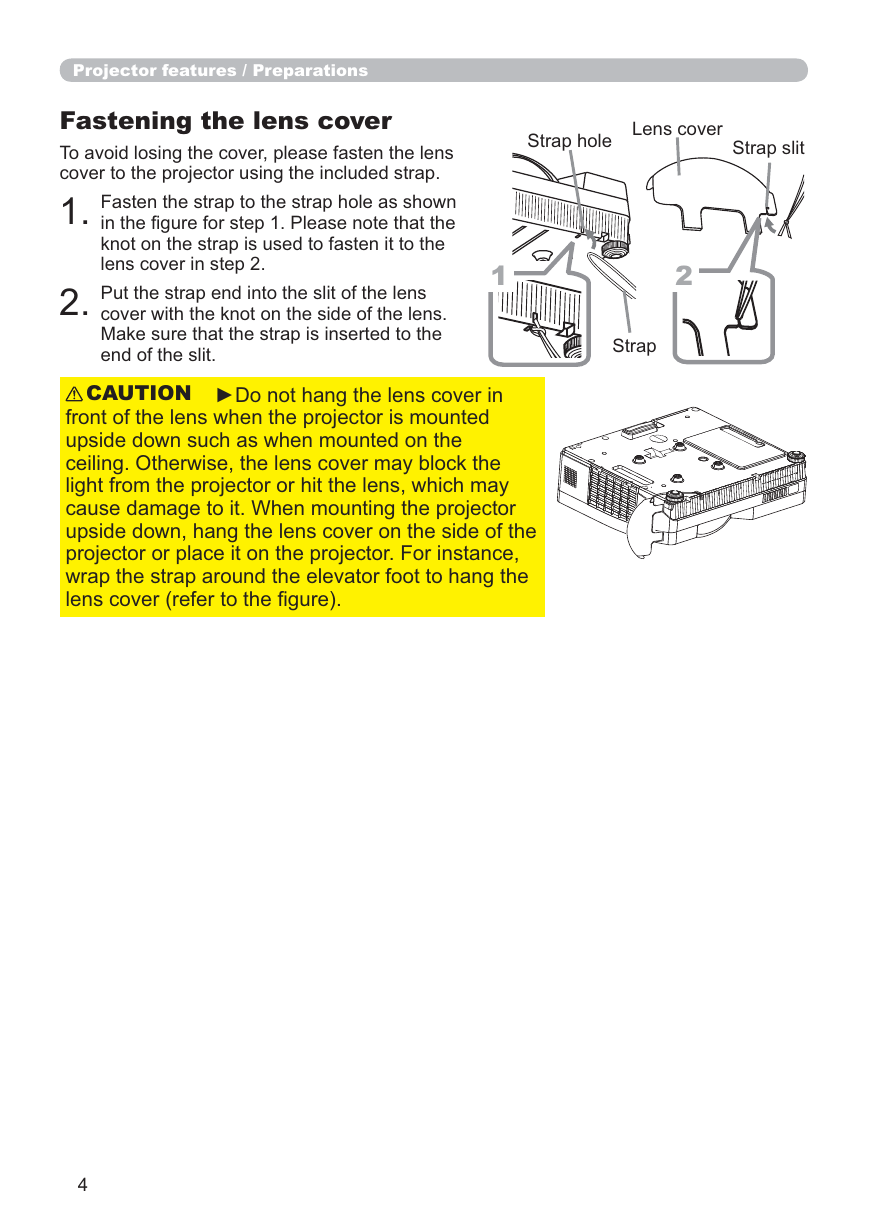

Projector features / Preparations Fastening the lens cover To avoid losing the cover, please fasten the lens cover to the projector using the included strap. Strap hole Lens cover Strap slit 1. 2. Fasten the strap to the strap hole as shown in the ﬁgure for step 1. Please note that the knot on the strap is used to fasten it to the lens cover in step 2. Put the strap end into the slit of the lens cover with the knot on the side of the lens. Make sure that the strap is inserted to the end of the slit. 1 2 Strap CAUTION ►Do not hang the lens cover in front of the lens when the projector is mounted upside down such as when mounted on the ceiling. Otherwise, the lens cover may block the light from the projector or hit the lens, which may cause damage to it. When mounting the projector upside down, hang the lens cover on the side of the projector or place it on the projector. For instance, wrap the strap around the elevator foot to hang the lens cover (refer to the ﬁgure). 4

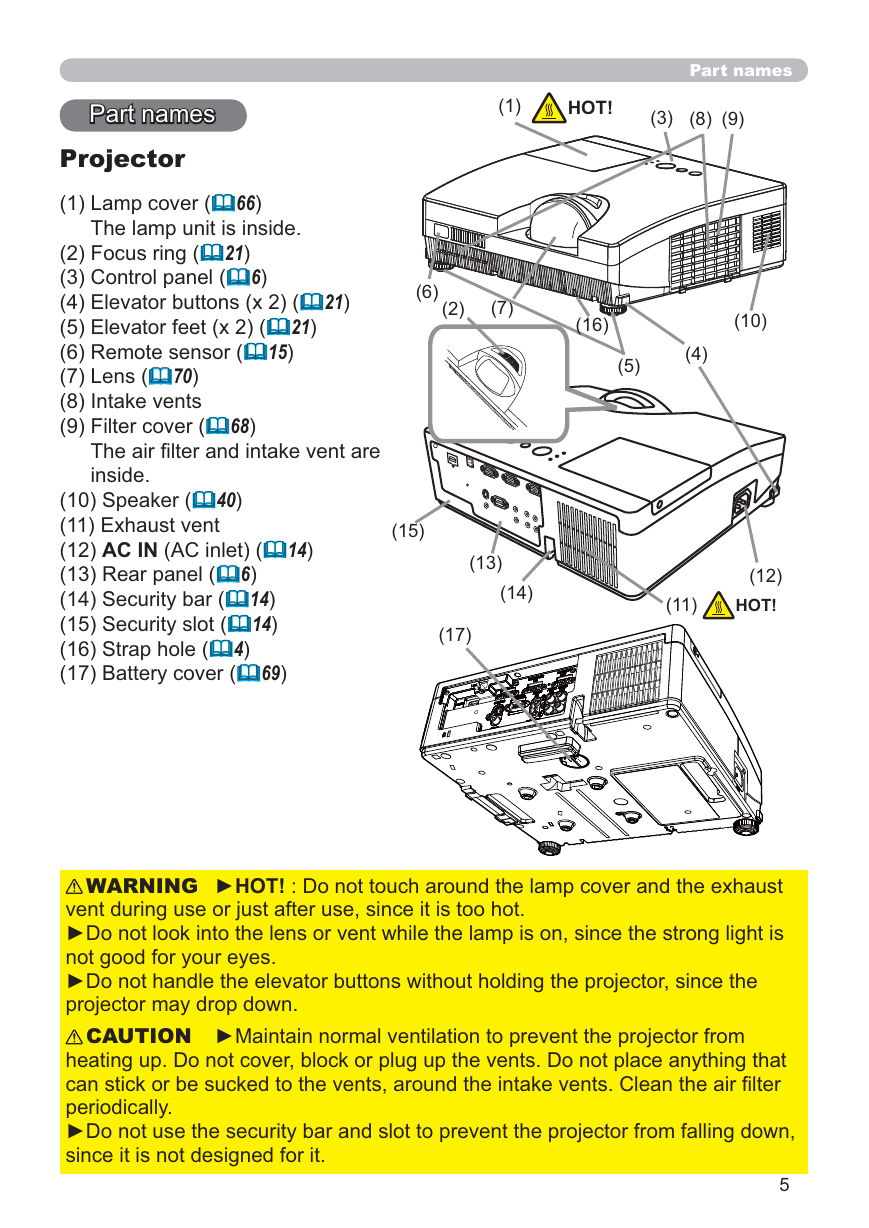

Part names Part names (1) HOT! (3) (8) (9) The lamp unit is inside. Projector (1) Lamp cover (66) (2) Focus ring (21) (3) Control panel (6) (4) Elevator buttons (x 2) (21) (5) Elevator feet (x 2) (21) (6) Remote sensor (15) (7) Lens (70) (8) Intake vents (9) Filter cover (68) The air ﬁlter and intake vent are inside. (10) Speaker (40) (11) Exhaust vent (12) AC IN (AC inlet) (14) (13) Rear panel (6) (14) Security bar (14) (15) Security slot (14) (16) Strap hole (4) (17) Battery cover (69) (6) (2) (7) (16) (10) (4) (5) (15) (13) (14) (17) (12) HOT! (11) WARNING ►HOT! : Do not touch around the lamp cover and the exhaust vent during use or just after use, since it is too hot. ►Do not look into the lens or vent while the lamp is on, since the strong light is not good for your eyes. ►Do not handle the elevator buttons without holding the projector, since the projector may drop down. CAUTION ►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air ﬁlter periodically. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it. 5

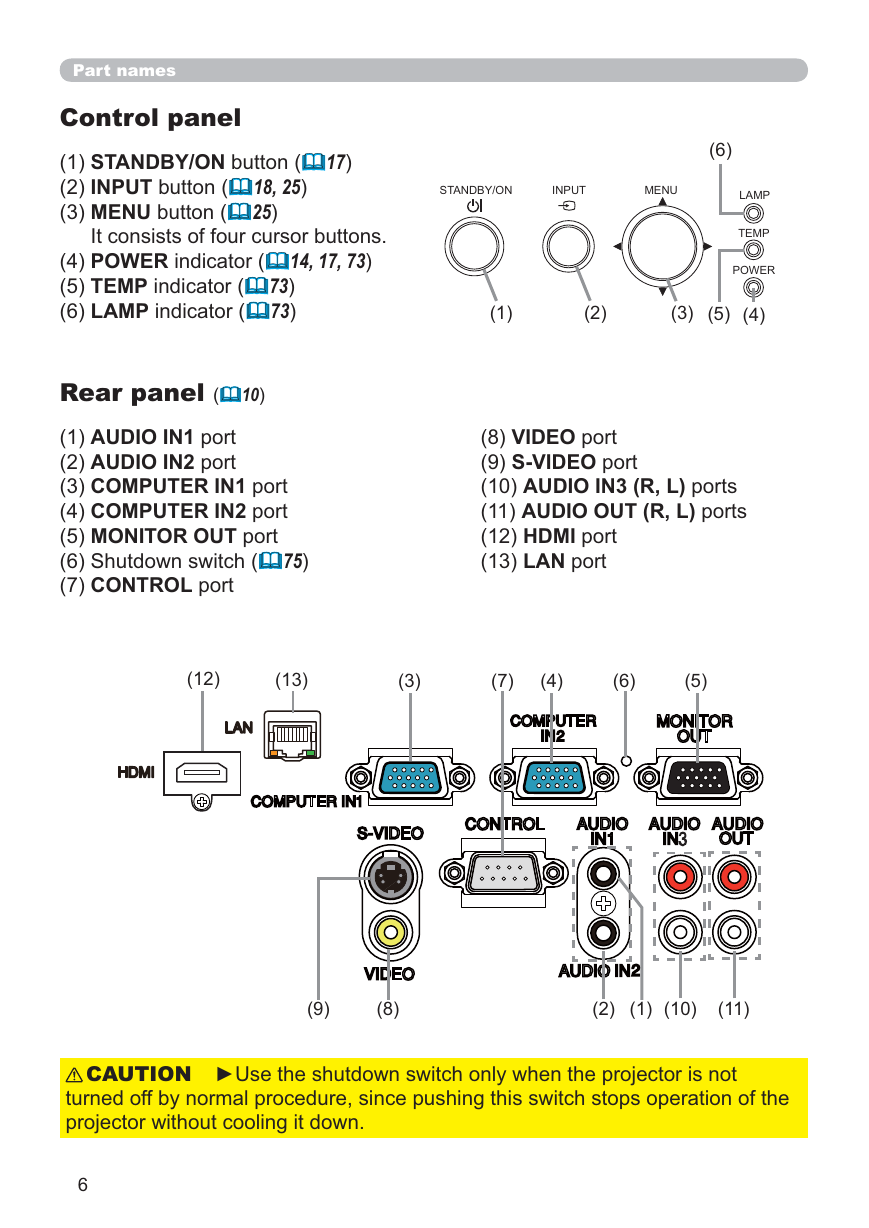

Part names Control panel (1) STANDBY/ON button (17) (2) INPUT button (18, 25) (3) MENU button (25) It consists of four cursor buttons. (4) POWER indicator (14, 17, 73) (5) TEMP indicator (73) (6) LAMP indicator (73) Rear panel (10) (1) AUDIO IN1 port (2) AUDIO IN2 port (3) COMPUTER IN1 port (4) COMPUTER IN2 port (5) MONITOR OUT port (6) Shutdown switch (75) (7) CONTROL port STANDBY/ON INPUT MENU (6) LAMP TEMP POWER (1) (2) (3) (5) (4) (8) VIDEO port (9) S-VIDEO port (10) AUDIO IN3 (R, L) ports (11) AUDIO OUT (R, L) ports (12) HDMI port (13) LAN port (12) (13) (3) (7) (4) (6) (5) LAN HDMI (9) (8) (2) (1) (10) (11) CAUTION ►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down. 6

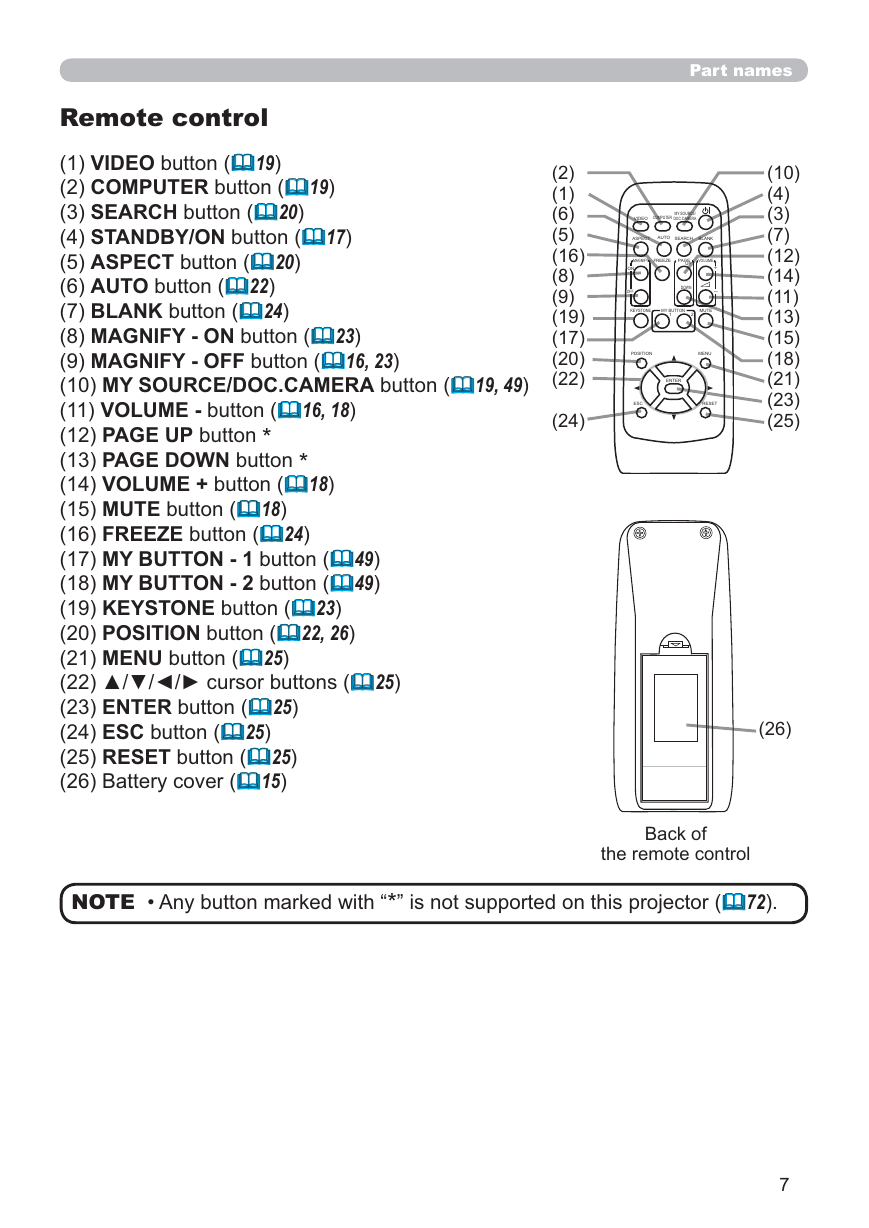

Remote control (1) VIDEO button (19) (2) COMPUTER button (19) (3) SEARCH button (20) (4) STANDBY/ON button (17) (5) ASPECT button (20) (6) AUTO button (22) (7) BLANK button (24) (8) MAGNIFY - ON button (23) (9) MAGNIFY - OFF button (16, 23) (10) MY SOURCE/DOC.CAMERA button (19, 49) (11) VOLUME - button (16, 18) (12) PAGE UP button * (13) PAGE DOWN button * (14) VOLUME + button (18) (15) MUTE button (18) (16) FREEZE button (24) (17) MY BUTTON - 1 button (49) (18) MY BUTTON - 2 button (49) (19) KEYSTONE button (23) (20) POSITION button (22, 26) (21) MENU button (25) (22) ▲/▼/◄/► cursor buttons (25) (23) ENTER button (25) (24) ESC button (25) (25) RESET button (25) (26) Battery cover (15) Part names (2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22) (24) VIDEO COMPUTER MY SOURCE/ DOC.CAMERA ASPECT AUTO SEARCH BLANK MAGNIFY FREEZE ON OFF PAGE UP DOWN VOLUME KEYSTONE MY BUTTON 1 2 MUTE POSITION MENU ENTER ESC RESET (10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25) (26) NOTE • Any button marked with “*” is not supported on this projector (72). Back of the remote control 7

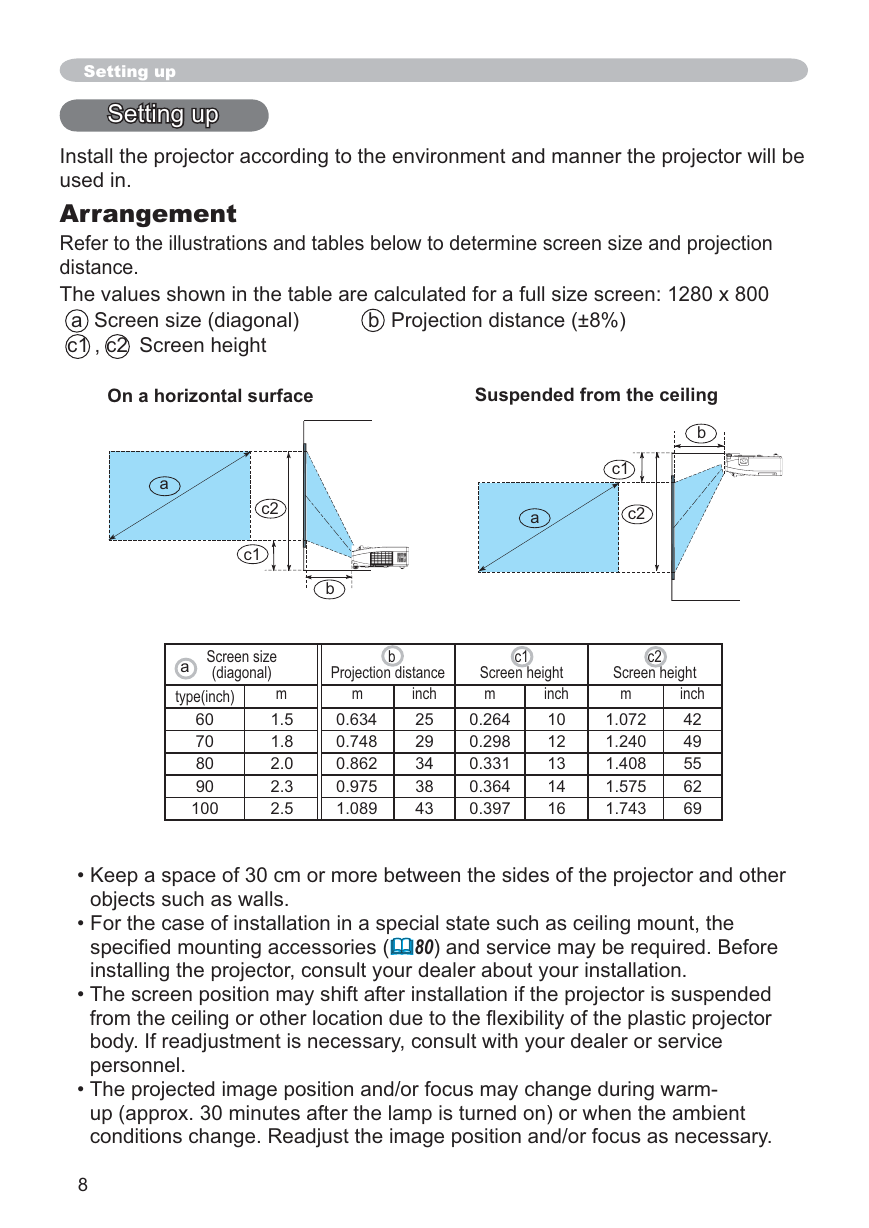

Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1280 x 800 a Screen size (diagonal) c1 , c2 Screen height b Projection distance (±8%) On a horizontal surface Suspended from the ceiling a c2 c1 b b c1 c2 a Screen size (diagonal) a type(inch) 60 70 80 90 100 m 1.5 1.8 2.0 2.3 2.5 b Projection distance m 0.634 0.748 0.862 0.975 1.089 inch 25 29 34 38 43 c1 Screen height m inch 10 12 13 14 16 0.264 0.298 0.331 0.364 0.397 c2 Screen height m inch 42 49 55 62 69 1.072 1.240 1.408 1.575 1.743 • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls. • For the case of installation in a special state such as ceiling mount, the speciﬁed mounting accessories (80) and service may be required. Before installing the projector, consult your dealer about your installation. • The screen position may shift after installation if the projector is suspended from the ceiling or other location due to the ﬂexibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel. • The projected image position and/or focus may change during warm- up (approx. 30 minutes after the lamp is turned on) or when the ambient conditions change. Readjust the image position and/or focus as necessary. 8
