2. Revision Record

3. General Specifications

4. Outline Drawing

5. Absolute Maximum Ratings(Ta=25℃)

5.1 Electrical Absolute Maximum Ratings.(VSS=0V ,T

5.2 Environmental Absolute Maximum Ratings.

6. Electrical Specifications and Instruction Code

6.1 Electrical characteristics(VSS=0V ,Ta=25℃)

6.2 LED backlight specification(VSS=0V ,Ta=25℃)

6.3 Interface signals

7. Optical Characteristics

Condition

Deg

8. Reliability Test Items and Criteria

9 Quality level

9.1 Classification of defects

9.2 Definition of inspection range

9.3 Inspection items and general notes

9.4 Outgoing Inspection level

9.5 Inspection Items and Criteria

10. Precautions for Use of LCD Modules

10.1 Handling Precautions

10.2 Storage precautions

10.3 The LCD modules should be no falling and viol

PRODUCT SPECIFICATIONS For Customer: Customer Model No. Module No.: SH430HI50-43050L □ : APPROVAL FOR SPECIFICATION □ : APPROVAL FOR SAMPLE Date : 2018.07.30 Version : C Item Page Table ofof Contents Contents Table No. 1 2 3 4 5 6 7 8 9 10 Cover Sheet(Table of Contents) Revision Record General Specifications Outline Drawing Absolute Maximum Ratings Electrical Specifications and Instruction Code Optical Characteristics Reliability Test Items and Criteria Quality Level Packing Reliability ForFor Customer Customer’’ss Acceptance: Acceptance: Approved By Comment PREPARED CHECKED VERIFIED BY QA VERIFIED BY R&D DEPT DEPT

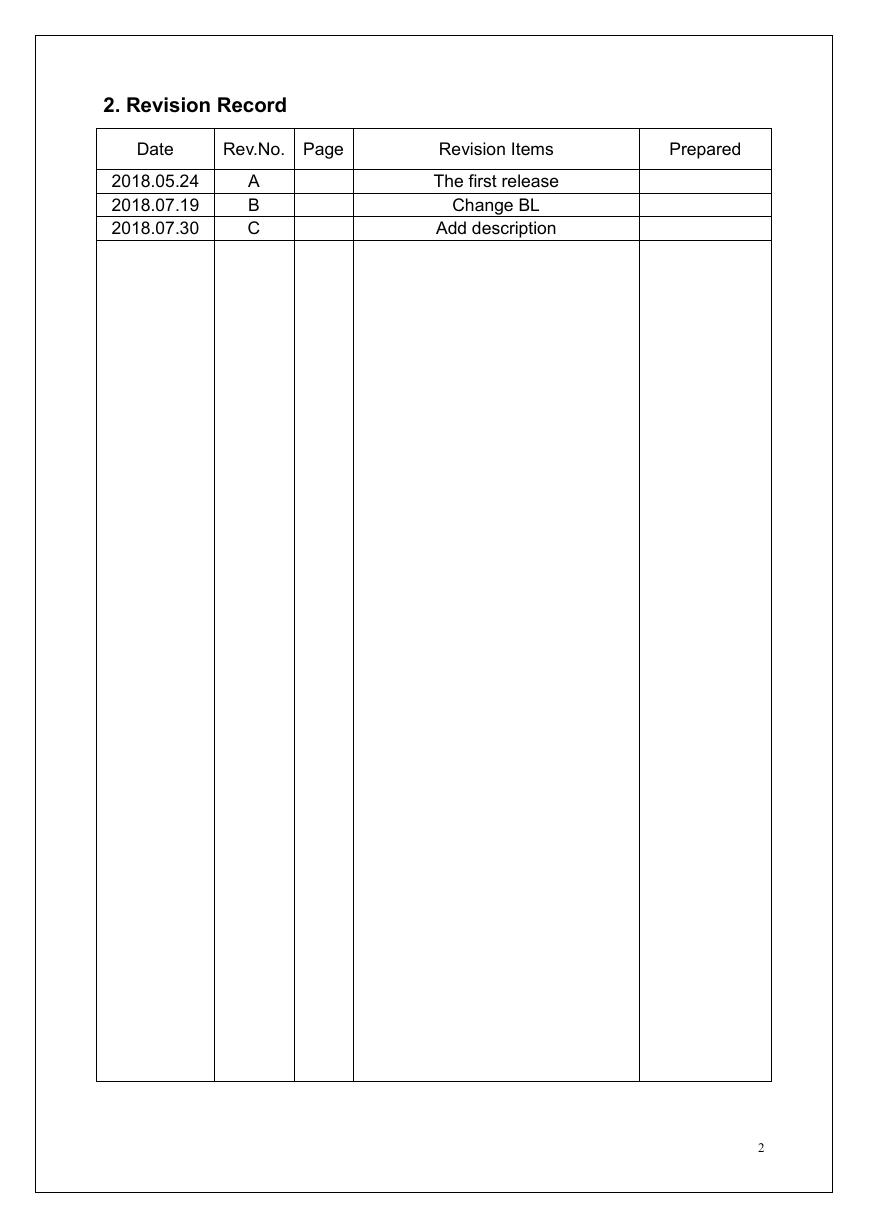

2. Revision Record Date Rev.No. Page 2018.05.24 2018.07.19 2018.07.30 A B C Prepared Revision Items The first release Change BL Add description 2

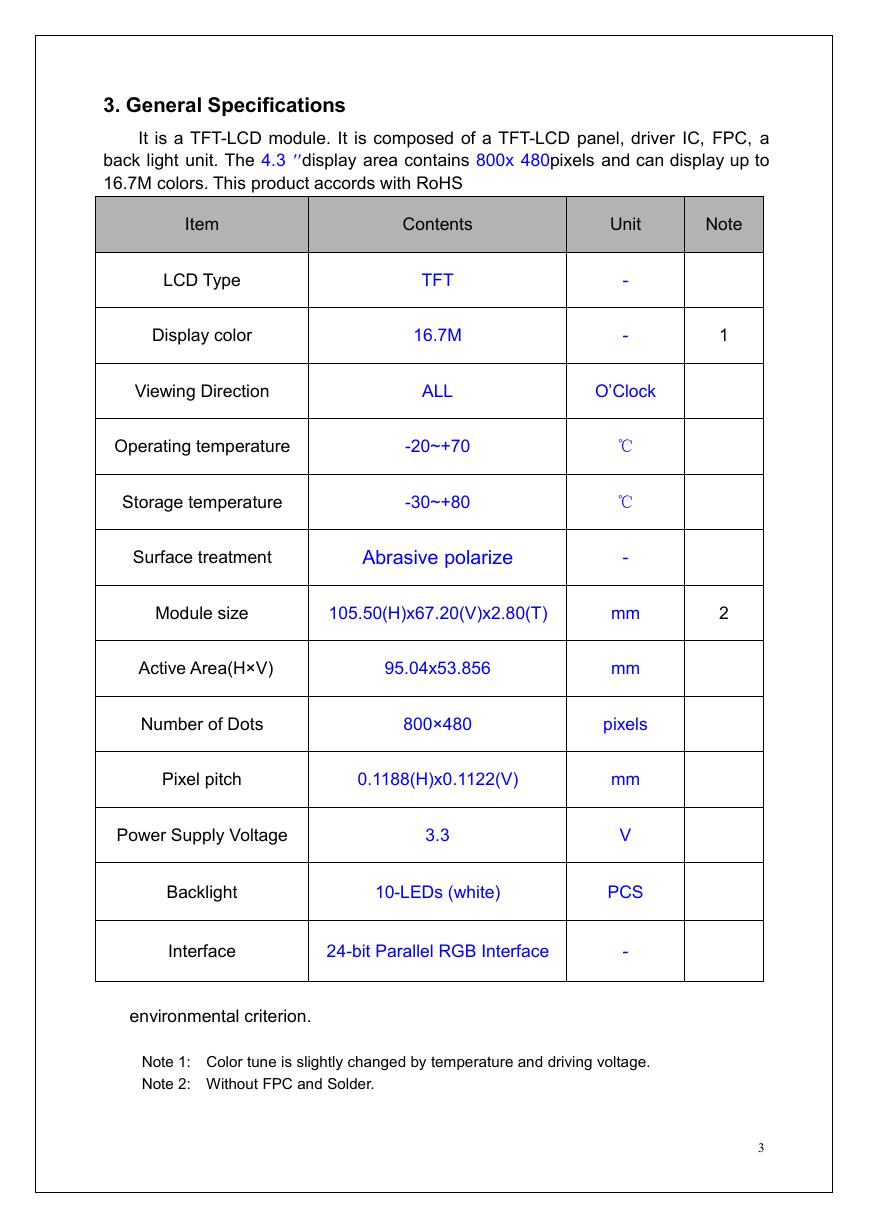

3. General Specifications It is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 4.3 ′′display area contains 800x 480pixels and can display up to 16.7M colors. This product accords with RoHS Contents Unit Note - - O’Clock ℃ ℃ - mm mm pixels mm V PCS 1 2 3 Item LCD Type Display color Viewing Direction Operating temperature Storage temperature TFT 16.7M ALL -20~+70 -30~+80 Surface treatment Abrasive polarize Module size 105.50(H)x67.20(V)x2.80(T) Active Area(H×V) 95.04x53.856 Number of Dots 800×480 Pixel pitch 0.1188(H)x0.1122(V) Power Supply Voltage 3.3 Backlight 10-LEDs (white) Interface 24-bit Parallel RGB Interface - environmental criterion. Note 1: Color tune is slightly changed by temperature and driving voltage. Note 2: Without FPC and Solder.

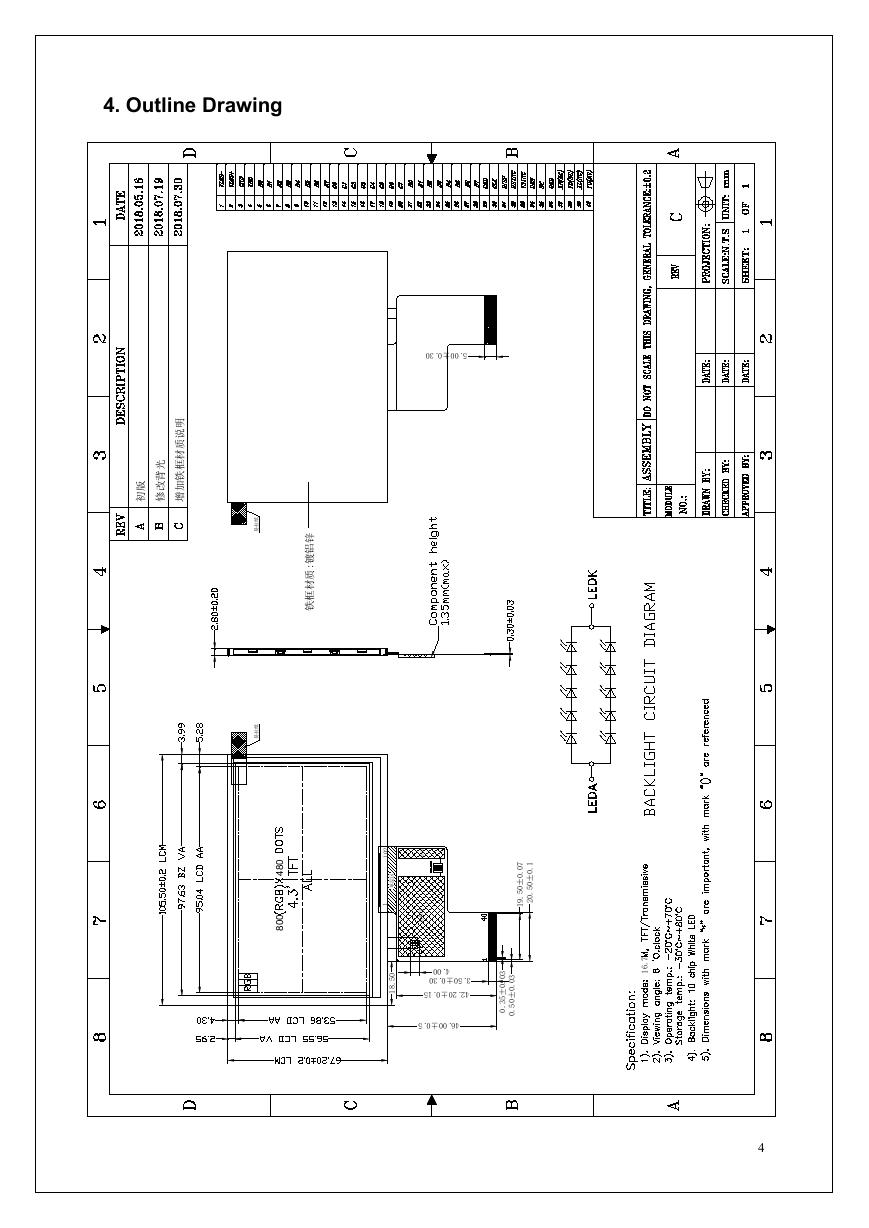

4. Outline Drawing 5.00±0.30 明说质材框铁加增光背改修版初锌铝镀 : 质材框铁纸拉易纸拉易 0 8 4 0 0 8 2 0 1 区层单 1 区件元区件元 1 . 0 ± 0 5 . 0 2 7 0 . 0 ± 0 5 . 9 1 0 5 . 8 1 4.00 3.50±0.30 42.20±0.15 46.00±0.5 3 0 . 0 ± 5 3 . 0 3 0 . 0 ± 0 5 . 0 7 . 6 1 4

5. Absolute Maximum Ratings(Ta=25℃) 5.1 Electrical Absolute Maximum Ratings.(VSS=0V ,Ta=25℃) Item Symbol Power Supply Voltage VCC Logic Signal Input /Output Voltage Power Supply Voltage for LCD Current of LED VIOVCC VOP ILED Min. -0.3 -0.3 0 0 Max. 3.6 VCC+0.5 3.6 20 Unit Note V V V mA 1，2 Notes: 1. If the module is above these absolute maximum ratings. It may become permanently damaged. Using the module within the following electrical characteristic conditions are also exceeded, the module will malfunction and cause poor reliability. 2. VCC >VSS must be maintained. 3. Please be sure users are grounded when handing LCD Module. 5.2 Environmental Absolute Maximum Ratings. Item Ambient Temperature Humidity Storage Operating MIN. -30℃ - MAX. 80℃ - MIN. -20℃ - MAX. 70℃ - Note 1,2 3 1. The response time will become lower when operated at low temperature. 2. Background color changes slightly depending on ambient temperature. The phenomenon is reversible. 3. Ta<=40℃:85%RH MAX. Ta>=40℃:Absolute humidity must be lower than the humidity of 85%RH at 40℃. 5

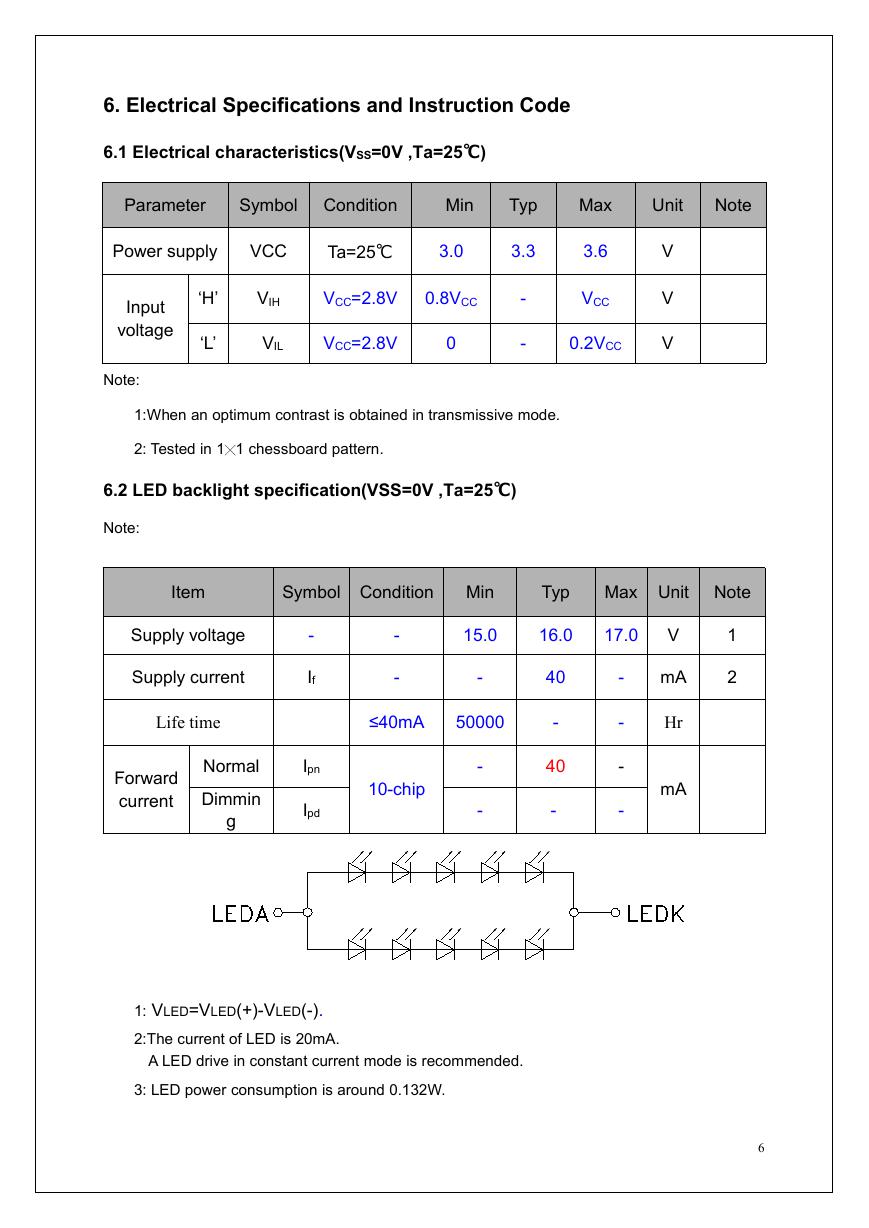

6. Electrical Specifications and Instruction Code 6.1 Electrical characteristics(VSS=0V ,Ta=25℃) Parameter Symbol Condition Min Power supply VCC Ta=25℃ 3.0 Input voltage ‘H’ ‘L’ VIH VIL VCC=2.8V 0.8VCC VCC=2.8V 0 Typ 3.3 - - Max Unit Note 3.6 VCC 0.2VCC V V V Note: 1:When an optimum contrast is obtained in transmissive mode. 2: Tested in 1╳1 chessboard pattern. 6.2 LED backlight specification(VSS=0V ,Ta=25℃) Note: Item Symbol Condition Min Typ Max Unit Note Supply voltage Supply current Life time Forward current Normal Dimmin g - If Ipn Ipd 15.0 16.0 17.0 V - - - ≤40mA 50000 10-chip - - 40 - 40 - mA Hr mA - - - - 1: VLED=VLED(+)-VLED(-). 2:The current of LED is 20mA. A LED drive in constant current mode is recommended. 3: LED power consumption is around 0.132W. 1 2 6

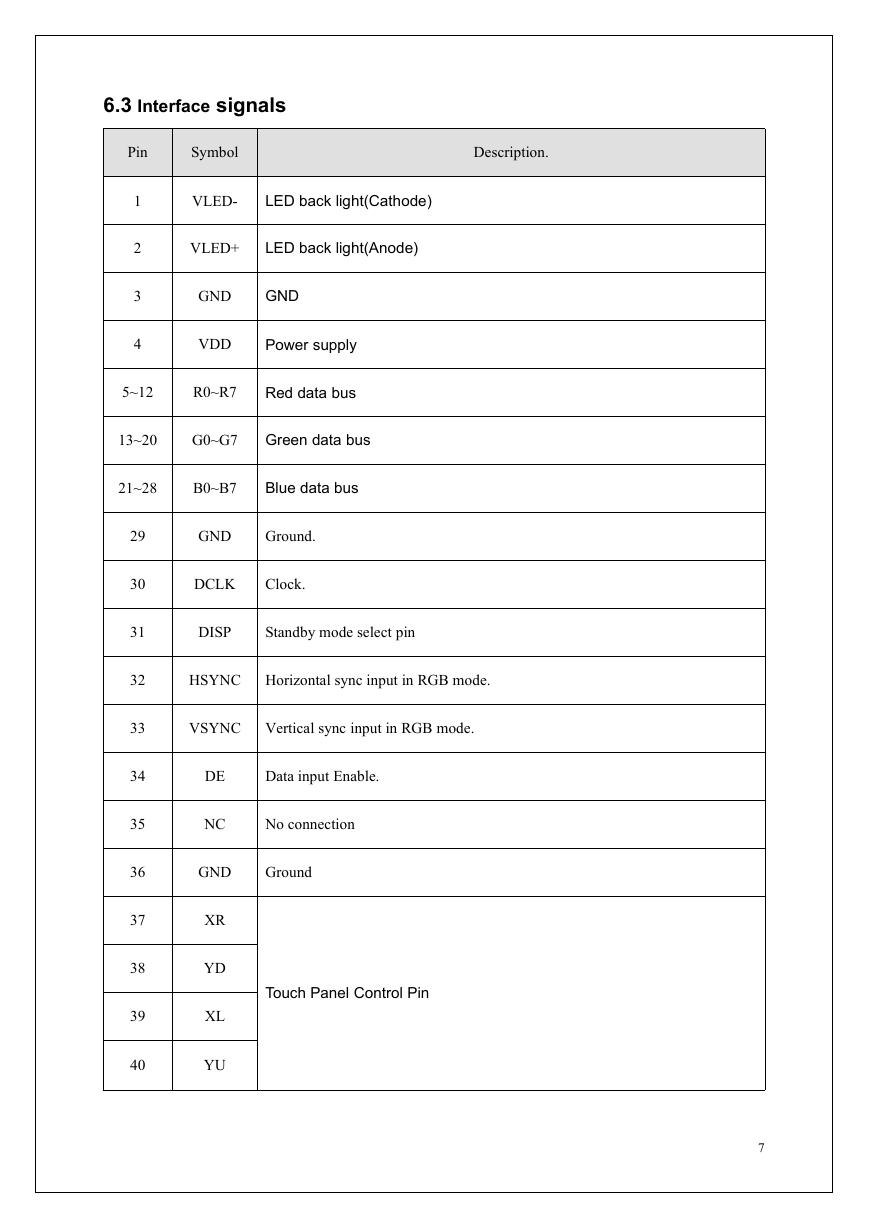

6.3 Interface signals Pin Symbol Description. 1 2 3 4 VLED- LED back light(Cathode) VLED+ LED back light(Anode) GND GND VDD Power supply 5~12 R0~R7 Red data bus 13~20 G0~G7 Green data bus 21~28 B0~B7 Blue data bus 29 30 31 32 33 34 35 36 37 38 39 40 GND Ground. DCLK Clock. DISP Standby mode select pin HSYNC Horizontal sync input in RGB mode. VSYNC Vertical sync input in RGB mode. DE NC Data input Enable. No connection GND Ground XR YD XL YU Touch Panel Control Pin 7

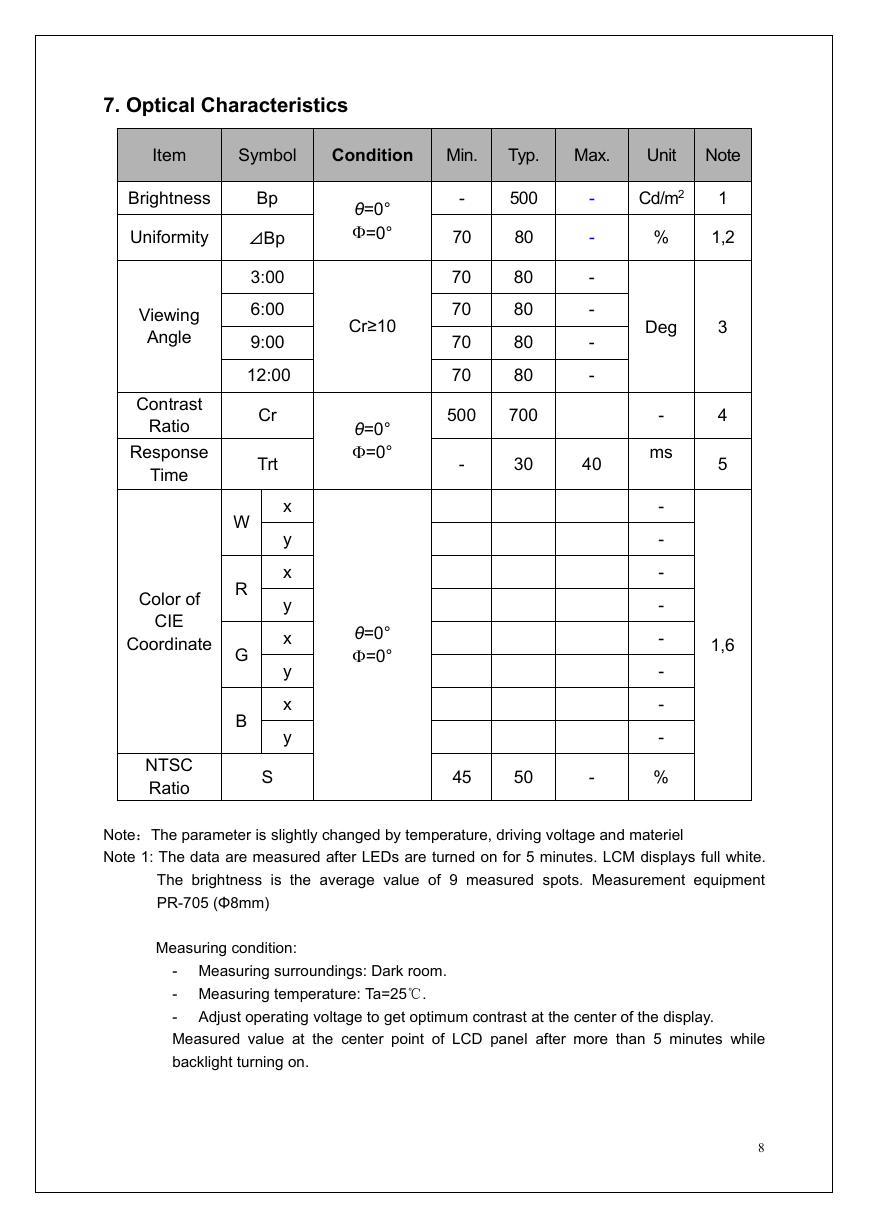

7. Optical Characteristics Item Symbol Condition Min. Max. Unit Note 500 700 - 30 40 Cd/m2 % 1 1,2 3 4 5 1,6 Deg - ms - - - - - - - - Typ. 500 80 80 80 80 80 - 70 70 70 70 70 - - - - - - Brightness Bp Uniformity Viewing Angle Contrast Ratio Response Time Color of CIE Coordinate ⊿Bp 3:00 6:00 9:00 12:00 Cr Trt W R G B x y x y x y x y θ=0° =0° Cr≥10 θ=0° =0° θ=0° =0° NTSC Ratio S 45 50 - % Note：The parameter is slightly changed by temperature, driving voltage and materiel Note 1: The data are measured after LEDs are turned on for 5 minutes. LCM displays full white. The brightness is the average value of 9 measured spots. Measurement equipment PR-705 (Φ8mm) Measuring condition: - Measuring surroundings: Dark room. - Measuring temperature: Ta=25℃. - Measured value at the center point of LCD panel after more than 5 minutes while backlight turning on. Adjust operating voltage to get optimum contrast at the center of the display. 8
