- User Manual ViviCam 5

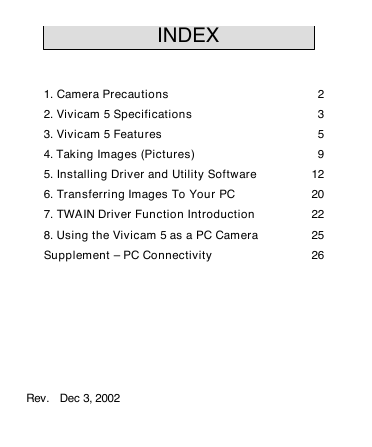

INDEX 1. Camera Precautions 2. Vivicam 5 Specifications 3. Vivicam 5 Features 4. Taking Images (Pictures) 5. Installing Driver and Utility Software 6. Transferring Images To Your PC 7. TWAIN Driver Function Introduction 8. Using the Vivicam 5 as a PC Camera Supplement – PC Connectivity 2 3 5 9 12 20 22 25 26 Rev. Dec 3, 2002

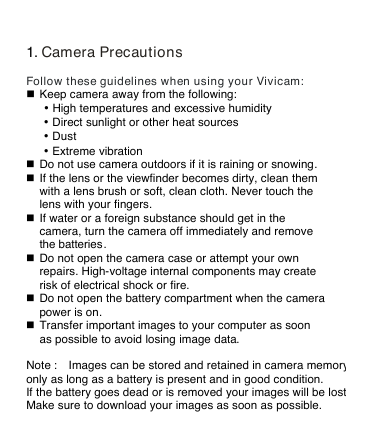

1. Camera Precautions Follow these guidelines when using your Vivicam: n Keep camera away from the following: • High temperatures and excessive humidity • Direct sunlight or other heat sources • Dust • Extreme vibration n Do not use camera outdoors if it is raining or snowing. n If the lens or the viewfinder becomes dirty, clean them with a lens brush or soft, clean cloth. Never touch the lens with your fingers. n If water or a foreign substance should get in the camera, turn the camera off immediately and remove the batteries. n Do not open the camera case or attempt your own repairs. High-voltage internal components may create risk of electrical shock or fire. n Do not open the battery compartment when the camera power is on. n Transfer important images to your computer as soon as possible to avoid losing image data. Note : Images can be stored and retained in camera memory only as long as a battery is present and in good condition. If the battery goes dead or is removed your images will be lost. Make sure to download your images as soon as possible.

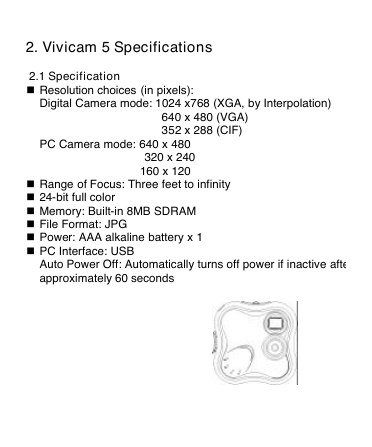

2. Vivicam 5 Specifications 2.1 Specification n Resolution choices (in pixels): Auto Power Off: Automatically turns off power if inactive after approximately 60 seconds Digital Camera mode: 1024 x768 (XGA, by Interpolation) 640 x 480 (VGA) 352 x 288 (CIF) PC Camera mode: 640 x 480 320 x 240 160 x 120 n Range of Focus: Three feet to infinity n 24-bit full color n Memory: Built-in 8MB SDRAM n File Format: JPG n Power: AAA alkaline battery x 1 n PC Interface: USB

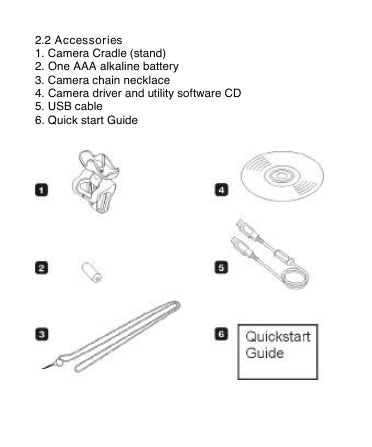

2.2 Accessories 1. Camera Cradle (stand) 2. One AAA alkaline battery 3. Camera chain necklace 4. Camera driver and utility software CD 5. USB cable 6. Quick start Guide

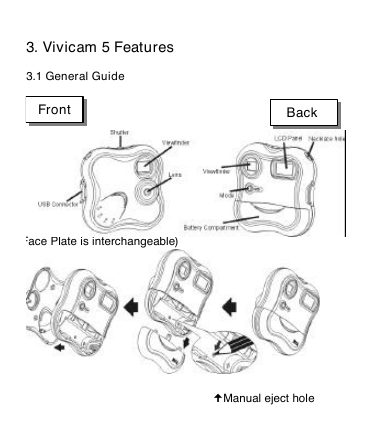

3. Vivicam 5 Features 3.1 General Guide Front Back Face Plate is interchangeable) £Manual eject hole

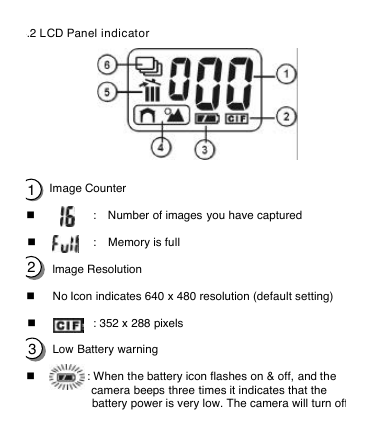

3.2 LCD Panel indicator 1 n Image Counter n : Number of images you have captured n : Memory is full 2 n lmage Resolution n : 352 x 288 pixels n No Icon indicates 640 x 480 resolution (default setting) 3 n Low Battery warning n : When the battery icon flashes on & off, and the camera beeps three times it indicates that the battery power is very low. The camera will turn off

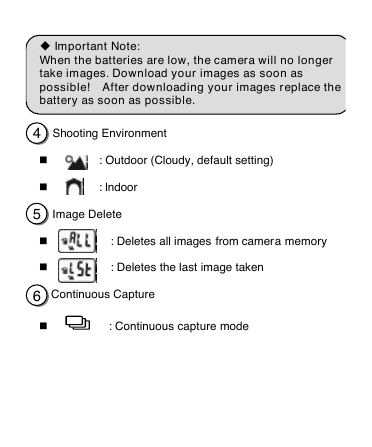

u Important Note: When the batteries are low, the camera will no longer take images. Download your images as soon as possible! After downloading your images replace the battery as soon as possible. 4 n Shooting Environment n : Outdoor (Cloudy, default setting) n : lndoor 5 n Image Delete n : Deletes all images from camera memory n : Deletes the last image taken 6 Continuous Capture n : Continuous capture mode
