User's Manual User's Manual English

Welcome Dear user, thanks for purchasing this product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. Safety Notice 1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Do not expose the camera to high temperature or leave it in direct sunlight. Doing so may damage the camera. 4. Use the camera with care. Avoid pressing hard on the camera body. 5. For your own safety, avoid using the camera when there is a storm or lightning. 6. Do not use batteries of different speciﬁcations. Doing so may lead to the potential for serious damage. 7. Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camera. 8. Remove the battery if it shows signs of leaking or distortion. 9. Use only the accessories supplied by the manufacturer. 10. Keep the camera out of the reach of infants. 1

Table of Contents Welcome .......................................................................... 1 Safety Notice ................................................................... 1 Table of Contents ........................................................... 2 Getting Started ................................................................ 4 Knowing your camera parts .................................................................. 4 Installing the battery ............................................................................. 5 Using the charger ................................................................................. 6 Inserting a memory card (optional) ....................................................... 7 Attaching the carrying strap .................................................................. 8 Basic Operations ............................................................ 9 Turning on your camera ........................................................................ 9 Turning off your camera ........................................................................ 9 Using the LCD monitor ......................................................................... 10 Reading LCD indicators ........................................................................ 11 Setting time and language .................................................................... 12 Recording a video clip .......................................................................... 13 Taking a still picture .............................................................................. 15 Recording a voice clip .......................................................................... 16 Recording TV program or DVD ............................................................. 17 Playing back your recordings ............................................................... 18 Playing MP3 music ............................................................................... 19 Connecting the camera to a TV ............................................................ 21 Advanced Operations .................................................... 22 Menu operation ..................................................................................... 22 Menu illustration ................................................................................... 22 Menu items in Camera mode ............................................................... 23 Menu items in Playback mode .............................................................. 27 2

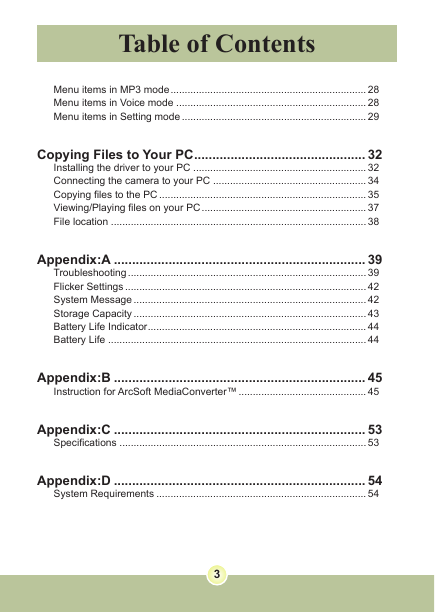

Table of Contents Menu items in MP3 mode ..................................................................... 28 Menu items in Voice mode ................................................................... 28 Menu items in Setting mode ................................................................. 29 Copying Files to Your PC ............................................... 32 Installing the driver to your PC ............................................................. 32 Connecting the camera to your PC ...................................................... 34 Copying ﬁles to the PC ......................................................................... 35 Viewing/Playing ﬁles on your PC .......................................................... 37 File location .......................................................................................... 38 Appendix:A ..................................................................... 39 Troubleshooting .................................................................................... 39 Flicker Settings ..................................................................................... 42 System Message .................................................................................. 42 Storage Capacity .................................................................................. 43 Battery Life Indicator ............................................................................. 44 Battery Life ........................................................................................... 44 Appendix:B ..................................................................... 45 Instruction for ArcSoft MediaConverter™ ............................................. 45 Appendix:C ..................................................................... 53 Speciﬁcations ....................................................................................... 53 Appendix:D ..................................................................... 54 System Requirements .......................................................................... 54 3

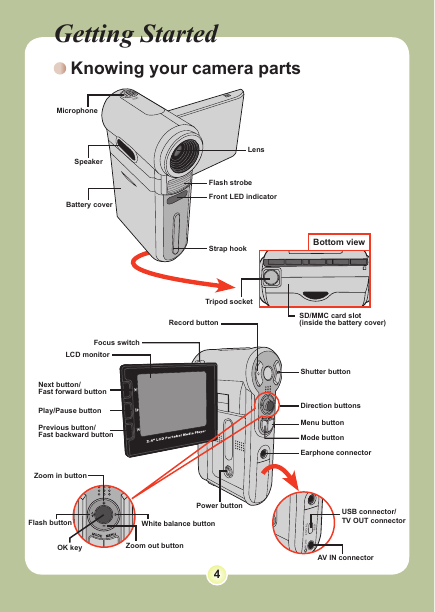

Getting Started Knowing your camera parts Microphone Speaker Battery cover Focus switch LCD monitor Next button/ Fast forward button Play/Pause button Previous button/ Fast backward button Zoom in button Lens Flash strobe Front LED indicator Strap hook Bottom view Tripod socket Record button SD/MMC card slot (inside the battery cover) Shutter button Direction buttons Menu button Mode button Earphone connector Power button Flash button White balance button OK key Zoom out button 4 USB connector/ TV OUT connector AV IN connector

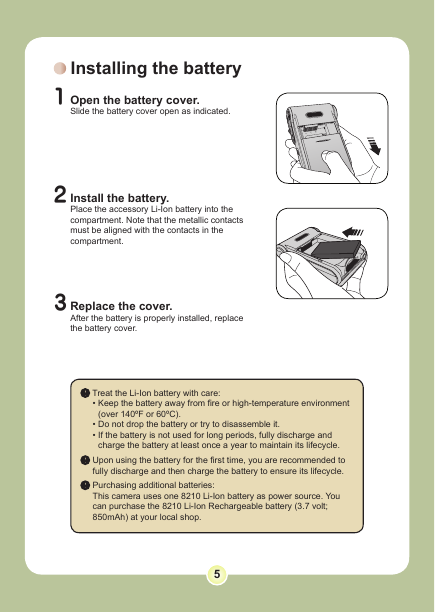

Installing the battery 1 Open the battery cover. Slide the battery cover open as indicated. 2 Install the battery. Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment. 3 Replace the cover. After the battery is properly installed, replace the battery cover. Treat the Li-Ion battery with care: • Keep the battery away from ﬁre or high-temperature environment (over 140ºF or 60ºC). • Do not drop the battery or try to disassemble it. • If the battery is not used for long periods, fully discharge and charge the battery at least once a year to maintain its lifecycle. Upon using the battery for the ﬁrst time, you are recommended to fully discharge and then charge the battery to ensure its lifecycle. Purchasing additional batteries: This camera uses one 8210 Li-Ion battery as power source. You can purchase the 8210 Li-Ion Rechargeable battery (3.7 volt; 850mAh) at your local shop. 5

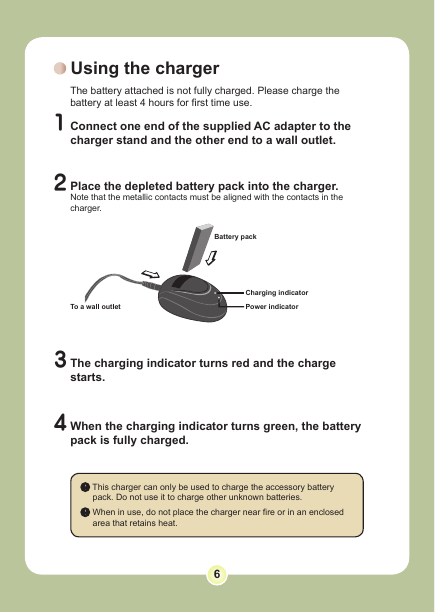

Using the charger The battery attached is not fully charged. Please charge the battery at least 4 hours for ﬁrst time use. 1 Connect one end of the supplied AC adapter to the charger stand and the other end to a wall outlet. 2 Place the depleted battery pack into the charger. Note that the metallic contacts must be aligned with the contacts in the charger. Battery pack Charging indicator Power indicator To a wall outlet 3 The charging indicator turns red and the charge starts. 4 When the charging indicator turns green, the battery pack is fully charged. This charger can only be used to charge the accessory battery pack. Do not use it to charge other unknown batteries. When in use, do not place the charger near ﬁre or in an enclosed area that retains heat. 6

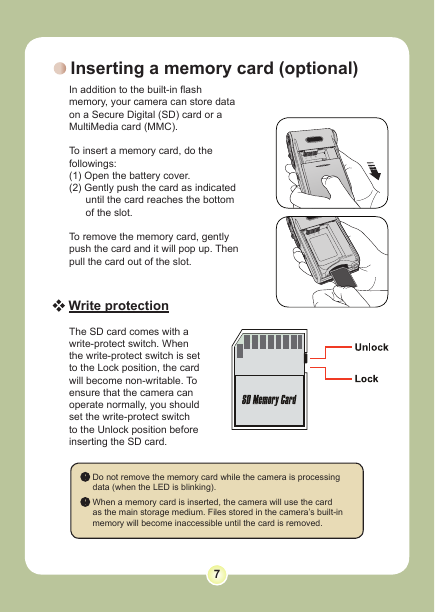

Inserting a memory card (optional) In addition to the built-in ﬂash memory, your camera can store data on a Secure Digital (SD) card or a MultiMedia card (MMC). To insert a memory card, do the followings: (1) Open the battery cover. (2) Gently push the card as indicated until the card reaches the bottom of the slot. To remove the memory card, gently push the card and it will pop up. Then pull the card out of the slot. Write protection The SD card comes with a write-protect switch. When the write-protect switch is set to the Lock position, the card will become non-writable. To ensure that the camera can operate normally, you should set the write-protect switch to the Unlock position before inserting the SD card. Do not remove the memory card while the camera is processing data (when the LED is blinking). When a memory card is inserted, the camera will use the card as the main storage medium. Files stored in the camera’s built-in memory will become inaccessible until the card is removed. 7
