eManual

Welcome

Safety Notice

Package Contents

Camera Parts

Preparing Your Camera

Loading the batteries

Inserting the SD/MMC card (optional)

Attaching the wrist strap

How to hold your camera

Using the bag

Using the tripod

Getting Started

Turning on your camera

Turning off your camera

Setting the date and time

Checking the media and power status

Tips for best shooting

Storage capacity chart

Digital Video (DV) Mode

LCD display

Recording an AVI movie

Function buttons

DV menu

Digital Camera Mode

LCD display

Taking a still

Using the flash strobe

Setting white balance

Using the self-timer

Setting exposure compensation

Function buttons

Camera menu

Voice Recording (VR) Mode

LCD display

Recording a sound clip

Deleting sound clips

Function buttons

Playback Mode

LCD display

Thumbnail browser

Playing an AVI movie or a WAV file

Viewing a JPG picture

Deleting files

MP3 Mode

LCD display

Uploading MP3 files

Playing MP3 music

MP3 menu

Camera Settings

Basic settings

Advanced settings

TV Output

Connecting the camera to TV

Copying Files to PC

Installing the driver (for 98SE)

Connecting the camera to your PC

Copying files to your PC

File locations

Uploading/Deleting MP3 files

Viewing/Playing files on your PC

Using PC Camera

Installing the application

Starting the application

Using DV 3300 PC Camera

Recording an AVI movie or taking a snapshot

Advanced settings in PC Camera

Troubleshooting

Flicker Settings Table

LED Event Table

System Message Table

Specifications

Main Functions

Aiptek Service

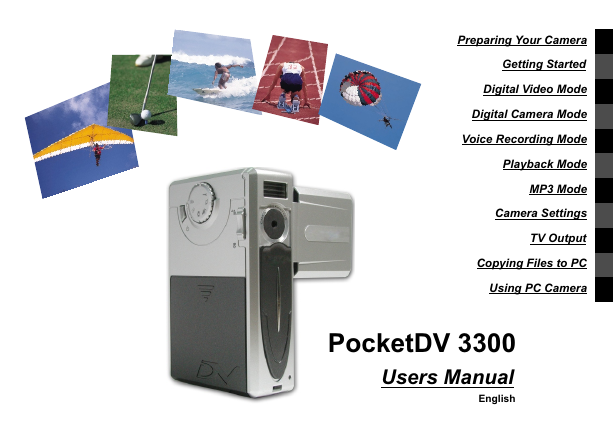

Preparing Your Camera Getting Started Digital Video Mode Digital Camera Mode Voice Recording Mode Playback Mode MP3 Mode Camera Settings TV Output Copying Files to PC Using PC Camera PocketDV 3300 Users Manual English

Welcome Dear user, thanks for purchasing this product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. Safety Notice 1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided. 2. Avoid all contact with water and dry hands before using. 3. Do not expose the camera to high temperature or leave it in direct sunlight. Doing so may damage the camera. 4. Use the camera with care. Avoid pressing hard on the camera body. 5. For your own safety, avoid using the camera when there is a storm or lightning. 6. Avoid using batteries of different brands or types at the same time. There is potential of explosion by doing that. 7. Remove batteries during long periods between usage, as deteriorated batteries may affect the functionality of the camera. 8. Remove batteries if they show signs of leaking or distortion. 9. Use only the accessories supplied by the manufacturer. 10. Keep the camera out of the reach of children. ~ 1 ~

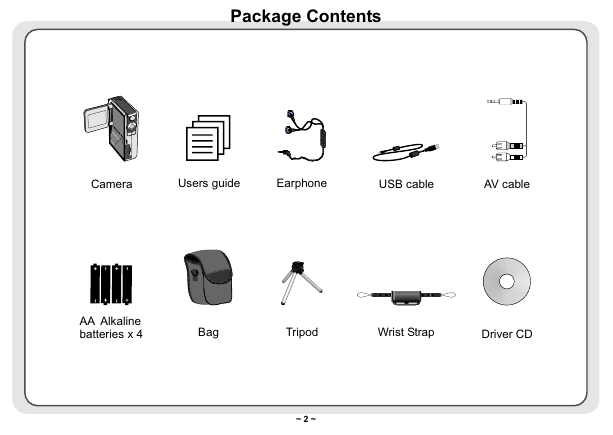

Package Contents Camera Users guide Earphone USB cable AV cable AA Alkaline batteries x 4 Bag Tripod Wrist Strap Driver CD ~ 2 ~

Microphone Back LED Shutter/Record Button Direction Buttons OK Button Menu Button Wrist Strap Hook SD/MMC Card Slot Video-out Connector USB Connector Earphone Connector Speaker LCD Panel LCD On/Off Detector Flash Strobe Lens Lens Cover Front LED Battery Cover Focus Switch Power On/Off Button Mode Switch Tripod Socket Camera Parts ~ 3 ~

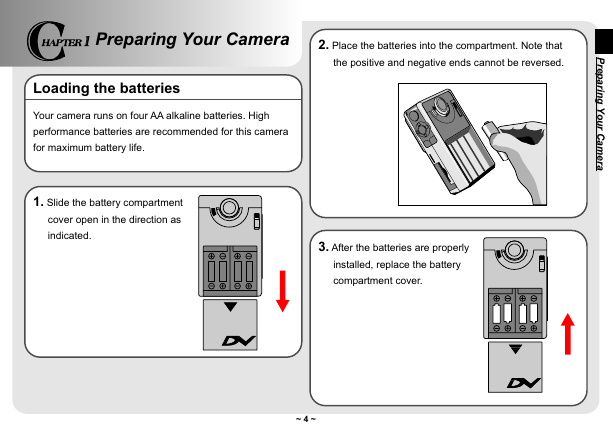

P r e p a r i n g Y o u r C a m e r a Preparing Your Camera 2. Place the batteries into the compartment. Note that the positive and negative ends cannot be reversed. Loading the batteries Your camera runs on four AA alkaline batteries. High performance batteries are recommended for this camera for maximum battery life. 1. Slide the battery compartment cover open in the direction as indicated. 3. After the batteries are properly installed, replace the battery compartment cover. ~ 4 ~

Inserting the SD/MMC card (optional) In addition to 16MB (128Mbits) built-in flash memory, your camera can store data on a Secure Digital (SD) card or a MultiMedia card (MMC). The supported memory size ranges from 8MB to 256MB. To insert a SD/MMC card, gently push the card as indicated until the card reaches the end of the slot. Note that once a SD/MMC card is inserted, the camera will use the card as the main storage media. Files stored in the camera's built-in memory will become inaccessible until the SD/MMC card is removed. The SD card comes with a write-protect switch. When the write-protect switch is set to the Lock position, the card will become non-writable. To ensure that the camera can operate normally, you should set the write-protect switch to the Unlock position before inserting the SD card. Unlock Lock P r e p a r i n g Y o u r C a m e r a To remove the SD/MMC card, gently push the card. After the card pops up, pull the card out of the slot. Do not remove the SD/MMC card while the camera is processing data (when the LED is flashing). If you insert a write-protected card, the media icon on the LCD display will become red. ~ 5 ~

Attaching the wrist strap Please unfasten and separate the strap into two parts. To attach the wrist strap to the camera, thread the strap through the hook on the side of the camera, and then the one on the bottom part. After threading the strap, fasten the strap and then use the leather wrap to hold the strap. How to hold your camera Please put your hand through the wrist strap and firmly hold the camera as illustrated. While taking stills or recording AVI movies, avoid blocking the lens to retain the best result. P r e p a r i n g Y o u r C a m e r a Avoid blocking the lens. ~ 6 ~

Using the bag Using the tripod The accessory bag comes handy if you are planning to carry the camera with you while you are travelling around. Simply put the camera into the bag as indicated, and you are ready to carry the camera with you. Use a tripod to minimize camera movement and ensure optimal image quality, especially while shooting self- portraits or video conferencing. Tight Loose P r e p a r i n g Y o u r C a m e r a Avoid severe impact to the camera body even it is placed in the bag. ~ 7 ~
