飞利浦传真机-Magic 5 Voice Dect说明书.pdf
Dear Customer,
About this User Manual
Symbols Used
Installation guide
Contained in the packing
Attaching the Paper Tray
Inserting Paper
Connecting the Handset
Connecting the Telephone Cord
Connecting the Power Cord
Initial Installation
Selecting the Language
Selecting the Country
Entering Your Number
Entering Your Name
Entering the Time and Date

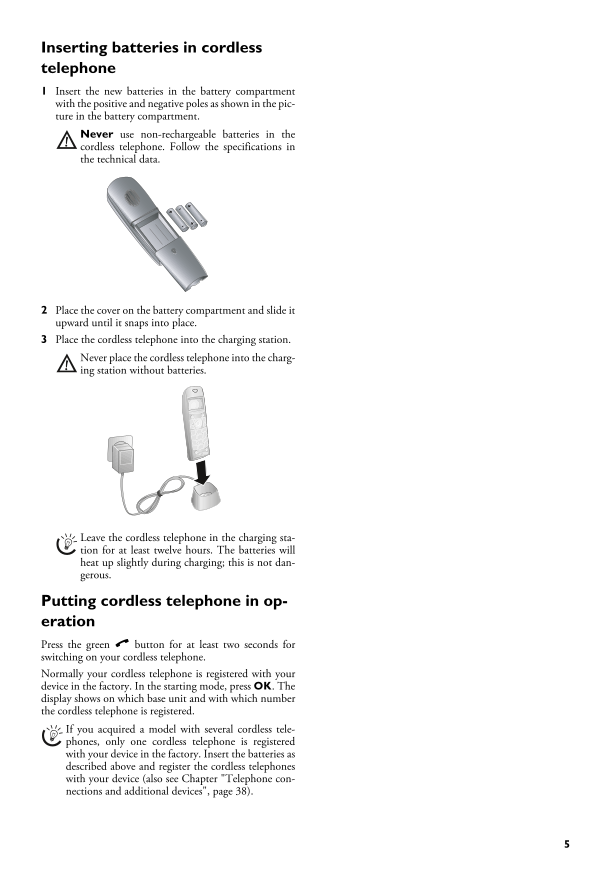

Inserting batteries in cordless telephone
Putting cordless telephone in operation

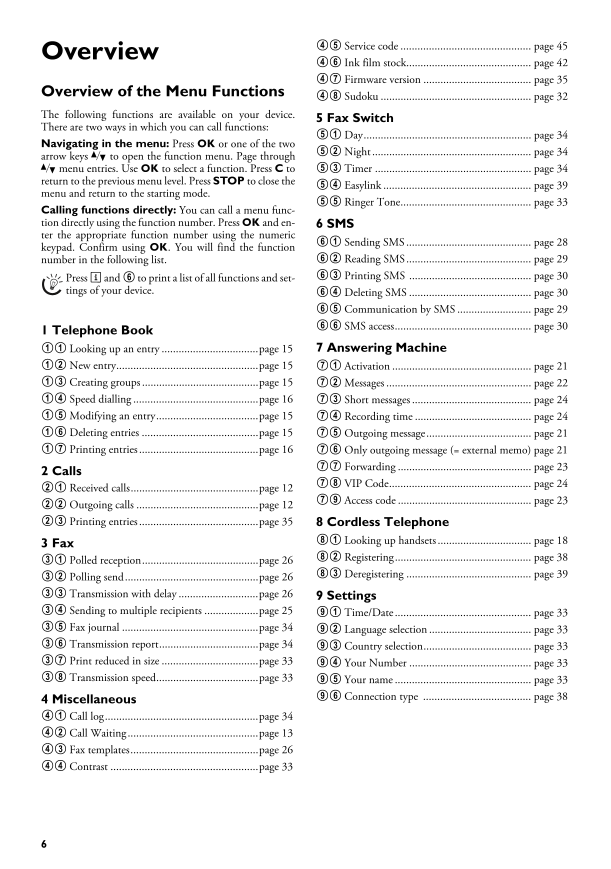

Overview
Overview of the Menu Functions
1 Telephone Book
2 Calls
3 Fax
4 Miscellaneous
5 Fax Switch
6 SMS
7 Answering Machine
8 Cordless Telephone
9 Settings

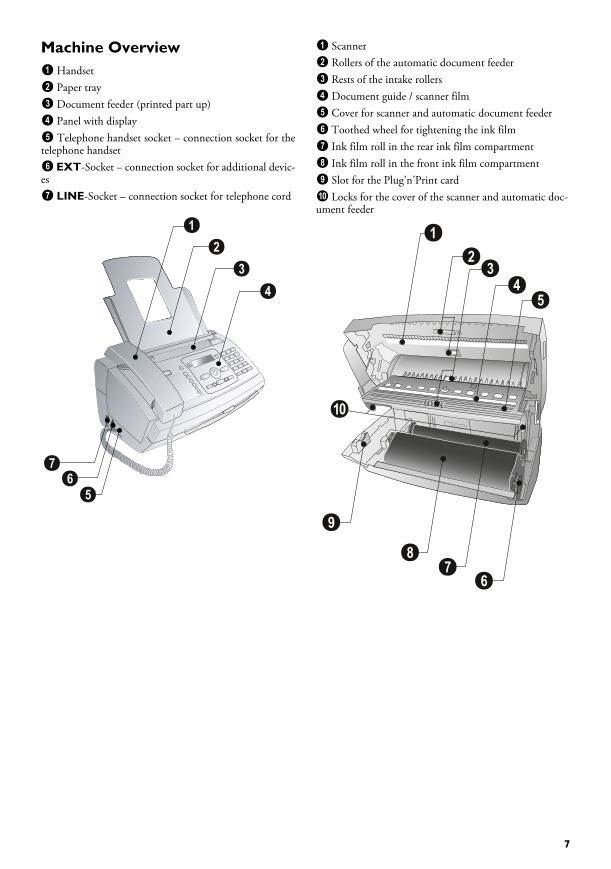

Machine Overview

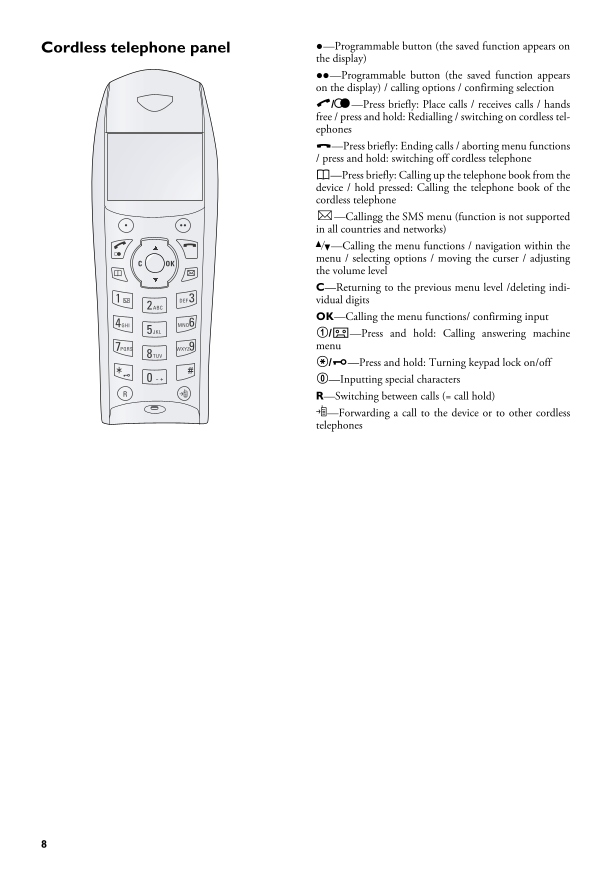

Cordless telephone panel
Panel
General Safety Information
Setting Up the Machine
Power Supply
Repairs
Consumable Materials
Cordless Telephone
1 Telephone functions
Making Telephone Calls on the Machine
Chain Dialling
Inserting a Dialling Pause
Putting a call from cordless telephone
Looking up numbers
Other telephone calls
On the device
On the cordless telephone
Switching call waiting on/off
Hands-free
On the device
On the cordless telephone
Mute mode
On the device
On the cordless telephone
Forwarding a call
From device
From the cordless telephone
Placing internal calls
From device
From the cordless telephone
Calling Line Identification (CLIP)
Missed Calls
On the device
On the cordless telephone
2 Telephone book of the device
Saving Entries
Editing an Entry
Deleting an Entry
Groups
Adding Group Entries
Displaying Group Entries
Deleting Individual or All Group Entries
Speed dialling
Assigning or editing speed dial entry
Deleting a speed dial entry
Printing the Telephone Book
3 Telephone book of the cordless telephone
Saving entry
Editing entry
Deleting an entry
Adding an additional number
Changing the ringer tone
Calling options
Telephone book entries on the device
Telephone book entries of the cordless telephone
4 Cordless telephone
Looking for cordless telephone
Switching on and off
Navigating in the menu
Setting up silent mode
Keypad lock
Activating emergency call number
Modifying the emergency call number
Additional functions
Alarm:
Timer
Birthday reminder
Acoustic room monitoring
5 Answering Machine
Switching on and off
On the device
On the cordless telephone
Editing the outgoing message
On the device
On the cordless telephone
Listening to messages
On the device
On the cordless telephone
Deleting messages
On the device
On the cordless telephone
Setting up forwarding and remote access
Entering the Access Code
Forwarding Messages
Using the Remote Control
Remote Control Functions
Recording internal memos
On the device
On the cordless telephone
Modifying the settings
Entering the VIP Code
Setting the Recording Length
6 Fax
Sending fax
Manually Sending a Fax
Broadcasting
Entering Recipients Individually
Sending a Fax to a Group
Delayed Fax Transmission
Receiving Faxes
Polling Faxes
Polling Faxes Directly
Polling Secure Faxes
Sending Faxes via Polling
Using Fax Templates
7 Copier
Inserting Documents
Creating a Copy
Creating Multiple Copies
8 SMS
SMS Requirements
Sending SMS
On the device
On the cordless telephone
Notification by SMS
Receiving an SMS
Reading an SMS
On the device
On the cordless telephone
Calling SMS functions
On the device
On the cordless telephone
Printing an SMS
Deleting SMS
On the device
On the cordless telephone
Modifying the settings
Changing Send and Receive Numbers
Switching Off Automatic Printing
Switching SMS Reception On and Off
9 Fun and Games
Sudoku
Printing a Game
Printing the Last Game Again
Printing the Solution
10 Settings on the device
Entering the Time and Date
Selecting the Language
Selecting the Country
Entering Your Number
Entering Your Name
Setting the Contrast
Lowering the Transmission Speed
Switching Page Adjustment On and Off
Setting Ring Tones
Selecting the Ring Tone
Setting the Volume
Configuring the Fax Switch
Configuring Day Mode
Configuring Night Mode
Setting the Timer
Special Settings
Printing Lists and Help Pages
Printing the Call List
Printing a Transmission Report
Printing the Fax Journal
Printing Numbers and Entries
Printing Help Pages
Starting the Initial Installation
Checking the Firmware Version
11 Settings on the cordless telephone
Selecting the language
Changing the wallpaper
Changing the menu colours
Setting the ring tone
On Monochrome Dect
On Colour Dect
Turning key-tones and signal- tones on and off
On Monochrome Dect
On Colour Dect
Programmable buttons
Programming the keys
Automatic picking up and hanging up the phone
Switching automatic picking up on/off
Switching automatic picking up on/off
Resetting the cordless telephone
Displaying call logs and events
Calling call logs
Calling events
Setting up the display
12 Telephone Lines and Additional Devices
Configuring Telephone Lines and Services
Private Branch Exchanges
DSL Connection
ISDN Connection
Voice Mailbox
Registering and de-registering additional cordless telephones
Registering cordless telephone
De-registering cordless telephone
Registering the cordless telephone with other devices
Setting the preferred base unit
Connecting Additional Devices
Connection to the device
Connection to the Telephone Line
Using Additional Telephones (Easylink)
Starting Fax Reception
Taking Over the Line
Changing Codes
13 Service
Changing the ink film
Checking the Ink Film Reserve
Changing the batteries in the cordless telephone
Displaying the battery charge
Fixing a Paper Jam
Fixing a Document Jam
Cleaning
Using Service Codes
Power Cycling
14 Appendix
Technical Data
Standards
Paper
Document Feeder
Telephone
Fax
Scanner
Message Memory
Cordless Telephone
Guarantee
Declaration of Conformity (DoC)
Customer Information
User Manual

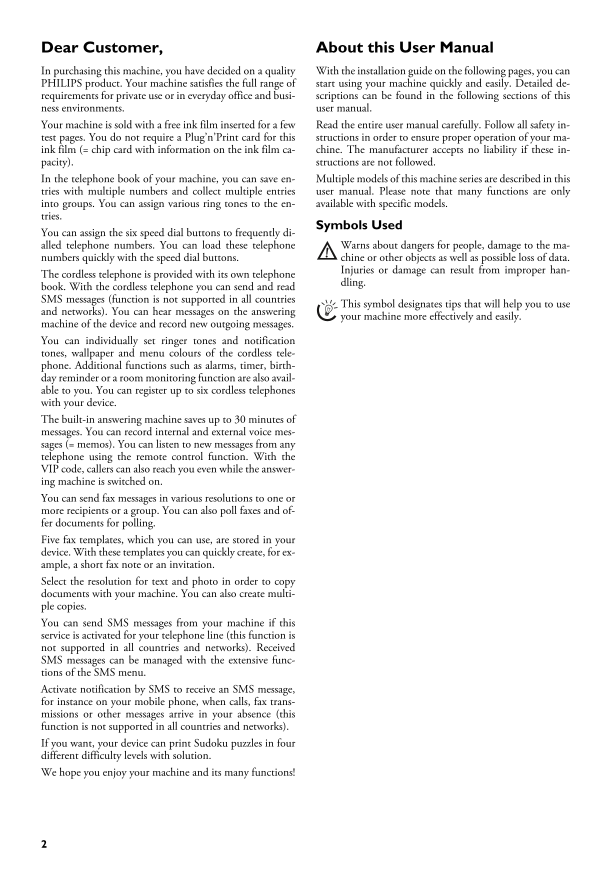

Dear Customer, About this User Manual
In purchasing this machine, you have decided on a quality With the installation guide on the following pages, you can
PHILIPS product. Your machine satisfies the full range of start using your machine quickly and easily. Detailed de-
requirements for private use or in everyday office and busi- scriptions can be found in the following sections of this
ness environments. user manual.
Your machine is sold with a free ink film inserted for a few Read the entire user manual carefully. Follow all safety in-
test pages. You do not require a Plug’n’Print card for this structions in order to ensure proper operation of your ma-
ink film (= chip card with information on the ink film ca- chine. The manufacturer accepts no liability if these in-
pacity). structions are not followed.
Telephone Book
In the telephone book of your machine, you can save en- Multiple models of this machine series are described in this
tries with multiple numbers and collect multiple entries user manual. Please note that many functions are only
into groups. You can assign various ring tones to the en- available with specific models.
tries.
6 Speed Dial Buttons
You can assign the six speed dial buttons to frequently di- Symbols Used
Dangers
alled telephone numbers. You can load these telephone Warns about dangers for people, damage to the ma-
numbers quickly with the speed dial buttons. chine or other objects as well as possible loss of data.
The cordless telephone is provided with its own telephone Injuries or damage can result from improper han-
book. With the cordless telephone you can send and read dling.
SMS messages (function is not supported in all countries Tips
This symbol designates tips that will help you to use
and networks). You can hear messages on the answering your machine more effectively and easily.
machine of the device and record new outgoing messages.
Functions
You can individually set ringer tones and notification
tones, wallpaper and menu colours of the cordless tele-
phone. Additional functions such as alarms, timer, birth-
day reminder or a room monitoring function are also avail-
able to you. You can register up to six cordless telephones
with your device.
The built-in answering machine saves up to 30 minutes of
messages. You can record internal and external voice mes-
sages (= memos). You can listen to new messages from any
telephone using the remote control function. With the
VIP code, callers can also reach you even while the answer-
ing machine is switched on.
You can send fax messages in various resolutions to one or
more recipients or a group. You can also poll faxes and of-
fer documents for polling.
Fax Templates
Five fax templates, which you can use, are stored in your
device. With these templates you can quickly create, for ex-
ample, a short fax note or an invitation.
Select the resolution for text and photo in order to copy
documents with your machine. You can also create multi-
ple copies.
You can send SMS messages from your machine if this
service is activated for your telephone line (this function is
not supported in all countries and networks). Received
SMS messages can be managed with the extensive func-
tions of the SMS menu.
Activate notification by SMS to receive an SMS message,
for instance on your mobile phone, when calls, fax trans-
missions or other messages arrive in your absence (this
function is not supported in all countries and networks).
If you want, your device can print Sudoku puzzles in four
different difficulty levels with solution.
We hope you enjoy your machine and its many functions!
2

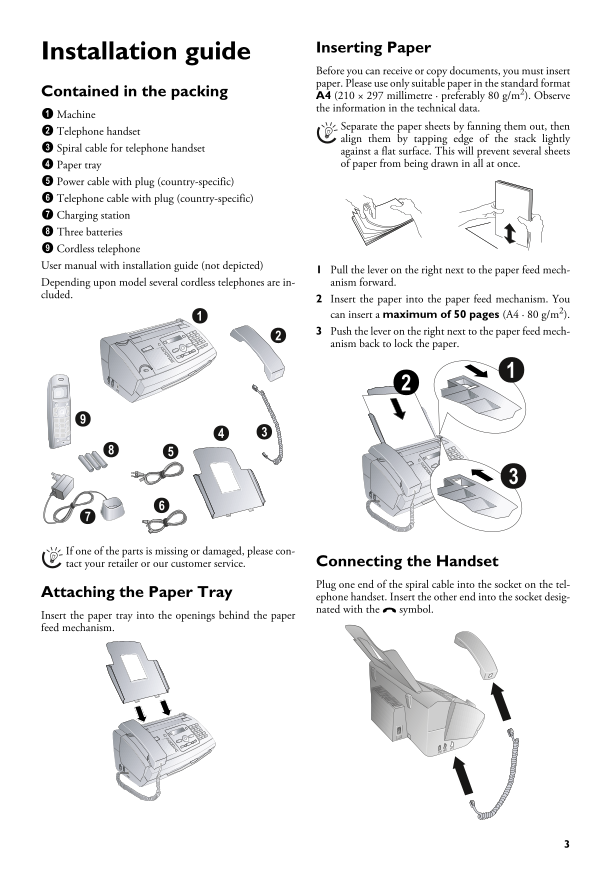

Installation guide Inserting Paper
Paper Format
Before you can receive or copy documents, you must insert
paper. Please use only suitable paper in the standard format
Contained in the packing A4 (210 × 297 millimetre · preferably 80 g/m2). Observe
Package Contents Primo · Voice
Machine the information in the technical data.
‚ Paper
Telephone handset Separate the paper sheets by fanning them out, then
ƒ
align them by tapping edge of the stack lightly
„ Spiral cable for telephone handset against a flat surface. This will prevent several sheets
… Paper tray of paper from being drawn in all at once.
Preparing Paper
† Power cable with plug (country-specific)
‡ Telephone cable with plug (country-specific)
Dect packing contents
ˆ Charging station
‰ Three batteries
Š Cordless telephone
User Manual
User manual with installation guide (not depicted) Inserting Paper
1 Pull the lever on the right next to the paper feed mech-
Several cordless telephones
Depending upon model several cordless telephones are in- anism forward.
cluded. 2 Insert the paper into the paper feed mechanism. You
Contained in the packing
can insert a maximum of 50 pages (A4 · 80 g/m2).
3 Push the lever on the right next to the paper feed mech-
anism back to lock the paper.
Inserting Paper
Missing Package Contents
If one of the parts is missing or damaged, please con-
tact your retailer or our customer service. Connecting the Handset
Connecting the Handset
Attaching the Paper Tray Plug one end of the spiral cable into the socket on the tel-
ephone handset. Insert the other end into the socket desig-
Attaching the Paper Tray
Insert the paper tray into the openings behind the paper nated with the ) symbol.
Connecting the Handset
feed mechanism.
Attaching the Paper Tray
3

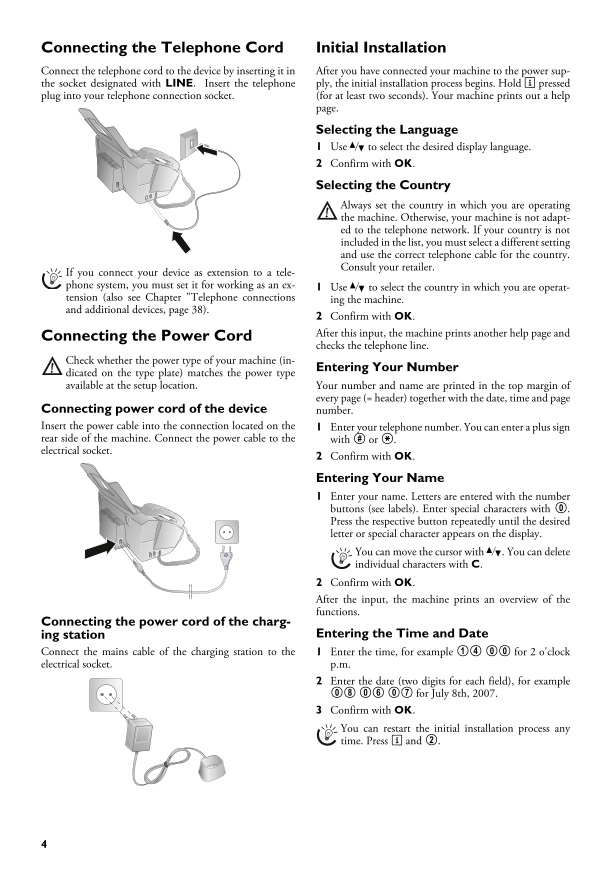

Connecting the Telephone Cord Initial Installation
Connecting the Telephone Cable Starting the Initial Installation
Connect the telephone cord to the device by inserting it in After you have connected your machine to the power sup-
the socket designated with C. Insert the telephone ply, the initial installation process begins. Hold i pressed
plug into your telephone connection socket. (for at least two seconds). Your machine prints out a help
Connecting the Telephone Cable page.
Selecting the Language
1 Use / to select the desired display language.
2 Confirm with _.
Selecting the Country
Setting the Country Correctly
Always set the country in which you are operating
the machine. Otherwise, your machine is not adapt-
ed to the telephone network. If your country is not
included in the list, you must select a different setting
and use the correct telephone cable for the country.
Extension
If you connect your device as extension to a tele- Consult your retailer.
Setting the Country
phone system, you must set it for working as an ex- 1 Use / to select the country in which you are operat-
tension (also see Chapter "Telephone connections ing the machine.
and additional devices, page 38).
2 Confirm with _.
Connecting the Power Cord After this input, the machine prints another help page and
checks the telephone line.
Power Type at Setup Location
Check whether the power type of your machine (in-
dicated on the type plate) matches the power type Entering Your Number
Header
available at the setup location. Your number and name are printed in the top margin of
Device power cord every page (= header) together with the date, time and page
Connecting power cord of the device number.
Connecting the Power Cable Entering Your Number
Insert the power cable into the connection located on the 1 Enter your telephone number. You can enter a plus sign
rear side of the machine. Connect the power cable to the with # or *.
electrical socket.
Connecting the Power Cable 2 Confirm with _.
Entering Your Name
Entering Your Name
1 Enter your name. Letters are entered with the number
buttons (see labels). Enter special characters with 0.
Press the respective button repeatedly until the desired
letter or special character appears on the display.
You can move the cursor with /. You can delete
individual characters with V.
2 Confirm with _.
After the input, the machine prints an overview of the
Charging station power cord functions.
Connecting the power cord of the charg-
ing station Entering the Time and Date
Entering Time/Date
Connect the mains cable of the charging station to the 1 Enter the time, for example 14 00 for 2 o'clock
electrical socket. p.m.
Connecting the charging station
2 Enter the date (two digits for each field), for example
08 06 07 for July 8th, 2007.
3 Confirm with _.
Help 2 · Initial Installation Process
You can restart the initial installation process any
time. Press i and 2.
4
Inserting batteries in cordless
telephone
1 Insert the new batteries in the battery compartment
with the positive and negative poles as shown in the pic-
ture in the battery compartment.
Never use non-rechargeable batteries in the
cordless telephone. Follow the specifications in
the technical data.
2 Place the cover on the battery compartment and slide it
upward until it snaps into place.
3 Place the cordless telephone into the charging station.
Never place the cordless telephone into the charg-
ing station without batteries.
Leave the cordless telephone in the charging sta-
tion for at least twelve hours. The batteries will
heat up slightly during charging; this is not dan-
gerous.
Putting cordless telephone in op-
eration
Switching on cordless telephone
Press the green “ button for at least two seconds for
switching on your cordless telephone.
Configuring the cordless telephone
Normally your cordless telephone is registered with your
device in the factory. In the starting mode, press _. The
display shows on which base unit and with which number
the cordless telephone is registered.
Unregistered cordless telephones
If you acquired a model with several cordless tele-
phones, only one cordless telephone is registered
with your device in the factory. Insert the batteries as
described above and register the cordless telephones
with your device (also see Chapter "Telephone con-
nections and additional devices", page 38).
5
Overview 45 Service code .............................................. page 45
46 Ink film stock............................................ page 42
47 Firmware version ...................................... page 35
Overview of the Menu Functions Sudoku
48 Sudoku ..................................................... page 32
The following functions are available on your device. 5 Fax Switch
There are two ways in which you can call functions:
Menu Navigation 51 Day........................................................... page 34
Navigating in the menu: Press _ or one of the two
arrow keys to open the function menu. Page through 52 Night ........................................................ page 34
/
/ menu entries. Use _ to select a function. Press V to 53 Timer ....................................................... page 34
return to the previous menu level. Press H to close the
54 Easylink .................................................... page 39
menu and return to the starting mode.
Direct Loading 55 Ringer Tone.............................................. page 33
Calling functions directly: You can call a menu func-
tion directly using the function number. Press _ and en- 6 SMS
ter the appropriate function number using the numeric Sending SMS Messages
keypad. Confirm using . You will find the function 61 Sending SMS ............................................ page 28
_ Reading SMS Messages
number in the following list. 62 Reading SMS............................................ page 29
Help 6 · Function List Printing SMS Messages
Press i and 6 to print a list of all functions and set- 63 Printing SMS ........................................... page 30
Deleting SMS Messages
tings of your device. 64 Deleting SMS ........................................... page 30
Notification by SMS
65 Communication by SMS .......................... page 29
SMS Access
1 Telephone Book 66 SMS access................................................ page 30
Searching for an Entry
11 Looking up an entry ..................................page 15 7 Answering Machine
New Entry Activating the AM
12 New entry..................................................page 15 71 Activation ................................................. page 21
Creating Groups AM Messages
13 Creating groups .........................................page 15 72 Messages ................................................... page 22
Speed Dial AM Short Message
14 Speed dialling ............................................page 16 73 Short messages .......................................... page 24
Changing Entries AM Recording Time
15 Modifying an entry....................................page 15 74 Recording time ......................................... page 24
Deleting Entries AM Outgoing Message
16 Deleting entries .........................................page 15 75 Outgoing message..................................... page 21
Printing Entries AM External Memo
17 Printing entries ..........................................page 16 76 Only outgoing message (= external memo) page 21
AM Forwarding
2 Calls 77 Forwarding ............................................... page 23
AM VIP Code
Received calls.............................................page 12 78 VIP Code.................................................. page 24
21
AM Access Code
22 Outgoing calls ...........................................page 12 79 Access code ............................................... page 23
Printing Entries
23 Printing entries ..........................................page 35 8 Cordless Telephone
Dect look up
3 Fax 81 Looking up handsets ................................. page 18
Registering and Unregistering
Polled reception.........................................page 26 82 Registering................................................ page 38
31
32 Polling send...............................................page 26 83 Deregistering ............................................ page 39
33 Transmission with delay ............................page 26 9 Settings
34 Sending to multiple recipients ...................page 25 91 Time/Date ................................................ page 33
35 Fax journal ................................................page 34 92 Language selection .................................... page 33
36 Transmission report...................................page 34 93 Country selection...................................... page 33
37 Print reduced in size ..................................page 33 94 Your Number ........................................... page 33
38 Transmission speed....................................page 33 95 Your name ................................................ page 33
4 Miscellaneous 96 Connection type ...................................... page 38
41 Call log......................................................page 34
42 Call Waiting ..............................................page 13
43 Fax templates.............................................page 26
44 Contrast ....................................................page 33
Service
6
Machine Overview ‚ Scanner
Primo · Voice overview ƒ Rollers of the automatic document feeder
‚ Handset
„ Rests of the intake rollers
ƒ Paper tray
… Document guide / scanner film
„ Document feeder (printed part up)
† Cover for scanner and automatic document feeder
… Panel with display
‡ Toothed wheel for tightening the ink film
† Telephone handset socket – connection socket for the
telephone handset ˆ Ink film roll in the rear ink film compartment
-Socket – connection socket for additional devic- ‰ Ink film roll in the front ink film compartment
‡ B
es Š Slot for the Plug’n’Print card
ˆ C-Socket – connection socket for telephone cord ‹ Locks for the cover of the scanner and automatic doc-
PPF 63x, PPF 67x ument feeder
Numbered Internal View
Internal Description
7
Cordless telephone panel õ—Programmable button (the saved function appears on
the display)
Philips Dect Panel
Programmable button right
ô—Programmable button (the saved function appears
on the display) / calling options / confirming selection
The green button
“/L—Press briefly: Place calls / receives calls / hands
free / press and hold: Redialling / switching on cordless tel-
ephones
Red button
’—Press briefly: Ending calls / aborting menu functions
/ press and hold: switching off cordless telephone
Telephone book button
m—Press briefly: Calling up the telephone book from the
device / hold pressed: Calling the telephone book of the
cordless telephone
SMS button
W—Callingg the SMS menu (function is not supported
in all countries and networks)
Arrow keys
/—Calling the menu functions / navigation within the
menu / selecting options / moving the curser / adjusting
the volume level
C button
V—Returning to the previous menu level /deleting indi-
vidual digits
OK button
_—Calling the menu functions/ confirming input
Answering machine button
1/b—Press and hold: Calling answering machine
menu
Keypad lock
*/•—Press and hold: Turning keypad lock on/off
0 button
0—Inputting special characters
R button
R—Switching between calls (= call hold)
Intercom key
{—Forwarding a call to the device or to other cordless
telephones
Programmable button left
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
