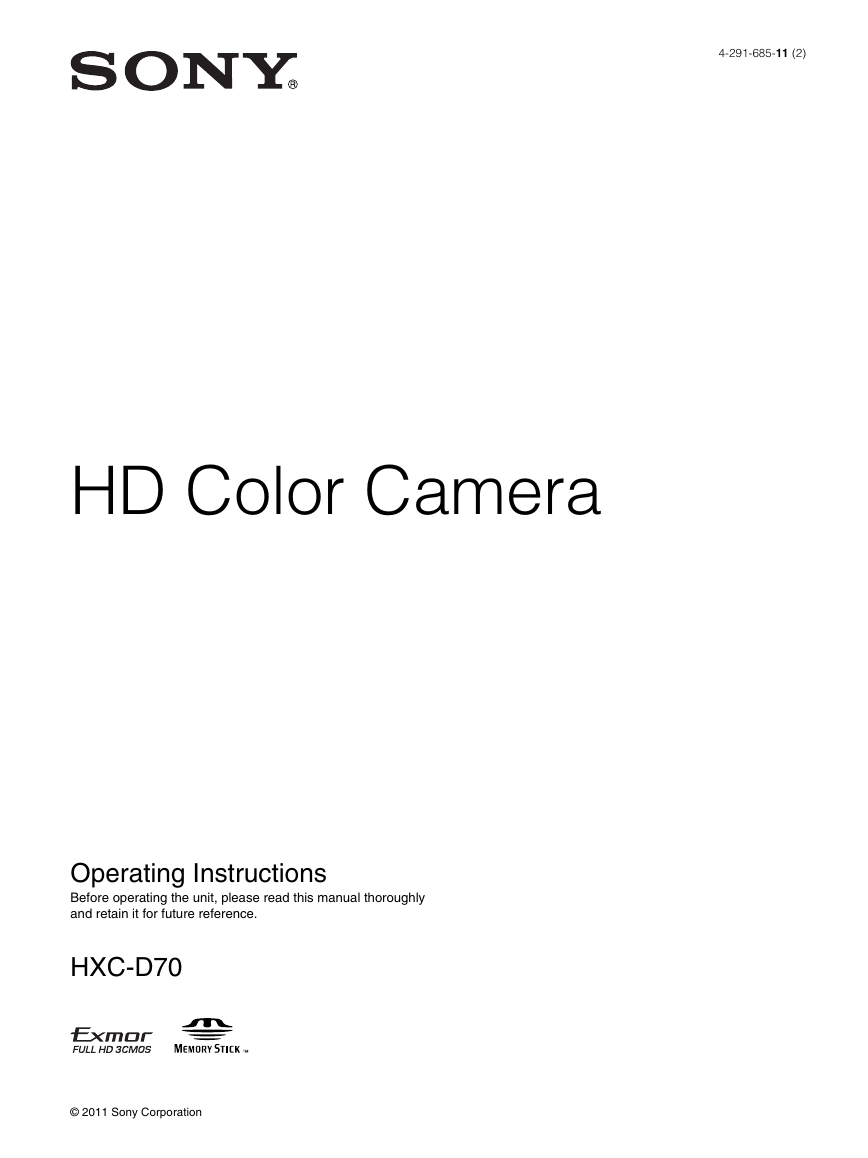

4-291-685-11 (2) HD Color Camera Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. HXC-D70 © 2011 Sony Corporation

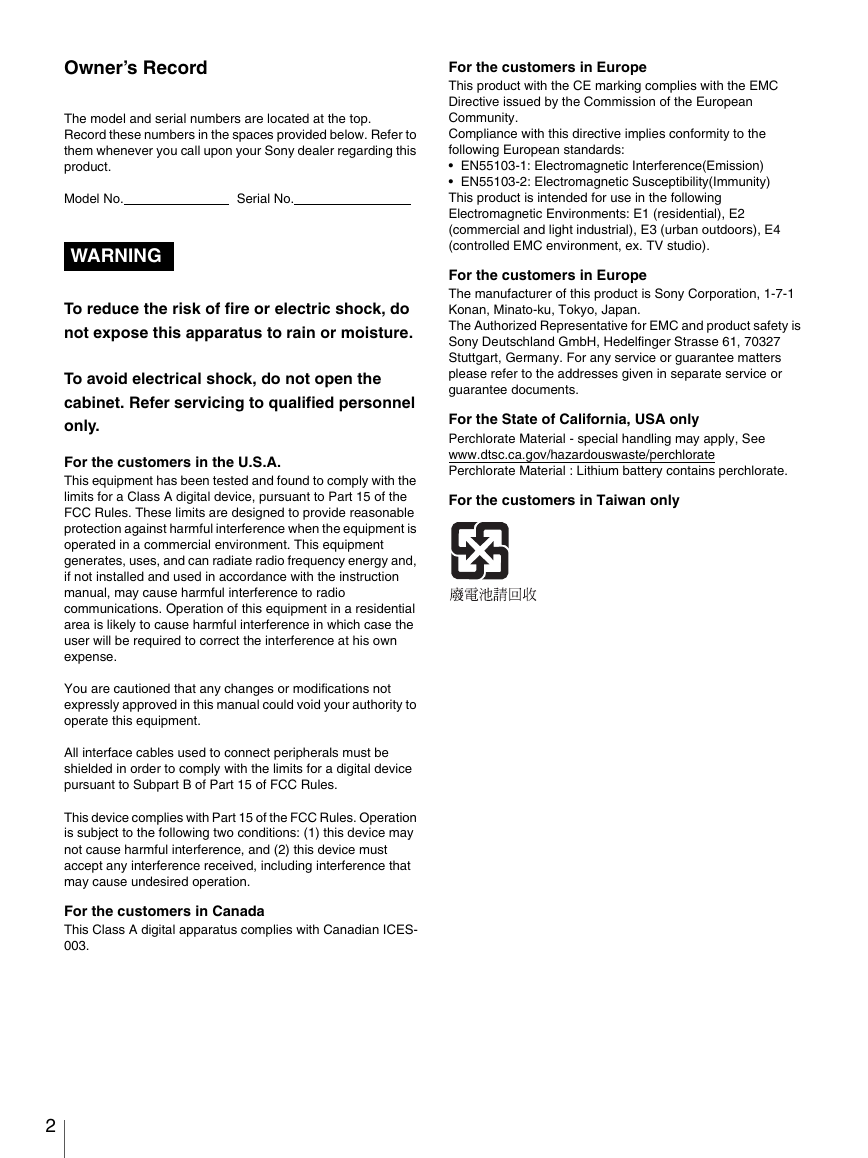

For the customers in Europe This product with the CE marking complies with the EMC Directive issued by the Commission of the European Community. Compliance with this directive implies conformity to the following European standards: • EN55103-1: Electromagnetic Interference(Emission) EN55103-2: Electromagnetic Susceptibility(Immunity) This product is intended for use in the following Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio). For the customers in Europe The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents. For the State of California, USA only Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material : Lithium battery contains perchlorate. For the customers in Taiwan only Owner’s Record The model and serial numbers are located at the top. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. Serial No. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For the customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For the customers in Canada This Class A digital apparatus complies with Canadian ICES- 003. 2

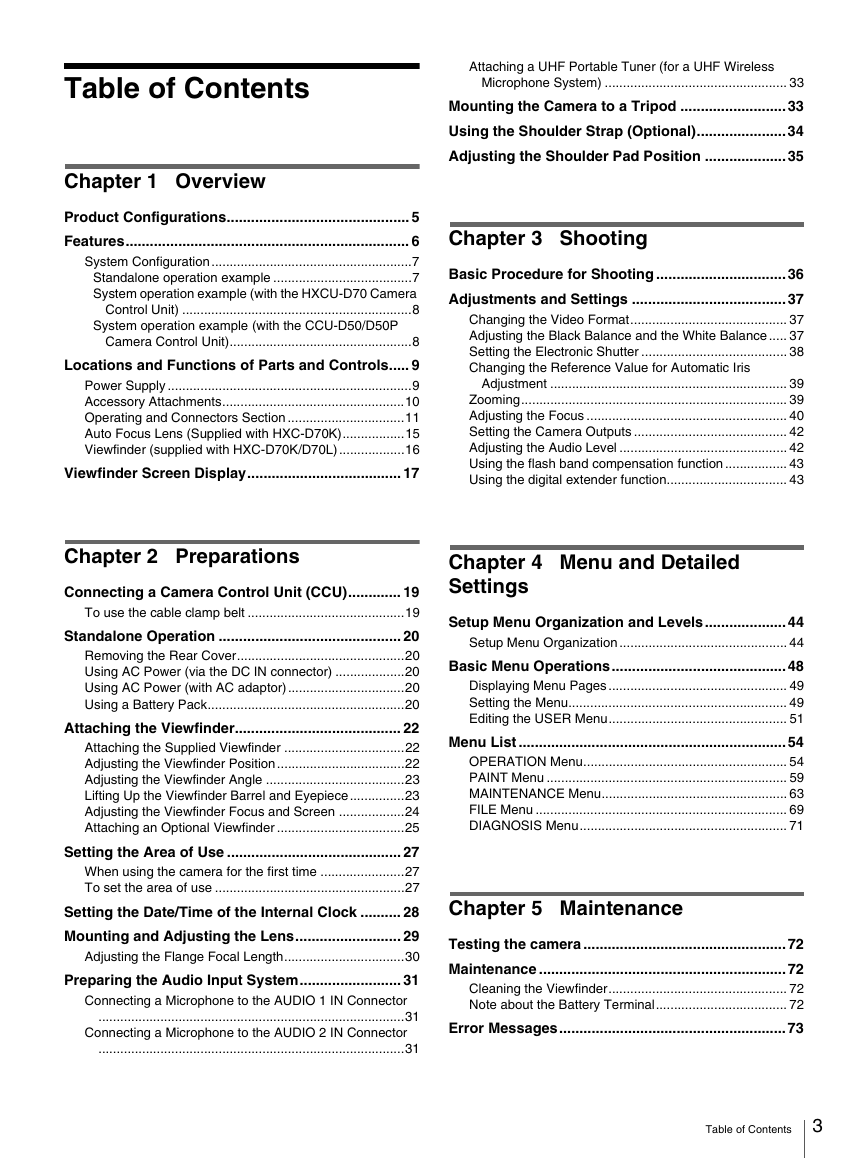

Table of Contents Chapter 1 Overview Product Configurations............................................. 5 Features...................................................................... 6 System Configuration.......................................................7 Standalone operation example ......................................7 System operation example (with the HXCU-D70 Camera Control Unit) ...............................................................8 System operation example (with the CCU-D50/D50P Camera Control Unit)..................................................8 Locations and Functions of Parts and Controls..... 9 Power Supply ...................................................................9 Accessory Attachments..................................................10 Operating and Connectors Section ................................11 Auto Focus Lens (Supplied with HXC-D70K).................15 Viewfinder (supplied with HXC-D70K/D70L) ..................16 Viewfinder Screen Display...................................... 17 Chapter 2 Preparations Connecting a Camera Control Unit (CCU)............. 19 To use the cable clamp belt ...........................................19 Standalone Operation ............................................. 20 Removing the Rear Cover..............................................20 Using AC Power (via the DC IN connector) ...................20 Using AC Power (with AC adaptor)................................20 Using a Battery Pack......................................................20 Attaching the Viewfinder......................................... 22 Attaching the Supplied Viewfinder .................................22 Adjusting the Viewfinder Position...................................22 Adjusting the Viewfinder Angle ......................................23 Lifting Up the Viewfinder Barrel and Eyepiece...............23 Adjusting the Viewfinder Focus and Screen ..................24 Attaching an Optional Viewfinder ...................................25 Setting the Area of Use ........................................... 27 When using the camera for the first time .......................27 To set the area of use ....................................................27 Setting the Date/Time of the Internal Clock .......... 28 Mounting and Adjusting the Lens.......................... 29 Adjusting the Flange Focal Length.................................30 Preparing the Audio Input System......................... 31 Connecting a Microphone to the AUDIO 1 IN Connector ....................................................................................31 Connecting a Microphone to the AUDIO 2 IN Connector ....................................................................................31 Attaching a UHF Portable Tuner (for a UHF Wireless Microphone System) .................................................. 33 Mounting the Camera to a Tripod .......................... 33 Using the Shoulder Strap (Optional)......................34 Adjusting the Shoulder Pad Position .................... 35 Chapter 3 Shooting Basic Procedure for Shooting ................................ 36 Adjustments and Settings ...................................... 37 Changing the Video Format........................................... 37 Adjusting the Black Balance and the White Balance ..... 37 Setting the Electronic Shutter ........................................ 38 Changing the Reference Value for Automatic Iris Adjustment ................................................................. 39 Zooming......................................................................... 39 Adjusting the Focus ....................................................... 40 Setting the Camera Outputs .......................................... 42 Adjusting the Audio Level .............................................. 42 Using the flash band compensation function ................. 43 Using the digital extender function................................. 43 Chapter 4 Menu and Detailed Settings Setup Menu Organization and Levels.................... 44 Setup Menu Organization .............................................. 44 Basic Menu Operations........................................... 48 Displaying Menu Pages ................................................. 49 Setting the Menu............................................................ 49 Editing the USER Menu................................................. 51 Menu List .................................................................. 54 OPERATION Menu........................................................ 54 PAINT Menu .................................................................. 59 MAINTENANCE Menu................................................... 63 FILE Menu ..................................................................... 69 DIAGNOSIS Menu......................................................... 71 Chapter 5 Maintenance Testing the camera .................................................. 72 Maintenance .............................................................72 Cleaning the Viewfinder................................................. 72 Note about the Battery Terminal.................................... 72 Error Messages........................................................ 73 Table of Contents 3

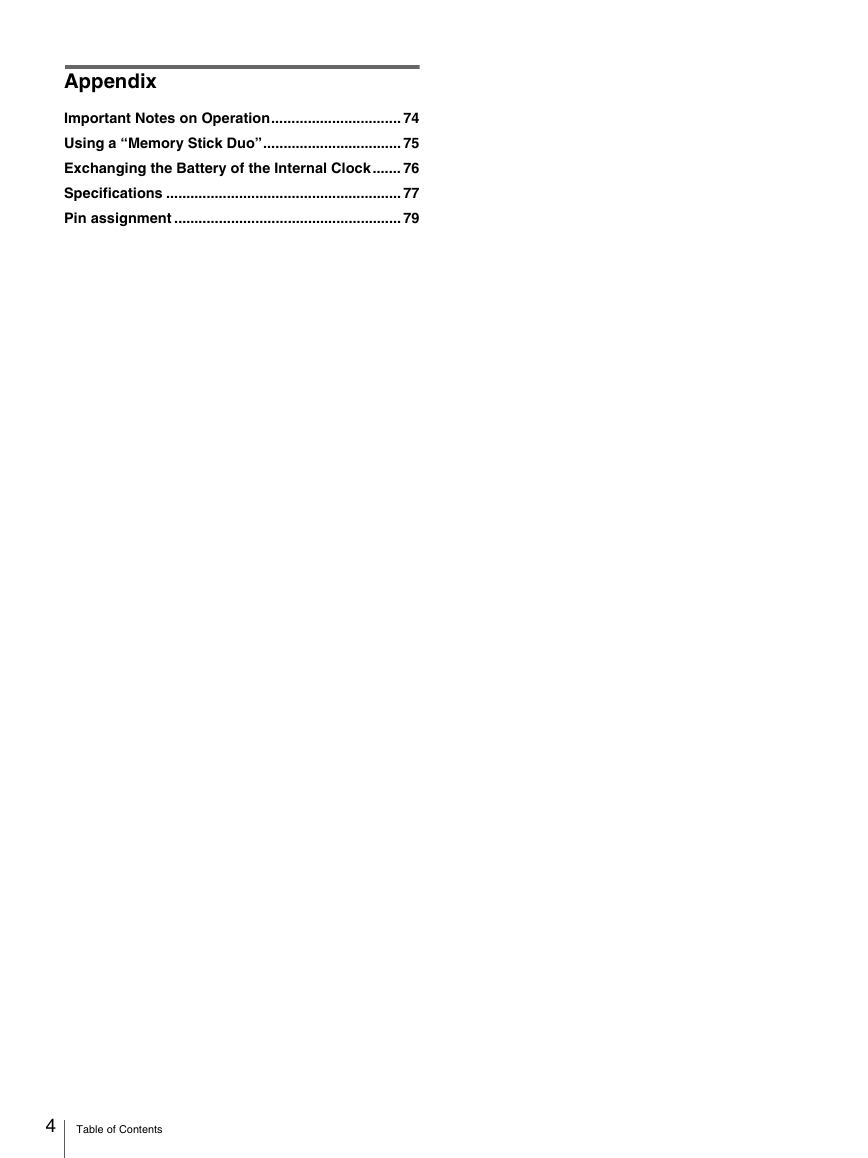

Appendix Important Notes on Operation................................ 74 Using a “Memory Stick Duo”.................................. 75 Exchanging the Battery of the Internal Clock....... 76 Specifications .......................................................... 77 Pin assignment ........................................................ 79 4 Table of Contents

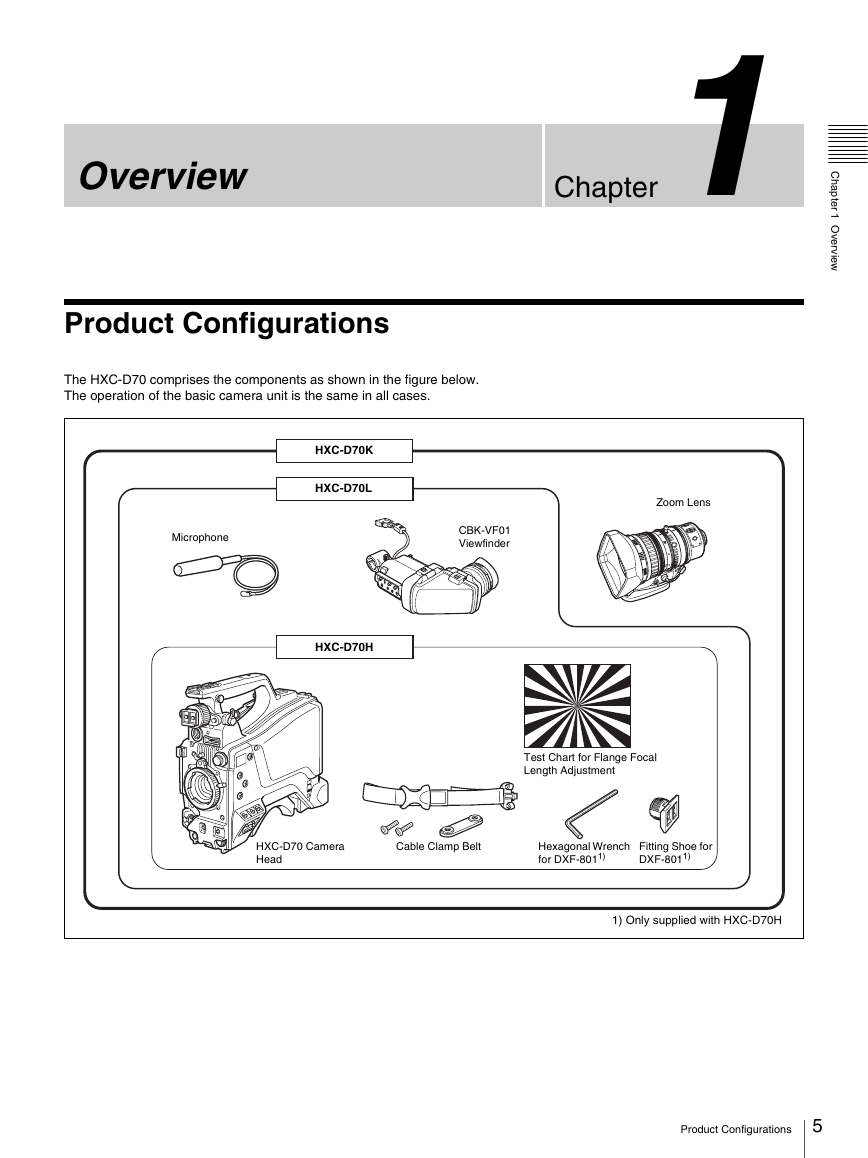

C h a p t e r 1 O v e r v e w i Overview Chapter 1 Product Configurations The HXC-D70 comprises the components as shown in the figure below. The operation of the basic camera unit is the same in all cases. HXC-D70K HXC-D70L Microphone CBK-VF01 Viewfinder Zoom Lens HXC-D70H Test Chart for Flange Focal Length Adjustment HXC-D70 Camera Head Cable Clamp Belt Hexagonal Wrench for DXF-8011) Fitting Shoe for DXF-8011) 1) Only supplied with HXC-D70H Product Configurations 5
C h a p t e r 1 O v e r v e w i Auto focus The 2/3-type auto focus lens (supplied with HXC-D70K) ensures high-quality shooting in all situations from wide angle to telephoto. Using the HXC-D70 HD Color Camera enables auto-focusing, which is especially useful for technically demanding HD shooting. Position-adjustable shoulder pad The position of the shoulder pad can be adjusted for stable shooting according to the build of the camera operator, the type of lens in use, or the shooting style. A low-repulsion shoulder pad (position fixed) is available as an option. (Part No.: A-8286-346-A) Assignable switches The camera has buttons on the side panel to which various functions can be assigned. You can activate your desired function, such as electronic color-temperature conversion and digital extender, instantly when shooting by assigning it to one of these buttons in advance. Auto lens aberration compensation The Auto Lens Aberration Compensation (ALAC) function automatically reduces chromatic aberration of magnification when a lens that supports auto aberration compensation is attached. For details on lenses supporting auto aberration compensation, contact your Sony dealer or a Sony service representative. Focus assist functions The VF (viewfinder) detail and focus assist indicator functions facilitate focusing. VF detail Various functions are provided for the VF detail signal, which can be added only on images on the viewfinder screen, in order to facilitate focusing, as follows: Coloring the VF detail signal Adding flicker to the VF detail signal by applying modulation Thickening the VF detail signal Automatically compensating for the VF detail level according to zoom position Focus assist indicator The focusing level indicator in the viewfinder provides a guide for focusing. The best focus setting can be easily determined by observing the level indicator as a guide. Features High picture quality and high performance The HXC-D70 is an HD color video camera equipped with three-chip 2/3-type “Exmor” CMOS image sensors. The approximately 2.07 million effective pixels image sensor technology for full HD resolution (1920 × 1080) and newly developed digital processing circuit enable the capture of very high-quality images, with a sensitivity of F12 (59.94i) / F13 (50i) and an SN ratio of 56 dB (w/o Noise Suppression (NS) mode). High-resolution pictures can be transmitted between the camera and camera control Unit (CCU) using Sony-developed digital transmission technology via multi-core cable. Multiple formats The camera supports 1080/59.94i, 720/59.94P, 1080/50i, and 720/50P formats. With its wide-range down-converter, the camera also enables output of high-quality SD signals (525i/ 625i) from the camera and the connected CCU. Using the HXCU-D70 and CCU-D50/D50P camera control units (CCU) The camera is compatible with the HXCU-D70 for HD/SD signal output, and CCU-D50/D50P for SD signal output. With HXCU-D70, HD/SD simultaneous output can be provided from both the camera and CCU. Newly designed integrated unit The camera comes with stylish and sophisticated appearance. It provides easy-to-use design for setting up a system with multi-core cables or for shooting with batteries on your shoulder. The CCZ-A connector on the camera enables you to connect it to the CCU using a single Sony multi-core cable. The interface follows the original design with more user- friendly features. Various picture adjustment functions Selection of multiple gamma tables Seven types of standard and 4 types of hypergamma tables are featured. The hypergamma values enable cinema-like image creations with wide dynamic range, which are different from those achieved with conventional video gamma. Knee saturation Change in hue and decrease in saturation that occur in highlighted areas can be compensated. This enables reproduction of natural skin tones under strong lighting. Low key saturation Saturation in low-key zones can be compensated. Skin-tone detail This function allows control (emphasis or suppression) of the detail level for just a certain hue or saturation area in the image, such as skin tones. 6 Features

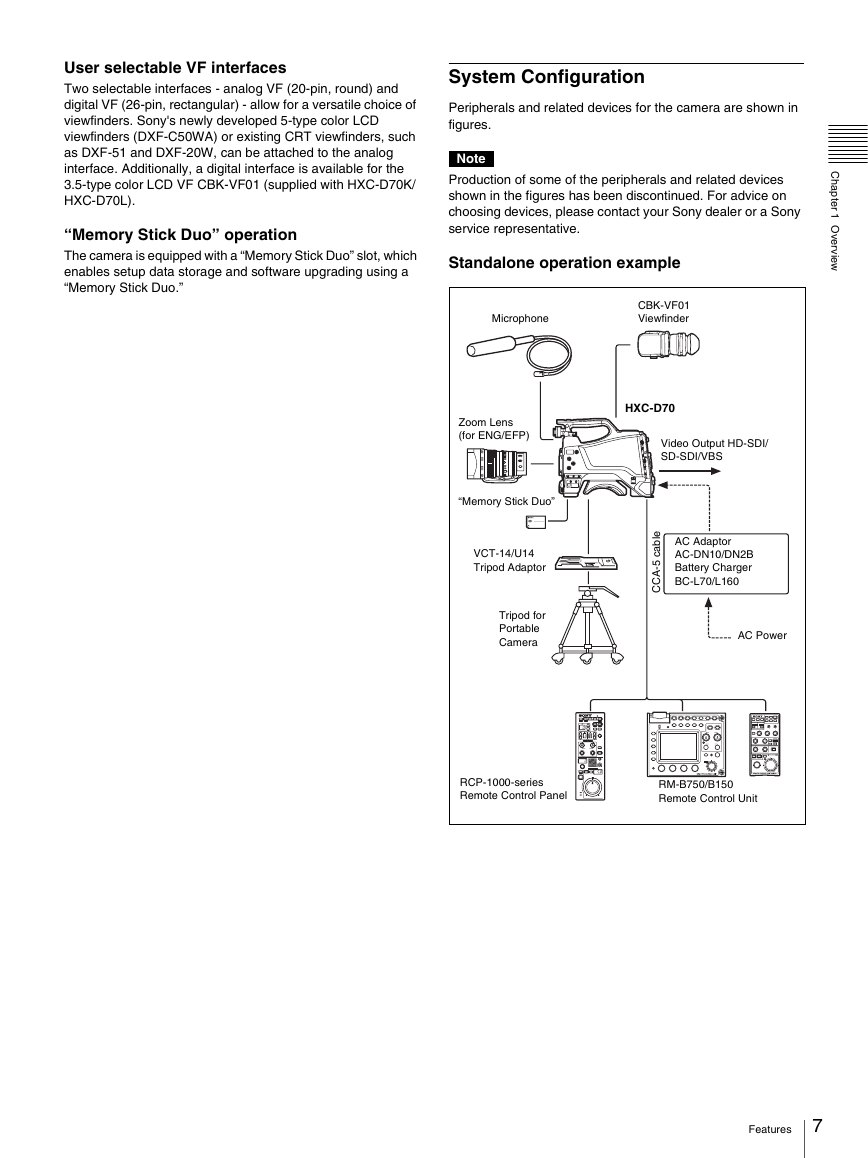

C h a p t e r 1 O v e r v e w i User selectable VF interfaces Two selectable interfaces - analog VF (20-pin, round) and digital VF (26-pin, rectangular) - allow for a versatile choice of viewfinders. Sony's newly developed 5-type color LCD viewfinders (DXF-C50WA) or existing CRT viewfinders, such as DXF-51 and DXF-20W, can be attached to the analog interface. Additionally, a digital interface is available for the 3.5-type color LCD VF CBK-VF01 (supplied with HXC-D70K/ HXC-D70L). “Memory Stick Duo” operation The camera is equipped with a “Memory Stick Duo” slot, which enables setup data storage and software upgrading using a “Memory Stick Duo.” System Configuration Peripherals and related devices for the camera are shown in figures. Note Production of some of the peripherals and related devices shown in the figures has been discontinued. For advice on choosing devices, please contact your Sony dealer or a Sony service representative. Standalone operation example Microphone CBK-VF01 Viewfinder Zoom Lens (for ENG/EFP) “Memory Stick Duo” VCT-14/U14 Tripod Adaptor Tripod for Portable Camera HXC-D70 Video Output HD-SDI/ SD-SDI/VBS l e b a c 5 - A C C AC Adaptor AC-DN10/DN2B Battery Charger BC-L70/L160 AC Power RCP-1000-series Remote Control Panel RM-B750/B150 Remote Control Unit Features 7

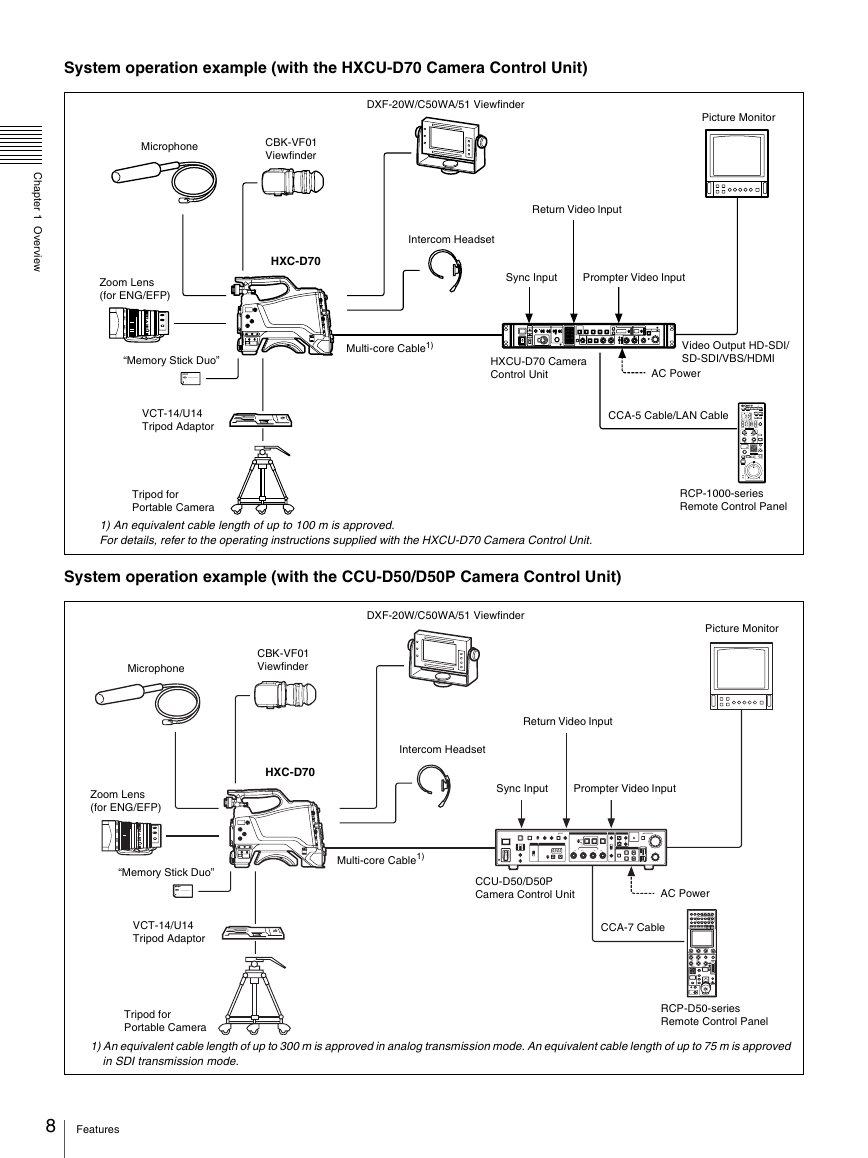

System operation example (with the HXCU-D70 Camera Control Unit) DXF-20W/C50WA/51 Viewfinder Picture Monitor Microphone CBK-VF01 Viewfinder C h a p t e r 1 O v e r v e w i Return Video Input HXC-D70 Intercom Headset Sync Input Prompter Video Input Multi-core Cable1) HXCU-D70 Camera Control Unit Video Output HD-SDI/ SD-SDI/VBS/HDMI AC Power CCA-5 Cable/LAN Cable RCP-1000-series Remote Control Panel Zoom Lens (for ENG/EFP) “Memory Stick Duo” VCT-14/U14 Tripod Adaptor Tripod for Portable Camera 1) An equivalent cable length of up to 100 m is approved. For details, refer to the operating instructions supplied with the HXCU-D70 Camera Control Unit. System operation example (with the CCU-D50/D50P Camera Control Unit) Microphone CBK-VF01 Viewfinder DXF-20W/C50WA/51 Viewfinder Picture Monitor HXC-D70 Intercom Headset Return Video Input Sync Input Prompter Video Input Multi-core Cable1) CCU-D50/D50P Camera Control Unit AC Power CCA-7 Cable RCP-D50-series Remote Control Panel Zoom Lens (for ENG/EFP) “Memory Stick Duo” VCT-14/U14 Tripod Adaptor Tripod for Portable Camera 1) An equivalent cable length of up to 300 m is approved in analog transmission mode. An equivalent cable length of up to 75 m is approved in SDI transmission mode. 8 Features
