Features

Description

Symbol (Each Amplifier)

Schematic (Each Amplifier)

Absolute Maximum Ratings

Electrical Characteristics

Operating Conditions, VCC = ±15 V, TA = 25°C

Typical Characteristics

Revision History

www.ti.com LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 Dual Operational Amplifiers Check for Samples: LM158, LM258, LM258A, LM358, LM358A, LM2904, LM2904V 1FEATURES • Wide Supply Ranges – Single Supply: 3 V to 32 V (26 V for LM2904) – Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904) • Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typ • Wide Unity Gain Bandwidth: 0.7MHz • Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground • Low Input Bias and Offset Parameters – Input Offset Voltage: 3 mV Typ A Versions: 2 mV Typ – Input Offset Current: 2 nA Typ – Input Bias Current: 20 nA Typ A Versions: 15 nA Typ • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904) • Open-Loop Differential Voltage Gain: 100dB Typ Internal Frequency Compensation • • On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters. LM158, LM158A . . . JG Package LM258, LM258A . . . D, DGK, or P Package LM358 . . . D, DGK, P, PS, or PW Package LM358A . . . D, DGK, P, or PW Package LM2904 . . . D, DGK, P, PS, or PW Package (Top View) operational DESCRIPTION These devices consist of two independent, high-gain frequency-compensated amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the supply voltage. dc Applications conventional amplification operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, these devices can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5-V supplies. transducer and the magnitude of include blocks, amplifiers, all the LM158, LM158A . . . FK Package (Top View) NC − No internal connection 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 1976–2013, Texas Instruments Incorporated 3212019910111213456781817161514NC2OUTNC2IN−NCNC1IN−NC1IN+NCNC1OUTNCNCNCNCGNDNCCC+V2IN+123487651OUT1IN−1IN+GNDVCC2OUT2IN−2IN+

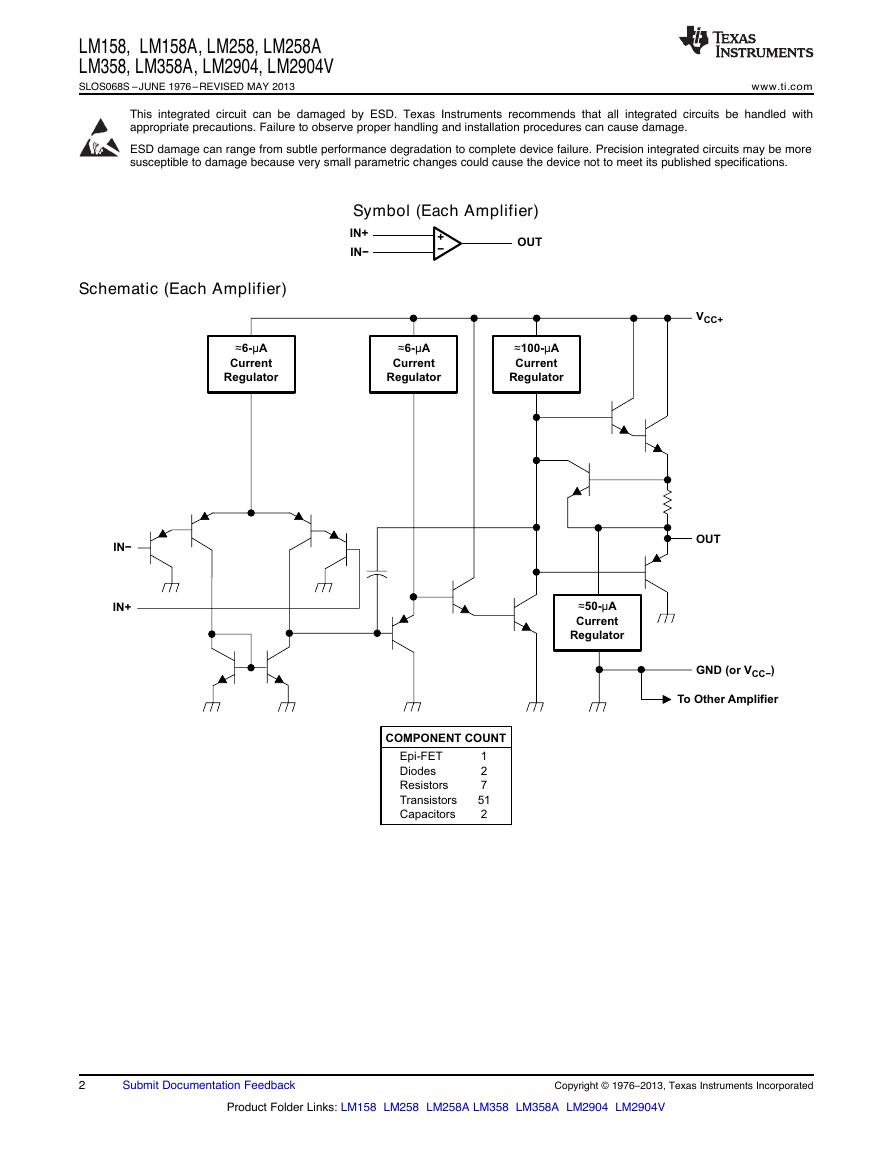

LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 www.ti.com This integrated circuit can be damaged by ESD. Texas Instruments recommends that all appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. integrated circuits be handled with Symbol (Each Amplifier) Schematic (Each Amplifier) 2 Submit Documentation Feedback Copyright © 1976–2013, Texas Instruments Incorporated Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V VCC+OUTGND(orVCC−)To OtherAmplifierIN−IN+≈6-AµCurrentRegulator≈6-AµCurrentRegulator≈100-AµCurrentRegulator≈50-AµCurrentRegulatorEpi-FETDiodesResistorsTransistorsCapacitorsCOMPONENT COUNT127512IN+IN−OUT+−

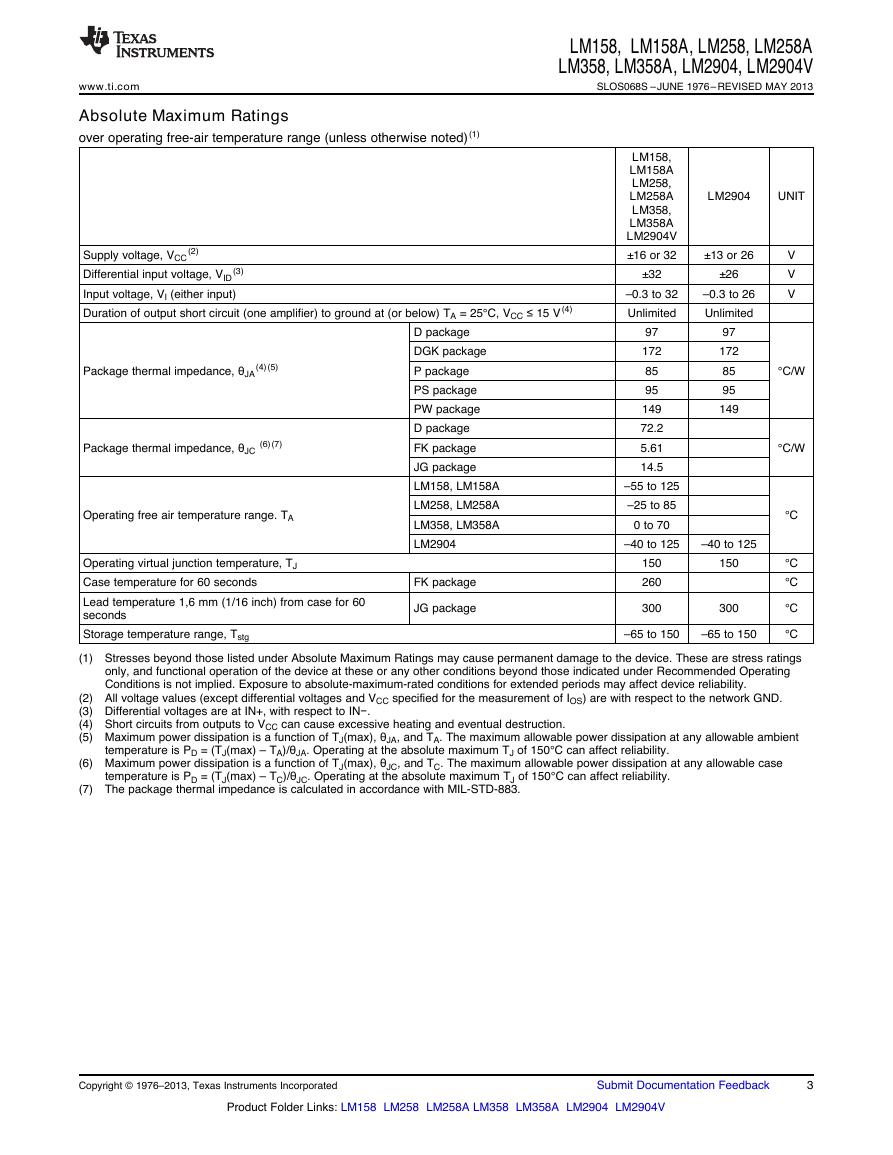

www.ti.com Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted)(1) LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 (2) Supply voltage, VCC Differential input voltage, VID Input voltage, VI (either input) Duration of output short circuit (one amplifier) to ground at (or below) TA = 25°C, VCC ≤ 15 V(4) (3) Package thermal impedance, θJA (4)(5) Package thermal impedance, θJC (6)(7) Operating free air temperature range. TA D package DGK package P package PS package PW package D package FK package JG package LM158, LM158A LM258, LM258A LM358, LM358A LM2904 LM158, LM158A LM258, LM258A LM358, LM358A LM2904V ±16 or 32 ±32 –0.3 to 32 Unlimited 97 172 85 95 149 72.2 5.61 14.5 –55 to 125 –25 to 85 0 to 70 –40 to 125 LM2904 UNIT ±13 or 26 ±26 –0.3 to 26 Unlimited V V V 97 172 85 95 149 –40 to 125 °C/W °C/W °C 150 260 Operating virtual junction temperature, TJ Case temperature for 60 seconds Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds Storage temperature range, Tstg (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings JG package FK package only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values (except differential voltages and VCC specified for the measurement of IOS) are with respect to the network GND. (3) Differential voltages are at IN+, with respect to IN−. (4) Short circuits from outputs to VCC can cause excessive heating and eventual destruction. (5) Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient –65 to 150 temperature is PD = (TJ(max) – TA)/θJA. Operating at the absolute maximum TJ of 150°C can affect reliability. (6) Maximum power dissipation is a function of TJ(max), θJC, and TC. The maximum allowable power dissipation at any allowable case temperature is PD = (TJ(max) – TC)/θJC. Operating at the absolute maximum TJ of 150°C can affect reliability. –65 to 150 °C °C °C °C (7) The package thermal impedance is calculated in accordance with MIL-STD-883. 150 300 300 Copyright © 1976–2013, Texas Instruments Incorporated Submit Documentation Feedback 3 Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V

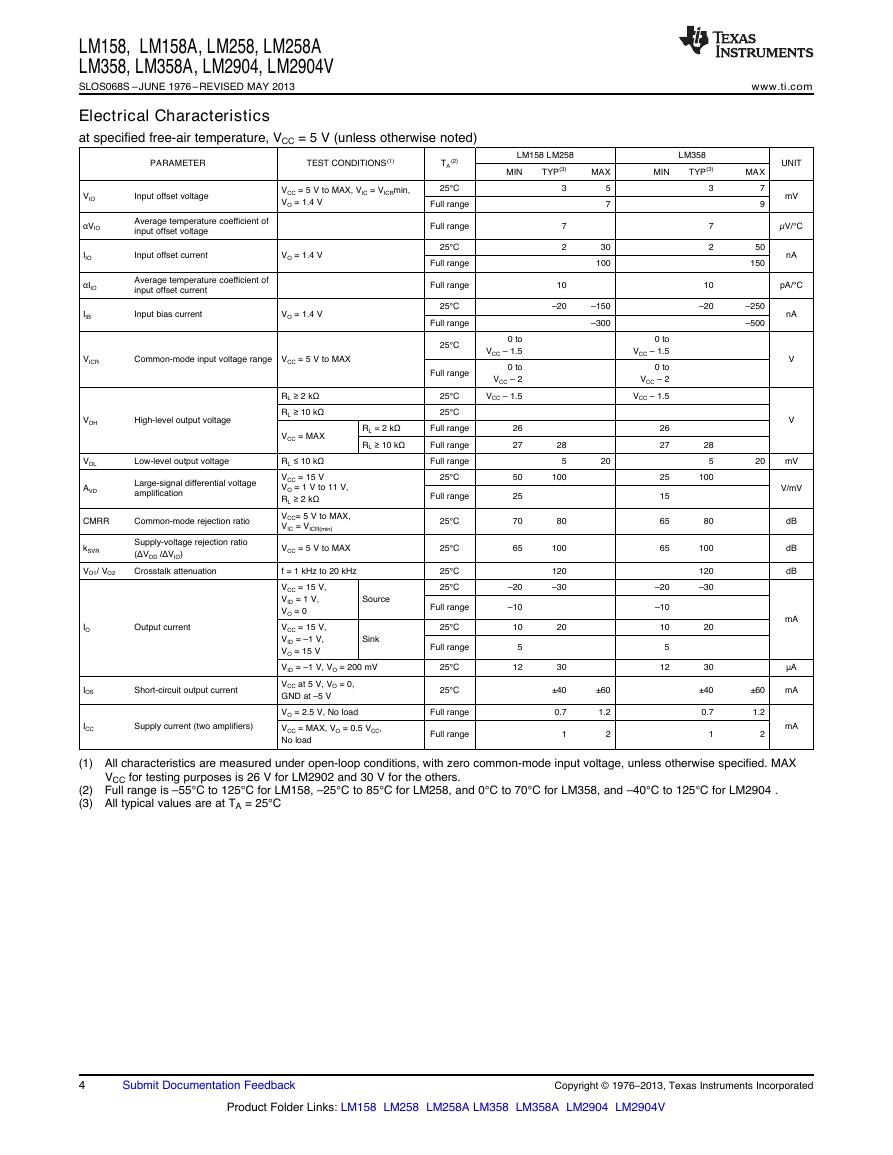

LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 Electrical Characteristics at specified free-air temperature, VCC = 5 V (unless otherwise noted) PARAMETER TEST CONDITIONS(1) Input offset voltage Average temperature coefficient of input offset voltage VCC = 5 V to MAX, VIC = VICRmin, VO = 1.4 V Input offset current VO = 1.4 V Average temperature coefficient of input offset current Input bias current VO = 1.4 V VIO αVIO IIO αIIO IIB VICR Common-mode input voltage range VCC = 5 V to MAX VOH VOL AVD High-level output voltage Low-level output voltage Large-signal differential voltage amplification CMRR Common-mode rejection ratio kSVR VO1/ VO2 Supply-voltage rejection ratio (ΔVDD /ΔVIO) Crosstalk attenuation IO IOS ICC Output current Short-circuit output current Supply current (two amplifiers) RL = 2 kΩ RL ≥ 10 kΩ RL ≥ 2 kΩ RL ≥ 10 kΩ VCC = MAX RL ≤ 10 kΩ VCC = 15 V VO = 1 V to 11 V, RL ≥ 2 kΩ VCC= 5 V to MAX, VIC = VICR(min) VCC = 5 V to MAX Source Sink f = 1 kHz to 20 kHz VCC = 15 V, VID = 1 V, VO = 0 VCC = 15 V, VID = –1 V, VO = 15 V VID = –1 V, VO = 200 mV VCC at 5 V, VO = 0, GND at –5 V VO = 2.5 V, No load VCC = MAX, VO = 0.5 VCC, No load (2) TA 25°C Full range Full range 25°C Full range Full range 25°C Full range 25°C Full range 25°C 25°C Full range Full range Full range 25°C Full range 25°C 25°C 25°C 25°C Full range 25°C Full range 25°C 25°C Full range Full range LM158 LM258 MIN TYP(3) 3 7 2 10 –20 28 5 100 80 100 120 –30 20 30 ±40 0.7 1 0 to VCC – 1.5 0 to VCC – 2 VCC – 1.5 26 27 50 25 70 65 –20 –10 10 5 12 MIN LM358 TYP(3) 3 7 2 10 –20 28 5 100 80 100 120 –30 20 30 ±40 0.7 1 0 to VCC – 1.5 0 to VCC – 2 VCC – 1.5 26 27 25 15 65 65 –20 –10 10 5 12 MAX 5 7 30 100 –150 –300 20 ±60 1.2 2 www.ti.com MAX 7 9 50 150 –250 –500 UNIT mV µV/°C nA pA/°C nA V V 20 mV V/mV dB dB dB mA μA mA mA ±60 1.2 2 (1) All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for testing purposes is 26 V for LM2902 and 30 V for the others. (2) Full range is –55°C to 125°C for LM158, –25°C to 85°C for LM258, and 0°C to 70°C for LM358, and –40°C to 125°C for LM2904 . (3) All typical values are at TA = 25°C 4 Submit Documentation Feedback Copyright © 1976–2013, Texas Instruments Incorporated Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V

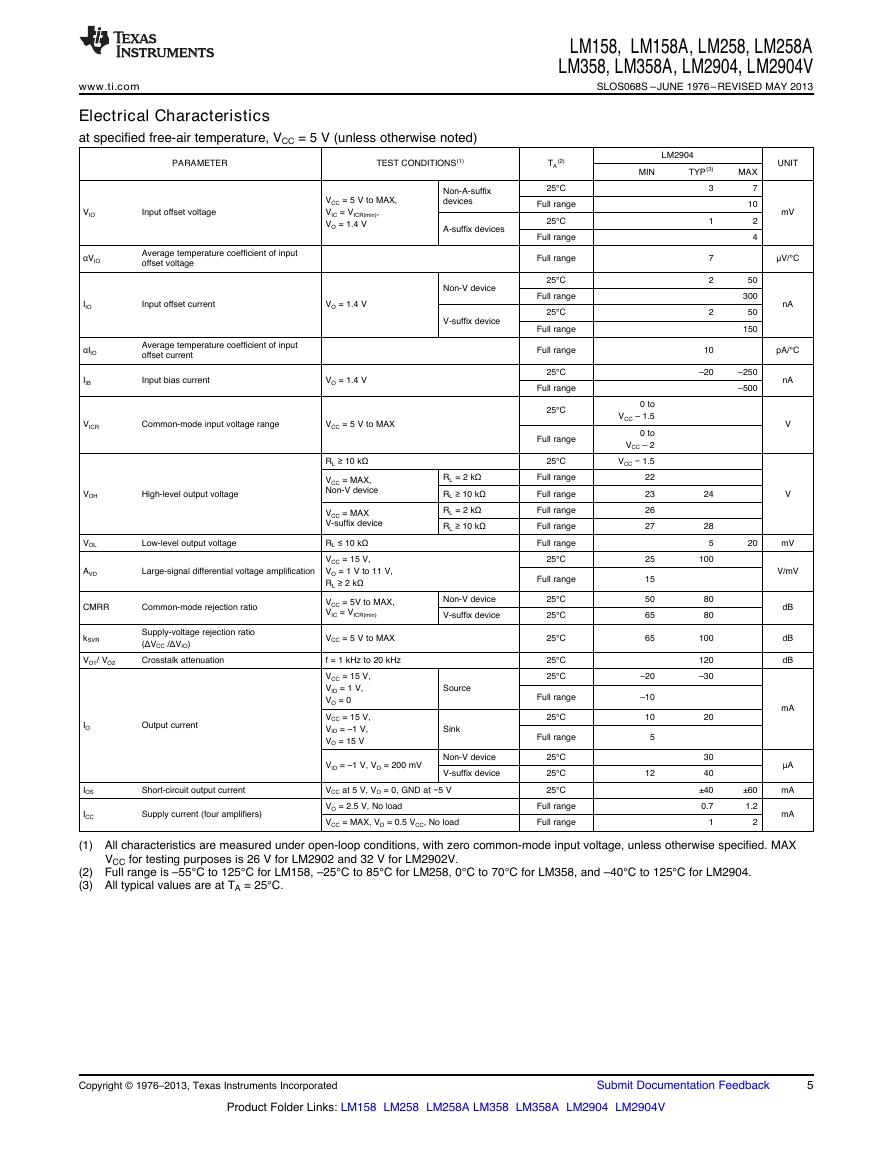

www.ti.com Electrical Characteristics at specified free-air temperature, VCC = 5 V (unless otherwise noted) PARAMETER TEST CONDITIONS(1) VIO αVIO IIO αIIO IIB Input offset voltage Average temperature coefficient of input offset voltage VCC = 5 V to MAX, VIC = VICR(min), VO = 1.4 V Input offset current VO = 1.4 V Average temperature coefficient of input offset current Input bias current VO = 1.4 V VICR Common-mode input voltage range VCC = 5 V to MAX Large-signal differential voltage amplification VO = 1 V to 11 V, High-level output voltage Low-level output voltage VOH VOL AVD CMRR Common-mode rejection ratio kSVR VO1/ VO2 Supply-voltage rejection ratio (ΔVCC /ΔVIO) Crosstalk attenuation IO IOS ICC Output current Short-circuit output current Supply current (four amplifiers) LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 (2) TA 25°C Full range 25°C Full range Full range 25°C Full range 25°C Full range Full range 25°C Full range 25°C Full range 25°C Full range Full range Full range Full range Full range 25°C Full range 25°C 25°C 25°C 25°C 25°C Full range 25°C Full range 25°C 25°C 25°C Full range Full range LM2904 MIN TYP(3) 3 1 7 2 2 10 –20 24 28 5 100 80 80 100 120 –30 20 30 40 ±40 0.7 1 0 to VCC – 1.5 0 to VCC – 2 VCC − 1.5 22 23 26 27 25 15 50 65 65 –20 –10 10 5 12 MAX 7 10 2 4 50 300 50 150 –250 –500 UNIT mV μV/°C nA pA/°C nA V V 20 mV V/mV dB dB dB mA μA mA mA ±60 1.2 2 Non-A-suffix devices A-suffix devices Non-V device V-suffix device RL = 2 kΩ RL ≥ 10 kΩ RL = 2 kΩ RL ≥ 10 kΩ Non-V device V-suffix device Source Sink RL ≥ 10 kΩ VCC = MAX, Non-V device VCC = MAX V-suffix device RL ≤ 10 kΩ VCC = 15 V, RL ≥ 2 kΩ VCC = 5V to MAX, VIC = VICR(min) VCC = 5 V to MAX f = 1 kHz to 20 kHz VCC = 15 V, VID = 1 V, VO = 0 VCC = 15 V, VID = –1 V, VO = 15 V VID = –1 V, VO = 200 mV Non-V device V-suffix device VCC at 5 V, VO = 0, GND at −5 V VO = 2.5 V, No load VCC = MAX, VO = 0.5 VCC, No load (1) All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for testing purposes is 26 V for LM2902 and 32 V for LM2902V. (2) Full range is –55°C to 125°C for LM158, –25°C to 85°C for LM258, 0°C to 70°C for LM358, and –40°C to 125°C for LM2904. (3) All typical values are at TA = 25°C. Copyright © 1976–2013, Texas Instruments Incorporated Submit Documentation Feedback 5 Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V

LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 Electrical Characteristics at specified free-air temperature, VCC = 5 V (unless otherwise noted) PARAMETER TEST CONDITIONS(1) VCC = 5 V to 30 V, VIC = VICR(min), VO = 1.4 V Input offset voltage Average temperature coefficient of input offset voltage Input offset current VO = 1.4 V Average temperature coefficient of input offset current Input bias current VO = 1.4 V Common-mode input voltage range VCC = 30 V High-level output voltage Low-level output voltage Large-signal differential voltage amplification Common-mode rejection ratio Supply-voltage rejection ratio (ΔVD /ΔVIO) Crosstalk attenuation Output current Short-circuit output current Supply current (four amplifiers) RL ≥ 2 kΩ VCC = 30 V RL ≤ 10 kΩ RL= 2kΩ RL≥ 10kΩ VCC = 15 V, VO = 1 V to 11 V, RL ≥ 2 kΩ f = 1 kHz to 20 kHz Sink Source VCC = 15 V, VID = 1 V, VO = 0 VCC = 15 V, VID = –1 V, VO = 15 V VID = −1 V, VO = 200 mV VCC at 5 V, GND at –5 V, VO = 0 VO = 2.5 V, No load VCC = MAX V, VO = 0.5 V, No load VIO αVIO IIO αIIO IIB VICR VOH VOL AVD CMRR kSVR VO1/ VO2 IO IOS ICC (1) TA 25°C Full range Full range 25°C Full range Full range 25°C Full range 25°C Full range 25°C Full range Full range Full range 25°C Full range 25°C 25°C 25°C 25°C Full range 25°C Full range 25°C 25°C Full range Full range LM158A MIN TYP(2) 7 2 10 –15 28 5 100 80 100 120 –30 20 30 ±40 0.7 1 0 to VCC – 1.5 0 to VCC – 2 VCC – 1.5 26 27 50 25 70 65 –20 –10 10 5 12 MIN LM258A TYP(2) 2 7 2 10 –15 28 5 100 80 100 120 –30 20 30 ±40 0.7 1 0 to VCC – 1.5 0 to VCC – 2 VCC – 1.5 26 27 50 25 70 65 –20 –10 10 5 12 MAX 2 4 15(3) 10 30 200 –50 –100 20 –60 ±60 1.2 2 www.ti.com UNIT mV µA/°C nA MAX 3 4 15 15 30 200 pA/°C –80 –100 nA V V 20 mV V/mV dB dB dB mA μA mA mA −60 ±60 1.2 2 (1) All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for testing purposes is 26 V for LM2904 and 30 V for others. (2) All typical values are at TA = 25°C. (3) On products compliant to MIL-PRF-38535, this parameter is not production tested. 6 Submit Documentation Feedback Copyright © 1976–2013, Texas Instruments Incorporated Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V

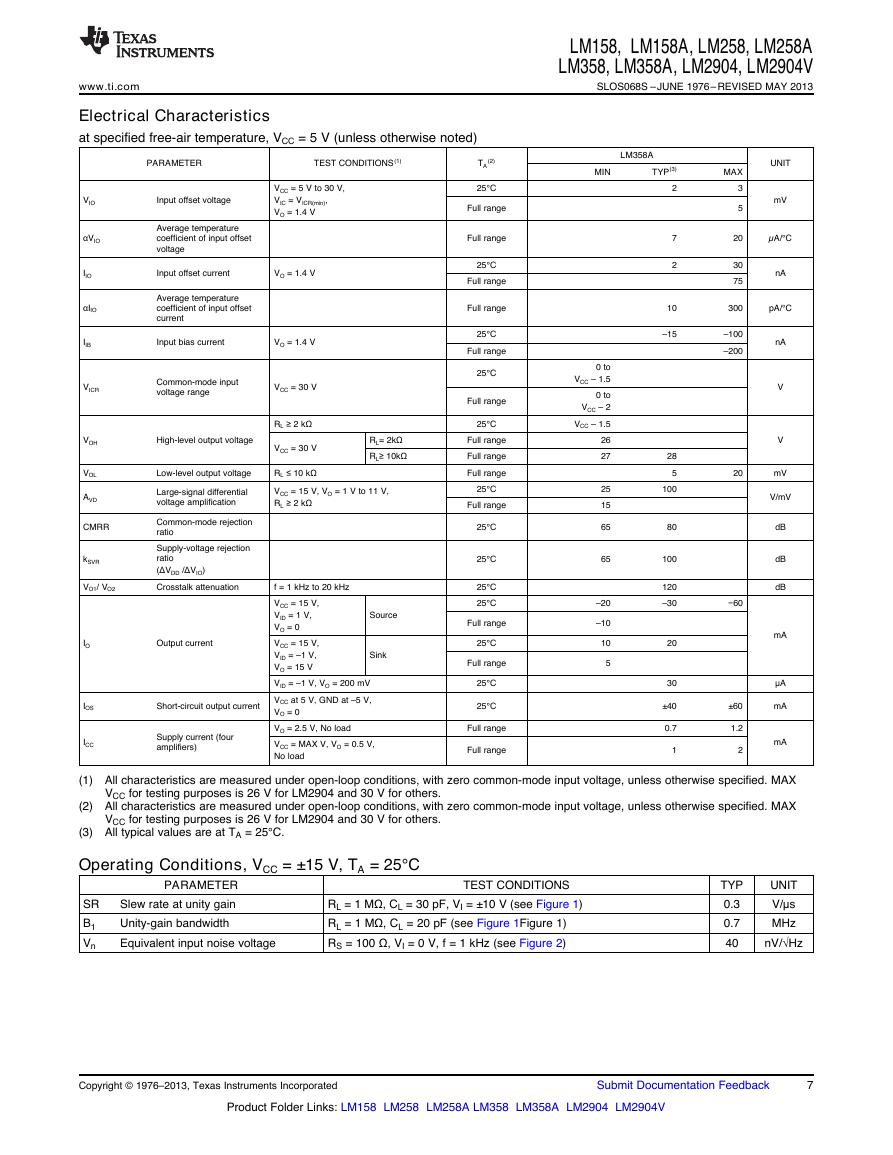

www.ti.com Electrical Characteristics at specified free-air temperature, VCC = 5 V (unless otherwise noted) PARAMETER TEST CONDITIONS(1) VCC = 5 V to 30 V, VIC = VICR(min), VO = 1.4 V Input offset voltage Average temperature coefficient of input offset voltage Input offset current VO = 1.4 V Average temperature coefficient of input offset current Input bias current VO = 1.4 V Common-mode input voltage range High-level output voltage Low-level output voltage Large-signal differential voltage amplification Common-mode rejection ratio Supply-voltage rejection ratio (ΔVDD /ΔVIO) Crosstalk attenuation Output current Short-circuit output current Supply current (four amplifiers) VCC = 30 V RL ≥ 2 kΩ VCC = 30 V RL= 2kΩ RL≥ 10kΩ RL ≤ 10 kΩ VCC = 15 V, VO = 1 V to 11 V, RL ≥ 2 kΩ Source Sink f = 1 kHz to 20 kHz VCC = 15 V, VID = 1 V, VO = 0 VCC = 15 V, VID = –1 V, VO = 15 V VID = –1 V, VO = 200 mV VCC at 5 V, GND at –5 V, VO = 0 VO = 2.5 V, No load VCC = MAX V, VO = 0.5 V, No load VIO αVIO IIO αIIO IIB VICR VOH VOL AVD CMRR kSVR VO1/ VO2 IO IOS ICC (2) TA 25°C Full range Full range 25°C Full range Full range 25°C Full range 25°C Full range 25°C Full range Full range Full range 25°C Full range 25°C 25°C 25°C 25°C Full range 25°C Full range 25°C 25°C Full range Full range LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 MIN LM358A TYP(3) 2 7 2 10 –15 28 5 100 80 100 120 –30 20 30 ±40 0.7 1 0 to VCC – 1.5 0 to VCC – 2 VCC – 1.5 26 27 25 15 65 65 –20 –10 10 5 UNIT mV µA/°C nA MAX 3 5 20 30 75 300 pA/°C –100 –200 nA V V 20 mV V/mV dB dB dB mA μA mA mA −60 ±60 1.2 2 (1) All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for testing purposes is 26 V for LM2904 and 30 V for others. (2) All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for testing purposes is 26 V for LM2904 and 30 V for others. (3) All typical values are at TA = 25°C. Operating Conditions, VCC = ±15 V, TA = 25°C PARAMETER Slew rate at unity gain Unity-gain bandwidth Equivalent input noise voltage SR B1 Vn TEST CONDITIONS RL = 1 MΩ, CL = 30 pF, VI = ±10 V (see Figure 1) RL = 1 MΩ, CL = 20 pF (see Figure 1Figure 1) RS = 100 Ω, VI = 0 V, f = 1 kHz (see Figure 2) TYP 0.3 0.7 40 UNIT V/μs MHz nV/√Hz Copyright © 1976–2013, Texas Instruments Incorporated Submit Documentation Feedback 7 Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V

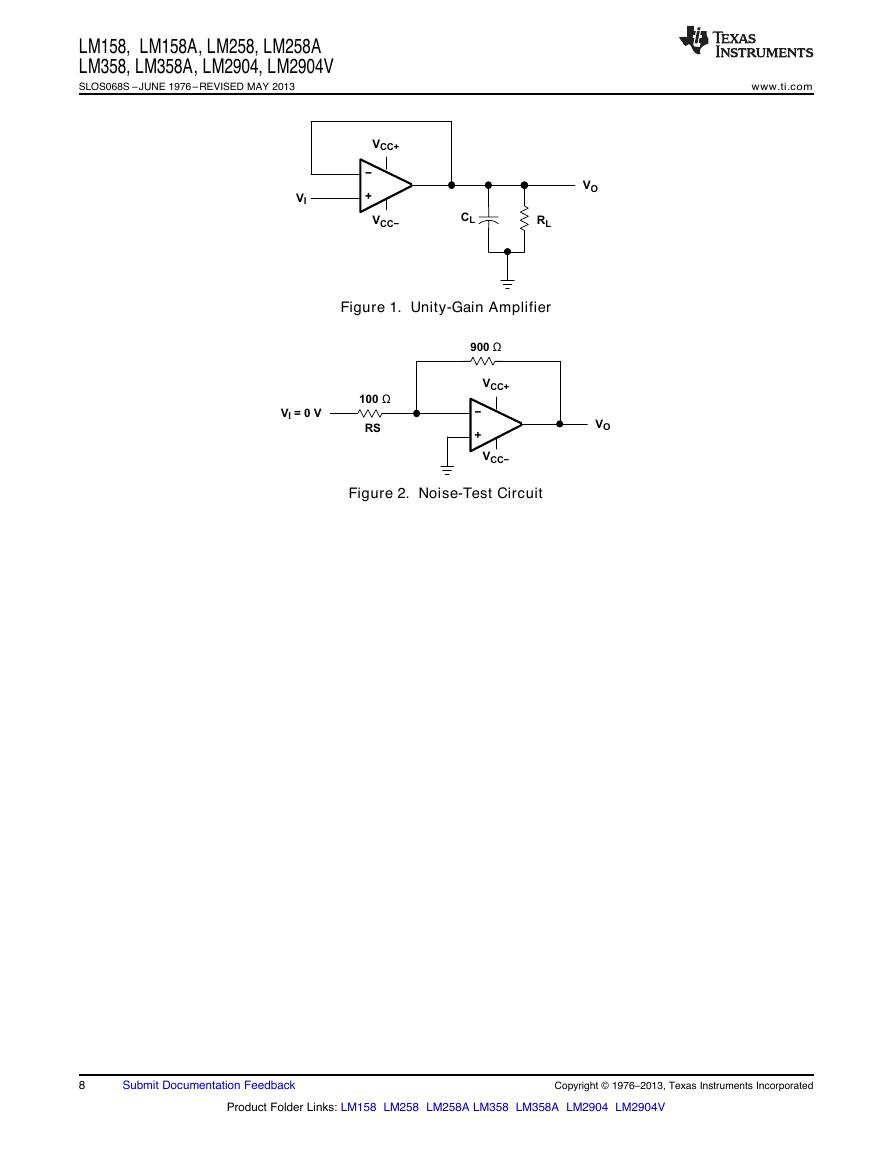

LM158, LM158A, LM258, LM258A LM358, LM358A, LM2904, LM2904V SLOS068S –JUNE 1976–REVISED MAY 2013 www.ti.com Figure 1. Unity-Gain Amplifier Figure 2. Noise-Test Circuit 8 Submit Documentation Feedback Copyright © 1976–2013, Texas Instruments Incorporated Product Folder Links: LM158 LM258 LM258A LM358 LM358A LM2904 LM2904V VO−+100ΩVCC+VCC−RS900ΩVI= 0 VVO−+RLCLVIVCC+VCC−
