PN 4000
PN 6000
User Manual
Content
53

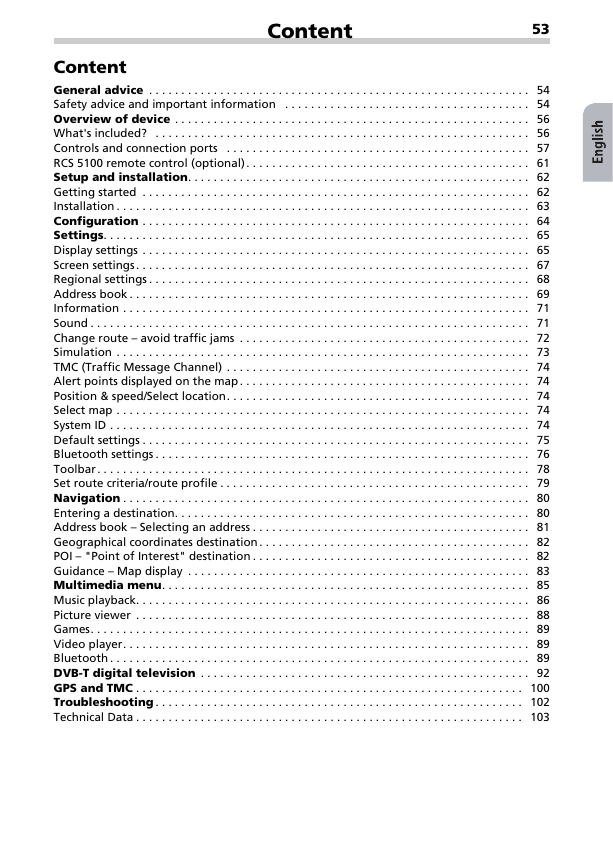

Content
General advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Safety advice and important information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Overview of device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
What's included? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Controls and connection ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
RCS 5100 remote control (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Setup and installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Display settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Screen settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Regional settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Address book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Change route – avoid traffic jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
TMC (Traffic Message Channel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Alert points displayed on the map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Position & speed/Select location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Select map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
System ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Set route criteria/route profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Entering a destination. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Address book – Selecting an address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Geographical coordinates destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
POI – "Point of Interest" destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Guidance – Map display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Multimedia menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Music playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Picture viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Games. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Video player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
DVB-T digital television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
GPS and TMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
54
General advice
Safety advice and important information
Before you start to install and use this navigation system, please familiarise yourself with its
various components and functions. Please also read through the safety instructions carefully
to avoid personal injury to yourself and others.
Do not expose the navigation system to high temperatures or extreme sunlight.
Temperatures over 50°C can severely damage the navigation system, especially the
lithium ion battery. The lithium ion battery can only be charged within a temperature
range of 0-45°C. Please note the safety instructions when operating the battery!
The device is not splashproof and must therefore not be exposed to moisture, as this
may result in damage.
GPS (Global Positioning System) is a satellite-based system that supports geographical
and time-related information all around the world. The system is operated and con-
trolled by the United States of America. The USA is also responsible for the availability
and accuracy of this system. All changes to the GPS availability and accuracy as well as
other factors from the surrounding environment can influence the operation of the
navigation system. The supplier of this system does not accept any liability whatsoever
for the availability and accuracy of GPS data.
When fixing the screen onto its mount in your vehicle, please note the following: Nev-
er adjust the screen by moving the navigation system itself; instead you should adjust
the mount. Position the screen so that you are able to glance at the display quickly and
easily. The device should also be positioned in a way that prevents reflections and
glare from the screen. The screen should not be positioned so that it obstructs your
view of things that are necessary for driving the vehicle (e.g. the view of the road or
the vehicle's instruments) or the safety systems in your vehicle.
The navigation system does not take the relative safety of the suggested routes into
consideration. Road closures, roadworks, height and weight restrictions, traffic and
weather conditions or other factors that can influence the safety and the journey time
of the route are not taken into consideration for the suggested routes. Use your own
judgement to check the suitability of the suggested routes. If required, use the
“Change Route” function to calculate alternatives to the original route. Alternatively
take the road you prefer and the software will automatically perform a re-routing
(i.e. calculate a new route based on your new position).
In certain areas, one-way streets, turning restrictions and no entry signs (e.g. pedestri-
an zones) cannot be accounted for. In such situations, pay particular attention to road
signs and applicable road traffic regulations.
If you need the help of the emergency services (police, fire, ambulance, etc.), do not
rely exclusively on the navigation system. Act at your own discretion and possibilities
in order to find help in such situations.
Please ensure that every person intending to use the navigation system reads this safe-
ty information and the recommendations for operating the system beforehand.
General advice
55

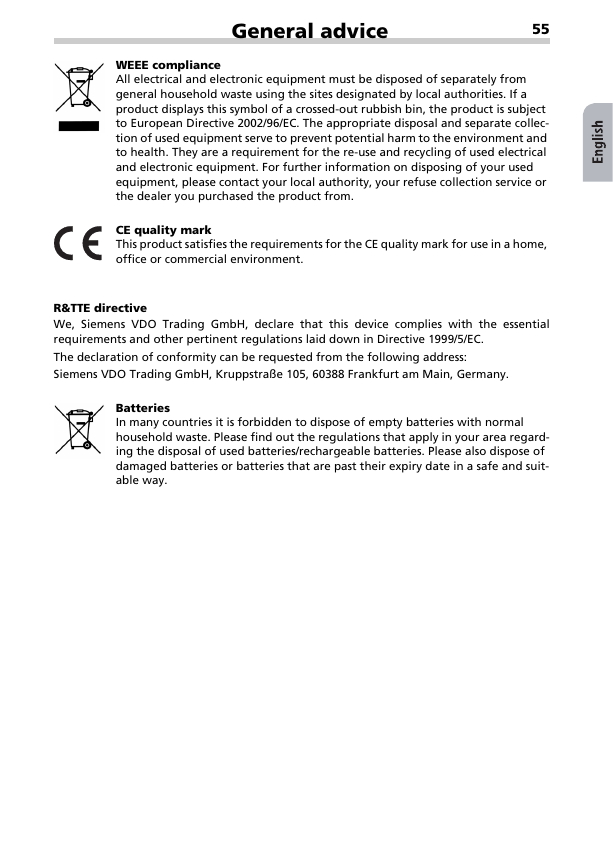

WEEE compliance
All electrical and electronic equipment must be disposed of separately from
general household waste using the sites designated by local authorities. If a
product displays this symbol of a crossed-out rubbish bin, the product is subject
to European Directive 2002/96/EC. The appropriate disposal and separate collec-
tion of used equipment serve to prevent potential harm to the environment and
to health. They are a requirement for the re-use and recycling of used electrical
and electronic equipment. For further information on disposing of your used
equipment, please contact your local authority, your refuse collection service or
the dealer you purchased the product from.
CE quality mark
This product satisfies the requirements for the CE quality mark for use in a home,
office or commercial environment.
R&TTE directive
We, Siemens VDO Trading GmbH, declare that this device complies with the essential
requirements and other pertinent regulations laid down in Directive 1999/5/EC.
The declaration of conformity can be requested from the following address:
Siemens VDO Trading GmbH, Kruppstraße 105, 60388 Frankfurt am Main, Germany.
Batteries
In many countries it is forbidden to dispose of empty batteries with normal
household waste. Please find out the regulations that apply in your area regard-
ing the disposal of used batteries/rechargeable batteries. Please also dispose of
damaged batteries or batteries that are past their expiry date in a safe and suit-
able way.
56
Overview of device

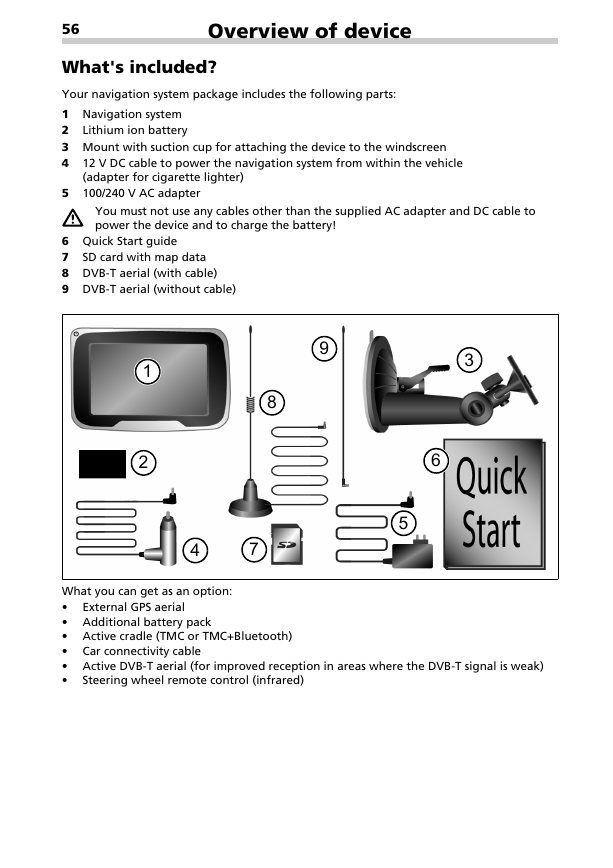

What's included?
Your navigation system package includes the following parts:
1 Navigation system
2 Lithium ion battery
3 Mount with suction cup for attaching the device to the windscreen
4 12 V DC cable to power the navigation system from within the vehicle
(adapter for cigarette lighter)
5 100/240 V AC adapter
You must not use any cables other than the supplied AC adapter and DC cable to
power the device and to charge the battery!
6 Quick Start guide
7 SD card with map data
8 DVB-T aerial (with cable)
9 DVB-T aerial (without cable)
9
8
1
2
4
7
3
6
5
External GPS aerial
Car connectivity cable
What you can get as an option:
Additional battery pack
Active cradle (TMC or TMC+Bluetooth)
Active DVB-T aerial (for improved reception in areas where the DVB-T signal is weak)
Steering wheel remote control (infrared)

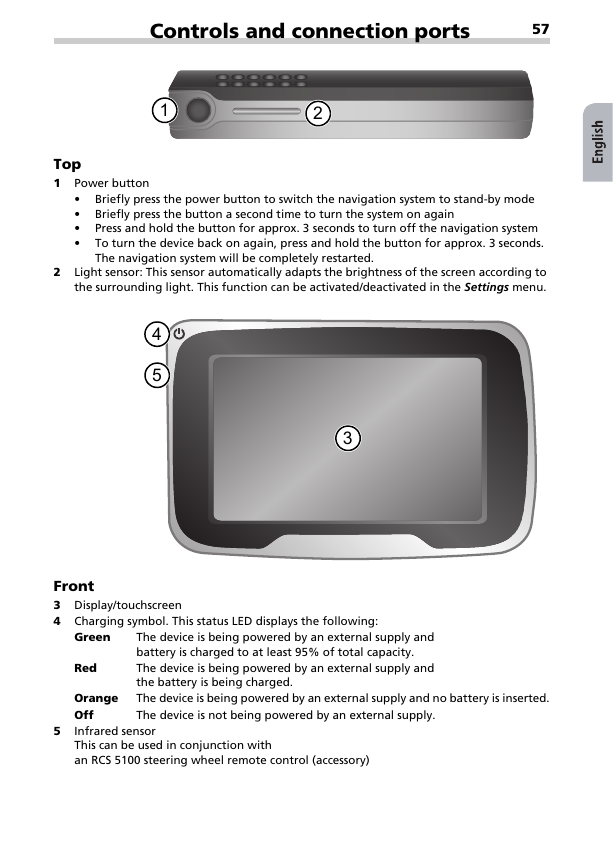

Controls and connection ports
57
1
2
Top
1 Power button
Briefly press the power button to switch the navigation system to stand-by mode
Briefly press the button a second time to turn the system on again
Press and hold the button for approx. 3 seconds to turn off the navigation system
To turn the device back on again, press and hold the button for approx. 3 seconds.
The navigation system will be completely restarted.
2 Light sensor: This sensor automatically adapts the brightness of the screen according to
the surrounding light. This function can be activated/deactivated in the Settings menu.
4
5
3
Front
3 Display/touchscreen
4 Charging symbol. This status LED displays the following:
Green
Red
Orange
Off
The device is being powered by an external supply and
battery is charged to at least 95% of total capacity.
The device is being powered by an external supply and
the battery is being charged.
The device is being powered by an external supply and no battery is inserted.
The device is not being powered by an external supply.
5 Infrared sensor
This can be used in conjunction with
an RCS 5100 steering wheel remote control (accessory)

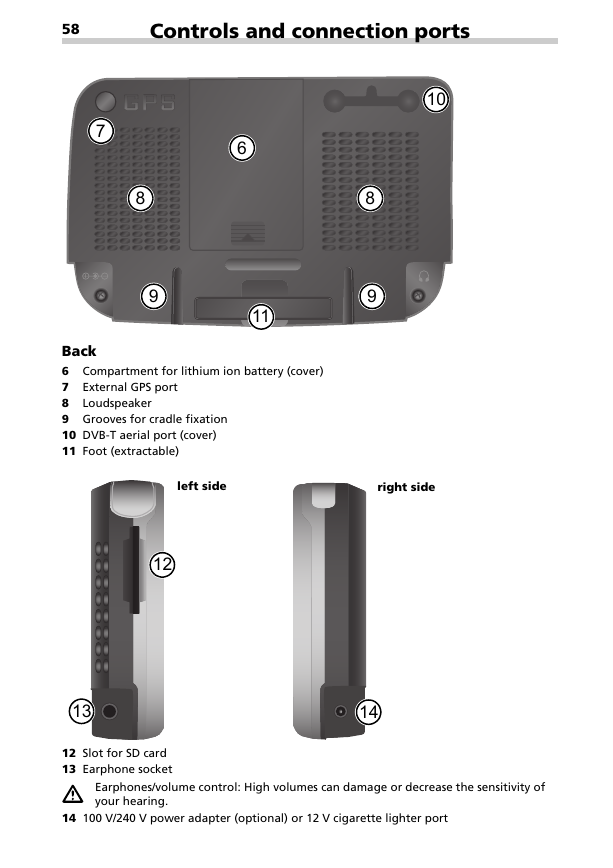

58
Controls and connection ports
10
8
9
7
6
8
9
11
Back
6 Compartment for lithium ion battery (cover)
7 External GPS port
8 Loudspeaker
9 Grooves for cradle fixation
10 DVB-T aerial port (cover)
11 Foot (extractable)
left side
right side
12
13
12 Slot for SD card
13 Earphone socket
14
Earphones/volume control: High volumes can damage or decrease the sensitivity of
your hearing.
14 100 V/240 V power adapter (optional) or 12 V cigarette lighter port

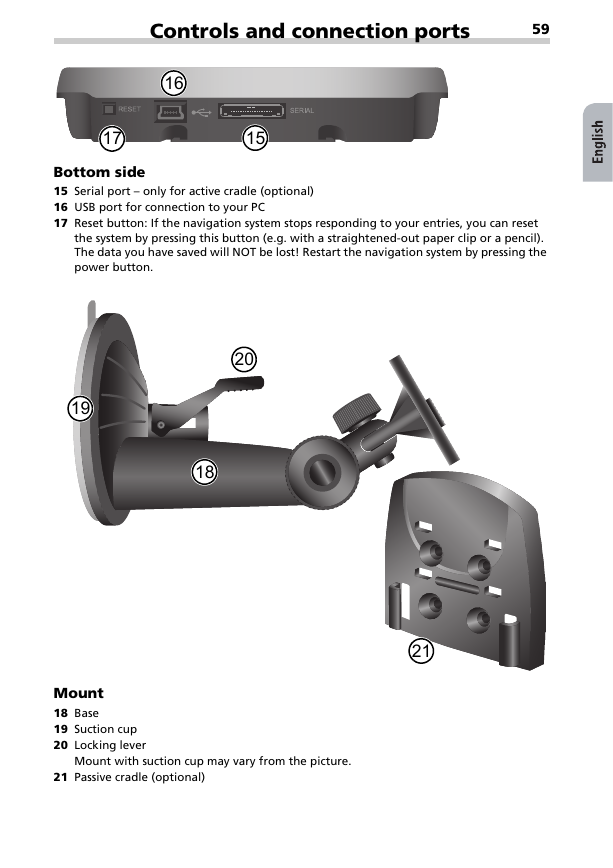

Controls and connection ports
59
16
17
15
Bottom side
15 Serial port – only for active cradle (optional)
16 USB port for connection to your PC
17 Reset button: If the navigation system stops responding to your entries, you can reset
the system by pressing this button (e.g. with a straightened-out paper clip or a pencil).
The data you have saved will NOT be lost! Restart the navigation system by pressing the
power button.
19
20
18
21
Mount
18 Base
19 Suction cup
20 Locking lever
Mount with suction cup may vary from the picture.
21 Passive cradle (optional)
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
