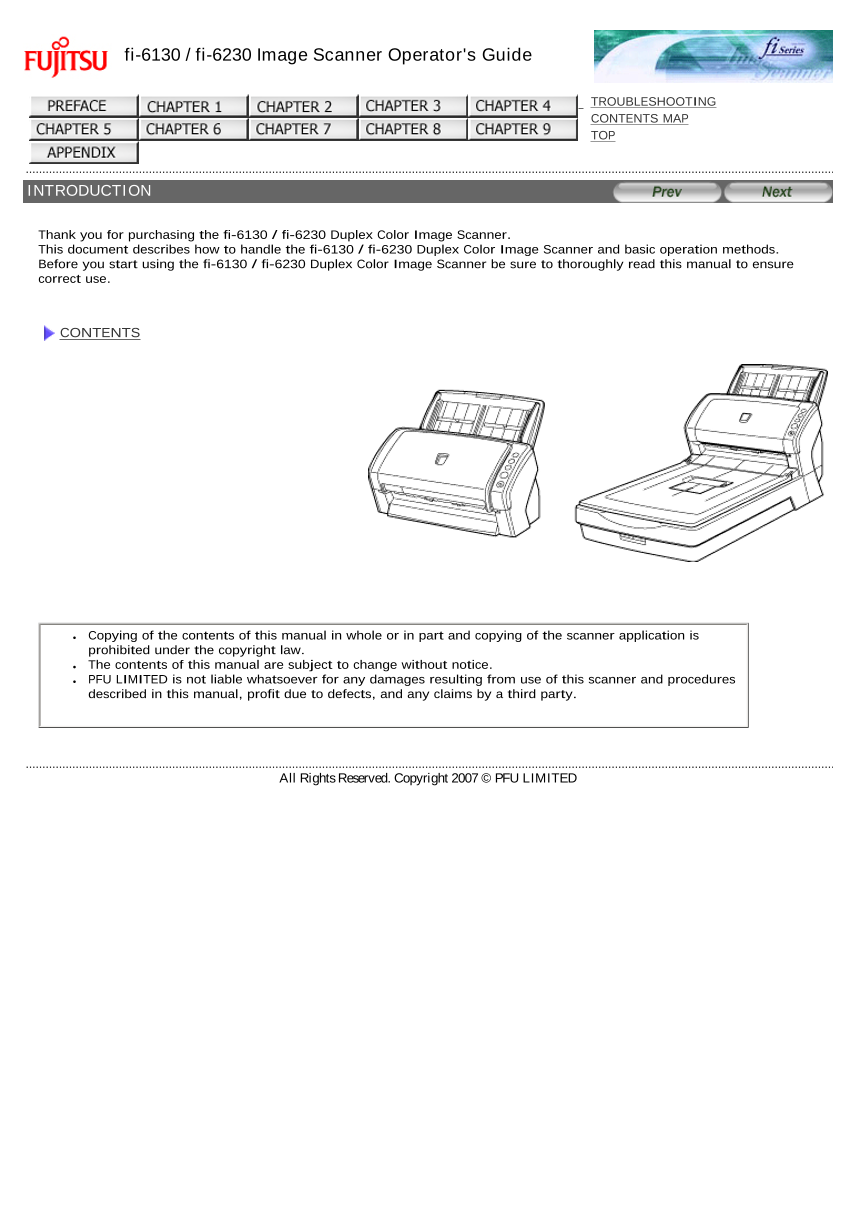

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP INTRODUCTION Thank you for purchasing the fi-6130 / fi-6230 Duplex Color Image Scanner. This document describes how to handle the fi-6130 / fi-6230 Duplex Color Image Scanner and basic operation methods. Before you start using the fi-6130 / fi-6230 Duplex Color Image Scanner be sure to thoroughly read this manual to ensure correct use. CONTENTS ● Copying of the contents of this manual in whole or in part and copying of the scanner application is prohibited under the copyright law. ● The contents of this manual are subject to change without notice. ● PFU LIMITED is not liable whatsoever for any damages resulting from use of this scanner and procedures described in this manual, profit due to defects, and any claims by a third party. All Rights Reserved. Copyright 2007 © PFU LIMITED

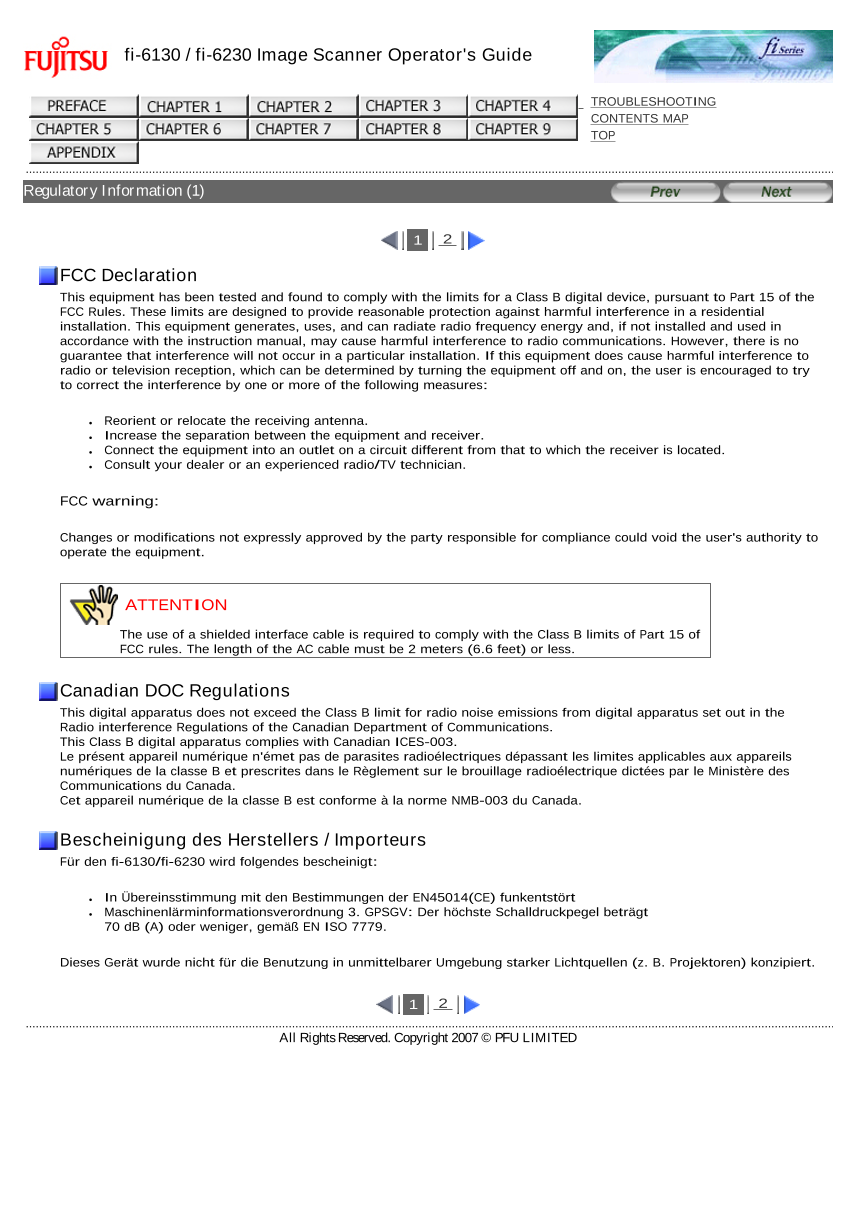

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP Regulatory Information (1) 1 2 FCC Declaration This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is located. ● Consult your dealer or an experienced radio/TV technician. FCC warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ATTENTION The use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules. The length of the AC cable must be 2 meters (6.6 feet) or less. Canadian DOC Regulations This digital apparatus does not exceed the Class B limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Le présent appareil numérique n'émet pas de parasites radioélectriques dépassant les limites applicables aux appareils numériques de la classe B et prescrites dans le Règlement sur le brouillage radioélectrique dictées par le Ministère des Communications du Canada. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Bescheinigung des Herstellers / Importeurs Für den fi-6130/fi-6230 wird folgendes bescheinigt: ● In Übereinsstimmung mit den Bestimmungen der EN45014(CE) funkentstört ● Maschinenlärminformationsverordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger, gemäß EN ISO 7779. Dieses Gerät wurde nicht für die Benutzung in unmittelbarer Umgebung starker Lichtquellen (z. B. Projektoren) konzipiert. 1 2 All Rights Reserved. Copyright 2007 © PFU LIMITED

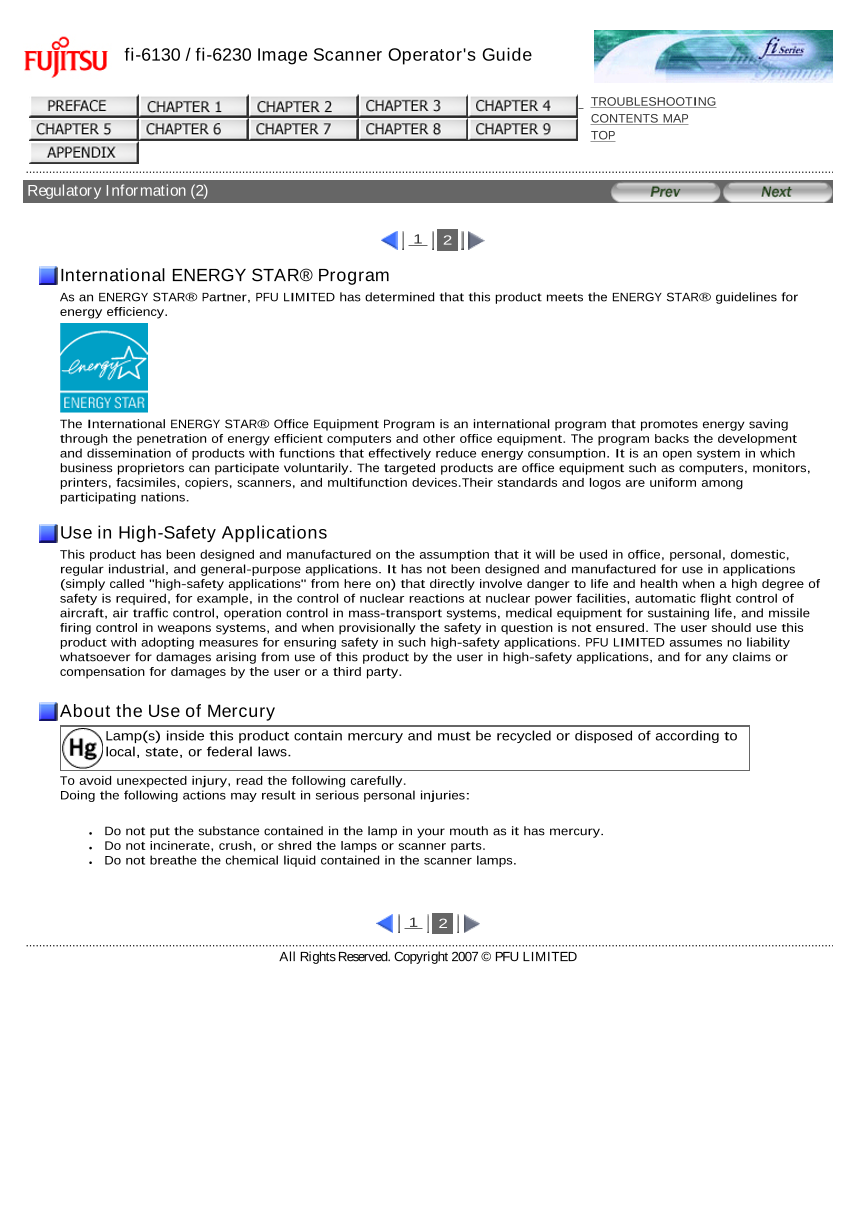

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP Regulatory Information (2) 1 2 International ENERGY STAR® Program As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices.Their standards and logos are uniform among participating nations. Use in High-Safety Applications This product has been designed and manufactured on the assumption that it will be used in office, personal, domestic, regular industrial, and general-purpose applications. It has not been designed and manufactured for use in applications (simply called "high-safety applications" from here on) that directly involve danger to life and health when a high degree of safety is required, for example, in the control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic control, operation control in mass-transport systems, medical equipment for sustaining life, and missile firing control in weapons systems, and when provisionally the safety in question is not ensured. The user should use this product with adopting measures for ensuring safety in such high-safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of this product by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party. About the Use of Mercury Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state, or federal laws. To avoid unexpected injury, read the following carefully. Doing the following actions may result in serious personal injuries: ● Do not put the substance contained in the lamp in your mouth as it has mercury. ● Do not incinerate, crush, or shred the lamps or scanner parts. ● Do not breathe the chemical liquid contained in the scanner lamps. 1 2 All Rights Reserved. Copyright 2007 © PFU LIMITED

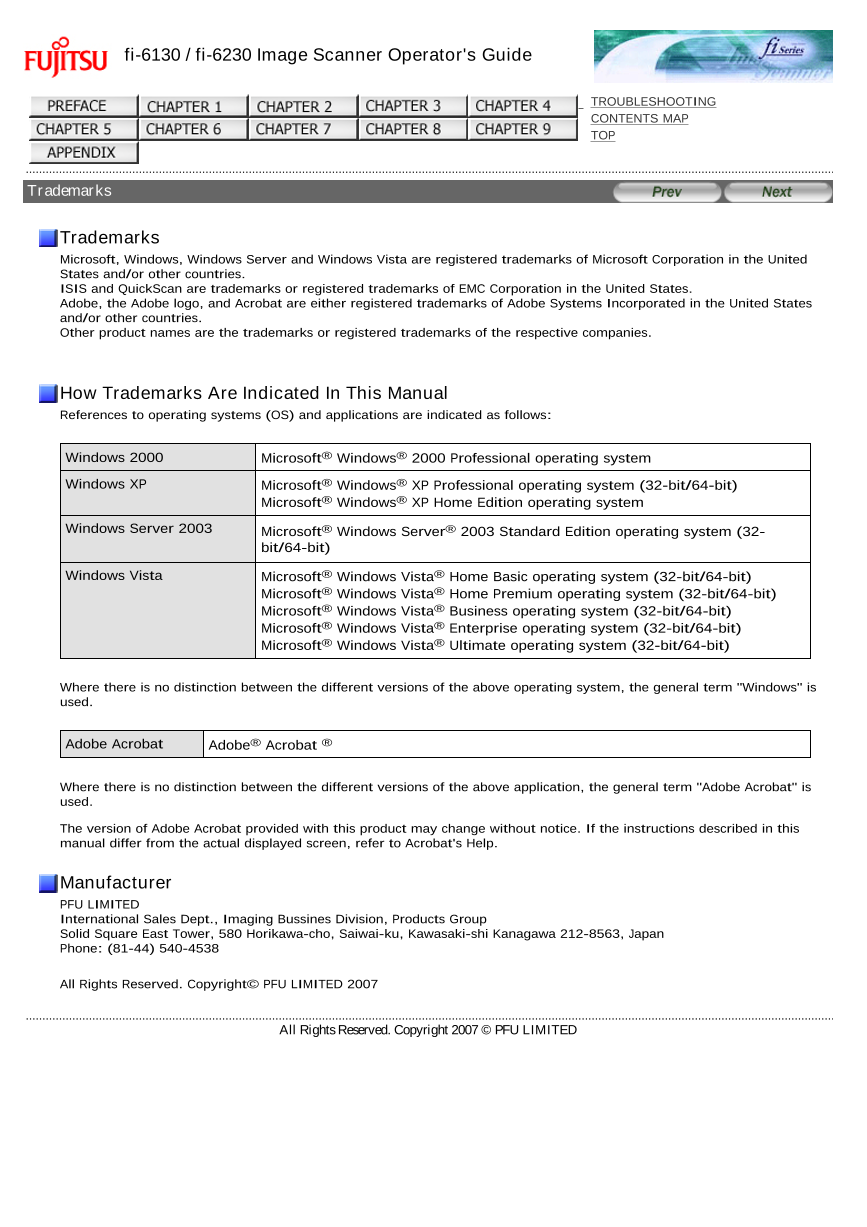

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP Trademarks Trademarks Microsoft, Windows, Windows Server and Windows Vista are registered trademarks of Microsoft Corporation in the United States and/or other countries. ISIS and QuickScan are trademarks or registered trademarks of EMC Corporation in the United States. Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. Other product names are the trademarks or registered trademarks of the respective companies. How Trademarks Are Indicated In This Manual References to operating systems (OS) and applications are indicated as follows: Windows 2000 Microsoft® Windows® 2000 Professional operating system Windows XP Microsoft® Windows® XP Professional operating system (32-bit/64-bit) Microsoft® Windows® XP Home Edition operating system Windows Server 2003 Microsoft® Windows Server® 2003 Standard Edition operating system (32- bit/64-bit) Windows Vista Microsoft® Windows Vista® Home Basic operating system (32-bit/64-bit) Microsoft® Windows Vista® Home Premium operating system (32-bit/64-bit) Microsoft® Windows Vista® Business operating system (32-bit/64-bit) Microsoft® Windows Vista® Enterprise operating system (32-bit/64-bit) Microsoft® Windows Vista® Ultimate operating system (32-bit/64-bit) Where there is no distinction between the different versions of the above operating system, the general term "Windows" is used. Adobe Acrobat Adobe® Acrobat ® Where there is no distinction between the different versions of the above application, the general term "Adobe Acrobat" is used. The version of Adobe Acrobat provided with this product may change without notice. If the instructions described in this manual differ from the actual displayed screen, refer to Acrobat's Help. Manufacturer PFU LIMITED International Sales Dept., Imaging Bussines Division, Products Group Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan Phone: (81-44) 540-4538 All Rights Reserved. Copyright© PFU LIMITED 2007 All Rights Reserved. Copyright 2007 © PFU LIMITED

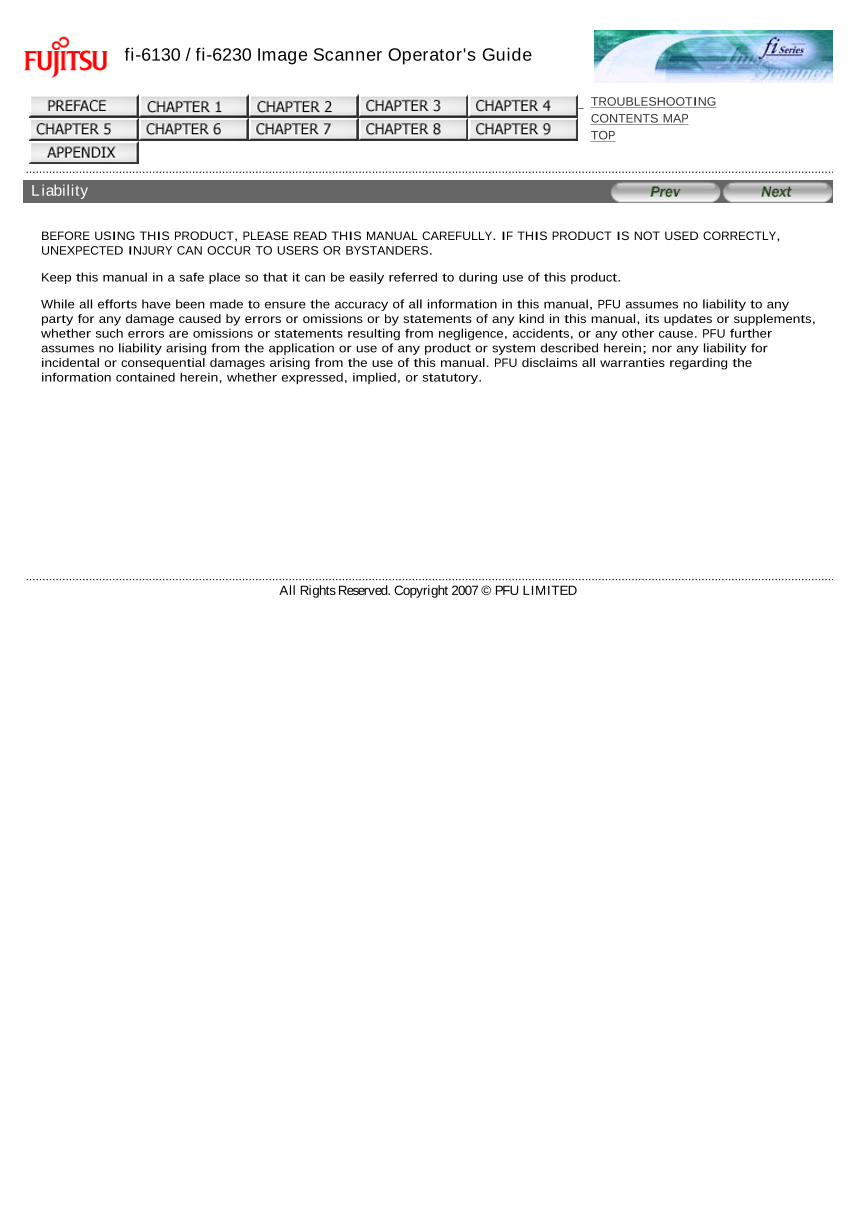

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP Liability BEFORE USING THIS PRODUCT, PLEASE READ THIS MANUAL CAREFULLY. IF THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY CAN OCCUR TO USERS OR BYSTANDERS. Keep this manual in a safe place so that it can be easily referred to during use of this product. While all efforts have been made to ensure the accuracy of all information in this manual, PFU assumes no liability to any party for any damage caused by errors or omissions or by statements of any kind in this manual, its updates or supplements, whether such errors are omissions or statements resulting from negligence, accidents, or any other cause. PFU further assumes no liability arising from the application or use of any product or system described herein; nor any liability for incidental or consequential damages arising from the use of this manual. PFU disclaims all warranties regarding the information contained herein, whether expressed, implied, or statutory. All Rights Reserved. Copyright 2007 © PFU LIMITED

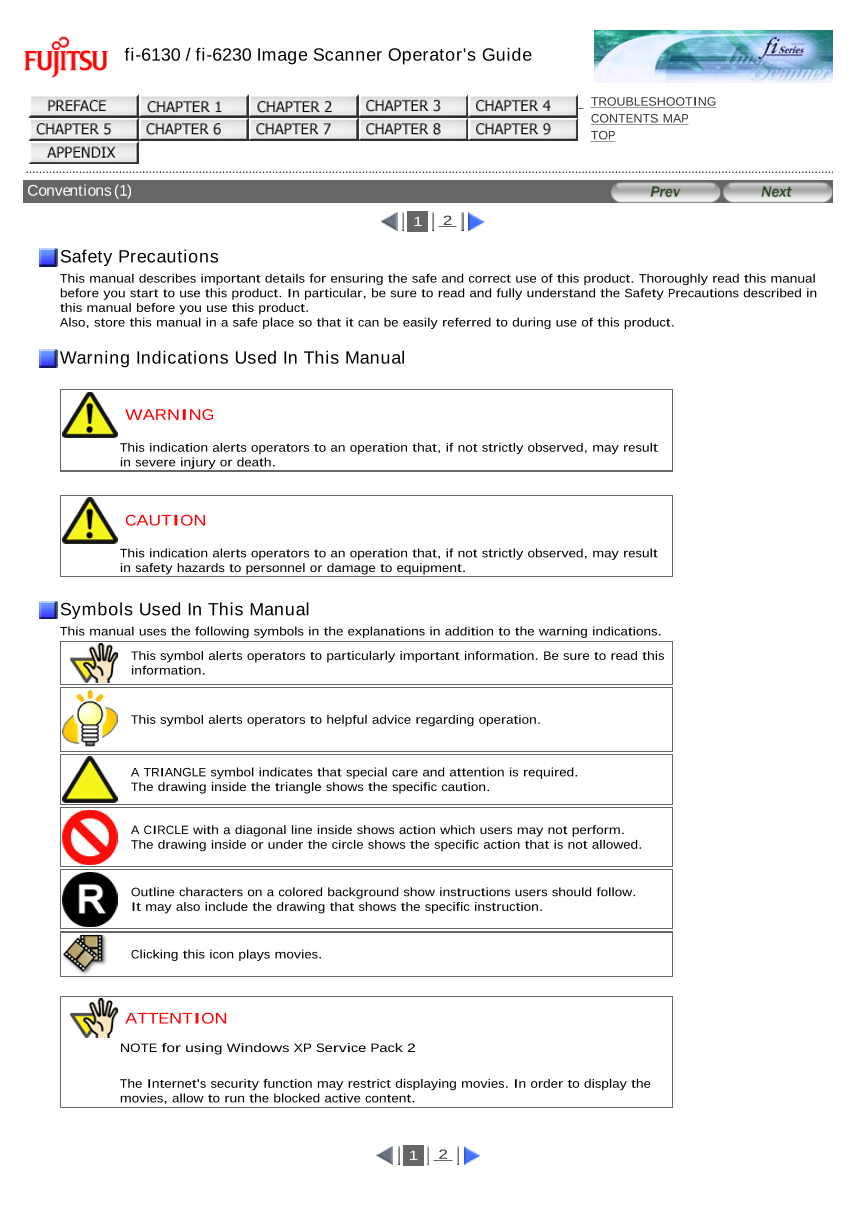

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP Conventions (1) 1 2 Safety Precautions This manual describes important details for ensuring the safe and correct use of this product. Thoroughly read this manual before you start to use this product. In particular, be sure to read and fully understand the Safety Precautions described in this manual before you use this product. Also, store this manual in a safe place so that it can be easily referred to during use of this product. Warning Indications Used In This Manual WARNING This indication alerts operators to an operation that, if not strictly observed, may result in severe injury or death. CAUTION This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment. Symbols Used In This Manual This manual uses the following symbols in the explanations in addition to the warning indications. This symbol alerts operators to particularly important information. Be sure to read this information. This symbol alerts operators to helpful advice regarding operation. A TRIANGLE symbol indicates that special care and attention is required. The drawing inside the triangle shows the specific caution. A CIRCLE with a diagonal line inside shows action which users may not perform. The drawing inside or under the circle shows the specific action that is not allowed. Outline characters on a colored background show instructions users should follow. It may also include the drawing that shows the specific instruction. Clicking this icon plays movies. ATTENTION NOTE for using Windows XP Service Pack 2 The Internet's security function may restrict displaying movies. In order to display the movies, allow to run the blocked active content. 1 2

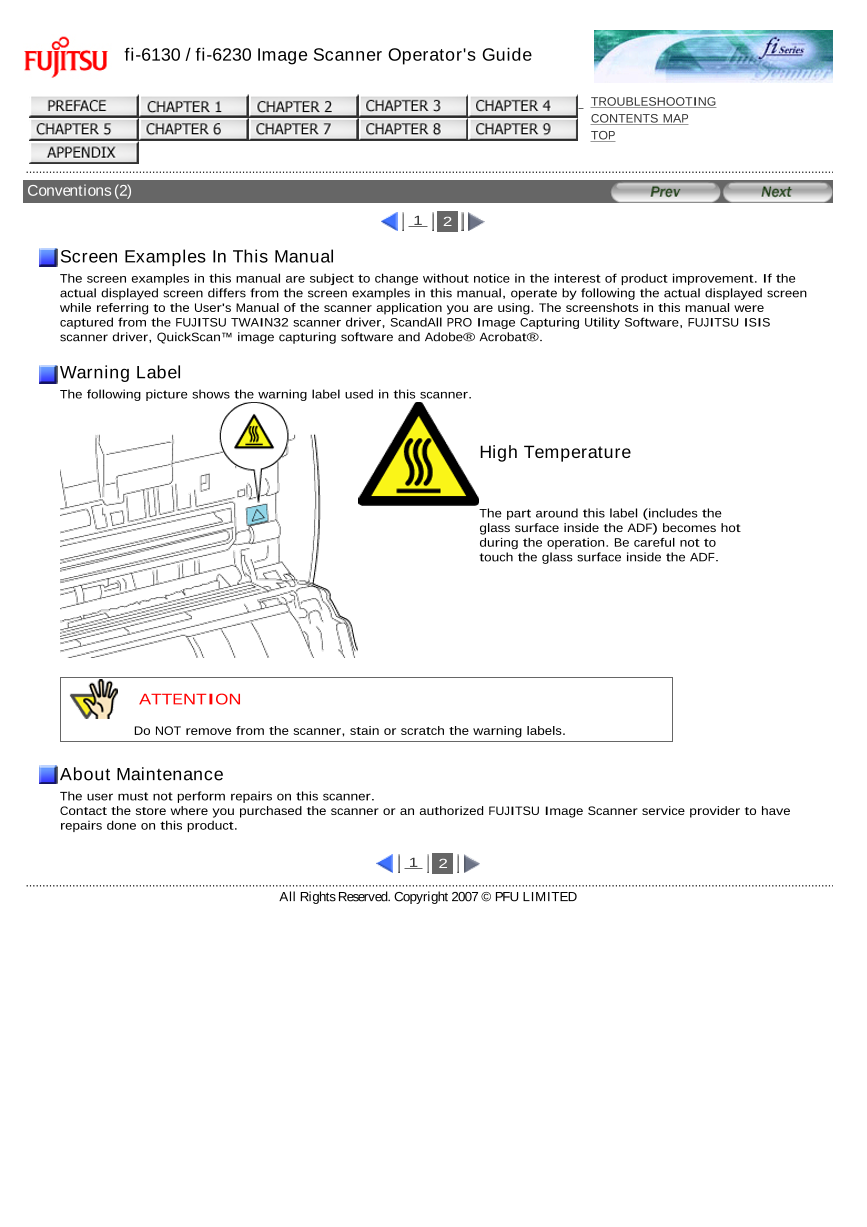

fi-6130 / fi-6230 Image Scanner Operator's Guide TROUBLESHOOTING CONTENTS MAP TOP Conventions (2) 1 2 Screen Examples In This Manual The screen examples in this manual are subject to change without notice in the interest of product improvement. If the actual displayed screen differs from the screen examples in this manual, operate by following the actual displayed screen while referring to the User's Manual of the scanner application you are using. The screenshots in this manual were captured from the FUJITSU TWAIN32 scanner driver, ScandAll PRO Image Capturing Utility Software, FUJITSU ISIS scanner driver, QuickScan™ image capturing software and Adobe® Acrobat®. Warning Label The following picture shows the warning label used in this scanner. High Temperature The part around this label (includes the glass surface inside the ADF) becomes hot during the operation. Be careful not to touch the glass surface inside the ADF. ATTENTION Do NOT remove from the scanner, stain or scratch the warning labels. About Maintenance The user must not perform repairs on this scanner. Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service provider to have repairs done on this product. 1 2 All Rights Reserved. Copyright 2007 © PFU LIMITED
