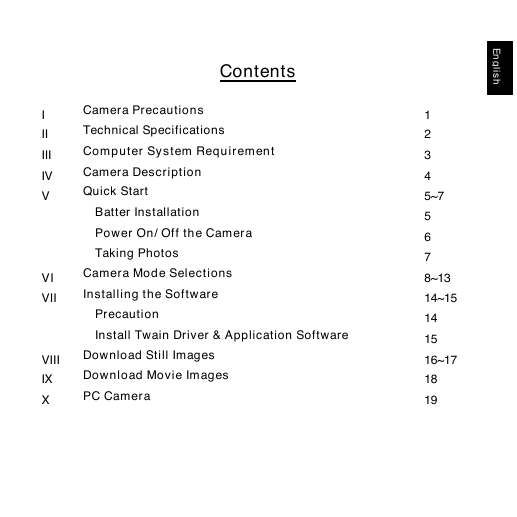

Contents Camera Precautions Technical Specifications Computer System Requirement Camera Description Quick Start Batter Installation Power On/ Off the Camera Taking Photos Camera Mode Selections Installing the Software Precaution Install Twain Driver & Application Software Download Still Images Download Movie Images PC Camera I II III IV V VI VII VIII IX X E n g l i s h 1 2 3 4 5~7 5 6 7 8~13 14~15 14 15 16~17 18 19

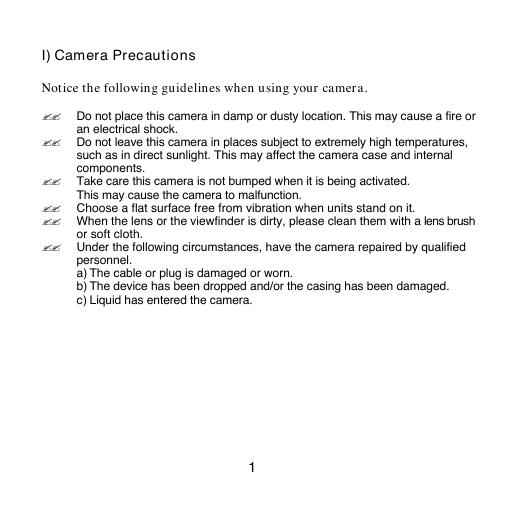

I) Camera Precautions Notice the following guidelines when using your camera. ?? Do not place this camera in damp or dusty location. This may cause a fire or an electrical shock. ?? Do not leave this camera in places subject to extremely high temperatures, such as in direct sunlight. This may affect the camera case and internal components. ?? Take care this camera is not bumped when it is being activated. This may cause the camera to malfunction. ?? Choose a flat surface free from vibration when units stand on it. ?? When the lens or the viewfinder is dirty, please clean them with a lens brush or soft cloth. ?? Under the following circumstances, have the camera repaired by qualified personnel. a) The cable or plug is damaged or worn. b) The device has been dropped and/or the casing has been damaged. c) Liquid has entered the camera. 1

II) Technical Specifications ?? Sensor Resolution ?? Built-in Memory ?? Image Storage ?? Status LCD ?? White Balance ?? Exposure ?? View Finder ?? Focusing ?? Focal Length ?? Aperture ?? Self Timer ?? File Format Movie images--- AVI ?? Interface ?? Delete Image ?? Movie clip ?? Video Teleconference ?? Auto Power Off ?? Battery ?? Dimensions ?? Weight ?? Operation System 2 CMOS, 352 x 288 pixels 2MB 352 x 288 pixels 19 images (w/o compression) 38 images (with compression) 176 x 144 pixels 76 images (w/o compression) 152 images (with compression) 2-digit B/W on back for functions Auto Auto Optical Fixed range from 40cm~infinity 5.0 mm F=2.8 10 seconds Still images--- BMP (w/o compression) USB All / last one supported PC camera, NetMeeting 10 fps-CIF resolution 20 seconds 3xAAA Alkaline Battery; 85.6x54x23 mm 50g(w/o Battery) WIN98/98SE/2000/XP

III) Computer System Requirements ?? Personal computer designed for Win98, 98SE, 2000 or XP ?? Required a CD-ROM drive to install software, min. 200 MHz microprocessor ?? Available USB port ?? Color display monitor with a minimum resolution of 640 x 480 (1024 x 768 recommended; 24-bit True Color recommended) ?? 48 MB available RA M for WIN98, ME; 64 MB for WIN 2000 and WIN XP ?? 120 MB of available hard disk space 3

4 IV) Camera Description Front Side---Fig. (1) 1.Viewfinder 2. Lens 3. Battery compartment door 4. Hand strap lug 5. Shutter release button Back Side---Fig. (2) 6. Status LCD 7. Power on button 8. USB port and its rubber cover 9. Viewfinder 10. Mode button

V) Quick Start Battery Installation 1. Open the battery compartment Door. Refer to Fig. (3). 2. Insert three AAA alkaline batteries into the battery compartment with the polarity in the direction as shown. Refer to Fig. (4) Important: When the batteries are low, you will see the indication on status LCD continuously blinking. Always download photos to the PC prior to replace batteries to avoid memory loss. Note: a) Do not mix using old and new batteries together. Replace all the batteries at once. . b) Recommend remove the batteries if the camera is not going to be used for some time. This will save the battery life. 5

6 V) Quick Start Power on/off the Camera Power On Method 1 Press the “POWER” button till the status LCD lights up. See Fig. (5). Method 2 Plug in the USB cable and connect it with your PC, and press the “Power” button (7), then the camera will be powered on by USB power source. See Fig. (6). Power Off Method 1 The camera will be turned off automatically after 20 seconds without activating. Method 2 Press the mode button till the “Status LCD” (6) shows as Fig. (7). Then press the “Shutter Release button” (5) to turn off the camera. Note: If the camera is connected with the PC, you have to unplug the USB cable to turn off the camera.
