DVR 620 Digital Video Camera User Manual © 2010 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.

Contents Introduction .................................................................................................................................. 2 What Your Camera Includes ......................................................................................................... 2 Parts of the Camera ..................................................................................................................... 3 Initial Camera Setup ..................................................................................................................... 4 Main Camera Modes .................................................................................................................... 5 Camera Technical Specifications .................................................................................................. 6 Computer System Requirements – Windows ............................................................................... 7 Computer System Requirements – Macintosh ............................................................................. 7 Using Your Digital Camera ........................................................................................................... 8 Changing Camera Mode .............................................................................................................. 9 Using the Camera Buttons ......................................................................................................... 10 Video Capture Mode ................................................................................................................... 11 Video Playback Mode ................................................................................................................. 12 Photo Capture Mode .................................................................................................................. 15 Photo Playback Mode ................................................................................................................ 16 Connecting the Camera to a TV ................................................................................................. 19 Installing the Software ................................................................................................................ 20 Connecting the Camera to the Computer ................................................................................... 21 Getting Photos and Videos from your Camera to Your Computer .............................................. 22 Get started!................................................................................................................................. 23 Transfer media from my camera to my computer manually (Using Windows) ............................ 23 Transfer media from my camera to my computer manually (Using Macintosh) .......................... 24 Camera Maintenance ................................................................................................................. 24 Sakar Warranty Card .................................................................................................................. 25 Technical Support ....................................................................................................................... 26 Troubleshooting .......................................................................................................................... 26 1

Introduction Thank you for purchasing this camera. Everything you need to take quality digital photos and videos is included with your camera. Vivitar makes capturing those special moments as easy as possible. Note: Your camera needs an SD Memory card (up to 16GB) for normal use. SD Memory cards are not included and need to be purchased separately. Please read this manual carefully first in order to get the most out of your digital camera. What Your Camera Includes 1. Digital Video Camera 2. AV Cable 3. Vivitar Experience Image Manager software Installation CD 4. Wrist Strap Note: SD Memory Card not included 2

Parts of the Camera 1. Power Button 12. USB Connector 2. Delete 13. TV Out Port 3. Change Resolution 14. Strap Hole 4. Change Mode 15. Tripod socket 5. Shutter 16. USB ejector 6. Up/Zoom In 17. LED Light 7. Down/Zoom Out 18. Lens 8. Left 9. Right 19. Speaker 20. Microphone 10. LCD Screen 21. Battery Cover 11. SD Card Slot 3

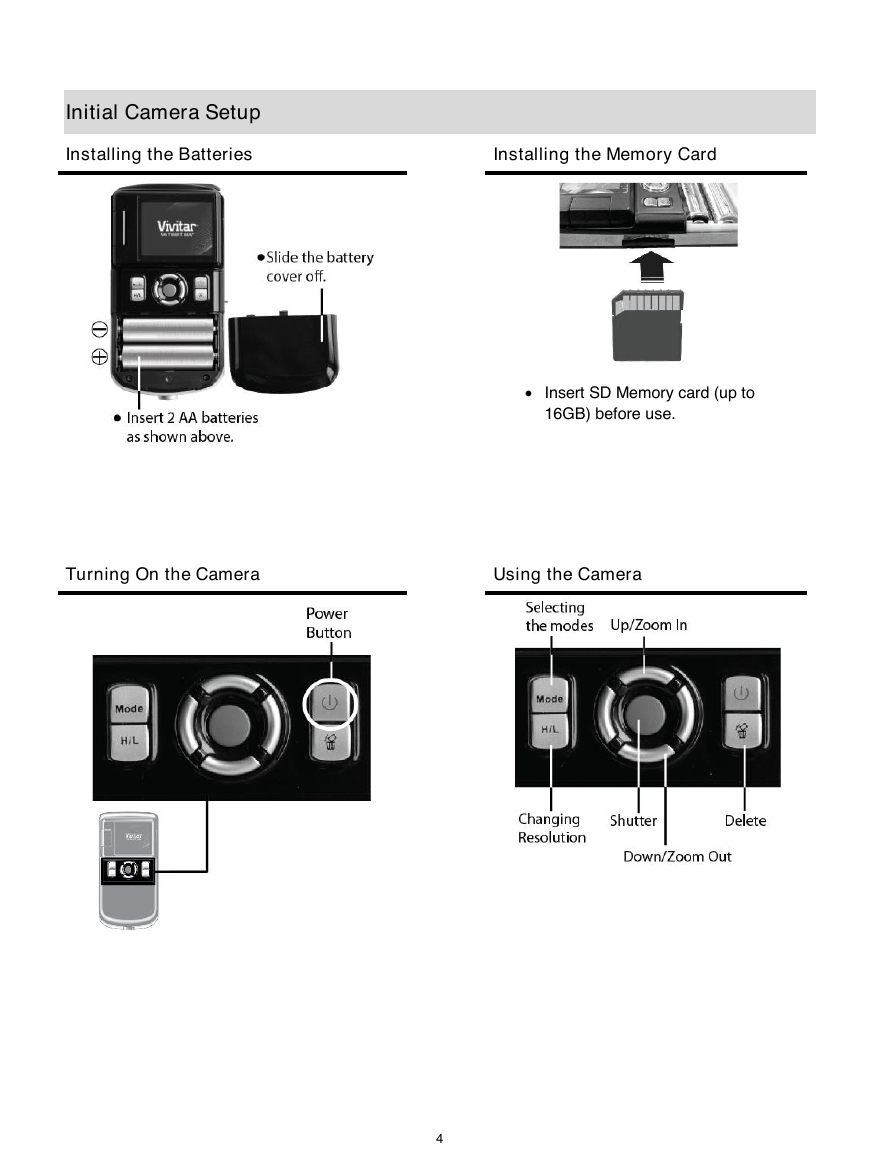

Initial Camera Setup Installing the Batteries Installing the Memory Card Turning On the Camera  Insert SD Memory card (up to 16GB) before use. Using the Camera 4

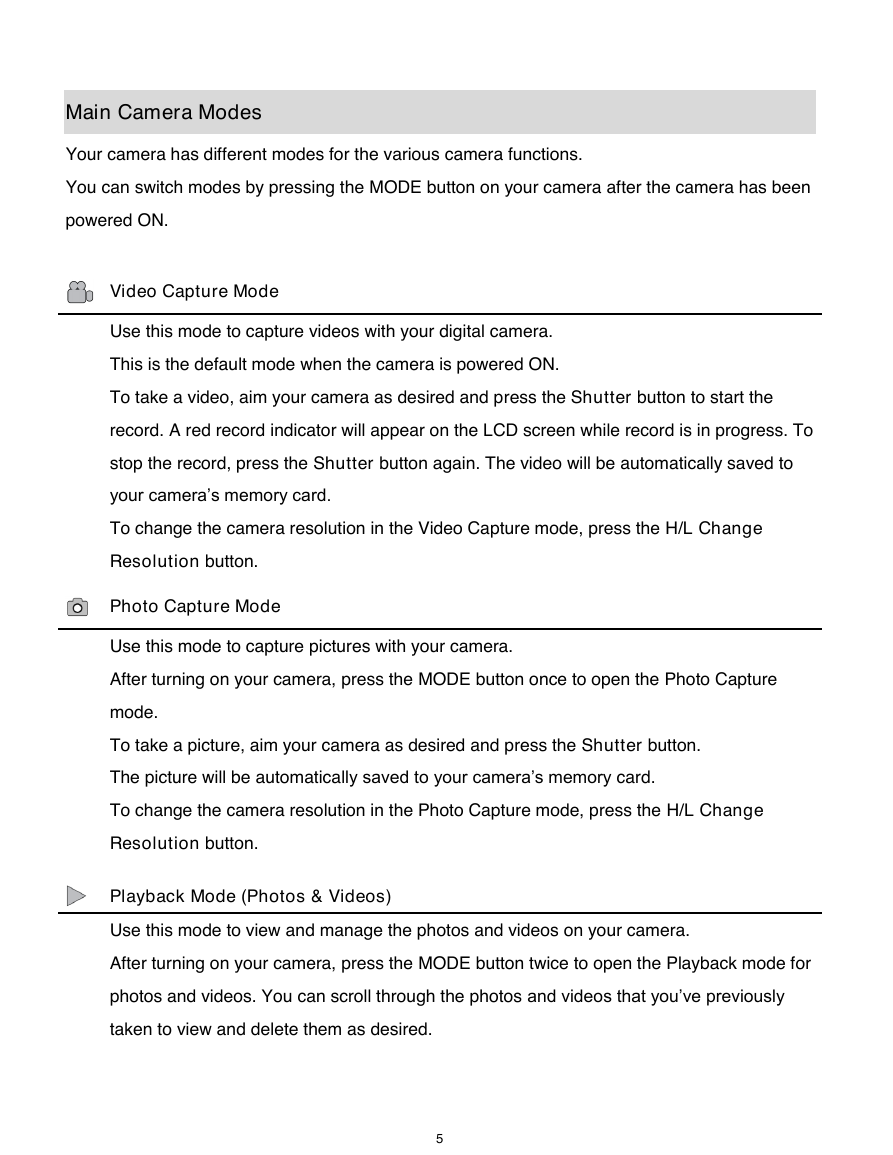

Main Camera Modes Your camera has different modes for the various camera functions. You can switch modes by pressing the MODE button on your camera after the camera has been powered ON. Video Capture Mode Use this mode to capture videos with your digital camera. This is the default mode when the camera is powered ON. To take a video, aim your camera as desired and press the Shutter button to start the record. A red record indicator will appear on the LCD screen while record is in progress. To stop the record, press the Shutter button again. The video will be automatically saved to your camera’s memory card. To change the camera resolution in the Video Capture mode, press the H/L Change Resolution button. Photo Capture Mode Use this mode to capture pictures with your camera. After turning on your camera, press the MODE button once to open the Photo Capture mode. To take a picture, aim your camera as desired and press the Shutter button. The picture will be automatically saved to your camera’s memory card. To change the camera resolution in the Photo Capture mode, press the H/L Change Resolution button. Playback Mode (Photos & Videos) Use this mode to view and manage the photos and videos on your camera. After turning on your camera, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you’ve previously taken to view and delete them as desired. 5

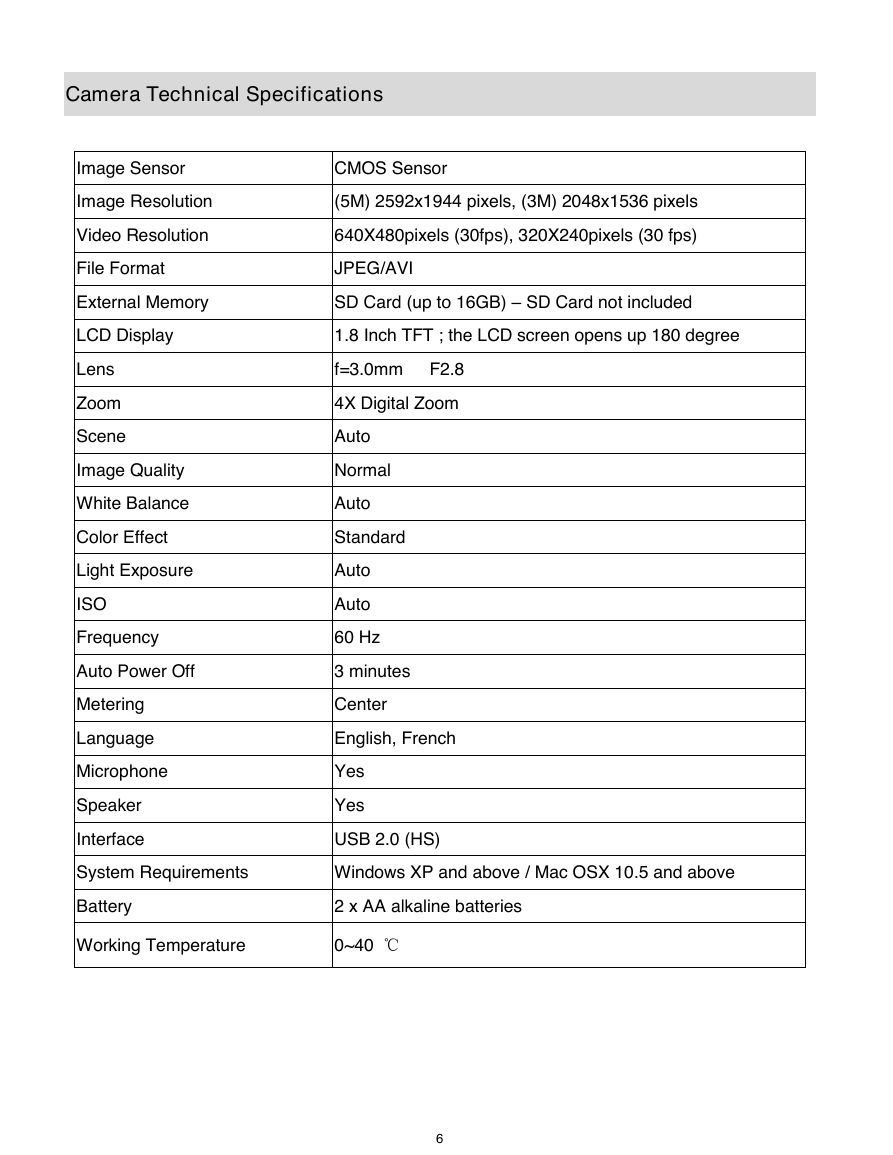

Camera Technical Specifications Image Sensor CMOS Sensor Image Resolution (5M) 2592x1944 pixels, (3M) 2048x1536 pixels Video Resolution 640X480pixels (30fps), 320X240pixels (30 fps) File Format JPEG/AVI External Memory SD Card (up to 16GB) – SD Card not included LCD Display 1.8 Inch TFT ; the LCD screen opens up 180 degree Lens Zoom Scene Image Quality White Balance Color Effect Light Exposure ISO Frequency Auto Power Off Metering Language Microphone Speaker Interface f=3.0mm F2.8 4X Digital Zoom Auto Normal Auto Standard Auto Auto 60 Hz 3 minutes Center English, French Yes Yes USB 2.0 (HS) System Requirements Windows XP and above / Mac OSX 10.5 and above Battery 2 x AA alkaline batteries Working Temperature 0~40 ℃ 6

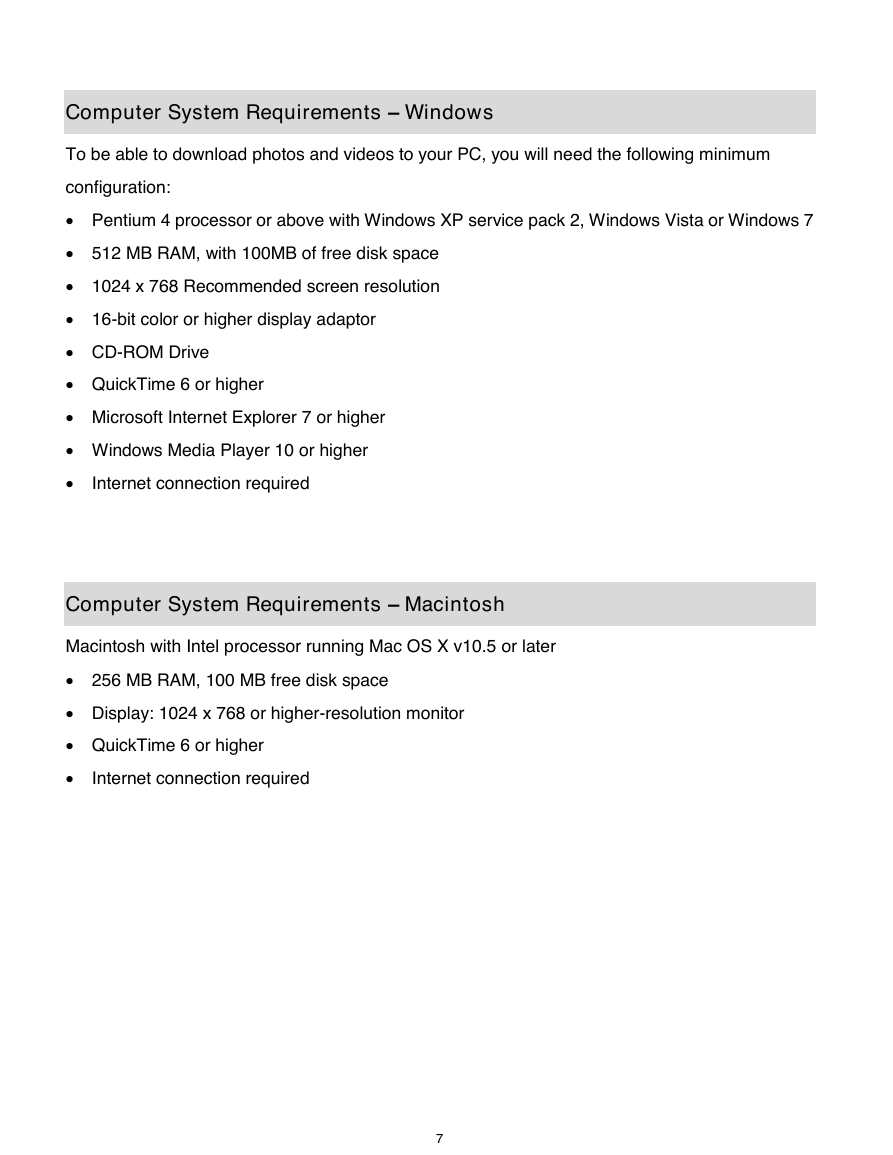

Computer System Requirements – Windows To be able to download photos and videos to your PC, you will need the following minimum configuration:  Pentium 4 processor or above with Windows XP service pack 2, Windows Vista or Windows 7  512 MB RAM, with 100MB of free disk space  1024 x 768 Recommended screen resolution  16-bit color or higher display adaptor  CD-ROM Drive  QuickTime 6 or higher  Microsoft Internet Explorer 7 or higher  Windows Media Player 10 or higher  Internet connection required Computer System Requirements – Macintosh Macintosh with Intel processor running Mac OS X v10.5 or later  256 MB RAM, 100 MB free disk space  Display: 1024 x 768 or higher-resolution monitor  QuickTime 6 or higher  Internet connection required 7
