三洋投影机-PLC-XU105说明书.pdf
Features and Design
Table of Contents
To the Owner
Safety Instructions

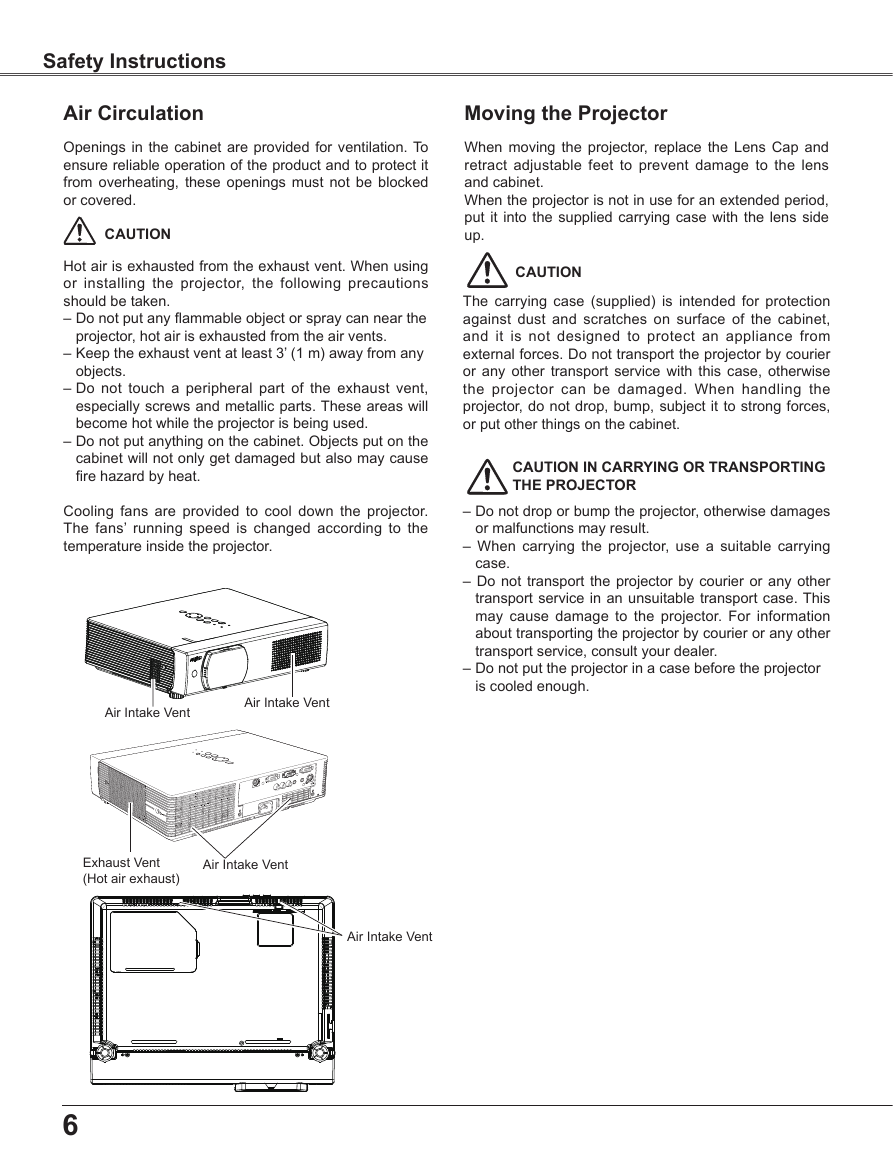

Air Circulation
Moving the Projector

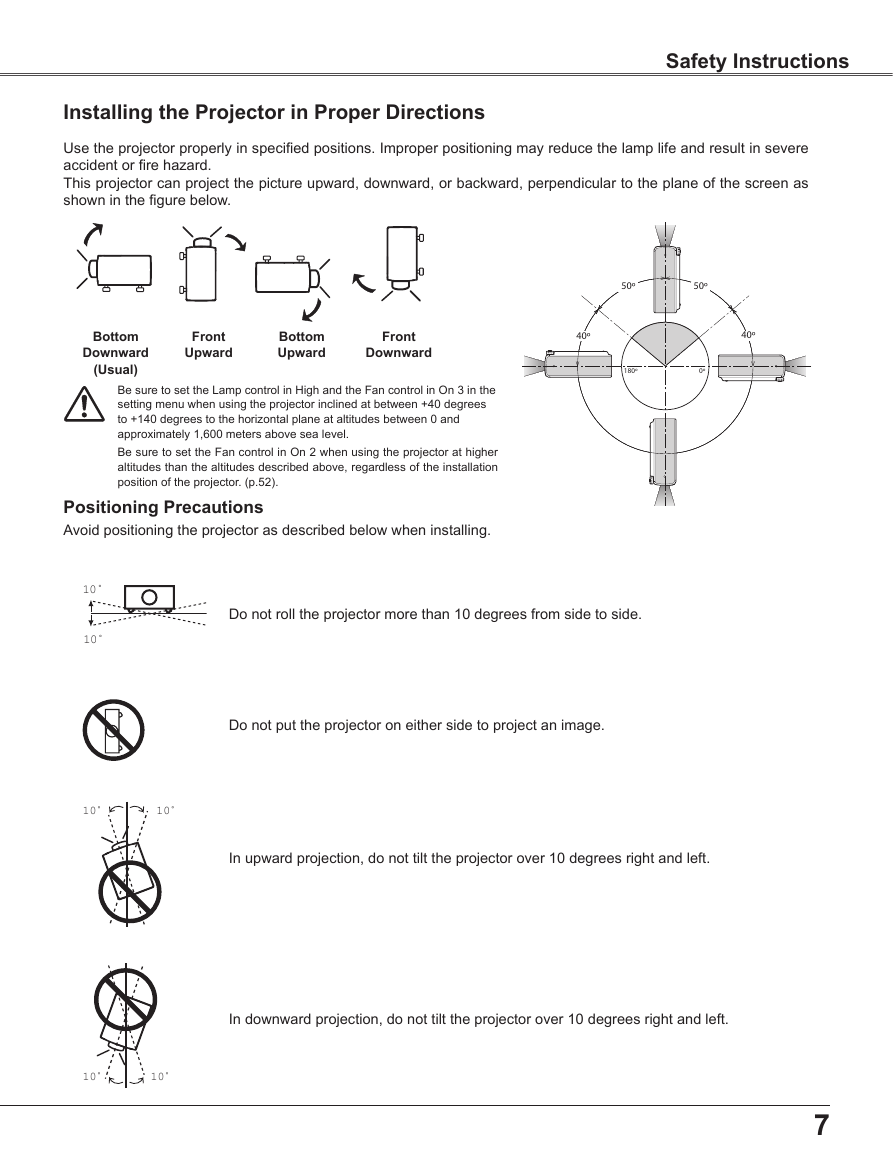

Installing the Projector in Proper Directions
Positioning Precautions

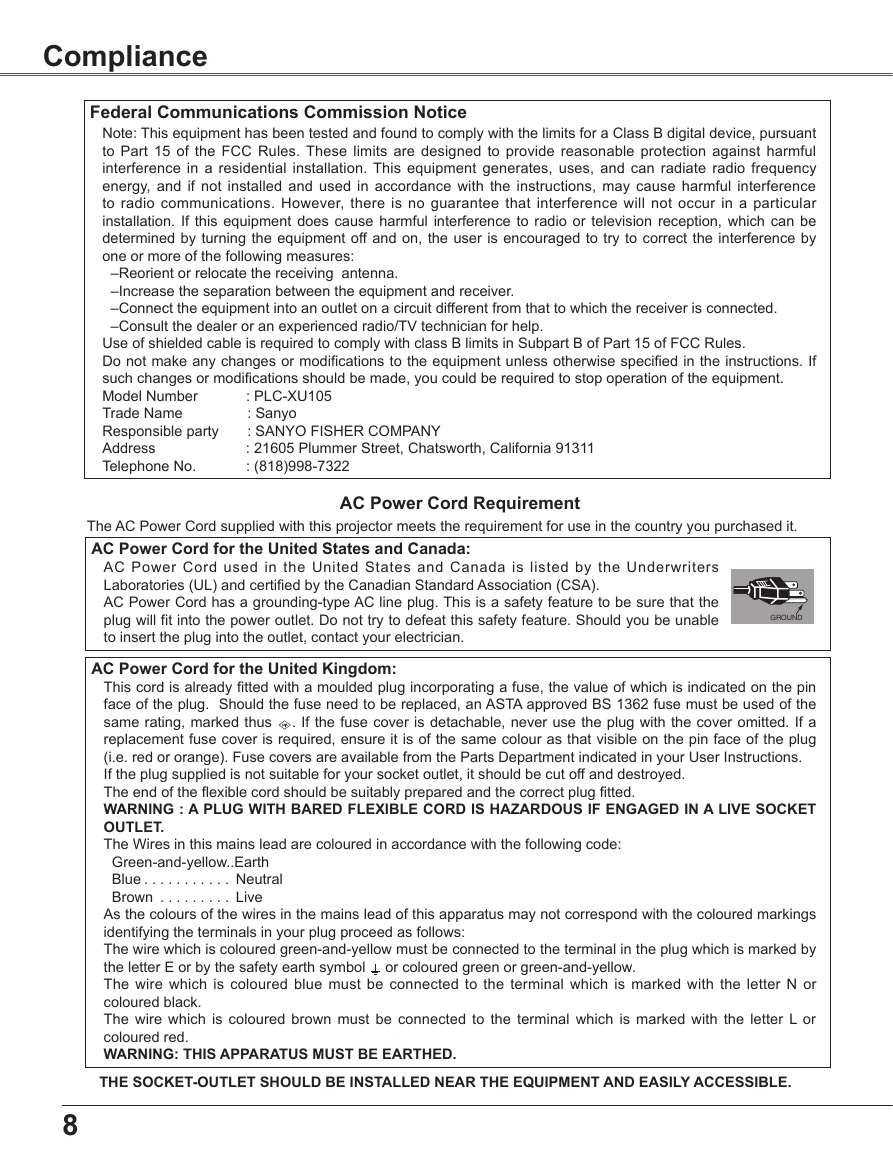

Compliance
Part Names and Functions
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Battery Installation
Remote Control Operating Range
Adjustable Feet
Installation
Positioning the Projector
Connecting the AC Power Cord
Connecting to a Computer
Connecting to Video Equipment
Connecting to Component Video Equipment
Basic Operation
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Zoom and Focus Adjustment
Auto Setup Function
Keystone Correction
Sound Adjustment
Remote Control Operation
Computer Input
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Mode Selection
Screen Size Adjustment
Video Input
Input Source Selection (Video, S-video)
Input Source Selection (Component, RGB Scart 21-pin)
Video System Selection
Image Mode Selection
Image Adjustment
Screen Size Adjustment
Setting
Setting
Maintenance and Cleaning
Warning Indicator
Cleaning the Filters
Resetting the Filter Counter
Attaching the Lens Cap
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Resetting the Lamp Counter
Appendix
Troubleshooting
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
Configurations of Terminals
Dimensions
PIN Code Number Memo
Multimedia Projector
MODEL PLC-XU105
Owner’s Manual

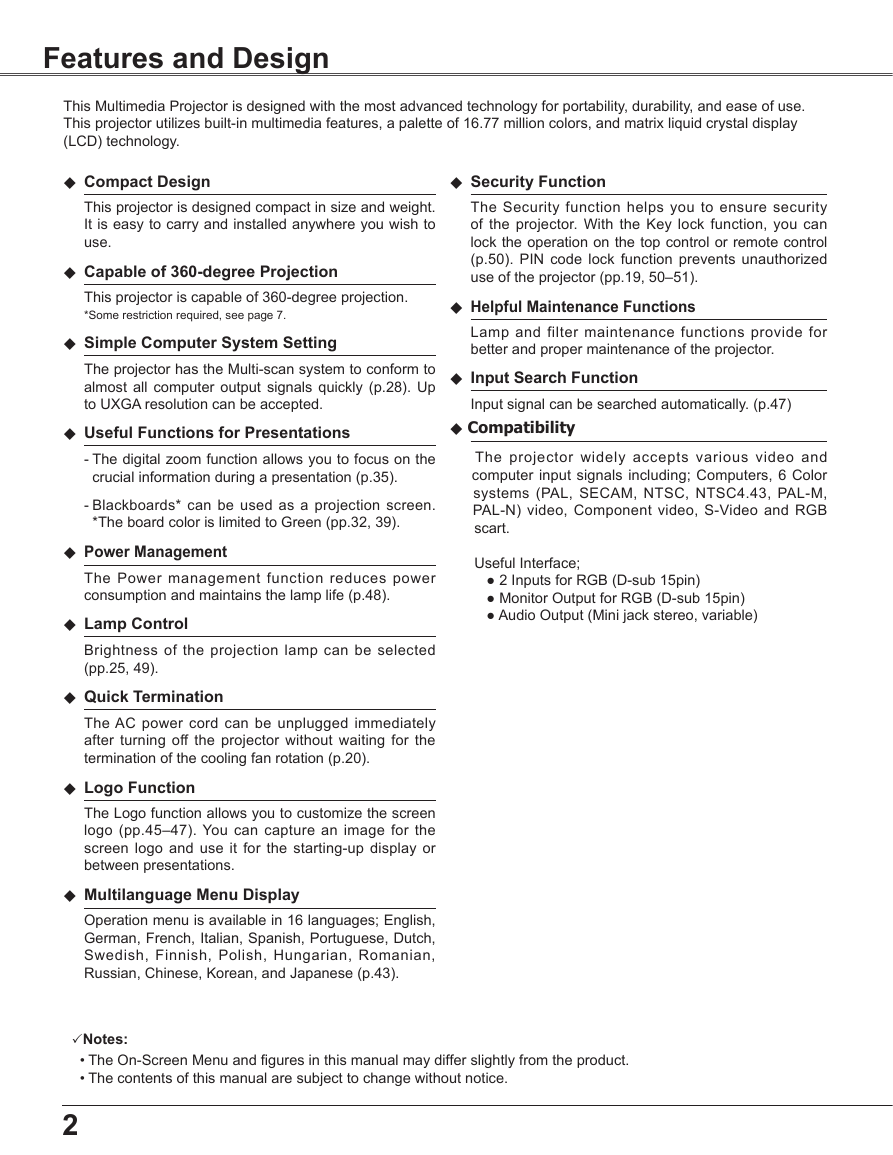

Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use.
This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display
(LCD) technology.
◆ Security Function
The Security function helps you to ensure security
of the projector. With the Key lock function, you can
lock the operation on the top control or remote control
(p.50). PIN code lock function prevents unauthorized
use of the projector (pp.19, 50–51).
◆ Helpful Maintenance Functions
Lamp and filter maintenance functions provide for
better and proper maintenance of the projector.
Input signal can be searched automatically. (p.47)
◆ Input Search Function
◆ Compatibility
The projector widely accepts various video and
computer input signals including; Computers, 6 Color
systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M,
PAL-N) video, Component video, S-Video and RGB
scart.
Useful Interface;
● 2 Inputs for RGB (D-sub 15pin)
● Monitor Output for RGB (D-sub 15pin)
● Audio Output (Mini jack stereo, variable)
◆ Compact Design
This projector is designed compact in size and weight.
It is easy to carry and installed anywhere you wish to
use.
◆ Capable of 360-degree Projection
This projector is capable of 360-degree projection.
*Some restriction required, see page 7.
◆ Simple Computer System Setting
The projector has the Multi-scan system to conform to
almost all computer output signals quickly (p.28). Up
to UXGA resolution can be accepted.
◆ Useful Functions for Presentations
- The digital zoom function allows you to focus on the
crucial information during a presentation (p.35).
- Blackboards* can be used as a projection screen.
*The board color is limited to Green (pp.32, 39).
◆ Power Management
The Power management function reduces power
consumption and maintains the lamp life (p.48).
◆ Lamp Control
Brightness of the projection lamp can be selected
(pp.25, 49).
◆ Quick Termination
The AC power cord can be unplugged immediately
after turning off the projector without waiting for the
termination of the cooling fan rotation (p.20).
◆ Logo Function
The Logo function allows you to customize the screen
logo (pp.45–47). You can capture an image for the
screen logo and use it for the starting-up display or
between presentations.
◆ Multilanguage Menu Display
Operation menu is available in 16 languages; English,
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Finnish, Polish, Hungarian, Romanian,
Russian, Chinese, Korean, and Japanese (p.43).
Notes:
• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.
Setting
34
Screen Size Adjustment
For zooming in and out the images 35
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .36
36
Input Source Selection (Video, S-video)
Input Source Selection
(Component, RGB Scart 21-pin)
Video System Selection
Image Mode Selection
Image Adjustment
Screen Size Adjustment
37
38
39
40
42
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
43
Maintenance and Cleaning . . . . . . . . . . . . .54
54
Warning Indicator
55
Cleaning the Filter
Resetting the Filter Counter
55
Attaching the Lens Cap 56
Cleaning the Projection Lens
56
56
Cleaning the Projector Cabinet
57
Lamp Replacement
Resetting the Lamp Counter
58
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
59
Troubleshooting
63
Menu Tree
65
Indicators and Projector Condition
66
Compatible Computer Specifications
67
Technical Specifications
68
Optional Parts
Configurations of Terminals
69
Dimensions 69
PIN Code Number Memo
70

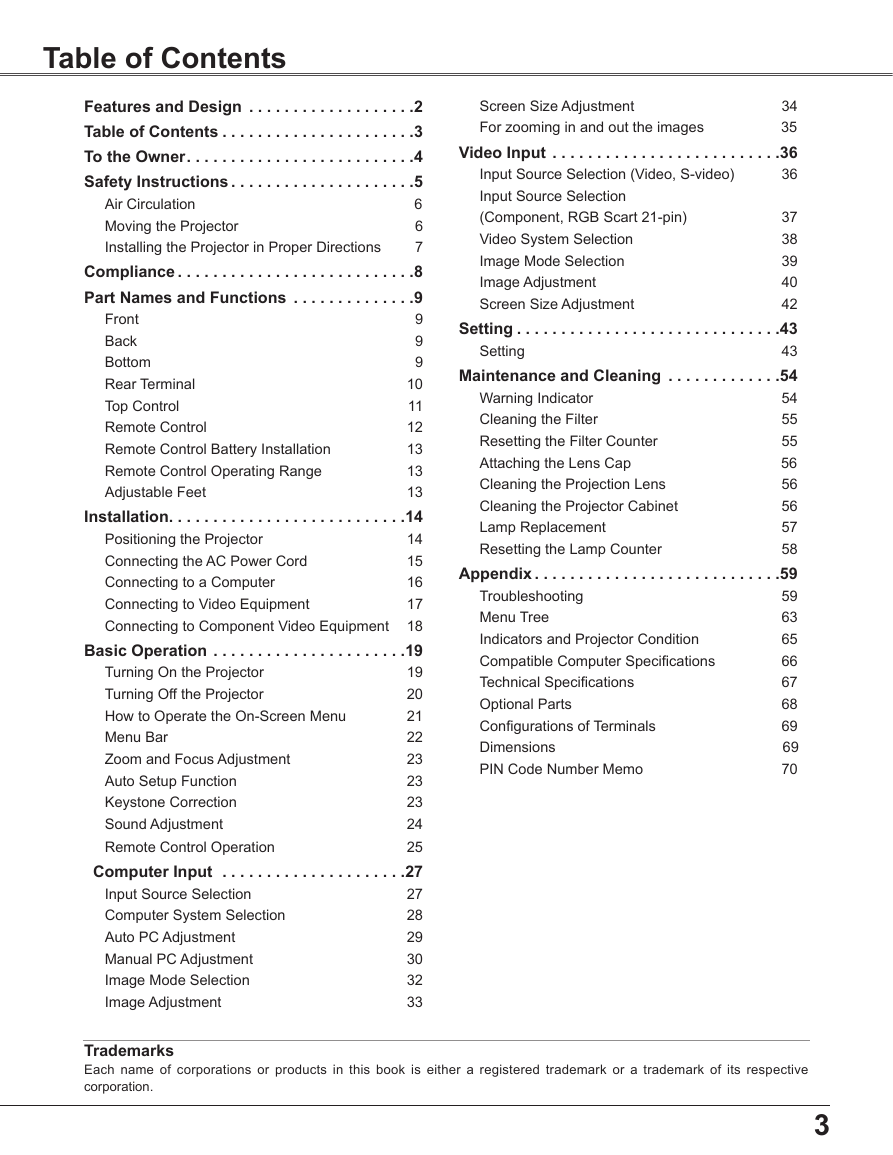

Table of Contents
Air Circulation
Moving the Projector
Installing the Projector in Proper Directions
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Battery Installation
Remote Control Operating Range
Adjustable Feet
Features and Design . . . . . . . . . . . . . . . . . . .
Table of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . . .5
6
6
7
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Part Names and Functions . . . . . . . . . . . . . .9
9
9
9
10
11
12
13
13
13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .14
14
Positioning the Projector
15
Connecting the AC Power Cord
Connecting to a Computer
16
Connecting to Video Equipment 17
Connecting to Component Video Equipment 18
Basic Operation . . . . . . . . . . . . . . . . . . . . . .19
19
20
21
22
23
23
23
24
25
Computer Input . . . . . . . . . . . . . . . . . . . . .7
27
28
29
30
32
33
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Zoom and Focus Adjustment
Auto Setup Function
Keystone Correction
Sound Adjustment
Remote Control Operation
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Mode Selection
Image Adjustment
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.
3

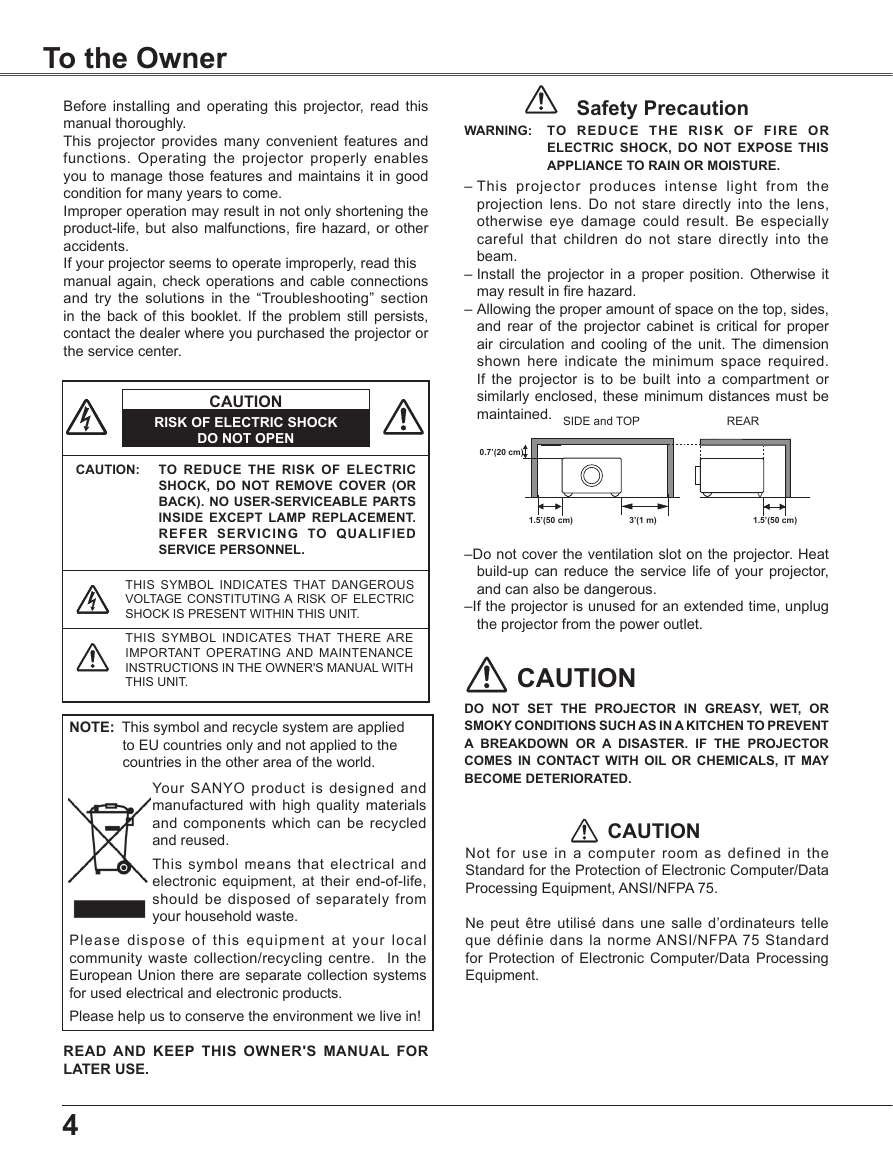

To the Owner
Before installing and operating this projector, read this
manual thoroughly.
This projector provides many convenient features and
functions. Operating the projector properly enables
you to manage those features and maintains it in good
condition for many years to come.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections
and try the solutions in the “Troubleshooting” section
in the back of this booklet. If the problem still persists,
contact the dealer where you purchased the projector or
the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK) . NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT .
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL .
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
NOTE: This symbol and recycle system are applied
to EU countries only and not applied to the
countries in the other area of the world.
Your SANYO product is designed and
manufactured with high quality materials
and components which can be recycled
and reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from
your household waste.
Please dispose of this equipment at your local
community waste collection/recycling centre. In the
European Union there are separate collection systems
for used electrical and electronic products.
Please help us to conserve the environment we live in!
READ AND KEEP THIS OwNER'S MANUAL FOR
LATER USE .
4
Safety Precaution
wARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE .
– This projector produces intense light from the
projection lens. Do not stare directly into the lens,
otherwise eye damage could result. Be especially
careful that children do not stare directly into the
beam.
– Install the projector in a proper position. Otherwise it
may result in fire hazard.
– Allowing the proper amount of space on the top, sides,
and rear of the projector cabinet is critical for proper
air circulation and cooling of the unit. The dimension
shown here indicate the minimum space required.
If the projector is to be built into a compartment or
similarly enclosed, these minimum distances must be
maintained.
SIDE and TOP
REAR
0 .7’(0 cm)
1 .5’(50 cm)
3’(1 m)
1 .5’(50 cm)
– Do not cover the ventilation slot on the projector. Heat
build-up can reduce the service life of your projector,
and can also be dangerous.
– If the projector is unused for an extended time, unplug
the projector from the power outlet.
CAUTION
DO NOT SET THE PROjECTOR IN GREASy, wET, OR
SMOKy CONDITIONS SUCH AS IN A KITCHEN TO PREVENT
A BREAKDOwN OR A DISASTER . IF THE PROjECTOR
COMES IN CONTACT wITH OIL OR CHEMICALS, IT MAy
BECOME DETERIORATED .
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle
que définie dans la norme ANSI/NFPA 75 Standard
for Protection of Electronic Computer/Data Processing
Equipment.

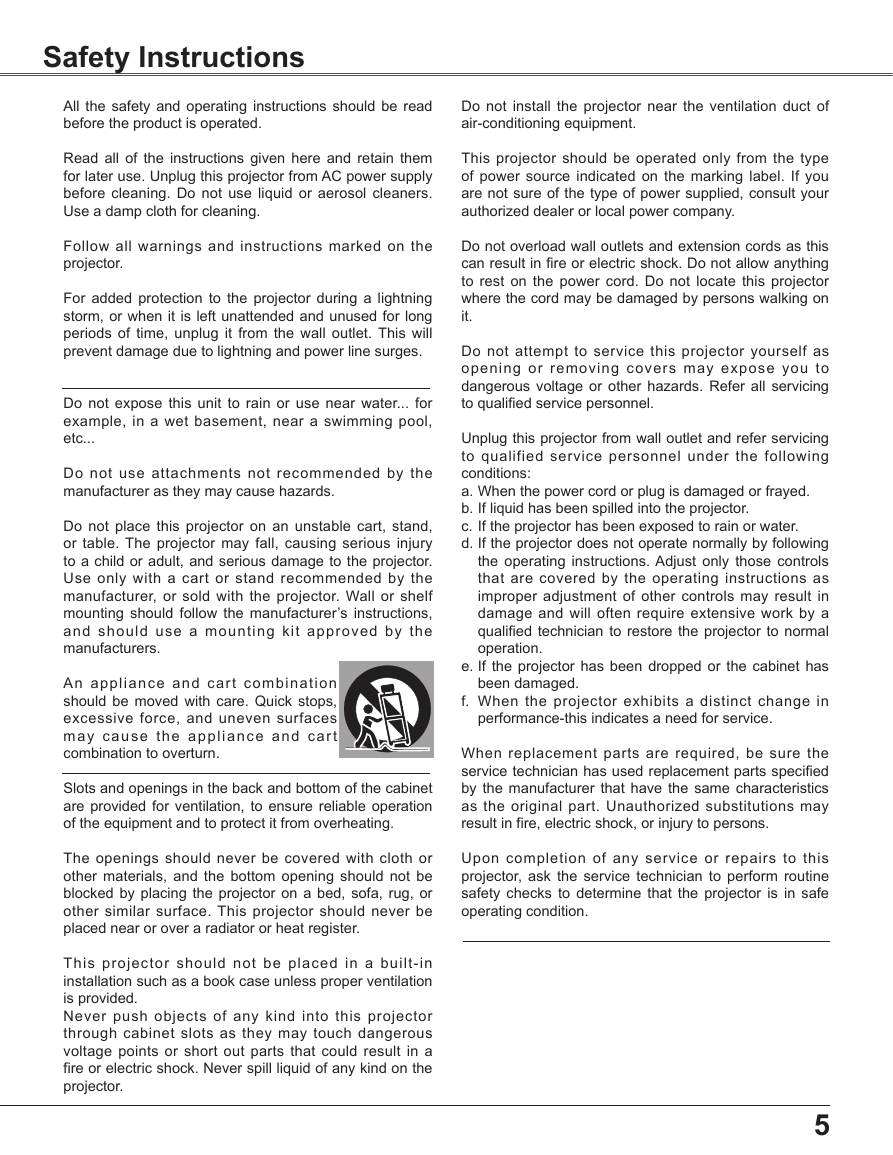

Safety Instructions
All the safety and operating instructions should be read
before the product is operated.
Do not install the projector near the ventilation duct of
air-conditioning equipment.
Read all of the instructions given here and retain them
for later use. Unplug this projector from AC power supply
before cleaning. Do not use liquid or aerosol cleaners.
Use a damp cloth for cleaning.
This projector should be operated only from the type
of power source indicated on the marking label. If you
are not sure of the type of power supplied, consult your
authorized dealer or local power company.
Follow all warnings and instructions marked on the
projector.
For added protection to the projector during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will
prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool,
etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand,
or table. The projector may fall, causing serious injury
to a child or adult, and serious damage to the projector.
Use only with a cart or stand recommended by the
manufacturer, or sold with the projector. Wall or shelf
mounting should follow the manufacturer’s instructions,
and should use a mounting kit approved by the
manufacturers.
An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet
are provided for ventilation, to ensure reliable operation
of the equipment and to protect it from overheating.
The openings should never be covered with cloth or
other materials, and the bottom opening should not be
blocked by placing the projector on a bed, sofa, rug, or
other similar surface. This projector should never be
placed near or over a radiator or heat register.
This projector should not be placed in a built-in
installation such as a book case unless proper ventilation
is provided.
Never push objects of any kind into this projector
through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the
projector.
Do not overload wall outlets and extension cords as this
can result in fire or electric shock. Do not allow anything
to rest on the power cord. Do not locate this projector
where the cord may be damaged by persons walking on
it.
Do not attempt to service this projector yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Unplug this projector from wall outlet and refer servicing
to qualified service personnel under the following
conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the projector to normal
operation.
e. If the projector has been dropped or the cabinet has
been damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the
service technician has used replacement parts specified
by the manufacturer that have the same characteristics
as the original part. Unauthorized substitutions may
result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this
projector, ask the service technician to perform routine
safety checks to determine that the projector is in safe
operating condition.
5
Moving the Projector
When moving the projector, replace the Lens Cap and
retract adjustable feet to prevent damage to the lens
and cabinet.
When the projector is not in use for an extended period,
put it into the supplied carrying case with the lens side
up.
CAUTION
The carrying case (supplied) is intended for protection
against dust and scratches on surface of the cabinet,
and it is not designed to protect an appliance from
external forces. Do not transport the projector by courier
or any other transport service with this case, otherwise
the projector can be damaged. When handling the
projector, do not drop, bump, subject it to strong forces,
or put other things on the cabinet.
CAUTION IN CARRyING OR TRANSPORTING
THE PROjECTOR
– Do not drop or bump the projector, otherwise damages
or malfunctions may result.
– When carrying the projector, use a suitable carrying
– Do not transport the projector by courier or any other
transport service in an unsuitable transport case. This
may cause damage to the projector. For information
about transporting the projector by courier or any other
transport service, consult your dealer.
– Do not put the projector in a case before the projector
is cooled enough.
case.
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation. To
ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked
or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using
or installing the projector, the following precautions
should be taken.
– Do not put any flammable object or spray can near the
projector, hot air is exhausted from the air vents.
– Keep the exhaust vent at least 3’ (1 m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic parts. These areas will
become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put on the
cabinet will not only get damaged but also may cause
fire hazard by heat.
Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the
temperature inside the projector.
Air Intake Vent
Air Intake Vent
Exhaust Vent
(Hot air exhaust)
Air Intake Vent
Air Intake Vent
6
Installing the Projector in Proper Directions
Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe
accident or fire hazard.
This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen as
shown in the figure below.
Safety Instructions
50º
50º
40º
40º
180º
0º
Bottom
Downward
(Usual)
Front
Upward
Bottom
Upward
Front
Downward
Be sure to set the Lamp control in High and the Fan control in On 3 in the
setting menu when using the projector inclined at between +40 degrees
to +140 degrees to the horizontal plane at altitudes between 0 and
approximately 1,600 meters above sea level.
Be sure to set the Fan control in On 2 when using the projector at higher
altitudes than the altitudes described above, regardless of the installation
position of the projector. (p.52).
Positioning Precautions
Avoid positioning the projector as described below when installing.
10˚
10˚
10˚
10˚
10˚
10˚
Do not roll the projector more than 10 degrees from side to side.
+50º
-50º
0º
NG
Do not put the projector on either side to project an image.
GOOD
180º
In upward projection, do not tilt the projector over 10 degrees right and left.
In downward projection, do not tilt the projector over 10 degrees right and left.
7
Compliance
Federal Communications Commission Notice
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number : PLC-XU105
Trade Name
Responsible party : SANYO FISHER COMPANY
Address
Telephone No. : (818)998-7322
: 21605 Plummer Street, Chatsworth, California 91311
: Sanyo
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the
plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable
to insert the plug into the outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin
face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the
same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a
replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug
(i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted.
wARNING : A PLUG wITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET .
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow..Earth
Blue . . . . . . . . . . . Neutral
Brown . . . . . . . . . Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by
the letter E or by the safety earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
wARNING: THIS APPARATUS MUST BE EARTHED .
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILy ACCESSIBLE .
or coloured green or green-and-yellow.
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
