Multimedia Projector
MODEL PLC-XU75
PLC-XU78
Owner's Manual
Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability,
and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors,
and matrix liquid crystal display (LCD) technology.
◆ Compact Design
◆ Multilanguage Menu Display
Operation menu is available in 16
languages: English, German, French,
Italian, Spanish, Portuguese, Dutch,
Swedish, Finnish, Polish, Hungarian,
Romanian, Russian, Chinese, Korean, and
Japanese. (p.4)
◆ Logo Function
The Logo function allows you to customize
the screen logo with the Logo functions.
(p.43-45) You can capture an image for
the screen logo, choose a logo between
provided and captured.
◆ Switchable Interface Terminal
The projector provides a switchable
interface terminal. You can use the terminal
as computer input or monitor output
conveniently. (p.47)
◆ Power Management
The Power management function reduces
power consumption and maintains the
lamp life. (p.47)
◆ Lamp Control
Brightness of the projection lamp can be
selected. (p.48)
◆ Security Function
The Security function helps you to ensure
the security with the Key lock (p.49) and
the PIN code lock (p.18, 49, 50) functions.
You can lock the operation on the projector
and the remote control. Also you can
prevent unauthorized persons from using
the projector.
◆ Input Search Function
Input signal can be searched automatically.
(p.46)
This projector is designed compact in size
and weight. It is easy to carry and work
anywhere you wish to use.
◆ Compatibility
The projector widely accepts various video
and computer input signals including:
Computers, 6 Color systems (PAL,
SECAM, NTSC, NTSC4.43, PAL-M, and
PAL-N), Component video, S-Video and
RGB scart.
◆ Simple Computer System Setting
The projector has the Multi-scan system
to conform to almost all computer output
signals quickly. (p.6)
◆ Digital Zoom (for Computer)
The digital zoom function expands (to
approx. 16 times of the screen size) or
compresses (to approx. a half of the
screen size) the image size, allowing you
to focus on crucial information during the
presentation. (p.34)
◆ Noise reduction function
The Noise reduction function helps you to
reduce the contained noise on the screen
to get smoother images. (p.40)
◆ Blackboard Function
Blackboard* can be used as a projection
screen.
*The board color is limited to Green. (p.30, 38)
◆ Quick Termination
The AC power cord can be unplugged
immediately after turning off the projector
without waiting for the termination of the
cooling fan rotation.
✔ Note:
• The On-Screen Menu and figures in this manual may differ slightly from the product.
• The contents of this manual are subject to change without notice.
Table of Contents
Air Circulation
Installing the Projector in Proper
Position
Moving the Projector
Features and Design . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . .5
6
6
6
Compliance . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . .8
8
8
8
9
10
11
1
1
Installation . . . . . . . . . . . . . . . . . . . . . .13
13
13
14
15
16
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Battery Installation
Operating Range
Positioning the Projector
Adjustable Feet
Connecting the AC Power Cord
Connecting to a Computer
Connecting to Video Equipment
Connecting to Component Video
Equipment
17
Basic Operation . . . . . . . . . . . . . . . . .18
18
Turning On the Projector
Turning Off the Projector
19
How to Operate the On-Screen Menu 0
1
Menu Bar
Zoom and Focus Adjustment
Keystone Correction
3
Sound Adjustment
Remote Control Operation
3
Setting
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Computer Input . . . . . . . . . . . . . . . . .25
5
6
7
8
30
31
3
Video Input . . . . . . . . . . . . . . . . . . . . .35
Input Source Selection (Video, S-Video)35
Input Source Selection
(Component, RGB Scart 1-pin)
Video System Selection
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
36
37
38
39
41
Setting . . . . . . . . . . . . . . . . . . . . . . . . .42
4
Maintenance and Cleaning . . . . . . . .52
5
53
53
54
54
55
56
Appendix . . . . . . . . . . . . . . . . . . . . . . .57
57
Troubleshooting
59
Menu Tree
61
Indicators and Projector Condition
6
Compatible Computer Specifications
63
Technical Specifications
64
Optional Parts
Configurations of Terminals
65
Dimensions 65
PIN Code Number Memo
66
Lamp Replacement Label 66
Warning Temp. Indicator
Cleaning the Air Filters
Attaching the Lens Cover
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Lamp Replacement Counter
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its
respective corporation.
3
To the Owner
Before operating this projector, read this manual
thoroughly and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables
you to manage those features and maintains it in
better condition for a considerable time.
Improper operation may result in not only shortening
the product-life, but also malfunctions, fire hazard, or
other accidents.
If your projector seems to operate improperly,
read this manual again, check operations and
cable connections and try the solutions in the
"Troubleshooting" section in the end of this booklet.
If the problem still persists, contact the dealer where
you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK) . NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT .
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL .
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
NOTE: This symbol and recycle system are applied to EU
countries only and not applied to the countries in the
other area of the world.
Your SANYO product is designed
and manufactured with high quality
materials and components which
can be recycled and reused.
This symbol means that electrical
and electronic equipment, at their
end-of-life, should be disposed of
separately from your household
waste.
Please dispose of this equipment at your local
community waste collection/recycling centre. In
the European Union there are separate collection
systems for used electrical and electronic products.
Please help us to conserve the environment we live
in!
4
Safety Precaution
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE .
– This projector produces intense light from the
projection lens.Do not stare directly into the lens,
otherwise, eye damage could result. Be especially
careful that children do not stare directly into the
beam.
– Install the projector in a proper position. If not, it
may result in a fire hazard.
– Provide appropriate space on the top, sides
and rear of the projector cabinet for allowing air
circulation and cooling the projector. Minimum
clearance must be maintained. If the projector is to
be built into a compartment or similarly enclosed,
the minimum distances must be maintained. Do
not cover the ventilation slot on the projector.
Heat build-up can reduce the service life of your
projector, and can also be dangerous.
SIDE and TOP
REAR
0.7'(20cm)
1.5'(50cm)
3'(1m)
1.5'(50cm)
– If the projector is not to be used for an extended
time, unplug the projector from the power outlet.
CAUTION
DO NOT SET THE PROjECTOR IN GREASy, WET,
OR SMOKy CONDITIONS SUCH AS IN A KITCHEN
TO PREVENT A BREAKDOWN OR A DISASTER . IF
THE PROjECTOR COMES IN CONTACT WITH OIL OR
CHEMICALS, IT MAy BECOME DETERIORATED .
CAUTION
Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle
que définie dans la norme ANSI/NFPA 75 Standard
for Protection of Electronic Computer/Data Processing
Equipment.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE .
Safety Instructions
All the safety and operating instructions should be read
before the product is operated.
Read all of the instructions given here and retain them
for later use. Unplug this projector from AC power
supply before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the
projector.
For added protection to the projector during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This

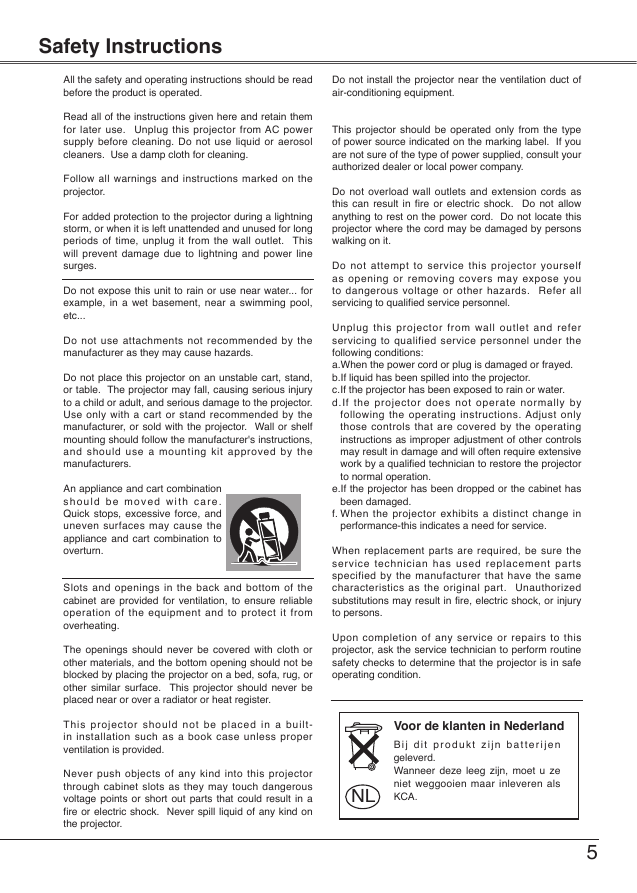

will prevent damage due to lightning and power line
surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool,
etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand,
or table. The projector may fall, causing serious injury
to a child or adult, and serious damage to the projector.
Use only with a cart or stand recommended by the
manufacturer, or sold with the projector. Wall or shelf
mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the
manufacturers.
An appliance and cart combination
should be moved with care.
Quick stops, excessive force, and
uneven surfaces may cause the
appliance and cart combination to
overturn.
Slots and openings in the back and bottom of the
cabinet are provided for ventilation, to ensure reliable
operation of the equipment and to protect it from
overheating.
The openings should never be covered with cloth or
other materials, and the bottom opening should not be
blocked by placing the projector on a bed, sofa, rug, or
other similar surface. This projector should never be
placed near or over a radiator or heat register.
This projector should not be placed in a built-
in installation such as a book case unless proper
ventilation is provided.
Never push objects of any kind into this projector
through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a
fire or electric shock. Never spill liquid of any kind on
the projector.
Do not install the projector near the ventilation duct of
air-conditioning equipment.
This projector should be operated only from the type
of power source indicated on the marking label. If you
are not sure of the type of power supplied, consult your
authorized dealer or local power company.
Do not overload wall outlets and extension cords as
this can result in fire or electric shock. Do not allow
anything to rest on the power cord. Do not locate this
projector where the cord may be damaged by persons
walking on it.
Do not attempt to service this projector yourself
as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Unplug this projector from wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a.When the power cord or plug is damaged or frayed.
b.If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d.If the projector does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as improper adjustment of other controls
may result in damage and will often require extensive
work by a qualified technician to restore the projector
to normal operation.
e.If the projector has been dropped or the cabinet has
been damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer that have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or injury
to persons.
Upon completion of any service or repairs to this
projector, ask the service technician to perform routine
safety checks to determine that the projector is in safe
operating condition.
Voor de klanten in Nederland
Bij dit produkt zijn batterijen
geleverd.
Wanneer deze leeg zijn, moet u ze
niet weggooien maar inleveren als
KCA.
NL
5

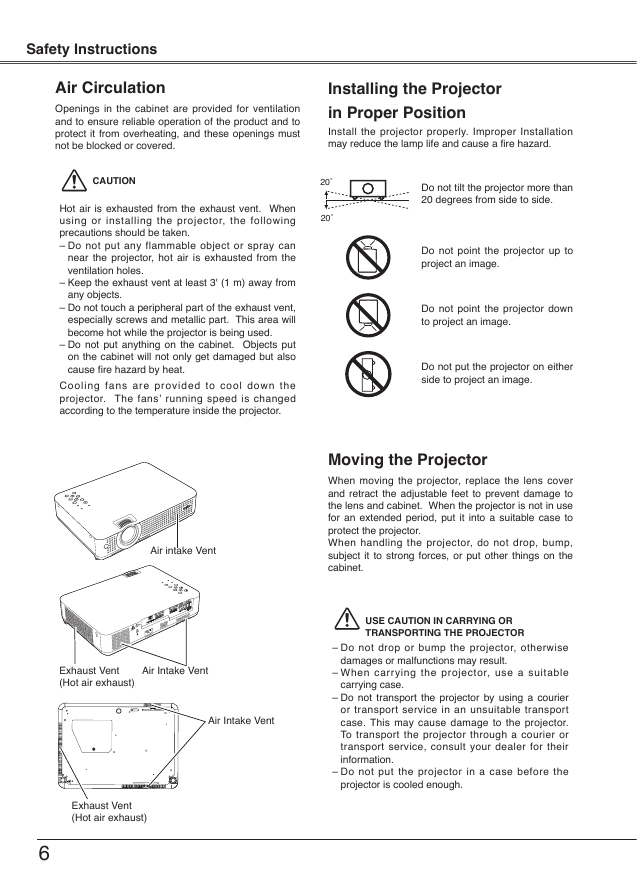

Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to
protect it from overheating, and these openings must
not be blocked or covered.
Installing the Projector
in Proper Position
Install the projector properly. Improper Installation
may reduce the lamp life and cause a fire hazard.
20˚
20˚
CAUTION
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can
near the projector, hot air is exhausted from the
ventilation holes.
– Keep the exhaust vent at least 3' (1 m) away from
any objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will
become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put
on the cabinet will not only get damaged but also
cause fire hazard by heat.
Cooling fans are provided to cool down the
projector. The fans’ running speed is changed
according to the temperature inside the projector.
Do not tilt the projector more than
0 degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down
to project an image.
Do not put the projector on either
side to project an image.
Moving the Projector
When moving the projector, replace the lens cover
and retract the adjustable feet to prevent damage to
the lens and cabinet. When the projector is not in use
for an extended period, put it into a suitable case to
protect the projector.
When handling the projector, do not drop, bump,
subject it to strong forces, or put other things on the
cabinet.
USE CAUTION IN CARRyING OR
TRANSPORTING THE PROjECTOR
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable
carrying case.
– Do not transport the projector by using a courier
or transport service in an unsuitable transport
case. This may cause damage to the projector.
To transport the projector through a courier or
transport service, consult your dealer for their
information.
– Do not put the projector in a case before the
projector is cooled enough.
Air intake Vent
Exhaust Vent
(Hot air exhaust)
Air Intake Vent
Air Intake Vent
Exhaust Vent
(Hot air exhaust)
6
Compliance
Federal Communications Commission Notice
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number
Trade Name
Responsible party
Address
Telephone No.
: PLC-XU75/PLC-XU78
: Sanyo
: SANYO FISHER COMPANY
: 1605 Plummer Street, Chatsworth, California 91311
: (818)998-73
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure
that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should
you be unable to insert the plug into the outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin
face of the plug. Should the fuse need to be replaced, an ASTA approved BS 136 fuse must be used of the
same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a
replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug
(i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET .
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow . . . . . . Earth
Blue. . . . . . . . . . . . . . . . . Neutral
Brown . . . . . . . . . . . . . . . Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked
by the letter E or by the safety earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED .
or coloured green or green-and-yellow.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILy ACCESSIBLE .
7
Part Names and Functions
Front
q
w
e r
t
y
Back
!1
y
u
!0oi
y
✽
Bottom
!2
!3
!4
!5
q Infrared Remote Receiver
w Zoom Ring
e Projection Lens
r Focus Ring
t Lens Cover
y Air Intake Vent
(See page 53 for attaching.)
u Power Cord Connector
i Speaker
o Terminals and Connectors
!0 Top Controls and Indicators
!1 Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do
not put heat-sensitive objects near this side.
!2 Lamp Cover
!3 Air Intake Vents (back and bottom)
!4 Air Filters
!5 Adjustable Feet
✽ Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
