三洋投影机-PLC-XW60说明书.pdf
Features and Design
Table of Contents
To the Owner
Safety Instructions
Air Circulation
Installing the Projector in ProperPosition
Moving the Projector

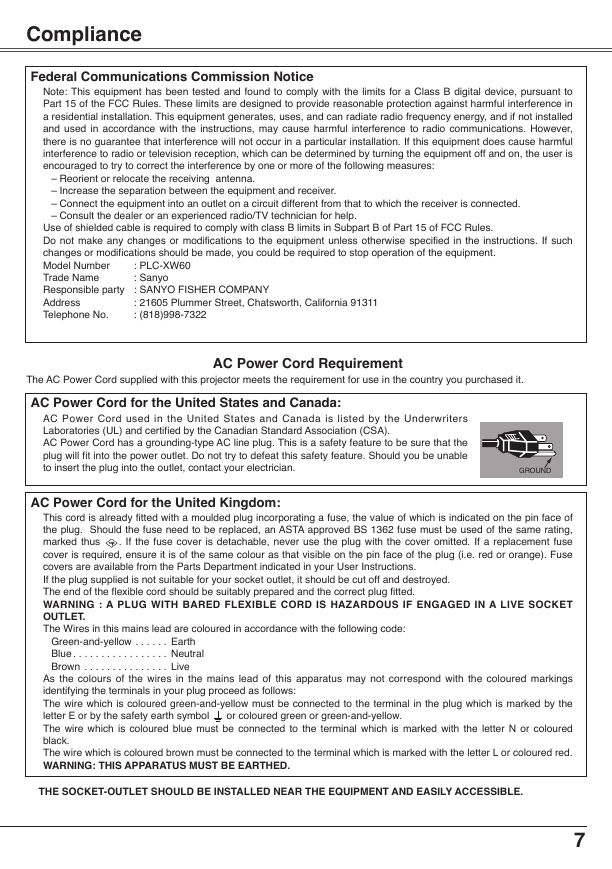

Compliance

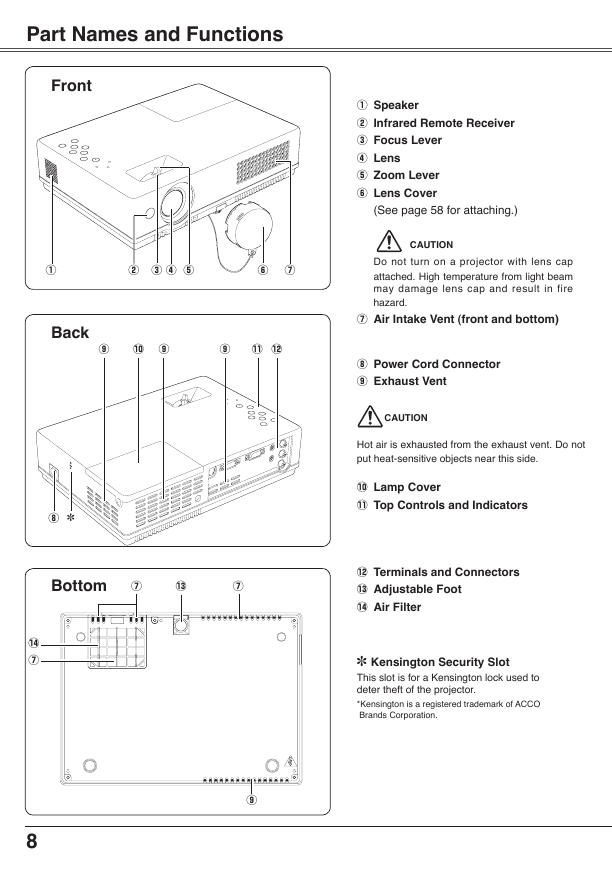

Part Names and Functions
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Battery Installation
Operating Range
Installation
Positioning the Projector
Adjustable Foot
Using the ferrite core
Connecting the AC Power Cord
Connecting to a Computer
Connecting to Video Equipment
Connecting to Component Video and RGB (Scart) Equipment
Basic Operation
Turning On the Projector
Turning Off the Projector
How to Operate the On-Screen Menu
Menu Bar
Zoom and Focus Adjustment
Auto setup function
Keystone Correction
Sound Adjustment
Remote Control Operation
Computer Input
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Video Input
Input Source Selection (Video)
Input Source Selection (S-video, Component, RGB Scart 21-pin)
Video System Selection
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Setting
Setting
Maintenance and Cleaning
Warning indicator
Cleaning the Air Filter
Attaching the Lens Cover
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Resetting the Lamp Counter
Appendix
Troubleshooting
Menu Tree
Indicators and Projector Condition
Compatible Computer Specifications
Technical Specifications
Optional Parts
Configurations of Terminals
Dimensions
PIN Code Number Memo
Multimedia Projector
MODEL PLC-XW60
Owner's Manual

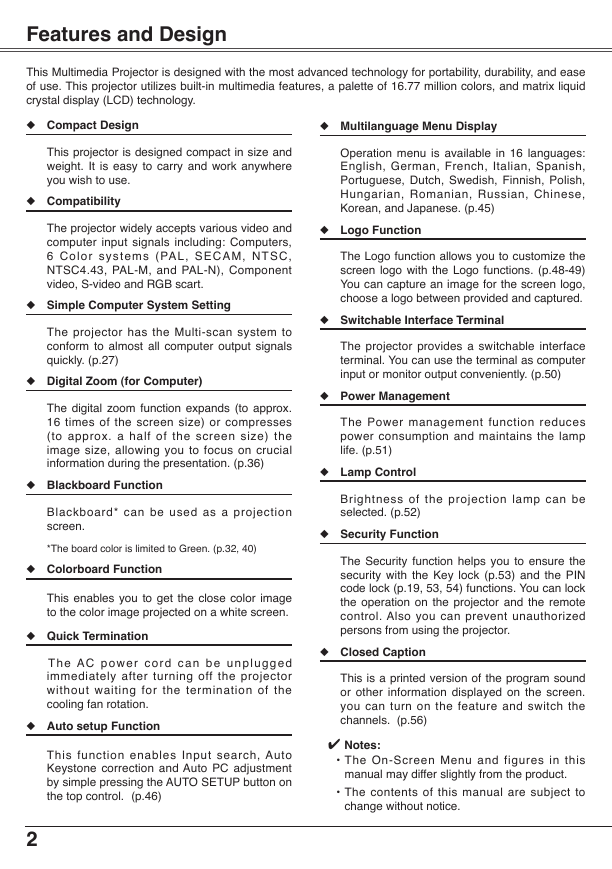

Features and Design
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease
of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid
crystal display (LCD) technology.
◆ Compact Design
◆ Colorboard Function
This enables you to get the close color image
to the color image projected on a white screen.
◆ Quick Termination
The AC power cord can be unplugged
immediately after turning off the projector
without waiting for the termination of the
cooling fan rotation.
◆ Auto setup Function
This function enables Input search, Auto
Keystone correction and Auto PC adjustment
by simple pressing the AUTO SETUP button on
the top control. (p.46)
This projector is designed compact in size and
weight. It is easy to carry and work anywhere
you wish to use.
◆ Compatibility
The projector widely accepts various video and
computer input signals including: Computers,
6 Color systems (PAL, SECAM, NTSC,
NTSC4.43, PAL-M, and PAL-N), Component
video, S-video and RGB scart.
◆ Simple Computer System Setting
The projector has the Multi-scan system to
conform to almost all computer output signals
quickly. (p.27)
◆ Digital Zoom (for Computer)
The digital zoom function expands (to approx.
16 times of the screen size) or compresses
(to approx. a half of the screen size) the
image size, allowing you to focus on crucial
information during the presentation. (p.36)
◆ Blackboard Function
Blackboard* can be used as a projection
screen.
*The board color is limited to Green. (p.32, 40)
◆ Multilanguage Menu Display
Operation menu is available in 16 languages:
English, German, French, Italian, Spanish,
Portuguese, Dutch, Swedish, Finnish, Polish,
Hungarian, Romanian, Russian, Chinese,
Korean, and Japanese. (p.45)
◆ Logo Function
The Logo function allows you to customize the
screen logo with the Logo functions. (p.48-49)
You can capture an image for the screen logo,
choose a logo between provided and captured.
◆ Switchable Interface Terminal
The projector provides a switchable interface
terminal. You can use the terminal as computer
input or monitor output conveniently. (p.50)
◆ Power Management
The Power management function reduces
power consumption and maintains the lamp
life. (p.51)
◆ Lamp Control
Brightness of the projection lamp can be
selected. (p.52)
◆ Security Function
The Security function helps you to ensure the
security with the Key lock (p.53) and the PIN
code lock (p.19, 53, 54) functions. You can lock
the operation on the projector and the remote
control. Also you can prevent unauthorized
persons from using the projector.
◆ Closed Caption
This is a printed version of the program sound
or other information displayed on the screen.
you can turn on the feature and switch the
channels. (p.56)
✔ Notes:
• The On-Screen Menu and figures in this
manual may differ slightly from the product.
• The contents of this manual are subject to
change without notice.

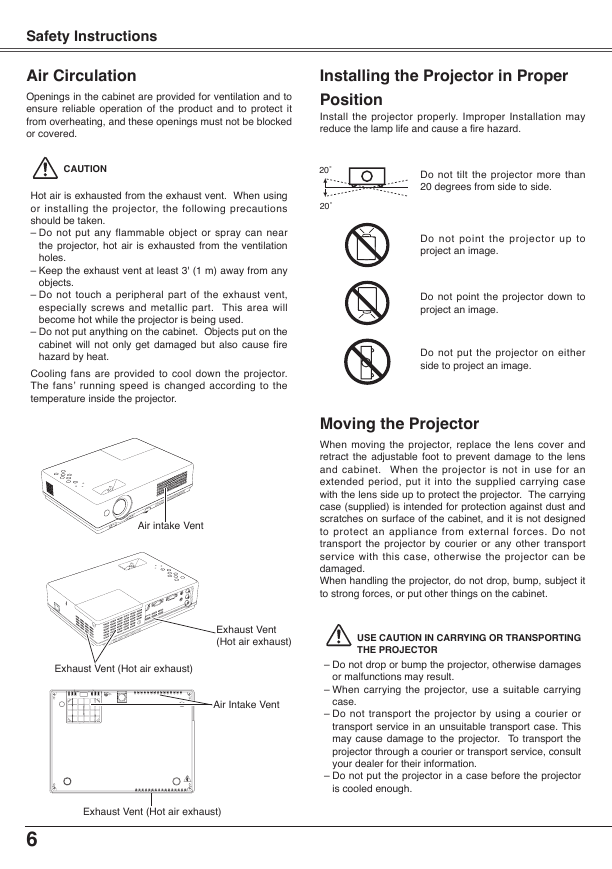

Air Circulation
Installing the Projector in Proper
Position
Moving the Projector

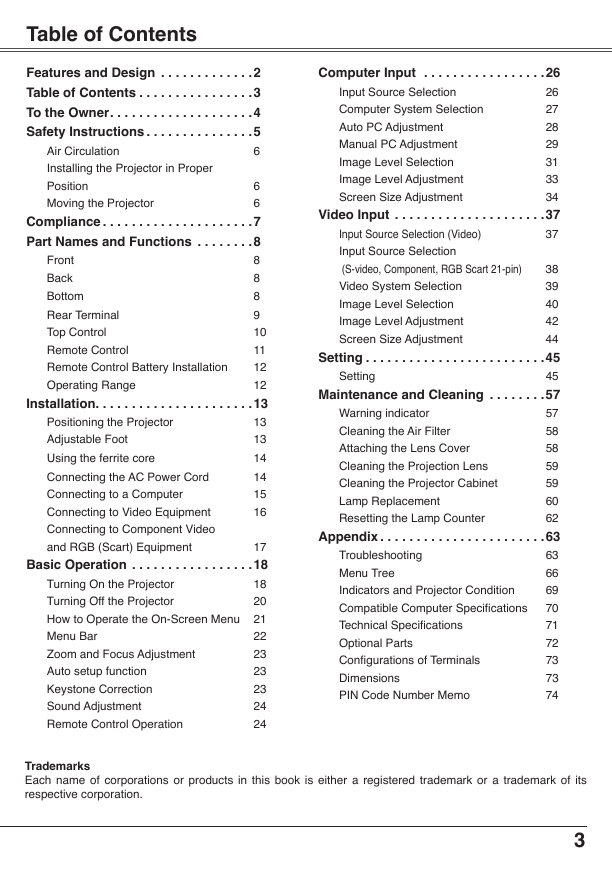

Table of Contents
Features and Design . . . . . . . . . . . . .
Table of Contents . . . . . . . . . . . . . . . .
To the Owner . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . .5
6
6
6
Compliance . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . .8
8
8
8
9
10
11
12
12
Installation . . . . . . . . . . . . . . . . . . . . . .1
13
13
14
14
15
16
Front
Back
Bottom
Rear Terminal
Top Control
Remote Control
Remote Control Battery Installation
Operating Range
Positioning the Projector
Adjustable Foot
Using the ferrite core
Connecting the AC Power Cord
Connecting to a Computer
Connecting to Video Equipment
Connecting to Component Video
and RGB (Scart) Equipment
17
Basic Operation . . . . . . . . . . . . . . . . .18
18
Turning On the Projector
Turning Off the Projector
20
How to Operate the On-Screen Menu 21
Menu Bar
22
23
Zoom and Focus Adjustment
23
Auto setup function
23
Keystone Correction
Sound Adjustment
24
24
Remote Control Operation
Setting
Input Source Selection
Computer System Selection
Auto PC Adjustment
Manual PC Adjustment
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Computer Input . . . . . . . . . . . . . . . . .6
26
27
28
29
31
33
34
Video Input . . . . . . . . . . . . . . . . . . . . .7
37
Input Source Selection (Video)
Input Source Selection
(S-video, Component, RGB Scart 21-pin)
Video System Selection
Image Level Selection
Image Level Adjustment
Screen Size Adjustment
Warning indicator
Cleaning the Air Filter
Attaching the Lens Cover
Cleaning the Projection Lens
Cleaning the Projector Cabinet
Lamp Replacement
Resetting the Lamp Counter
38
39
40
42
44
Setting . . . . . . . . . . . . . . . . . . . . . . . . .45
45
Maintenance and Cleaning . . . . . . . .57
57
58
58
59
59
60
62
Appendix . . . . . . . . . . . . . . . . . . . . . . .6
63
Troubleshooting
66
Menu Tree
69
Indicators and Projector Condition
70
Compatible Computer Specifications
71
Technical Specifications
72
Optional Parts
Configurations of Terminals
73
Dimensions 73
PIN Code Number Memo
74
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its
respective corporation.

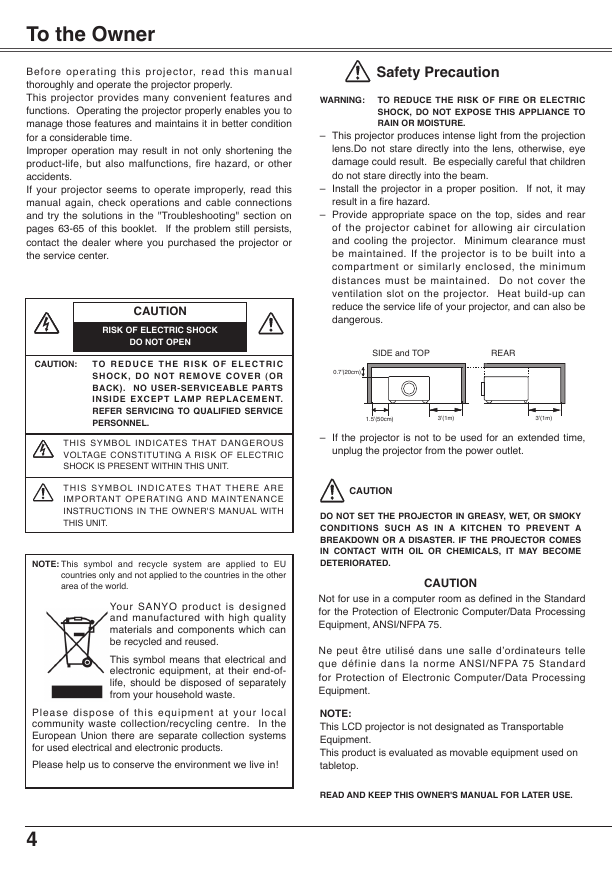

To the Owner
Before operating this projector, read this manual
thoroughly and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition
for a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections
and try the solutions in the "Troubleshooting" section on
pages 63-65 of this booklet. If the problem still persists,
contact the dealer where you purchased the projector or
the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK) . NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT .
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL .
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
NOTE: This symbol and recycle system are applied to EU
countries only and not applied to the countries in the other
area of the world.
Your SANYO product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their end-of-
life, should be disposed of separately
from your household waste.
Please dispose of this equipment at your local
community waste collection/recycling centre. In the
European Union there are separate collection systems
for used electrical and electronic products.
Please help us to conserve the environment we live in!
4
Safety Precaution
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE .
– This projector produces intense light from the projection
lens.Do not stare directly into the lens, otherwise, eye
damage could result. Be especially careful that children
do not stare directly into the beam.
– Install the projector in a proper position. If not, it may
result in a fire hazard.
– Provide appropriate space on the top, sides and rear
of the projector cabinet for allowing air circulation
and cooling the projector. Minimum clearance must
be maintained. If the projector is to be built into a
compartment or similarly enclosed, the minimum
distances must be maintained. Do not cover the
ventilation slot on the projector. Heat build-up can
reduce the service life of your projector, and can also be
dangerous.
SIDE and TOP
REAR
0.7'(20cm)
1.5'(50cm)
3'(1m)
3'(1m)
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
CAUTION
DO NOT SET THE PROjECTOR IN GREASy, WET, OR SMOKy
CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A
BREAKDOWN OR A DISASTER . IF THE PROjECTOR COMES
IN CONTACT WITH OIL OR CHEMICALS, IT MAy BECOME
DETERIORATED .
CAUTION
Not for use in a computer room as defined in the Standard
for the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle
que définie dans la norme ANSI/NFPA 75 Standard
for Protection of Electronic Computer/Data Processing
Equipment.
NOTE:
This LCD projector is not designated as Transportable
Equipment.
This product is evaluated as movable equipment used on
tabletop.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE .

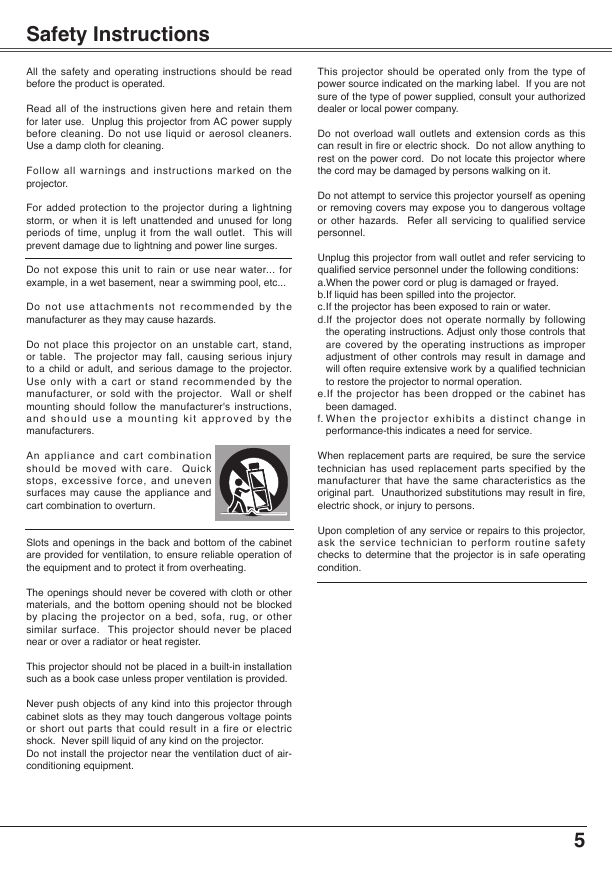

Safety Instructions
All the safety and operating instructions should be read
before the product is operated.
Read all of the instructions given here and retain them
for later use. Unplug this projector from AC power supply
before cleaning. Do not use liquid or aerosol cleaners.
Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the
projector.
For added protection to the projector during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will
prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand,
or table. The projector may fall, causing serious injury
to a child or adult, and serious damage to the projector.
Use only with a cart or stand recommended by the
manufacturer, or sold with the projector. Wall or shelf
mounting should follow the manufacturer's instructions,
and should use a mounting kit approved by the
manufacturers.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance and
cart combination to overturn.
Slots and openings in the back and bottom of the cabinet
are provided for ventilation, to ensure reliable operation of
the equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked
by placing the projector on a bed, sofa, rug, or other
similar surface. This projector should never be placed
near or over a radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of air-
conditioning equipment.
This projector should be operated only from the type of
power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized
dealer or local power company.
Do not overload wall outlets and extension cords as this
can result in fire or electric shock. Do not allow anything to
rest on the power cord. Do not locate this projector where
the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a.When the power cord or plug is damaged or frayed.
b.If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d.If the projector does not operate normally by following
the operating instructions. Adjust only those controls that
are covered by the operating instructions as improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the projector to normal operation.
e.If the projector has been dropped or the cabinet has
been damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety
checks to determine that the projector is in safe operating
condition.
5
Safety Instructions
Air Circulation
Openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked
or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using
or installing the projector, the following precautions
should be taken.
– Do not put any flammable object or spray can near
the projector, hot air is exhausted from the ventilation
holes.
– Keep the exhaust vent at least 3' (1 m) away from any
objects.
– Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will
become hot while the projector is being used.
– Do not put anything on the cabinet. Objects put on the
cabinet will not only get damaged but also cause fire
hazard by heat.
Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the
temperature inside the projector.
Air intake Vent
Exhaust Vent (Hot air exhaust)
Exhaust Vent
(Hot air exhaust)
Air Intake Vent
Exhaust Vent (Hot air exhaust)
6
Installing the Projector in Proper
Position
Install the projector properly. Improper Installation may
reduce the lamp life and cause a fire hazard.
20˚
20˚
Do not tilt the projector more than
20 degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down to
project an image.
Do not put the projector on either
side to project an image.
Moving the Projector
When moving the projector, replace the lens cover and
retract the adjustable foot to prevent damage to the lens
and cabinet. When the projector is not in use for an
extended period, put it into the supplied carrying case
with the lens side up to protect the projector. The carrying
case (supplied) is intended for protection against dust and
scratches on surface of the cabinet, and it is not designed
to protect an appliance from external forces. Do not
transport the projector by courier or any other transport
service with this case, otherwise the projector can be
damaged.
When handling the projector, do not drop, bump, subject it
to strong forces, or put other things on the cabinet.
USE CAUTION IN CARRyING OR TRANSPORTING
THE PROjECTOR
– Do not drop or bump the projector, otherwise damages
or malfunctions may result.
– When carrying the projector, use a suitable carrying
case.
– Do not transport the projector by using a courier or
transport service in an unsuitable transport case. This
may cause damage to the projector. To transport the
projector through a courier or transport service, consult
your dealer for their information.
– Do not put the projector in a case before the projector
is cooled enough.
Compliance
Federal Communications Commission Notice
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number
Trade Name
Responsible party
Address
Telephone No.
: PLC-XW60
: Sanyo
: SANYO FISHER COMPANY
: 21605 Plummer Street, Chatsworth, California 91311
: (818)998-7322
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the
plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable
to insert the plug into the outlet, contact your electrician.
GROUND
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of
the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating,
marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse
cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse
covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted.
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET .
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow . . . . . . Earth
Blue. . . . . . . . . . . . . . . . . Neutral
Brown . . . . . . . . . . . . . . . Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED .
or coloured green or green-and-yellow.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILy ACCESSIBLE .
7
Part Names and Functions
Front
q
w
e r
t
y
u
Back
o
!0
o
o
!1
!2
i ✽
Bottom
u
!3
u
!4
u
8
o
q Speaker
w Infrared Remote Receiver
e Focus Lever
r Lens
t Zoom Lever
y Lens Cover
(See page 58 for attaching.)
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light beam
may damage lens cap and result in fire
hazard.
u Air Intake Vent (front and bottom)
i Power Cord Connector
o Exhaust Vent
CAUTION
Hot air is exhausted from the exhaust vent. Do not
put heat-sensitive objects near this side.
!0 Lamp Cover
!1 Top Controls and Indicators
!2 Terminals and Connectors
!3 Adjustable Foot
!4 Air Filter
✽ Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
