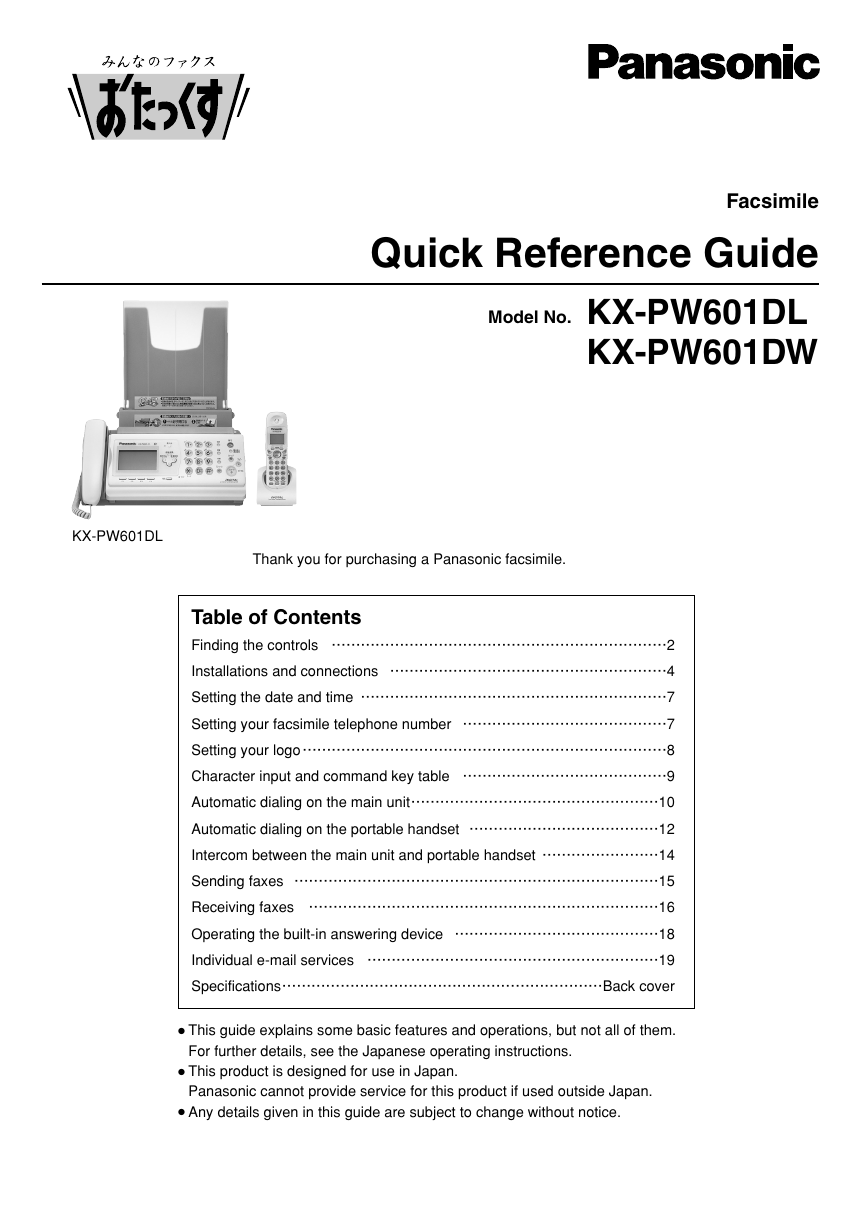

Facsimile Quick Reference Guide KX-PW601DL KX-PW601DW Model No. KX-PW601DL Thank you for purchasing a Panasonic facsimile. Table of Contents Finding the controls ……………………………………………………………2 Installations and connections …………………………………………………4 Setting the date and time ………………………………………………………7 Setting your facsimile telephone number ……………………………………7 Setting your logo…………………………………………………………………8 Character input and command key table ……………………………………9 Automatic dialing on the main unit……………………………………………10 Automatic dialing on the portable handset …………………………………12 Intercom between the main unit and portable handset ……………………14 Sending faxes …………………………………………………………………15 Receiving faxes ………………………………………………………………16 Operating the built-in answering device ……………………………………18 Individual e-mail services ……………………………………………………19 Specifications…………………………………………………………Back cover G This guide explains some basic features and operations, but not all of them. For further details, see the Japanese operating instructions. G This product is designed for use in Japan. Panasonic cannot provide service for this product if used outside Japan. G Any details given in this guide are subject to change without notice.

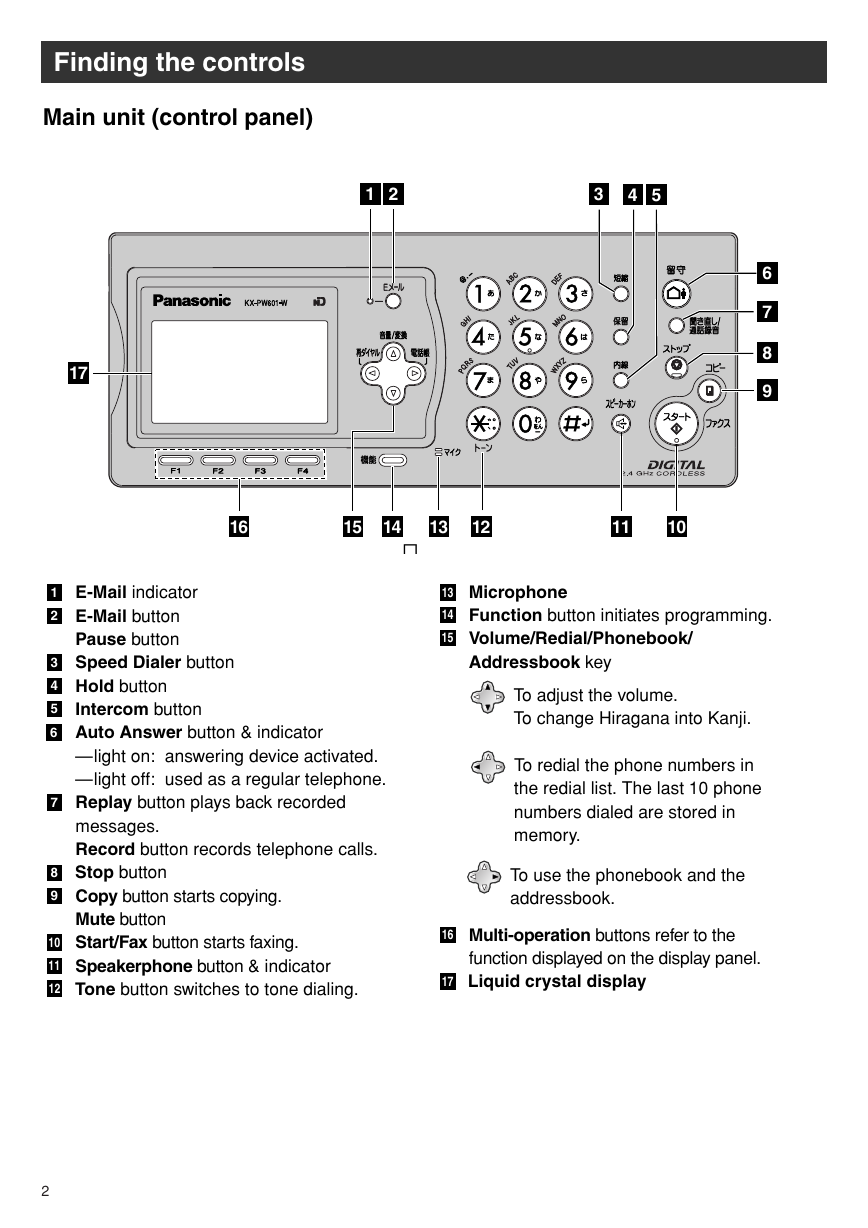

Finding the controls Main unit (control panel) 17 1 2 3 4 5 6 7 8 9 16 15 14 13 12 11 10 1 2 3 4 5 6 7 8 9 10 11 12 E-Mail indicator E-Mail button Pause button Speed Dialer button Hold button Intercom button Auto Answer button & indicator —light on: answering device activated. —light off: used as a regular telephone. Replay button plays back recorded messages. Record button records telephone calls. Stop button Copy button starts copying. Mute button Start/Fax button starts faxing. Speakerphone button & indicator Tone button switches to tone dialing. 13 14 15 Microphone Function button initiates programming. Volume/Redial/Phonebook/ Addressbook key To adjust the volume. To change Hiragana into Kanji. To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. To use the phonebook and the addressbook. 16 17 Multi-operation buttons refer to the function displayed on the display panel. Liquid crystal display 2

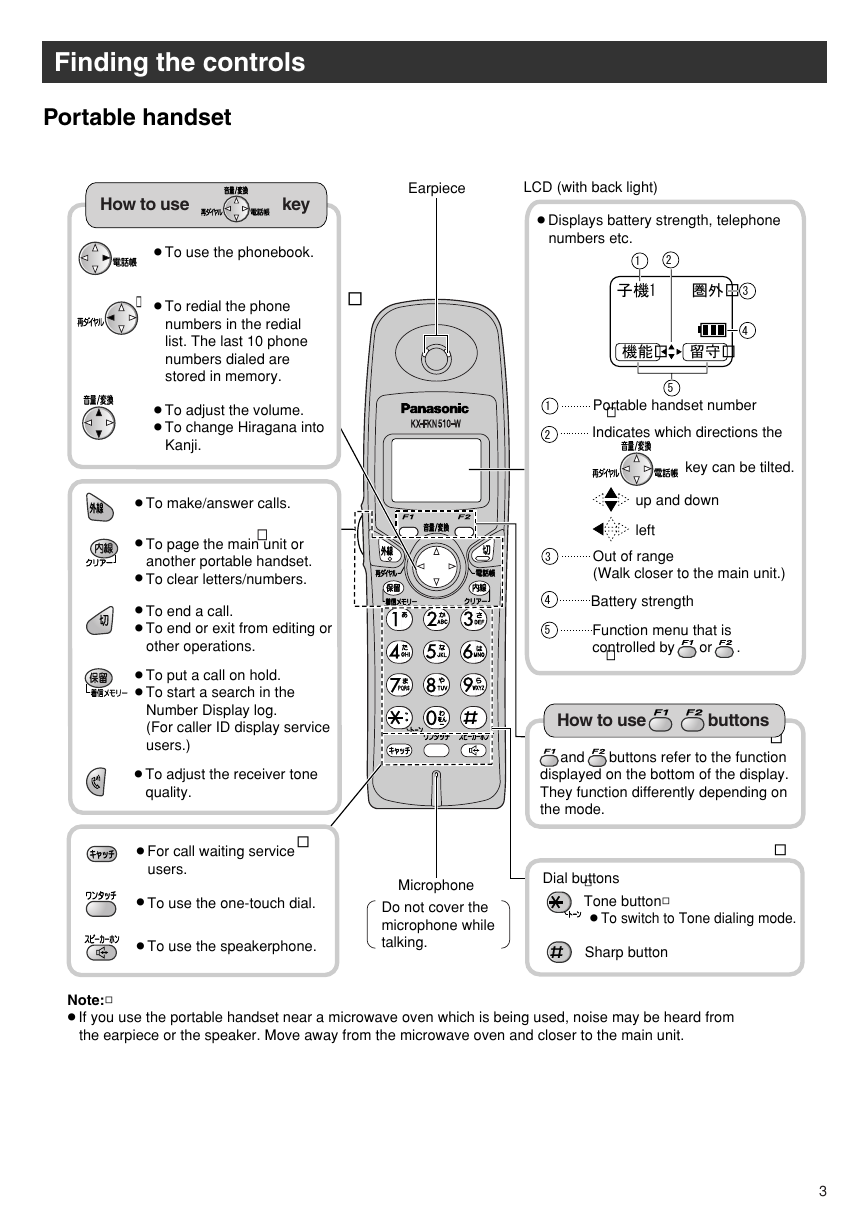

Finding the controls Portable handset How to use key ● To use the phonebook. ● To redial the phone numbers in the redial list. The last 10 phone numbers dialed are stored in memory. ● To adjust the volume. ● To change Hiragana into Kanji. ● To make/answer calls. ● To page the main unit or another portable handset. ● To clear letters/numbers. ● To end a call. ● To end or exit from editing or other operations. ● To put a call on hold. ● To start a search in the Number Display log. (For caller ID display service users.) ● To adjust the receiver tone quality. ● For call waiting service users. ● To use the one-touch dial. ● To use the speakerphone. Earpiece LCD (with back light) ● Displays battery strength, telephone numbers etc. 1 2 子機1 圏外 3 4 機能留守 1 2 3 4 5 5 Portable handset number Indicates which directions the key can be tilted. up and down left Out of range (Walk closer to the main unit.) Battery strength Function menu that is controlled by or . How to use buttons and buttons refer to the function displayed on the bottom of the display. They function differently depending on the mode. Dial buttons Tone button ● To switch to Tone dialing mode. Sharp button Microphone Do not cover the microphone while talking. Note: ● If you use the portable handset near a microwave oven which is being used, noise may be heard from the earpiece or the speaker. Move away from the microwave oven and closer to the main unit. 3

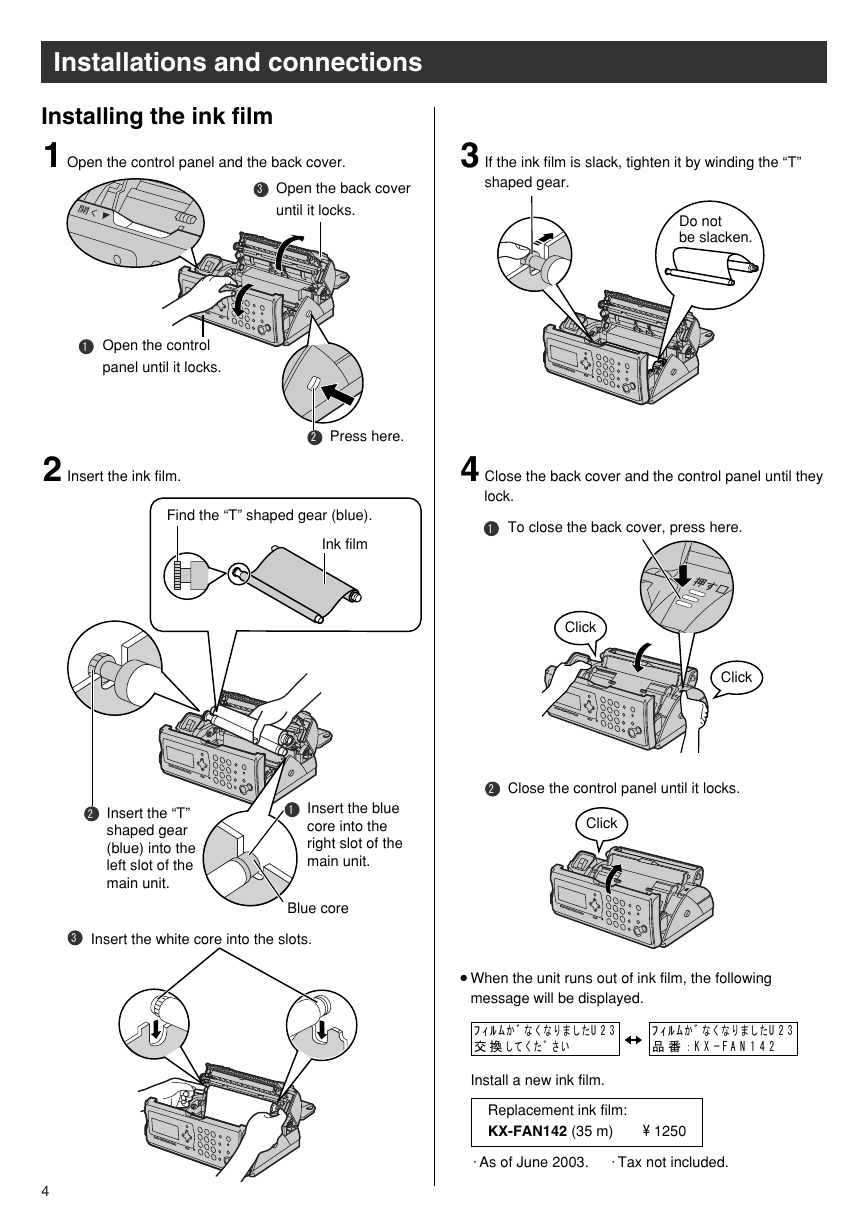

Installations and connections Installing the ink film 1 Open the control panel and the back cover. 開く 3 Open the back cover until it locks. 3 If the ink film is slack, tighten it by winding the “T” shaped gear. Do not be slacken. 1 Open the control panel until it locks. 2 Insert the ink film. 2 Press here. Find the “T” shaped gear (blue). Ink film 4 Close the back cover and the control panel until they lock. 1 To close the back cover, press here. Click 押す Click 2 Close the control panel until it locks. Click G When the unit runs out of ink film, the following message will be displayed. ﾌｨﾙﾑかﾞなくなりましたU23 交換してくたﾞさいﾌｨﾙﾑかﾞなくなりましたU23 品番：K X ｰ F A N 1 4 2 Install a new ink film. Replacement ink film: KX-FAN142 (35 m) ¥1250 ・As of June 2003. ・Tax not included. 2 Insert the “T” shaped gear (blue) into the left slot of the main unit. 1 Insert the blue core into the right slot of the main unit. Blue core 3 Insert the white core into the slots. 4

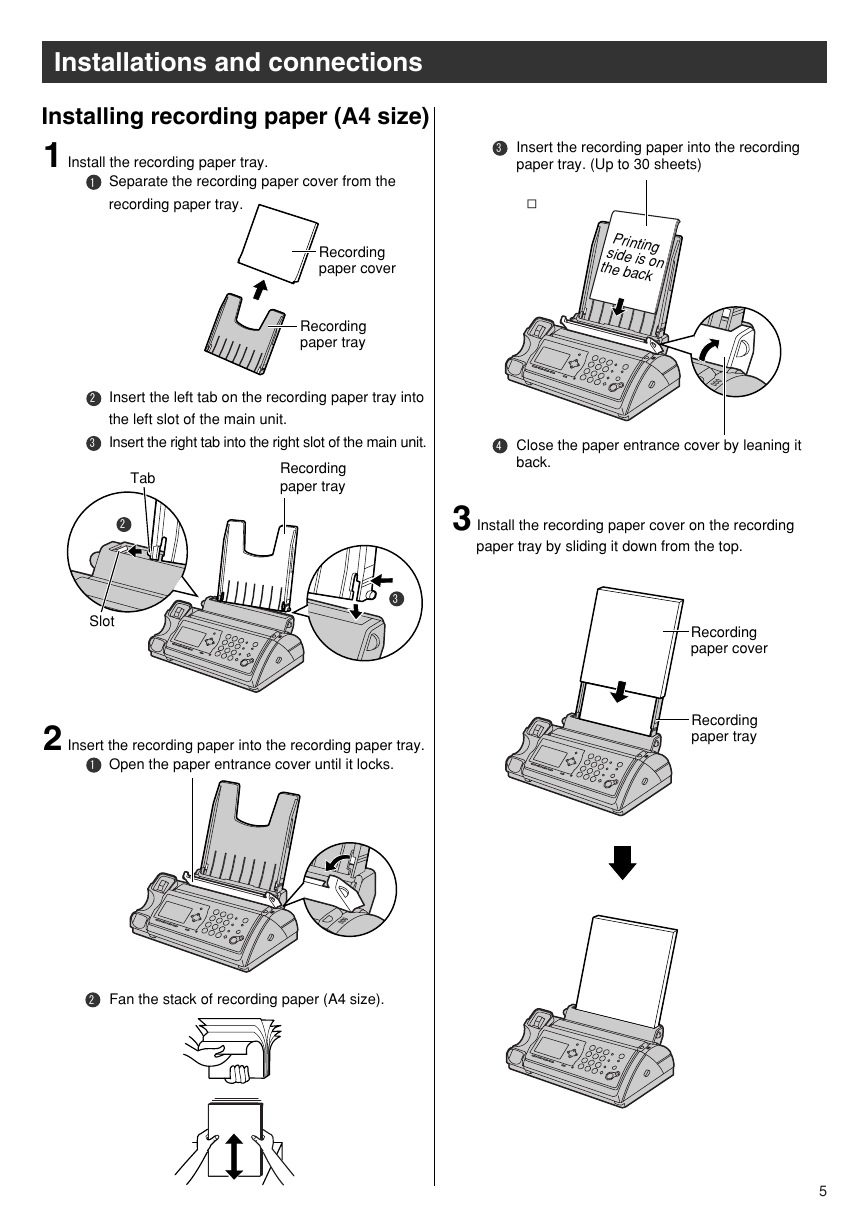

Installations and connections Installing recording paper (A4 size) 1 Install the recording paper tray. 1 Separate the recording paper cover from the recording paper tray. Recording paper cover Recording paper tray 2 3 Insert the left tab on the recording paper tray into the left slot of the main unit. Insert the right tab into the right slot of the main unit. Tab 2 Slot Recording paper tray 3 2 Insert the recording paper into the recording paper tray. 1 Open the paper entrance cover until it locks. 3 Insert the recording paper into the recording paper tray. (Up to 30 sheets) Printing side is on the back 4 Close the paper entrance cover by leaning it back. 3 Install the recording paper cover on the recording paper tray by sliding it down from the top. Recording paper cover Recording paper tray 2 Fan the stack of recording paper (A4 size). 5

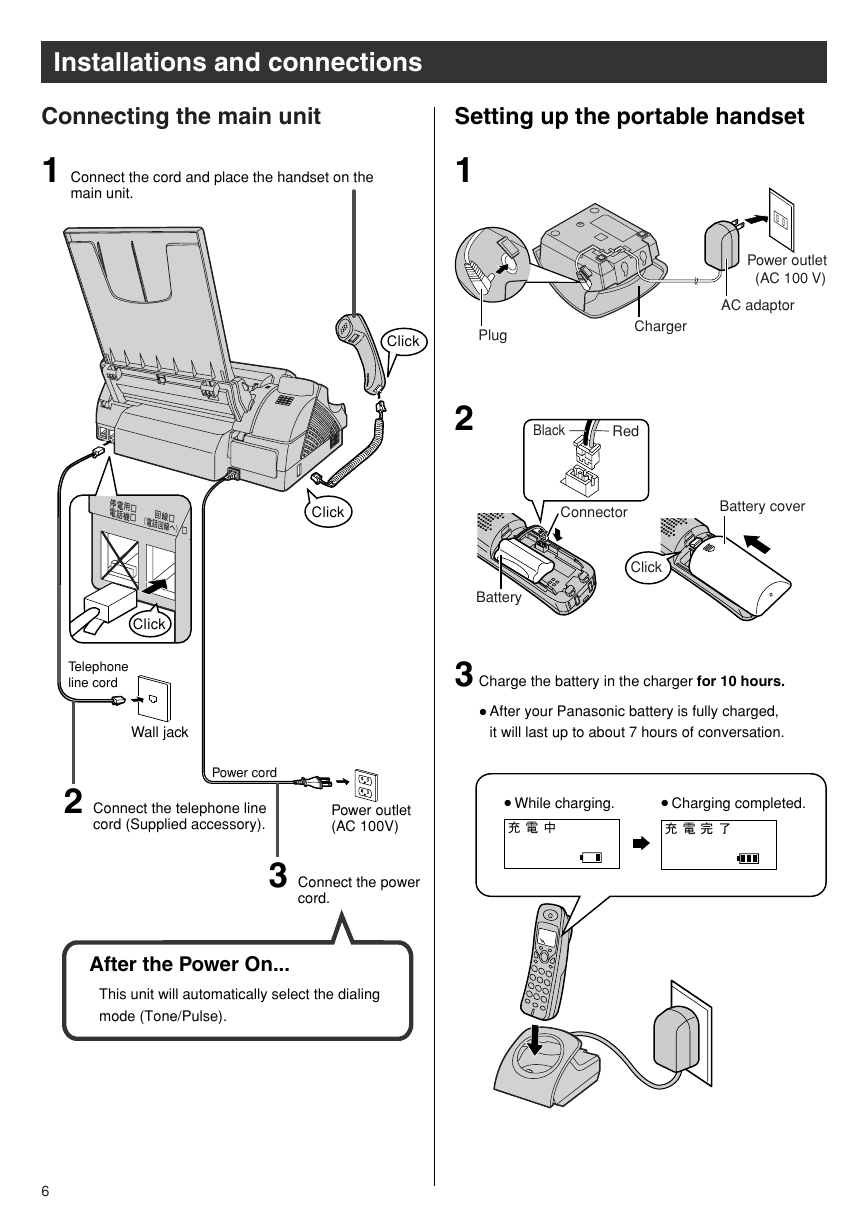

Installations and connections Connecting the main unit 1 Connect the cord and place the handset on the 　　main unit. Setting up the portable handset 1 Power outlet (AC 100 V) AC adaptor Click Plug Charger 2 Black Red Click Connector Battery cover Click Battery 3 Charge the battery in the charger for 10 hours. G After your Panasonic battery is fully charged, it will last up to about 7 hours of conversation. Power outlet (AC 100V) G While charging. G Charging completed. 充電中充電完了停電用電話機回線（電話回線へ） Click Telephone line cord Wall jack Power cord 2 Connect the telephone line 　　cord (Supplied accessory). 3 Connect the power 　　cord. After the Power On... This unit will automatically select the dialing mode (Tone/Pulse). 6

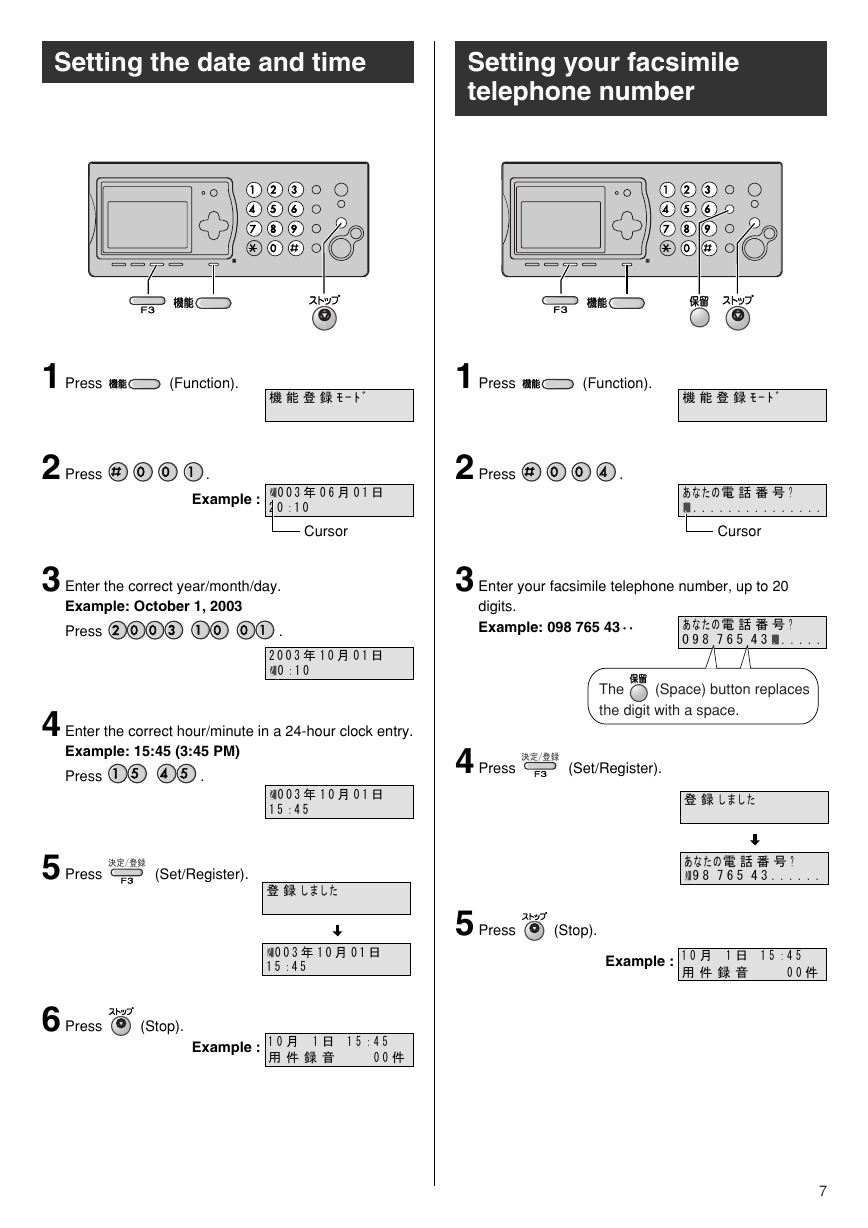

Setting the date and time Setting your facsimile telephone number 1 Press 2 Press (Function). 機能登録ﾓｰﾄﾞ . Example : ■2003年 06月 01日 20：10 Cursor 1 Press 2 Press (Function). 機能登録ﾓｰﾄﾞ . あなたの電話番号 ? ■■．．．．．．．．．．．．．．．． Cursor 3 Enter the correct year/month/day. Example: October 1, 2003 Press . 2003年 10月 01日 ■20：10 3 Enter your facsimile telephone number, up to 20 digits. Example: 098 765 43 · · あなたの電話番号 ? 098 765 43■■．．．．．． 4 Enter the correct hour/minute in a 24-hour clock entry. Example: 15:45 (3:45 PM) Press . 5 Press 決定/登録 (Set/Register). ■2003年 10月 01日 15：45 登録しました ■2003年 10月 01日 15：45 6 Press (Stop). Example : 10月 01日ｱ 15：45 用件録音ｱ 13：00件 The 　 (Space) button replaces the digit with a space. 4 Press 決定/登録 (Set/Register). 登録しましたあなたの電話番号 ? ■098 765 43．．．．．． 5 Press (Stop). Example : 10月 01日ｱ 15：45 用件録音ｱ 13：00件 7

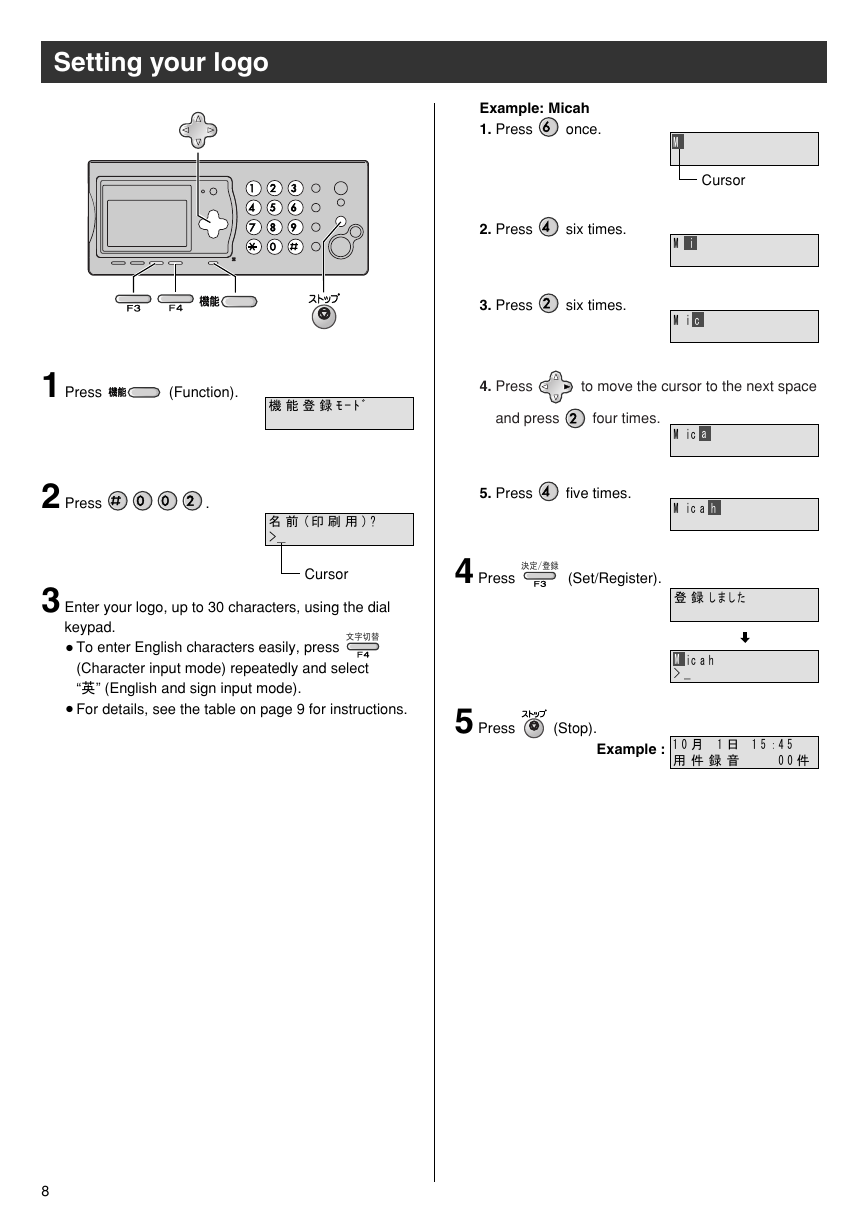

Setting your logo Example: Micah 1. Press once. 2. Press six times. 3. Press six times. Cursor M M i M i c 1 Press (Function). 機能登録ﾓｰﾄﾞ 4. Press to move the cursor to the next space and press four times. 5. Press five times. 4 Press 決定/登録 (Set/Register). M i c a M i c a h 登録しました M M i c a h > _ 5 Press (Stop). Example : 10月 01日ｱ 15：45 用件録音ｱ 13：00件 2 Press . 名前 ( 印刷用 ) ? ＞＿ 3 Enter your logo, up to 30 characters, using the dial Cursor keypad. G To enter English characters easily, press 文字切替 (Character input mode) repeatedly and select “英” (English and sign input mode). G For details, see the table on page 9 for instructions. 8
