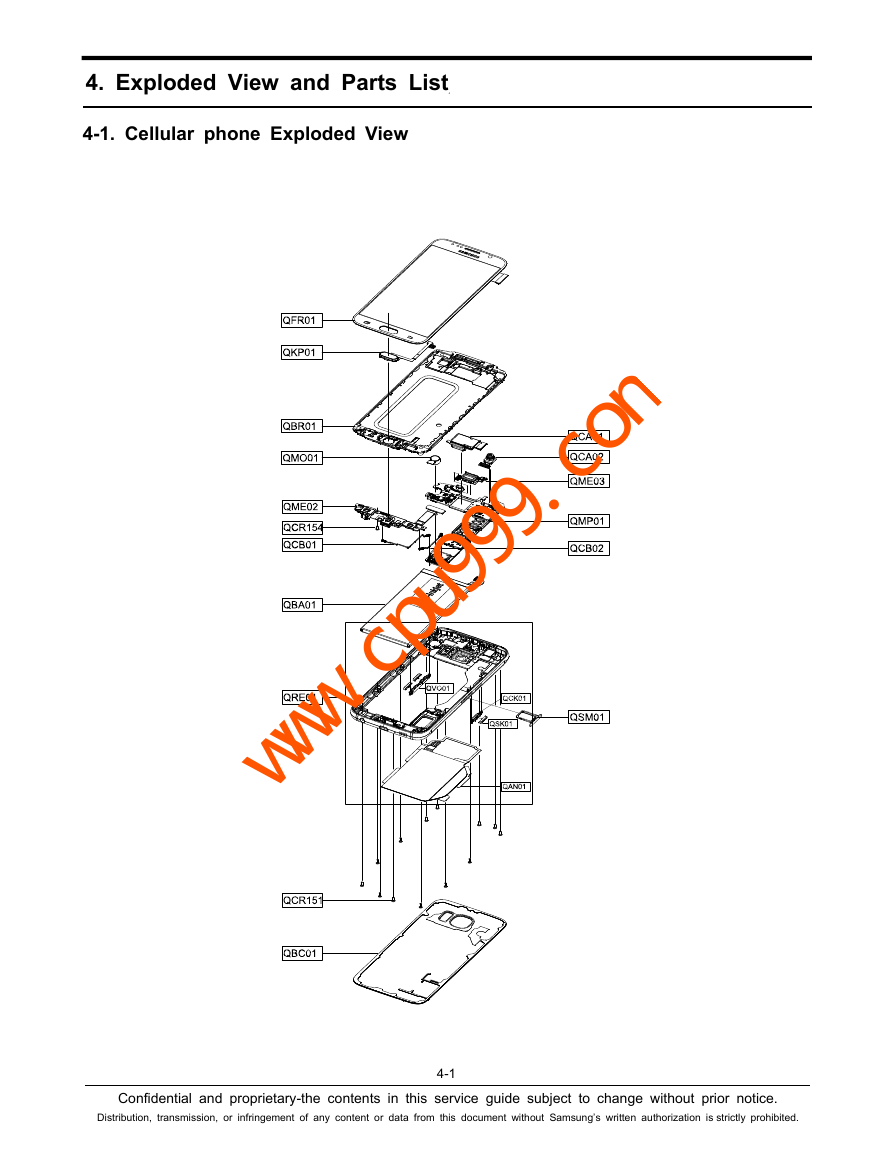

4. Exploded View and Parts List 4-1. Cellular phone Exploded View Confidential and proprietary-the contents in this service guide subject to change without prior notice. Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited. 4-1 www.cpu999.com

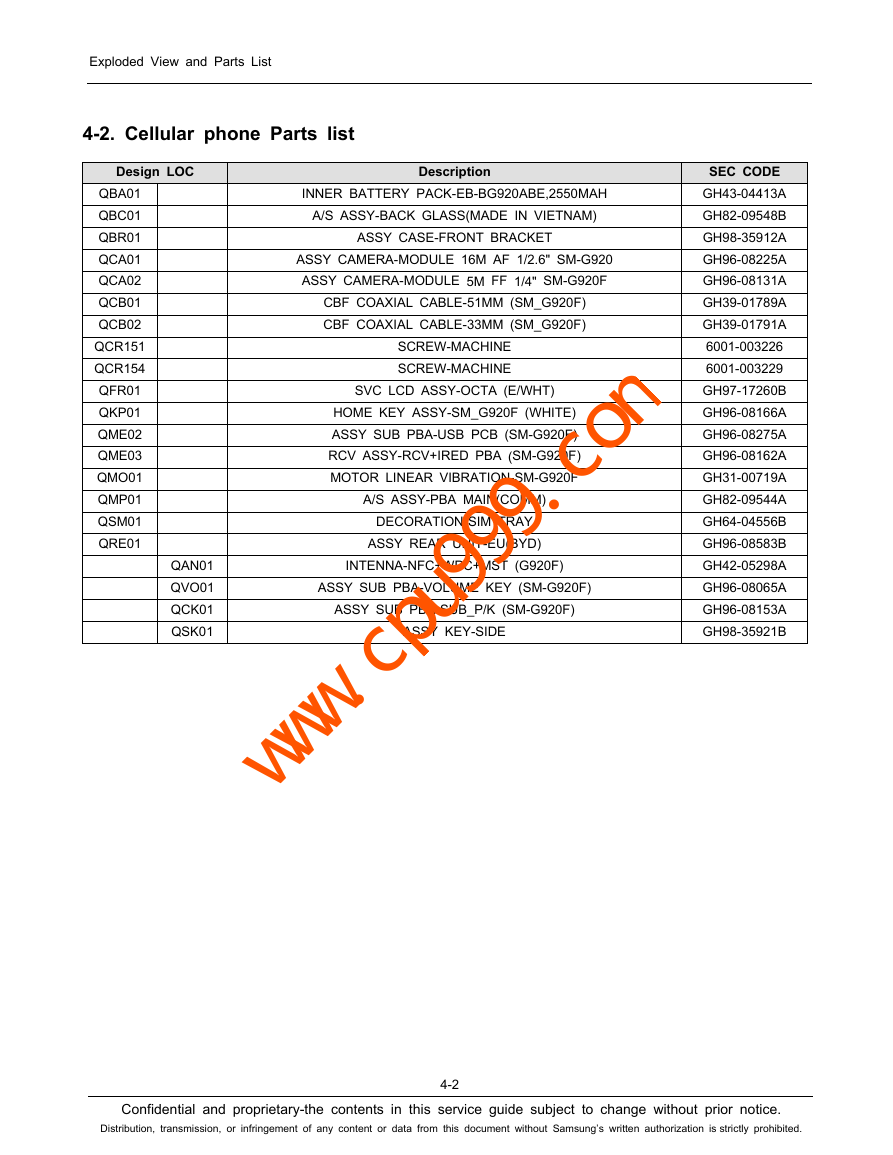

Exploded View and Parts List 4-2. Cellular phone Parts list Design LOC 　 QBA01 QBC01 QBR01 QCA01 QCA02 QCB01 QCB02 QCR151 QCR154 QFR01 QKP01 QME02 QME03 QMO01 QMP01 QSM01 QRE01 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 Description INNER BATTERY PACK-EB-BG920ABE,2550MAH A/S ASSY-BACK GLASS(MADE IN VIETNAM) ASSY CASE-FRONT BRACKET ASSY CAMERA-MODULE 16M AF 1/2.6" SM-G920 ASSY CAMERA-MODULE 5M FF 1/4" SM-G920F CBF COAXIAL CABLE-51MM (SM_G920F) CBF COAXIAL CABLE-33MM (SM_G920F) SCREW-MACHINE SCREW-MACHINE SVC LCD ASSY-OCTA (E/WHT) HOME KEY ASSY-SM_G920F (WHITE) ASSY SUB PBA-USB PCB (SM-G920F) RCV ASSY-RCV+IRED PBA (SM-G920F) MOTOR LINEAR VIBRATION-SM-G920F A/S ASSY-PBA MAIN(COMM) DECORATION-SIM TRAY ASSY REAR UNIT-EU(BYD) INTENNA-NFC+WPC+MST (G920F) ASSY SUB PBA-VOLUME KEY (SM-G920F) ASSY SUB PBA-SUB_P/K (SM-G920F) ASSY KEY-SIDE SEC CODE GH43-04413A GH82-09548B GH98-35912A GH96-08225A GH96-08131A GH39-01789A GH39-01791A 6001-003226 6001-003229 GH97-17260B GH96-08166A GH96-08275A GH96-08162A GH31-00719A GH82-09544A GH64-04556B GH96-08583B GH42-05298A GH96-08065A GH96-08153A GH98-35921B 　 　 　 　 QAN01 QVO01 QCK01 QSK01 Confidential and proprietary-the contents in this service guide subject to change without prior notice. Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited. 4-2 www.cpu999.com
