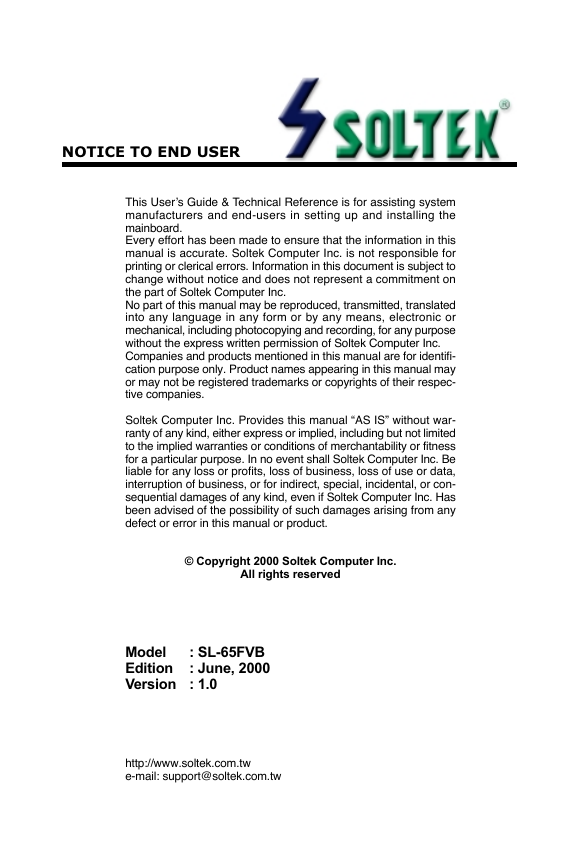

NOTICE TO END USER This User’s Guide & Technical Reference is for assisting system manufacturers and end-users in setting up and installing the mainboard. Every effort has been made to ensure that the information in this manual is accurate. Soltek Computer Inc. is not responsible for printing or clerical errors. Information in this document is subject to change without notice and does not represent a commitment on the part of Soltek Computer Inc. No part of this manual may be reproduced, transmitted, translated into any language in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the express written permission of Soltek Computer Inc. Companies and products mentioned in this manual are for identifi- cation purpose only. Product names appearing in this manual may or may not be registered trademarks or copyrights of their respec- tive companies. Soltek Computer Inc. Provides this manual “AS IS” without war- ranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall Soltek Computer Inc. Be liable for any loss or profits, loss of business, loss of use or data, interruption of business, or for indirect, special, incidental, or con- sequential damages of any kind, even if Soltek Computer Inc. Has been advised of the possibility of such damages arising from any defect or error in this manual or product. © Copyright 2000 Soltek Computer Inc. All rights reserved Model : SL-65FVB Edition : June, 2000 Version : 1.0 http://www.soltek.com.tw e-mail: support@soltek.com.tw

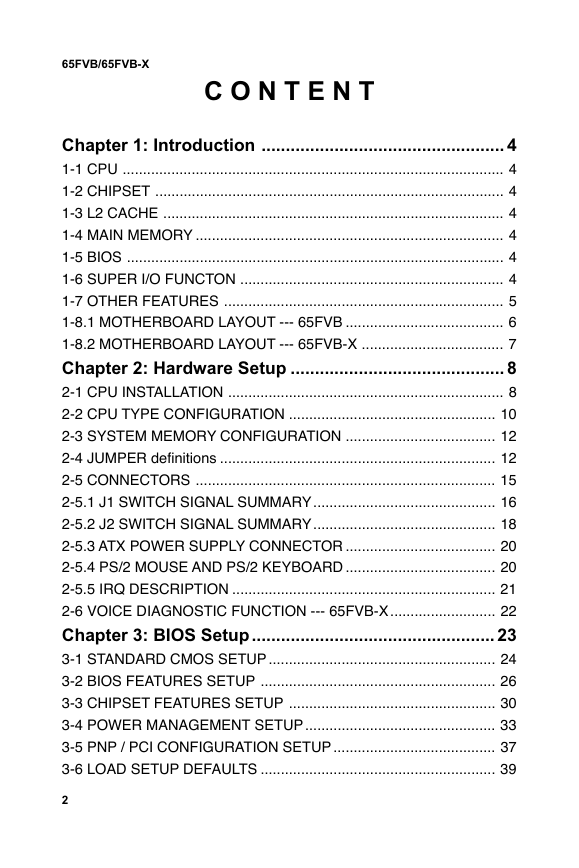

65FVB/65FVB-X C O N T E N T Chapter 1: Introduction .................................................. 4 1-1 CPU .............................................................................................. 4 1-2 CHIPSET ...................................................................................... 4 1-3 L2 CACHE .................................................................................... 4 1-4 MAIN MEMORY ............................................................................ 4 1-5 BIOS ............................................................................................. 4 1-6 SUPER I/O FUNCTON ................................................................. 4 1-7 OTHER FEATURES ..................................................................... 5 1-8.1 MOTHERBOARD LAYOUT --- 65FVB ....................................... 6 1-8.2 MOTHERBOARD LAYOUT --- 65FVB-X ................................... 7 Chapter 2: Hardware Setup ............................................ 8 2-1 CPU INSTALLATION .................................................................... 8 2-2 CPU TYPE CONFIGURATION ................................................... 10 2-3 SYSTEM MEMORY CONFIGURATION ..................................... 12 2-4 JUMPER definitions .................................................................... 12 2-5 CONNECTORS .......................................................................... 15 2-5.1 J1 SWITCH SIGNAL SUMMARY ............................................. 16 2-5.2 J2 SWITCH SIGNAL SUMMARY ............................................. 18 2-5.3 ATX POWER SUPPLY CONNECTOR ..................................... 20 2-5.4 PS/2 MOUSE AND PS/2 KEYBOARD ..................................... 20 2-5.5 IRQ DESCRIPTION ................................................................. 21 2-6 VOICE DIAGNOSTIC FUNCTION --- 65FVB-X .......................... 22 Chapter 3: BIOS Setup .................................................. 23 3-1 STANDARD CMOS SETUP ........................................................ 24 3-2 BIOS FEATURES SETUP .......................................................... 26 3-3 CHIPSET FEATURES SETUP ................................................... 30 3-4 POWER MANAGEMENT SETUP ............................................... 33 3-5 PNP / PCI CONFIGURATION SETUP ........................................ 37 3-6 LOAD SETUP DEFAULTS .......................................................... 39 2

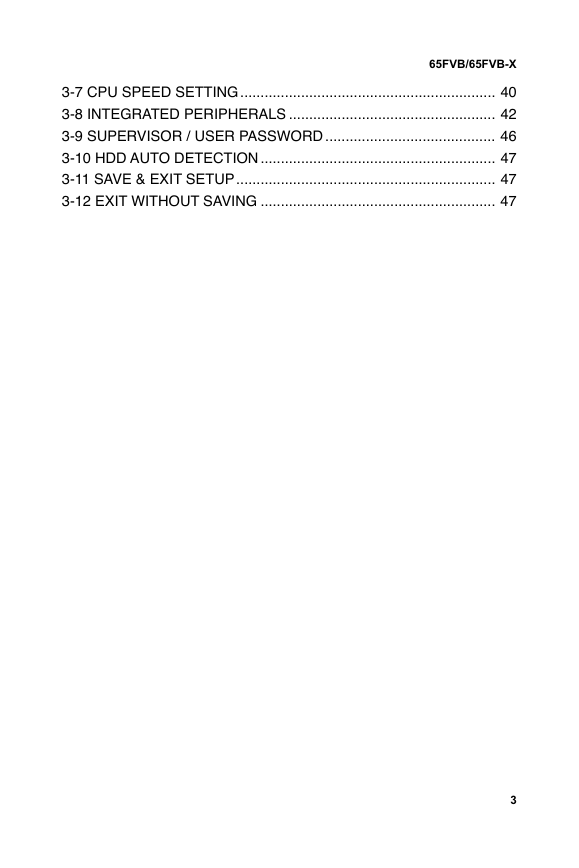

65FVB/65FVB-X 3-7 CPU SPEED SETTING............................................................... 40 3-8 INTEGRATED PERIPHERALS ................................................... 42 3-9 SUPERVISOR / USER PASSWORD .......................................... 46 3-10 HDD AUTO DETECTION .......................................................... 47 3-11 SAVE & EXIT SETUP................................................................ 47 3-12 EXIT WITHOUT SAVING .......................................................... 47 3

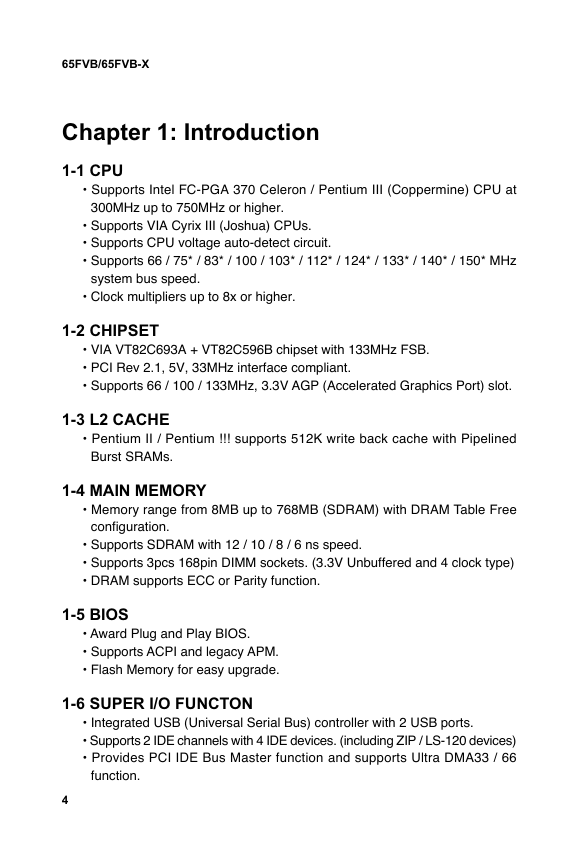

65FVB/65FVB-X Chapter 1: Introduction 1-1 CPU • Supports Intel FC-PGA 370 Celeron / Pentium III (Coppermine) CPU at 300MHz up to 750MHz or higher. • Supports VIA Cyrix III (Joshua) CPUs. • Supports CPU voltage auto-detect circuit. • Supports 66 / 75* / 83* / 100 / 103* / 112* / 124* / 133* / 140* / 150* MHz system bus speed. • Clock multipliers up to 8x or higher. 1-2 CHIPSET • VIA VT82C693A + VT82C596B chipset with 133MHz FSB. • PCI Rev 2.1, 5V, 33MHz interface compliant. • Supports 66 / 100 / 133MHz, 3.3V AGP (Accelerated Graphics Port) slot. 1-3 L2 CACHE • Pentium II / Pentium !!! supports 512K write back cache with Pipelined Burst SRAMs. 1-4 MAIN MEMORY • Memory range from 8MB up to 768MB (SDRAM) with DRAM Table Free configuration. • Supports SDRAM with 12 / 10 / 8 / 6 ns speed. • Supports 3pcs 168pin DIMM sockets. (3.3V Unbuffered and 4 clock type) • DRAM supports ECC or Parity function. 1-5 BIOS • Award Plug and Play BIOS. • Supports ACPI and legacy APM. • Flash Memory for easy upgrade. 1-6 SUPER I/O FUNCTON • Integrated USB (Universal Serial Bus) controller with 2 USB ports. • Supports 2 IDE channels with 4 IDE devices. (including ZIP / LS-120 devices) • Provides PCI IDE Bus Master function and supports Ultra DMA33 / 66 function. 4

65FVB/65FVB-X • Provides 1 floppy port. • 2 high speed 16550A FIFO UART ports. • 1 parallel port with EPP / ECP / SPP capabilities. • PS/2 mouse connector and PS/2 keyboard connector. • Built-In RTC, CMOS, keyboard controller on single I/O chip. • Peripherals boot function. (with ATX power) 1-7 OTHER FEATURES • ATX size 17.0cm x 30.5cm. • 5x PCI Master slots, 1x ISA slot, 3x DIMM sockets, and 1x AGP slot. • Provides DIP switch setting. • Supports 66 / 100 / 133MHz Bus Clock. • Supports WOL (Wake On LAN) function. • Supports Keyboard Power On function. • BIOS supports 103 / 112 / 133 / 150MHz Bus Clock. • Provides Voice Diagnostic function for easy debug. (65FVB-X only) 5

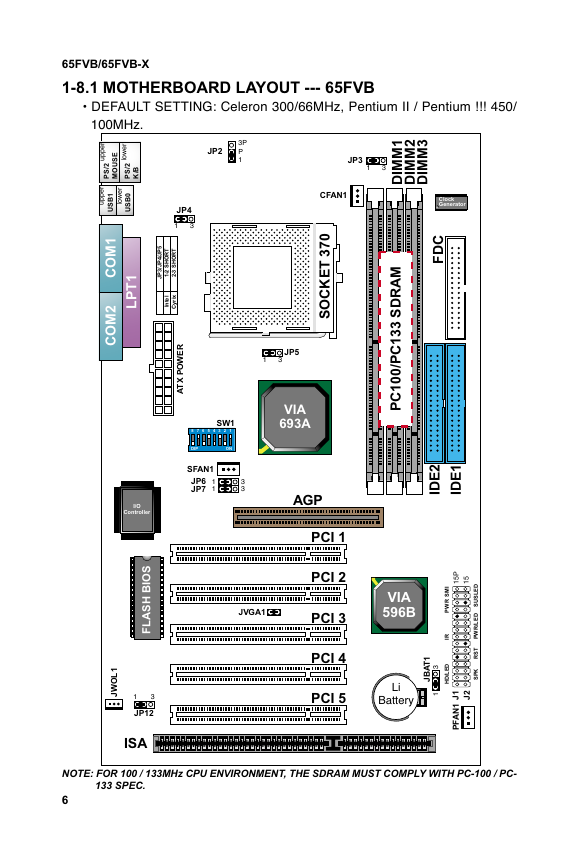

65FVB/65FVB-X 1-8.1 MOTHERBOARD LAYOUT --- 65FVB • DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/ 100MHz. r e p p u ; / 2 S P E S U O M r e w o l ; / 2 S P JP2 3P P 1 B K / r e p p u r e w o l 0 B S U 1 B S U 1 M O C 2 M O C 1 T P L JP4 1 3 T R O H S 2 - 1 T R O H S 3 - 2 / 5 P J 4 P J 3 P J / l e t n I x i r y C R E W O P X T A SW1 8 7 6 5 4 3 2 1 DIP ON SFAN1 JP6; JP7 1 3 1 3 I/O; Controller JP3 1 3 CFAN1 0 7 3 T E K C O S JP5 1 3 VIA 693A ; 1 M M D ; 2 M M D I 3 M M D I I M A R D S 3 3 1 C P / 0 0 1 C P Clock; Generator C D F 2 E D I 1 E D I AGP PCI 1 PCI 2 PCI 3 PCI 4 PCI 5 VIA 596B Li Battery 1 T A B J 3 1 P 5 1 5 1 D E L S U S / D E L R W P T S R K P S I M S R W P R I D E L D H / ; 1 J 2 J 1 N A F P JVGA1 I S O B H S A L F 1 L O W J 1 3 JP12 ISA NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC- 133 SPEC. 6

1-8.2 MOTHERBOARD LAYOUT --- 65FVB-X • DEFAULT SETTING: Celeron 300/66MHz, Pentium II / Pentium !!! 450/ 65FVB/65FVB-X JP2 3 1 JP3 1 3 CFAN1 ; ; 1 M M D 2 M M D 3 M M D I I I 0 7 3 T E K C O S JP5 1 3 VIA 693A M A R D S 3 3 1 C P 0 0 1 C P / AGP PCI 1 PCI 2 PCI 3 VIA; 596B PCI 4 1 3 1 3 JP9; JP8 PCI 5 Li Battery Clock; Generator C D F 2 E D I 1 E D I 3 1 1 P J 1 5 1 5 1 D E L S U S / D E L R W P T S R K P S ; 1 J 2 J 1 N A F P I M S R W P R I D E L D H / 1 T A B J 3 1 100MHz. r e p p u ; 2 / S P E S U O M r e w o l ; 2 / S P B K / r e p p u r e w o l 0 B S U 1 B S U 1 M O C 2 M O C 1 T P L JP4 1 3 T R O H S 2 - 1 T R O H S 3 - 2 / 5 P J 4 P J 3 P J / l e t n I x i r y C R E W O P X T A SW1 8 7 6 5 4 3 2 1 DIP ON SFAN1 JP6; JP7 1 3 1 3 I/O; Controller JVGA1 I S O B H S A L F 1 L O W J 1 3 JP12 ISA NOTE: FOR 100 / 133MHz CPU ENVIRONMENT, THE SDRAM MUST COMPLY WITH PC-100 / PC- 133 SPEC. 7

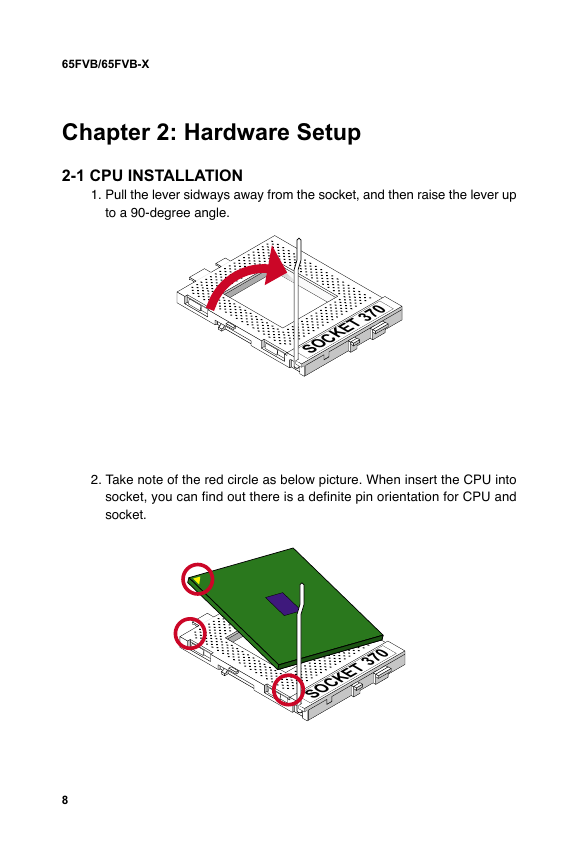

65FVB/65FVB-X Chapter 2: Hardware Setup 2-1 CPU INSTALLATION 1. Pull the lever sidways away from the socket, and then raise the lever up to a 90-degree angle. S O C KET 370 2. Take note of the red circle as below picture. When insert the CPU into socket, you can find out there is a definite pin orientation for CPU and socket. S O C KET 370 8
