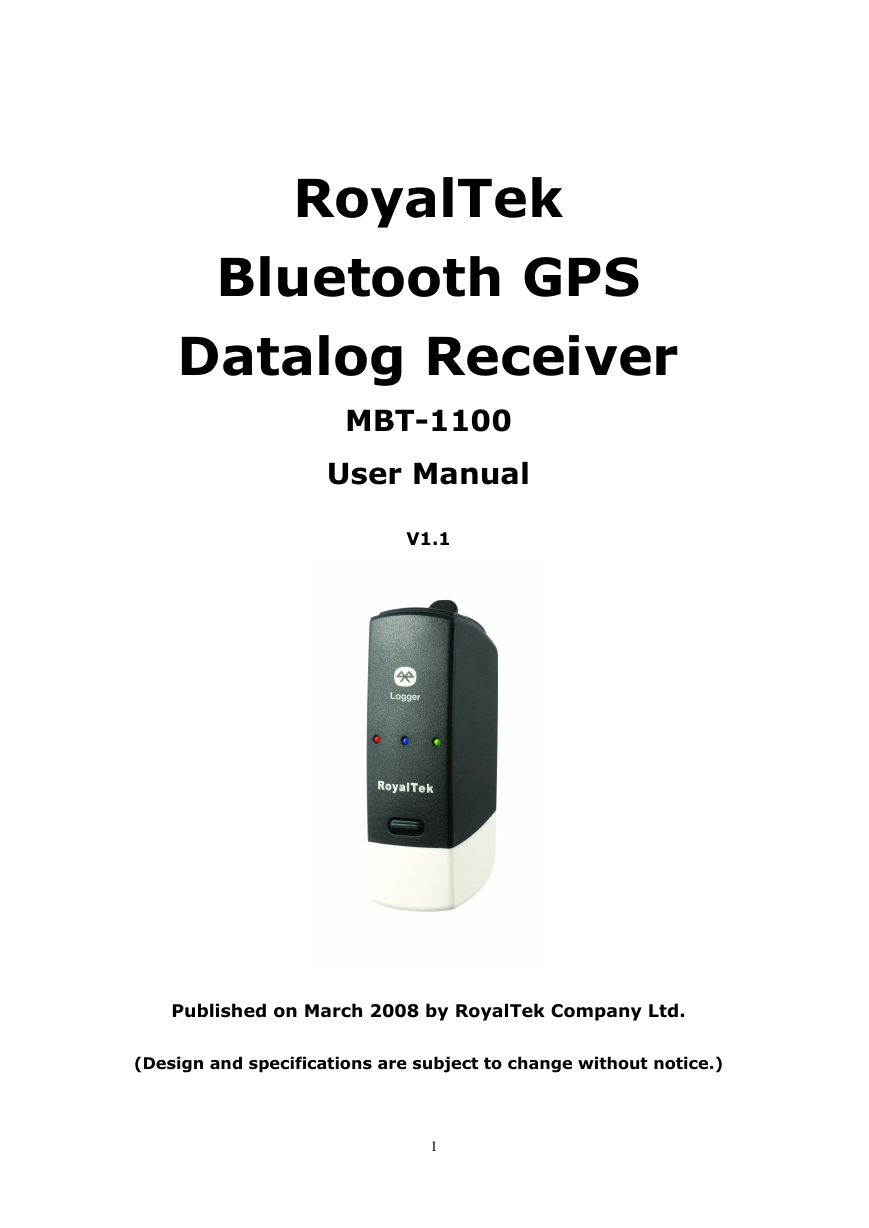

RoyalTek Bluetooth GPS Datalog Receiver MBT-1100 User Manual V1.1 Published on March 2008 by RoyalTek Company Ltd. (Design and specifications are subject to change without notice.) 1

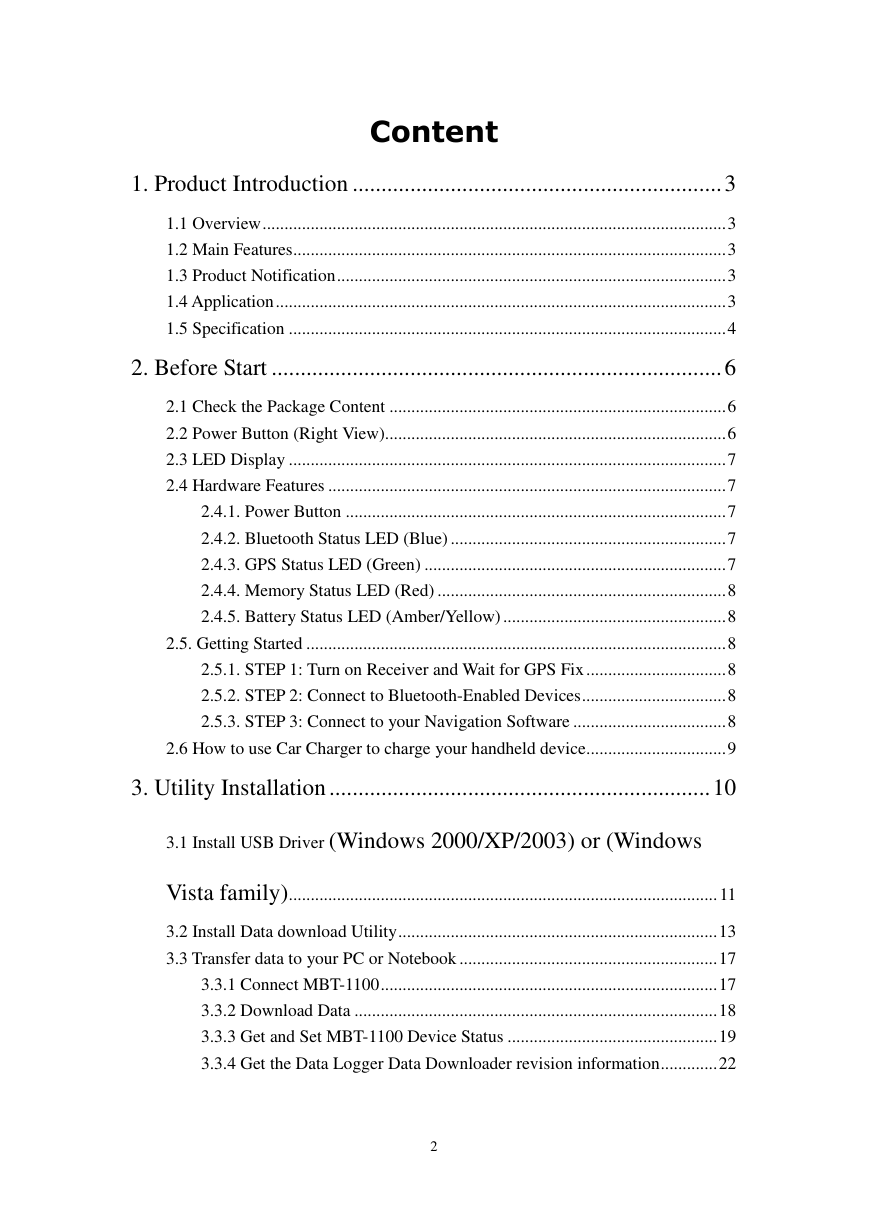

Content 1. Product Introduction ................................................................ 3 1.1 Overview..........................................................................................................3 1.2 Main Features...................................................................................................3 1.3 Product Notification.........................................................................................3 1.4 Application .......................................................................................................3 1.5 Specification ....................................................................................................4 2. Before Start .............................................................................. 6 2.1 Check the Package Content .............................................................................6 2.2 Power Button (Right View)..............................................................................6 2.3 LED Display ....................................................................................................7 2.4 Hardware Features ...........................................................................................7 2.4.1. Power Button .......................................................................................7 2.4.2. Bluetooth Status LED (Blue) ...............................................................7 2.4.3. GPS Status LED (Green) .....................................................................7 2.4.4. Memory Status LED (Red) ..................................................................8 2.4.5. Battery Status LED (Amber/Yellow) ...................................................8 2.5. Getting Started ................................................................................................8 2.5.1. STEP 1: Turn on Receiver and Wait for GPS Fix ................................8 2.5.2. STEP 2: Connect to Bluetooth-Enabled Devices.................................8 2.5.3. STEP 3: Connect to your Navigation Software ...................................8 2.6 How to use Car Charger to charge your handheld device................................9 3. Utility Installation .................................................................. 10 3.1 Install USB Driver (Windows 2000/XP/2003) or (Windows Vista family).................................................................................................. 11 3.2 Install Data download Utility.........................................................................13 3.3 Transfer data to your PC or Notebook ...........................................................17 3.3.1 Connect MBT-1100.............................................................................17 3.3.2 Download Data ...................................................................................18 3.3.3 Get and Set MBT-1100 Device Status ................................................19 3.3.4 Get the Data Logger Data Downloader revision information.............22 2

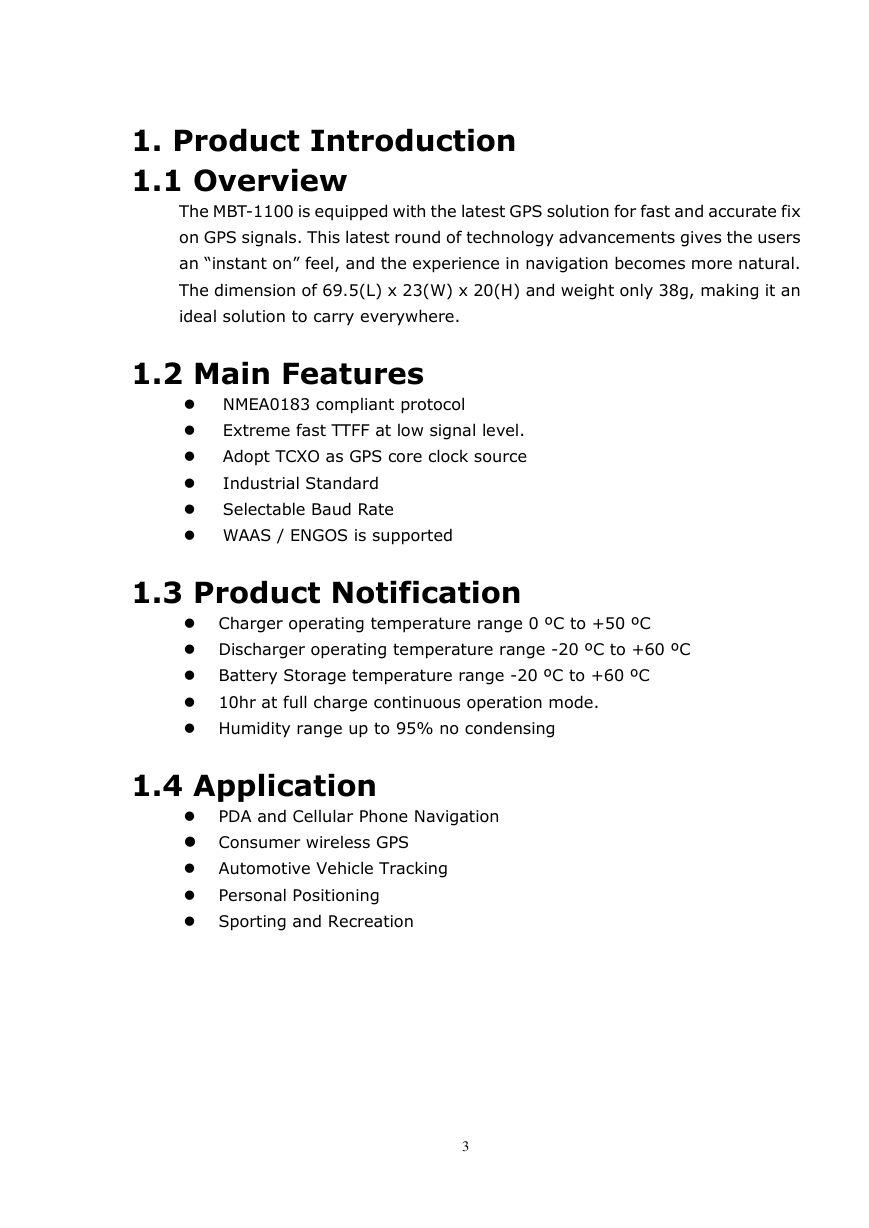

1. Product Introduction 1.1 Overview The MBT-1100 is equipped with the latest GPS solution for fast and accurate fix on GPS signals. This latest round of technology advancements gives the users an “instant on” feel, and the experience in navigation becomes more natural. The dimension of 69.5(L) x 23(W) x 20(H) and weight only 38g, making it an ideal solution to carry everywhere. 1.2 Main Features NMEA0183 compliant protocol Extreme fast TTFF at low signal level. Adopt TCXO as GPS core clock source Industrial Standard Selectable Baud Rate WAAS / ENGOS is supported 1.3 Product Notification Charger operating temperature range 0 ºC to +50 ºC Discharger operating temperature range -20 ºC to +60 ºC Battery Storage temperature range -20 ºC to +60 ºC 10hr at full charge continuous operation mode. Humidity range up to 95% no condensing 1.4 Application PDA and Cellular Phone Navigation Consumer wireless GPS Automotive Vehicle Tracking Personal Positioning Sporting and Recreation 3

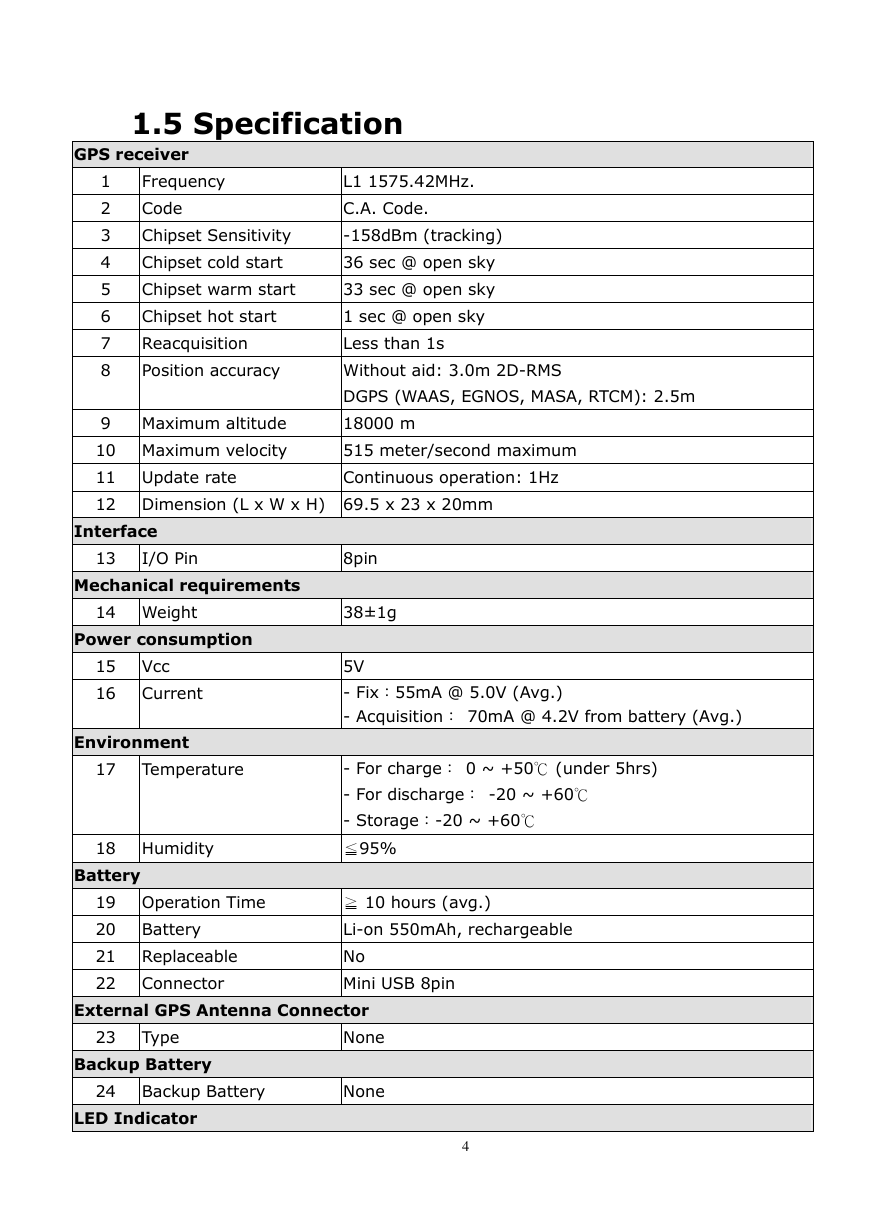

1.5 Specification GPS receiver 1 2 3 4 5 6 7 8 Frequency Code L1 1575.42MHz. C.A. Code. Chipset Sensitivity -158dBm (tracking) Chipset cold start 36 sec @ open sky Chipset warm start 33 sec @ open sky Chipset hot start 1 sec @ open sky Reacquisition Less than 1s Position accuracy Without aid: 3.0m 2D-RMS DGPS (WAAS, EGNOS, MASA, RTCM): 2.5m 9 Maximum altitude 18000 m 10 Maximum velocity 515 meter/second maximum 11 Update rate Continuous operation: 1Hz 12 Dimension (L x W x H) 69.5 x 23 x 20mm Interface 13 I/O Pin 8pin Mechanical requirements 14 Weight 38±1g Power consumption 15 Vcc 16 Current Environment 5V - Fix：55mA @ 5.0V (Avg.) - Acquisition： 70mA @ 4.2V from battery (Avg.) 17 Temperature - For charge： 0 ~ +50℃ (under 5hrs) - For discharge： -20 ~ +60℃ - Storage：-20 ~ +60℃ 18 Humidity ≦95% Battery 19 Operation Time ≧ 10 hours (avg.) 20 Battery Li-on 550mAh, rechargeable 21 Replaceable No 22 Connector Mini USB 8pin External GPS Antenna Connector 23 Type Backup Battery None 24 Backup Battery None LED Indicator 4

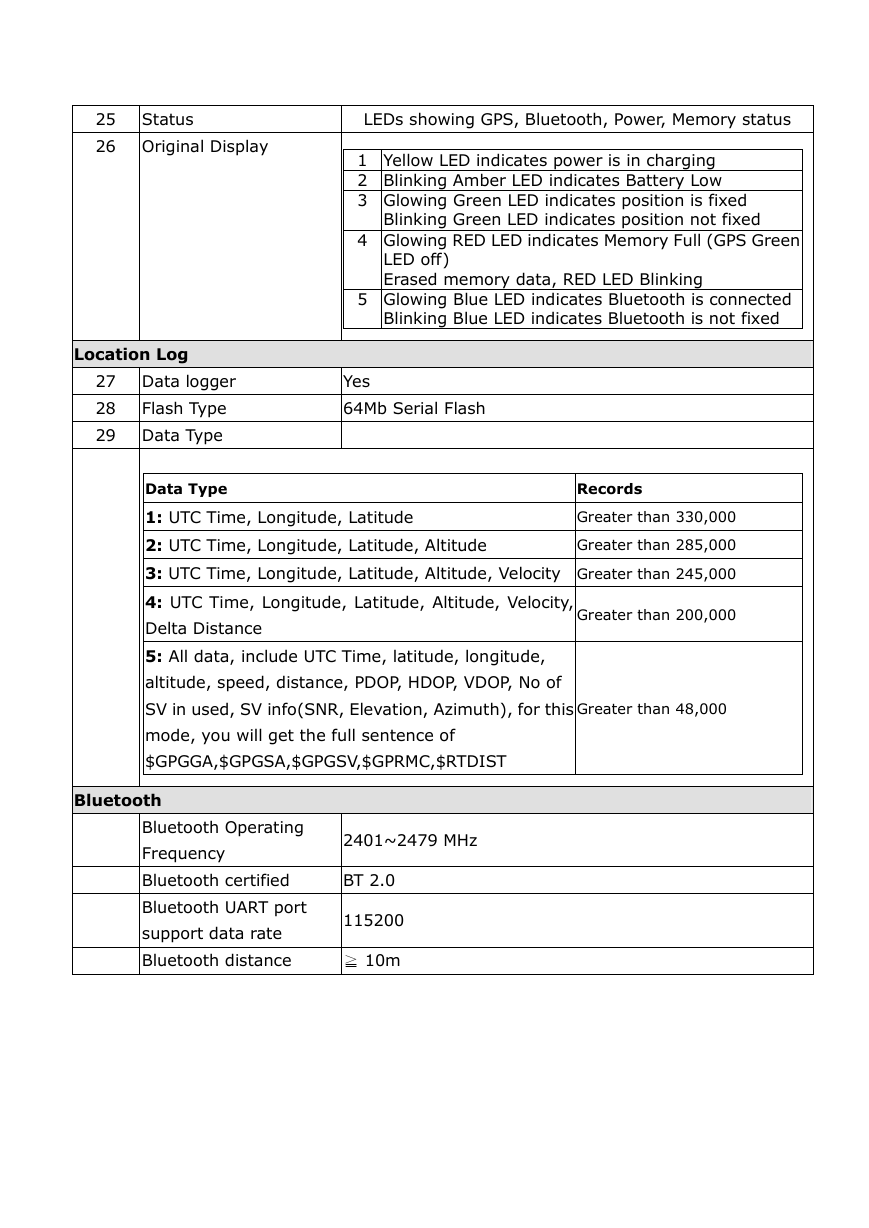

25 Status 26 Original Display LEDs showing GPS, Bluetooth, Power, Memory status 1 Yellow LED indicates power is in charging 2 Blinking Amber LED indicates Battery Low 3 Glowing Green LED indicates position is fixed Blinking Green LED indicates position not fixed 4 Glowing RED LED indicates Memory Full (GPS Green LED off) Erased memory data, RED LED Blinking 5 Glowing Blue LED indicates Bluetooth is connected Blinking Blue LED indicates Bluetooth is not fixed Location Log 27 Data logger Yes 28 Flash Type 29 Data Type Data Type 64Mb Serial Flash Records 1: UTC Time, Longitude, Latitude Greater than 330,000 2: UTC Time, Longitude, Latitude, Altitude Greater than 285,000 3: UTC Time, Longitude, Latitude, Altitude, Velocity Greater than 245,000 4: UTC Time, Longitude, Latitude, Altitude, Velocity, Delta Distance 5: All data, include UTC Time, latitude, longitude, altitude, speed, distance, PDOP, HDOP, VDOP, No of Greater than 200,000 SV in used, SV info(SNR, Elevation, Azimuth), for this Greater than 48,000 mode, you will get the full sentence of $GPGGA,$GPGSA,$GPGSV,$GPRMC,$RTDIST Bluetooth Bluetooth Operating Frequency 2401~2479 MHz Bluetooth certified BT 2.0 Bluetooth UART port support data rate 115200 Bluetooth distance ≧ 10m

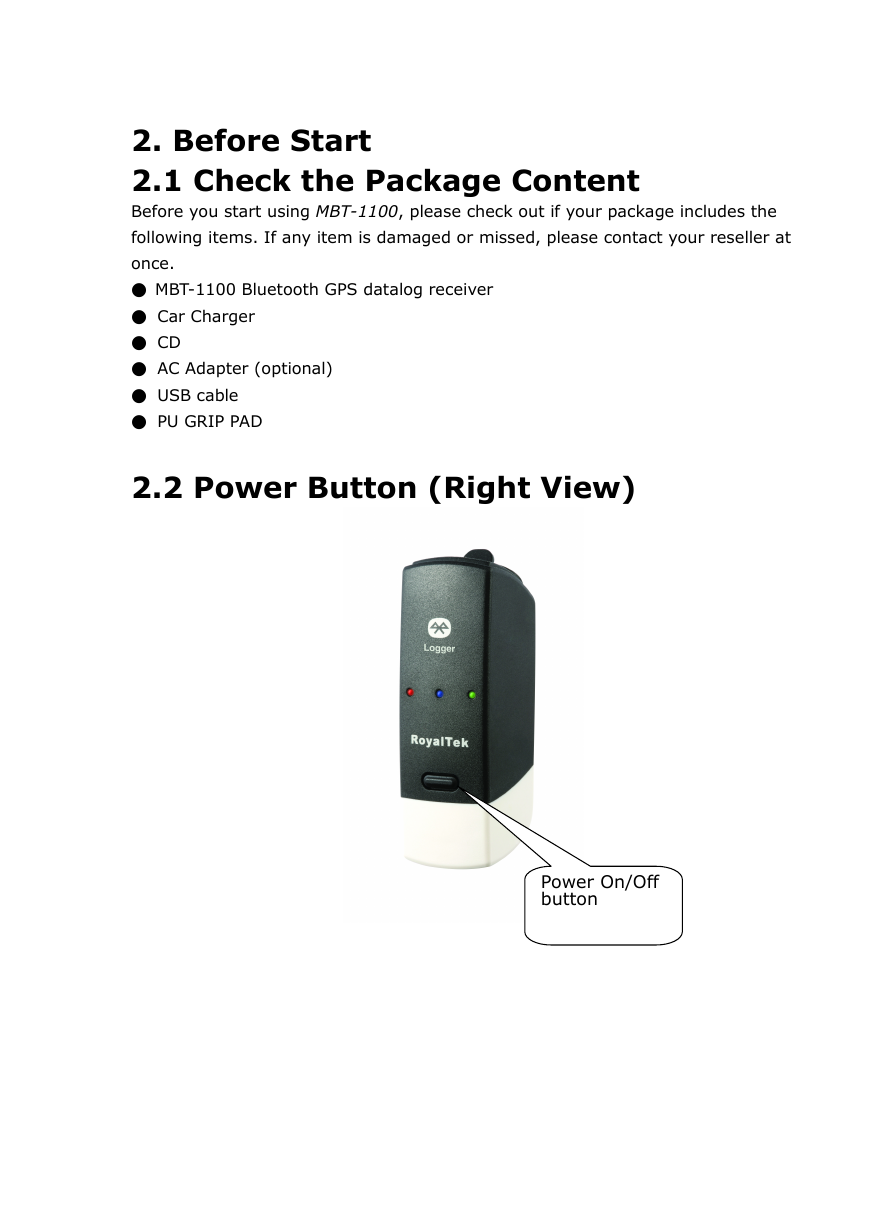

2. Before Start 2.1 Check the Package Content Before you start using MBT-1100, please check out if your package includes the following items. If any item is damaged or missed, please contact your reseller at once. ● MBT-1100 Bluetooth GPS datalog receiver ● Car Charger ● CD ● AC Adapter (optional) ● USB cable ● PU GRIP PAD 2.2 Power Button (Right View) Power On/Off button

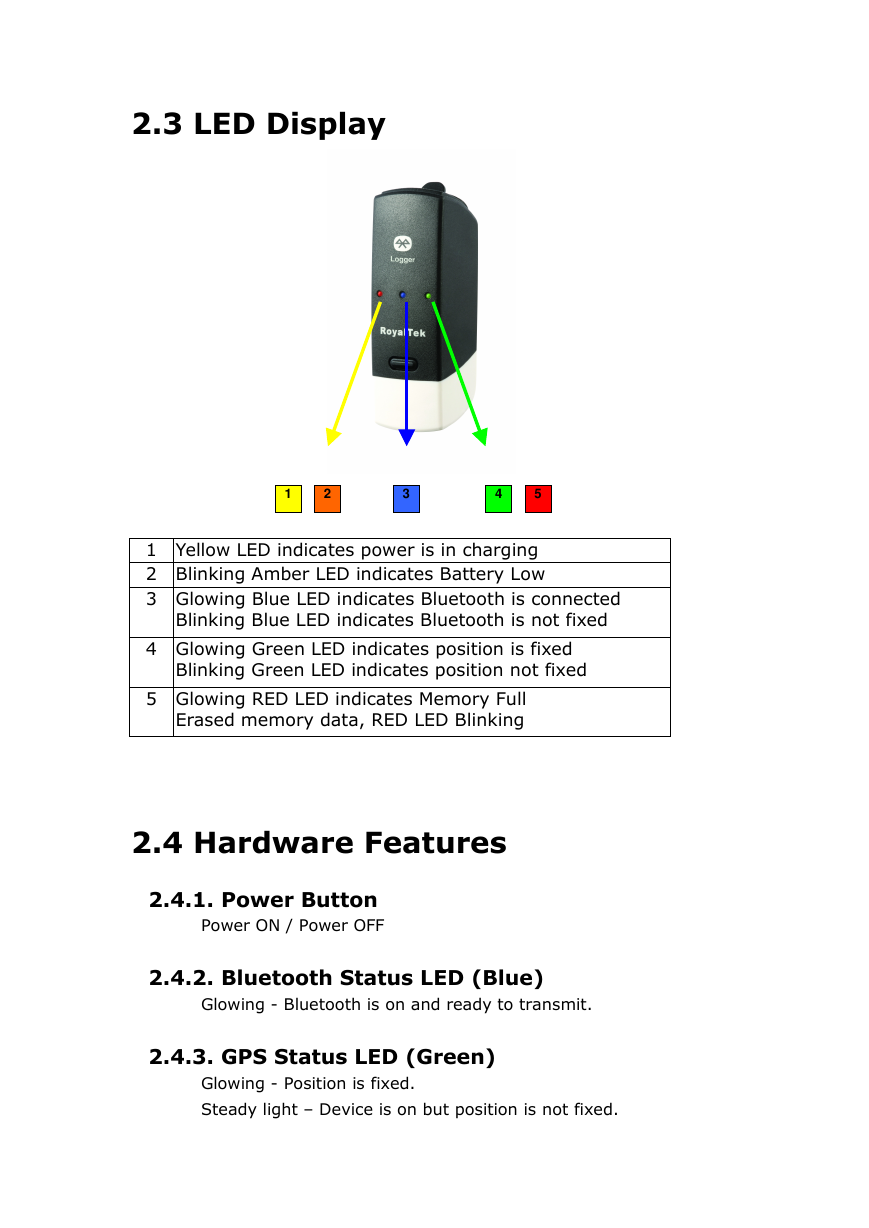

2.3 LED Display 1 2 3 4 5 1 Yellow LED indicates power is in charging 2 Blinking Amber LED indicates Battery Low 3 Glowing Blue LED indicates Bluetooth is connected Blinking Blue LED indicates Bluetooth is not fixed 4 Glowing Green LED indicates position is fixed Blinking Green LED indicates position not fixed 5 Glowing RED LED indicates Memory Full Erased memory data, RED LED Blinking 2.4 Hardware Features 2.4.1. Power Button Power ON / Power OFF 2.4.2. Bluetooth Status LED (Blue) Glowing - Bluetooth is on and ready to transmit. 2.4.3. GPS Status LED (Green) Glowing - Position is fixed. Steady light – Device is on but position is not fixed.

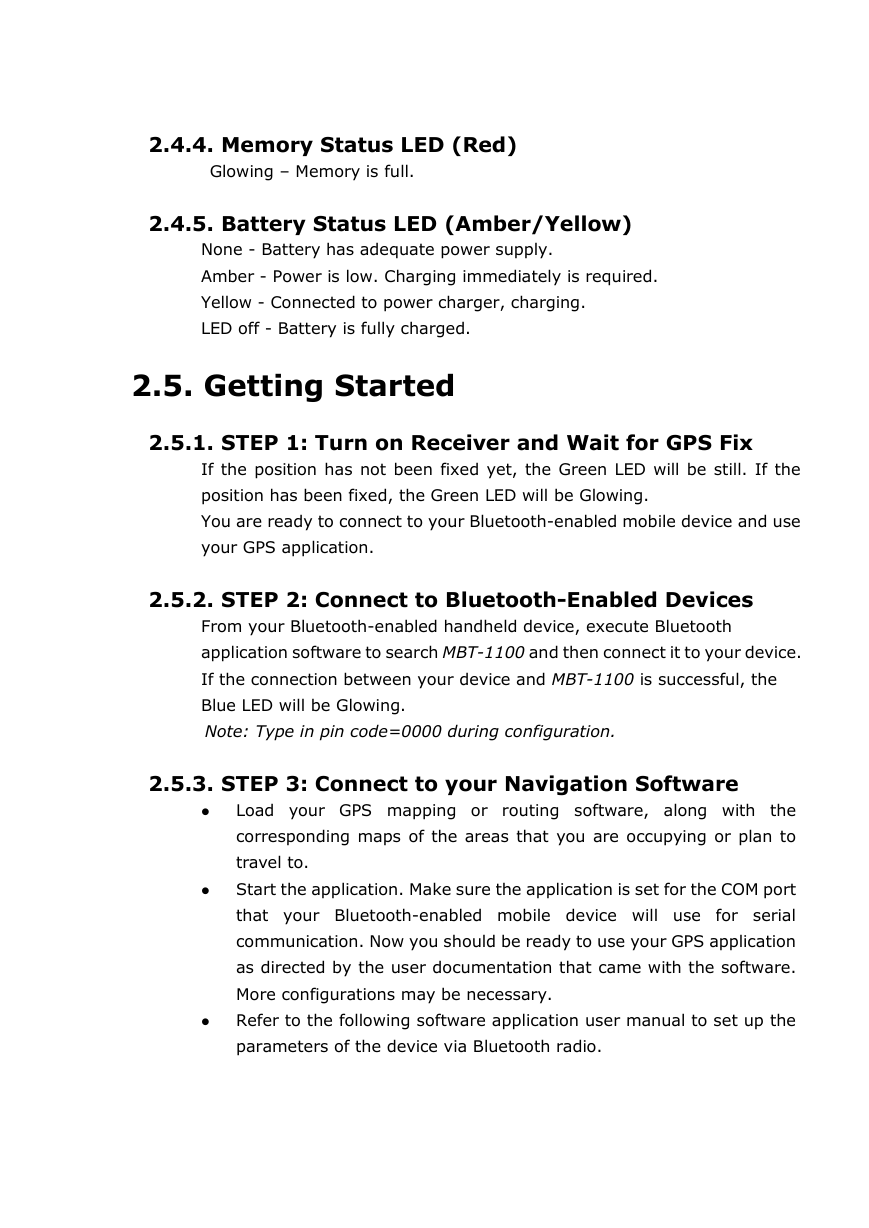

2.4.4. Memory Status LED (Red) Glowing – Memory is full. 2.4.5. Battery Status LED (Amber/Yellow) None - Battery has adequate power supply. Amber - Power is low. Charging immediately is required. Yellow - Connected to power charger, charging. LED off - Battery is fully charged. 2.5. Getting Started 2.5.1. STEP 1: Turn on Receiver and Wait for GPS Fix If the position has not been fixed yet, the Green LED will be still. If the position has been fixed, the Green LED will be Glowing. You are ready to connect to your Bluetooth-enabled mobile device and use your GPS application. 2.5.2. STEP 2: Connect to Bluetooth-Enabled Devices From your Bluetooth-enabled handheld device, execute Bluetooth application software to search MBT-1100 and then connect it to your device. If the connection between your device and MBT-1100 is successful, the Blue LED will be Glowing. Note: Type in pin code=0000 during configuration. 2.5.3. STEP 3: Connect to your Navigation Software Load your GPS mapping or routing software, along with the corresponding maps of the areas that you are occupying or plan to travel to. Start the application. Make sure the application is set for the COM port that your Bluetooth-enabled mobile device will use for serial communication. Now you should be ready to use your GPS application as directed by the user documentation that came with the software. More configurations may be necessary. Refer to the following software application user manual to set up the parameters of the device via Bluetooth radio.
