RoyalTek Bluetooth GPS Receiver RBT-2210 User Manual Version 1.1 SiRF Star III GPS Engine Inside Published on May, 2008 by RoyalTek Company Ltd. i

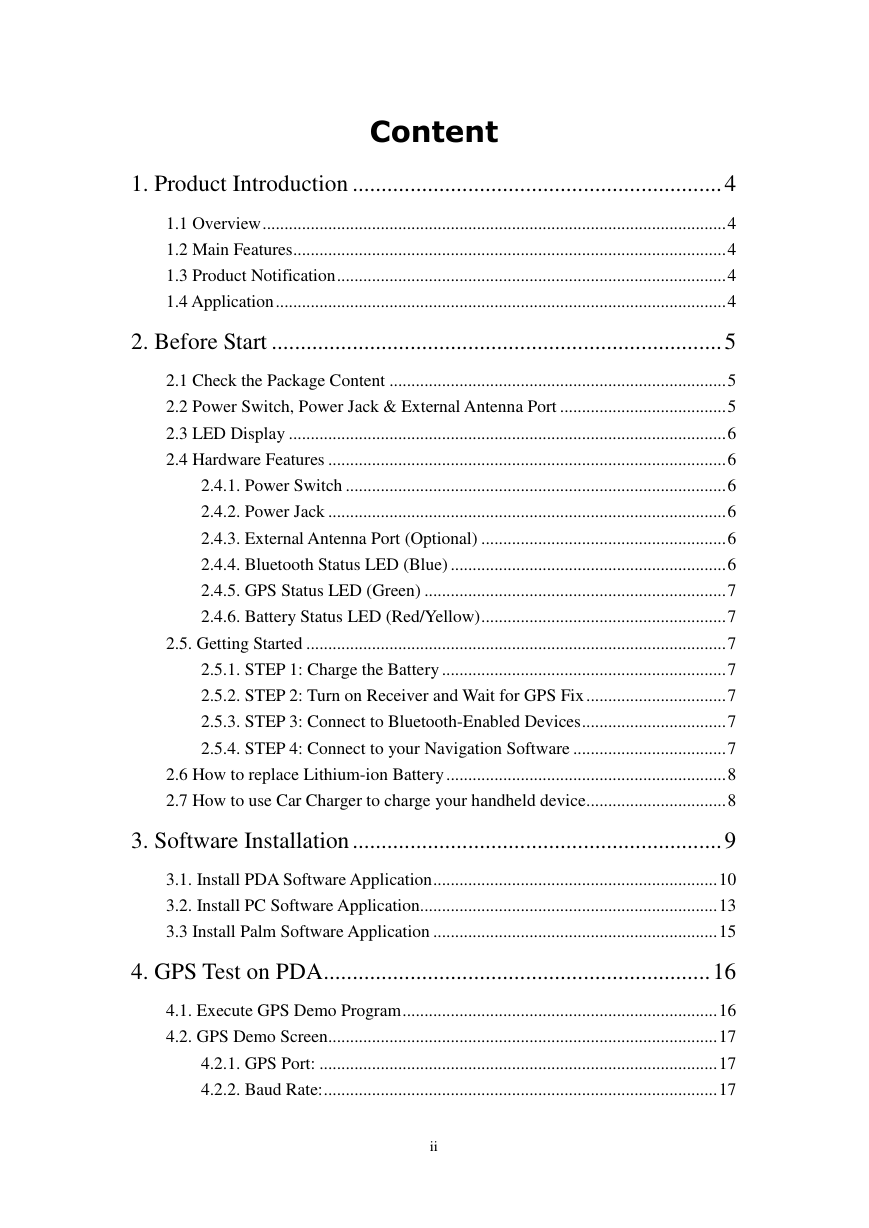

Content 1. Product Introduction ................................................................ 4 1.1 Overview..........................................................................................................4 1.2 Main Features...................................................................................................4 1.3 Product Notification.........................................................................................4 1.4 Application .......................................................................................................4 2. Before Start .............................................................................. 5 2.1 Check the Package Content .............................................................................5 2.2 Power Switch, Power Jack & External Antenna Port ......................................5 2.3 LED Display ....................................................................................................6 2.4 Hardware Features ...........................................................................................6 2.4.1. Power Switch .......................................................................................6 2.4.2. Power Jack ...........................................................................................6 2.4.3. External Antenna Port (Optional) ........................................................6 2.4.4. Bluetooth Status LED (Blue) ...............................................................6 2.4.5. GPS Status LED (Green) .....................................................................7 2.4.6. Battery Status LED (Red/Yellow)........................................................7 2.5. Getting Started ................................................................................................7 2.5.1. STEP 1: Charge the Battery .................................................................7 2.5.2. STEP 2: Turn on Receiver and Wait for GPS Fix ................................7 2.5.3. STEP 3: Connect to Bluetooth-Enabled Devices.................................7 2.5.4. STEP 4: Connect to your Navigation Software ...................................7 2.6 How to replace Lithium-ion Battery ................................................................8 2.7 How to use Car Charger to charge your handheld device................................8 3. Software Installation ................................................................ 9 3.1. Install PDA Software Application.................................................................10 3.2. Install PC Software Application....................................................................13 3.3 Install Palm Software Application .................................................................15 4. GPS Test on PDA................................................................... 16 4.1. Execute GPS Demo Program........................................................................16 4.2. GPS Demo Screen.........................................................................................17 4.2.1. GPS Port: ...........................................................................................17 4.2.2. Baud Rate:..........................................................................................17 ii

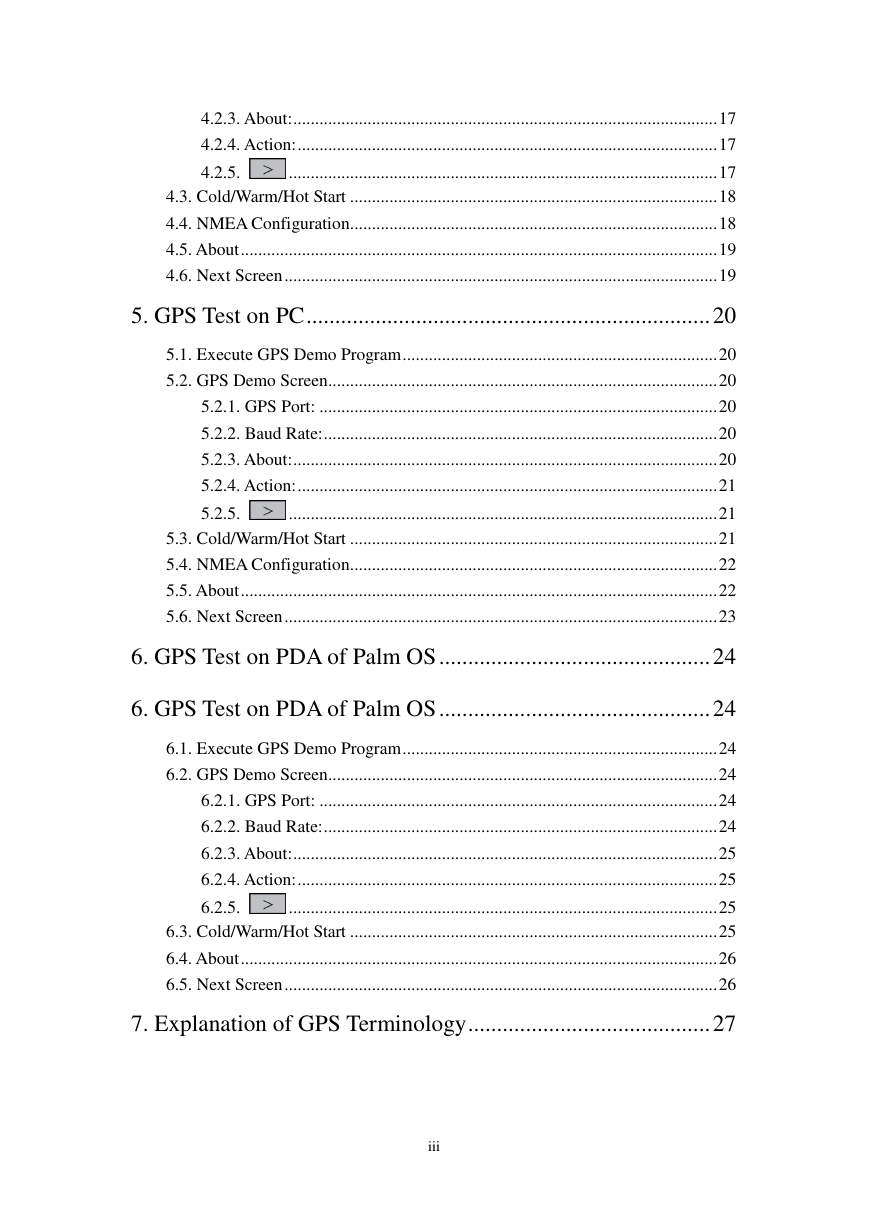

4.2.3. About:.................................................................................................17 4.2.4. Action:................................................................................................17 4.2.5. ..................................................................................................17 4.3. Cold/Warm/Hot Start ....................................................................................18 4.4. NMEA Configuration....................................................................................18 4.5. About.............................................................................................................19 4.6. Next Screen ...................................................................................................19 5. GPS Test on PC...................................................................... 20 5.1. Execute GPS Demo Program........................................................................20 5.2. GPS Demo Screen.........................................................................................20 5.2.1. GPS Port: ...........................................................................................20 5.2.2. Baud Rate:..........................................................................................20 5.2.3. About:.................................................................................................20 5.2.4. Action:................................................................................................21 5.2.5. ..................................................................................................21 5.3. Cold/Warm/Hot Start ....................................................................................21 5.4. NMEA Configuration....................................................................................22 5.5. About.............................................................................................................22 5.6. Next Screen ...................................................................................................23 6. GPS Test on PDA of Palm OS ............................................... 24 6. GPS Test on PDA of Palm OS ............................................... 24 6.1. Execute GPS Demo Program........................................................................24 6.2. GPS Demo Screen.........................................................................................24 6.2.1. GPS Port: ...........................................................................................24 6.2.2. Baud Rate:..........................................................................................24 6.2.3. About:.................................................................................................25 6.2.4. Action:................................................................................................25 6.2.5. ..................................................................................................25 6.3. Cold/Warm/Hot Start ....................................................................................25 6.4. About.............................................................................................................26 6.5. Next Screen ...................................................................................................26 7. Explanation of GPS Terminology.......................................... 27 iii

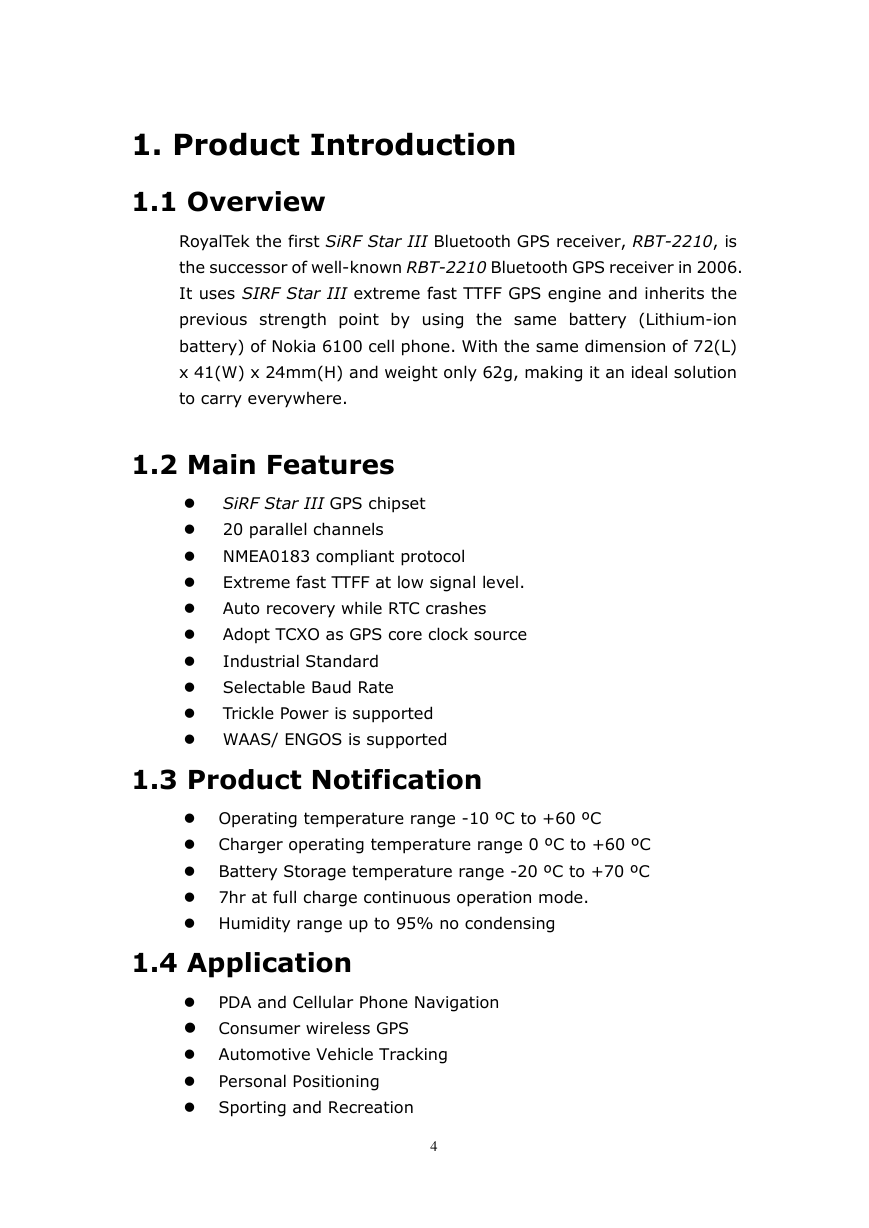

1. Product Introduction 1.1 Overview RoyalTek the first SiRF Star III Bluetooth GPS receiver, RBT-2210, is the successor of well-known RBT-2210 Bluetooth GPS receiver in 2006. It uses SIRF Star III extreme fast TTFF GPS engine and inherits the previous strength point by using the same battery (Lithium-ion battery) of Nokia 6100 cell phone. With the same dimension of 72(L) x 41(W) x 24mm(H) and weight only 62g, making it an ideal solution to carry everywhere. 1.2 Main Features SiRF Star III GPS chipset 20 parallel channels NMEA0183 compliant protocol Extreme fast TTFF at low signal level. Auto recovery while RTC crashes Adopt TCXO as GPS core clock source Industrial Standard Selectable Baud Rate Trickle Power is supported WAAS/ ENGOS is supported 1.3 Product Notification Operating temperature range -10 ºC to +60 ºC Charger operating temperature range 0 ºC to +60 ºC Battery Storage temperature range -20 ºC to +70 ºC 7hr at full charge continuous operation mode. Humidity range up to 95% no condensing 1.4 Application PDA and Cellular Phone Navigation Consumer wireless GPS Automotive Vehicle Tracking Personal Positioning Sporting and Recreation 4

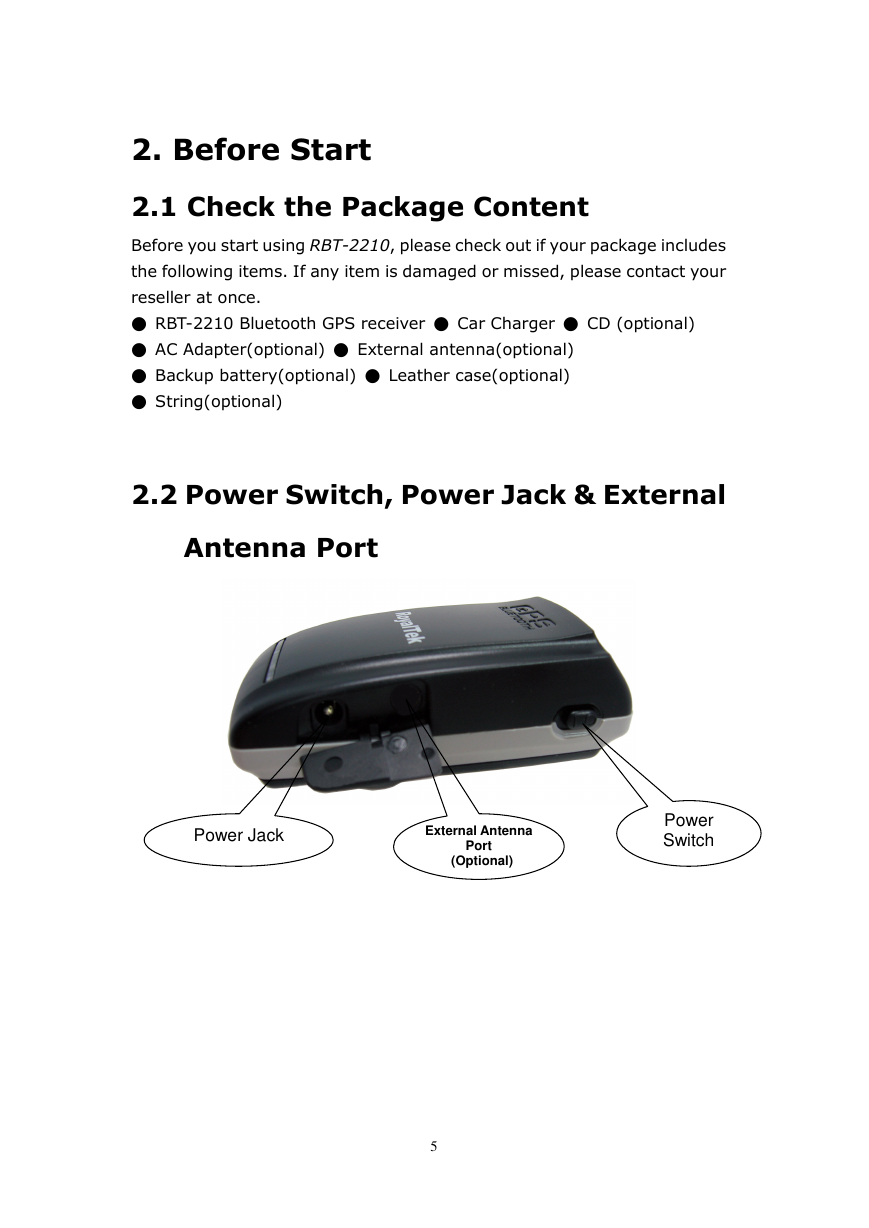

2. Before Start 2.1 Check the Package Content Before you start using RBT-2210, please check out if your package includes the following items. If any item is damaged or missed, please contact your reseller at once. ● RBT-2210 Bluetooth GPS receiver ● Car Charger ● CD (optional) ● AC Adapter(optional) ● External antenna(optional) ● Backup battery(optional) ● Leather case(optional) ● String(optional) 2.2 Power Switch, Power Jack & External Antenna Port Power Jack External Antenna Port (Optional) Power Switch 5

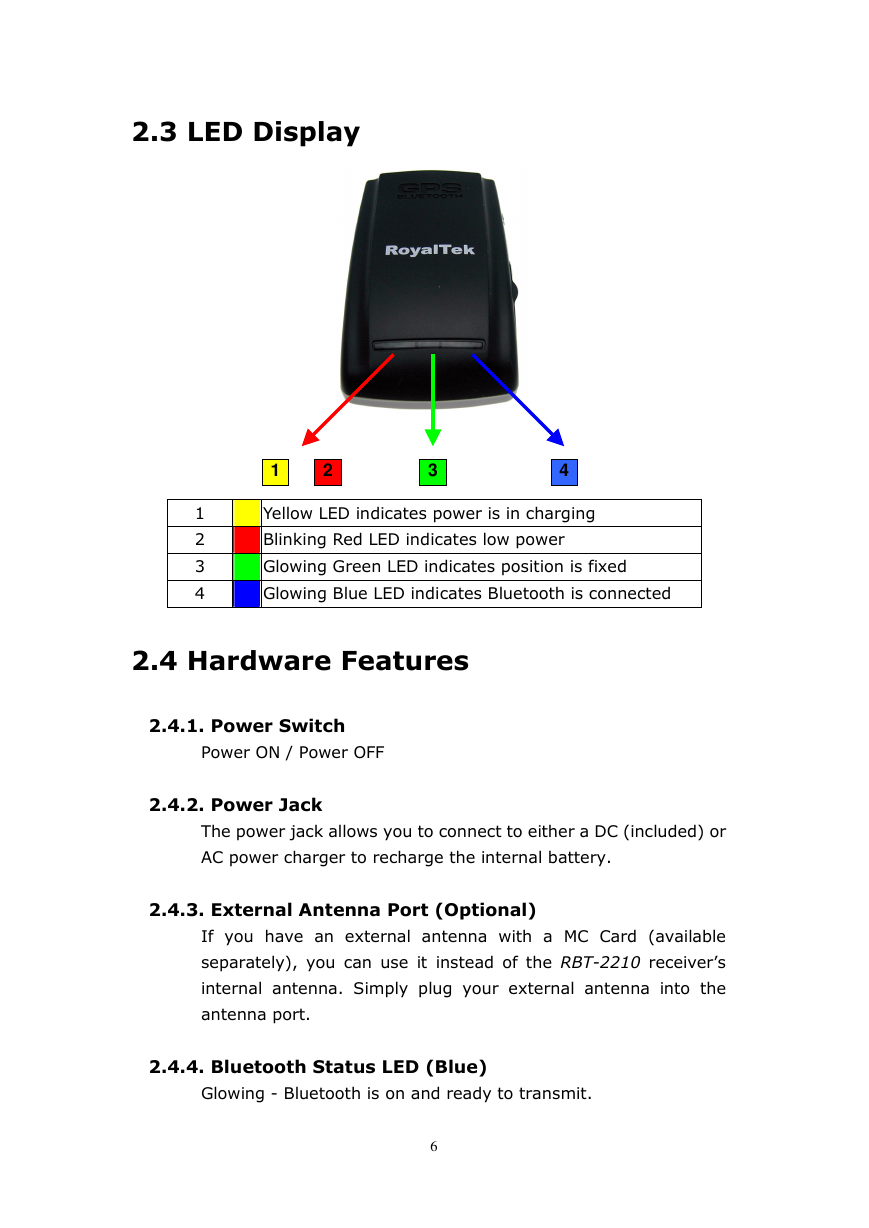

2.3 LED Display 1 2 3 4 1 2 3 4 Yellow LED indicates power is in charging Blinking Red LED indicates low power Glowing Green LED indicates position is fixed Glowing Blue LED indicates Bluetooth is connected 2.4 Hardware Features 2.4.1. Power Switch Power ON / Power OFF 2.4.2. Power Jack The power jack allows you to connect to either a DC (included) or AC power charger to recharge the internal battery. 2.4.3. External Antenna Port (Optional) If you have an external antenna with a MC Card (available separately), you can use it instead of the RBT-2210 receiver’s internal antenna. Simply plug your external antenna into the antenna port. 2.4.4. Bluetooth Status LED (Blue) Glowing - Bluetooth is on and ready to transmit. 6

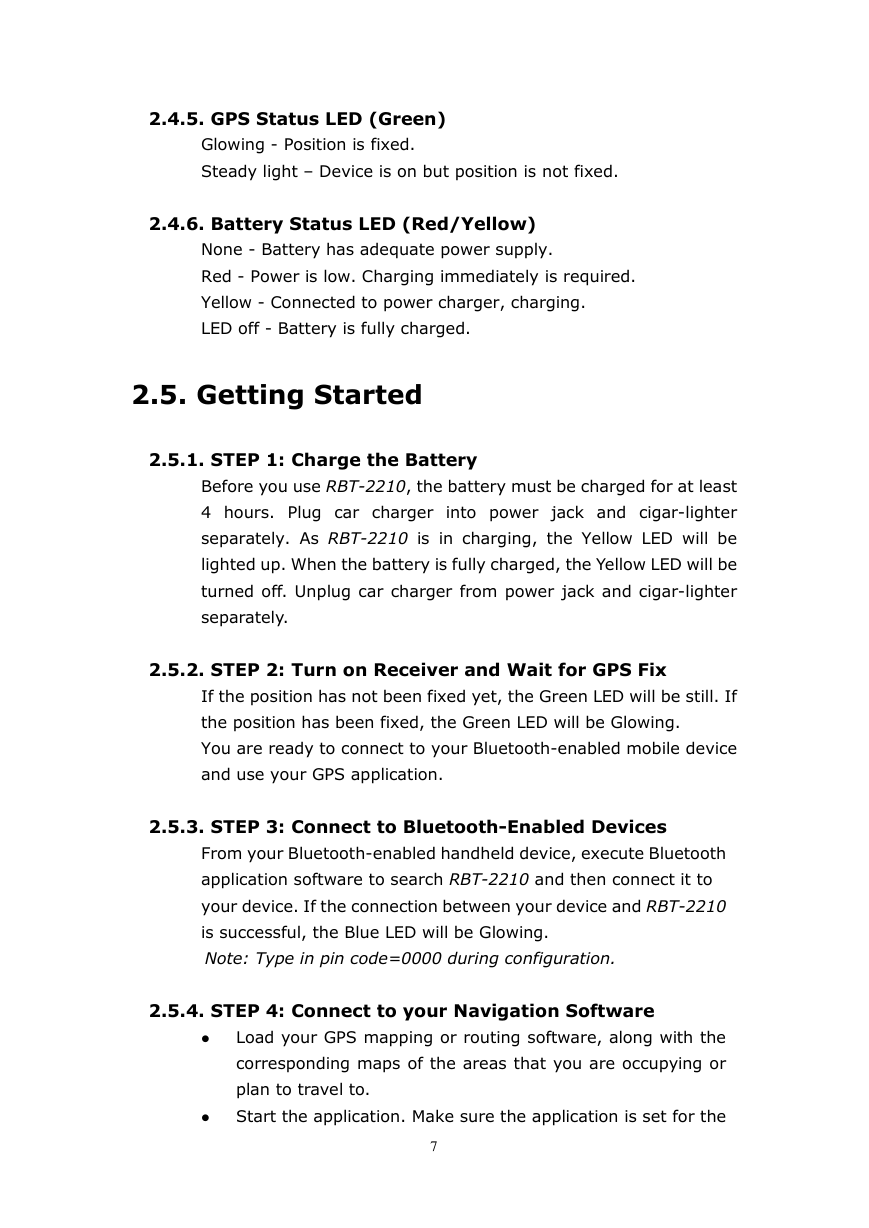

2.4.5. GPS Status LED (Green) Glowing - Position is fixed. Steady light – Device is on but position is not fixed. 2.4.6. Battery Status LED (Red/Yellow) None - Battery has adequate power supply. Red - Power is low. Charging immediately is required. Yellow - Connected to power charger, charging. LED off - Battery is fully charged. 2.5. Getting Started 2.5.1. STEP 1: Charge the Battery Before you use RBT-2210, the battery must be charged for at least 4 hours. Plug car charger into power jack and cigar-lighter separately. As RBT-2210 is in charging, the Yellow LED will be lighted up. When the battery is fully charged, the Yellow LED will be turned off. Unplug car charger from power jack and cigar-lighter separately. 2.5.2. STEP 2: Turn on Receiver and Wait for GPS Fix If the position has not been fixed yet, the Green LED will be still. If the position has been fixed, the Green LED will be Glowing. You are ready to connect to your Bluetooth-enabled mobile device and use your GPS application. 2.5.3. STEP 3: Connect to Bluetooth-Enabled Devices From your Bluetooth-enabled handheld device, execute Bluetooth application software to search RBT-2210 and then connect it to your device. If the connection between your device and RBT-2210 is successful, the Blue LED will be Glowing. Note: Type in pin code=0000 during configuration. 2.5.4. STEP 4: Connect to your Navigation Software Load your GPS mapping or routing software, along with the corresponding maps of the areas that you are occupying or plan to travel to. Start the application. Make sure the application is set for the 7

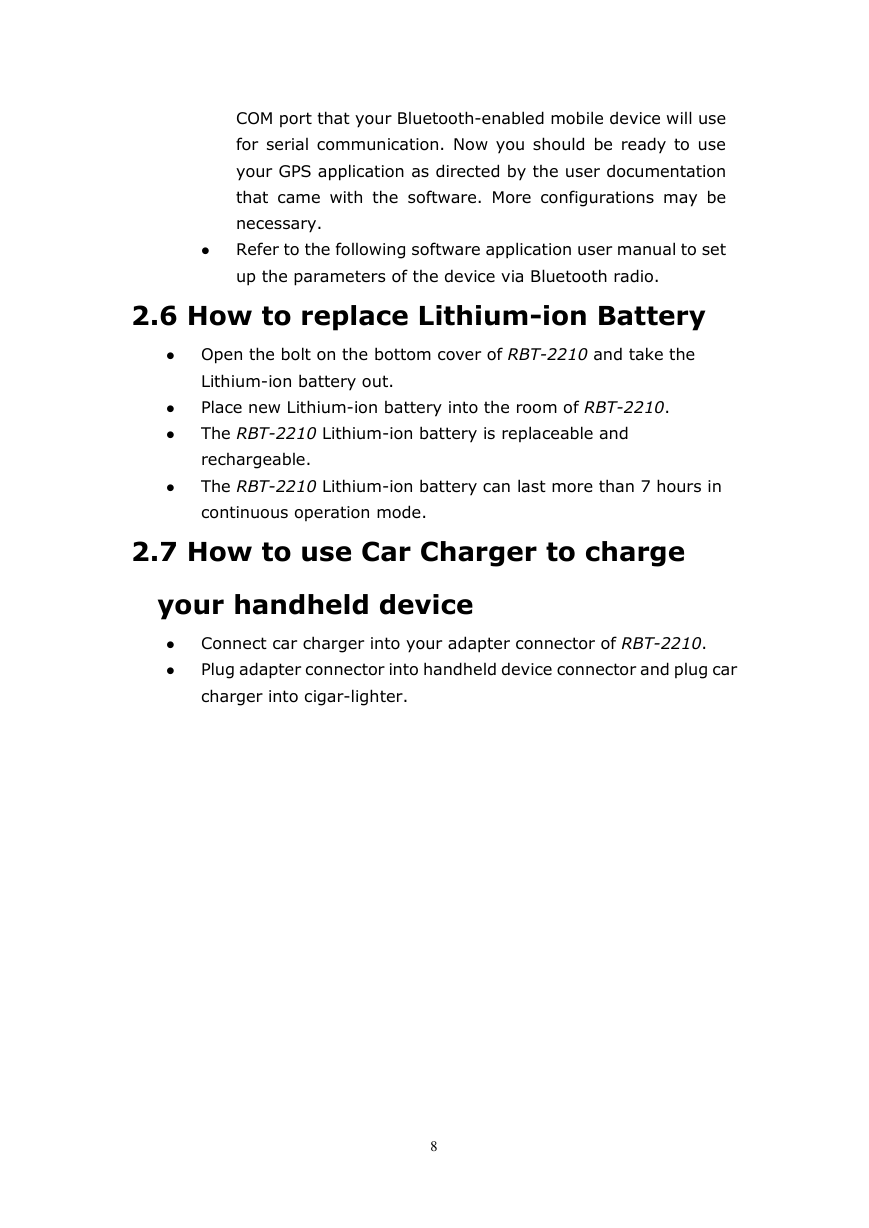

COM port that your Bluetooth-enabled mobile device will use for serial communication. Now you should be ready to use your GPS application as directed by the user documentation that came with the software. More configurations may be necessary. Refer to the following software application user manual to set up the parameters of the device via Bluetooth radio. 2.6 How to replace Lithium-ion Battery Open the bolt on the bottom cover of RBT-2210 and take the Lithium-ion battery out. Place new Lithium-ion battery into the room of RBT-2210. The RBT-2210 Lithium-ion battery is replaceable and rechargeable. The RBT-2210 Lithium-ion battery can last more than 7 hours in continuous operation mode. 2.7 How to use Car Charger to charge your handheld device Connect car charger into your adapter connector of RBT-2210. Plug adapter connector into handheld device connector and plug car charger into cigar-lighter. 8
