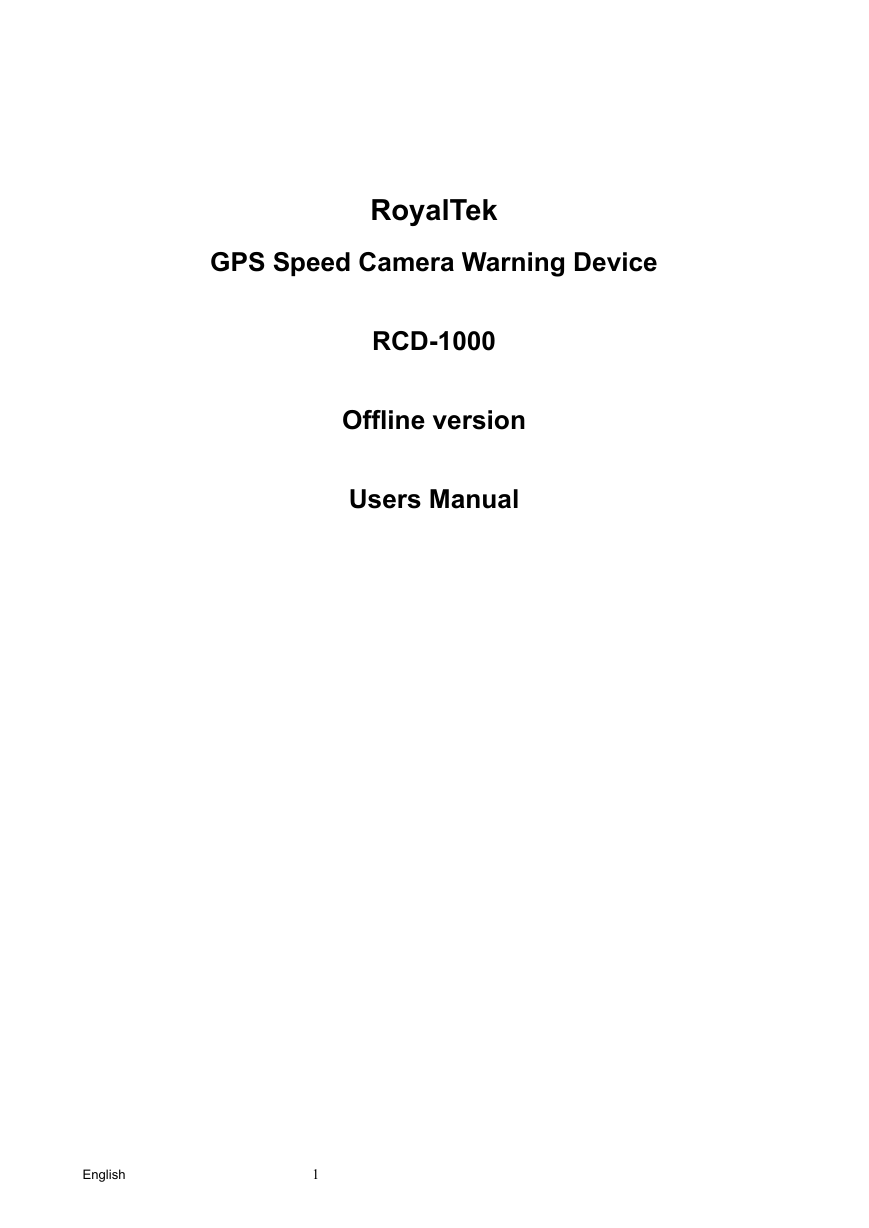

RoyalTek GPS Speed Camera Warning Device RCD-1000 Offline version Users Manual English 1

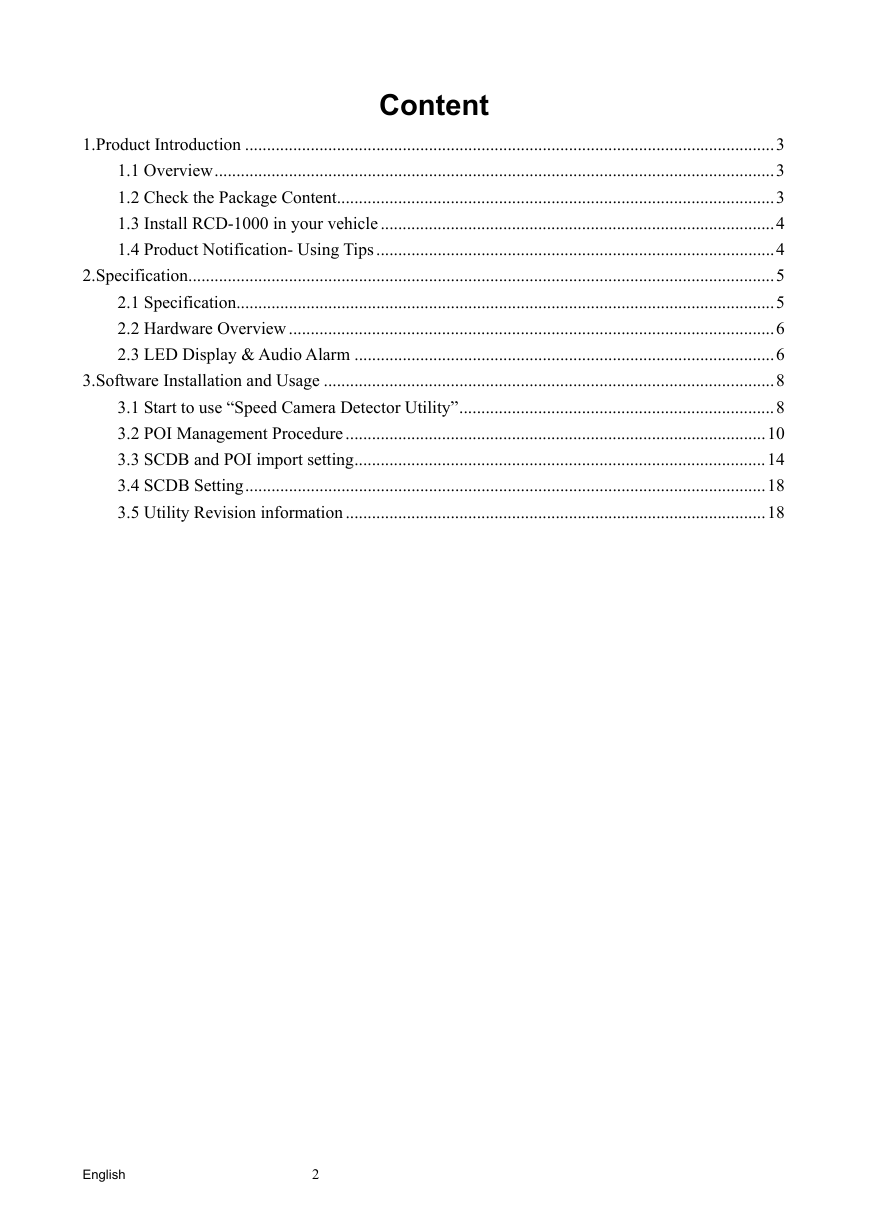

Content 1.Product Introduction .........................................................................................................................3 1.1 Overview................................................................................................................................3 1.2 Check the Package Content....................................................................................................3 1.3 Install RCD-1000 in your vehicle ..........................................................................................4 1.4 Product Notification- Using Tips ...........................................................................................4 2.Specification......................................................................................................................................5 2.1 Specification...........................................................................................................................5 2.2 Hardware Overview ...............................................................................................................6 2.3 LED Display & Audio Alarm ................................................................................................6 3.Software Installation and Usage .......................................................................................................8 3.1 Start to use “Speed Camera Detector Utility”........................................................................8 3.2 POI Management Procedure ................................................................................................10 3.3 SCDB and POI import setting..............................................................................................14 3.4 SCDB Setting.......................................................................................................................18 3.5 Utility Revision information ................................................................................................18 English 2

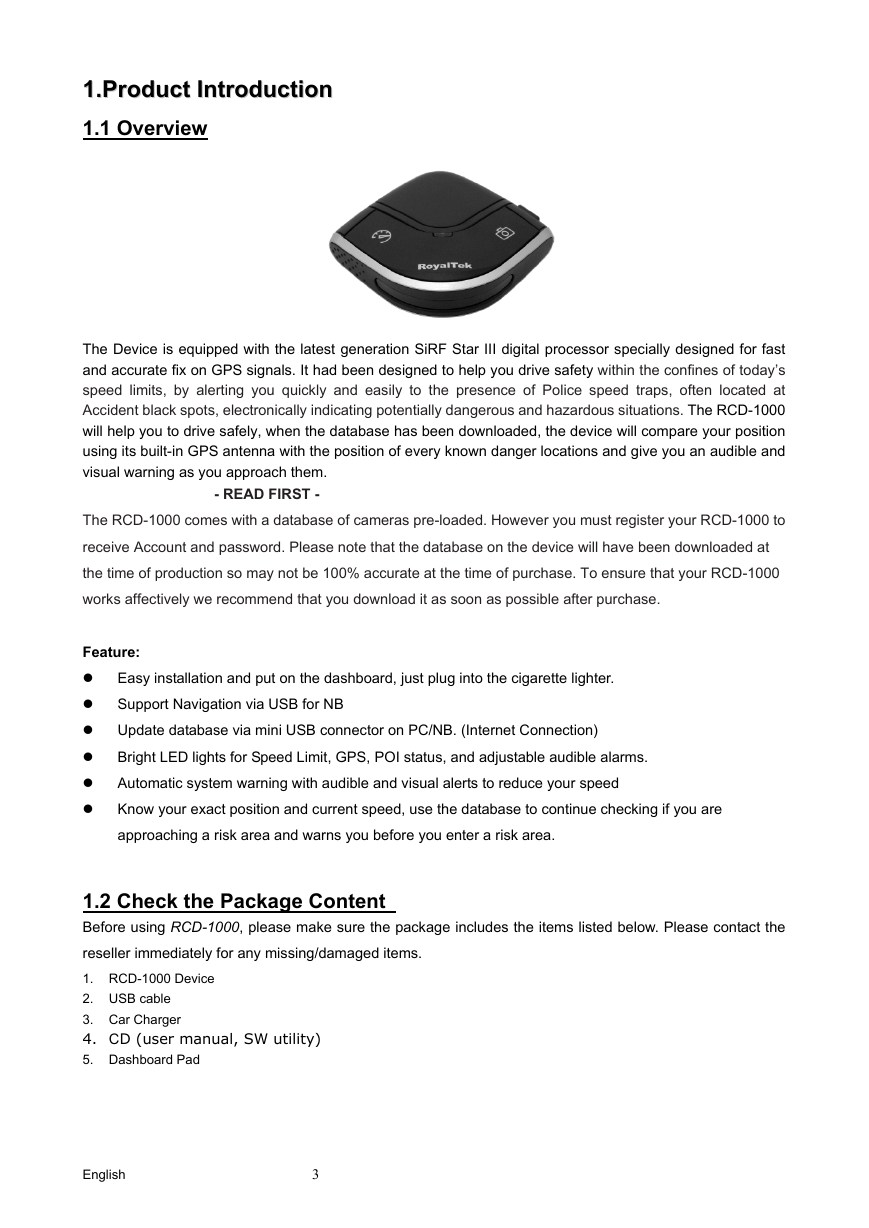

11..PPrroodduucctt IInnttrroodduuccttiioonn 1.1 Overview The Device is equipped with the latest generation SiRF Star III digital processor specially designed for fast and accurate fix on GPS signals. It had been designed to help you drive safety within the confines of today’s speed limits, by alerting you quickly and easily to the presence of Police speed traps, often located at Accident black spots, electronically indicating potentially dangerous and hazardous situations. The RCD-1000 will help you to drive safely, when the database has been downloaded, the device will compare your position using its built-in GPS antenna with the position of every known danger locations and give you an audible and visual warning as you approach them. - READ FIRST - The RCD-1000 comes with a database of cameras pre-loaded. However you must register your RCD-1000 to receive Account and password. Please note that the database on the device will have been downloaded at the time of production so may not be 100% accurate at the time of purchase. To ensure that your RCD-1000 works affectively we recommend that you download it as soon as possible after purchase. Feature: Update database via mini USB connector on PC/NB. (Internet Connection) Bright LED lights for Speed Limit, GPS, POI status, and adjustable audible alarms. Automatic system warning with audible and visual alerts to reduce your speed Know your exact position and current speed, use the database to continue checking if you are approaching a risk area and warns you before you enter a risk area. Easy installation and put on the dashboard, just plug into the cigarette lighter. Support Navigation via USB for NB 1.2 Check the Package Content Before using RCD-1000, please make sure the package includes the items listed below. Please contact the reseller immediately for any missing/damaged items. 1. RCD-1000 Device 2. USB cable 3. Car Charger 4. CD (user manual, SW utility) 5. Dashboard Pad English 3

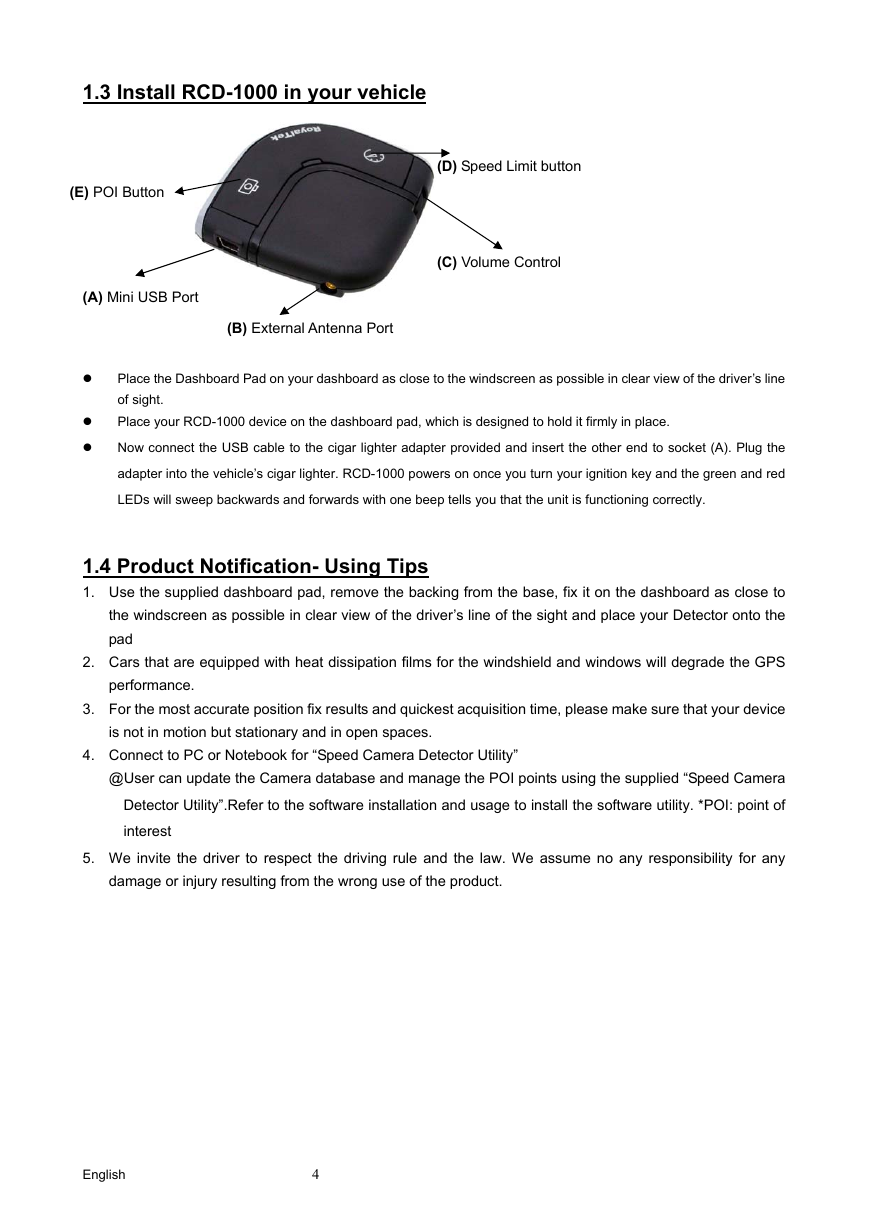

1.3 Install RCD-1000 in your vehicle (E) POI Button (D) Speed Limit button (C) Volume Control (B) External Antenna Port (A) Mini USB Port Place the Dashboard Pad on your dashboard as close to the windscreen as possible in clear view of the driver’s line of sight. Place your RCD-1000 device on the dashboard pad, which is designed to hold it firmly in place. Now connect the USB cable to the cigar lighter adapter provided and insert the other end to socket (A). Plug the adapter into the vehicle’s cigar lighter. RCD-1000 powers on once you turn your ignition key and the green and red LEDs will sweep backwards and forwards with one beep tells you that the unit is functioning correctly. 1.4 Product Notification- Using Tips 1. Use the supplied dashboard pad, remove the backing from the base, fix it on the dashboard as close to the windscreen as possible in clear view of the driver’s line of the sight and place your Detector onto the pad 2. Cars that are equipped with heat dissipation films for the windshield and windows will degrade the GPS performance. 3. For the most accurate position fix results and quickest acquisition time, please make sure that your device is not in motion but stationary and in open spaces. 4. Connect to PC or Notebook for “Speed Camera Detector Utility” @User can update the Camera database and manage the POI points using the supplied “Speed Camera Detector Utility”.Refer to the software installation and usage to install the software utility. *POI: point of interest 5. We invite the driver to respect the driving rule and the law. We assume no any responsibility for any damage or injury resulting from the wrong use of the product. English 4

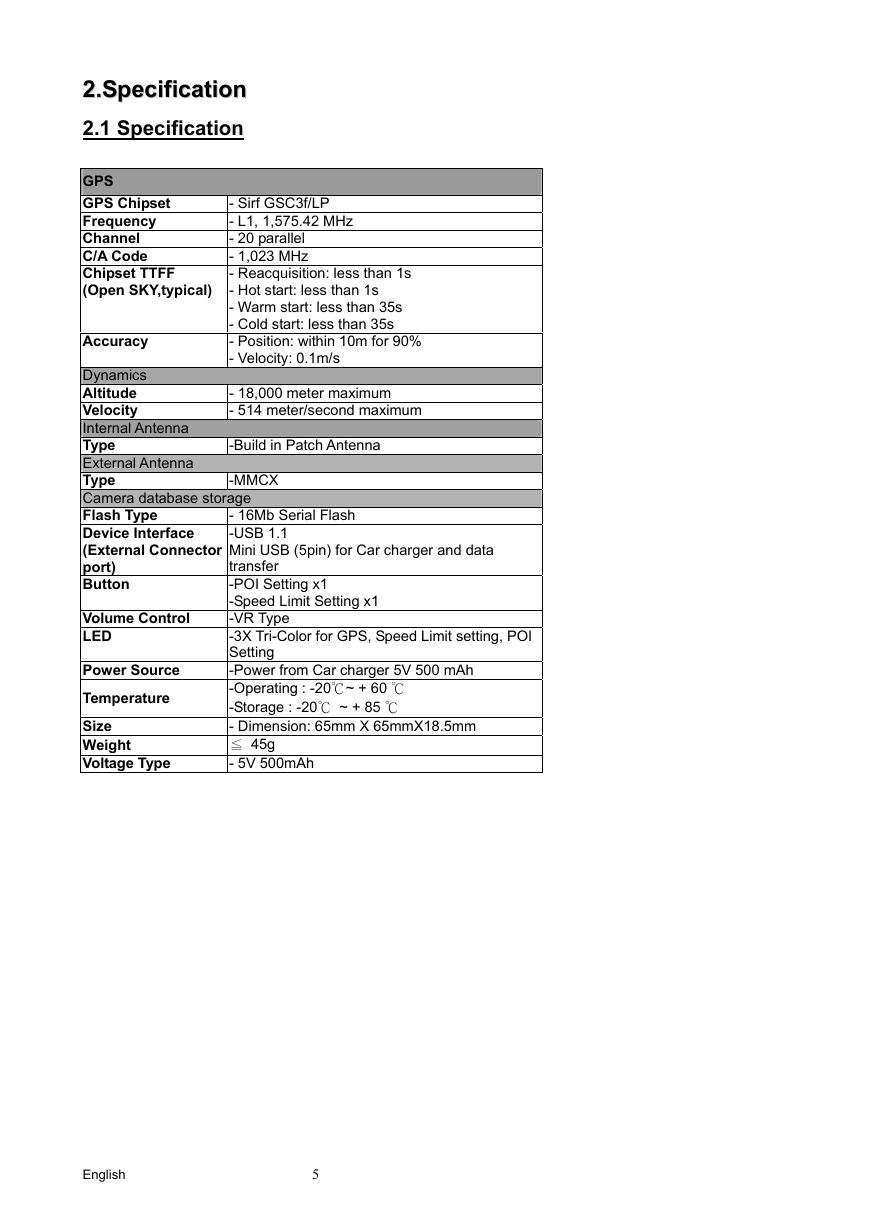

22..SSppeecciiffiiccaattiioonn 2.1 Specification GPS GPS Chipset Frequency Channel C/A Code Chipset TTFF (Open SKY,typical) Accuracy Dynamics Altitude Velocity Internal Antenna Type External Antenna Type Camera database storage Flash Type Device Interface (External Connector port) Button Volume Control LED Power Source Temperature Size Weight Voltage Type - Sirf GSC3f/LP - L1, 1,575.42 MHz - 20 parallel - 1,023 MHz - Reacquisition: less than 1s - Hot start: less than 1s - Warm start: less than 35s - Cold start: less than 35s - Position: within 10m for 90% - Velocity: 0.1m/s - 18,000 meter maximum - 514 meter/second maximum -Build in Patch Antenna -MMCX - 16Mb Serial Flash -USB 1.1 Mini USB (5pin) for Car charger and data transfer -POI Setting x1 -Speed Limit Setting x1 -VR Type -3X Tri-Color for GPS, Speed Limit setting, POI Setting -Power from Car charger 5V 500 mAh -Operating : -20℃~ + 60 ℃ -Storage : -20℃ ~ + 85 ℃ - Dimension: 65mm X 65mmX18.5mm ≦ 45g - 5V 500mAh English 5

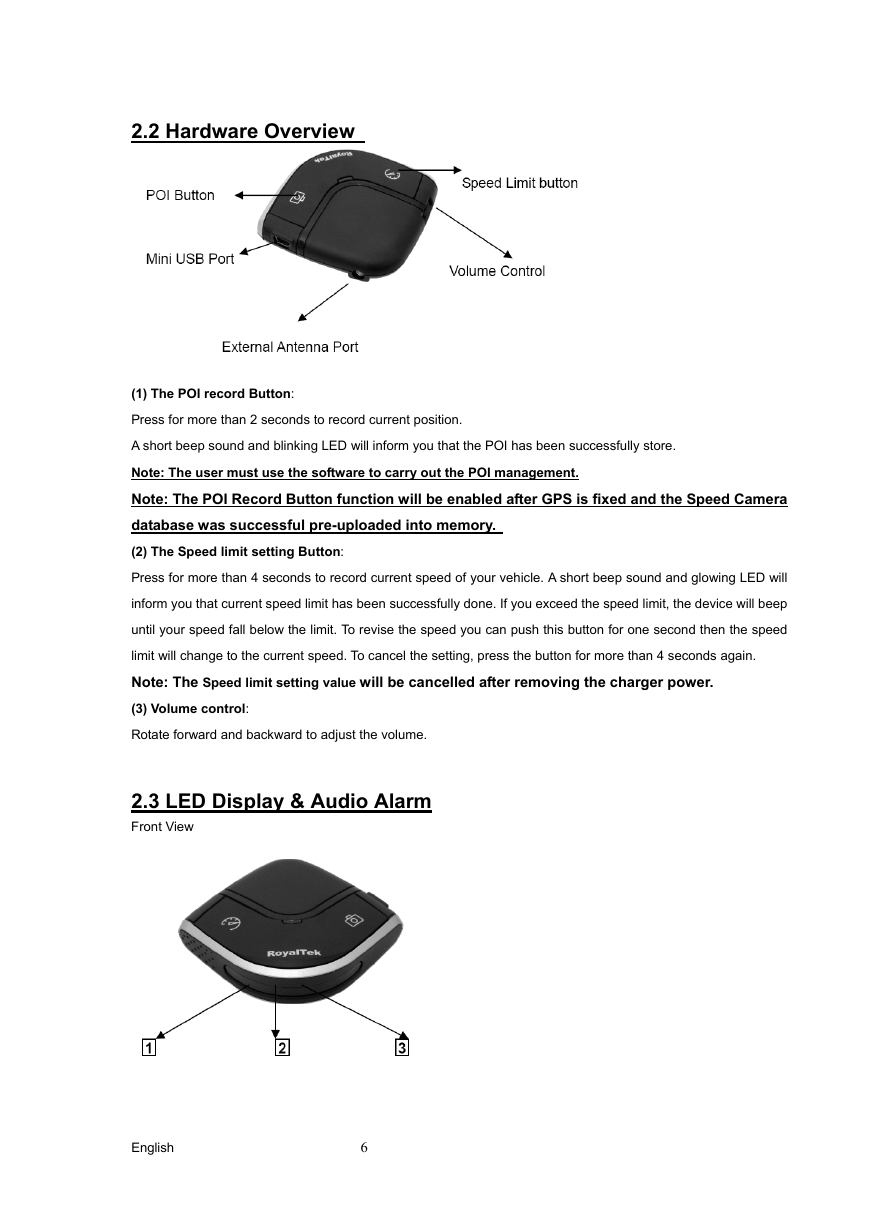

2.2 Hardware Overview (1) The POI record Button: Press for more than 2 seconds to record current position. A short beep sound and blinking LED will inform you that the POI has been successfully store. Note: The user must use the software to carry out the POI management. Note: The POI Record Button function will be enabled after GPS is fixed and the Speed Camera database was successful pre-uploaded into memory. (2) The Speed limit setting Button: Press for more than 4 seconds to record current speed of your vehicle. A short beep sound and glowing LED will inform you that current speed limit has been successfully done. If you exceed the speed limit, the device will beep until your speed fall below the limit. To revise the speed you can push this button for one second then the speed limit will change to the current speed. To cancel the setting, press the button for more than 4 seconds again. Note: The Speed limit setting value will be cancelled after removing the charger power. (3) Volume control: Rotate forward and backward to adjust the volume. 2.3 LED Display & Audio Alarm Front View English 6

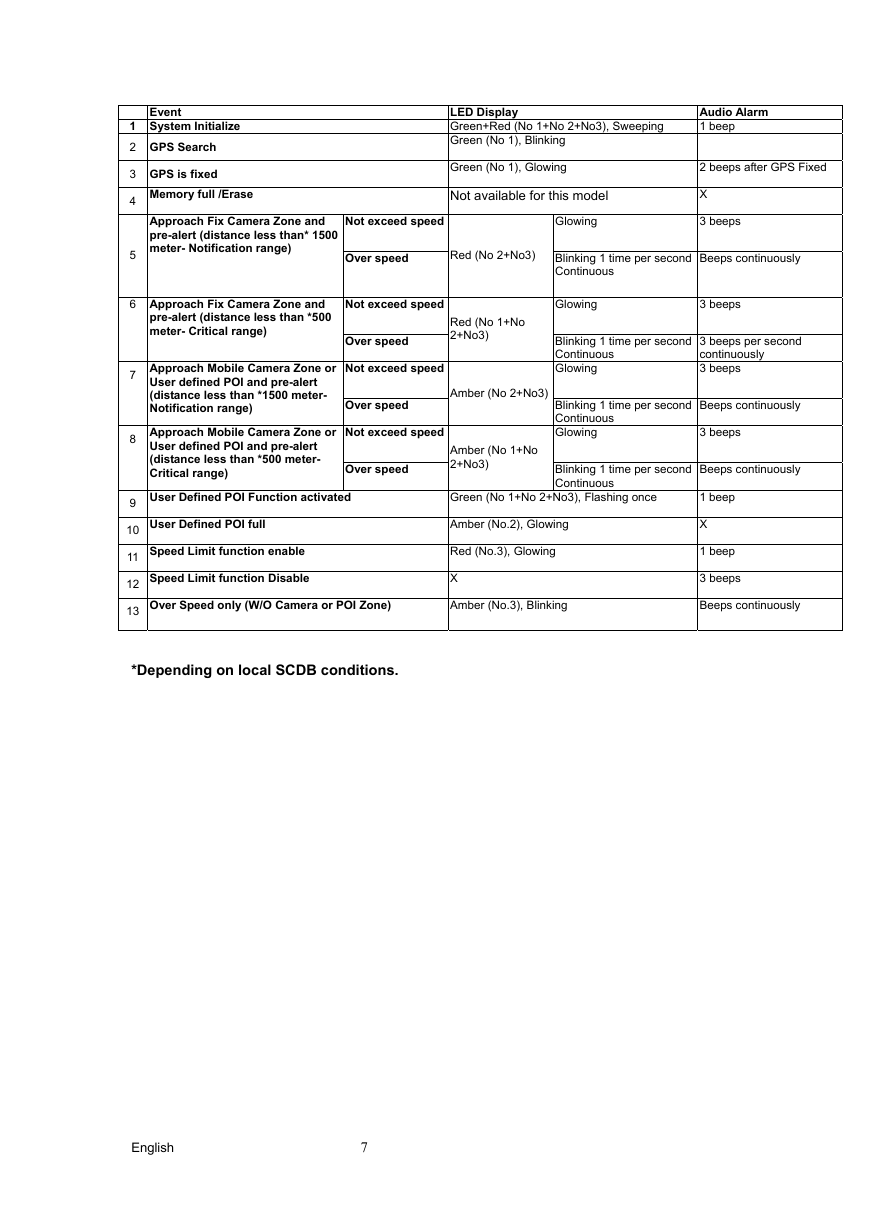

Blinking 1 time per second Continuous Green (No 1+No 2+No3), Flashing once Amber (No.2), Glowing Red (No.3), Glowing X Beeps continuously 1 beep X 1 beep 3 beeps Amber (No.3), Blinking Beeps continuously Event 1 System Initialize 2 GPS Search 3 GPS is fixed 4 Memory full /Erase Approach Fix Camera Zone and pre-alert (distance less than* 1500 meter- Notification range) 5 6 Approach Fix Camera Zone and pre-alert (distance less than *500 meter- Critical range) 7 Approach Mobile Camera Zone or User defined POI and pre-alert (distance less than *1500 meter- Notification range) 8 Approach Mobile Camera Zone or User defined POI and pre-alert (distance less than *500 meter- Critical range) LED Display Green+Red (No 1+No 2+No3), Sweeping Green (No 1), Blinking Audio Alarm 1 beep Green (No 1), Glowing 2 beeps after GPS Fixed Not available for this model Not exceed speed Glowing X 3 beeps Over speed Red (No 2+No3) Blinking 1 time per second Continuous Beeps continuously Not exceed speed Glowing 3 beeps Over speed Not exceed speed Over speed Not exceed speed Over speed Red (No 1+No 2+No3) Amber (No 2+No3) Amber (No 1+No 2+No3) Blinking 1 time per second Continuous Glowing 3 beeps per second continuously 3 beeps Blinking 1 time per second Continuous Glowing Beeps continuously 3 beeps 9 User Defined POI Function activated 10 User Defined POI full 11 Speed Limit function enable 12 Speed Limit function Disable 13 Over Speed only (W/O Camera or POI Zone) *Depending on local SCDB conditions. English 7

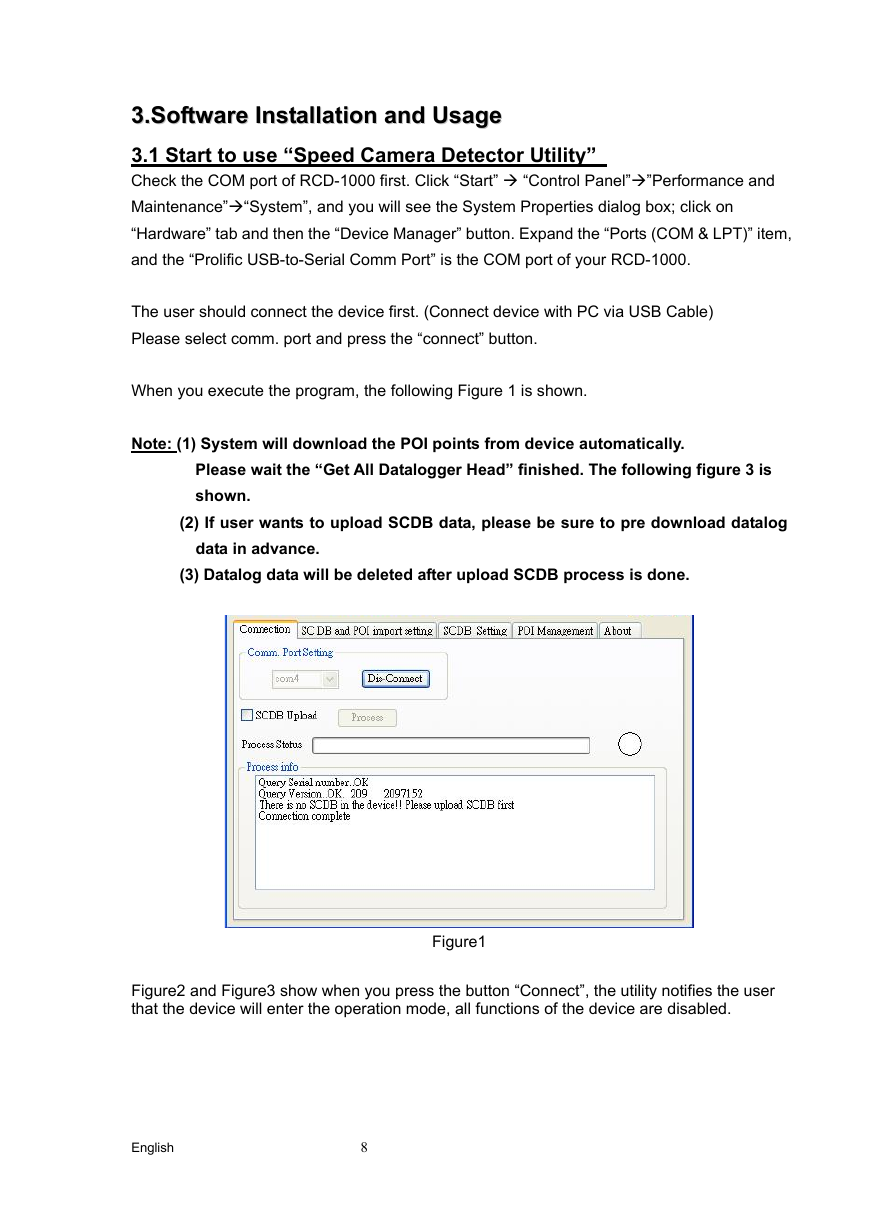

33..SSooffttwwaarree IInnssttaallllaattiioonn aanndd UUssaaggee 3.1 Start to use “Speed Camera Detector Utility” Check the COM port of RCD-1000 first. Click “Start” “Control Panel””Performance and Maintenance”“System”, and you will see the System Properties dialog box; click on “Hardware” tab and then the “Device Manager” button. Expand the “Ports (COM & LPT)” item, and the “Prolific USB-to-Serial Comm Port” is the COM port of your RCD-1000. The user should connect the device first. (Connect device with PC via USB Cable) Please select comm. port and press the “connect” button. When you execute the program, the following Figure 1 is shown. Note: (1) System will download the POI points from device automatically. Please wait the “Get All Datalogger Head” finished. The following figure 3 is shown. (2) If user wants to upload SCDB data, please be sure to pre download datalog data in advance. (3) Datalog data will be deleted after upload SCDB process is done. Figure1 Figure2 and Figure3 show when you press the button “Connect”, the utility notifies the user that the device will enter the operation mode, all functions of the device are disabled. English 8
