AV6240(AV6240-English).pdf

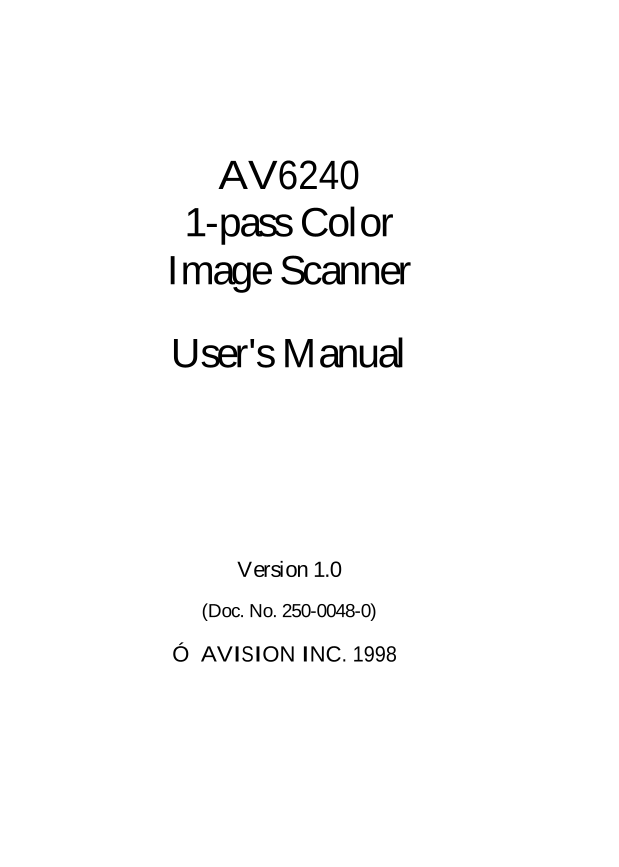

AV6240
1-pass Color
Image Scanner
User's Manual
Version 1.0
(Doc. No. 250-0048-0)
AVISION INC. 1998

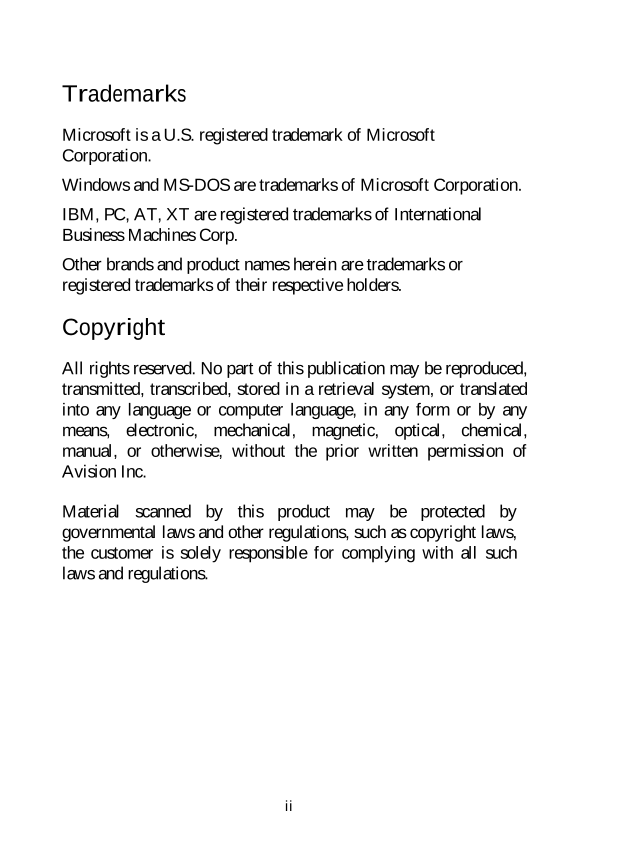

Trademarks
Microsoft is a U.S. registered trademark of Microsoft
Corporation.
Windows and MS-DOS are trademarks of Microsoft Corporation.
IBM, PC, AT, XT are registered trademarks of International
Business Machines Corp.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise, without the prior written permission of
Avision Inc.
Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright laws,
the customer is solely responsible for complying with all such
laws and regulations.
ii

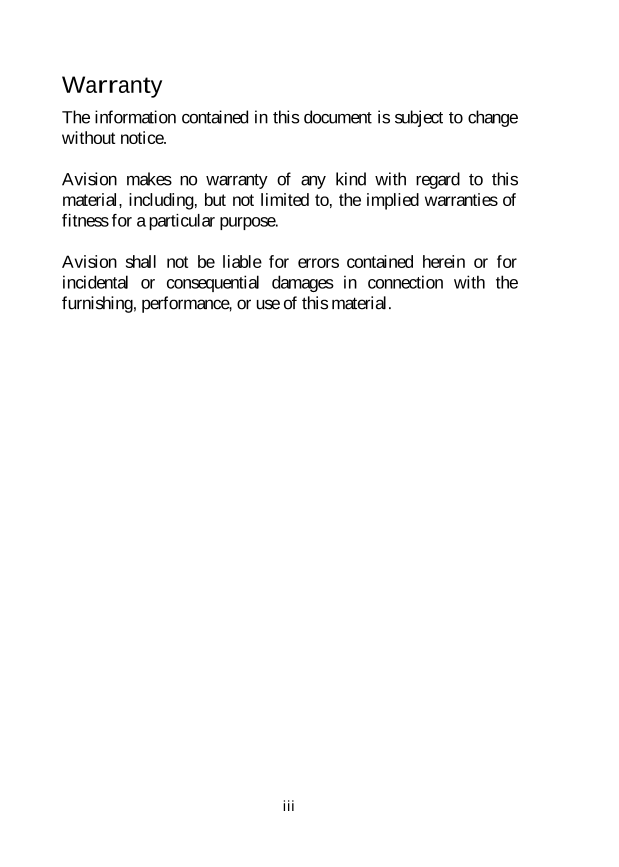

Warranty
The information contained in this document is subject to change
without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
iii

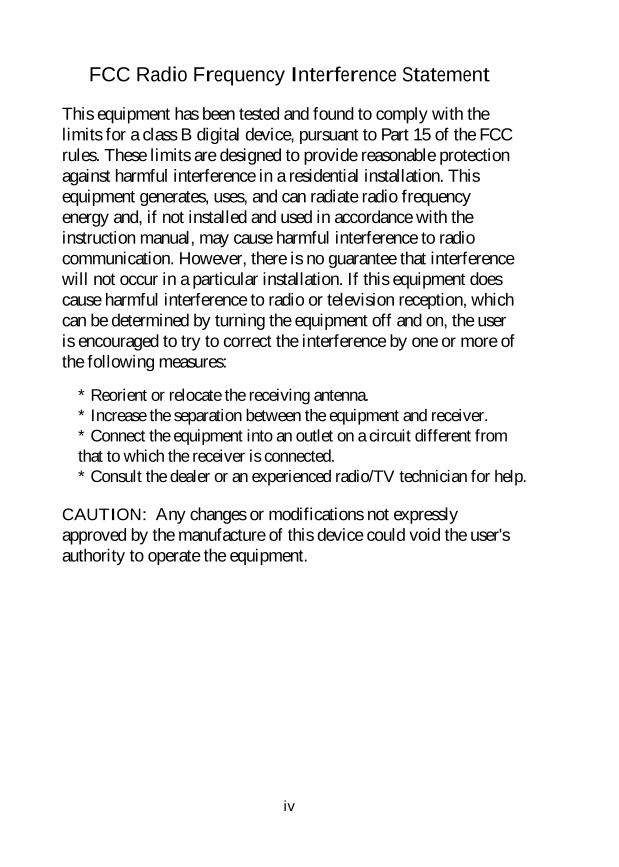

FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes or modifications not expressly
approved by the manufacture of this device could void the user's
authority to operate the equipment.
iv

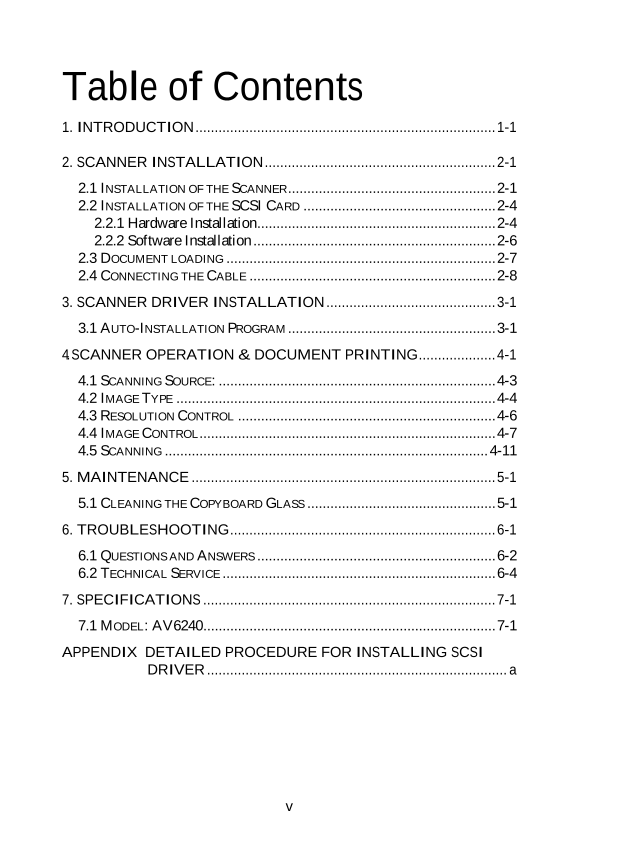

Table of Contents
1. INTRODUCTION..............................................................................1-1
2. SCANNER INSTALLATION............................................................2-1
2.1 INSTALLATION OF THE SCANNER......................................................2-1
2.2 INSTALLATION OF THE SCSI CARD ..................................................2-4
2.2.1 Hardware Installation..............................................................2-4
2.2.2 Software Installation ...............................................................2-6
2.3 DOCUMENT LOADING ......................................................................2-7
2.4 CONNECTING THE CABLE ................................................................2-8
3. SCANNER DRIVER INSTALLATION............................................3-1
3.1 AUTO-INSTALLATION PROGRAM ......................................................3-1
4. SCANNER OPERATION & DOCUMENT PRINTING....................4-1
4.1 SCANNING SOURCE: ........................................................................4-3
4.2 IMAGE TYPE ...................................................................................4-4
4.3 RESOLUTION CONTROL ...................................................................4-6
4.4 IMAGE CONTROL.............................................................................4-7
4.5 SCANNING .................................................................................... 4-11
5. MAINTENANCE ...............................................................................5-1
5.1 CLEANING THE COPYBOARD GLASS .................................................5-1
6. TROUBLESHOOTING.....................................................................6-1
6.1 QUESTIONS AND ANSWERS ..............................................................6-2
6.2 TECHNICAL SERVICE .......................................................................6-4
7. SPECIFICATIONS ............................................................................7-1
7.1 MODEL: AV6240............................................................................7-1
APPENDIX DETAILED PROCEDURE FOR INSTALLING SCSI
DRIVER .............................................................................. a
v

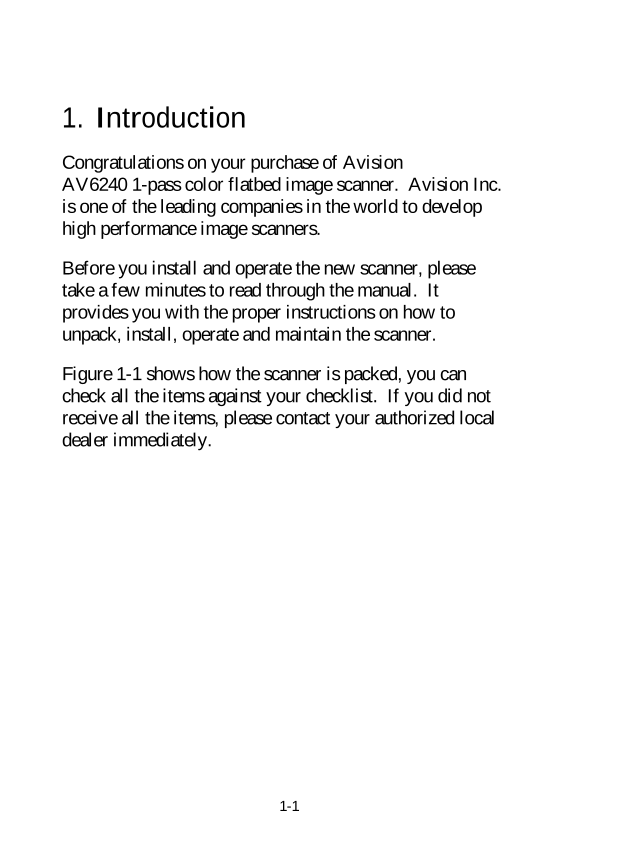

1. Introduction
Congratulations on your purchase of Avision
AV6240 1-pass color flatbed image scanner. Avision Inc.
is one of the leading companies in the world to develop
high performance image scanners.
Before you install and operate the new scanner, please
take a few minutes to read through the manual. It
provides you with the proper instructions on how to
unpack, install, operate and maintain the scanner.
Figure 1-1 shows how the scanner is packed, you can
check all the items against your checklist. If you did not
receive all the items, please contact your authorized local
dealer immediately.
1-1

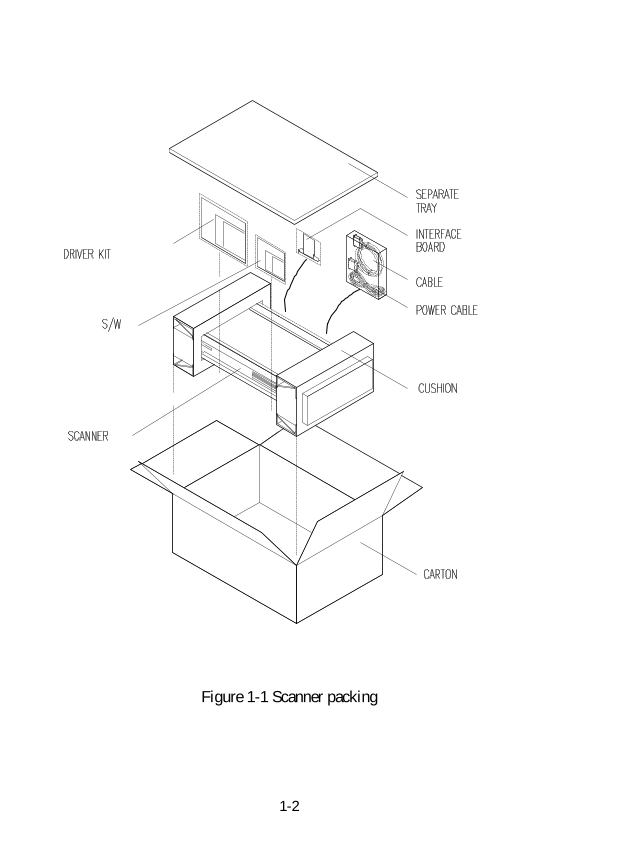

Figure 1-1 Scanner packing
1-2

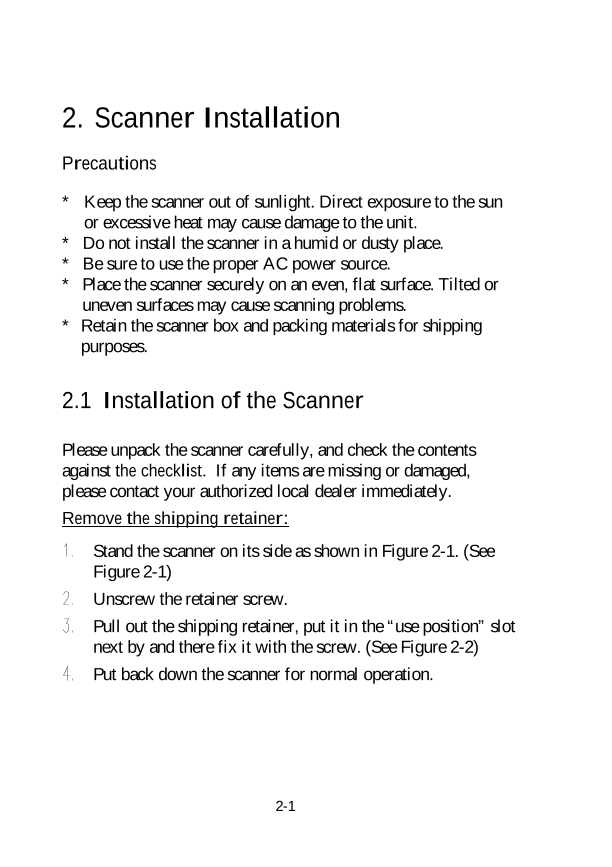

2. Scanner Installation
Precautions
* Keep the scanner out of sunlight. Direct exposure to the sun
or excessive heat may cause damage to the unit.
* Do not install the scanner in a humid or dusty place.
* Be sure to use the proper AC power source.
* Place the scanner securely on an even, flat surface. Tilted or
uneven surfaces may cause scanning problems.
* Retain the scanner box and packing materials for shipping
purposes.
2.1 Installation of the Scanner
Please unpack the scanner carefully, and check the contents
against the checklist. If any items are missing or damaged,
please contact your authorized local dealer immediately.
Remove the shipping retainer:
Stand the scanner on its side as shown in Figure 2-1. (See
Figure 2-1)
Unscrew the retainer screw.
Pull out the shipping retainer, put it in the “use position” slot
next by and there fix it with the screw. (See Figure 2-2)
Put back down the scanner for normal operation.
2-1
