NEC VERSA S5600 Series

About Your Electronic User’s Guide

Text Setup

Electronic User’s Guide

Basic Care and Handling Tips

Notebook Care

Precautions for Notebook Use

Storage Requirements

Routine Cleaning

Introducing Your NEC VERSA

Getting to Know Your Notebook

NEC VERSA

The Front View of the Notebook

The Back View of the Notebook

The Left Side View of the Notebook

The Right Side View of the Notebook

The Bottom View of the Notebook

Keyboard

LED Behaviour

Function Keys

Power Button

Optional Accessories

Using the Touchpad

Power Sources

AC Adaptor

Connecting the AC Adaptor

Powering The Notebook On and Off

Using the Battery

Charging the Battery

Low Battery Power

Conserving Battery Power

Battery Precautions

Replacing the Battery

Removing the Battery in your Notebook

Installing the Battery in your System

Handling the Battery

Disposing of the Battery

Introducing BIOS Setup for Windows Vista®

Entering BIOS Setup

BIOS Setup Menus

Introducing BIOS Setup for Windows® XP

Entering BIOS Setup

BIOS Setup Menus

Updating the BIOS

Windows Vista® Operating System Introduction (Only applicable to Windows Vista®)

Windows Vista® Operating Systems

Dual Boot (2 languages)

Managing System Power (Windows Vista® Operating System)

Tips for Using Windows Vista®

Frequently Asked Questions (FAQ) Windows Vista®

Windows® XP Operating System Introduction (Only applicable to Windows® XP)

Windows® XP Operating Systems

Dual Boot (2 languages)

Managing System Power (Windows® XP Operating System)

Windows® XP Operating System Power Options Properties

Tips for Using Windows® XP

Notebook Components

System Configuration Label

Applications

Adobe® Reader®

Bluetooth® Wireless Technology

Blu-ray

CyberLink MakeDisc 3

Easy Media Creator 9

Intel® Turbo Memory

McAfee® Personal Firewall

McAfee® SecurityCenter

McAfee® VirusScan®

Norton Internet SecurityTM 2007

SRS Premium Sound

Using your NEC VERSA

Removable Disk Drives

Bays

Hard Disk Drive

Taking Care of Your Notebook

Operating Environment

Preventive Maintenance

Shipping Your Notebook

Modem

Local Area Network (LAN)

WIFI/Bluetooth® Wireless Technology

Preparing for Travel

Using Peripheral Devices

USB Devices

HDMI

Array Mic

Audio

Video

Setting Up a Healthy Work Environment

Arrange Your Equipment

Your Chair

Your Desk

Your Input Devices

Your Screen

Reducing The Risk of Injuries

Vary Your Workday

Practise Some Stretching Exercises

Potential Medical Conditions

Repetitive Strain Injury

Pre-Existing Conditions and Psychosocial Factors

Epilepsy Warning

Problem Checklist

Start-Up Problems

If You Need Assistance

Recovery Information for Windows Vista® only

Recovery Information for Windows® XP only

Frequently Asked Questions

Technical Support

Boot Problems

Computer Viruses

Internet

Digital Video and IEEE 1394 Devices

IEEE 1394 Devices

Digital Video

Safety Notices

Modem

Modifications to the Product

Radio Frequency Interference

Radio Frequency Interference Statement

Connections and Remote Earth

Protected Extra Low Voltage (PELV)

Safety Extra Low Voltage (SELV)

Remote Earth

Building Supply

Power Supply and Cables

Power Supply

Power Cables

Cables

Heat build-up

Batteries

Replacing batteries

Battery Disposal

Laser Compliance Statement

Thunderstorm Warning

Radio-communication Regulation (if applicable)

Additional Notices

Electrostatic Discharge (ESD) and ESD Protection

Product Storage Environment Guidelines

Recommended Environment

Glossary

License Agreement

Disclaimer

Trademarks

Official Name of the Software Used

NEC VERSA S5600 Series Electronic User’s Guide

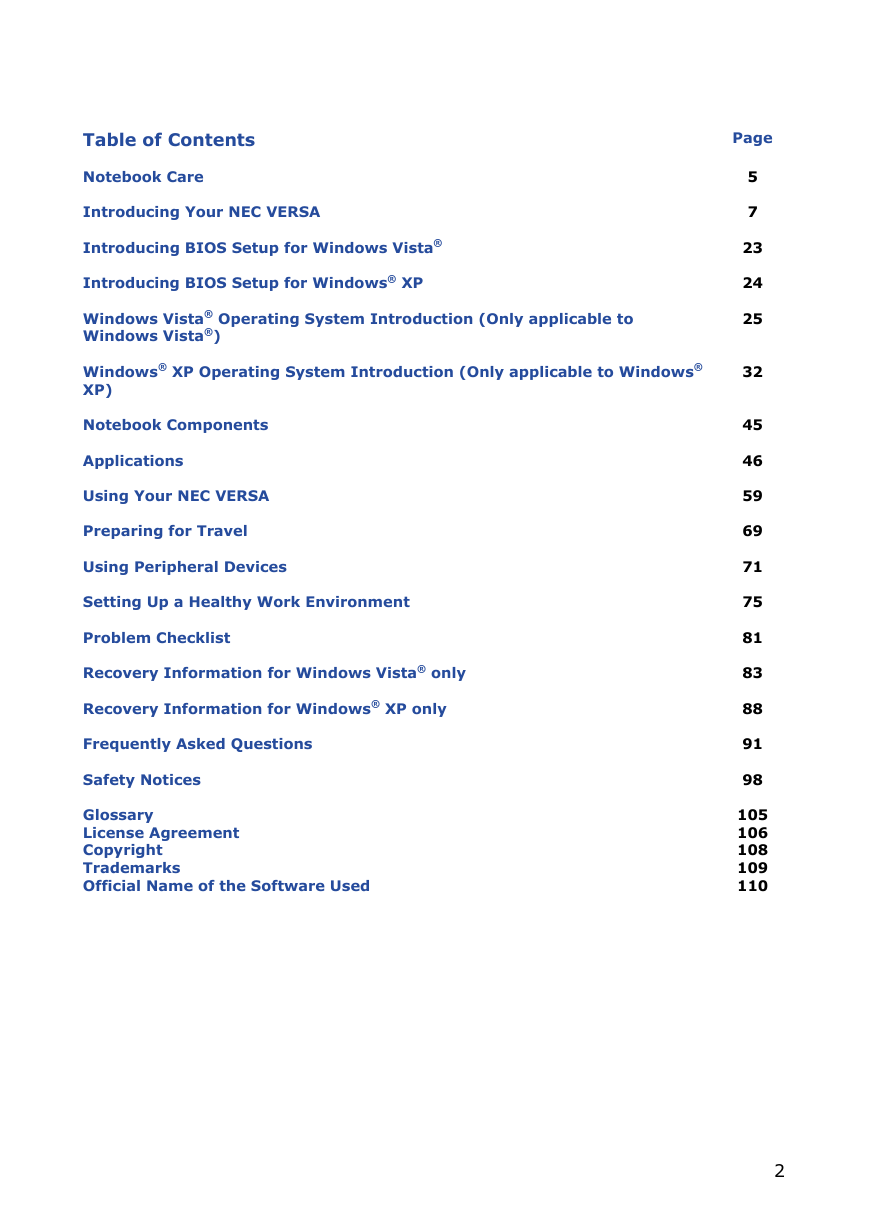

Table of Contents Notebook Care Introducing Your NEC VERSA Introducing BIOS Setup for Windows Vista® Introducing BIOS Setup for Windows® XP Windows Vista® Operating System Introduction (Only applicable to Windows Vista®) Windows® XP Operating System Introduction (Only applicable to Windows® XP) Notebook Components Applications Using Your NEC VERSA Preparing for Travel Using Peripheral Devices Setting Up a Healthy Work Environment Problem Checklist Recovery Information for Windows Vista® only Recovery Information for Windows® XP only Frequently Asked Questions Safety Notices Glossary License Agreement Copyright Trademarks Official Name of the Software Used Page 5 7 23 24 25 32 45 46 59 69 71 75 81 83 88 91 98 105 106 108 109 110 2

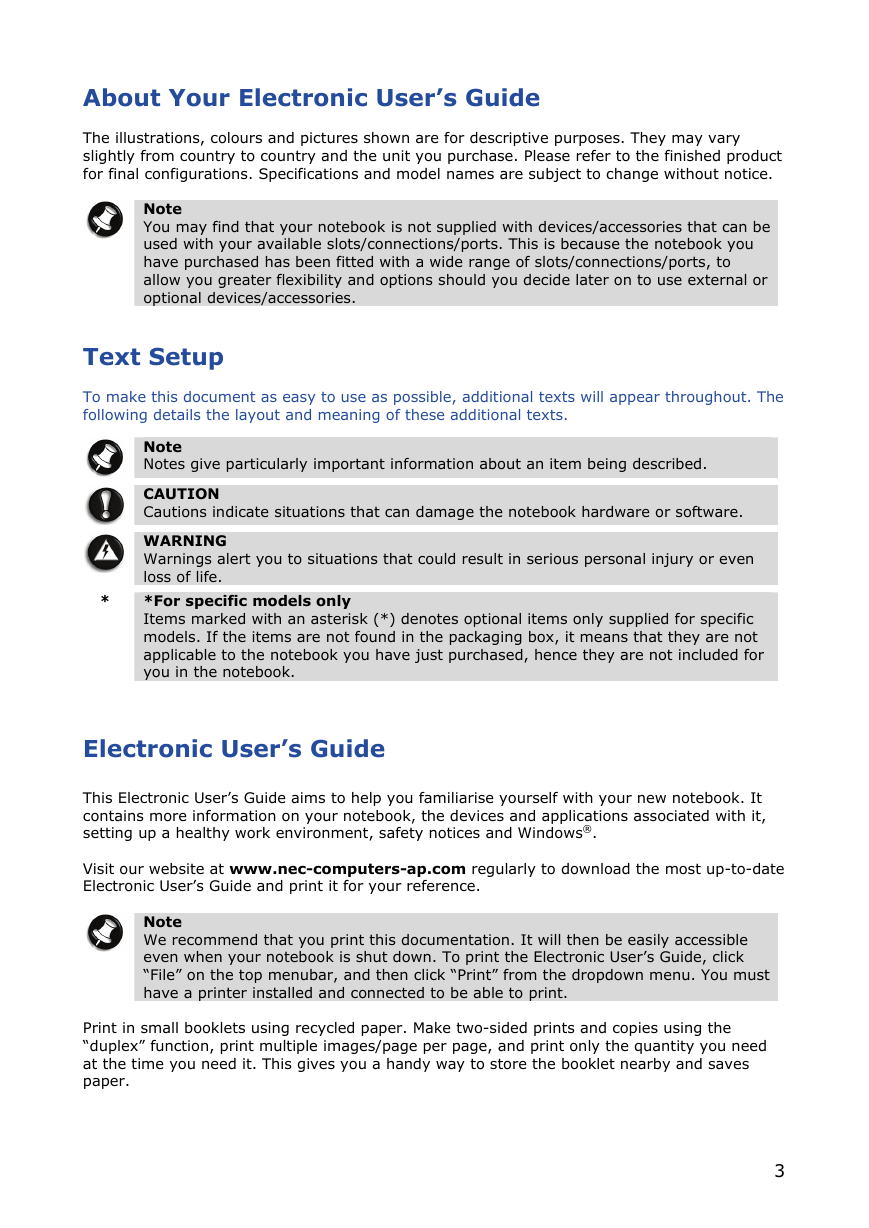

About Your Electronic User’s Guide The illustrations, colours and pictures shown are for descriptive purposes. They may vary slightly from country to country and the unit you purchase. Please refer to the finished product for final configurations. Specifications and model names are subject to change without notice. Note You may find that your notebook is not supplied with devices/accessories that can be used with your available slots/connections/ports. This is because the notebook you have purchased has been fitted with a wide range of slots/connections/ports, to allow you greater flexibility and options should you decide later on to use external or optional devices/accessories. Text Setup To make this document as easy to use as possible, additional texts will appear throughout. The following details the layout and meaning of these additional texts. * Note Notes give particularly important information about an item being described. CAUTION Cautions indicate situations that can damage the notebook hardware or software. WARNING Warnings alert you to situations that could result in serious personal injury or even loss of life. *For specific models only Items marked with an asterisk (*) denotes optional items only supplied for specific models. If the items are not found in the packaging box, it means that they are not applicable to the notebook you have just purchased, hence they are not included for you in the notebook. Electronic User’s Guide This Electronic User’s Guide aims to help you familiarise yourself with your new notebook. It contains more information on your notebook, the devices and applications associated with it, setting up a healthy work environment, safety notices and Windows®. Visit our website at www.nec-computers-ap.com regularly to download the most up-to-date Electronic User’s Guide and print it for your reference. Note We recommend that you print this documentation. It will then be easily accessible even when your notebook is shut down. To print the Electronic User’s Guide, click “File” on the top menubar, and then click “Print” from the dropdown menu. You must have a printer installed and connected to be able to print. Print in small booklets using recycled paper. Make two-sided prints and copies using the “duplex” function, print multiple images/page per page, and print only the quantity you need at the time you need it. This gives you a handy way to store the booklet nearby and saves paper. 3

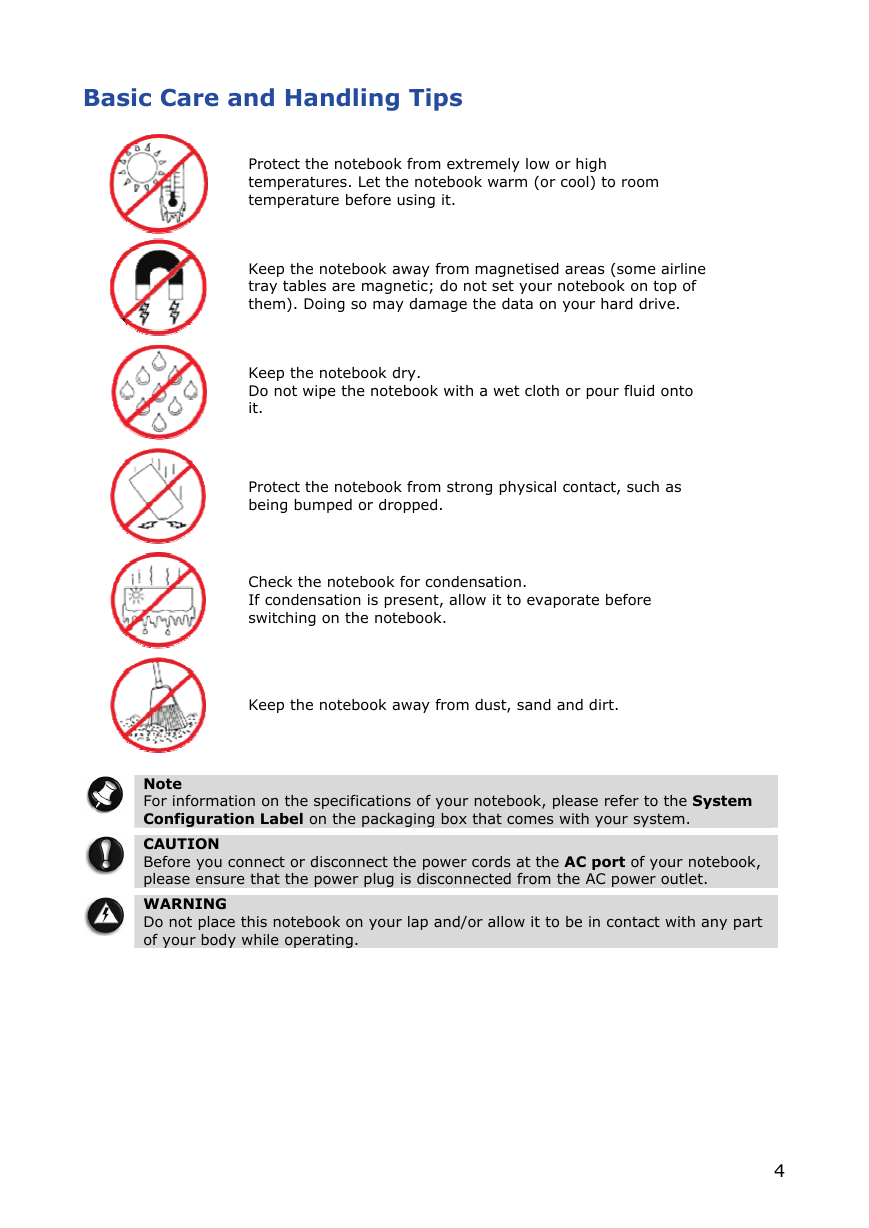

Basic Care and Handling Tips Protect the notebook from extremely low or high temperatures. Let the notebook warm (or cool) to room temperature before using it. Keep the notebook away from magnetised areas (some airline tray tables are magnetic; do not set your notebook on top of them). Doing so may damage the data on your hard drive. Keep the notebook dry. Do not wipe the notebook with a wet cloth or pour fluid onto it. Protect the notebook from strong physical contact, such as being bumped or dropped. Check the notebook for condensation. If condensation is present, allow it to evaporate before switching on the notebook. Keep the notebook away from dust, sand and dirt. Note For information on the specifications of your notebook, please refer to the System Configuration Label on the packaging box that comes with your system. CAUTION Before you connect or disconnect the power cords at the AC port of your notebook, please ensure that the power plug is disconnected from the AC power outlet. WARNING Do not place this notebook on your lap and/or allow it to be in contact with any part of your body while operating. 4

Notebook Care Follow these guidelines to maintain the condition and performance of your notebook. CAUTION Immediately turn off and unplug the notebook under the following conditions: • The power cord has been damaged or frayed. • Liquid has spilled on or into the notebook. • The notebook has been dropped or its casing has been damaged. Precautions for Notebook Use Take these precautions when using your notebook and AC adaptor: • Be aware that your notebook may radiate heat when used for an extended period of time. • Avoid dropping or bumping the notebook, or the AC adaptor. • Do not stack heavy objects on the notebook, the AC adaptor, or the battery packs. • Do not place items near the notebook that could block its air vents and cause overheating. • Avoid moving the notebook during operation, especially while the hard disk, floppy disk, or optical disc drive is being accessed. • When using the AC adaptor, make sure the power source falls within the notebook's compatibility range. Never use the AC adaptor if the voltage falls outside this range. Watch for this when travelling to other countries. • Shut down the notebook before attaching or removing non-plug-and-play devices. • Disconnect the notebook from its AC power outlet if it is not going to be used for a long time. This will avoid damage from transient over-voltage. • Do not attempt to disassemble the notebook. • Do not push any foreign objects into the notebook bays, connectors or slots. • Keep the notebook away from magnetised areas (some airline tray tables are magnetic; do not set your notebook on top of them). Doing so may damage the data on your hard drive. • Avoid using the notebook or AC adaptor for extended periods under direct sunlight. • Do not use the notebook in humid or dusty environments. • Keep liquids and food away from the notebook. • Turn notebook power off before cleaning it. • Avoid exposing the notebook or AC adaptor to extreme changes in temperature or humidity. If it is unavoidable, allow your notebook to adjust to room temperature before use. • When cleaning the notebook, use a soft, clean, dry cloth. Avoid wiping the display surface with abrasive material, including rough fabric. Do not use a cleaning solution; this may damage the notebook's plastic surface. If the AC adaptor becomes extremely hot, unplug the adaptor and let it cool. • Be sure to follow these power cord safety tips: • Unplug by gripping the plug only; do not pull on the cable. • Place the power cord such that it cannot be tripped or stepped on, and do not place items directly on the power cord. • Use an AC power outlet that is as close as possible to the notebook. 5

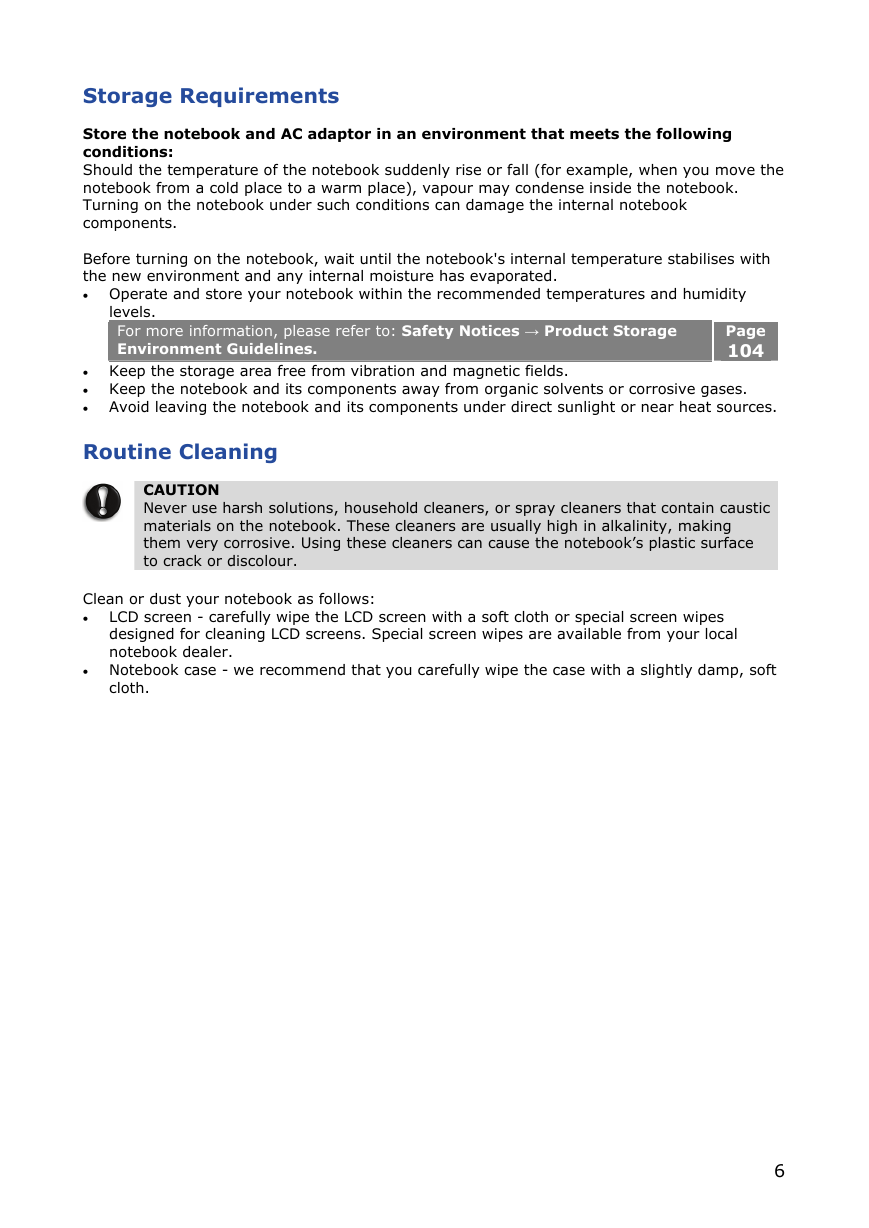

Storage Requirements Store the notebook and AC adaptor in an environment that meets the following conditions: Should the temperature of the notebook suddenly rise or fall (for example, when you move the notebook from a cold place to a warm place), vapour may condense inside the notebook. Turning on the notebook under such conditions can damage the internal notebook components. Before turning on the notebook, wait until the notebook's internal temperature stabilises with the new environment and any internal moisture has evaporated. • Operate and store your notebook within the recommended temperatures and humidity levels. For more information, please refer to: Safety Notices → Product Storage Environment Guidelines. Page 104 • Keep the storage area free from vibration and magnetic fields. • Keep the notebook and its components away from organic solvents or corrosive gases. • Avoid leaving the notebook and its components under direct sunlight or near heat sources. Routine Cleaning CAUTION Never use harsh solutions, household cleaners, or spray cleaners that contain caustic materials on the notebook. These cleaners are usually high in alkalinity, making them very corrosive. Using these cleaners can cause the notebook’s plastic surface to crack or discolour. Clean or dust your notebook as follows: • LCD screen - carefully wipe the LCD screen with a soft cloth or special screen wipes designed for cleaning LCD screens. Special screen wipes are available from your local notebook dealer. • Notebook case - we recommend that you carefully wipe the case with a slightly damp, soft cloth. 6

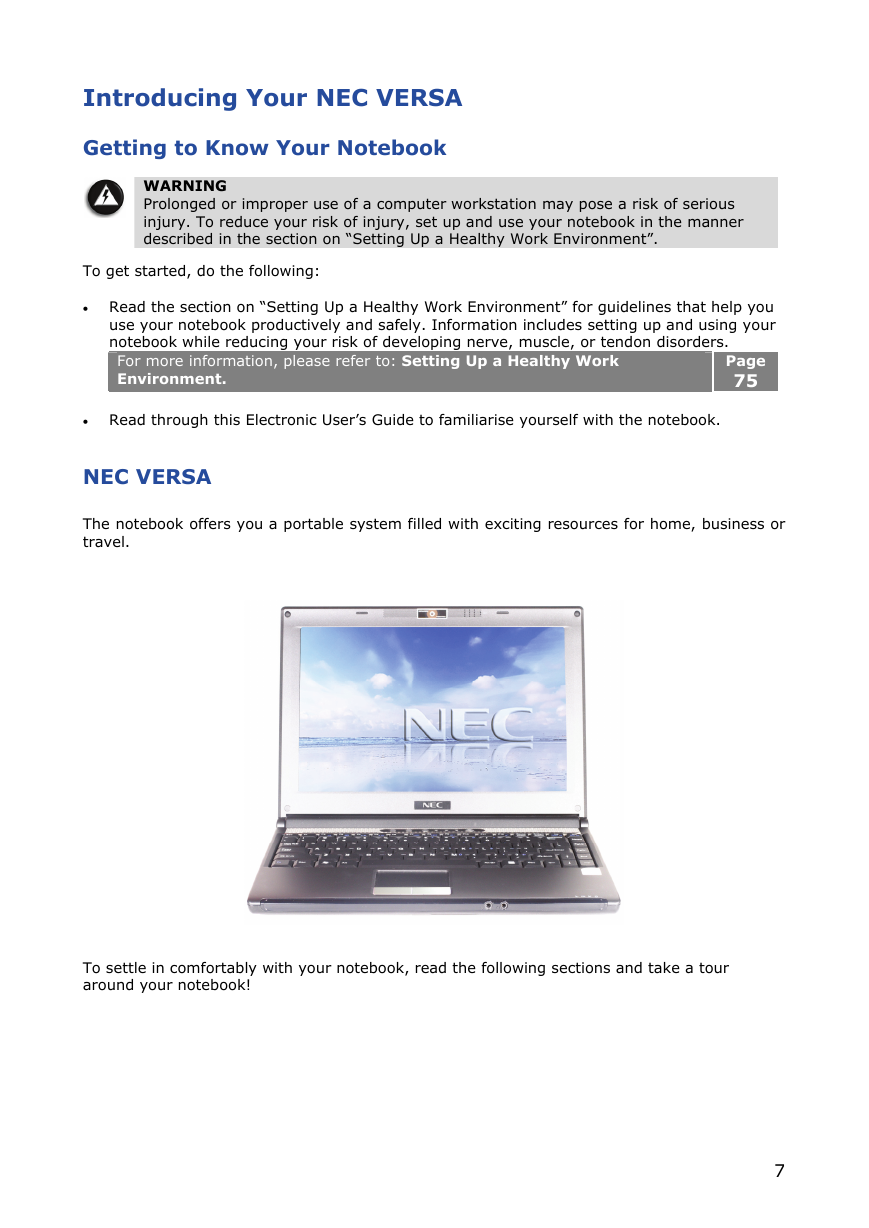

Introducing Your NEC VERSA Getting to Know Your Notebook WARNING Prolonged or improper use of a computer workstation may pose a risk of serious injury. To reduce your risk of injury, set up and use your notebook in the manner described in the section on “Setting Up a Healthy Work Environment”. To get started, do the following: • Read the section on “Setting Up a Healthy Work Environment” for guidelines that help you use your notebook productively and safely. Information includes setting up and using your notebook while reducing your risk of developing nerve, muscle, or tendon disorders. For more information, please refer to: Setting Up a Healthy Work Environment. Page 75 • Read through this Electronic User’s Guide to familiarise yourself with the notebook. NEC VERSA The notebook offers you a portable system filled with exciting resources for home, business or travel. To settle in comfortably with your notebook, read the following sections and take a tour around your notebook! 7

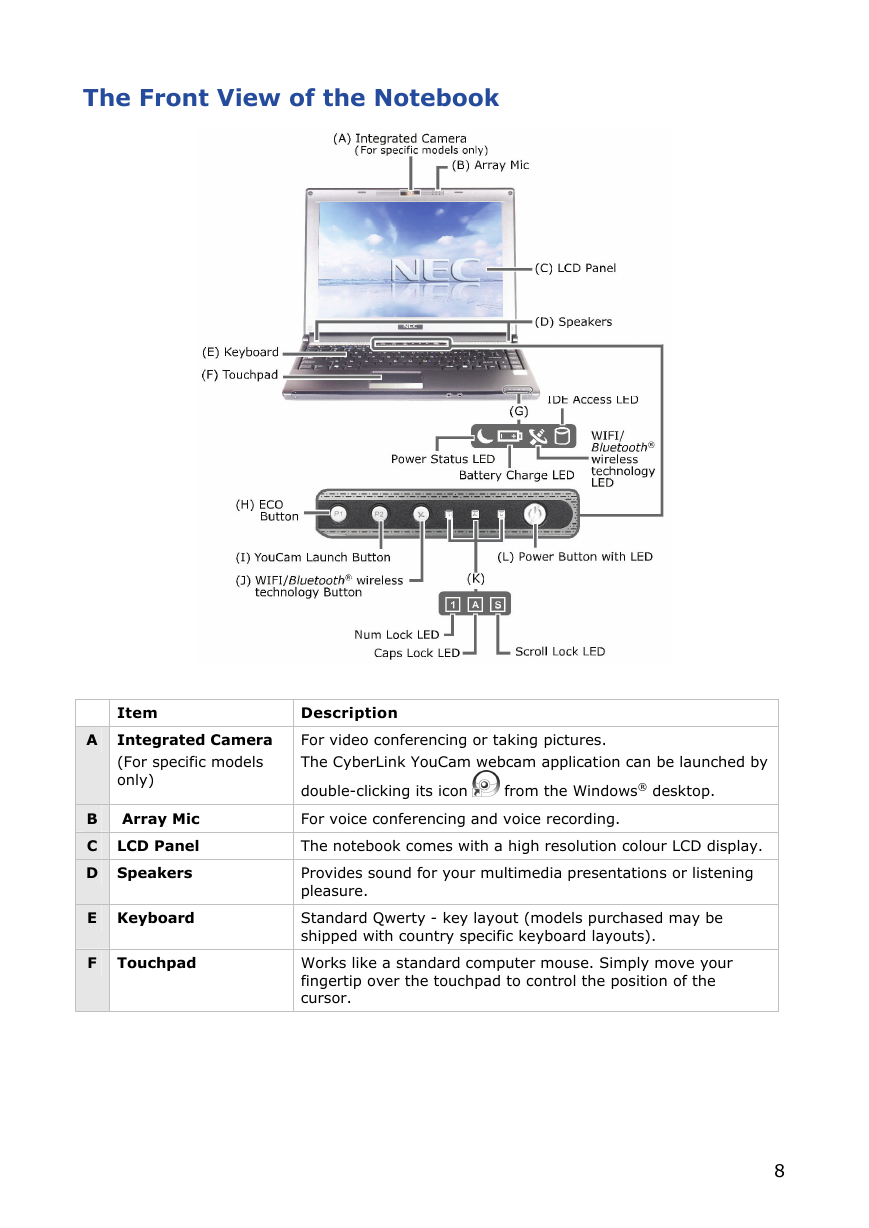

The Front View of the Notebook Item A Integrated Camera (For specific models only) B Array Mic C LCD Panel D Speakers E Keyboard F Touchpad Description For video conferencing or taking pictures. The CyberLink YouCam webcam application can be launched by double-clicking its icon from the Windows® desktop. For voice conferencing and voice recording. The notebook comes with a high resolution colour LCD display. Provides sound for your multimedia presentations or listening pleasure. Standard Qwerty - key layout (models purchased may be shipped with country specific keyboard layouts). Works like a standard computer mouse. Simply move your fingertip over the touchpad to control the position of the cursor. 8
