Approach® S4 Quick Start Manual 操作手冊 คู ่มือ Quick Start Panduan Cepat Pengoperasian

Approach® S4 Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. When using the device the first time, complete these tasks. 1 Register your device (page 18). 2 Update your device software and courses (page 18). 3 Charge the device (page 2). 4 Turn on the device (page 3). 5 Start a round (page 5). Charging the Device WARNING This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information. NOTICE To prevent corrosion, thoroughly dry the contacts and the surrounding area before charging or connecting to a computer. 1 Plug the USB cable into a USB port on your computer. 2

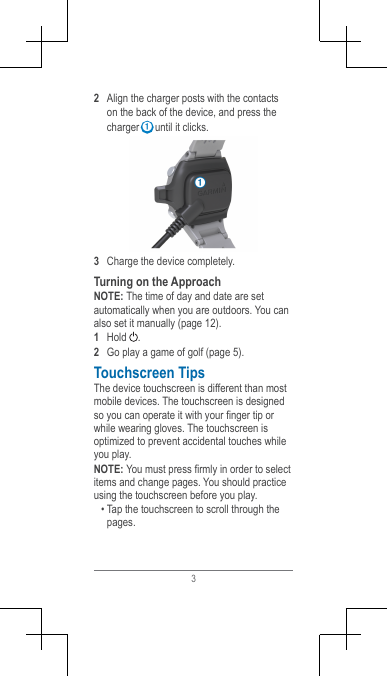

2 Align the charger posts with the contacts on the back of the device, and press the charger ➊ until it clicks. . 3 Charge the device completely. Turning on the Approach NOTE: The time of day and date are set automatically when you are outdoors. You can also set it manually (page 12). 1 Hold 2 Go play a game of golf (page 5). Touchscreen Tips The device touchscreen is different than most mobile devices. The touchscreen is designed so you can operate it with your finger tip or while wearing gloves. The touchscreen is optimized to prevent accidental touches while you play. NOTE: You must press firmly in order to select items and change pages. You should practice using the touchscreen before you play. • Tap the touchscreen to scroll through the pages. 3

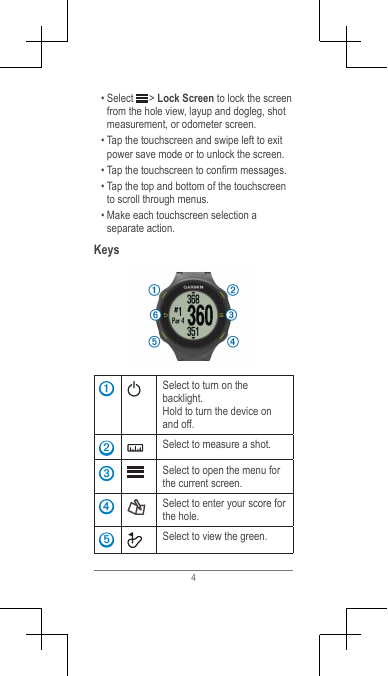

> Lock Screen to lock the screen • Select from the hole view, layup and dogleg, shot measurement, or odometer screen. • Tap the touchscreen and swipe left to exit power save mode or to unlock the screen. • Tap the touchscreen to confirm messages. • Tap the top and bottom of the touchscreen to scroll through menus. • Make each touchscreen selection a separate action. Keys ➊ ➋ ➌ ➍ ➎ Select to turn on the backlight. Hold to turn the device on and off. Select to measure a shot. Select to open the menu for the current screen. Select to enter your score for the hole. Select to view the green. 4

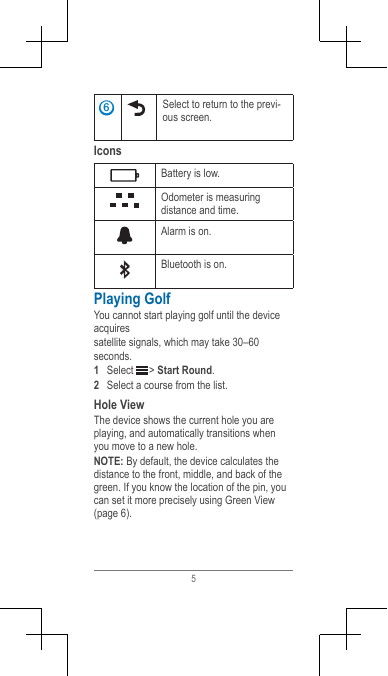

➏ Icons Select to return to the previ- ous screen. Battery is low. Odometer is measuring distance and time. Alarm is on. Bluetooth is on. > Start Round. Playing Golf You cannot start playing golf until the device acquires satellite signals, which may take 30–60 seconds. 1 Select 2 Select a course from the list. Hole View The device shows the current hole you are playing, and automatically transitions when you move to a new hole. NOTE: By default, the device calculates the distance to the front, middle, and back of the green. If you know the location of the pin, you can set it more precisely using Green View (page 6). 5

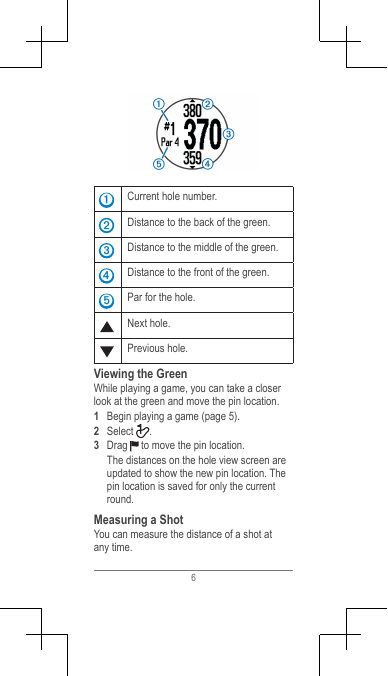

➊ Current hole number. ➋ Distance to the back of the green. ➌ Distance to the middle of the green. ➍ Distance to the front of the green. ➎ Par for the hole. Next hole. Previous hole. Viewing the Green While playing a game, you can take a closer look at the green and move the pin location. 1 Begin playing a game (page 5). 2 Select 3 Drag The distances on the hole view screen are updated to show the new pin location. The pin location is saved for only the current round. to move the pin location. . Measuring a Shot You can measure the distance of a shot at any time. 6

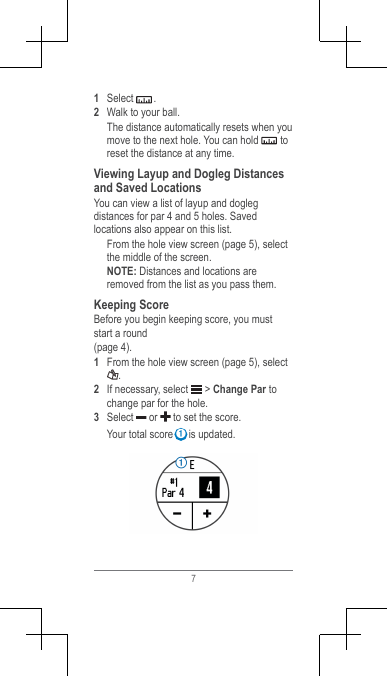

. 1 Select 2 Walk to your ball. The distance automatically resets when you to move to the next hole. You can hold reset the distance at any time. Viewing Layup and Dogleg Distances and Saved Locations You can view a list of layup and dogleg distances for par 4 and 5 holes. Saved locations also appear on this list. From the hole view screen (page 5), select the middle of the screen. NOTE: Distances and locations are removed from the list as you pass them. Keeping Score Before you begin keeping score, you must start a round (page 4). 1 From the hole view screen (page 5), select . > Change Par to 2 If necessary, select change par for the hole. 3 Select to set the score. Your total score ➊ is updated. or 7

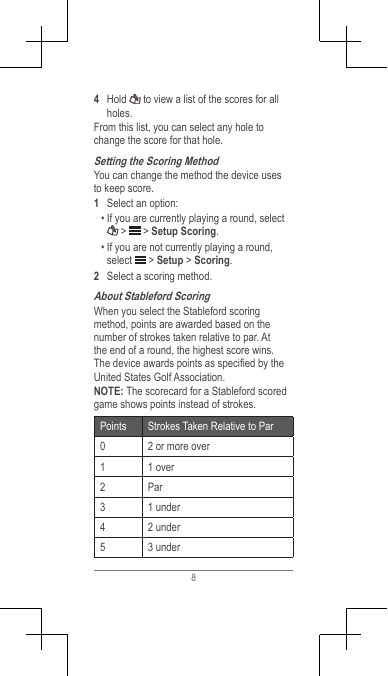

4 Hold holes. to view a list of the scores for all From this list, you can select any hole to change the score for that hole. Setting the Scoring Method You can change the method the device uses to keep score. 1 Select an option: • If you are currently playing a round, select > > Setup Scoring. • If you are not currently playing a round, select > Setup > Scoring. 2 Select a scoring method. About Stableford Scoring When you select the Stableford scoring method, points are awarded based on the number of strokes taken relative to par. At the end of a round, the highest score wins. The device awards points as specified by the United States Golf Association. NOTE: The scorecard for a Stableford scored game shows points instead of strokes. Points 0 1 2 3 4 5 Strokes Taken Relative to Par 2 or more over 1 over Par 1 under 2 under 3 under 8
