Approach® S2 Quick Start Manual 操作手冊快速入门手册 ่มือ Quick Start คู Panduan Cepat Pengoperasian

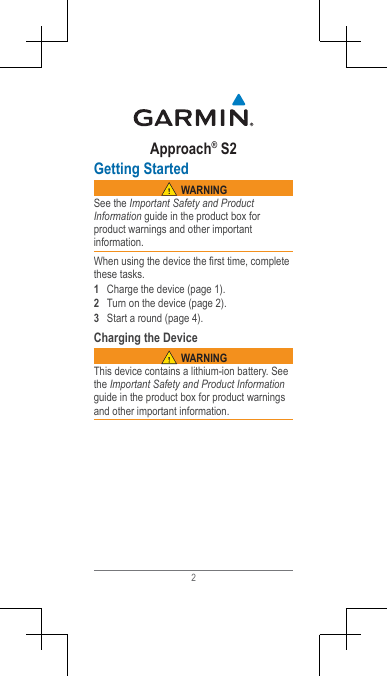

Approach® S2 Getting Started WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. When using the device the first time, complete these tasks. 1 Charge the device (page 1). 2 Turn on the device (page 2). 3 Start a round (page 4). Charging the Device WARNING This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information. 2

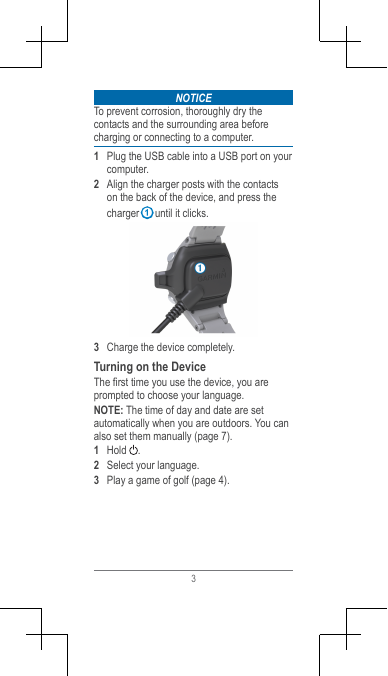

To prevent corrosion, thoroughly dry the contacts and the surrounding area before charging or connecting to a computer. 1 Plug the USB cable into a USB port on your computer. NOTICE 2 Align the charger posts with the contacts on the back of the device, and press the charger ➊ until it clicks. 3 Charge the device completely. Turning on the Device The first time you use the device, you are prompted to choose your language. NOTE: The time of day and date are set automatically when you are outdoors. You can also set them manually (page 7). 1 Hold 2 Select your language. 3 Play a game of golf (page 4). . 3

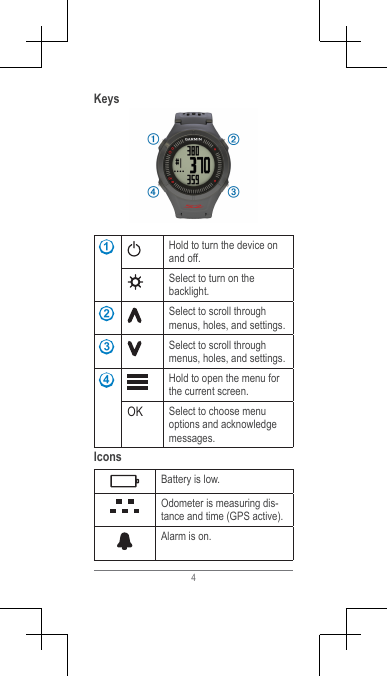

Keys ➊ ➋ ➌ ➍ OK Icons Hold to turn the device on and off. Select to turn on the backlight. Select to scroll through menus, holes, and settings. Select to scroll through menus, holes, and settings. Hold to open the menu for the current screen. Select to choose menu options and acknowledge messages. Battery is low. Odometer is measuring dis- tance and time (GPS active). Alarm is on. 4

. Playing Golf Before you can play golf, you must wait until the device acquires satellite signals, which may take 30–60 seconds. 1 Hold 2 Select Start Round. 3 Select a course from the list. The device automatically starts on the hole closest to your present location. Hole View The device shows the current hole you are playing, and automatically transitions when you move to a new hole. NOTE: Because pin locations change, the device calculates the distance to the front, middle, and back of the green, but not the actual pin location. ➊ Current hole number. ➋ Distance to the back of the green. ➌ Distance to the middle of the green. ➍ Distance to the front of the green. ➎ Par for the hole. Measuring a Shot 1 Hold . 5

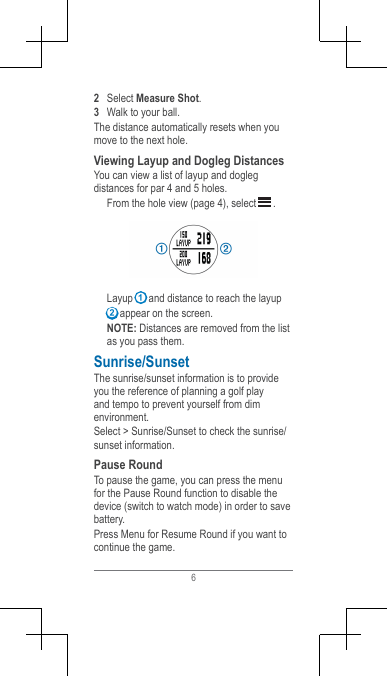

2 Select Measure Shot. 3 Walk to your ball. The distance automatically resets when you move to the next hole. Viewing Layup and Dogleg Distances You can view a list of layup and dogleg distances for par 4 and 5 holes. From the hole view (page 4), select . Layup ➊ and distance to reach the layup ➋ appear on the screen. NOTE: Distances are removed from the list as you pass them. Sunrise/Sunset The sunrise/sunset information is to provide you the reference of planning a golf play and tempo to prevent yourself from dim environment. Select > Sunrise/Sunset to check the sunrise/ sunset information. Pause Round To pause the game, you can press the menu for the Pause Round function to disable the device (switch to watch mode) in order to save battery. Press Menu for Resume Round if you want to continue the game. 6

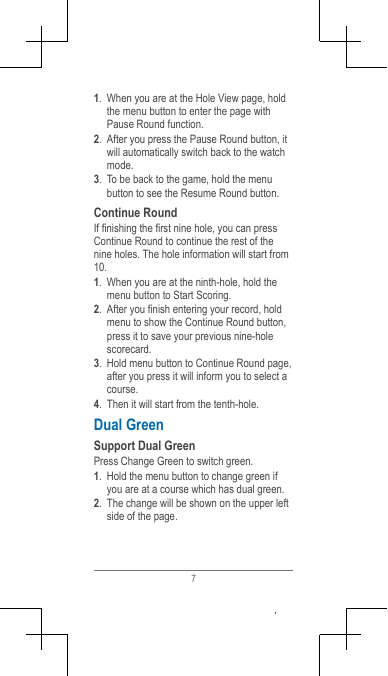

1. When you are at the Hole View page, hold the menu button to enter the page with Pause Round function. 2. After you press the Pause Round button, it will automatically switch back to the watch mode. 3. To be back to the game, hold the menu button to see the Resume Round button. Continue Round If finishing the first nine hole, you can press Continue Round to continue the rest of the nine holes. The hole information will start from 10. 1. When you are at the ninth-hole, hold the menu button to Start Scoring. 2. After you finish entering your record, hold menu to show the Continue Round button, press it to save your previous nine-hole scorecard. 3. Hold menu button to Continue Round page, after you press it will inform you to select a course. 4. Then it will start from the tenth-hole. Dual Green Support Dual Green Press Change Green to switch green. 1. Hold the menu button to change green if you are at a course which has dual green. 2. The change will be shown on the upper left side of the page. 7

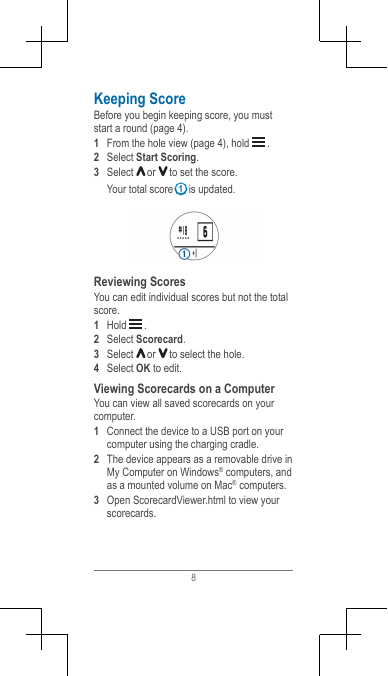

Keeping Score Before you begin keeping score, you must start a round (page 4). 1 From the hole view (page 4), hold 2 Select Start Scoring. 3 Select to set the score. Your total score ➊ is updated. or . . Reviewing Scores You can edit individual scores but not the total score. 1 Hold 2 Select Scorecard. 3 Select 4 Select OK to edit. Viewing Scorecards on a Computer You can view all saved scorecards on your computer. 1 Connect the device to a USB port on your to select the hole. or computer using the charging cradle. 2 The device appears as a removable drive in My Computer on Windows® computers, and as a mounted volume on Mac® computers. 3 Open ScorecardViewer.html to view your scorecards. 8
