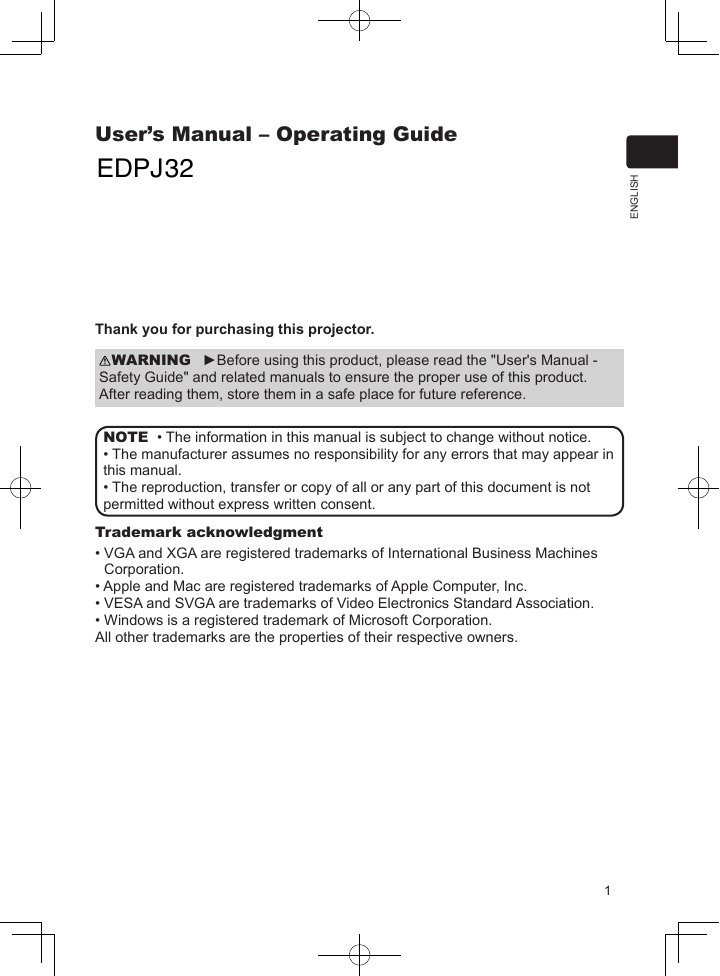

User’s Manual – Operating Guide I H S L G N E Thank you for purchasing this projector. WARNING ►Before using this product, please read the "User's Manual - Safety Guide" and related manuals to ensure the proper use of this product. After reading them, store them in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment • VGA and XGA are registered trademarks of International Business Machines Corporation. • Apple and Mac are registered trademarks of Apple Computer, Inc. • VESA and SVGA are trademarks of Video Electronics Standard Association. • Windows is a registered trademark of Microsoft Corporation. All other trademarks are the properties of their respective owners. 1

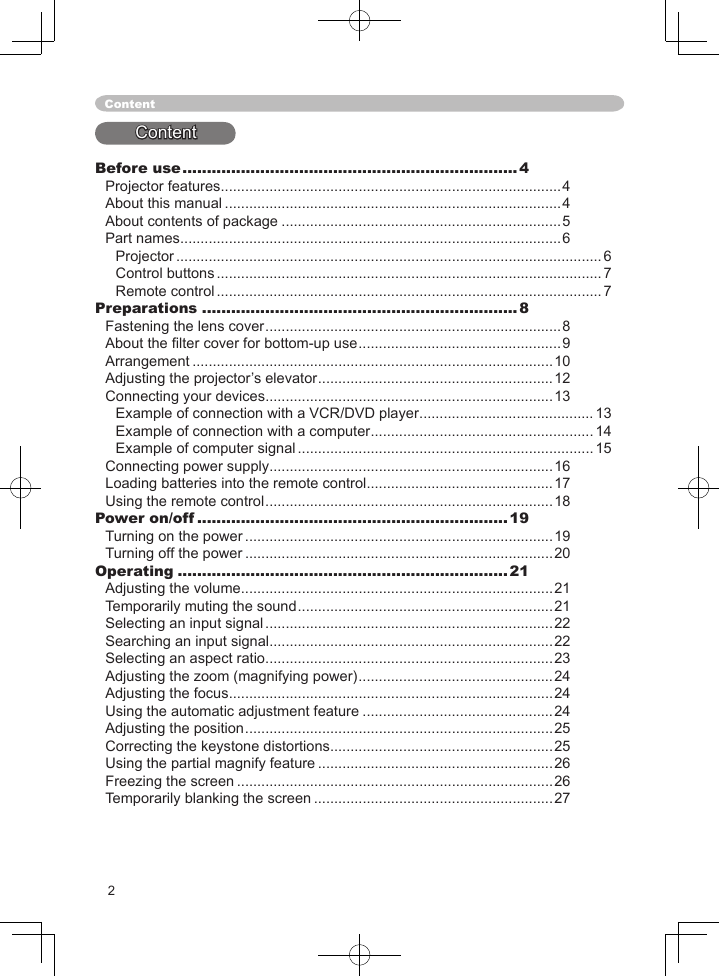

Content Content Before use .....................................................................4 Projector features ....................................................................................4 About this manual ...................................................................................4 About contents of package .....................................................................5 Part names ..............................................................................................6 Projector .........................................................................................................6 Control buttons ...............................................................................................7 Remote control ...............................................................................................7 Preparations .................................................................8 Fastening the lens cover .........................................................................8 About the ﬁlter cover for bottom-up use ..................................................9 Arrangement .........................................................................................10 Adjusting the projector’s elevator ..........................................................12 Connecting your devices .......................................................................13 Example of connection with a VCR/DVD player ........................................... 13 Example of connection with a computer ....................................................... 14 Example of computer signal ......................................................................... 15 Connecting power supply ......................................................................16 Loading batteries into the remote control ..............................................17 Using the remote control .......................................................................18 Power on/off ................................................................19 Turning on the power ............................................................................19 Turning off the power ............................................................................20 Operating ....................................................................21 Adjusting the volume .............................................................................21 Temporarily muting the sound ...............................................................21 Selecting an input signal .......................................................................22 Searching an input signal ......................................................................22 Selecting an aspect ratio .......................................................................23 Adjusting the zoom (magnifying power) ................................................24 Adjusting the focus ................................................................................24 Using the automatic adjustment feature ...............................................24 Adjusting the position ............................................................................25 Correcting the keystone distortions .......................................................25 Using the partial magnify feature ..........................................................26 Freezing the screen ..............................................................................26 Temporarily blanking the screen ...........................................................27 2

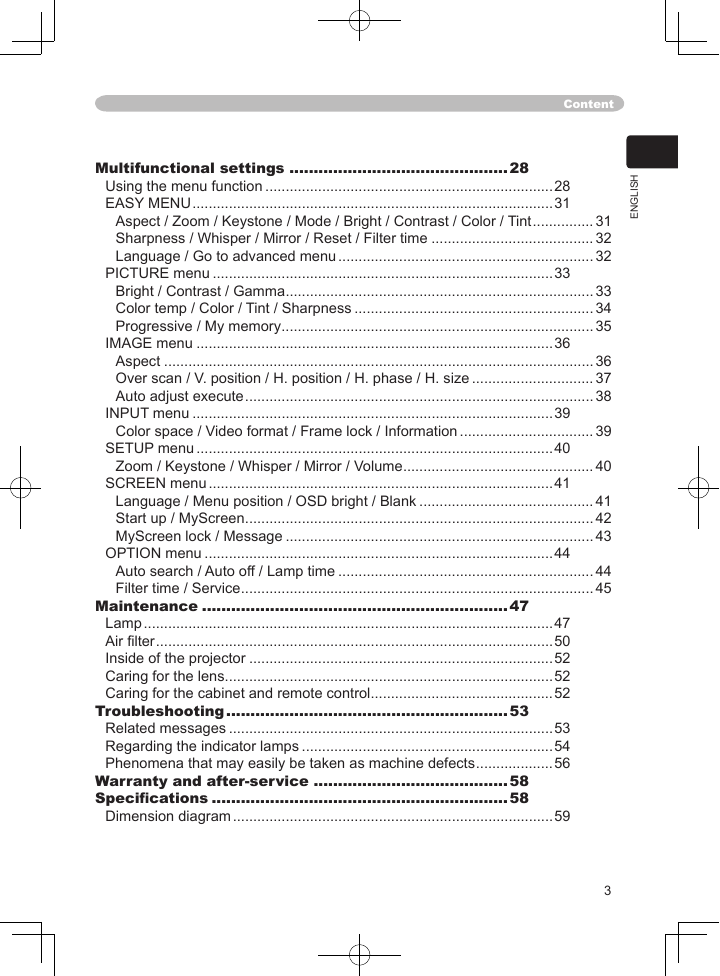

Content I H S L G N E Multifunctional settings .............................................28 Using the menu function .......................................................................28 EASY MENU .........................................................................................31 Aspect / Zoom / Keystone / Mode / Bright / Contrast / Color / Tint ............... 31 Sharpness / Whisper / Mirror / Reset / Filter time ........................................ 32 Language / Go to advanced menu ............................................................... 32 PICTURE menu ....................................................................................33 Bright / Contrast / Gamma ............................................................................ 33 Color temp / Color / Tint / Sharpness ........................................................... 34 Progressive / My memory ............................................................................. 35 IMAGE menu ........................................................................................36 Aspect ..........................................................................................................36 Over scan / V. position / H. position / H. phase / H. size .............................. 37 Auto adjust execute ......................................................................................38 INPUT menu .........................................................................................39 Color space / Video format / Frame lock / Information ................................. 39 SETUP menu ........................................................................................40 Zoom / Keystone / Whisper / Mirror / Volume ............................................... 40 SCREEN menu .....................................................................................41 Language / Menu position / OSD bright / Blank ........................................... 41 Start up / MyScreen ......................................................................................42 MyScreen lock / Message ............................................................................ 43 OPTION menu ......................................................................................44 Auto search / Auto off / Lamp time ............................................................... 44 Filter time / Service ....................................................................................... 45 Maintenance ...............................................................47 Lamp .....................................................................................................47 Air ﬁlter ..................................................................................................50 Inside of the projector ...........................................................................52 Caring for the lens .................................................................................52 Caring for the cabinet and remote control .............................................52 Troubleshooting ..........................................................53 Related messages ................................................................................53 Regarding the indicator lamps ..............................................................54 Phenomena that may easily be taken as machine defects ...................56 Warranty and after-service ........................................58 Speciﬁcations .............................................................58 Dimension diagram ...............................................................................59 3

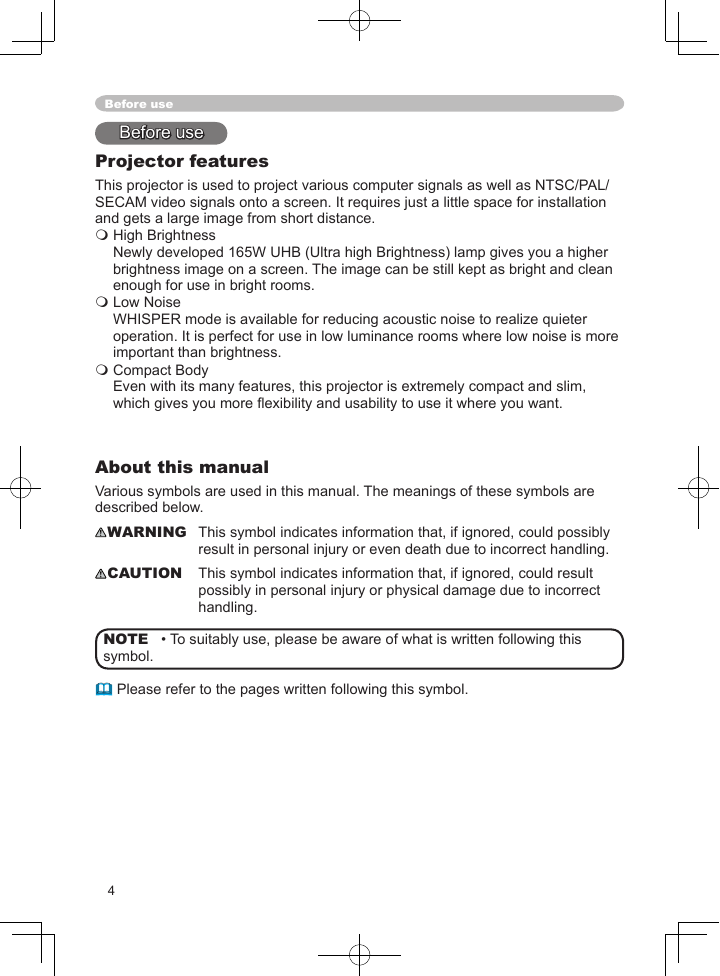

Before use Before use  Low Noise  Compact Body Projector features This projector is used to project various computer signals as well as NTSC/PAL/ SECAM video signals onto a screen. It requires just a little space for installation and gets a large image from short distance.  High Brightness Newly developed 165W UHB (Ultra high Brightness) lamp gives you a higher brightness image on a screen. The image can be still kept as bright and clean enough for use in bright rooms. WHISPER mode is available for reducing acoustic noise to realize quieter operation. It is perfect for use in low luminance rooms where low noise is more important than brightness. Even with its many features, this projector is extremely compact and slim, which gives you more ﬂexibility and usability to use it where you want. About this manual Various symbols are used in this manual. The meanings of these symbols are described below. WARNING CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling. This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling. NOTE symbol. • To suitably use, please be aware of what is written following this  Please refer to the pages written following this symbol. 4

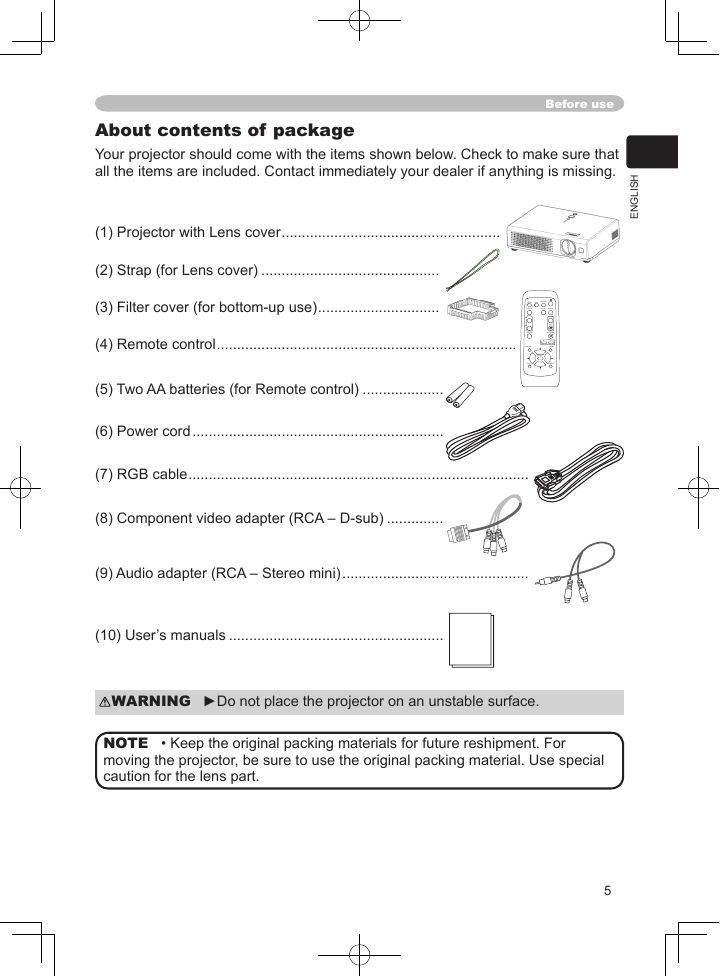

About contents of package Your projector should come with the items shown below. Check to make sure that all the items are included. Contact immediately your dealer if anything is missing. Before use I H S L G N E (1) Projector with Lens cover ............................................................. (2) Strap (for Lens cover) .................................................................. (3) Filter cover (for bottom-up use) .................................................... ASPECT VIDEO MAGNIFY ON OFF RGB SEARCH AUTO BLANK VOLUME MUTE (4) Remote control ............................................................................. POSITION - ZOOM + MENU ENTER FREEZE KEYSTONE ESC RESET (5) Two AA batteries (for Remote control) ......................................... (6) Power cord ................................................................................... (7) RGB cable .................................................................................... (8) Component video adapter (RCA – D-sub) ................................... (9) Audio adapter (RCA – Stereo mini) .............................................. (10) User’s manuals .......................................................................... WARNING ►Do not place the projector on an unstable surface. • Keep the original packing materials for future reshipment. For NOTE moving the projector, be sure to use the original packing material. Use special caution for the lens part. 5

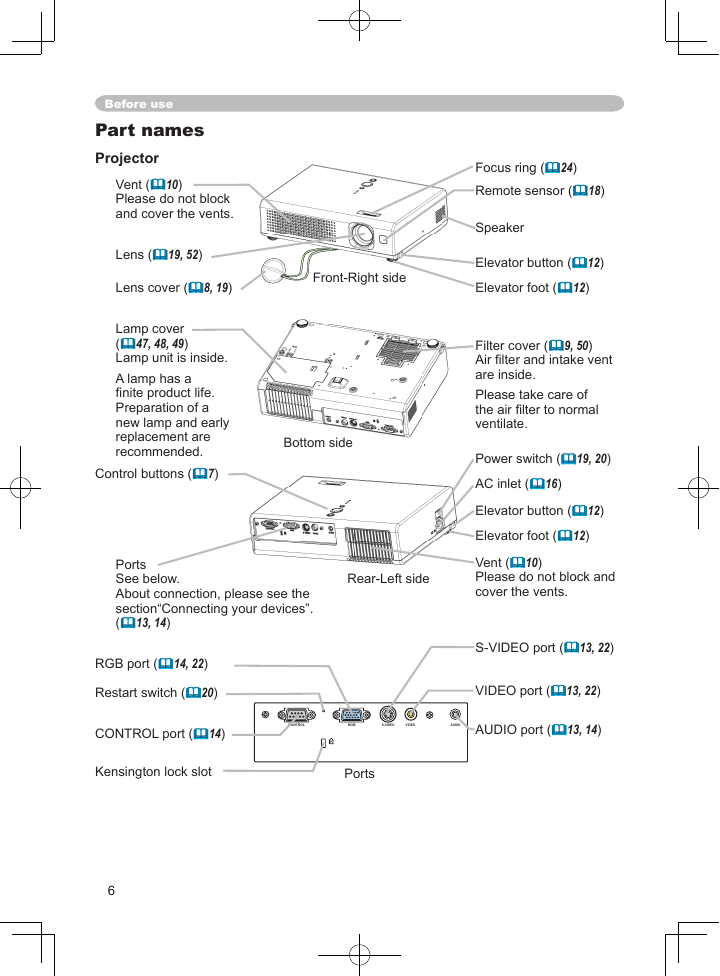

Before use Part names Projector Vent (10) Please do not block and cover the vents. Lens (19, 52) Lens cover (8, 19) Lamp cover (47, 48, 49) Lamp unit is inside. A lamp has a ﬁnite product life. Preparation of a new lamp and early replacement are recommended. Control buttons (7) Front-Right side Bottom side Ports See below. About connection, please see the section“Connecting your devices”. (13, 14) Rear-Left side RGB port (14, 22) Restart switch (20) CONTROL port (14) Kensington lock slot 6 CONTROL RGB S-VIDEO VIDEO AUDIO K Ports Focus ring (24) Remote sensor (18) Speaker Elevator button (12) Elevator foot (12) Filter cover (9, 50) Air ﬁlter and intake vent are inside. Please take care of the air ﬁlter to normal ventilate. Power switch (19, 20) AC inlet (16) Elevator button (12) Elevator foot (12) Vent (10) Please do not block and cover the vents. S-VIDEO port (13, 22) VIDEO port (13, 22) AUDIO port (13, 14)

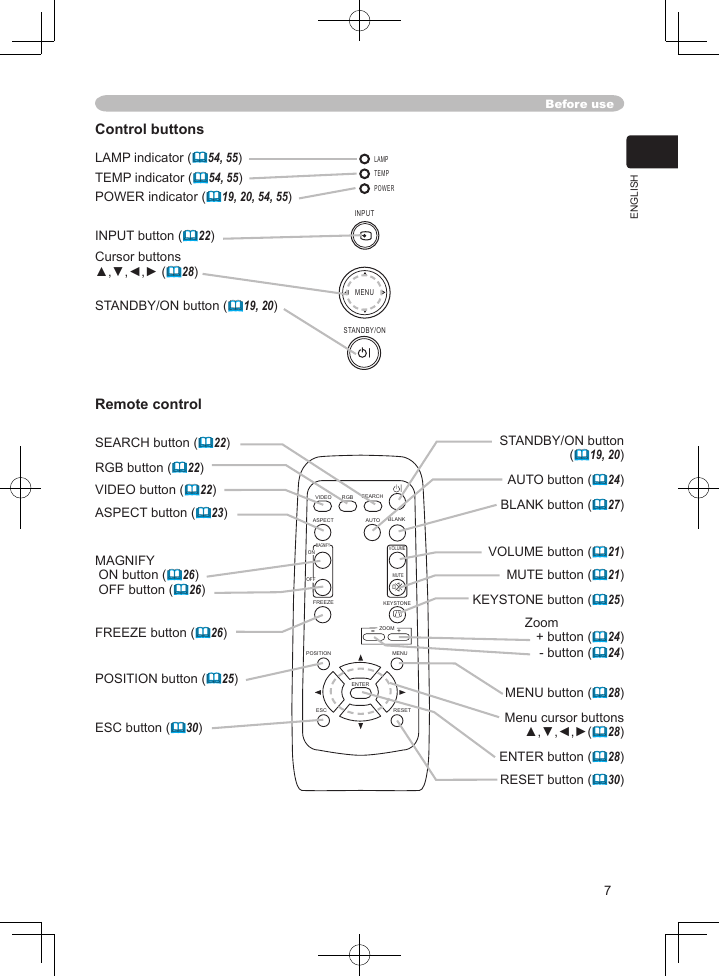

Control buttons LAMP indicator (54, 55) TEMP indicator (54, 55) POWER indicator (19, 20, 54, 55) INPUT button (22) Cursor buttons ▲,▼,◄,► (28) STANDBY/ON button (19, 20) LAMP TEMP POWER INPUT MENU STANDBY/ON Remote control SEARCH button (22) RGB button (22) VIDEO button (22) ASPECT button (23) MAGNIFY ON button (26) OFF button (26) FREEZE button (26) VIDEO RGB SEARCH ASPECT AUTO BLANK MAGNIFY ON OFF VOLUME MUTE FREEZE KEYSTONE - ZOOM + POSITION MENU POSITION button (25) ENTER ESC button (30) ESC RESET Before use I H S L G N E STANDBY/ON button (19, 20) AUTO button (24) BLANK button (27) VOLUME button (21) MUTE button (21) KEYSTONE button (25) Zoom + button (24) - button (24) MENU button (28) Menu cursor buttons ▲,▼,◄,►(28) ENTER button (28) RESET button (30) 7

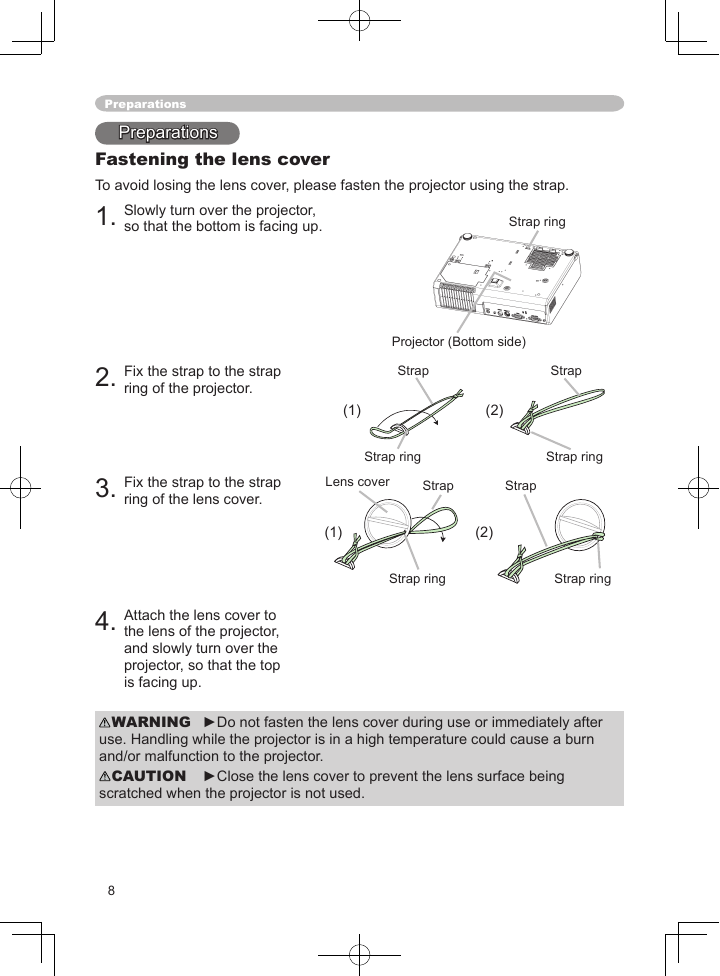

Preparations Preparations Fastening the lens cover To avoid losing the lens cover, please fasten the projector using the strap. 1. Slowly turn over the projector, so that the bottom is facing up. Strap ring Projector (Bottom side) Strap Strap (1) (2) Strap ring Strap ring Lens cover Strap Strap (1) (2) Strap ring Strap ring 2. Fix the strap to the strap ring of the projector. 3. Fix the strap to the strap ring of the lens cover. 4. Attach the lens cover to the lens of the projector, and slowly turn over the projector, so that the top is facing up. WARNING ►Do not fasten the lens cover during use or immediately after use. Handling while the projector is in a high temperature could cause a burn and/or malfunction to the projector. CAUTION ►Close the lens cover to prevent the lens surface being scratched when the projector is not used. 8
