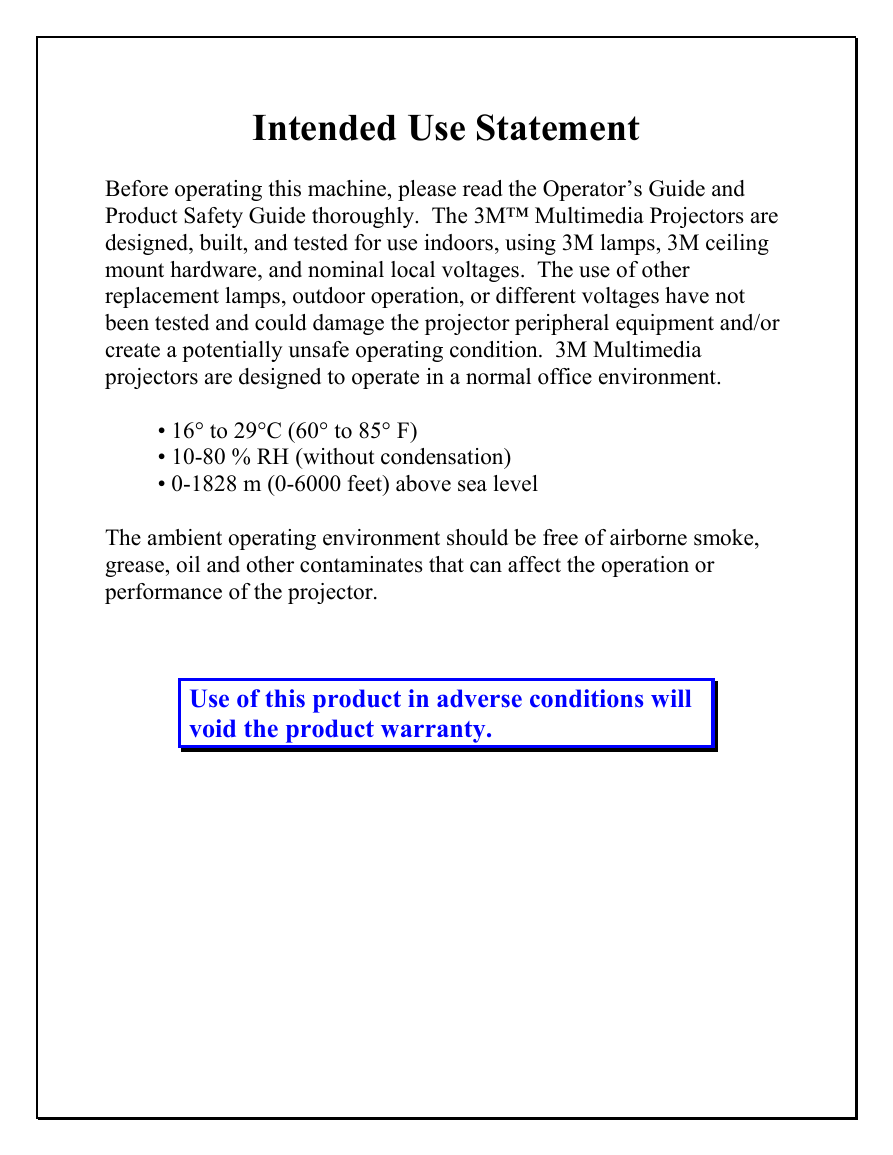

Intended Use Statement Before operating this machine, please read the Operator’s Guide and Product Safety Guide thoroughly. The 3M™ Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages. The use of other replacement lamps, outdoor operation, or different voltages have not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors are designed to operate in a normal office environment. 16° to 29°C (60° to 85° F) 10-80 % RH (without condensation) 0-1828 m (0-6000 feet) above sea level The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty.

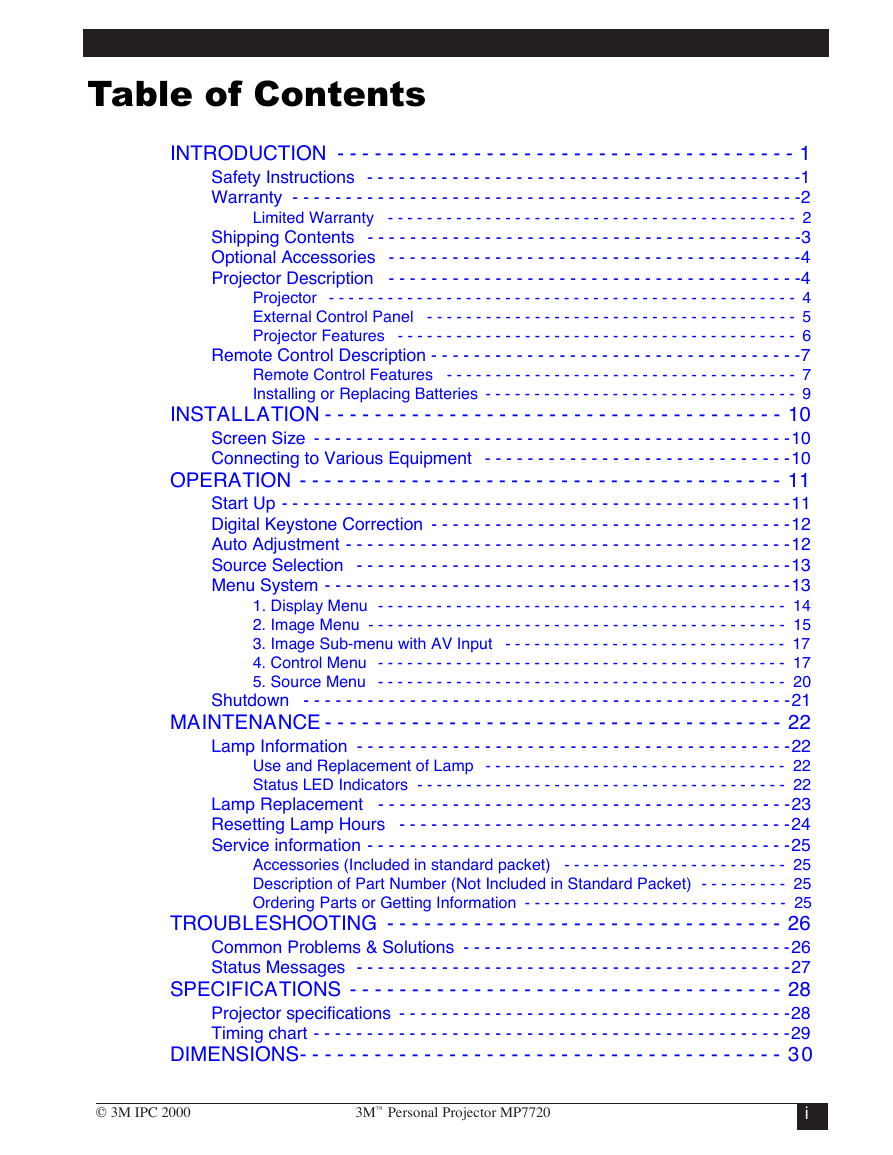

Table of Contents 7DEOHRI&RQWHQWV INTRODUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1 Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -2 Limited Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Shipping Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3 Optional Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4 Projector Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4 Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 External Control Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5 Projector Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6 Remote Control Description - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -7 Remote Control Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Installing or Replacing Batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9 INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10 Screen Size - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10 Connecting to Various Equipment - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10 OPERATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 Start Up - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -11 Digital Keystone Correction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12 Auto Adjustment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12 Source Selection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -13 Menu System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -13 1. Display Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14 2. Image Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 3. Image Sub-menu with AV Input - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17 4. Control Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17 5. Source Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20 Shutdown - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -21 MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22 Lamp Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -22 Use and Replacement of Lamp - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22 Status LED Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22 Lamp Replacement - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -23 Resetting Lamp Hours - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -24 Service information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -25 Accessories (Included in standard packet) - - - - - - - - - - - - - - - - - - - - - - - 25 Description of Part Number (Not Included in Standard Packet) - - - - - - - - - 25 Ordering Parts or Getting Information - - - - - - - - - - - - - - - - - - - - - - - - - - - 25 TROUBLESHOOTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26 Common Problems & Solutions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -26 Status Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -27 SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Projector specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -28 Timing chart - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -29 DIMENSIONS- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30 © 3M IPC 2000 3M™ Personal Projector MP7720 i

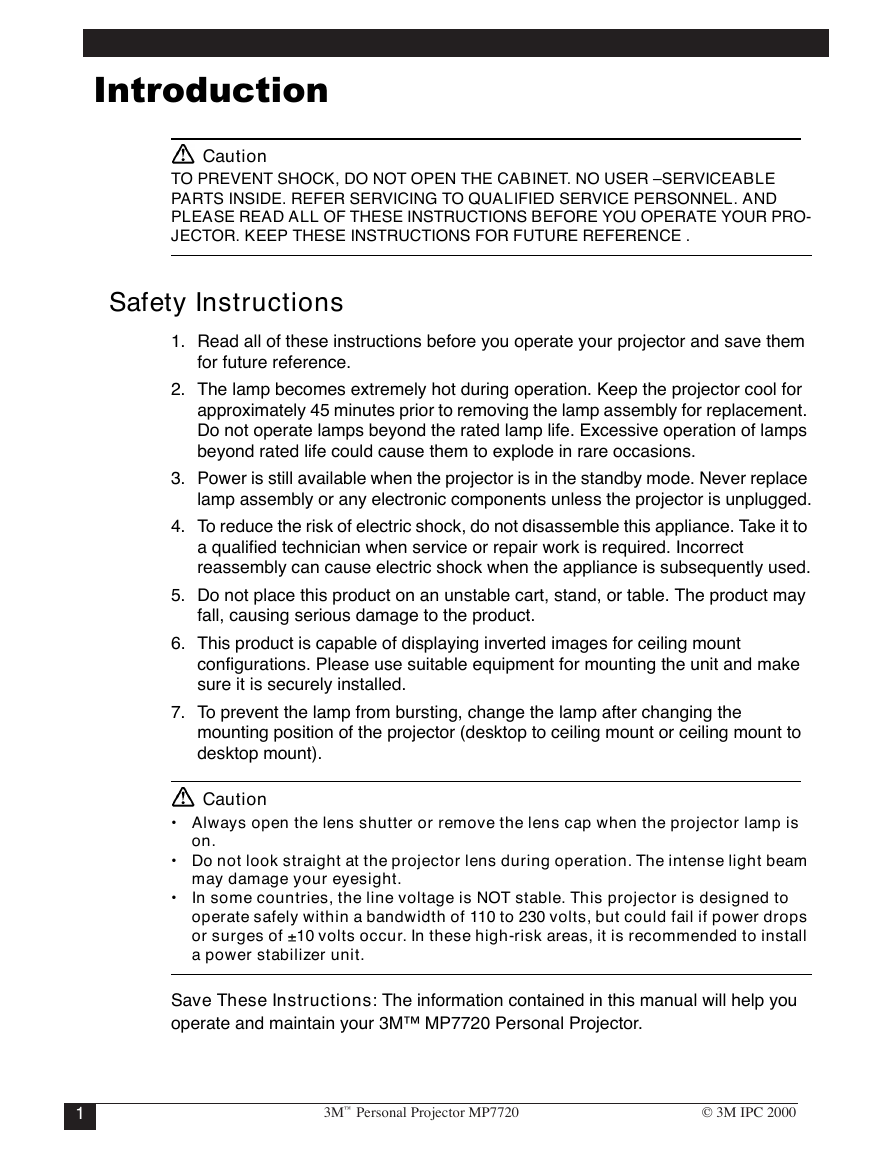

,QWURGXFWLRQ Caution TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER –SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. AND PLEASE READ ALL OF THESE INSTRUCTIONS BEFORE YOU OPERATE YOUR PRO- JECTOR. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE . Safety Instructions 1. Read all of these instructions before you operate your projector and save them for future reference. 2. The lamp becomes extremely hot during operation. Keep the projector cool for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to explode in rare occasions. 3. Power is still available when the projector is in the standby mode. Never replace lamp assembly or any electronic components unless the projector is unplugged. 4. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a qualified technician when service or repair work is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. This product is capable of displaying inverted images for ceiling mount configurations. Please use suitable equipment for mounting the unit and make sure it is securely installed. 7. To prevent the lamp from bursting, change the lamp after changing the mounting position of the projector (desktop to ceiling mount or ceiling mount to desktop mount). Caution • Always open the lens shutter or remove the lens cap when the projector lamp is on. • Do not look straight at the projector lens during operation. The intense light beam • may damage your eyesight. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a bandwidth of 110 to 230 volts, but could fail if power drops or surges of – 10 volts occur. In these high-risk areas, it is recommended to install a power stabilizer unit. Save These Instructions: The information contained in this manual will help you operate and maintain your 3M™ MP7720 Personal Projector. 1 3M™ Personal Projector MP7720 © 3M IPC 2000

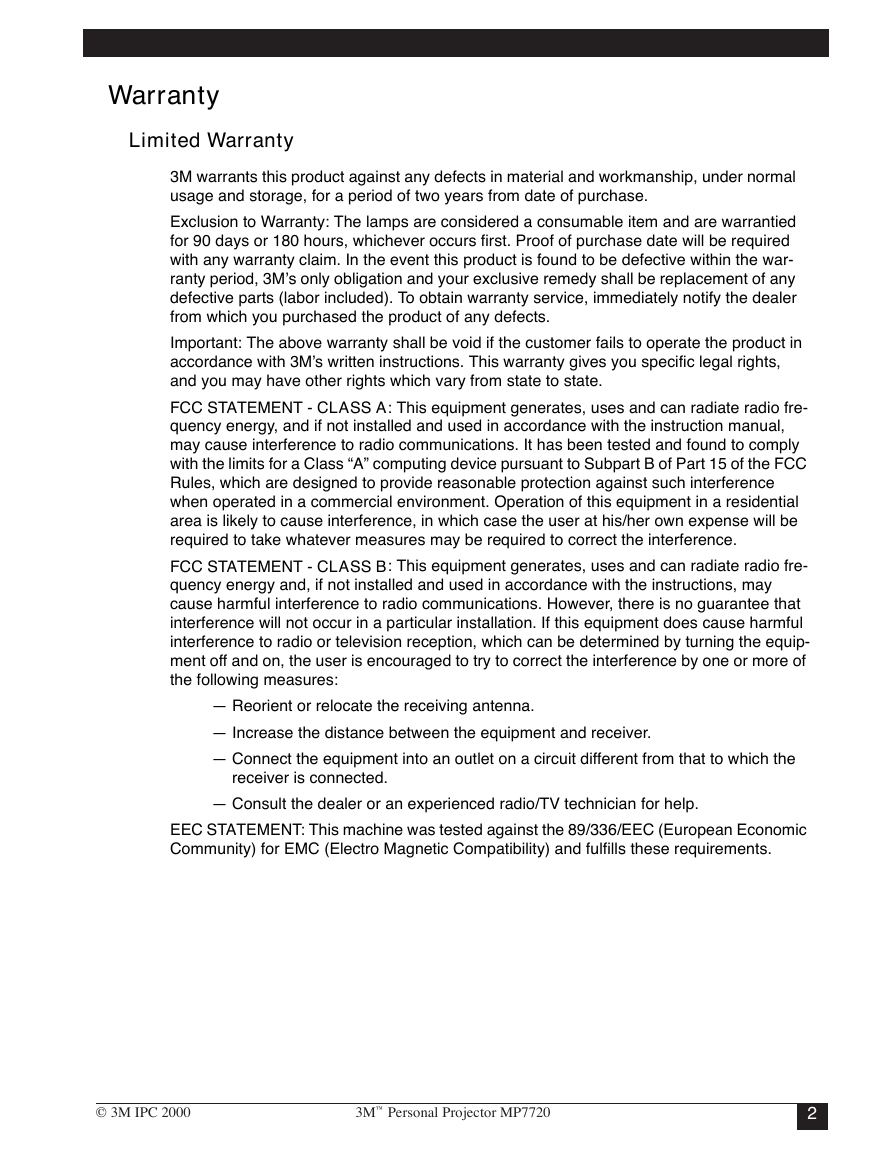

Table of Contents Warranty Limited Warranty 3M warrants this product against any defects in material and workmanship, under normal usage and storage, for a period of two years from date of purchase. Exclusion to Warranty: The lamps are considered a consumable item and are warrantied for 90 days or 180 hours, whichever occurs first. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the war- ranty period, 3M’s only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. Important: The above warranty shall be void if the customer fails to operate the product in accordance with 3M’s written instructions. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. FCC STATEMENT - CLASS A: This equipment generates, uses and can radiate radio fre- quency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class “A” computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference. FCC STATEMENT - CLASS B: This equipment generates, uses and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the distance between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. EEC STATEMENT: This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements. © 3M IPC 2000 3M™ Personal Projector MP7720 2

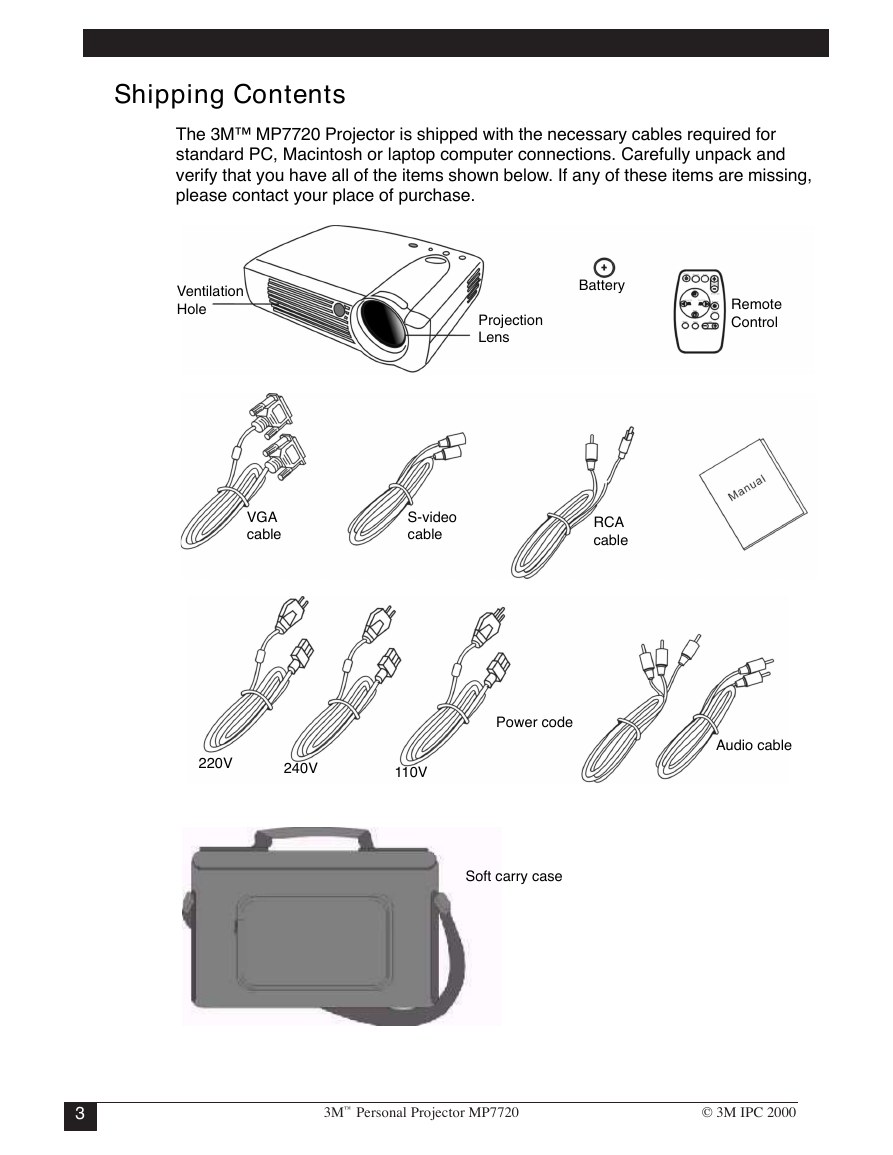

Shipping Contents The 3M™ MP7720 Projector is shipped with the necessary cables required for standard PC, Macintosh or laptop computer connections. Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Ventilation Hole Battery Projection Lens Remote Control VGA cable S-video cable RCA cable 220V 240V 110V Power code Audio cable Soft carry case 3 3M™ Personal Projector MP7720 © 3M IPC 2000

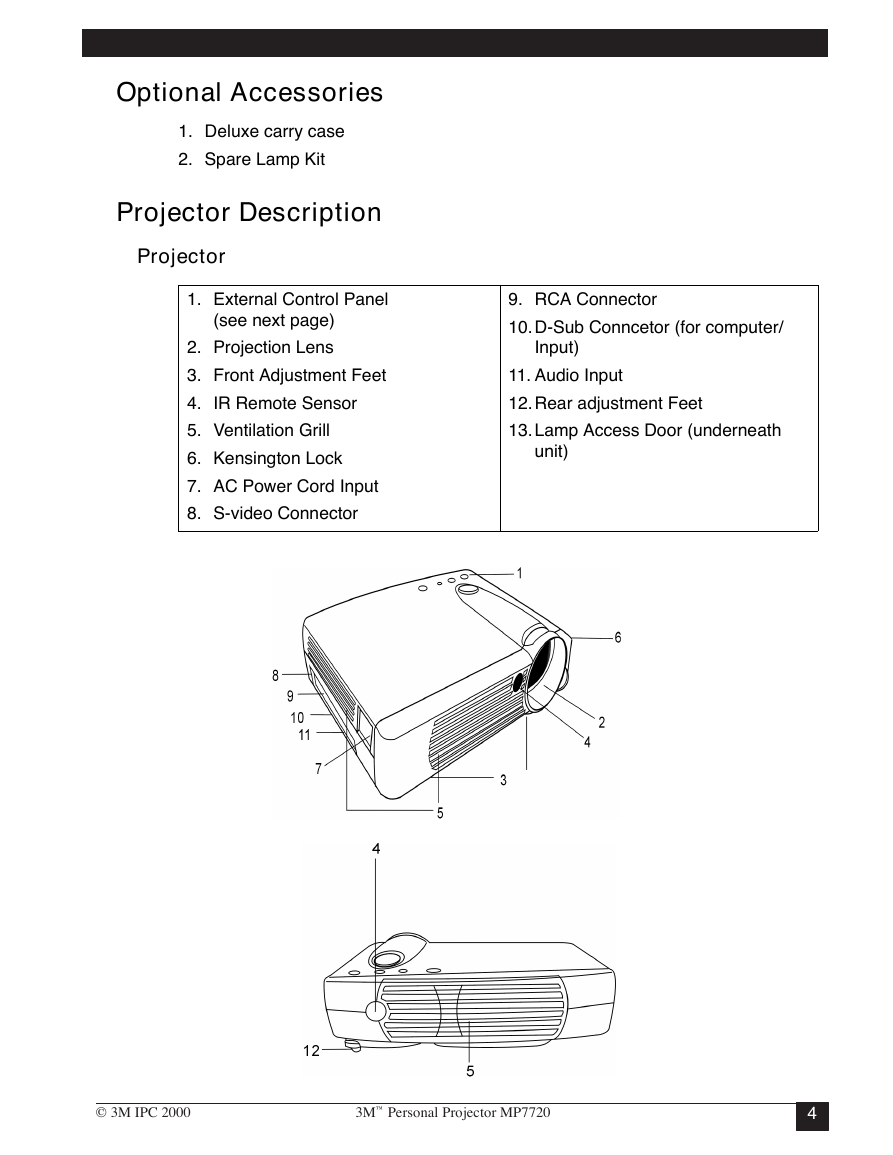

Table of Contents Optional Accessories 1. Deluxe carry case 2. Spare Lamp Kit Projector Description Projector 1. External Control Panel IR Remote Sensor (see next page) 2. Projection Lens 3. Front Adjustment Feet 4. 5. Ventilation Grill 6. Kensington Lock 7. AC Power Cord Input 8. S-video Connector 9. RCA Connector 10.D-Sub Conncetor (for computer/ Input) 11. Audio Input 12.Rear adjustment Feet 13.Lamp Access Door (underneath unit) © 3M IPC 2000 3M™ Personal Projector MP7720 4

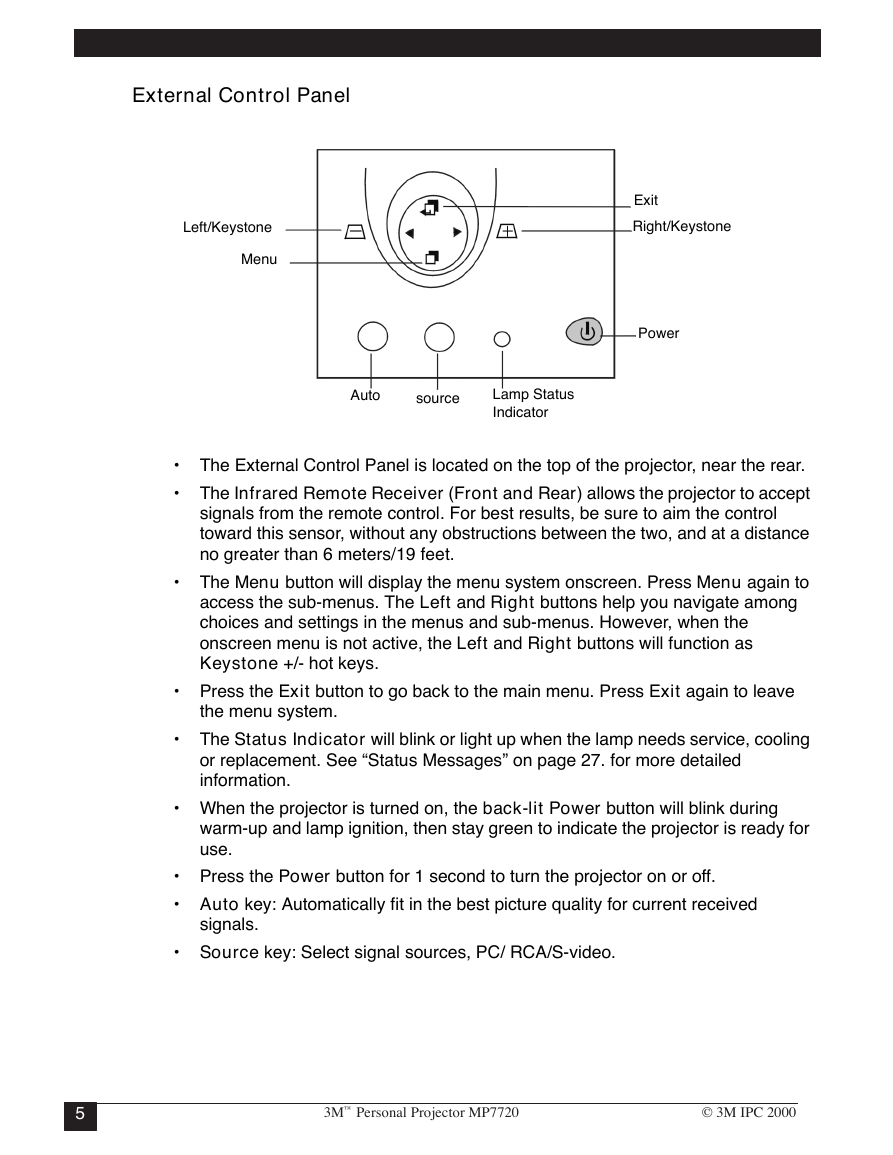

External Control Panel Left/Keystone Menu Exit Right/Keystone Power Auto source Lamp Status Indicator • The External Control Panel is located on the top of the projector, near the rear. • The Infrared Remote Receiver (Front and Rear) allows the projector to accept signals from the remote control. For best results, be sure to aim the control toward this sensor, without any obstructions between the two, and at a distance no greater than 6 meters/19 feet. • The Menu button will display the menu system onscreen. Press Menu again to access the sub-menus. The Left and Right buttons help you navigate among choices and settings in the menus and sub-menus. However, when the onscreen menu is not active, the Left and Right buttons will function as Keystone +/- hot keys. • Press the Exit button to go back to the main menu. Press Exit again to leave the menu system. • The Status Indicator will blink or light up when the lamp needs service, cooling or replacement. See “Status Messages” on page 27. for more detailed information. • When the projector is turned on, the back-lit Power button will blink during warm-up and lamp ignition, then stay green to indicate the projector is ready for use. • Press the Power button for 1 second to turn the projector on or off. • Auto key: Automatically fit in the best picture quality for current received signals. • Source key: Select signal sources, PC/ RCA/S-video. 5 3M™ Personal Projector MP7720 © 3M IPC 2000
