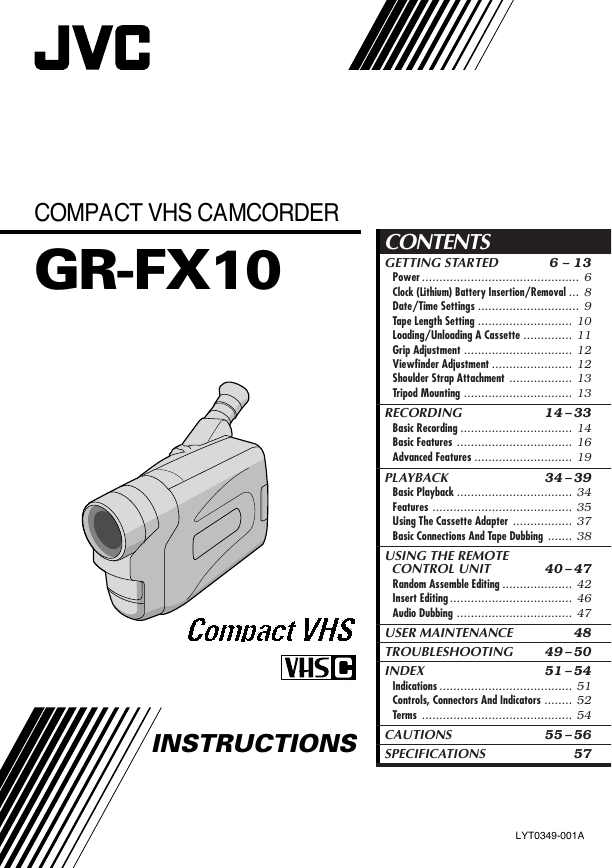

COMPACT VHS CAMCORDER GR-FX10 INSTRUCTIONS CONTENTS GETTING STARTED 6 – 13 Power ............................................. 6 Clock (Lithium) Battery Insertion/Removal ... 8 Date/Time Settings ............................. 9 Tape Length Setting ........................... 10 Loading/Unloading A Cassette .............. 11 Grip Adjustment ............................... 12 Viewfinder Adjustment ....................... 12 Shoulder Strap Attachment .................. 13 Tripod Mounting ............................... 13 14 – 33 Basic Recording ................................ 14 Basic Features ................................. 16 Advanced Features ............................ 19 39 Basic Playback ................................. 34 Features ........................................ 35 Using The Cassette Adapter ................. 37 Basic Connections And Tape Dubbing ....... 38 34 RECORDING PLAYBACK USING THE REMOTE CONTROL UNIT USER MAINTENANCE TROUBLESHOOTING INDEX 40 – 47 Random Assemble Editing .................... 42 Insert Editing ................................... 46 Audio Dubbing ................................. 47 48 49 – 50 51 – 54 Indications ...................................... 51 Controls, Connectors And Indicators ........ 52 Terms ........................................... 54 55 – 56 57 CAUTIONS SPECIFICATIONS LYT0349-001A

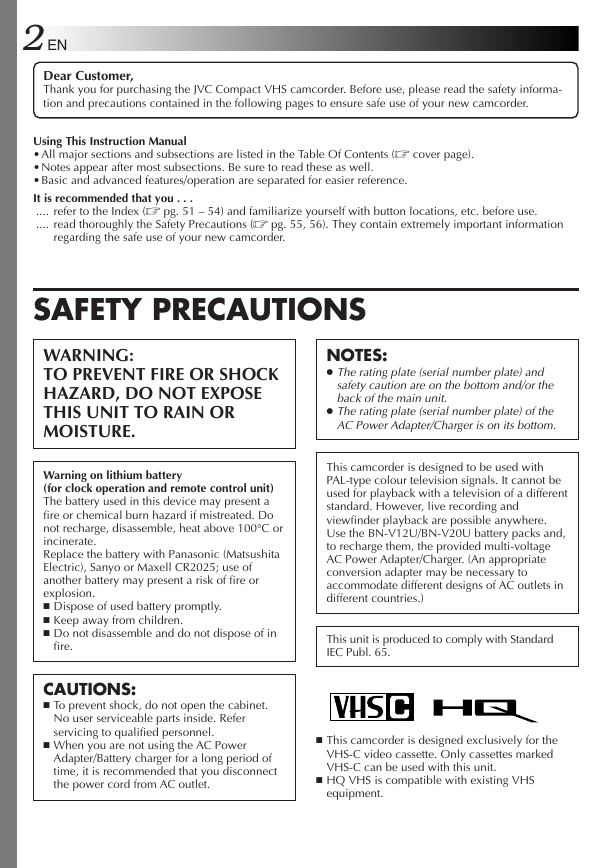

2 EN Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety informa- tion and precautions contained in the following pages to ensure safe use of your new camcorder. Using This Instruction Manual •All major sections and subsections are listed in the Table Of Contents (墌 cover page). •Notes appear after most subsections. Be sure to read these as well. •Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . .... refer to the Index (墌 pg. 51 – 54) and familiarize yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions (墌 pg. 55, 56). They contain extremely important information regarding the safe use of your new camcorder. SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. NOTES: ● The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ● The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom. Warning on lithium battery (for clock operation and remote control unit) The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace the battery with Panasonic (Matsushita Electric), Sanyo or Maxell CR2025; use of another battery may present a risk of fire or explosion. 䡲 Dispose of used battery promptly. 䡲 Keep away from children. 䡲 Do not disassemble and do not dispose of in fire. This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and viewfinder playback are possible anywhere. Use the BN-V12U/BN-V20U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) This unit is produced to comply with Standard IEC Publ. 65. CAUTIONS: 䡲 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. 䡲 When you are not using the AC Power Adapter/Battery charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet. 䡲 This camcorder is designed exclusively for the VHS-C video cassette. Only cassettes marked VHS-C can be used with this unit. 䡲 HQ VHS is compatible with existing VHS equipment.

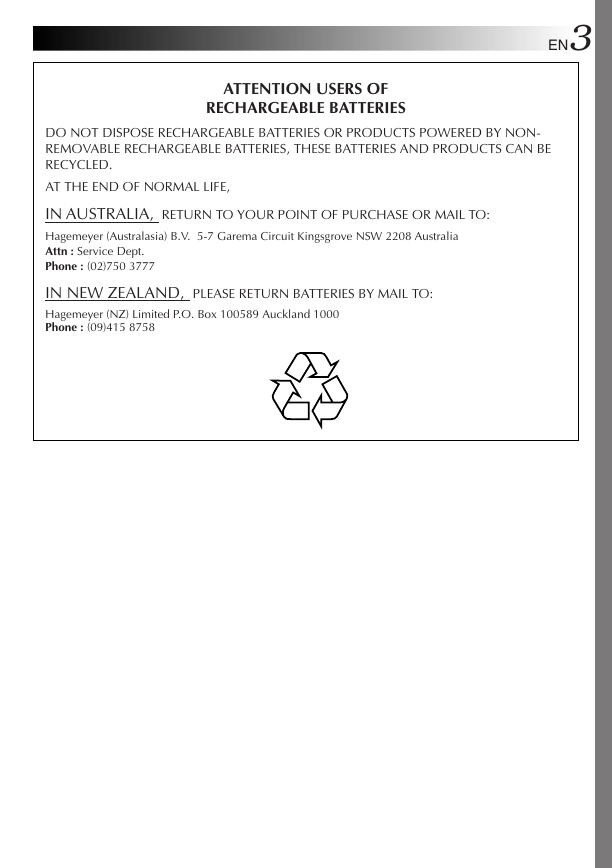

EN3 ATTENTION USERS OF RECHARGEABLE BATTERIES DO NOT DISPOSE RECHARGEABLE BATTERIES OR PRODUCTS POWERED BY NON- REMOVABLE RECHARGEABLE BATTERIES, THESE BATTERIES AND PRODUCTS CAN BE RECYCLED. AT THE END OF NORMAL LIFE, IN AUSTRALIA, RETURN TO YOUR POINT OF PURCHASE OR MAIL TO: Hagemeyer (Australasia) B.V. 5-7 Garema Circuit Kingsgrove NSW 2208 Australia Attn : Service Dept. Phone : (02)750 3777 IN NEW ZEALAND, PLEASE RETURN BATTERIES BY MAIL TO: Hagemeyer (NZ) Limited P.O. Box 100589 Auckland 1000 Phone : (09)415 8758

4 EN REMEMBER Programme AE with Special Effects (墌 pg. 20, 21) 䡲 Electronic Fog Filter 䡲 ND Effect 䡲 Sepia 䡲 Twilight 䡲 Sports 䡲 Nega/Posi 䡲 1/2000 sec. High Speed Shutter Menu Adjustment (墌 pg. 24, 25, 26) 5-Sec. Recording (墌 pg. 18) Picture Stabilizer (墌 pg. 18) MAJOR FEATURES Digital Hyper Zoom (墌 pg. 16) Zoom in Zoom out PROVIDED ACCESSORIES •AC Power Adapter/Charger AA-V15EA •Cassette Adapter C-P7U •Shoulder Strap •Battery Pack BN-V20U •Lithium Battery CR2025 x1 for clock operation •DC Cord •Audio/Video (A/V) cable

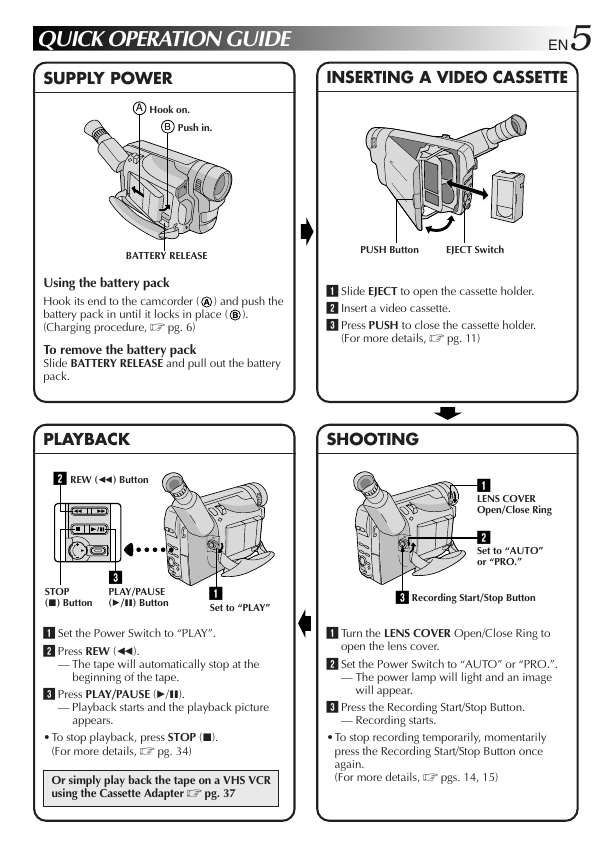

QUICK OPERATION GUIDE EN5 SUPPLY POWER INSERTING A VIDEO CASSETTE A Hook on. B Push in. BATTERY RELEASE PUSH Button EJECT Switch Using the battery pack Hook its end to the camcorder ( battery pack in until it locks in place ( (Charging procedure, 墌 pg. 6) To remove the battery pack Slide BATTERY RELEASE and pull out the battery pack. ) and push the ). PLAYBACK 2 REW (2) Button STOP (5) Button 3 PLAY/PAUSE (4/6) Button 1 Set to “PLAY” 1 Slide EJECT to open the cassette holder. 2 Insert a video cassette. 3 Press PUSH to close the cassette holder. (For more details, 墌 pg. 11) SHOOTING 1 LENS COVER Open/Close Ring 2 Set to “AUTO” or “PRO.” 3 Recording Start/Stop Button 1 Set the Power Switch to “PLAY”. 2 Press REW (2). — The tape will automatically stop at the beginning of the tape. 3 Press PLAY/PAUSE (4/6). — Playback starts and the playback picture appears. 1 Turn the LENS COVER Open/Close Ring to open the lens cover. 2 Set the Power Switch to “AUTO” or “PRO.”. — The power lamp will light and an image will appear. 3 Press the Recording Start/Stop Button. — Recording starts. •To stop playback, press STOP (5). (For more details, 墌 pg. 34) Or simply play back the tape on a VHS VCR using the Cassette Adapter 墌 pg. 37 •To stop recording temporarily, momentarily press the Recording Start/Stop Button once again. (For more details, 墌 pgs. 14, 15)

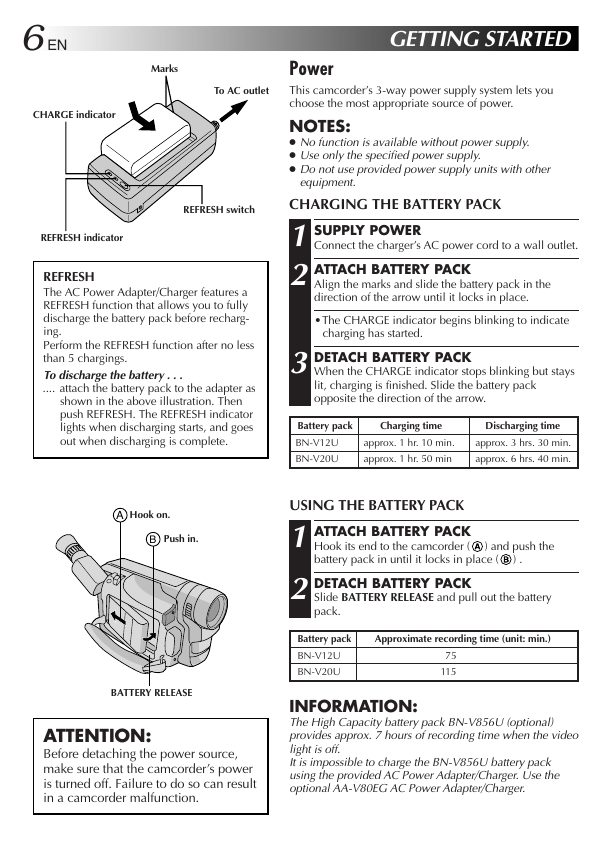

6 EN CHARGE indicator Marks To AC outlet GETTING STARTED Power This camcorder’s 3-way power supply system lets you choose the most appropriate source of power. NOTES: ● No function is available without power supply. ● Use only the specified power supply. ● Do not use provided power supply units with other equipment. REFRESH switch CHARGING THE BATTERY PACK REFRESH indicator REFRESH The AC Power Adapter/Charger features a REFRESH function that allows you to fully discharge the battery pack before recharg- ing. Perform the REFRESH function after no less than 5 chargings. To discharge the battery . . . .... attach the battery pack to the adapter as shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete. A Hook on. B Push in. Connect the charger’s AC power cord to a wall outlet. 1SUPPLY POWER 2ATTACH BATTERY PACK Align the marks and slide the battery pack in the direction of the arrow until it locks in place. •The CHARGE indicator begins blinking to indicate charging has started. 3DETACH BATTERY PACK When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery pack opposite the direction of the arrow. Battery pack BN-V12U BN-V20U Charging time Discharging time approx. 1 hr. 10 min. approx. 1 hr. 50 min approx. 3 hrs. 30 min. approx. 6 hrs. 40 min. USING THE BATTERY PACK Hook its end to the camcorder ( battery pack in until it locks in place ( 1ATTACH BATTERY PACK 2DETACH BATTERY PACK Slide BATTERY RELEASE and pull out the battery pack. ) and push the ) . BATTERY RELEASE ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. Battery pack BN-V12U BN-V20U Approximate recording time (unit: min.) 75 115 INFORMATION: The High Capacity battery pack BN-V856U (optional) provides approx. 7 hours of recording time when the video light is off. It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/Charger. Use the optional AA-V80EG AC Power Adapter/Charger.

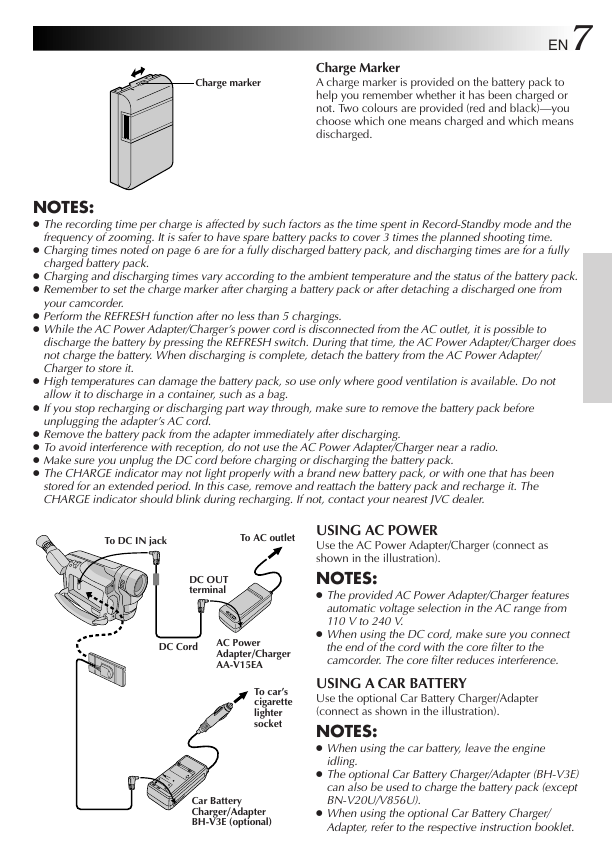

EN7 Charge marker Charge Marker A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged. NOTES: ● The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs to cover 3 times the planned shooting time. ● Charging times noted on page 6 are for a fully discharged battery pack, and discharging times are for a fully charged battery pack. your camcorder. ● Charging and discharging times vary according to the ambient temperature and the status of the battery pack. ● Remember to set the charge marker after charging a battery pack or after detaching a discharged one from ● Perform the REFRESH function after no less than 5 chargings. ● While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When discharging is complete, detach the battery from the AC Power Adapter/ Charger to store it. ● High temperatures can damage the battery pack, so use only where good ventilation is available. Do not allow it to discharge in a container, such as a bag. ● If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord. ● Remove the battery pack from the adapter immediately after discharging. ● To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio. ● Make sure you unplug the DC cord before charging or discharging the battery pack. ● The CHARGE indicator may not light properly with a brand new battery pack, or with one that has been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHARGE indicator should blink during recharging. If not, contact your nearest JVC dealer. To DC IN jack To AC outlet DC OUT terminal DC Cord AC Power Adapter/Charger AA-V15EA To car’s cigarette lighter socket Car Battery Charger/Adapter BH-V3E (optional) USING AC POWER Use the AC Power Adapter/Charger (connect as shown in the illustration). NOTES: ● The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V. ● When using the DC cord, make sure you connect the end of the cord with the core filter to the camcorder. The core filter reduces interference. USING A CAR BATTERY Use the optional Car Battery Charger/Adapter (connect as shown in the illustration). NOTES: ● When using the car battery, leave the engine idling. ● The optional Car Battery Charger/Adapter (BH-V3E) can also be used to charge the battery pack (except BN-V20U/V856U). ● When using the optional Car Battery Charger/ Adapter, refer to the respective instruction booklet.

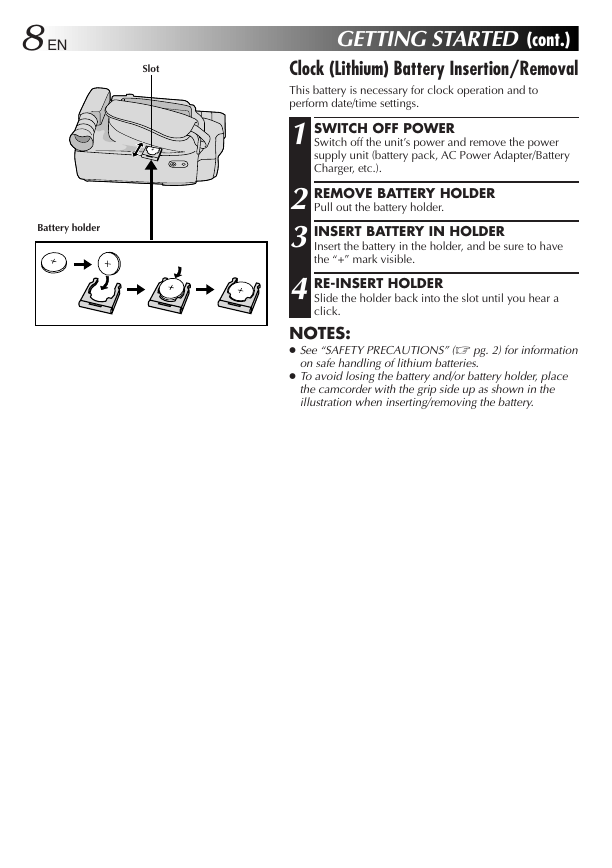

8 EN Slot Battery holder GETTING STARTED (cont.) Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. 1SWITCH OFF POWER Switch off the unit’s power and remove the power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.). Pull out the battery holder. Insert the battery in the holder, and be sure to have the “+” mark visible. 2REMOVE BATTERY HOLDER 3INSERT BATTERY IN HOLDER 4RE-INSERT HOLDER Slide the holder back into the slot until you hear a click. NOTES: ● See “SAFETY PRECAUTIONS” (墌 pg. 2) for information on safe handling of lithium batteries. ● To avoid losing the battery and/or battery holder, place the camcorder with the grip side up as shown in the illustration when inserting/removing the battery.
