COMPACT VHS CAMCORDER GR-SXM46 GR-SXM26 GR-SX41 GR-SX21 GR-FXM16 GR-FXM161 GR-FX11 CONTENTS SAFETY PRECAUTIONS MAJOR FEATURES PROVIDED ACCESSORIES GETTING STARTED ENGLISH 2 – 3 4 5 6 – 15 RECORDING 16 – 32 Basic Recording .......................... 16 Basic Features ........................... 18 Advanced Features ...................... 22 33 – 37 Basic Playback ........................... 33 Features .................................. 34 Using The Cassette Adapter ........... 35 Connections ............................... 36 PLAYBACK USING THE REMOTE CONTROL UNIT 38 – 47 Animation And Time-Lapse ............. 40 Playback Zoom .......................... 41 Insert Editing ............................. 42 Audio Dubbing ........................... 43 Random Assemble Editing .............. 44 48 – 49 50 – 53 TROUBLESHOOTING INDEX Controls, Connectors And Indicators ............................... 50 Indications ................................ 52 54 – 56 57 CAUTIONS SPECIFICATIONS VHS PAL 625 * GR-SXM46/SXM26/SX41/SX21 only INSTRUCTIONS LYT0486-001A EN

2 EN Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual •All major sections and subsections are listed in the Table Of Contents on the cover. •Notes appear after most subsections. Be sure to read these as well. •Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . .... refer to the Index (Z pgs. 50 – 53) and familiarize yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of this product. You are recommended to carefully read the cautions on pages 54 – 56 before use. SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTIONS: n To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. n When you are not using the AC Power Adapter/Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet. NOTES: cThe rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. cThe rating information and safety caution of the AC Power Adapter/Charger are on its bottom. Caution on Replaceable lithium battery The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fire if the battery is incorrectly replaced. n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in fire. 625 Cassettes marked “ However, S-VHS recordings are possible* only with cassettes marked “ * GR-SXM46/SXM26/SX41/SX21 only. ” can be used with this camcorder. ” and “ ”.

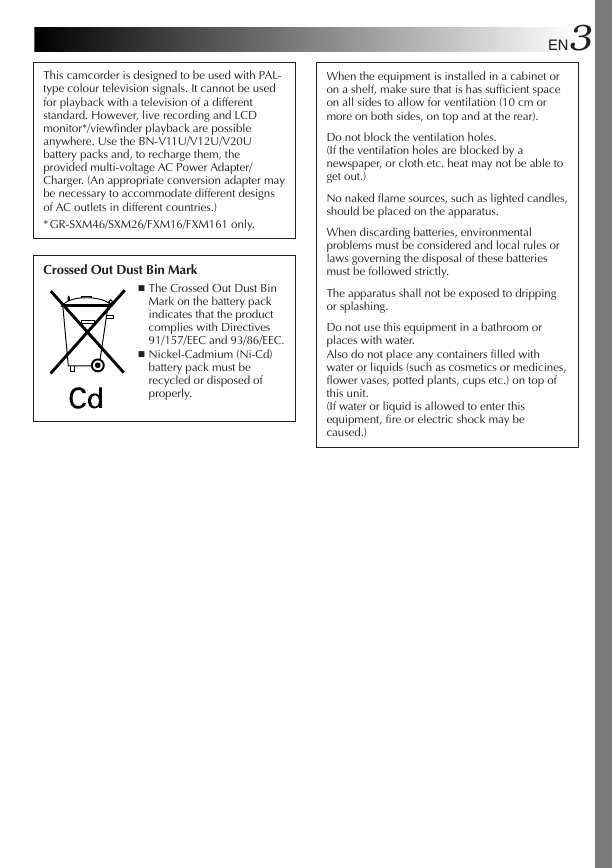

This camcorder is designed to be used with PAL- type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor*/viewfinder playback are possible anywhere. Use the BN-V11U/V12U/V20U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/ Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) *GR-SXM46/SXM26/FXM16/FXM161 only. Crossed Out Dust Bin Mark n The Crossed Out Dust Bin Mark on the battery pack indicates that the product complies with Directives 91/157/EEC and 93/86/EEC. n Nickel-Cadmium (Ni-Cd) battery pack must be recycled or disposed of properly. EN3 When the equipment is installed in a cabinet or on a shelf, make sure that is has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

4 EN MAJOR FEATURES Integrated Auto Light (GR-SXM46/SXM26/SX41/ FXM161 only) (Z pg. 20) TBC (Time Base Corrector) (Z pg. 34) Program AE with Special Effects (Z pg. 23) n Electronic Fog Filter n ND Effect n Sepia n Twilight n Sports n Nega/Posi n 1/2000 sec. High Speed Shutter Super VHS-ET (GR-SXM46/ SXM26/SX41/SX21 only) (Z pg. 12) Picture Stabilizer (Z pg. 18) Digital Hyper Zoom (Z pg. 18) Zoom in Zoom out NOTES about Automatic Demonstration Automatic Demonstration takes place when ”DEMO MODE” is set to ”ON” (factory-preset). n Available when the Power Switch is set to ”AUTO” or ”PRO.”. n Operating the Power Zoom Lever during the demonstration stops DEMO MODE the demonstration temporarily. If the Power Zoom Lever is not moved for more than 1 minute after that, the demonstration will resume. n ”DEMO MODE” remains ”ON” even if the camcorder power is F O O F N E X I T Setting Menu turned off. n To cancel Automatic Demonstration, set the Power Switch to “PRO.” and press MENU while the demo is in progress. This takes you directly to the demo mode’s Setting Menu (so you will not have to go through the main Menu Screen.) Rotate the Select Wheel to select “OFF” and press it. NOTE: When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder, demonstration is not available.

PROVIDED ACCESSORIES EN5 •AC Power Adapter/ Charger AA-V16EG •Remote Control Unit RM-V715U (GR-SXM46/SX41 only) •Battery Pack BN-V11U •Cable Adapter (GR-SXM46/SXM26/ SX41/SX21 only) •Shoulder Strap •Lithium Battery CR2025 (for clock operation) •Core Filter (for provided Audio/Video cable) •Audio/Video (A/V) cable •S-video cable (GR-SXM46/SXM26/ SX41/SX21 only) •Editing Cable (GR-SXM46/SX41 only) •DC Cord How to Attach The Core Filter Attach the provided Core Filter to the provided Audio/Video cable. The Core Filter reduces interference. 1 2 5 cm 3 Stopper 1.Release the stoppers on both ends of the Core Filter. 2.Run the cable through the Core Filter, leaving approx. 5 cm of cable between the cable plug and the Core Filter. Wind the cable around the outside of the Core Filter as shown in the illustration. •Wind the cable so that it is not slack. NOTE: Take care not to damage the cable. 3.Close the Core Filter until it clicks shut. Connect the end of the cable with the Core Filter to the camcorder.

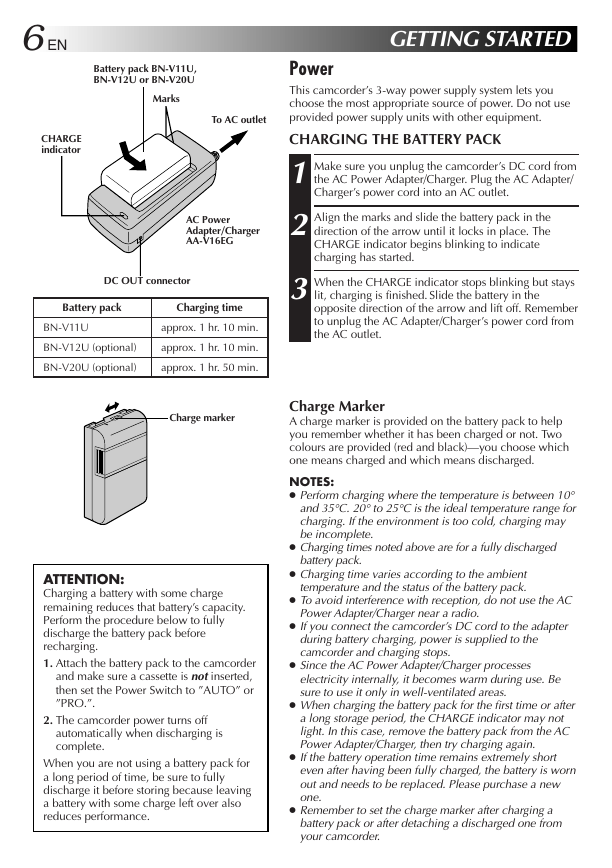

6 EN CHARGE indicator Battery pack BN-V11U, BN-V12U or BN-V20U Marks To AC outlet GETTING STARTED Power This camcorder’s 3-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment. CHARGING THE BATTERY PACK AC Power Adapter/Charger AA-V16EG DC OUT connector Battery pack Charging time BN-V11U approx. 1 hr. 10 min. BN-V12U (optional) approx. 1 hr. 10 min. BN-V20U (optional) approx. 1 hr. 50 min. Charge marker ATTENTION: Charging a battery with some charge remaining reduces that battery’s capacity. Perform the procedure below to fully discharge the battery pack before recharging. 1. Attach the battery pack to the camcorder and make sure a cassette is not inserted, then set the Power Switch to ”AUTO” or ”PRO.”. 2. The camcorder power turns off automatically when discharging is complete. When you are not using a battery pack for a long period of time, be sure to fully discharge it before storing because leaving a battery with some charge left over also reduces performance. the AC Power Adapter/Charger. Plug the AC Adapter/ Charger’s power cord into an AC outlet. 1 Make sure you unplug the camcorder’s DC cord from 2 Align the marks and slide the battery pack in the direction of the arrow until it locks in place. The CHARGE indicator begins blinking to indicate charging has started. 3 When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery in the opposite direction of the arrow and lift off. Remember to unplug the AC Adapter/Charger’s power cord from the AC outlet. Charge Marker A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged. NOTES: c Perform charging where the temperature is between 10° and 35°C. 20° to 25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete. c Charging times noted above are for a fully discharged battery pack. c Charging time varies according to the ambient temperature and the status of the battery pack. c To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio. c If you connect the camcorder’s DC cord to the adapter during battery charging, power is supplied to the camcorder and charging stops. c Since the AC Power Adapter/Charger processes electricity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas. c When charging the battery pack for the first time or after a long storage period, the CHARGE indicator may not light. In this case, remove the battery pack from the AC Power Adapter/Charger, then try charging again. c If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one. c Remember to set the charge marker after charging a battery pack or after detaching a discharged one from your camcorder.

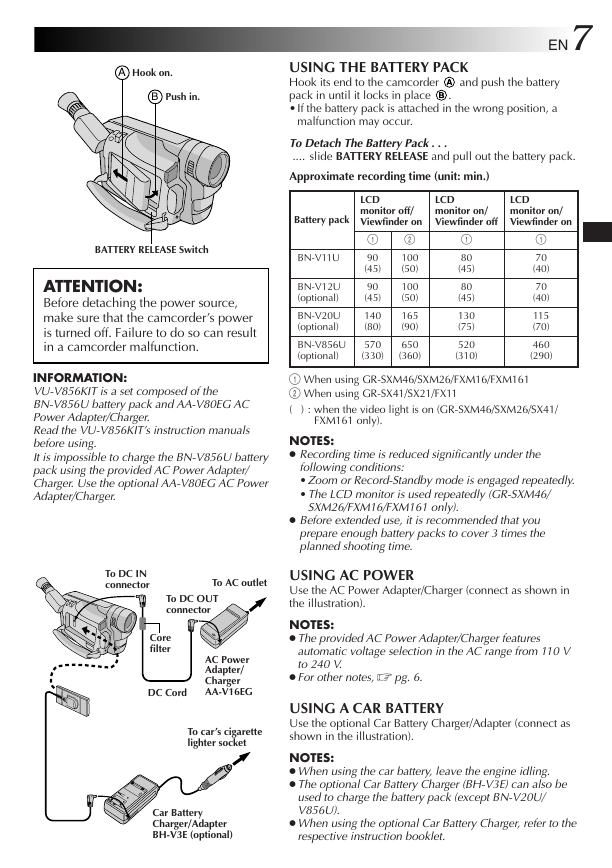

A Hook on. B Push in. BATTERY RELEASE Switch ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. INFORMATION: VU-V856KIT is a set composed of the BN-V856U battery pack and AA-V80EG AC Power Adapter/Charger. Read the VU-V856KIT’s instruction manuals before using. It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/ Charger. Use the optional AA-V80EG AC Power Adapter/Charger. To DC IN connector To AC outlet To DC OUT connector Core filter DC Cord AC Power Adapter/ Charger AA-V16EG To car’s cigarette lighter socket Car Battery Charger/Adapter BH-V3E (optional) EN7 USING THE BATTERY PACK Hook its end to the camcorder pack in until it locks in place •If the battery pack is attached in the wrong position, a and push the battery . malfunction may occur. To Detach The Battery Pack . . . .... slide BATTERY RELEASE and pull out the battery pack. Approximate recording time (unit: min.) Battery pack LCD monitor off/ Viewfinder on LCD monitor on/ Viewfinder off LCD monitor on/ Viewfinder on BN-V11U BN-V12U (optional) BN-V20U (optional) BN-V856U (optional) 1 90 (45) 90 (45) 140 (80) 570 (330) 2 100 (50) 100 (50) 165 (90) 650 (360) 1 80 (45) 80 (45) 130 (75) 520 (310) 1 70 (40) 70 (40) 115 (70) 460 (290) 1 When using GR-SXM46/SXM26/FXM16/FXM161 2 When using GR-SX41/SX21/FX11 ( ) : when the video light is on (GR-SXM46/SXM26/SX41/ FXM161 only). NOTES: c Recording time is reduced significantly under the following conditions: •Zoom or Record-Standby mode is engaged repeatedly. •The LCD monitor is used repeatedly (GR-SXM46/ SXM26/FXM16/FXM161 only). c Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time. USING AC POWER Use the AC Power Adapter/Charger (connect as shown in the illustration). NOTES: cThe provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V. cFor other notes, Z pg. 6. USING A CAR BATTERY Use the optional Car Battery Charger/Adapter (connect as shown in the illustration). NOTES: cWhen using the car battery, leave the engine idling. cThe optional Car Battery Charger (BH-V3E) can also be used to charge the battery pack (except BN-V20U/ V856U). cWhen using the optional Car Battery Charger, refer to the respective instruction booklet.

8 EN Slot GETTING STARTED (cont.) Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. Battery holder camcorder. supply unit (battery pack, AC Power Adapter/Battery Charger, etc.). 1 Switch off the unit’s power and remove the power 2 Pull out the battery holder to remove it from the 3 Insert the battery in the holder, and be sure to have 4 Slide the holder back into the slot until you hear a the “+” mark visible. click. NOTES: c See “SAFETY PRECAUTIONS” (Z pg. 2) for information on safe handling of lithium batteries. c To avoid losing the battery and/or battery holder, place the camcorder with the grip side up as shown in the illustration when inserting/removing the battery.
