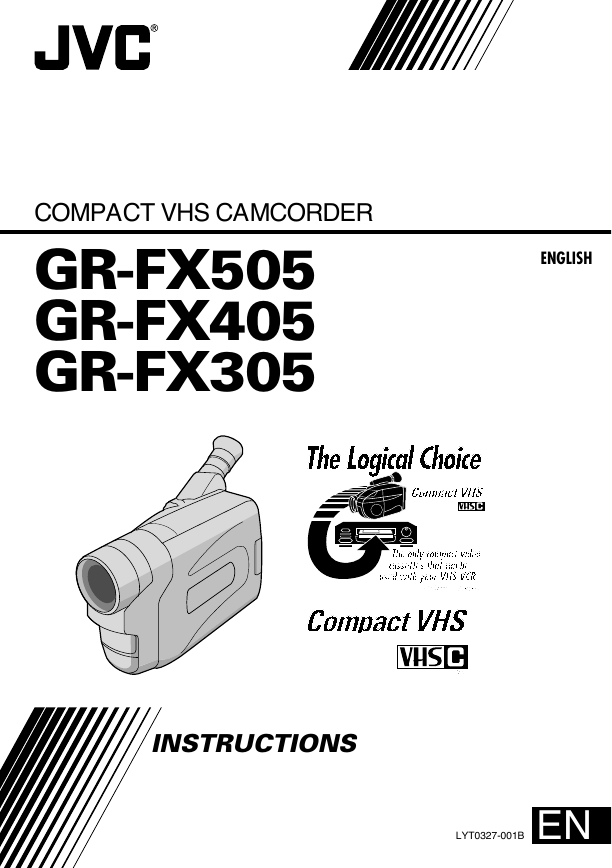

COMPACT VHS CAMCORDER GR-FX505 GR-FX405 GR-FX305 ENGLISH INSTRUCTIONS LYT0327-001B EN

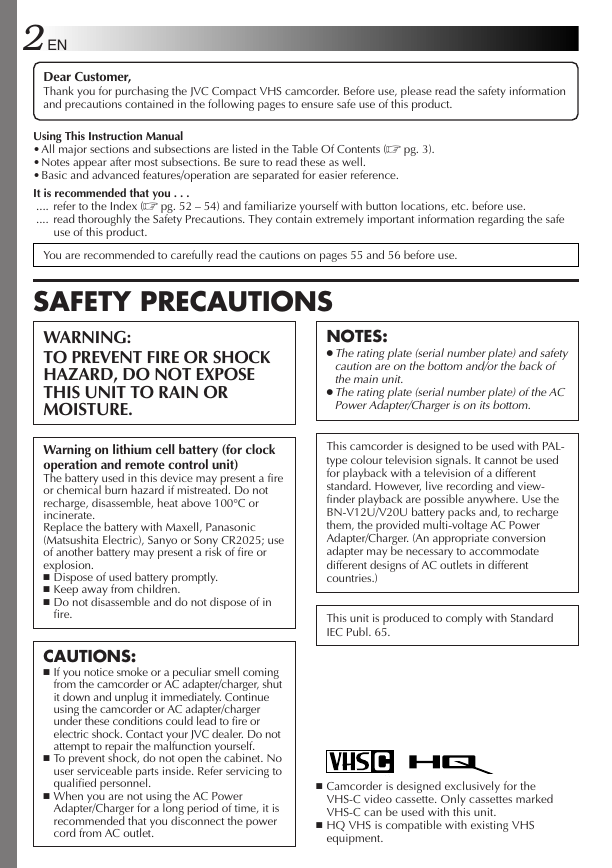

2 EN Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual •All major sections and subsections are listed in the Table Of Contents (Z pg. 3). •Notes appear after most subsections. Be sure to read these as well. •Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . .... refer to the Index (Z pg. 52 – 54) and familiarize yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of this product. You are recommended to carefully read the cautions on pages 55 and 56 before use. SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. NOTES: cThe rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. cThe rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom. Warning on lithium cell battery (for clock operation and remote control unit) The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace the battery with Maxell, Panasonic (Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion. n Dispose of used battery promptly. n Keep away from children. n Do not disassemble and do not dispose of in fire. This camcorder is designed to be used with PAL- type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and view- finder playback are possible anywhere. Use the BN-V12U/V20U battery packs and, to recharge them, the provided multi-voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) This unit is produced to comply with Standard IEC Publ. 65. CAUTIONS: n If you notice smoke or a peculiar smell coming from the camcorder or AC adapter/charger, shut it down and unplug it immediately. Continue using the camcorder or AC adapter/charger under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. n To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. n When you are not using the AC Power Adapter/Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet. n Camcorder is designed exclusively for the VHS-C video cassette. Only cassettes marked VHS-C can be used with this unit. n HQ VHS is compatible with existing VHS equipment.

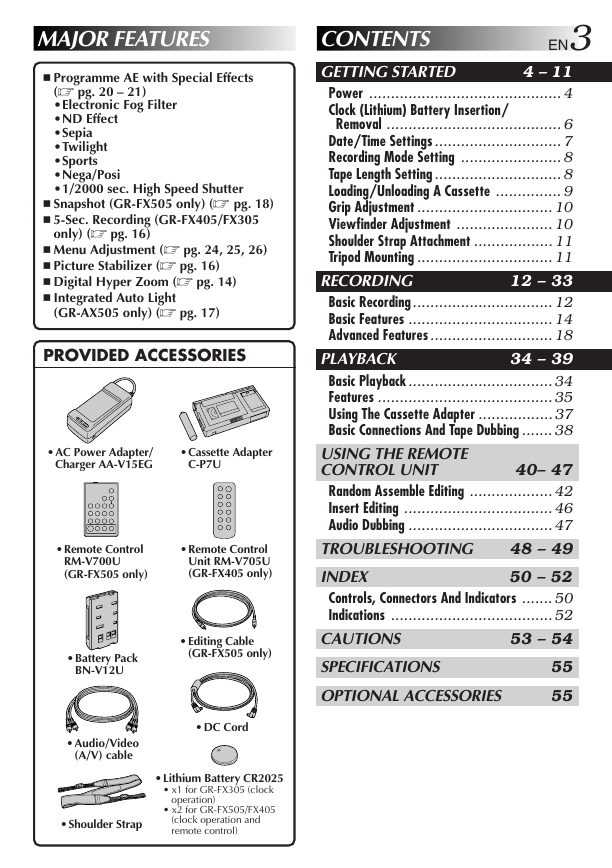

EN3 EN3 CONTENTS 4 – 11 GETTING STARTED Power ............................................ 4 Clock (Lithium) Battery Insertion/ Removal ........................................ 6 Date/Time Settings ............................. 7 Recording Mode Setting ....................... 8 Tape Length Setting ............................. 8 Loading/Unloading A Cassette ............... 9 Grip Adjustment ............................... 10 Viewfinder Adjustment ...................... 10 Shoulder Strap Attachment .................. 11 Tripod Mounting ............................... 11 12 – 33 RECORDING Basic Recording................................ 12 Basic Features ................................. 14 Advanced Features ............................ 18 34 – 39 PLAYBACK Basic Playback ................................. 34 Features ........................................ 35 Using The Cassette Adapter ................. 37 Basic Connections And Tape Dubbing ....... 38 USING THE REMOTE 40– 47 CONTROL UNIT Random Assemble Editing ................... 42 Insert Editing .................................. 46 Audio Dubbing ................................. 47 48 – 49 TROUBLESHOOTING 50 – 52 INDEX Controls, Connectors And Indicators ....... 50 Indications ..................................... 52 53 – 54 CAUTIONS 55 SPECIFICATIONS 55 OPTIONAL ACCESSORIES MAJOR FEATURES n Programme AE with Special Effects (Z pg. 20 – 21) •Electronic Fog Filter •ND Effect •Sepia •Twilight •Sports •Nega/Posi •1/2000 sec. High Speed Shutter n Snapshot (GR-FX505 only) (Z pg. 18) n 5-Sec. Recording (GR-FX405/FX305 only) (Z pg. 16) n Menu Adjustment (Z pg. 24, 25, 26) n Picture Stabilizer (Z pg. 16) n Digital Hyper Zoom (Z pg. 14) n Integrated Auto Light (GR-AX505 only) (Z pg. 17) PROVIDED ACCESSORIES •AC Power Adapter/ Charger AA-V15EG •Cassette Adapter C-P7U •Remote Control RM-V700U (GR-FX505 only) •Remote Control Unit RM-V705U (GR-FX405 only) •Battery Pack BN-V12U •Audio/Video (A/V) cable •Shoulder Strap •Editing Cable (GR-FX505 only) •DC Cord •Lithium Battery CR2025 • x1 for GR-FX305 (clock operation) • x2 for GR-FX505/FX405 (clock operation and remote control)

4 EN CHARGE indicator Marks To AC outlet GETTING STARTED Power This camcorder’s 3-way power supply system lets you choose the most appropriate source of power. NOTES: c No function is available without power supply. c Use only the specified power supply. c Do not use provided power supply units with other equipment. CHARGING THE BATTERY PACK REFRESH switch REFRESH indicator REFRESH The AC Power Adapter/Charger features a REFRESH function that allows you to fully discharge the battery pack before recharg- ing. Perform the REFRESH function after no less than 5 chargings. To discharge the battery . . . .... attach the battery pack to the adapter as shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete. A Hook on. B Push in. Connect the charger’s AC power cord to a wall outlet. 1SUPPLY POWER 2ATTACH BATTERY PACK Align the marks and slide the battery pack in the direction of the arrow until it locks in place. •The CHARGE indicator begins blinking to indicate charging has started. 3DETACH BATTERY PACK When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery pack opposite the direction of the arrow. Battery pack BN-V12U BN-V20U Charging time Discharging time approx. 1 hr. 10 min. approx. 1 hr. 50 min. approx. 3 hrs. 30 min. approx. 6 hrs. 40 min. USING THE BATTERY PACK Hook its end to the camcorder ( pack in until it locks in place ( 1ATTACH BATTERY PACK 2DETACH BATTERY PACK Slide BATTERY RELEASE and pull out the battery pack. ) and push the battery ) . BATTERY RELEASE ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. Approximate recording time (unit: min.) Battery pack BN-V12U BN-V20U GR-FX505 75 (40) 115 (70) GR-FX405/FX305 75 115 ( ) : when the video light is on (GR-FX505 only). INFORMATION: VU-V856KIT is a set composed of the BN-V856U battery pack and AA-V80EG AC Power Adapter/Charger. The BN-V856U battery pack provides approx. 7 hours of recording time when the video light is off. Also read thor- oughly the VU-V856KIT’s instruction manuals. It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/Charger. Use the optional AA-V80EG AC Power Adapter/Charger.

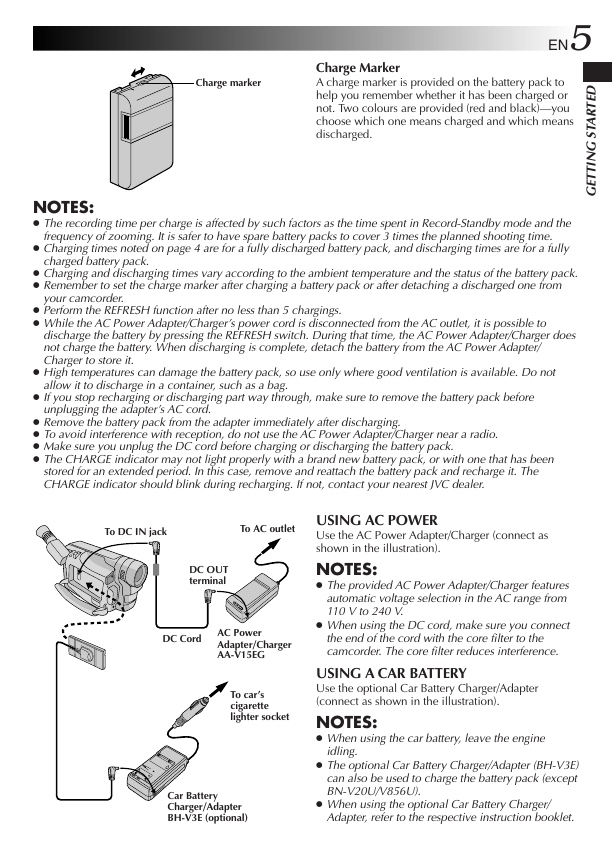

Charge marker Charge Marker A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged. EN5 D E T R A T S G N I T T E G NOTES: c The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs to cover 3 times the planned shooting time. c Charging times noted on page 4 are for a fully discharged battery pack, and discharging times are for a fully c Charging and discharging times vary according to the ambient temperature and the status of the battery pack. c Remember to set the charge marker after charging a battery pack or after detaching a discharged one from charged battery pack. your camcorder. c Perform the REFRESH function after no less than 5 chargings. c While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When discharging is complete, detach the battery from the AC Power Adapter/ Charger to store it. c High temperatures can damage the battery pack, so use only where good ventilation is available. Do not allow it to discharge in a container, such as a bag. c If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord. c Remove the battery pack from the adapter immediately after discharging. c To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio. c Make sure you unplug the DC cord before charging or discharging the battery pack. c The CHARGE indicator may not light properly with a brand new battery pack, or with one that has been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHARGE indicator should blink during recharging. If not, contact your nearest JVC dealer. To DC IN jack To AC outlet DC OUT terminal DC Cord AC Power Adapter/Charger AA-V15EG To car’s cigarette lighter socket Car Battery Charger/Adapter BH-V3E (optional) USING AC POWER Use the AC Power Adapter/Charger (connect as shown in the illustration). NOTES: c The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V. c When using the DC cord, make sure you connect the end of the cord with the core filter to the camcorder. The core filter reduces interference. USING A CAR BATTERY Use the optional Car Battery Charger/Adapter (connect as shown in the illustration). NOTES: c When using the car battery, leave the engine idling. c The optional Car Battery Charger/Adapter (BH-V3E) can also be used to charge the battery pack (except BN-V20U/V856U). c When using the optional Car Battery Charger/ Adapter, refer to the respective instruction booklet.

6 EN Slot Battery holder GETTING STARTED (cont.) Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. 1SWITCH OFF POWER Switch off the unit’s power and remove the power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.). Pull out the battery holder. Insert the battery in the holder, and be sure to have the “+” mark visible. 2REMOVE BATTERY HOLDER 3INSERT BATTERY IN HOLDER 4RE-INSERT HOLDER Slide the holder back into the slot until you hear a click. NOTES: c See “SAFETY PRECAUTIONS” (Z pg. 2) for information on safe handling of lithium batteries. c To avoid losing the battery and/or battery holder, place the camcorder with the grip side up as shown in the illustration when inserting/removing the battery.

EN7 D E T R A T S G N I T T E G Date/Time Settings 1ACCESS MENU SCREEN Set the Power Switch to “PRO.”, then press MENU. •The power lamp comes on. 2SELECT FUNCTION Rotate the Select Dial to move the highlight bar to “DATE/TIME”, then press it. The DATE/TIME Menu appears. •If you decide you want to return the date and time to the previous settings, rotate the Select Dial to move the highlight bar to “EXIT” and press it, then go to step 6. •If you want to set only the time without changing the date, go to step 4. 3SET DATE Rotate the Select Dial to move the highlight bar to the item you want to set and then press it. When the setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. The setting stops blinking. MENU Button Power lamp Select Dial Power Switch Display 4NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH AUTO ON OFF T45 4RETURN DATE TIME 1999 1 1 22 : 50 YEAR MONTH DAY TIME EXIT 4NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH AUTO ON OFF T45 4RETURN Menu Screen •Repeat this procedure until you’re satisfied with the Date settings (“YEAR”, “MONTH” and “DAY”). DATE/TIME Menu 24-hour indication 4SET TIME Rotate the Select Dial to move the highlight bar to “TIME” and then press it. When the hour setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. When the hour setting stops blinking and the minute setting begins blinking, rotate the Select Dial until the correct setting appears and then press it. The minute setting stops blinking. 5START CLOCK OPERATION When none of these settings (YEAR, MONTH, DAY, TIME) blinks, rotate the Select Dial to move the highlight bar to “EXIT”, and press it. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial. 6CLOSE MENU SCREEN NOTE: To display the date and time in the camcorder’s display and on a connected TV, see “Date/Time Insert” (Z pg. 22).

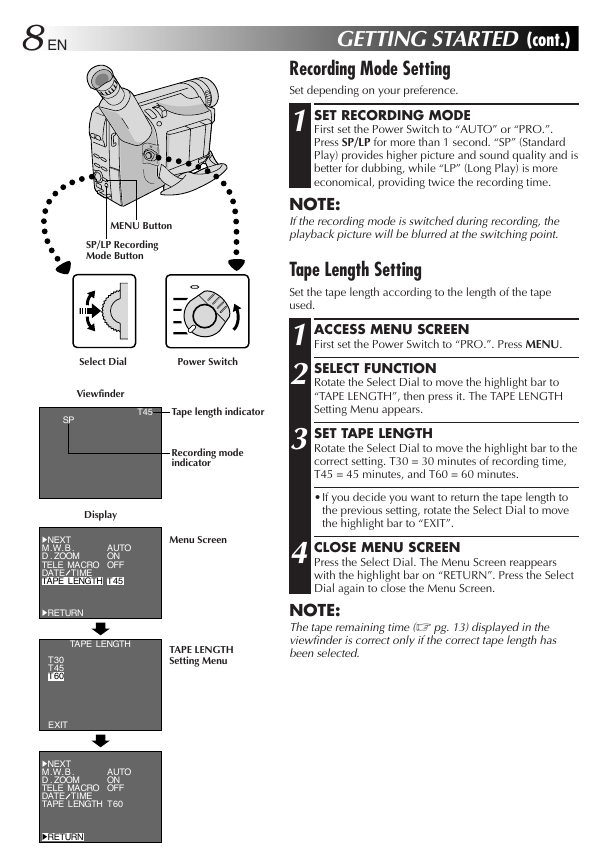

GETTING STARTED (cont.) Recording Mode Setting Set depending on your preference. 1SET RECORDING MODE First set the Power Switch to “AUTO” or “PRO.”. Press SP/LP for more than 1 second. “SP” (Standard Play) provides higher picture and sound quality and is better for dubbing, while “LP” (Long Play) is more economical, providing twice the recording time. NOTE: If the recording mode is switched during recording, the playback picture will be blurred at the switching point. Tape Length Setting Set the tape length according to the length of the tape used. First set the Power Switch to “PRO.”. Press MENU. 1ACCESS MENU SCREEN 2SELECT FUNCTION Rotate the Select Dial to move the highlight bar to “TAPE LENGTH”, then press it. The TAPE LENGTH Setting Menu appears. 3SET TAPE LENGTH Rotate the Select Dial to move the highlight bar to the correct setting. T30 = 30 minutes of recording time, T45 = 45 minutes, and T60 = 60 minutes. •If you decide you want to return the tape length to the previous setting, rotate the Select Dial to move the highlight bar to “EXIT”. 4CLOSE MENU SCREEN Press the Select Dial. The Menu Screen reappears with the highlight bar on “RETURN”. Press the Select Dial again to close the Menu Screen. NOTE: The tape remaining time (Z pg. 13) displayed in the viewfinder is correct only if the correct tape length has been selected. 8 EN MENU Button SP/LP Recording Mode Button Select Dial Power Switch Viewfinder SP T45 Tape length indicator Recording mode indicator Menu Screen TAPE LENGTH Setting Menu Display 4NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH AUTO ON OFF T45 4RETURN TAPE LENGTH T30 T45 T60 EXIT 4NEXT M . W . B . D . ZOOM TELE MACRO DATE TIME TAPE LENGTH AUTO ON OFF T60 4RETURN
