AA8XE
Intel Pentium 4 System Board
Socket 775
User’s Manual
4200-0436-01
Rev. 1.00

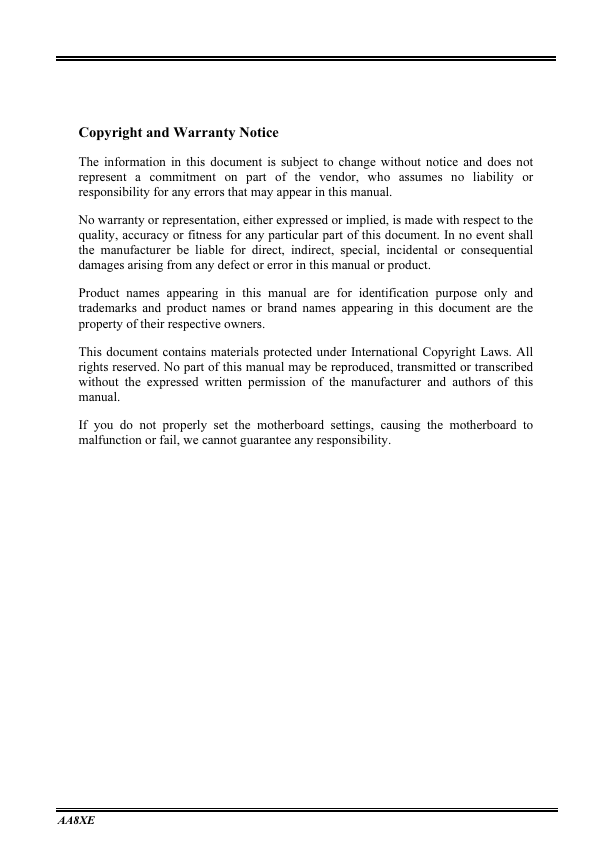

Copyright and Warranty Notice
The information in this document is subject to change without notice and does not
represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the
quality, accuracy or fitness for any particular part of this document. In no event shall
the manufacturer be liable for direct, indirect, special, incidental or consequential
damages arising from any defect or error in this manual or product.
Product names appearing in this manual are for identification purpose only and
trademarks and product names or brand names appearing in this document are the
property of their respective owners.
This document contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or transcribed
without the expressed written permission of the manufacturer and authors of this
manual.
If you do not properly set the motherboard settings, causing the motherboard to
malfunction or fail, we cannot guarantee any responsibility.
AA8XE

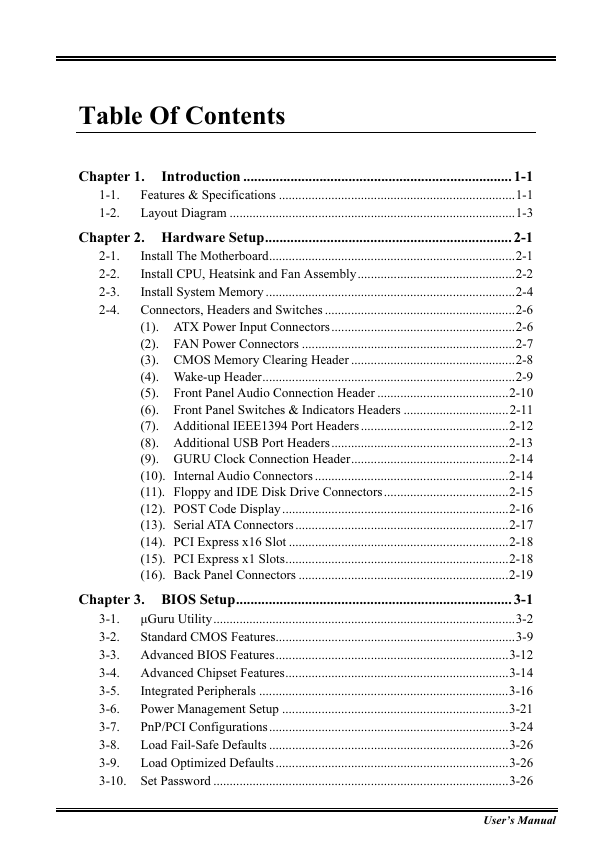

Table Of Contents
Chapter 1.
Introduction .......................................................................... 1-1
Features & Specifications ........................................................................1-1
1-1.
1-2.
Layout Diagram .......................................................................................1-3
Chapter 2. Hardware Setup.................................................................... 2-1
Install The Motherboard...........................................................................2-1
2-1.
2-2.
2-3.
Install CPU, Heatsink and Fan Assembly ................................................2-2
Install System Memory ............................................................................2-4
2-4. Connectors, Headers and Switches ..........................................................2-6
(1). ATX Power Input Connectors ........................................................2-6
(2). FAN Power Connectors .................................................................2-7
(3). CMOS Memory Clearing Header ..................................................2-8
(4). Wake-up Header.............................................................................2-9
(5). Front Panel Audio Connection Header ........................................2-10
(6). Front Panel Switches & Indicators Headers ................................2-11
(7). Additional IEEE1394 Port Headers .............................................2-12
(8). Additional USB Port Headers ......................................................2-13
(9). GURU Clock Connection Header................................................2-14
(10). Internal Audio Connectors ...........................................................2-14
(11). Floppy and IDE Disk Drive Connectors ......................................2-15
(12). POST Code Display .....................................................................2-16
(13). Serial ATA Connectors .................................................................2-17
(14). PCI Express x16 Slot ...................................................................2-18
(15). PCI Express x1 Slots....................................................................2-18
(16). Back Panel Connectors ................................................................2-19
Chapter 3. BIOS Setup............................................................................ 3-1
µGuru Utility............................................................................................3-2
3-1.
3-2.
Standard CMOS Features.........................................................................3-9
3-3. Advanced BIOS Features.......................................................................3-12
3-4. Advanced Chipset Features....................................................................3-14
3-5.
3-6.
3-7.
3-8.
3-9.
Integrated Peripherals ............................................................................3-16
Power Management Setup .....................................................................3-21
PnP/PCI Configurations .........................................................................3-24
Load Fail-Safe Defaults .........................................................................3-26
Load Optimized Defaults .......................................................................3-26
3-10. Set Password ..........................................................................................3-26
User’s Manual
3-11. Save & Exit Setup ..................................................................................3-26
3-12. Exit Without Saving...............................................................................3-26
Appendix A.
Install Intel Chipset Software Utility............................................... A-1
Appendix B.
Install Intel Application Accelerator RAID .................................... B-1
Appendix C.
Install Audio Driver ......................................................................... C-1
Appendix D.
Install LAN Driver ...........................................................................D-1
Appendix E.
Install USB 2.0 Driver ..................................................................... E-1
Appendix F.
Install ABIT µGuru Utility .............................................................. F-1
Appendix G. POST Code Definition .....................................................................G-1
Appendix H. Troubleshooting (Need Assistance?)...............................................H-1
Appendix I. How to Get Technical Support ......................................................... I-1
AA8XE
Introduction
1-1
Chapter 1. Introduction
1-1. Features & Specifications
1. LGA775 CPU Socket
Designed for Intel® 90nm Pentium 4/Celeron D LGA775 processors with 1066/800/533
MHz FSB
Supports Intel® Hyper-Threading Technology
2. Express Chipset
Intel® 925XE / Intel® ICH6R Express Chipset
3. Flexible Memory
Four 240-pin DIMM sockets (Un-buffered Non-ECC DIMM)
Supports Dual channel DDR2-533/400 (Max. 4GB), up to 8.5GB/s bandwidth
4. PCI Express x16 graphics
Delivers up to 8GB/s per direction for 3.5 times more bandwidth than AGP8X at 2.1GB/s
5. PCI Express x1 I/O
Offers 500MB/s concurrently, over 3.5 times more bandwidth than PCI at 133MB/s
6. SATA Matrix RAID
Intel® Matrix Storage Technology on 4 Serial ATA ports. RAID 0/RAID 1 delivers higher
performance and data protection
Supports SATA AHCI, providing native command queuing and native hot plug
7. High Definition Audio
Onboard Theater-class 7.1 Channels Intel® High Definition Audio
Professional digital audio interface supports auto jack sensing and optical S/PDIF In/Out
8. IEEE 1394
Supports 3 Ports IEEE 1394 at 100/200/400 Mb/s transfer rate
9. Gigabit LAN
Onboard Gigabit LAN controller supports 10/100/1000M Ethernet
10. ABIT Engineered
ABIT uGuru™ Technology (ABIT OC Guru/ABIT EQ/ABIT Flash Menu/ABIT Black Box)
ABIT CPU ThermalGuard™ Technology
11. Internal I/O Connectors
1x PCI Express x16 slot
3x PCI Express x1 slots
2x PCI slots
User’s Manual
1-2
Chapter 1

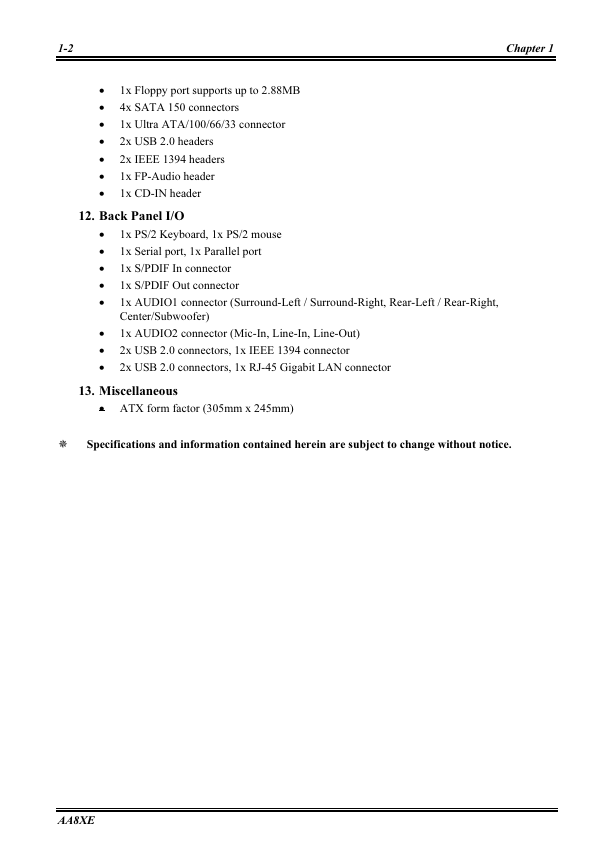

1x Floppy port supports up to 2.88MB
4x SATA 150 connectors
1x Ultra ATA/100/66/33 connector
2x USB 2.0 headers
2x IEEE 1394 headers
1x FP-Audio header
1x CD-IN header
12. Back Panel I/O
1x PS/2 Keyboard, 1x PS/2 mouse
1x Serial port, 1x Parallel port
1x S/PDIF In connector
1x S/PDIF Out connector
1x AUDIO1 connector (Surround-Left / Surround-Right, Rear-Left / Rear-Right,
Center/Subwoofer)
1x AUDIO2 connector (Mic-In, Line-In, Line-Out)
2x USB 2.0 connectors, 1x IEEE 1394 connector
2x USB 2.0 connectors, 1x RJ-45 Gigabit LAN connector
13. Miscellaneous
ATX form factor (305mm x 245mm)
Specifications and information contained herein are subject to change without notice.
AA8XE
Introduction
1-3

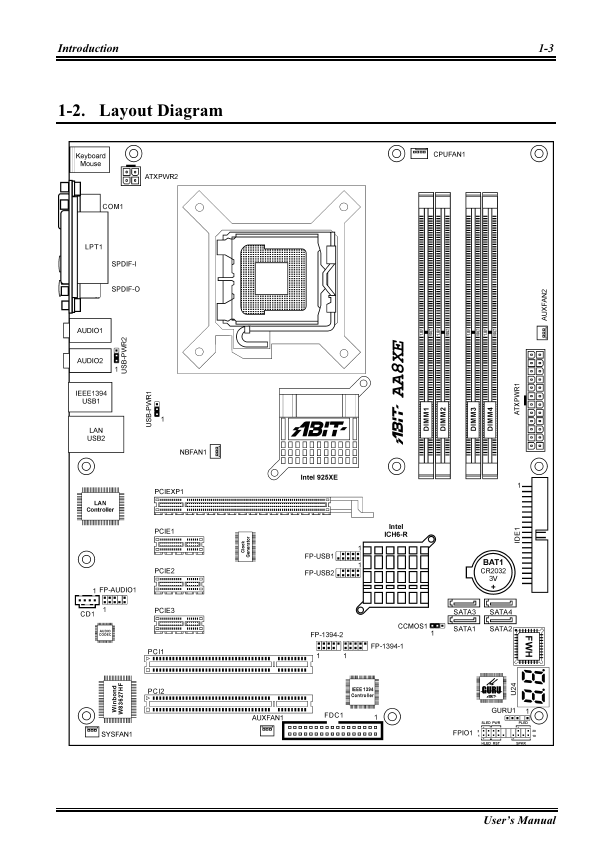

1-2. Layout Diagram
User’s Manual
1-4
1-4
Chapter 1
Chapter 1
AA8XE
AA8XE
