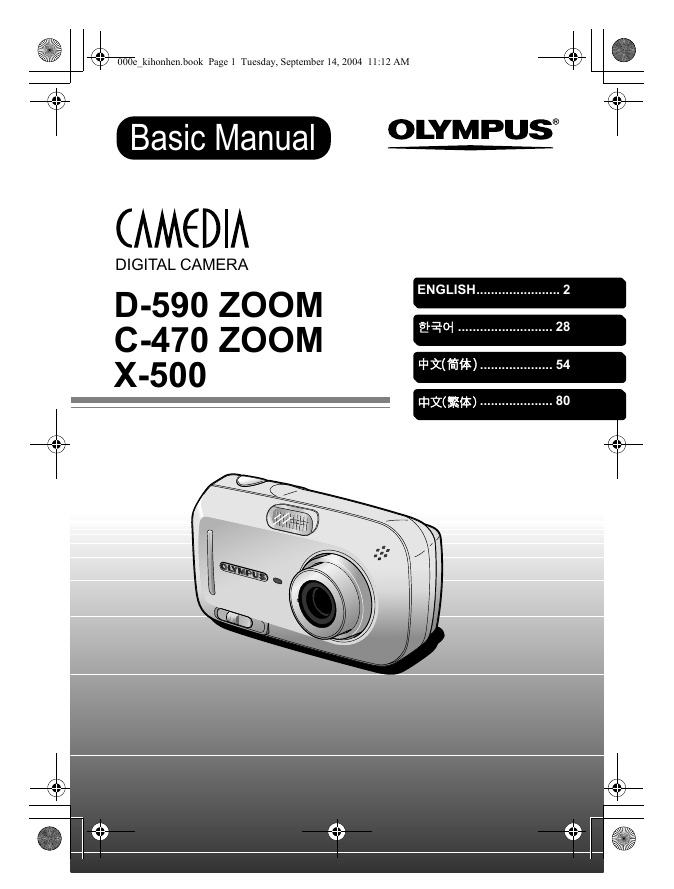

000e_kihonhen.book Page 1 Tuesday, September 14, 2004 11:12 AM Basic Manual DIGITAL CAMERA D-590 ZOOM C-470 ZOOM X-500 ENGLISH....................... 2 .......................... 28 .................... 54 .................... 80

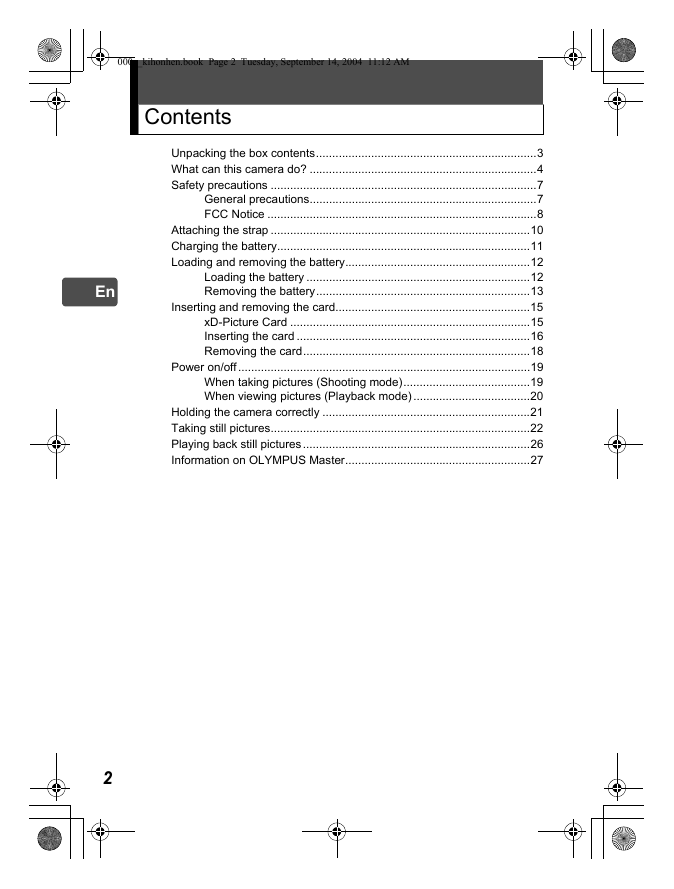

000e_kihonhen.book Page 2 Tuesday, September 14, 2004 11:12 AM Contents Unpacking the box contents....................................................................3 What can this camera do? ......................................................................4 Safety precautions ..................................................................................7 General precautions......................................................................7 FCC Notice ...................................................................................8 Attaching the strap ................................................................................10 Charging the battery..............................................................................11 Loading and removing the battery.........................................................12 Loading the battery .....................................................................12 Removing the battery..................................................................13 Inserting and removing the card............................................................15 xD-Picture Card ..........................................................................15 Inserting the card ........................................................................16 Removing the card......................................................................18 Power on/off..........................................................................................19 When taking pictures (Shooting mode).......................................19 When viewing pictures (Playback mode) ....................................20 Holding the camera correctly ................................................................21 Taking still pictures................................................................................22 Playing back still pictures......................................................................26 Information on OLYMPUS Master.........................................................27 En 2

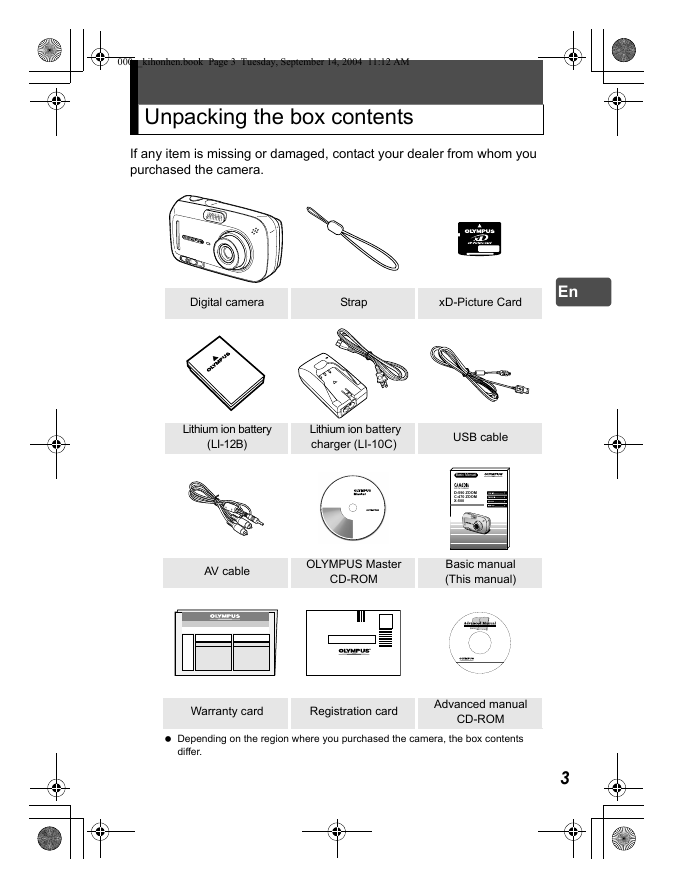

000e_kihonhen.book Page 3 Tuesday, September 14, 2004 11:12 AM Unpacking the box contents If any item is missing or damaged, contact your dealer from whom you purchased the camera. Digital camera Strap xD-Picture Card En Lithium ion battery (LI-12B) Lithium ion battery charger (LI-10C) USB cable Basic Manual DIGITAL CAMERA D-590 ZOOM C-470 ZOOM X-500 AV cable OLYMPUS Master CD-ROM Basic manual (This manual) Warranty card Registration card Advanced manual CD-ROM Depending on the region where you purchased the camera, the box contents differ. 3

000e_kihonhen.book Page 4 Tuesday, September 14, 2004 11:12 AM What can this camera do? The camera has 10 shooting scene modes. Just choose a desired shooting scene mode and press the shutter button to take pictures. The camera does all the rest. NIGHT SCENE SELF PORTRAIT CUISINE En INDOOR LANDSCAPE + PORTRAIT LANDSCAPE You can frame, take, and view your shots all on the very clear 1.8" monitor. Pictures that you take will be recorded on the xD-Picture Card. You can take a series of pictures for a panorama. You can take successive pictures. You can also record movies. 4

000e_kihonhen.book Page 5 Tuesday, September 14, 2004 11:12 AM What can this camera do? The camera can play back the pictures on TV. When the camera is connected to a computer or printer... Image data stored on the card can be transmitted or played back by installing supplied CD-ROM. Connect the camera to a PictBridge compatible printer, and you can print your pictures without the use of a computer. Use the 3x optical zoom and digital zoom (total 12x seamless zoom) to get up close to the subject. 1x Optical 3x Optical 12x (Total seamless zoom) For the details of the operation and advanced use of the camera, see the separate Advanced manual (PDF on included CD-ROM) which also describes about the installation of the software provided, error messages and troubleshooting. En 5

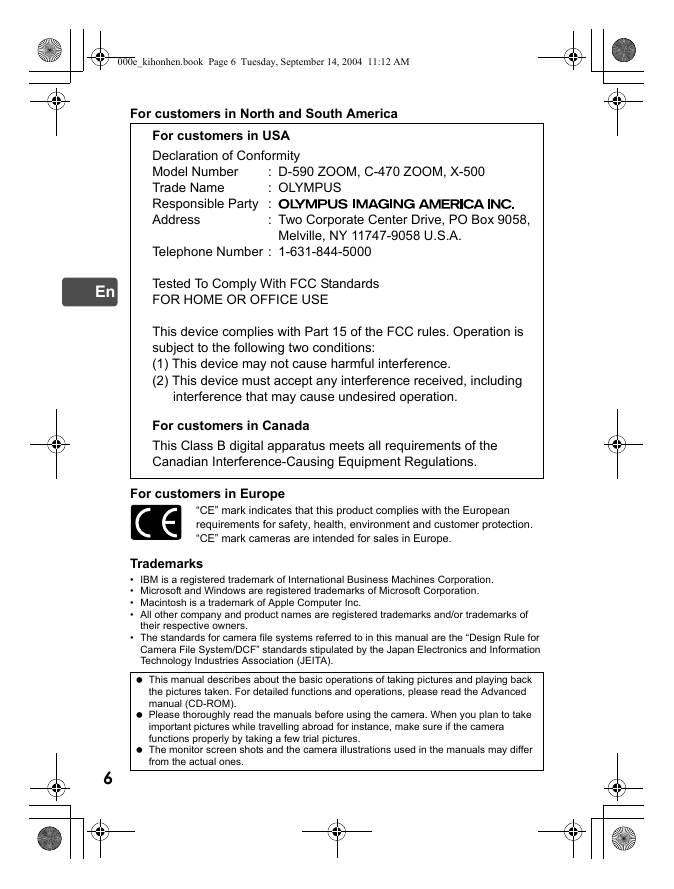

000e_kihonhen.book Page 6 Tuesday, September 14, 2004 11:12 AM For customers in North and South America For customers in USA Declaration of Conformity Model Number Trade Name Responsible Party : Address : D-590 ZOOM, C-470 ZOOM, X-500 : OLYMPUS : Two Corporate Center Drive, PO Box 9058, Melville, NY 11747-9058 U.S.A. Telephone Number : 1-631-844-5000 En Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. For customers in Europe “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe. Trademarks • IBM is a registered trademark of International Business Machines Corporation. • Microsoft and Windows are registered trademarks of Microsoft Corporation. • Macintosh is a trademark of Apple Computer Inc. • All other company and product names are registered trademarks and/or trademarks of their respective owners. • The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). This manual describes about the basic operations of taking pictures and playing back the pictures taken. For detailed functions and operations, please read the Advanced manual (CD-ROM). Please thoroughly read the manuals before using the camera. When you plan to take important pictures while travelling abroad for instance, make sure if the camera functions properly by taking a few trial pictures. The monitor screen shots and the camera illustrations used in the manuals may differ from the actual ones. 6

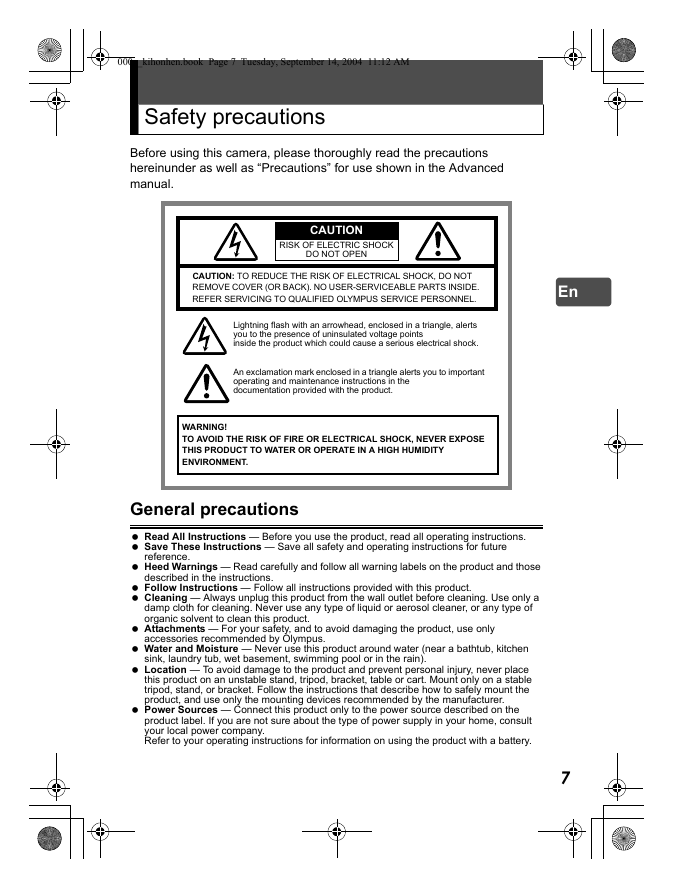

000e_kihonhen.book Page 7 Tuesday, September 14, 2004 11:12 AM Safety precautions Before using this camera, please thoroughly read the precautions hereinunder as well as “Precautions” for use shown in the Advanced manual. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL. En Lightning flash with an arrowhead, enclosed in a triangle, alerts you to the presence of uninsulated voltage points inside the product which could cause a serious electrical shock. An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product. WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT. reference. General precautions Read All Instructions — Before you use the product, read all operating instructions. Save These Instructions — Save all safety and operating instructions for future Heed Warnings — Read carefully and follow all warning labels on the product and those Follow Instructions — Follow all instructions provided with this product. Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product. described in the instructions. accessories recommended by Olympus. sink, laundry tub, wet basement, swimming pool or in the rain). Attachments — For your safety, and to avoid damaging the product, use only Water and Moisture — Never use this product around water (near a bathtub, kitchen Location — To avoid damage to the product and prevent personal injury, never place this product on an unstable stand, tripod, bracket, table or cart. Mount only on a stable tripod, stand, or bracket. Follow the instructions that describe how to safely mount the product, and use only the mounting devices recommended by the manufacturer. Power Sources — Connect this product only to the power source described on the product label. If you are not sure about the type of power supply in your home, consult your local power company. Refer to your operating instructions for information on using the product with a battery. 7

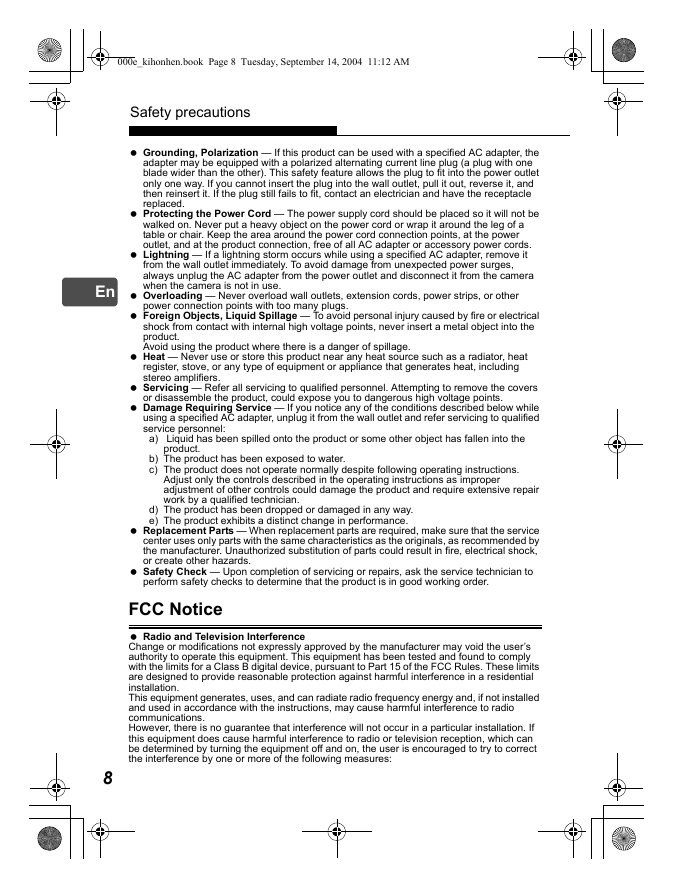

000e_kihonhen.book Page 8 Tuesday, September 14, 2004 11:12 AM Safety precautions Grounding, Polarization — If this product can be used with a specified AC adapter, the adapter may be equipped with a polarized alternating current line plug (a plug with one blade wider than the other). This safety feature allows the plug to fit into the power outlet only one way. If you cannot insert the plug into the wall outlet, pull it out, reverse it, and then reinsert it. If the plug still fails to fit, contact an electrician and have the receptacle replaced. Protecting the Power Cord — The power supply cord should be placed so it will not be walked on. Never put a heavy object on the power cord or wrap it around the leg of a table or chair. Keep the area around the power cord connection points, at the power outlet, and at the product connection, free of all AC adapter or accessory power cords. Lightning — If a lightning storm occurs while using a specified AC adapter, remove it from the wall outlet immediately. To avoid damage from unexpected power surges, always unplug the AC adapter from the power outlet and disconnect it from the camera when the camera is not in use. power connection points with too many plugs. Overloading — Never overload wall outlets, extension cords, power strips, or other Foreign Objects, Liquid Spillage — To avoid personal injury caused by fire or electrical shock from contact with internal high voltage points, never insert a metal object into the product. Avoid using the product where there is a danger of spillage. Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers. or disassemble the product, could expose you to dangerous high voltage points. Servicing — Refer all servicing to qualified personnel. Attempting to remove the covers Damage Requiring Service — If you notice any of the conditions described below while using a specified AC adapter, unplug it from the wall outlet and refer servicing to qualified service personnel: a) Liquid has been spilled onto the product or some other object has fallen into the product. b) The product has been exposed to water. c) The product does not operate normally despite following operating instructions. Adjust only the controls described in the operating instructions as improper adjustment of other controls could damage the product and require extensive repair work by a qualified technician. d) The product has been dropped or damaged in any way. e) The product exhibits a distinct change in performance. Replacement Parts — When replacement parts are required, make sure that the service center uses only parts with the same characteristics as the originals, as recommended by the manufacturer. Unauthorized substitution of parts could result in fire, electrical shock, or create other hazards. Safety Check — Upon completion of servicing or repairs, ask the service technician to perform safety checks to determine that the product is in good working order. FCC Notice Radio and Television Interference Change or modifications not expressly approved by the manufacturer may void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: En 8
