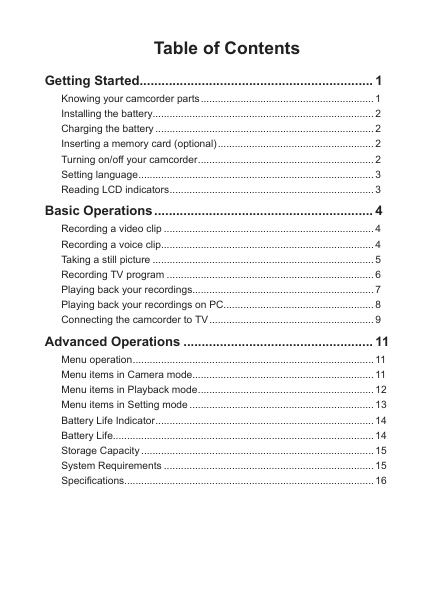

Table of Contents Getting Started ................................................................ 1 Knowing your camcorder parts ............................................................. 1 Installing the battery.............................................................................. 2 Charging the battery ............................................................................. 2 Inserting a memory card (optional) ....................................................... 2 Turning on/off your camcorder .............................................................. 2 Setting language ................................................................................... 3 Reading LCD indicators ........................................................................ 3 Basic Operations ............................................................ 4 Recording a video clip .......................................................................... 4 Recording a voice clip........................................................................... 4 Taking a still picture .............................................................................. 5 Recording TV program ......................................................................... 6 Playing back your recordings................................................................ 7 Playing back your recordings on PC..................................................... 8 Connecting the camcorder to TV .......................................................... 9 Advanced Operations .................................................... 11 Menu operation ..................................................................................... 11 Menu items in Camera mode................................................................ 11 Menu items in Playback mode .............................................................. 12 Menu items in Setting mode ................................................................. 13 Battery Life Indicator ............................................................................. 14 Battery Life............................................................................................ 14 Storage Capacity .................................................................................. 15 System Requirements .......................................................................... 15 Specifications........................................................................................ 16

Getting Started Knowing your camcorder parts Speaker/Microphone Battery cover LCD monitor Previous button/ Fast backward button Play/Pause button Next button/ Fast forward button Power button Zoom in/ Volume up Flash switch White balance switch OK key/ Joystick 5-way Zoom out/ Volume down Lens Flash strobe Record button Strap hook MODE button Shutter button MENU button AV IN*/OUT connector /Earphone USB connector HD OUT Bottom view Tripod socket SD/MMC card slot For select model only. If your camera only indicates “ AV OUT”, it does not support “AV IN” function. 1

Installing the battery 1. Slide the battery cover open. 2. Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment. 3. After the battery is properly installed, replace the battery cover. Charging the battery Please charge the battery at least 8 hours for first time use. 1. Connect the cable. Connect one end of the supplied AC adapter to the USB port of the camcorder and the other end to a wall outlet. OR Connect one end of the supplied USB cable to the USB port of the camcorder and the other end to a powered PC. Make sure the camcorder is powered off. 2. The charging LED turns red and the charge starts. 3. When the charging is interrupted or the battery pack is fully charged, the charging LED will turn green. When using a PC to charge the battery, do not power on the camcorder, or the charge will stop. Inserting a memory card (optional) To insert a memory card, do the followings: (1) Slide open the SD card cover. (2) Gently push the card as indicated until the card reaches the bottom of the slot. To remove the memory card, gently push the card and it will pop up. Then pull the card out of the slot. Turning on/off your camcorder Open the LCD monitor or press and hold down the Power button for 1 second to turn on the camcorder. To turn off the camcorder, press and hold down the Power button for 1 ~ 3 seconds or close the LCD monitor. If the camcorder stays inactive for a long period of time, it may automatically shut down due to the Auto-Off setting.

Setting language 1. Power on the camcorder. 2. Press the MODE key to enter the MODE menu. 3. Use the Joystick switch to select the Setting mode and press OK to enter the menu screen. 4. Use the Joystick to select the Language item, and then Press OK to confirm. 5. Move the Joystick up/down to select a language. 6. When done, press OK to confirm the setting. Reading LCD indicators 00:00:05 00:06:40 1 Mode icon While Balance mode Video resolution Picture resolution Macro mode Battery life Zoom ratio indicator SD card inserted Remaining recordable time Exposure mode Flash mode Histogram mode Selftimer mode NightShot mode Recording time The LCD will display 4:3 ratio while setting as CIF video resolution. (Please refer to the page 5 for more detailed instructions.)

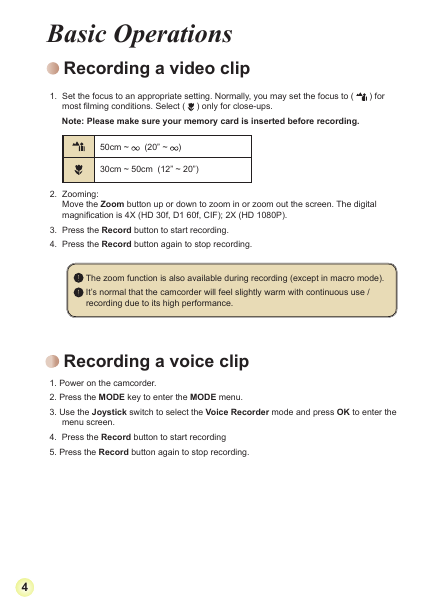

Basic Operations Recording a video clip 1. Set the focus to an appropriate setting. Normally, you may set the focus to ( most filming conditions. Select ( ) only for close-ups. ) for Note: Please make sure your memory card is inserted before recording. 50cm ~ (20” ~ ) 30cm ~ 50cm (12” ~ 20”) 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. The digital magnification is 4X (HD 30f, D1 60f, CIF); 2X (HD 1080P). 3. Press the Record button to start recording. 4. Press the Record button again to stop recording. The zoom function is also available during recording (except in macro mode). It’s normal that the camcorder will feel slightly warm with continuous use / recording due to its high performance. Recording a voice clip 1. Power on the camcorder. 2. Press the MODE key to enter the MODE menu. 3. Use the Joystick switch to select the Voice Recorder mode and press OK to enter the menu screen. 4. Press the Record button to start recording 5. Press the Record button again to stop recording. 44

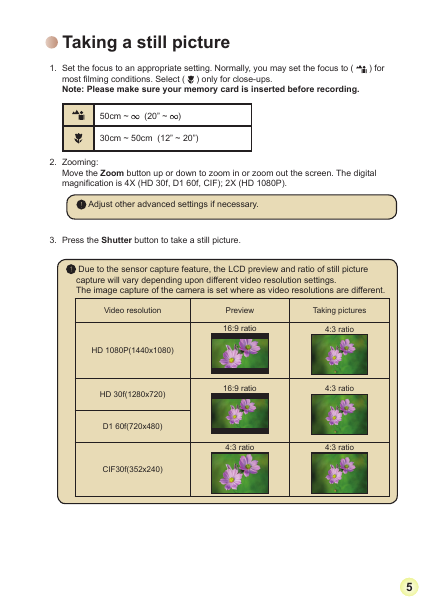

Taking a still picture 1. Set the focus to an appropriate setting. Normally, you may set the focus to ( most filming conditions. Select ( Note: Please make sure your memory card is inserted before recording. ) only for close-ups. ) for 50cm ~ (20” ~ ) 30cm ~ 50cm (12” ~ 20”) 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. The digital magnification is 4X (HD 30f, D1 60f, CIF); 2X (HD 1080P). Adjust other advanced settings if necessary. 3. Press the Shutter button to take a still picture. Due to the sensor capture feature, the LCD preview and ratio of still picture capture will vary depending upon different video resolution settings. The image capture of the camera is set where as video resolutions are different. Video resolution HD 1080P(1440x1080) HD 30f(1280x720) D1 60f(720x480) CIF30f(352x240) Preview 16:9 ratio Taking pictures 4:3 ratio 16:9 ratio 4:3 ratio 4:3 ratio 4:3 ratio 55

For select model only. Please refer to the package printing for detailed specification. Recording TV program The digital video recording technology allows you to record TV program via AV-IN cable. AV In AV mode AV-OUT Video Audio AV cable 1. Turn on your TV or DVD player. 2. Connect the AV cable to the AV-Out terminal on the TV or DVD player. (Normally, it’s not necessary to switch the mode, please refer to the User’s Manual of the TV or DVD player.) 3. Power on the camcorder. 4. Connect the audio and video ends of the AV cable (yellow/white/red color) to the TV “AV-OUT” jacks. 5. Connect the other end of the AV cable to the “AV In” port on your camcorder. When the pop-up message appears on the screen, please select “AV-IN”. 6. Make sure that the images displayed on the TV or DVD player is also displayed on the camera’s LCD. 7. Press the Record button to start recording. 8. Press the Record button again to stop recording. Please dont’ switch TV channels or turn off TV during TV program recording, or it would stop recording.
