iCN 600 series with Smart TM 2005 User Manual iCN 630 iCN 635 iCN 650 English - United States / Canada

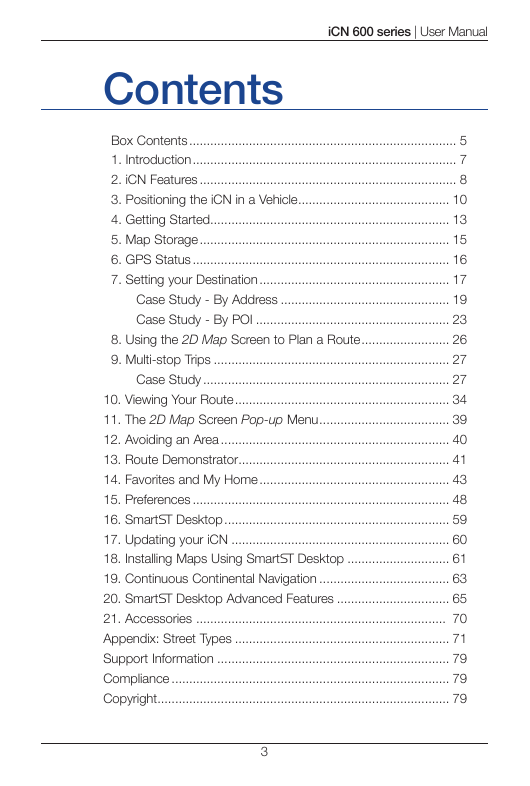

iCN 600 series | User Manual Contents Box Contents ............................................................................ 5 1. Introduction ........................................................................... 7 2. iCN Features ......................................................................... 8 3. Positioning the iCN in a Vehicle ........................................... 10 4. Getting Started. ................................................................... 13 5. Map Storage ....................................................................... 15 6. GPS Status ......................................................................... 16 7. Setting your Destination ...................................................... 17 Case Study - By Address ................................................ 19 Case Study - By POI ....................................................... 23 8. Using the 2D Map Screen to Plan a Route ......................... 26 9. Multi-stop Trips ................................................................... 27 Case Study ...................................................................... 27 10. Viewing Your Route ............................................................. 34 11. The 2D Map Screen Pop-up Menu ..................................... 39 12. Avoiding an Area ................................................................. 40 13. Route Demonstrator ............................................................ 41 14. Favorites and My Home ...................................................... 43 15. Preferences ......................................................................... 48 16. Smart Desktop ................................................................ 59 17. Updating your iCN .............................................................. 60 18. Installing Maps Using Smart Desktop ............................. 61 19. Continuous Continental Navigation ..................................... 63 20. Smart Desktop Advanced Features ................................ 65 21. Accessories ....................................................................... 70 Appendix: Street Types ............................................................. 71 Support Information .................................................................. 79 Compliance ............................................................................... 79 Copyright ................................................................................... 79 3

iCN 600 series | User Manual 4

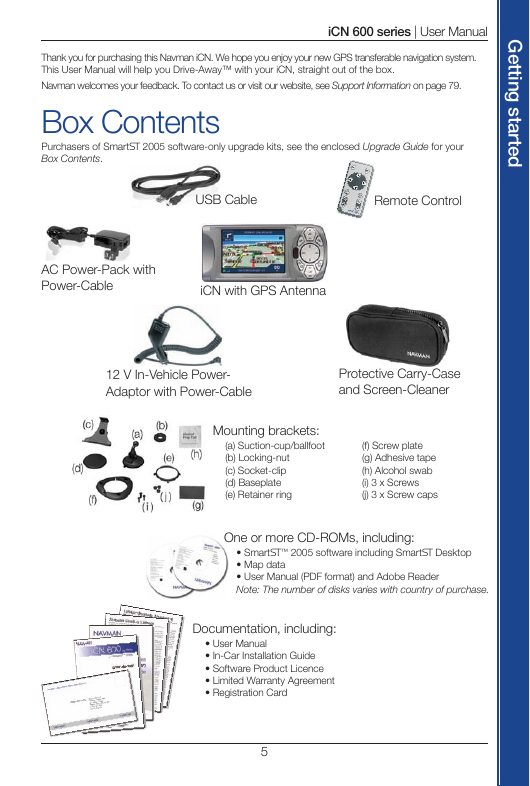

iCN 600 series | User Manual Thank you for purchasing this Navman iCN. We hope you enjoy your new GPS transferable navigation system. This User Manual will help you Drive-Away™ with your iCN, straight out of the box. Navman welcomes your feedback. To contact us or visit our website, see Support Information on page 79. Box Contents Purchasers of Smart 2005 software-only upgrade kits, see the enclosed Upgrade Guide for your Box Contents. G e t t i n g s t a r t e d USB Cable Remote Control AC Power-Pack with Power-Cable iCN with GPS Antenna 12 V In-Vehicle Power- Adaptor with Power-Cable Protective Carry-Case and Screen-Cleaner Mounting brackets: (a) Suction-cup/ballfoot (b) Locking-nut (c) Socket-clip (d) Baseplate (e) Retainer ring (f) Screw plate (g) Adhesive tape (h) Alcohol swab (i) 3 x Screws (j) 3 x Screw caps One or more CD-ROMs, including: • Smart™ 2005 software including Smart Desktop • Map data • User Manual (PDF format) and Adobe Reader Note: The number of disks varies with country of purchase. Documentation, including: • User Manual • In-Car Installation Guide • Software Product Licence • Limited Warranty Agreement • Registration Card 5

iCN 600 series | User Manual d e t r a t s g n i t t e G 6

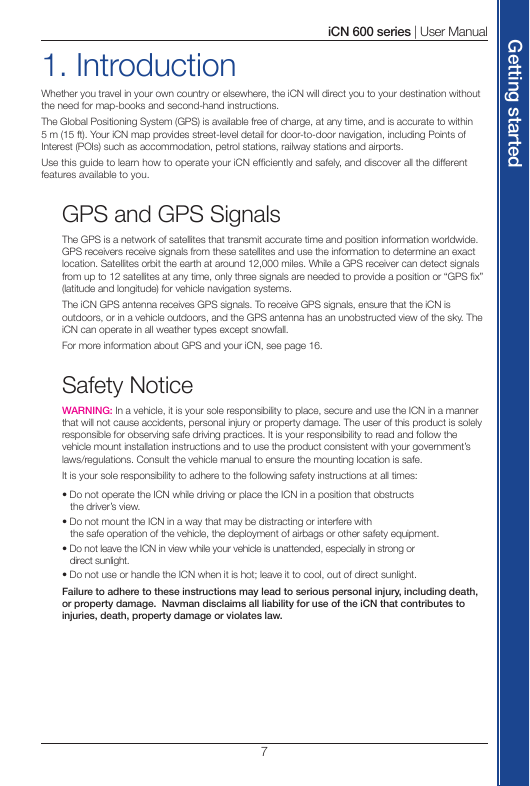

iCN 600 series | User Manual 1. Introduction Whether you travel in your own country or elsewhere, the iCN will direct you to your destination without the need for map-books and second-hand instructions. The Global Positioning System (GPS) is available free of charge, at any time, and is accurate to within 5 m (15 ft). Your iCN map provides street-level detail for door-to-door navigation, including Points of Interest (POIs) such as accommodation, petrol stations, railway stations and airports. Use this guide to learn how to operate your iCN efﬁciently and safely, and discover all the different features available to you. G e t t i n g s t a r t e d GPS and GPS Signals The GPS is a network of satellites that transmit accurate time and position information worldwide. GPS receivers receive signals from these satellites and use the information to determine an exact location. Satellites orbit the earth at around 12,000 miles. While a GPS receiver can detect signals from up to 12 satellites at any time, only three signals are needed to provide a position or “GPS ﬁx” (latitude and longitude) for vehicle navigation systems. The iCN GPS antenna receives GPS signals. To receive GPS signals, ensure that the iCN is outdoors, or in a vehicle outdoors, and the GPS antenna has an unobstructed view of the sky. The iCN can operate in all weather types except snowfall. For more information about GPS and your iCN, see page 16. Safety Notice WARNING: In a vehicle, it is your sole responsibility to place, secure and use the ICN in a manner that will not cause accidents, personal injury or property damage. The user of this product is solely responsible for observing safe driving practices. It is your responsibility to read and follow the vehicle mount installation instructions and to use the product consistent with your government’s laws/regulations. Consult the vehicle manual to ensure the mounting location is safe. It is your sole responsibility to adhere to the following safety instructions at all times: • Do not operate the ICN while driving or place the ICN in a position that obstructs the driver’s view. • Do not mount the ICN in a way that may be distracting or interfere with the safe operation of the vehicle, the deployment of airbags or other safety equipment. • Do not leave the ICN in view while your vehicle is unattended, especially in strong or direct sunlight. • Do not use or handle the ICN when it is hot; leave it to cool, out of direct sunlight. Failure to adhere to these instructions may lead to serious personal injury, including death, or property damage. Navman disclaims all liability for use of the iCN that contributes to injuries, death, property damage or violates law. 7

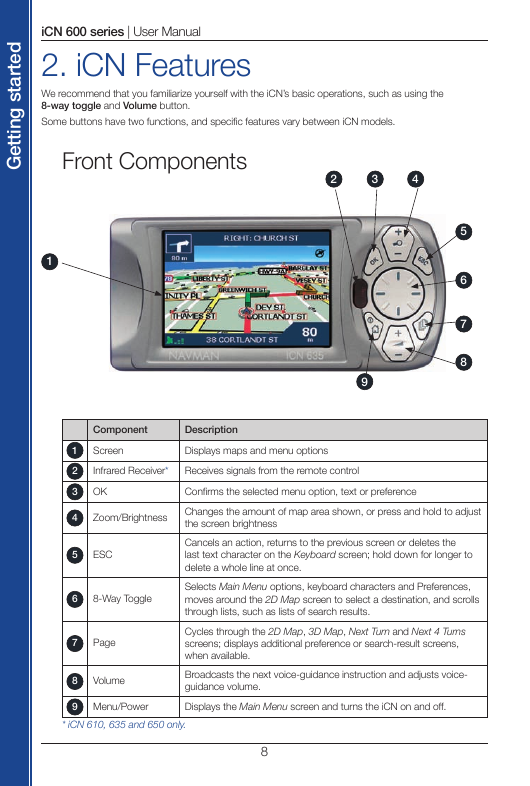

iCN 600 series | User Manual d 2. iCN Features e t r a t s g n i t t e G We recommend that you familiarize yourself with the iCN’s basic operations, such as using the 8-way toggle and Volume button. Some buttons have two functions, and speciﬁc features vary between iCN models. Front Components 2 3 4 1 5 6 7 8 9 Component Description Screen Displays maps and menu options Infrared Receiver* Receives signals from the remote control OK Conﬁrms the selected menu option, text or preference Zoom/Brightness Changes the amount of map area shown, or press and hold to adjust the screen brightness ESC 8-Way Toggle Page Volume Cancels an action, returns to the previous screen or deletes the last text character on the Keyboard screen; hold down for longer to delete a whole line at once. Selects Main Menu options, keyboard characters and Preferences, moves around the 2D Map screen to select a destination, and scrolls through lists, such as lists of search results. Cycles through the 2D Map, 3D Map, Next Turn and Next 4 Turns screens; displays additional preference or search-result screens, when available. Broadcasts the next voice-guidance instruction and adjusts voice- guidance volume. 1 2 3 4 5 6 7 8 9 Menu/Power Displays the Main Menu screen and turns the iCN on and off. * iCN 610, 635 and 650 only. 8
