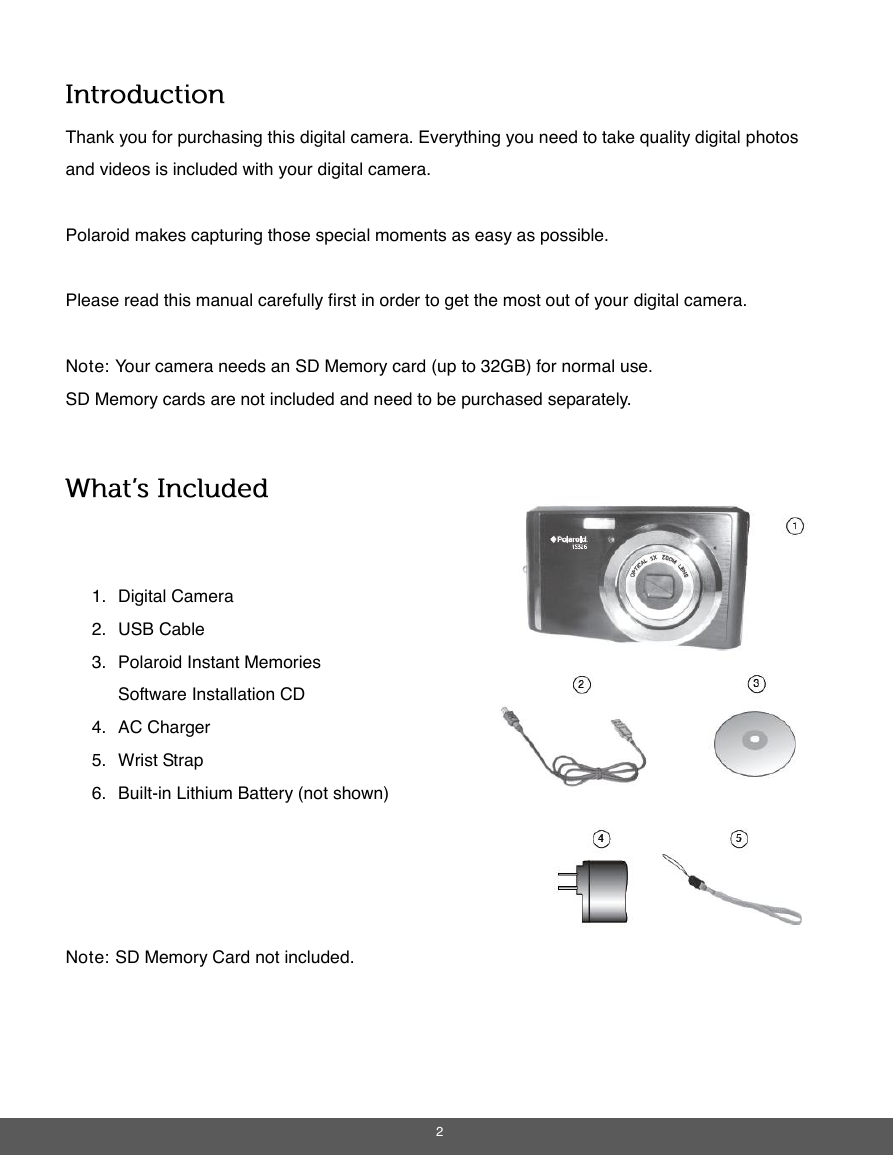

Thank you for purchasing this digital camera. Everything you need to take quality digital photos and videos is included with your digital camera. Polaroid makes capturing those special moments as easy as possible. Please read this manual carefully first in order to get the most out of your digital camera. Note: Your camera needs an SD Memory card (up to 32GB) for normal use. SD Memory cards are not included and need to be purchased separately. 1. Digital Camera 2. USB Cable 3. Polaroid Instant Memories Software Installation CD 4. AC Charger 5. Wrist Strap 6. Built-in Lithium Battery (not shown) Note: SD Memory Card not included. 2

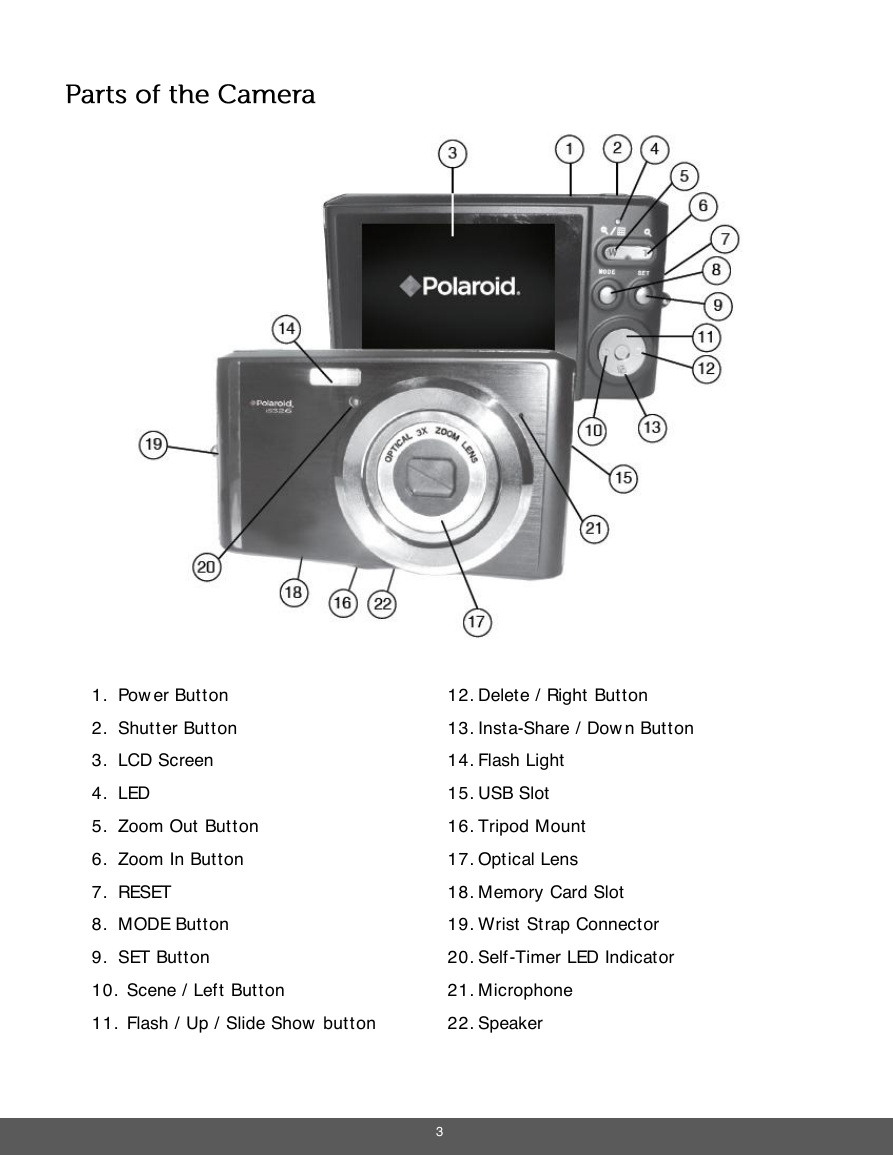

1. Pow er Button 2. Shutter Button 3. LCD Screen 4. LED 5. Zoom Out Button 6. Zoom In Button 7. RESET 8. MODE Button 9. SET Button 12. Delete / Right Button 13. Insta-Share / Dow n Button 14. Flash Light 15. USB Slot 16. Tripod Mount 17. Optical Lens 18. Memory Card Slot 19. Wrist Strap Connector 20. Self-Timer LED Indicator 10. Scene / Left Button 21. Microphone 11. Flash / Up / Slide Show button 22. Speaker 3

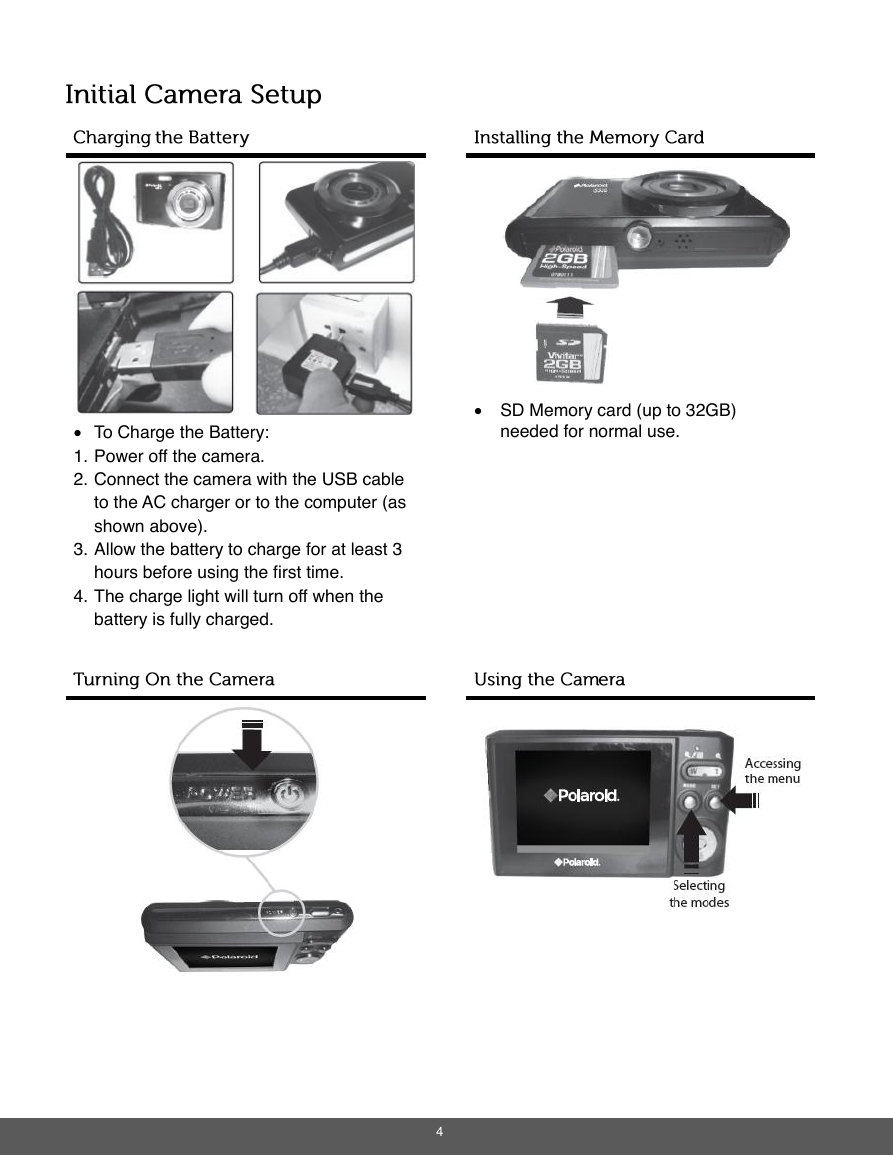

 To Charge the Battery: 1. Power off the camera. 2. Connect the camera with the USB cable to the AC charger or to the computer (as shown above). 3. Allow the battery to charge for at least 3 hours before using the first time. 4. The charge light will turn off when the battery is fully charged.  SD Memory card (up to 32GB) needed for normal use. 4

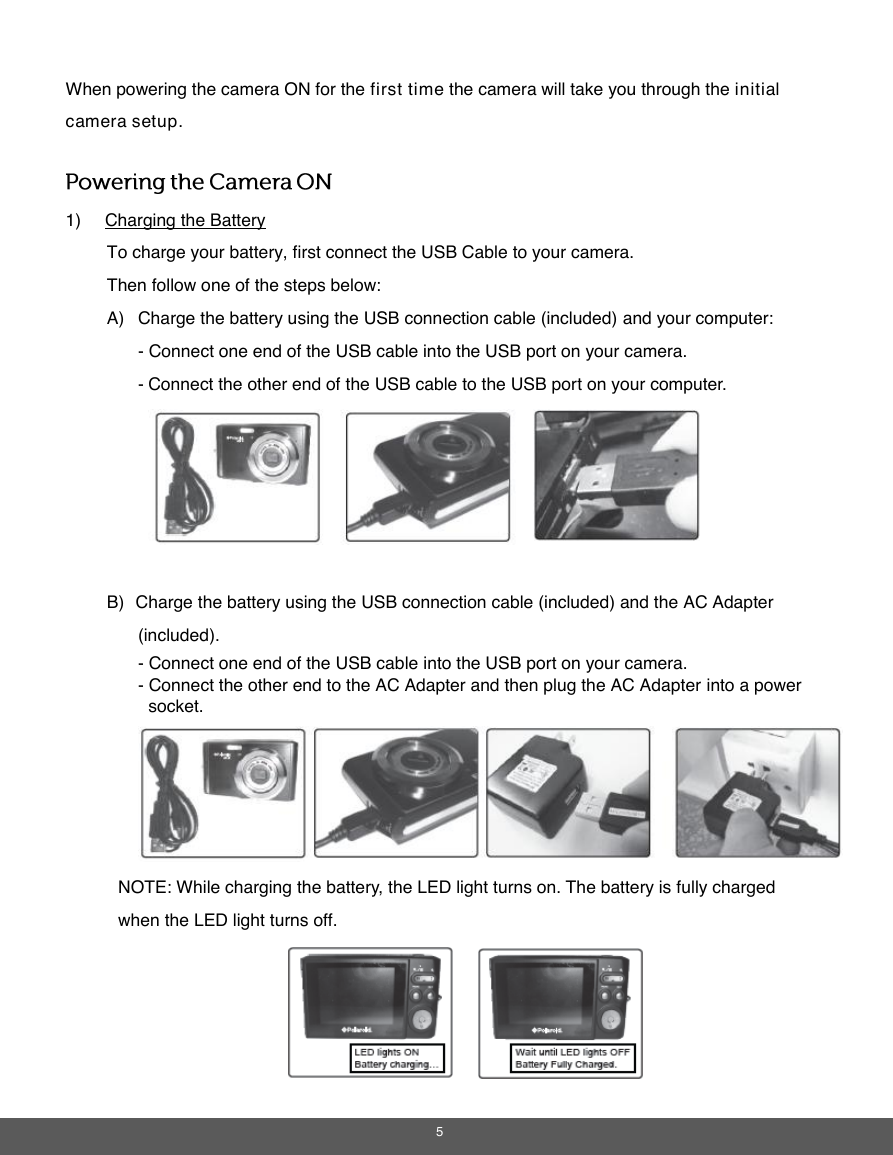

When powering the camera ON for the first time the camera will take you through the initial camera setup. 1) Charging the Battery To charge your battery, first connect the USB Cable to your camera. Then follow one of the steps below: A) Charge the battery using the USB connection cable (included) and your computer: - Connect one end of the USB cable into the USB port on your camera. - Connect the other end of the USB cable to the USB port on your computer. B) Charge the battery using the USB connection cable (included) and the AC Adapter (included). - Connect one end of the USB cable into the USB port on your camera. - Connect the other end to the AC Adapter and then plug the AC Adapter into a power socket. NOTE: While charging the battery, the LED light turns on. The battery is fully charged when the LED light turns off. 5

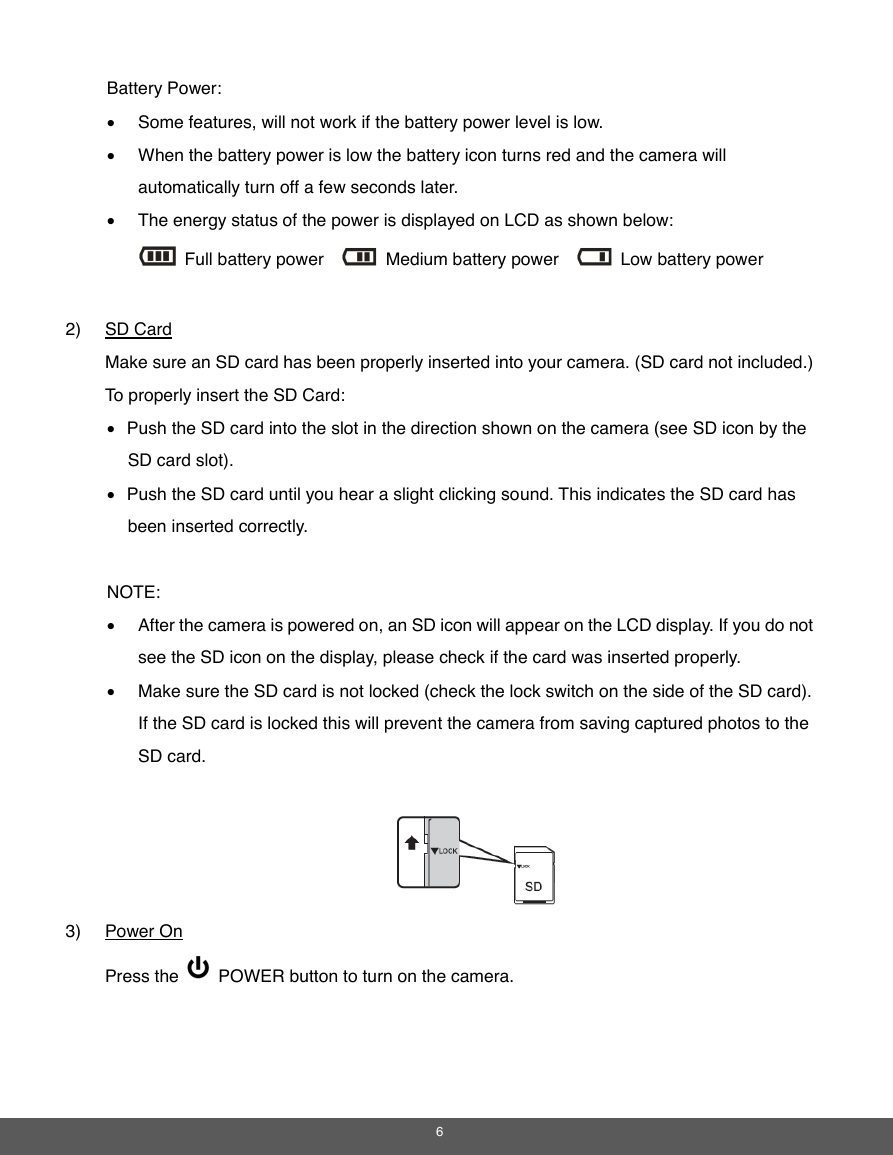

Battery Power:  Some features, will not work if the battery power level is low.  When the battery power is low the battery icon turns red and the camera will automatically turn off a few seconds later.  The energy status of the power is displayed on LCD as shown below: Full battery power Medium battery power Low battery power 2) SD Card Make sure an SD card has been properly inserted into your camera. (SD card not included.) To properly insert the SD Card:  Push the SD card into the slot in the direction shown on the camera (see SD icon by the SD card slot).  Push the SD card until you hear a slight clicking sound. This indicates the SD card has been inserted correctly. NOTE:  After the camera is powered on, an SD icon will appear on the LCD display. If you do not see the SD icon on the display, please check if the card was inserted properly.  Make sure the SD card is not locked (check the lock switch on the side of the SD card). If the SD card is locked this will prevent the camera from saving captured photos to the SD card. 3) Power On Press the POWER button to turn on the camera. 6

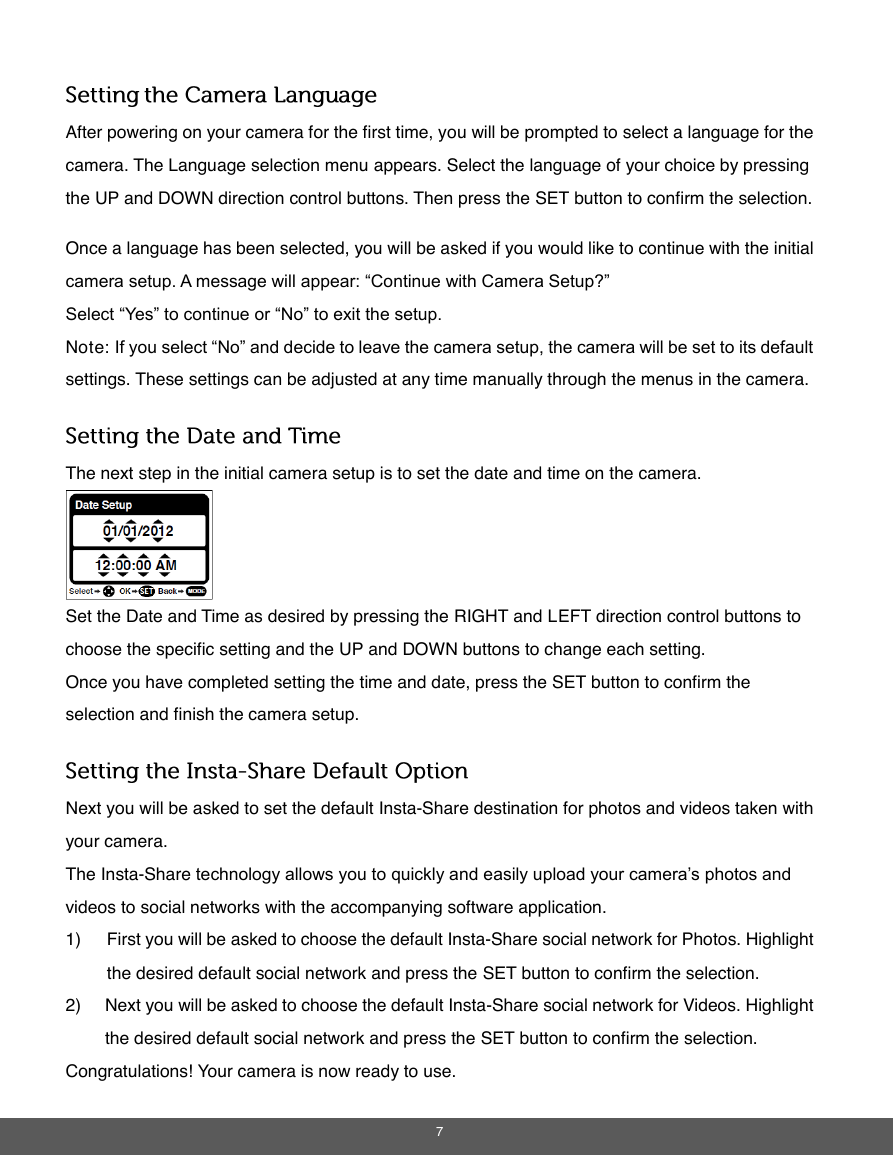

After powering on your camera for the first time, you will be prompted to select a language for the camera. The Language selection menu appears. Select the language of your choice by pressing the UP and DOWN direction control buttons. Then press the SET button to confirm the selection. Once a language has been selected, you will be asked if you would like to continue with the initial camera setup. A message will appear: “Continue with Camera Setup?” Select “Yes” to continue or “No” to exit the setup. Note: If you select “No” and decide to leave the camera setup, the camera will be set to its default settings. These settings can be adjusted at any time manually through the menus in the camera. The next step in the initial camera setup is to set the date and time on the camera. Set the Date and Time as desired by pressing the RIGHT and LEFT direction control buttons to choose the specific setting and the UP and DOWN buttons to change each setting. Once you have completed setting the time and date, press the SET button to confirm the selection and finish the camera setup. Next you will be asked to set the default Insta-Share destination for photos and videos taken with your camera. The Insta-Share technology allows you to quickly and easily upload your camera’s photos and videos to social networks with the accompanying software application. 1) First you will be asked to choose the default Insta-Share social network for Photos. Highlight the desired default social network and press the SET button to confirm the selection. 2) Next you will be asked to choose the default Insta-Share social network for Videos. Highlight the desired default social network and press the SET button to confirm the selection. Congratulations! Your camera is now ready to use. 7
