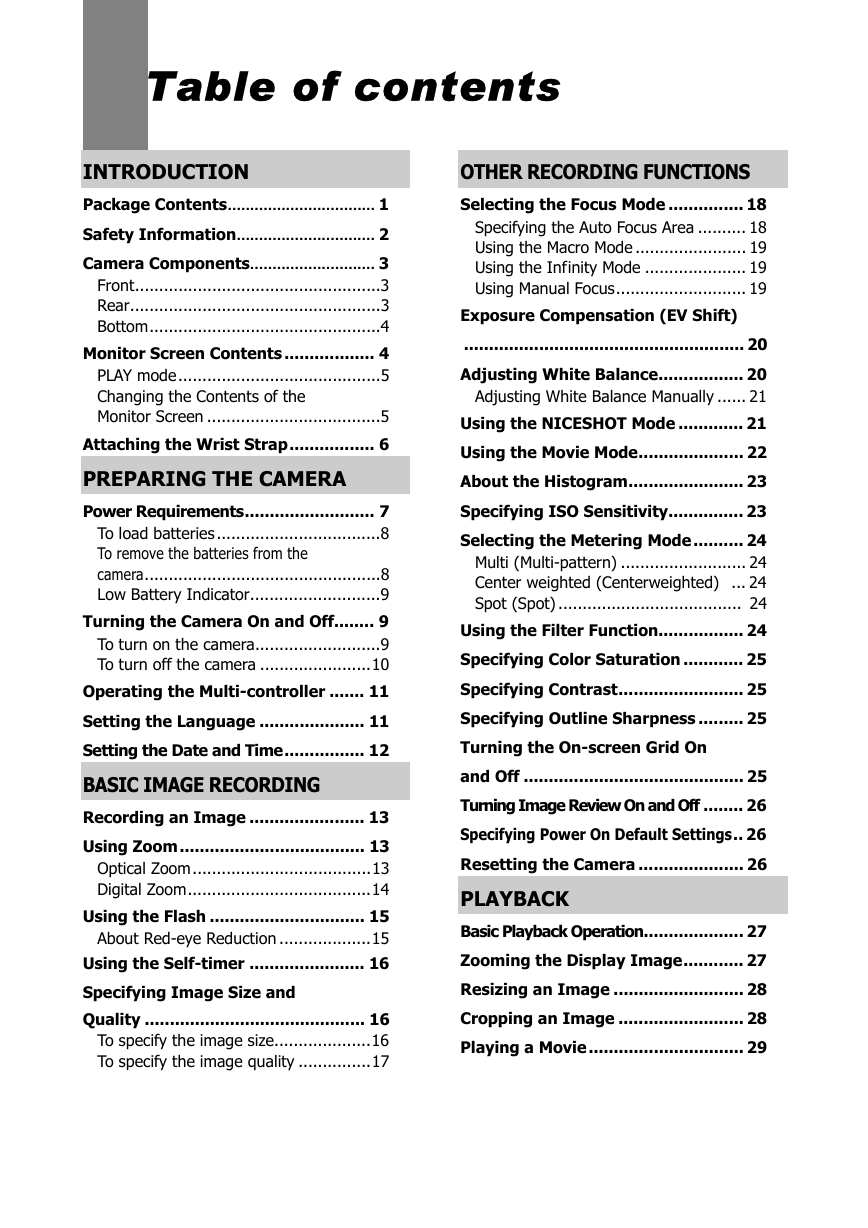

Table of contents INTRODUCTION Package Contents................................. 1 Safety Information............................... 2 Camera Components............................ 3 Front...................................................3 Rear....................................................3 Bottom................................................4 Monitor Screen Contents .................. 4 PLAY mode..........................................5 Changing the Contents of the Monitor Screen ....................................5 Attaching the Wrist Strap................. 6 PREPARING THE CAMERA Power Requirements.......................... 7 To load batteries..................................8 To remove the batteries from the camera.................................................8 Low Battery Indicator...........................9 Turning the Camera On and Off........ 9 To turn on the camera..........................9 To turn off the camera .......................10 Operating the Multi-controller ....... 11 Setting the Language ..................... 11 Setting the Date and Time................ 12 BASIC IMAGE RECORDING Recording an Image ....................... 13 Using Zoom..................................... 13 Optical Zoom.....................................13 Digital Zoom......................................14 Using the Flash ............................... 15 About Red-eye Reduction ...................15 Using the Self-timer ....................... 16 Specifying Image Size and Quality ............................................ 16 To specify the image size....................16 To specify the image quality ...............17 OTHER RECORDING FUNCTIONS Selecting the Focus Mode ............... 18 Specifying the Auto Focus Area .......... 18 Using the Macro Mode ....................... 19 Using the Infinity Mode ..................... 19 Using Manual Focus........................... 19 Exposure Compensation (EV Shift) ........................................................ 20 Adjusting White Balance................. 20 Adjusting White Balance Manually ...... 21 Using the NICESHOT Mode ............. 21 Using the Movie Mode..................... 22 About the Histogram....................... 23 Specifying ISO Sensitivity............... 23 Selecting the Metering Mode .......... 24 Multi (Multi-pattern) .......................... 24 Center weighted (Centerweighted) ... 24 Spot (Spot) ...................................... 24 Using the Filter Function................. 24 Specifying Color Saturation ............ 25 Specifying Contrast......................... 25 Specifying Outline Sharpness ......... 25 Turning the On-screen Grid On and Off ............................................ 25 Turning Image Review On and Off ........ 26 Specifying Power On Default Settings.. 26 Resetting the Camera ..................... 26 PLAYBACK Basic Playback Operation.................... 27 Zooming the Display Image............ 27 Resizing an Image .......................... 28 Cropping an Image ......................... 28 Playing a Movie ............................... 29

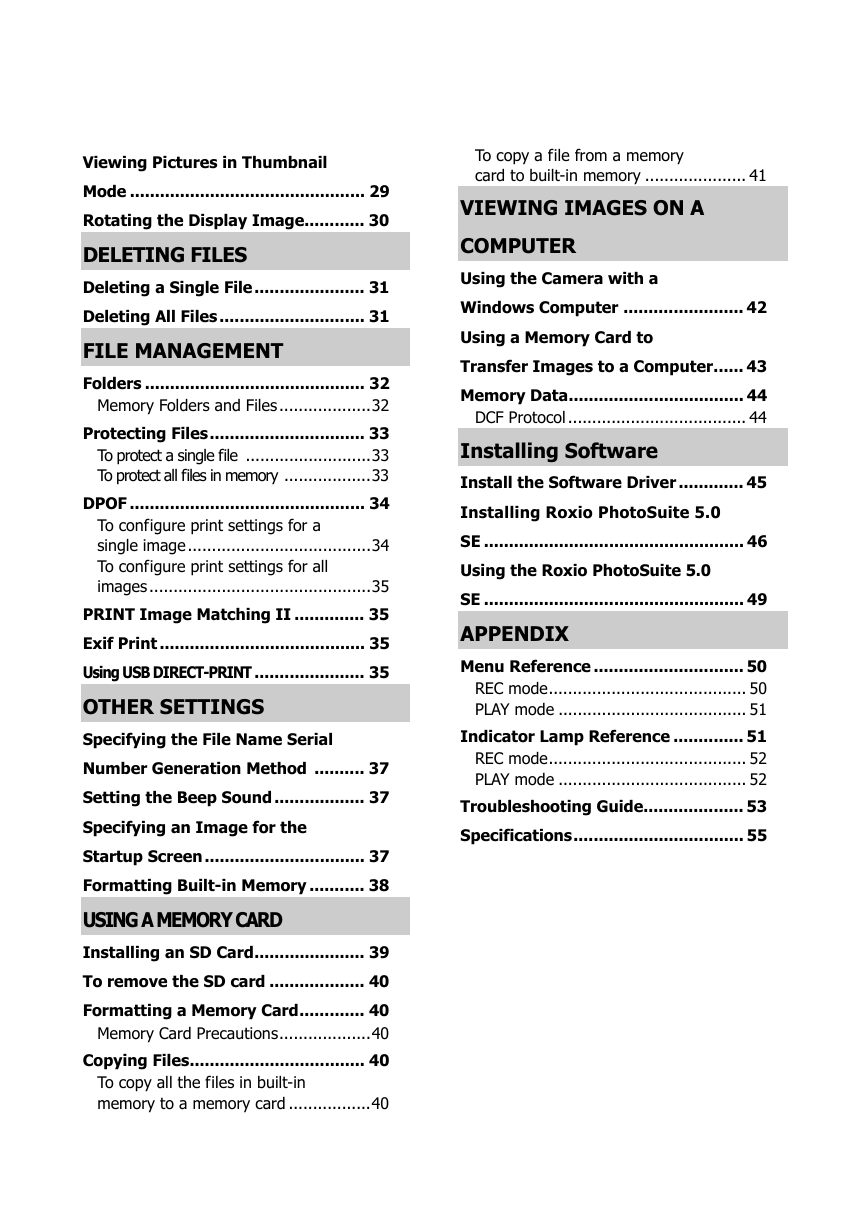

To copy a file from a memory card to built-in memory ..................... 41 VIEWING IMAGES ON A COMPUTER Using the Camera with a Windows Computer ........................ 42 Using a Memory Card to Transfer Images to a Computer...... 43 Memory Data................................... 44 DCF Protocol..................................... 44 Installing Software Install the Software Driver ............. 45 Installing Roxio PhotoSuite 5.0 SE .................................................... 46 Using the Roxio PhotoSuite 5.0 SE .................................................... 49 APPENDIX Menu Reference .............................. 50 REC mode......................................... 50 PLAY mode ....................................... 51 Indicator Lamp Reference .............. 51 REC mode......................................... 52 PLAY mode ....................................... 52 Troubleshooting Guide.................... 53 Specifications.................................. 55 Viewing Pictures in Thumbnail Mode ............................................... 29 Rotating the Display Image............ 30 DELETING FILES Deleting a Single File...................... 31 Deleting All Files ............................. 31 FILE MANAGEMENT Folders ............................................ 32 Memory Folders and Files...................32 Protecting Files............................... 33 To protect a single file ..........................33 To protect all files in memory ..................33 DPOF ............................................... 34 To configure print settings for a single image......................................34 To configure print settings for all images..............................................35 PRINT Image Matching II .............. 35 Exif Print ......................................... 35 Using USB DIRECT-PRINT ...................... 35 OTHER SETTINGS Specifying the File Name Serial Number Generation Method .......... 37 Setting the Beep Sound .................. 37 Specifying an Image for the Startup Screen................................ 37 Formatting Built-in Memory ........... 38 USING A MEMORY CARD Installing an SD Card...................... 39 To remove the SD card ................... 40 Formatting a Memory Card............. 40 Memory Card Precautions...................40 Copying Files................................... 40 To copy all the files in built-in memory to a memory card .................40

INTRODUCTION Package Contents Please contact your dealer immediately if any of the items below are missing or damaged. Camera 2 AA-size rechargeable nickel-metal hydride batteries USB cable User Manual CD-ROM Strap Charger Unit Soft Case (The shape of the charger unit plug varies according to country or geographic area.) 1

Safety Information Before using the camera, please ensure that you read and understand the safety precautions described below. Always ensure that the camera is operated correctly. Never operate the camera inside of an aircraft or anywhere else where operation of such devices is restricted. Improper use creates the risk of serious accident. Do not aim the camera directly into the sun or other intense light sources which could damage your eyesight. Do not try to open the case of the camera or attempt to modify this camera in any way. High-voltage internal components create the risk of electric shock when exposed. Maintenance and repairs should be carried out only by authorized service providers. Do not fire the flash too close to the eyes of animals or people, especially for young children. Eye damage may result. In particular, remain at least one meter away from infants when using flash. Keep the camera away from water and other liquids. Do not use the camera with wet hands. Never use the camera in the rain or snow. Moisture creates the danger of fire and electric shock. Keep the camera and its accessories out of the reach of children and animals to prevent accidents or damage to the camera. If you notice smoke or a strange odor coming from the camera, turn the power off immediately and unplug the AC adapter from the power outlet. Take the camera to the nearest authorized service center for repair. Never attempt to repair the camera on your own. Use only the recommended power accessories. Use of power sources not expressly recommended for this equipment may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards. Never apply too much force when cleaning the surface of the lens. Doing so can scratch the lens surface and cause malfunction. The camera may become slightly warm during use. This does not indicate malfunction. If the exterior of the camera needs cleaning, wipe it with a soft, dry cloth. 2

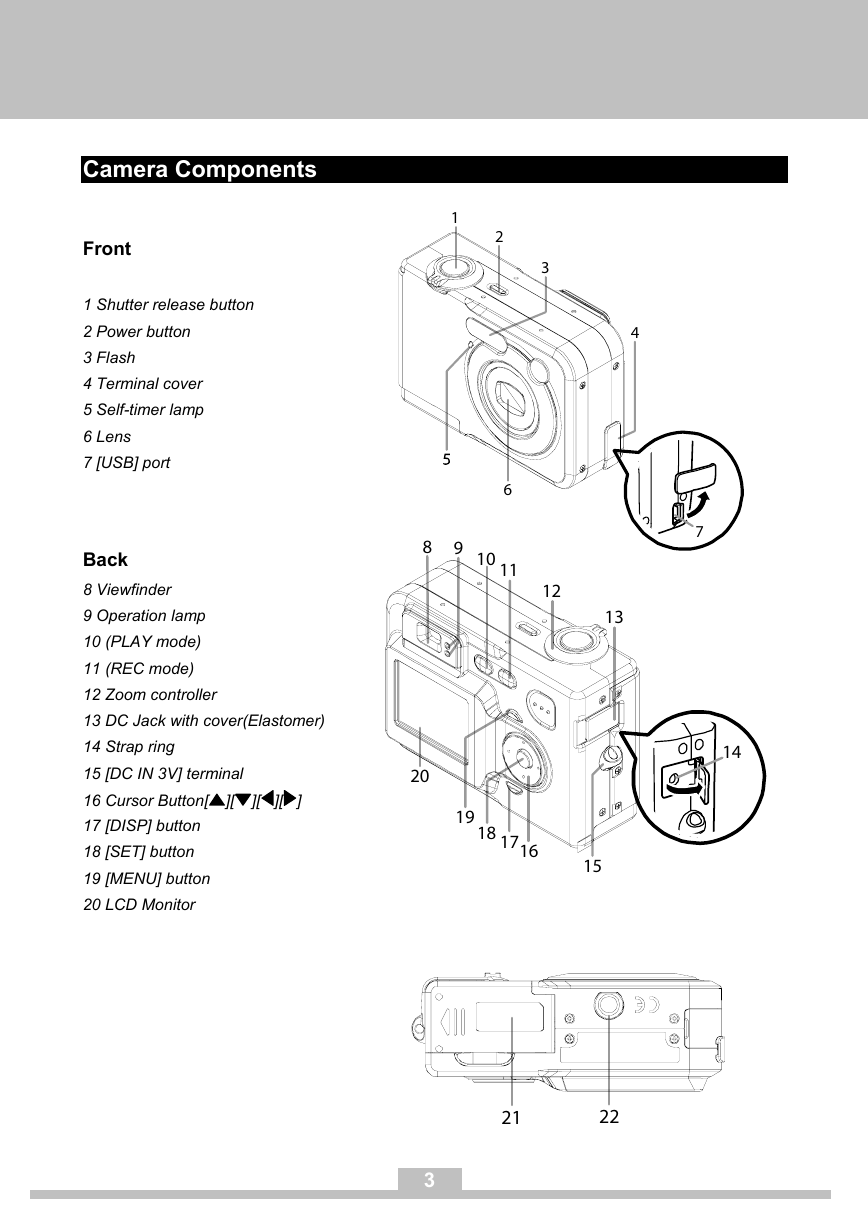

Camera Components Front 1 Shutter release button 2 Power button 3 Flash 4 Terminal cover 5 Self-timer lamp 6 Lens 7 [USB] port Back 8 Viewfinder 9 Operation lamp 10 (PLAY mode) 11 (REC mode) 12 Zoom controller 13 DC Jack with cover(Elastomer) 14 Strap ring 15 [DC IN 3V] terminal 16 Cursor Button[ 17 [DISP] button 18 [SET] button 19 [MENU] button 20 LCD Monitor ][ ][ ][ ] 7 14 1 2 3 4 6 8 9 10 11 12 13 19 18 1716 15 21 22 20 3

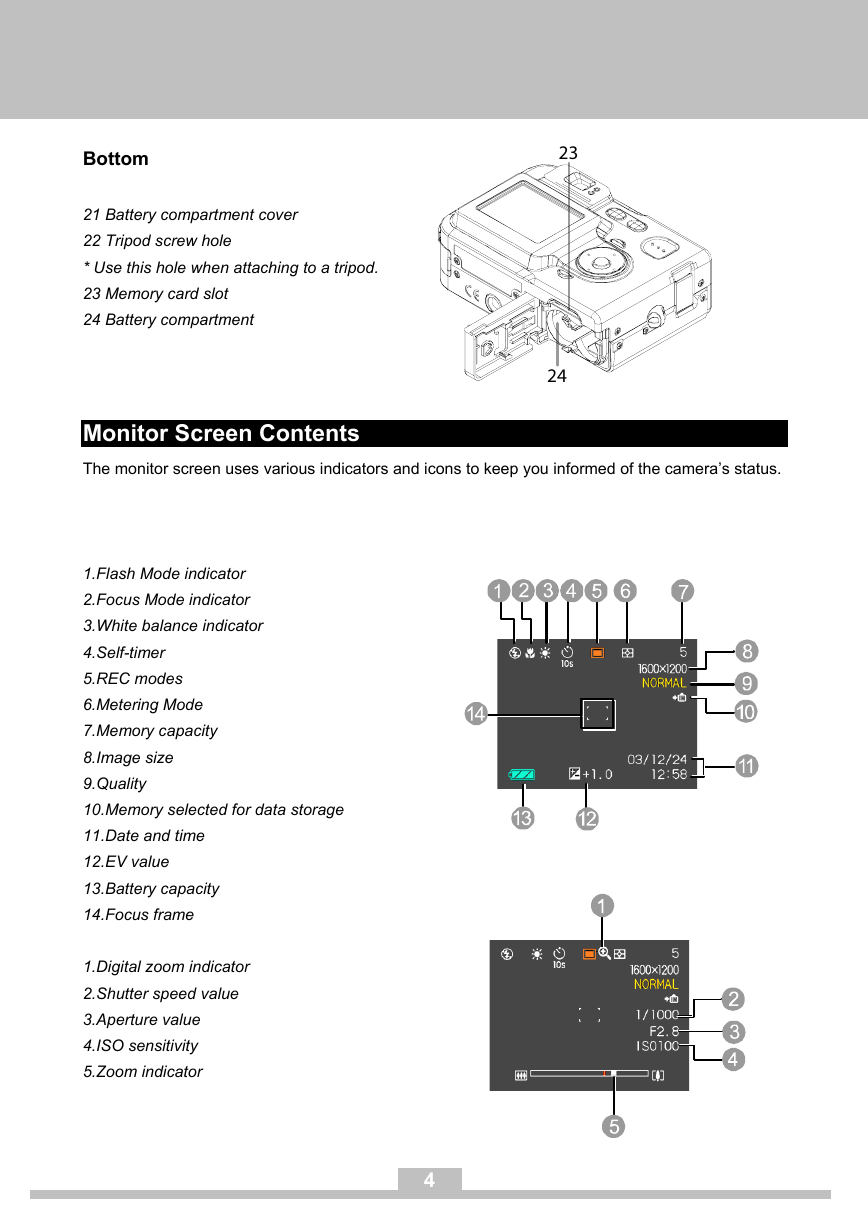

Bottom 21 Battery compartment cover 22 Tripod screw hole * Use this hole when attaching to a tripod. 23 Memory card slot 24 Battery compartment 23 24 Monitor Screen Contents The monitor screen uses various indicators and icons to keep you informed of the camera’s status. 1.Flash Mode indicator 2.Focus Mode indicator 3.White balance indicator 4.Self-timer 5.REC modes 6.Metering Mode 7.Memory capacity 8.Image size 9.Quality 10.Memory selected for data storage 11.Date and time 12.EV value 13.Battery capacity 14.Focus frame 1.Digital zoom indicator 2.Shutter speed value 3.Aperture value 4.ISO sensitivity 5.Zoom indicator 4

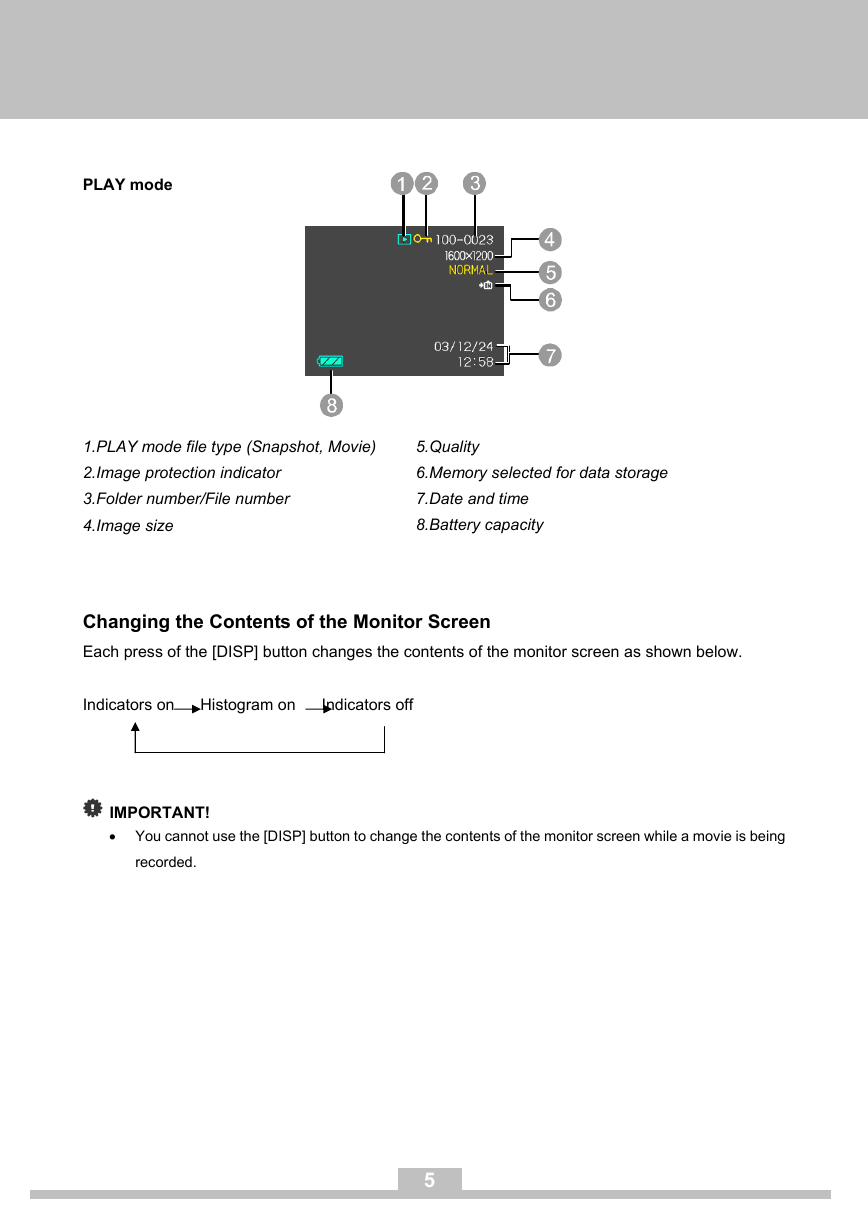

PLAY mode 1.PLAY mode file type (Snapshot, Movie) 2.Image protection indicator 3.Folder number/File number 4.Image size 5.Quality 6.Memory selected for data storage 7.Date and time 8.Battery capacity Changing the Contents of the Monitor Screen Each press of the [DISP] button changes the contents of the monitor screen as shown below. Indicators on Histogram on Indicators off IMPORTANT! You cannot use the [DISP] button to change the contents of the monitor screen while a movie is being recorded. 5

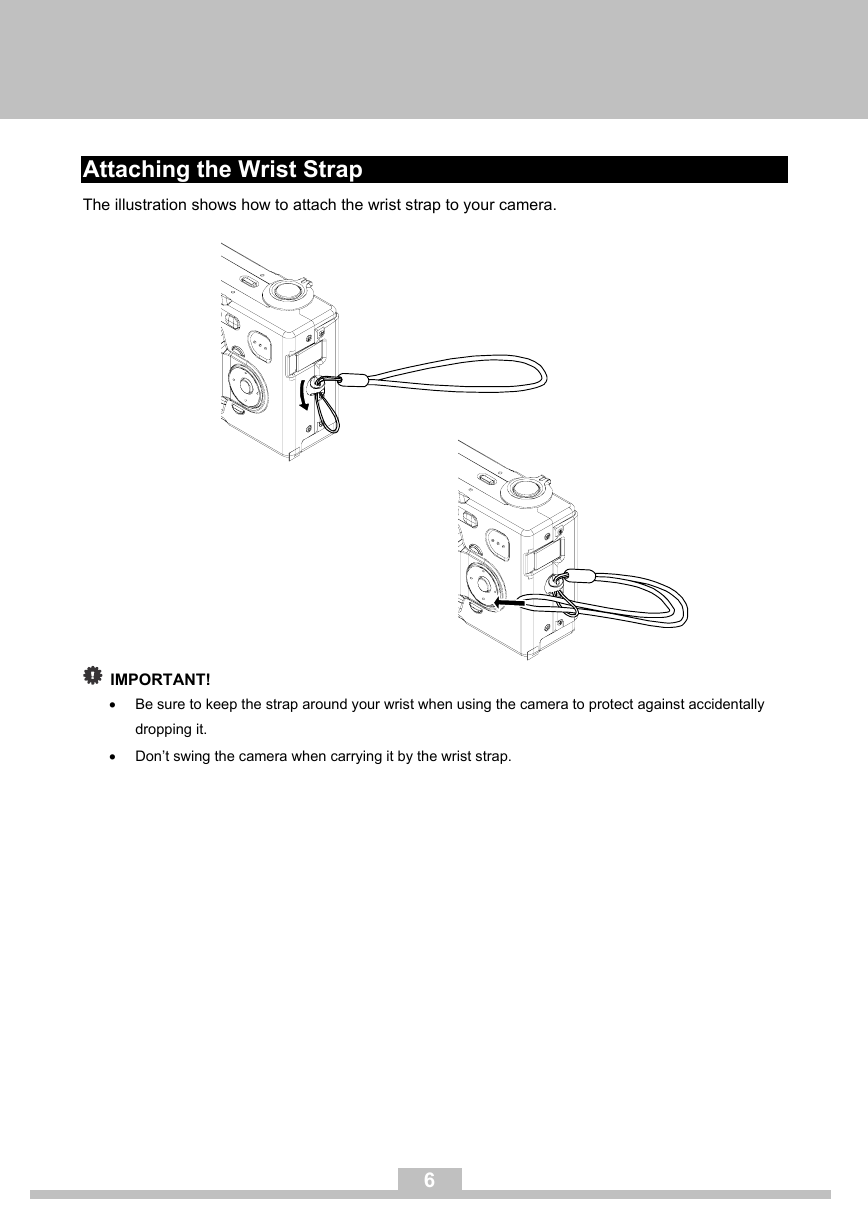

Attaching the Wrist Strap The illustration shows how to attach the wrist strap to your camera. IMPORTANT! Be sure to keep the strap around your wrist when using the camera to protect against accidentally dropping it. Don’t swing the camera when carrying it by the wrist strap. 6
