6.0z3 EasyShot User’s Guide User’s Guide www.jenoptik-camera.com

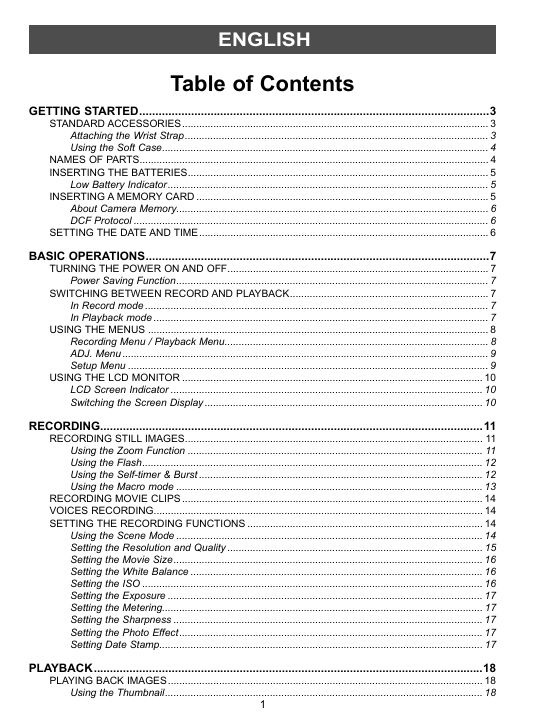

ENGLISH Table of Contents GETTING STARTED ............................................................................................................3 STANDARD ACCESSORIES ............................................................................................................ 3 Attaching the Wrist Strap ........................................................................................................... 3 Using the Soft Case ................................................................................................................... 4 NAMES OF PARTS ........................................................................................................................... 4 INSERTING THE BATTERIES .......................................................................................................... 5 Low Battery Indicator ................................................................................................................. 5 INSERTING A MEMORY CARD ....................................................................................................... 5 About Camera Memory .............................................................................................................. 6 DCF Protocol ............................................................................................................................. 6 SETTING THE DATE AND TIME ...................................................................................................... 6 BASIC OPERATIONS ..........................................................................................................7 TURNING THE POWER ON AND OFF ............................................................................................ 7 Power Saving Function .............................................................................................................. 7 SWITCHING BETWEEN RECORD AND PLAYBACK ...................................................................... 7 In Record mode ......................................................................................................................... 7 In Playback mode ...................................................................................................................... 7 USING THE MENUS ........................................................................................................................ 8 Recording Menu / Playback Menu ............................................................................................. 8 ADJ. Menu ................................................................................................................................. 9 Setup Menu ............................................................................................................................... 9 USING THE LCD MONITOR .......................................................................................................... 10 LCD Screen Indicator .............................................................................................................. 10 Switching the Screen Display .................................................................................................. 10 RECORDING ......................................................................................................................11 RECORDING STILL IMAGES ......................................................................................................... 11 Using the Zoom Function ........................................................................................................ 11 Using the Flash ........................................................................................................................ 12 Using the Self-timer & Burst .................................................................................................... 12 Using the Macro mode ............................................................................................................ 13 RECORDING MOVIE CLIPS .......................................................................................................... 14 VOICES RECORDING .................................................................................................................... 14 SETTING THE RECORDING FUNCTIONS ................................................................................... 14 Using the Scene Mode ............................................................................................................ 14 Setting the Resolution and Quality .......................................................................................... 15 Setting the Movie Size ............................................................................................................. 16 Setting the White Balance ....................................................................................................... 16 Setting the ISO ........................................................................................................................ 16 Setting the Exposure ............................................................................................................... 17 Setting the Metering ................................................................................................................. 17 Setting the Sharpness ............................................................................................................. 17 Setting the Photo Effect ........................................................................................................... 17 Setting Date Stamp .................................................................................................................. 17 PLAYBACK ........................................................................................................................18 PLAYING BACK IMAGES ............................................................................................................... 18 Using the Thumbnail ................................................................................................................ 18 1

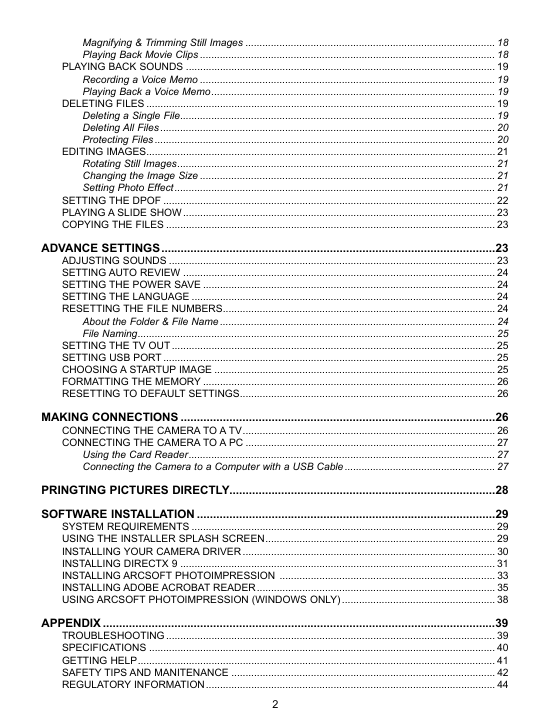

Magnifying & Trimming Still Images ........................................................................................ 18 Playing Back Movie Clips ........................................................................................................ 18 PLAYING BACK SOUNDS ............................................................................................................. 19 Recording a Voice Memo ........................................................................................................ 19 Playing Back a Voice Memo .................................................................................................... 19 DELETING FILES ........................................................................................................................... 19 Deleting a Single File ............................................................................................................... 19 Deleting All Files ...................................................................................................................... 20 Protecting Files ........................................................................................................................ 20 EDITING IMAGES ........................................................................................................................... 21 Rotating Still Images ................................................................................................................ 21 Changing the Image Size ........................................................................................................ 21 Setting Photo Effect ................................................................................................................. 21 SETTING THE DPOF ..................................................................................................................... 22 PLAYING A SLIDE SHOW .............................................................................................................. 23 COPYING THE FILES .................................................................................................................... 23 ADVANCE SETTINGS .......................................................................................................23 ADJUSTING SOUNDS ................................................................................................................... 23 SETTING AUTO REVIEW .............................................................................................................. 24 SETTING THE POWER SAVE ....................................................................................................... 24 SETTING THE LANGUAGE ........................................................................................................... 24 RESETTING THE FILE NUMBERS ................................................................................................ 24 About the Folder & File Name ................................................................................................. 24 File Naming .............................................................................................................................. 25 SETTING THE TV OUT .................................................................................................................. 25 SETTING USB PORT ..................................................................................................................... 25 CHOOSING A STARTUP IMAGE ................................................................................................... 25 FORMATTING THE MEMORY ....................................................................................................... 26 RESETTING TO DEFAULT SETTINGS .......................................................................................... 26 MAKING CONNECTIONS .................................................................................................26 CONNECTING THE CAMERA TO A TV ......................................................................................... 26 CONNECTING THE CAMERA TO A PC ........................................................................................ 27 Using the Card Reader ............................................................................................................ 27 Connecting the Camera to a Computer with a USB Cable ..................................................... 27 PRINGTING PICTURES DIRECTLY ..................................................................................28 SOFTWARE INSTALLATION ............................................................................................29 SYSTEM REQUIREMENTS ........................................................................................................... 29 USING THE INSTALLER SPLASH SCREEN ................................................................................. 29 INSTALLING YOUR CAMERA DRIVER ......................................................................................... 30 INSTALLING DIRECTX 9 ............................................................................................................... 31 INSTALLING ARCSOFT PHOTOIMPRESSION ............................................................................ 33 INSTALLING ADOBE ACROBAT READER .................................................................................... 35 USING ARCSOFT PHOTOIMPRESSION (WINDOWS ONLY) ...................................................... 38 APPENDIX .........................................................................................................................39 TROUBLESHOOTING .................................................................................................................... 39 SPECIFICATIONS .......................................................................................................................... 40 GETTING HELP .............................................................................................................................. 41 SAFETY TIPS AND MANITENANCE ............................................................................................. 42 REGULATORY INFORMATION ...................................................................................................... 44 2

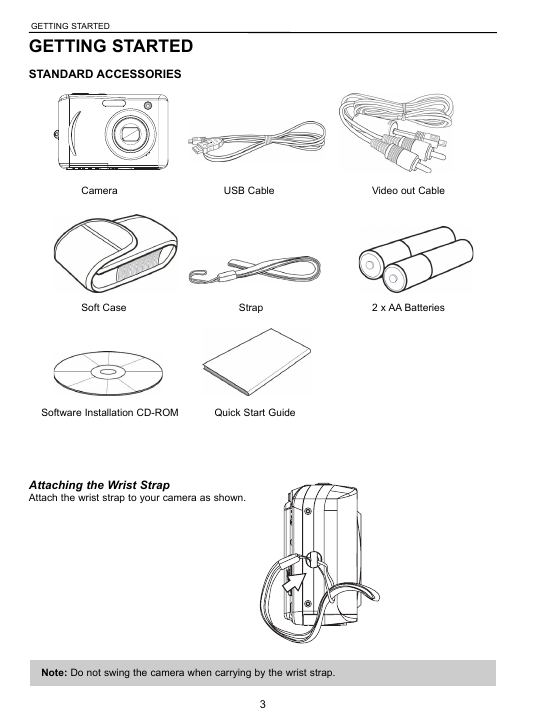

GETTING STARTED GETTING STARTED STANDARD ACCESSORIES Camera USB Cable Video out Cable Soft Case Strap 2 x AA Batteries Software Installation CD-ROM Quick Start Guide Attaching the Wrist Strap Attach the wrist strap to your camera as shown. Note: Do not swing the camera when carrying by the wrist strap. 3

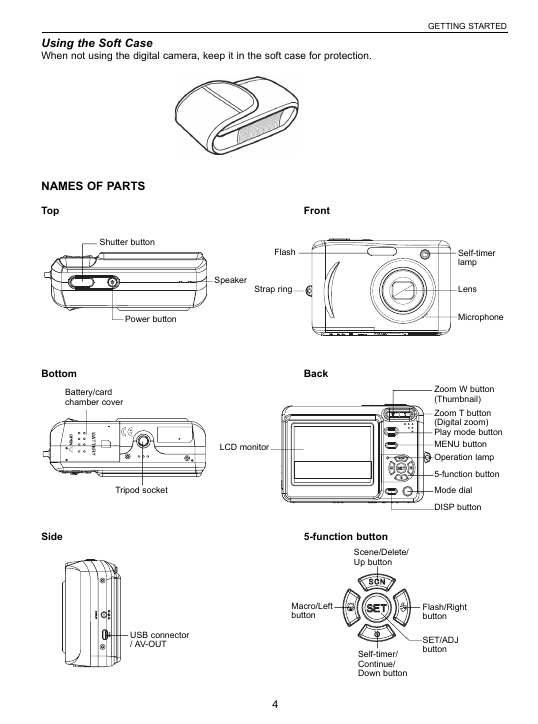

Using the Soft Case When not using the digital camera, keep it in the soft case for protection. GETTING STARTED NAMES OF PARTS Top Shutter button Power button Bottom Battery/card chamber cover Tripod socket Side USB connector / AV-OUT Front Flash Speaker Strap ring Back LCD monitor Self-timer lamp Lens Microphone Zoom W button (Thumbnail) Zoom T button (Digital zoom) Play mode button MENU button Operation lamp 5-function button Mode dial DISP button 5-function button Scene/Delete/ Up button Macro/Left button Flash/Right button SET/ADJ button Self-timer/ Continue/ Down button 4

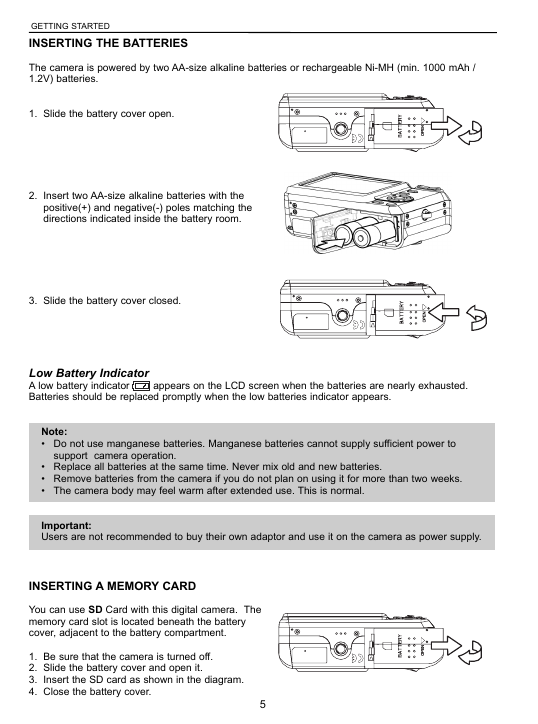

GETTING STARTED INSERTING THE BATTERIES The camera is powered by two AA-size alkaline batteries or rechargeable Ni-MH (min. 1000 mAh / 1.2V) batteries. 1. Slide the battery cover open. 2. Insert two AA-size alkaline batteries with the positive(+) and negative(-) poles matching the directions indicated inside the battery room. 3. Slide the battery cover closed. Low Battery Indicator A low battery indicator Batteries should be replaced promptly when the low batteries indicator appears. appears on the LCD screen when the batteries are nearly exhausted. Note: • Do not use manganese batteries. Manganese batteries cannot supply sufficient power to support camera operation. • Replace all batteries at the same time. Never mix old and new batteries. • Remove batteries from the camera if you do not plan on using it for more than two weeks. • The camera body may feel warm after extended use. This is normal. 640 320 160 Important: Users are not recommended to buy their own adaptor and use it on the camera as power supply. INSERTING A MEMORY CARD You can use SD Card with this digital camera. The memory card slot is located beneath the battery cover, adjacent to the battery compartment. 1. Be sure that the camera is turned off. 2. Slide the battery cover and open it. 3. Insert the SD card as shown in the diagram. 4. Close the battery cover. 5

To remove the memory card, gently press on the edge of the card and release it. Pull the card out and close the battery cover. GETTING STARTED About Camera Memory The digital camera is equipped with internal memory. If the memory card is not inserted in the camera, all images and movie clips recorded by the camera will be stored in the internal memory. If the memory card is inserted, images and movie clips are stored on the memory card. DCF Protocol The DCF protocol defines the format for image file data as well as the directory structure for the memory card. Images that are taken by a DCF camera can be viewed on DCF-compatible cameras from other manufacturers. SETTING THE DATE AND TIME When the camera is first turned on, the date and time setting will not be correct. So before using, be sure to set date and time. 1. Press the MENU button, using or to select SETUP ( ) and press the SET button. 2. Press or to select DATE & TIME ( ) then press or the SET button to launch the Date & Time screen. 3. Press or or to highlight another field. tto change the value of the highlighted field. Press 4. After adjusting the settings, press the SET or the MENU button to apply the setting. 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 640 320 160 Note: • • If you hold down If the batteries are removed for about two days, the Date & Time setting will be lost. In this case, make these settings again. , you can change the value quickly. or 640 320 640 6

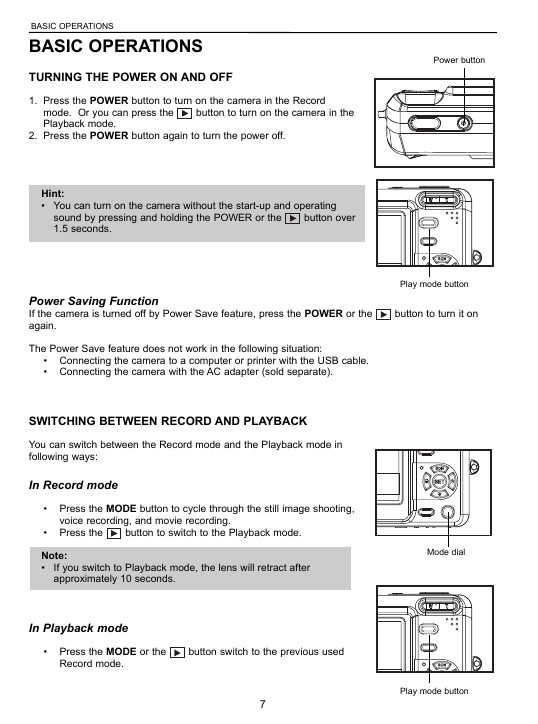

BASIC OPERATIONS BASIC OPERATIONS TURNING THE POWER ON AND OFF Power button 1. Press the POWER button to turn on the camera in the Record button to turn on the camera in the mode. Or you can press the Playback mode. 2. Press the POWER button again to turn the power off. 640 320 160 Hint: • You can turn on the camera without the start-up and operating sound by pressing and holding the POWER or the 1.5 seconds. 640 button over 320 160 Power Saving Function If the camera is turned off by Power Save feature, press the POWER or the again. The Power Save feature does not work in the following situation: • Connecting the camera to a computer or printer with the USB cable. • Connecting the camera with the AC adapter (sold separate). Play mode button button to turn it on 640 320 160 SWITCHING BETWEEN RECORD AND PLAYBACK You can switch between the Record mode and the Playback mode in following ways: In Record mode • Press the MODE button to cycle through the still image shooting, voice recording, and movie recording. button to switch to the Playback mode. • Press the Note: • 640 320 160 If you switch to Playback mode, the lens will retract after approximately 10 seconds. Mode dial In Playback mode • Press the MODE or the Record mode. button switch to the previous used 640 320 160 7 Play mode button
